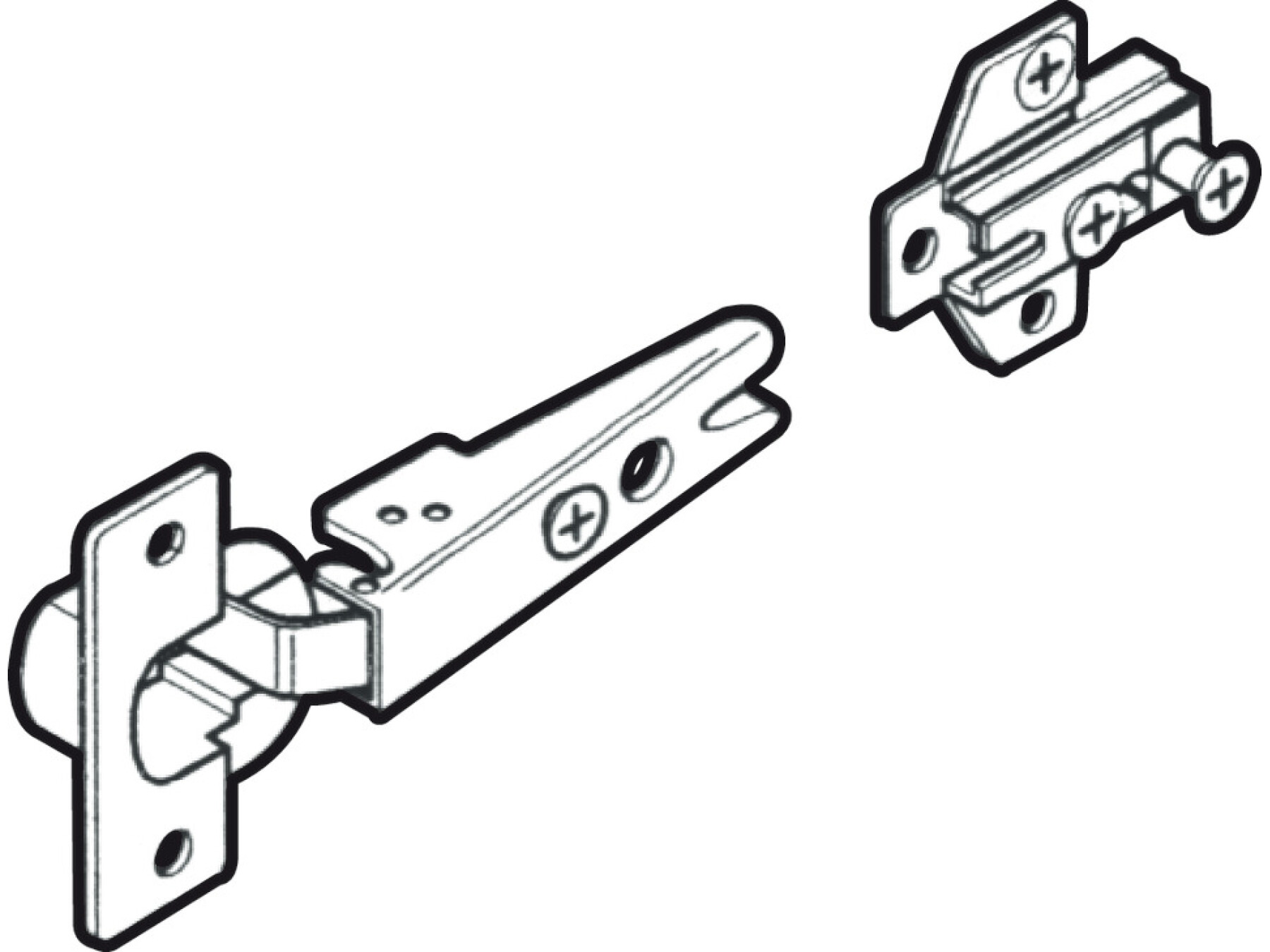

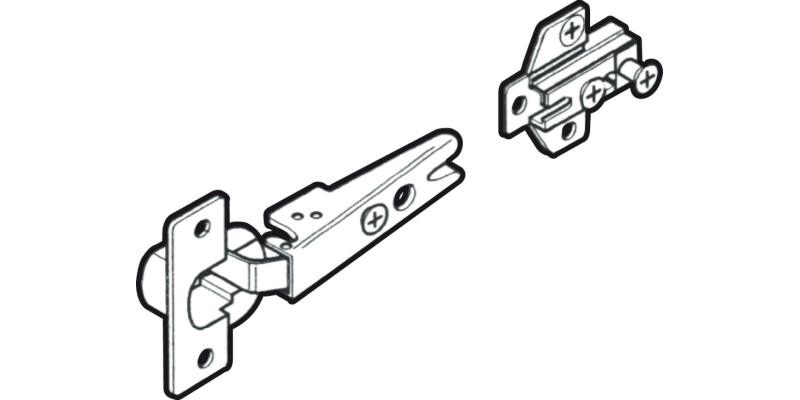

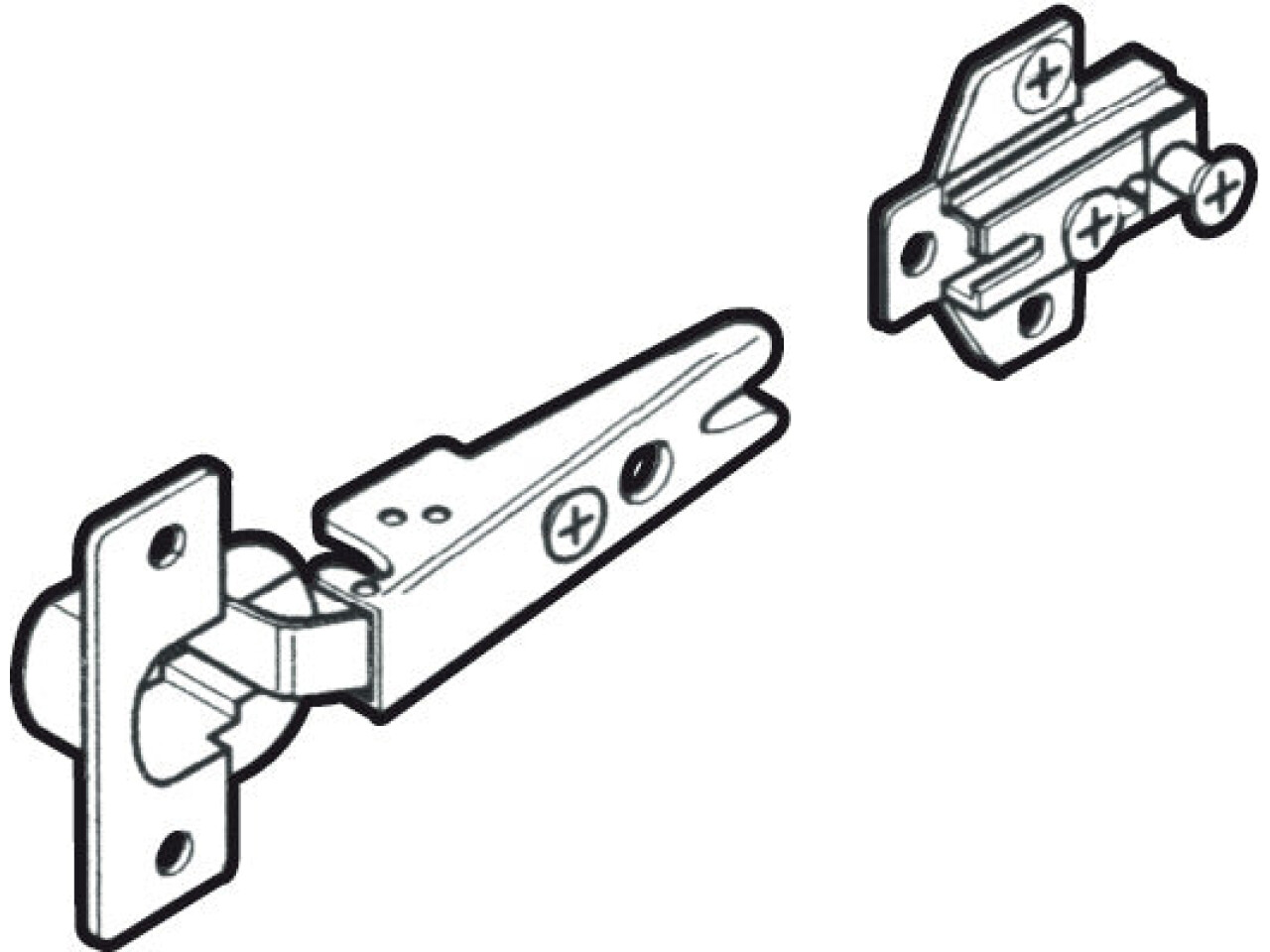

Accuride 1432 40mm Hinge Set-Overlay
Part Number: 408.24.093
For vertical use, Ø 40 mm cup hinge set for door thickness 19 mm, bright zinc plated steel
Price:
£53.63
Per Item
Cable system for synchronised slide operation Supplied with Set consists of 2 x 40 mm zinc clip on hinges, 2 x... Read More
Product Information
Product Details
Cable system for synchronised slide operation
Supplied with
Set consists of 2 x 40 mm zinc clip on hinges, 2 x 0 mm mounting base plates, 2 x 3 mm hinge base spacers, Assembly hardware
| Door height mm | Required hinges | Required sets |
|---|---|---|
| 915–1193 | 3 | 2 |
| 1194–1498 | 4 | 2 |
| 1499–1803 | 5 | 3 |
| 1804–2300 | 6 | 3 |

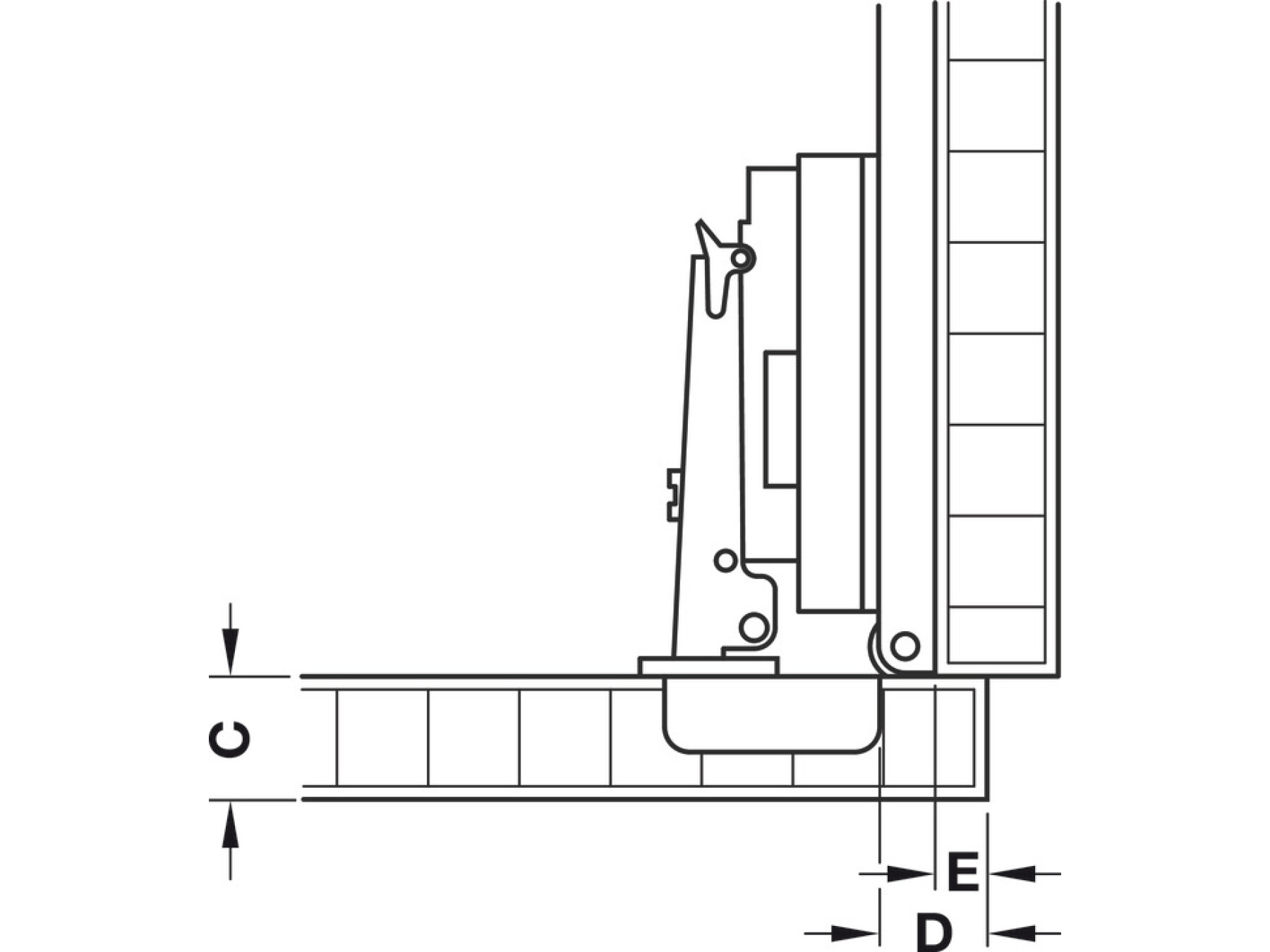

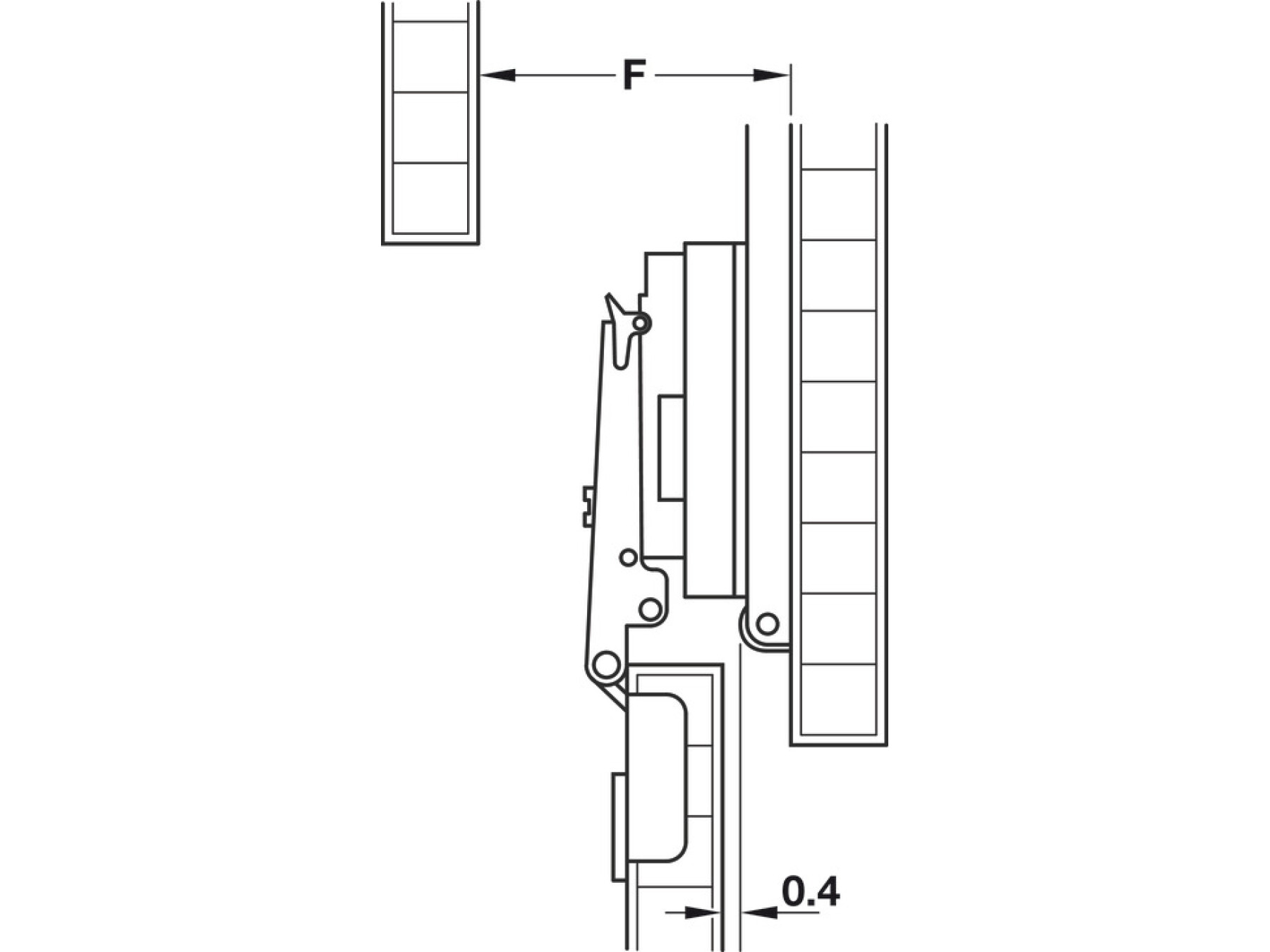

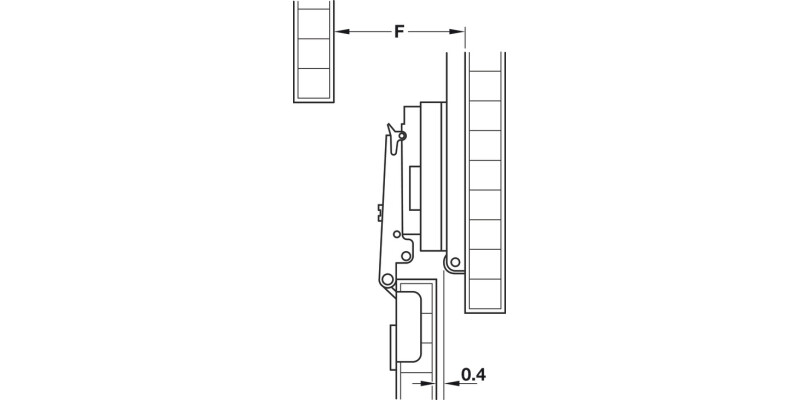

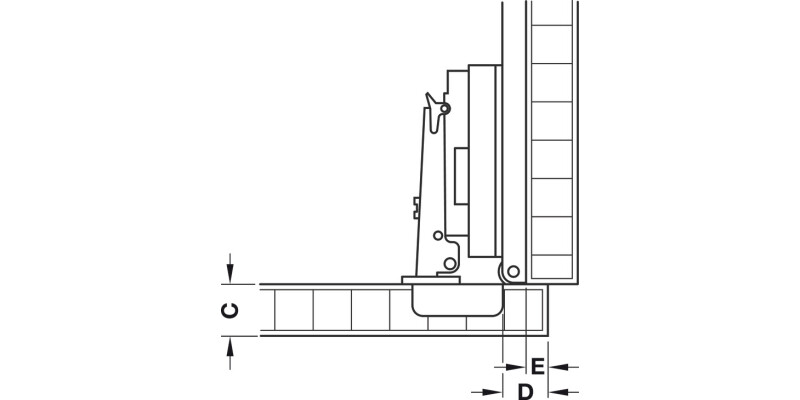

| Dim. C mm | Dim. C mm | Dim. E mm | Dim. F mm |
|---|---|---|---|
| 19 | 15 | 11.7 | 60 |
Please note - Hinges and plates are bright zinc plated steel
Specifications
For door thickness
≤19 mm
Cup drilling Ø
40.00 mm
Area of application
For wooden flaps
Installation
For screwing on
Order reference
Hinge carrier strips and pivot sliding door runners to be ordered separately
