Accuride 1316 Syncro Control Sys 400mm

Synchronised control system to be used as a supplement to pivot sliding door fitting Accuride 1319. To enhance its action when tall and heavy doors are used verically. Profile rod to be ordered separately 2-5 hinges required, depending on door width. A trial installation should be tried for other door heights and weights beyond recommended sizes

• Suitable for: Accuride 1319

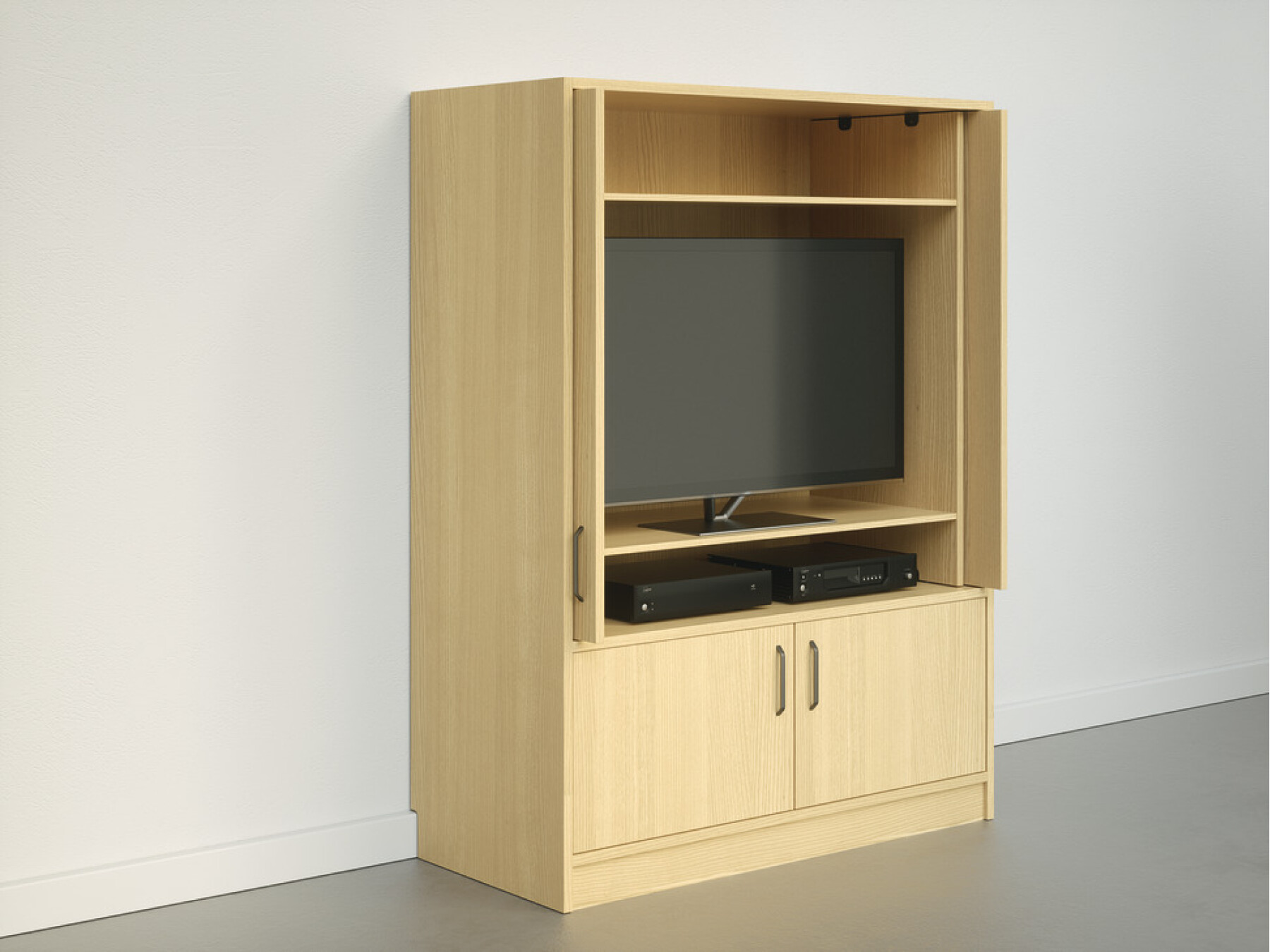

• Application: Inset cabinet and wardrobe doors
• Installation: Screw and hook in fixing
• Door weight: Max. 25 kg
• Door height: Max. 2300 mm vertically, not suitable for horizontal use over 1200 mm
• Door thickness: 16-20 mm
• Material: Steel. Plastic

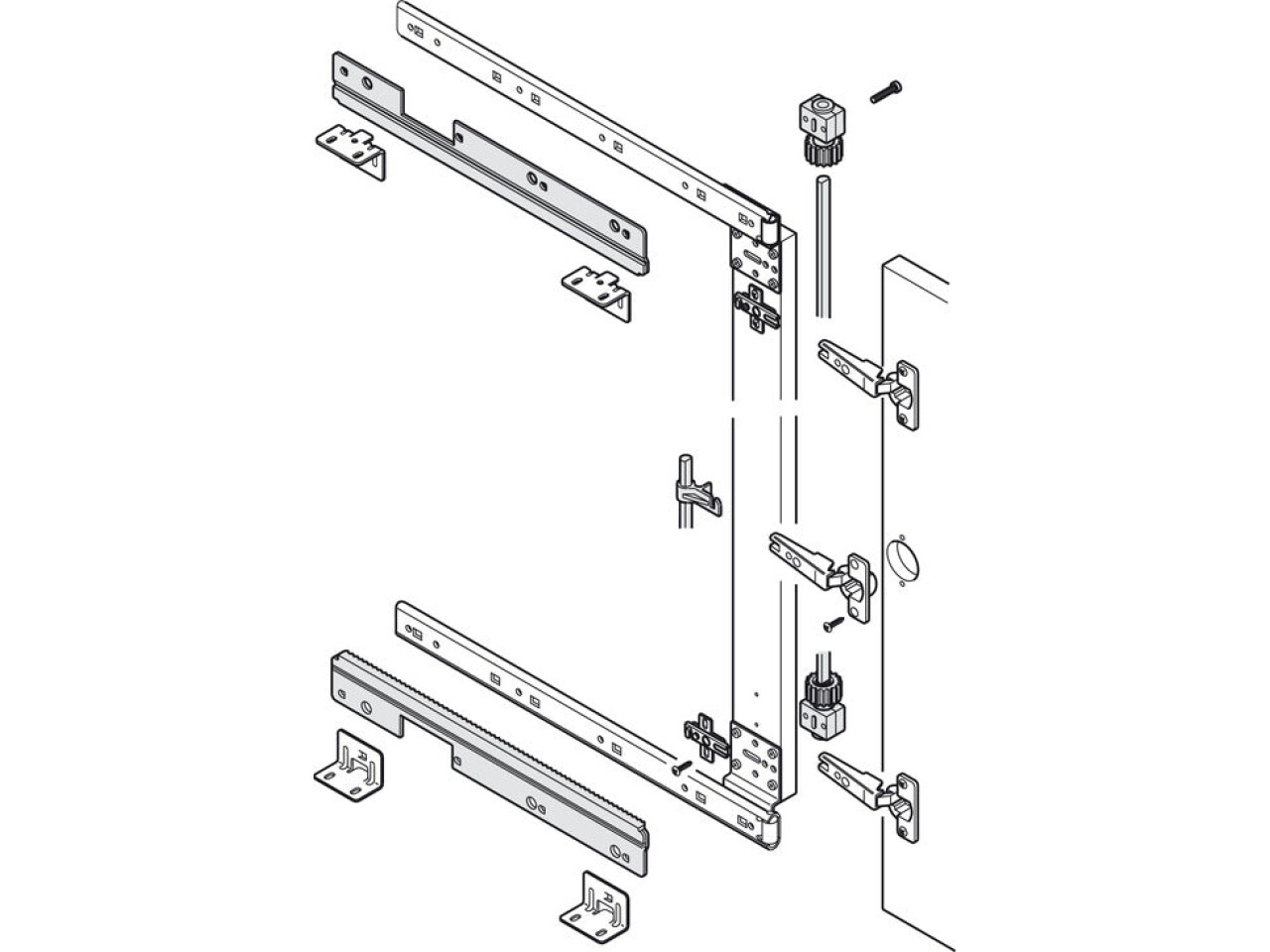

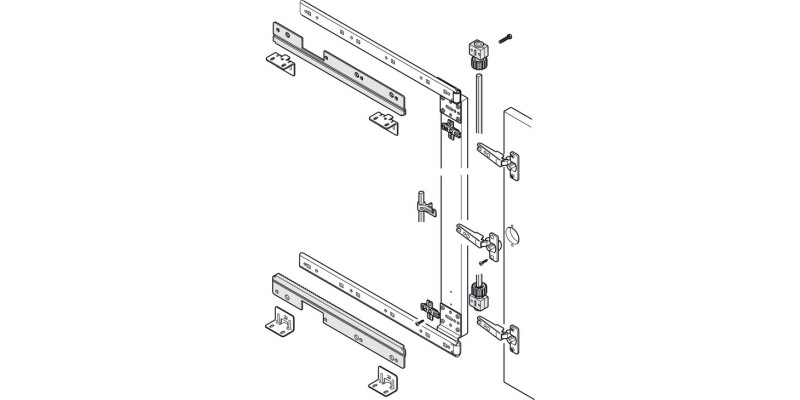

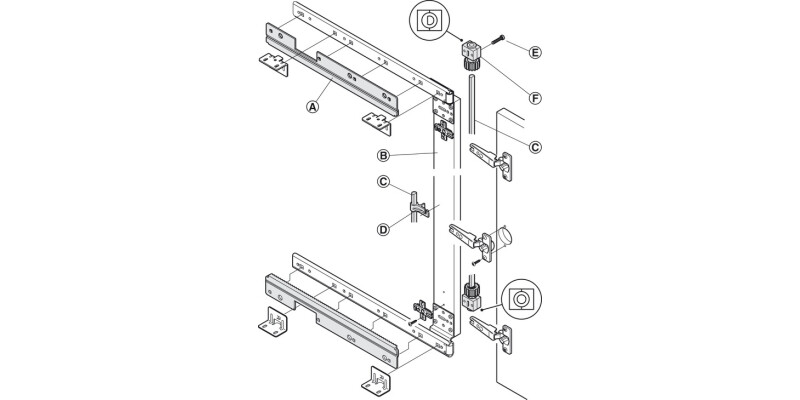

• Supplied with: Comprises: 2 x Rod guides, white plastic 2 x Toothed rails, galavanized steel/white plastic 2 x Pinions with screw mounts, white plastic. Mounting screws, M4 x 25 mm
• Order reference: Accuride 1319 pivot sliding door fittings, profile rod and cover caps to be ordered separately.
