BP Planofit Strght Sys Set 2650mm Blk
Part Number: 407.90.236
Black finish, for door heights up to 2650 mm (new part no for 407.90-0006)
Price:
£993.27
Per 50 Pack
Adds rigidity to wooden sliding or hinged doors from 16 mm thickPrevents warping in either directionNote: Not... Read More
Product Information
Product Details
Adds rigidity to wooden sliding or hinged doors from 16 mm thick
Prevents warping in either direction
Note: Not suitable for hardwood
Can also straighten doors which have become warped over a period of time
Normally two straightening fittings are recommended per door panel

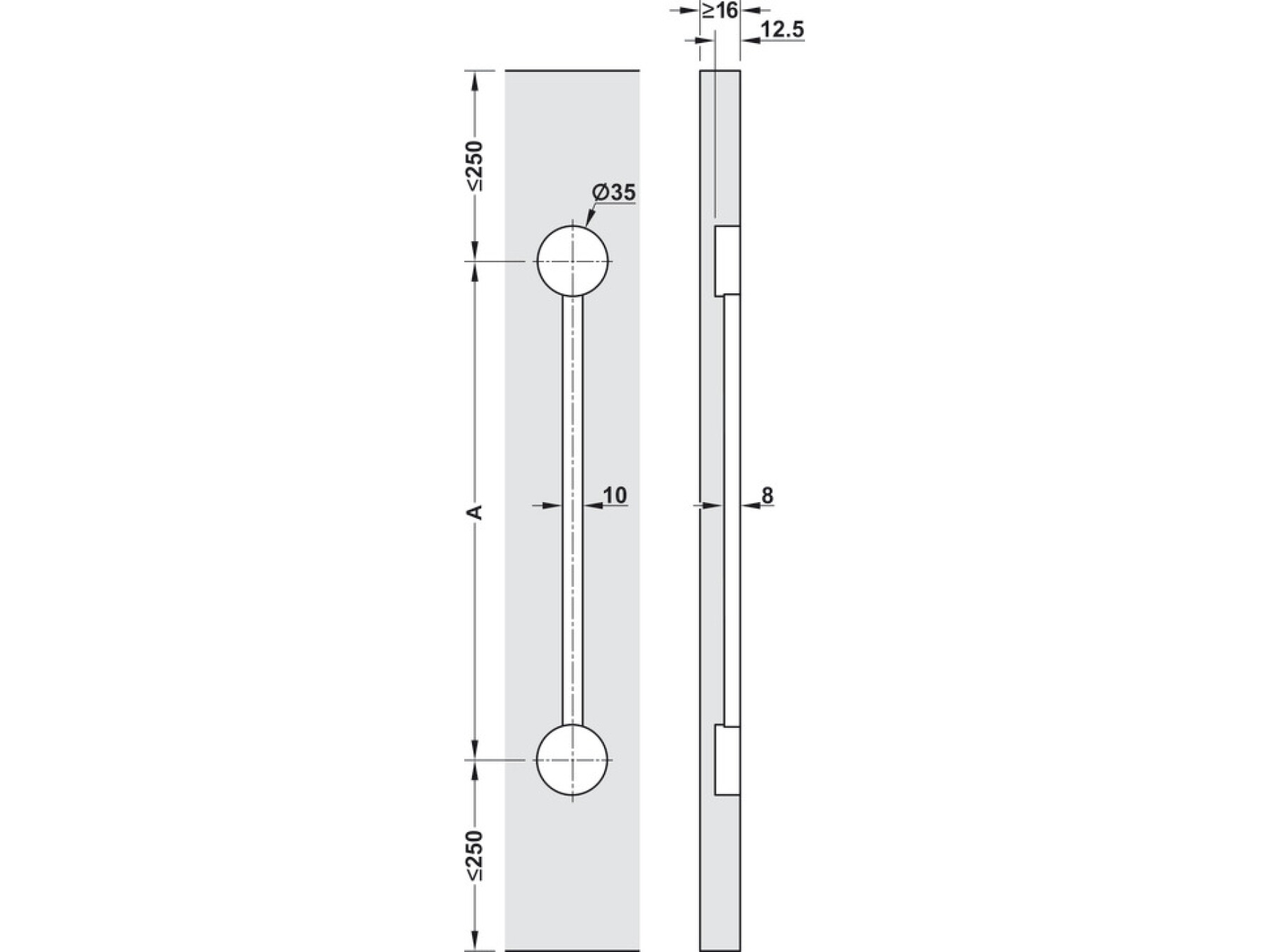

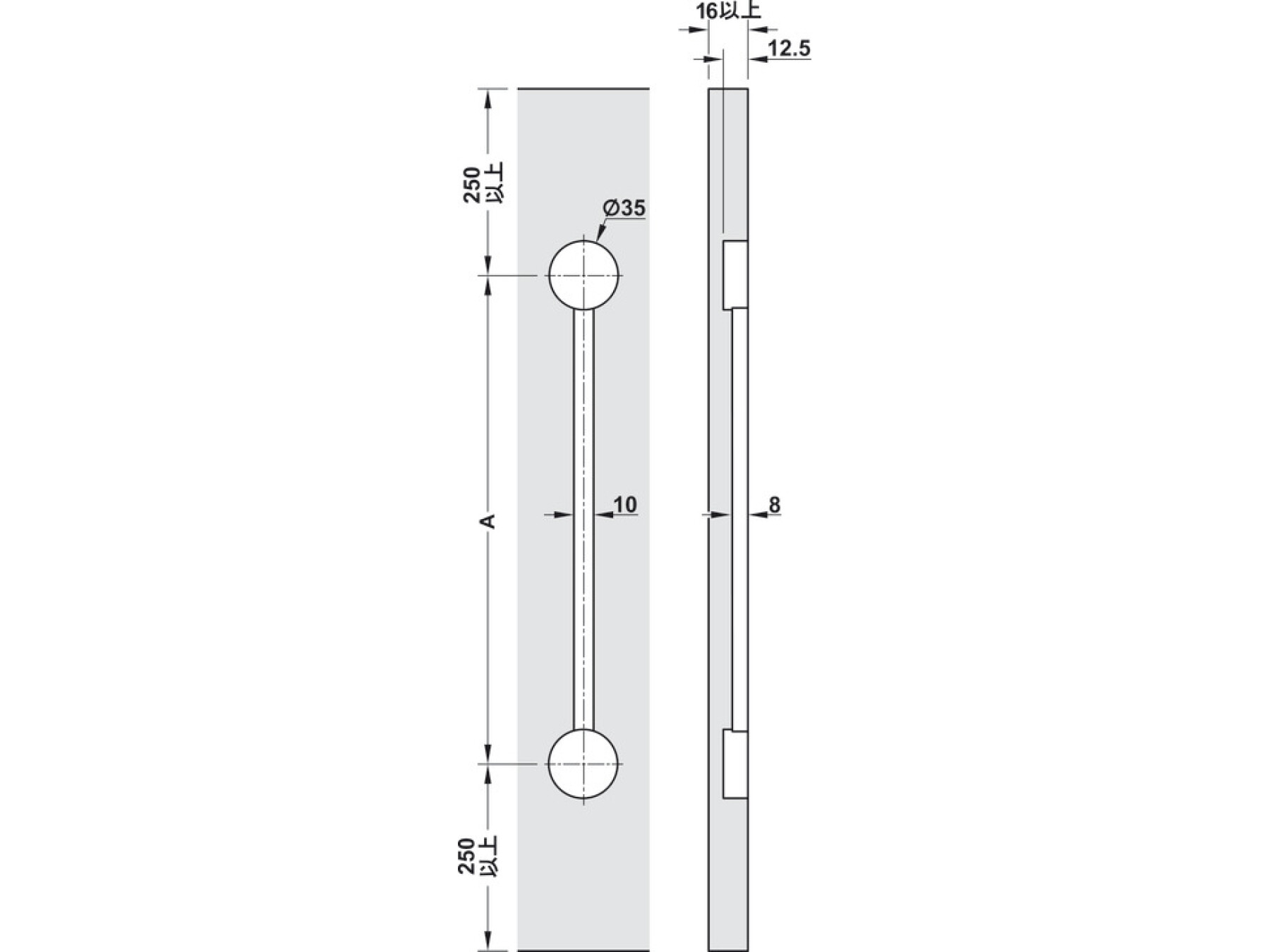

Installation: The fitting is inserted into 2 x boss drillings, Ø 35 mm, 12.5 mm deep, 1 x groove 10 mm wide, 8 mm deep
Without cover caps or retaining plates
Supplied with

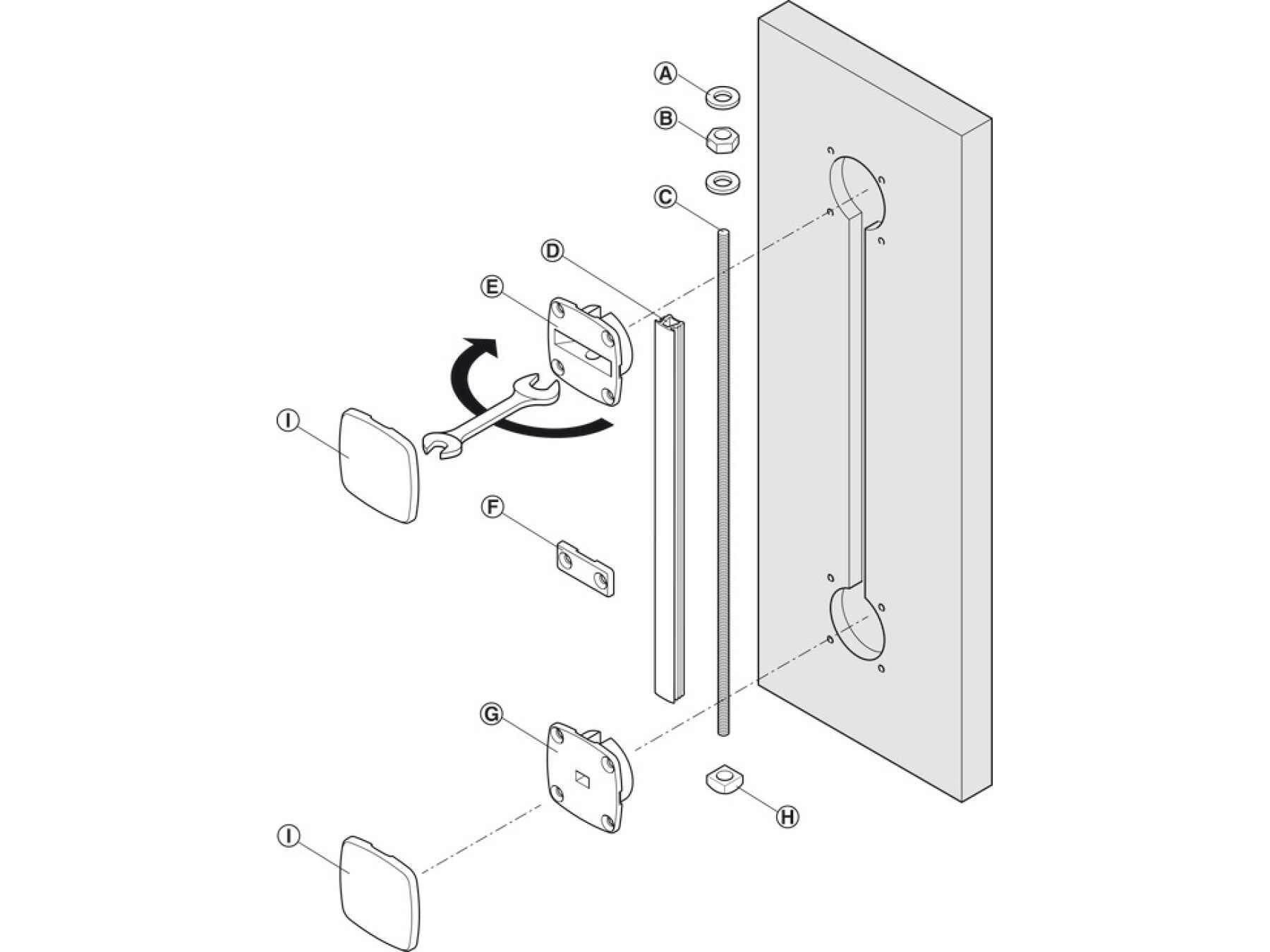

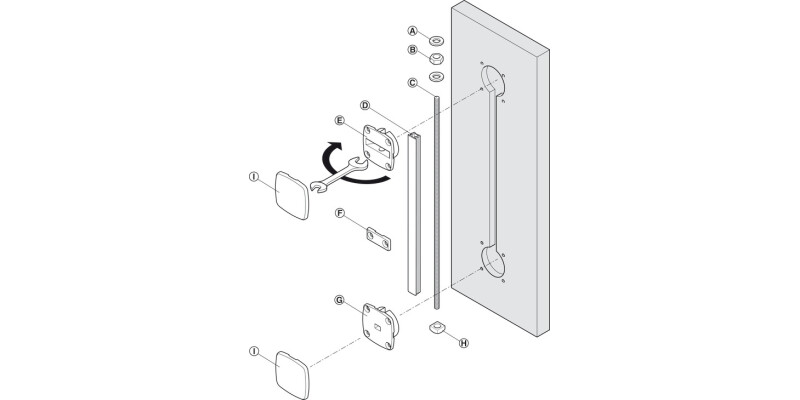

1 set comprises 2 x Tensioners, brght zinc alloy, 1 x Hexagonal nut, 2 x Securing washers, 1 x Square nut, 1 x M6 Threaded rod, 1920 or 2195 mm long, bright steel, 1 x Trim strip, 1863 or 2138 mm long, black or white plastic
Not suitable for hard wood
Specifications
Description in table of components
Threaded rod - Length 2195 mm
For door height
≤2,650 mm
Area of application
For straightening warped large and heavy doors
Material
Steel
Zinc alloy
Plastic
Installation
Screw and clip fixing
Order reference
Cover caps and retaining plates to be ordered separately
