Planofit Fitting Set Black
Planofit adds rigidity to wooden sliding and hinged doors from 16 mm thick and prevents warping in either directionIdeal for large, heavy doorsCan also be used to straight doors that have warped over a period of timeNormally two straightening fittings are recommended per door panel1. The threaded rod is inserted into the trim strip and 2 x U-washers and a hexagonal nut is attached to both sides of it2. The pre-mounted rod is then inserted into the groove3. The tensioners are inserted into the boss drilling job and fixed with screws4. Screw fix the retaining plates5. The door can now be aligned using the tensioners with an open ended SW10 wrench6. Position the cover caps on the tensioners
- Installation: Clip fixing
- Door thickness: Min. 16 mm
- Material: Zinc alloyPlastic

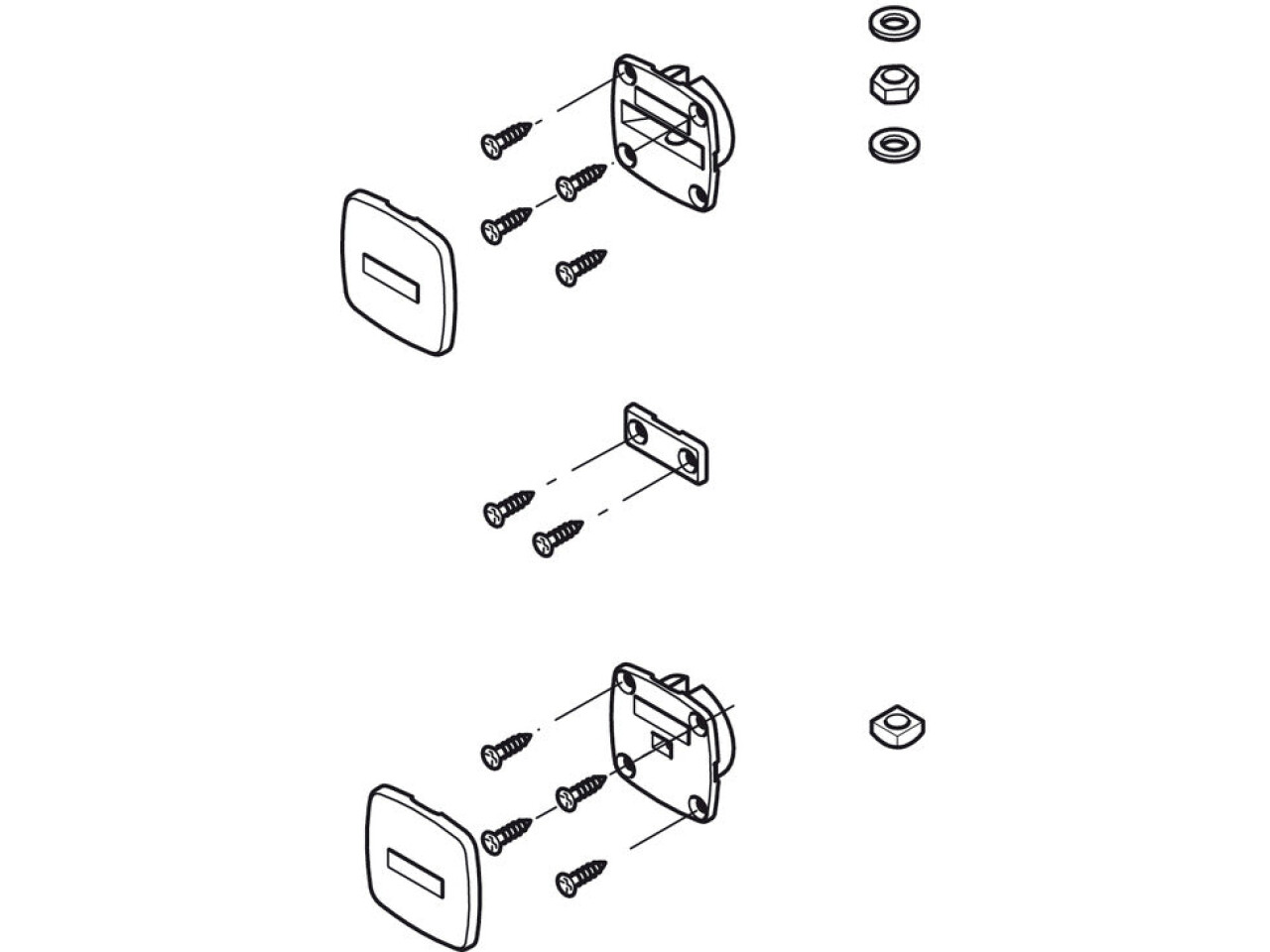

- Supplied with: Set consists of 2 x tensioners, 1 x hexagonal nut, 2 x securing washers, 1 x square nut, 2 x cover caps for tensioners, 4 x retaining plates
- Order reference: Threaded rod and trim strip set to be ordered separately
