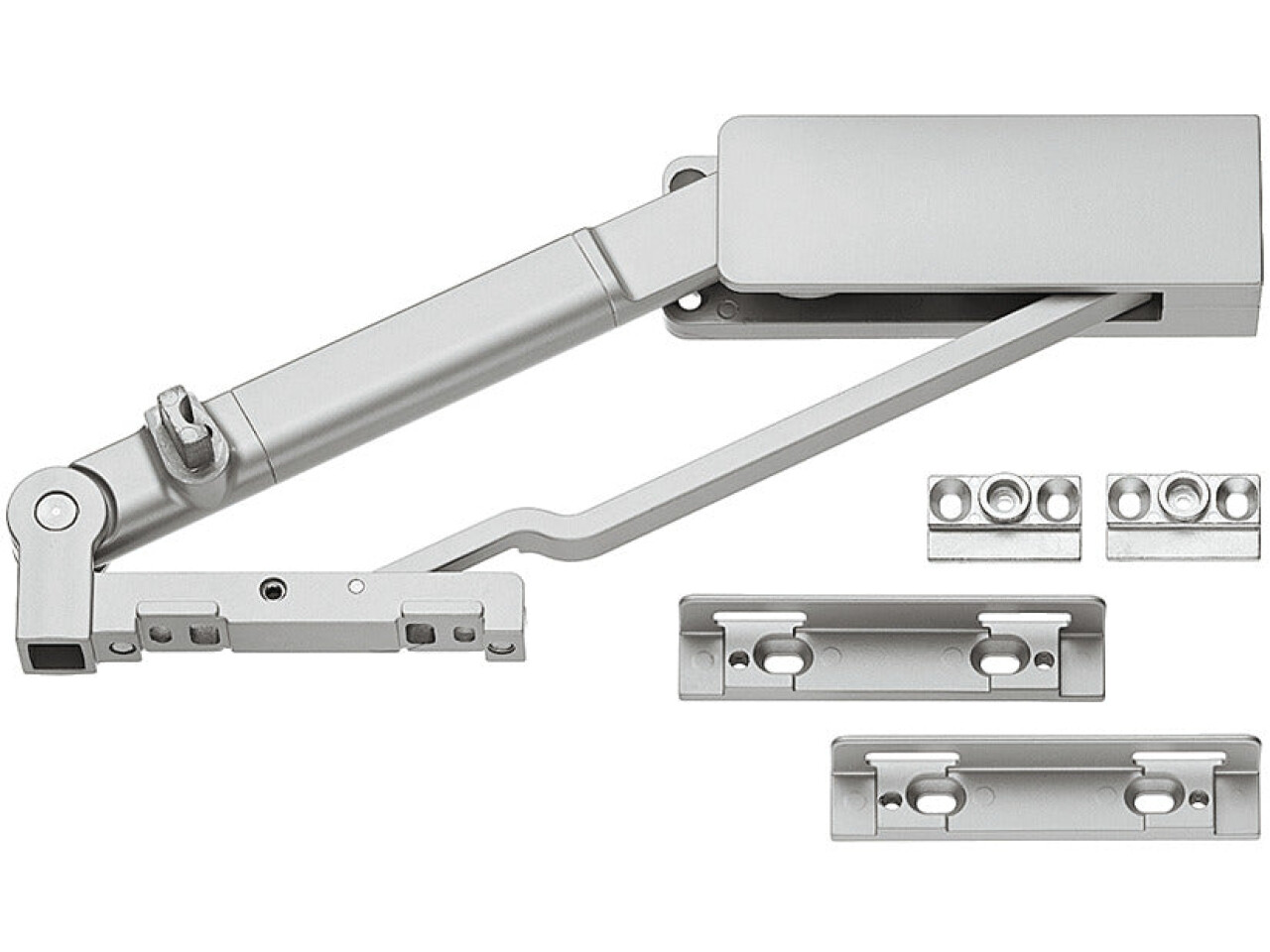

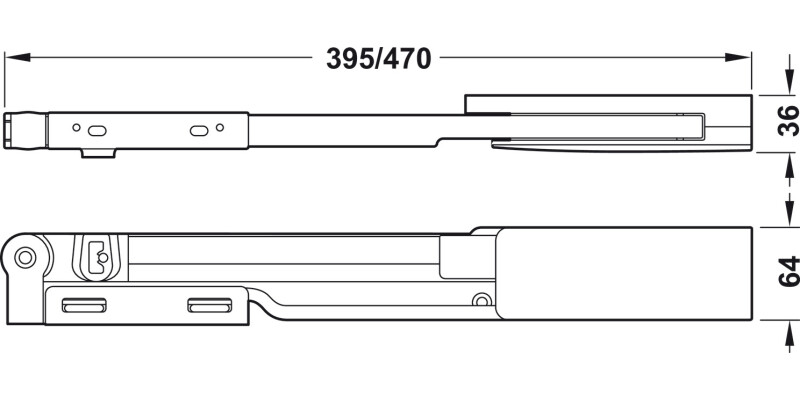

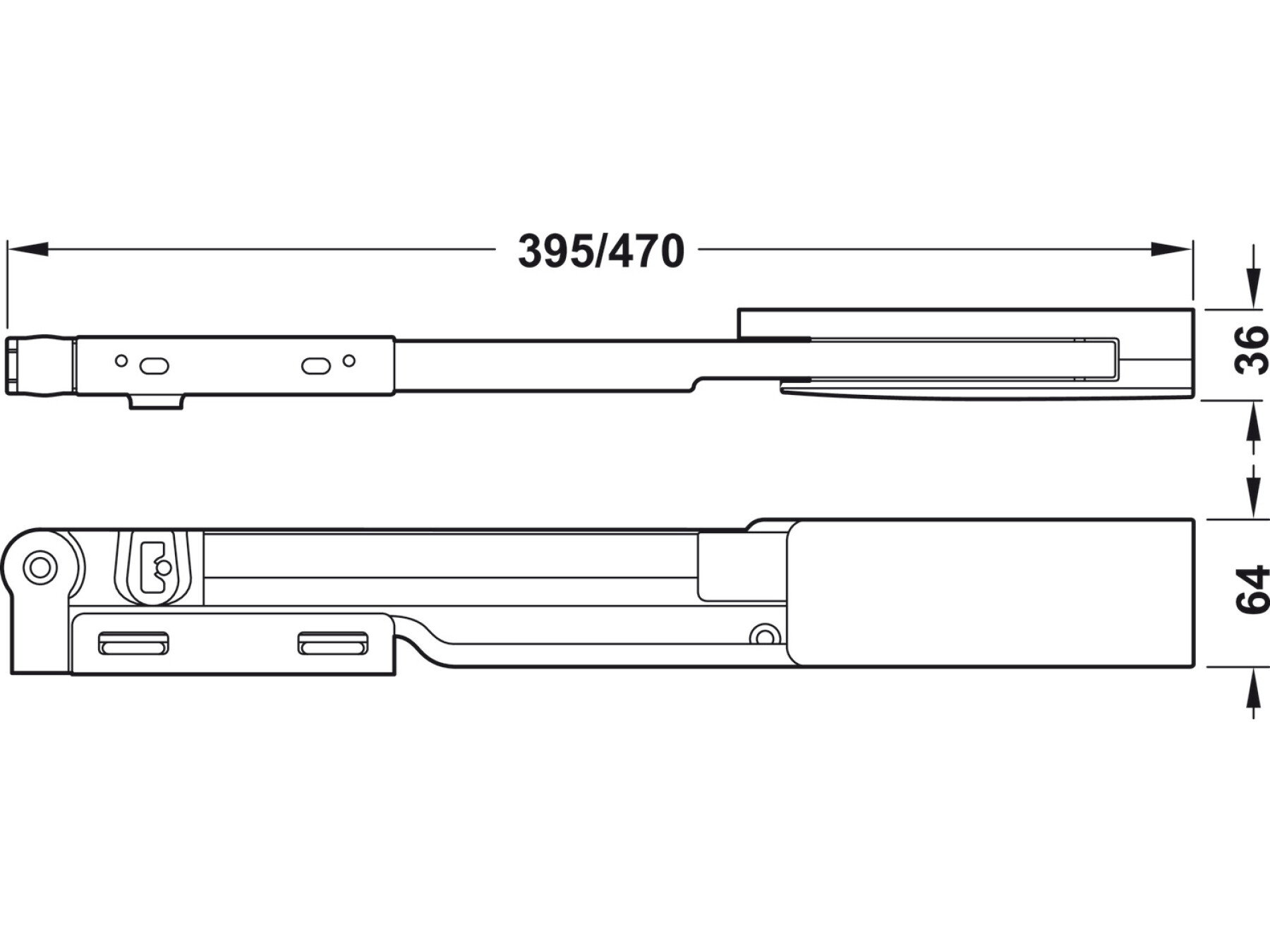

Door Opening Mechanism 450mm St Alu Col
Part Number: 407.32.906

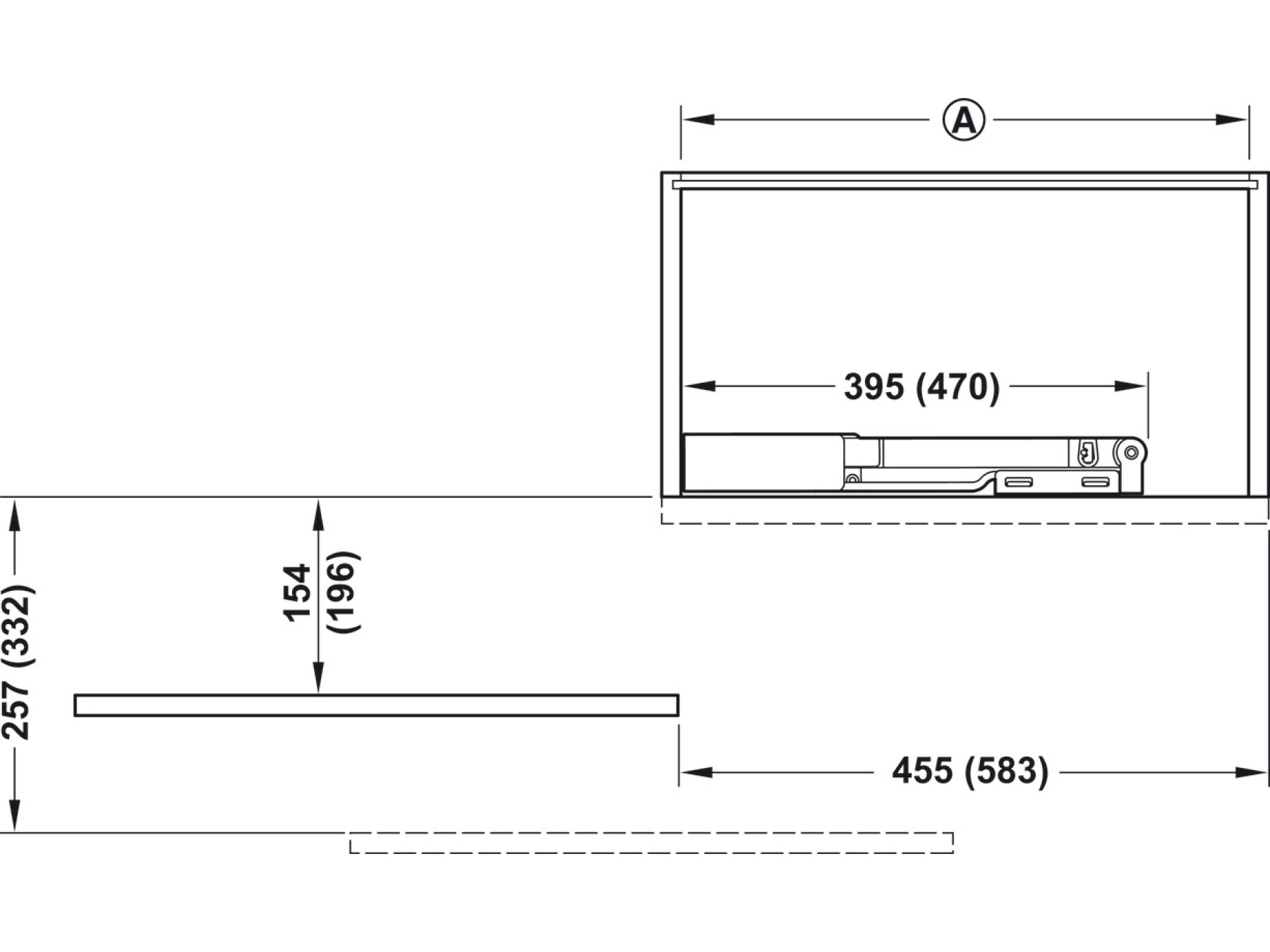

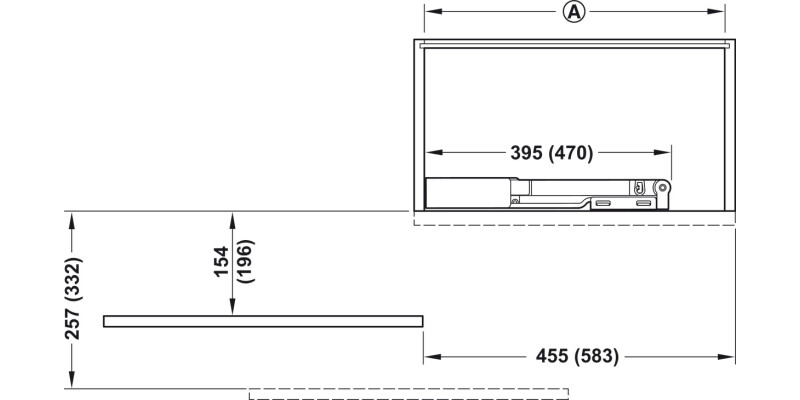

Soft close, Min. cabinet width 398 mm
Price:
£299.82
Per Item
Moves doors forward and away to the side, allowing maximum access to the cabinetSoft closingMaximum door weight... Read More
Product Information
Product Details

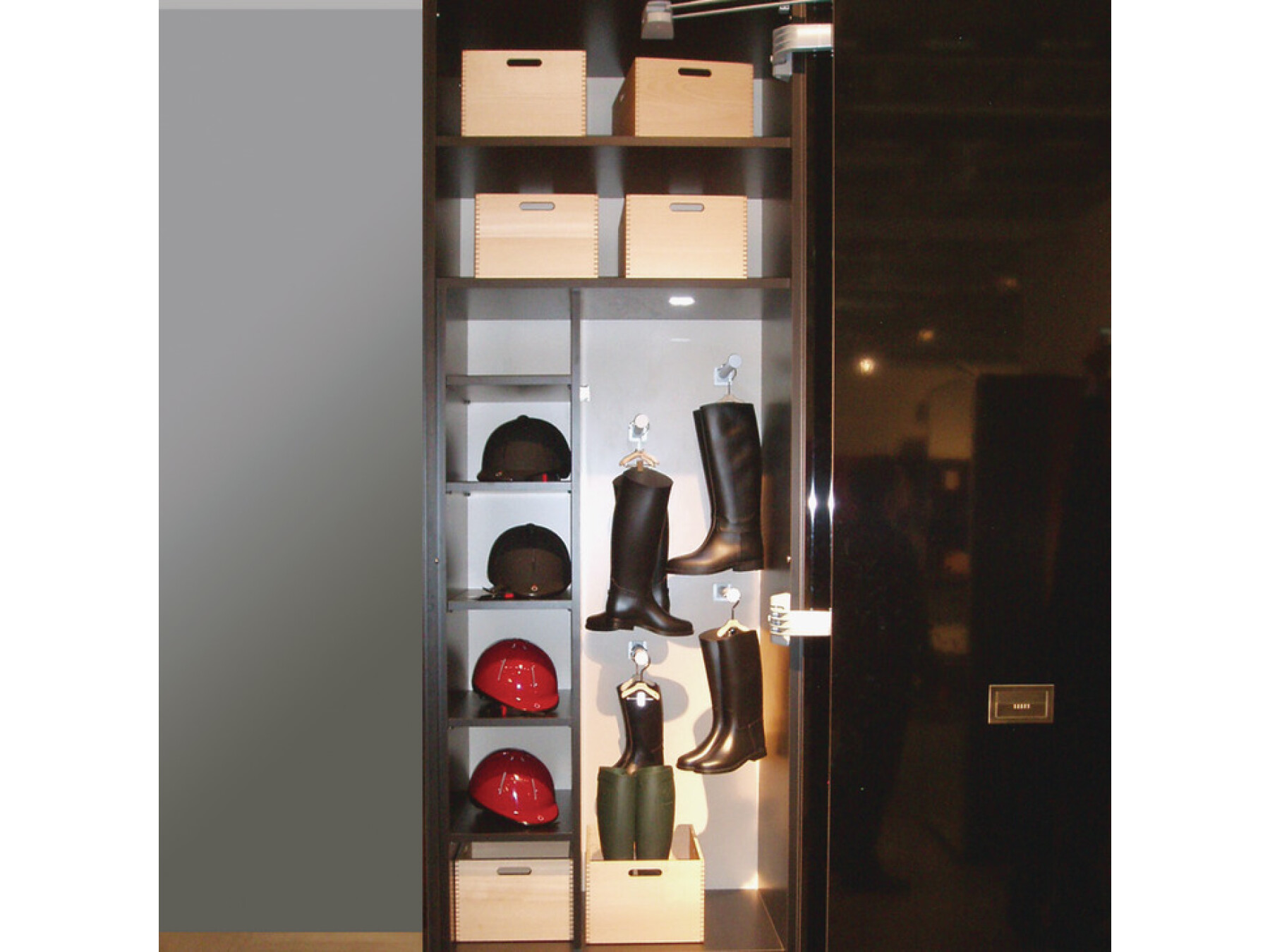

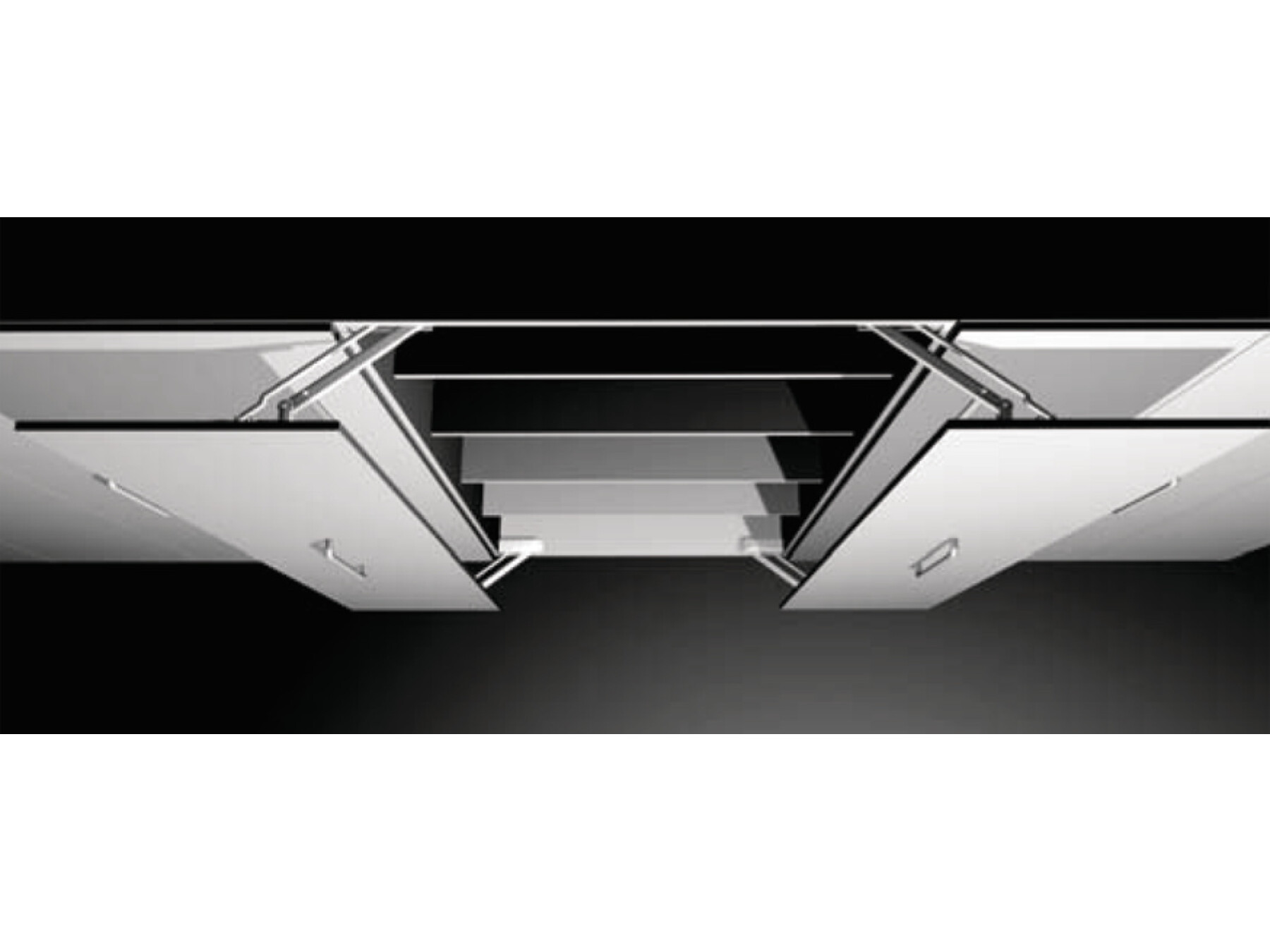

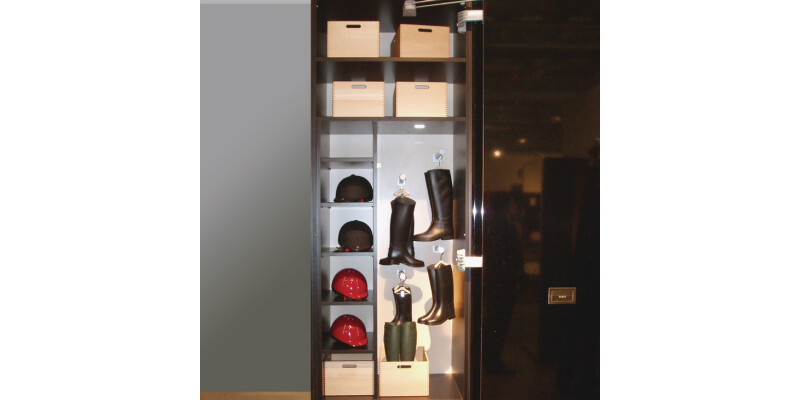

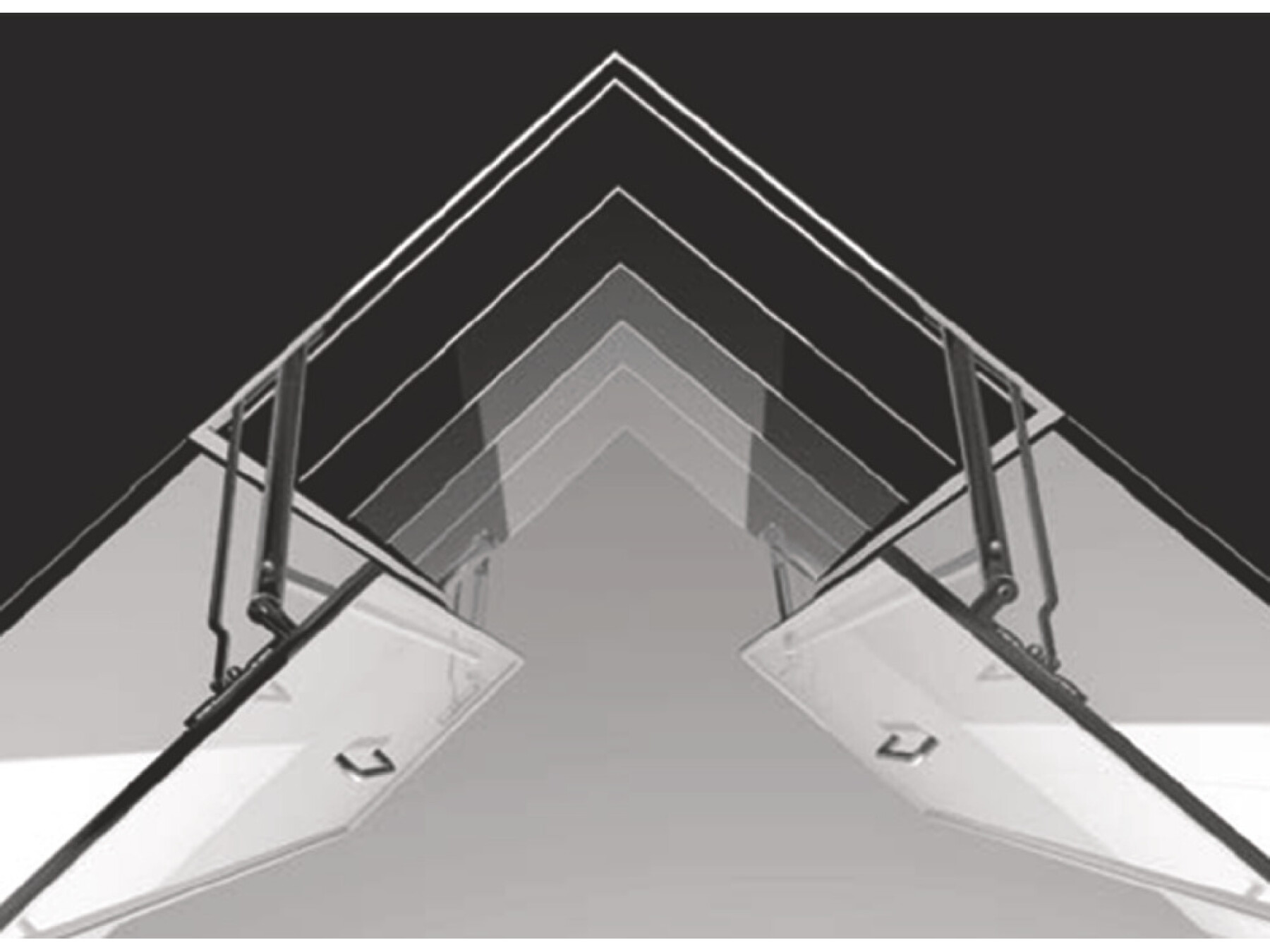

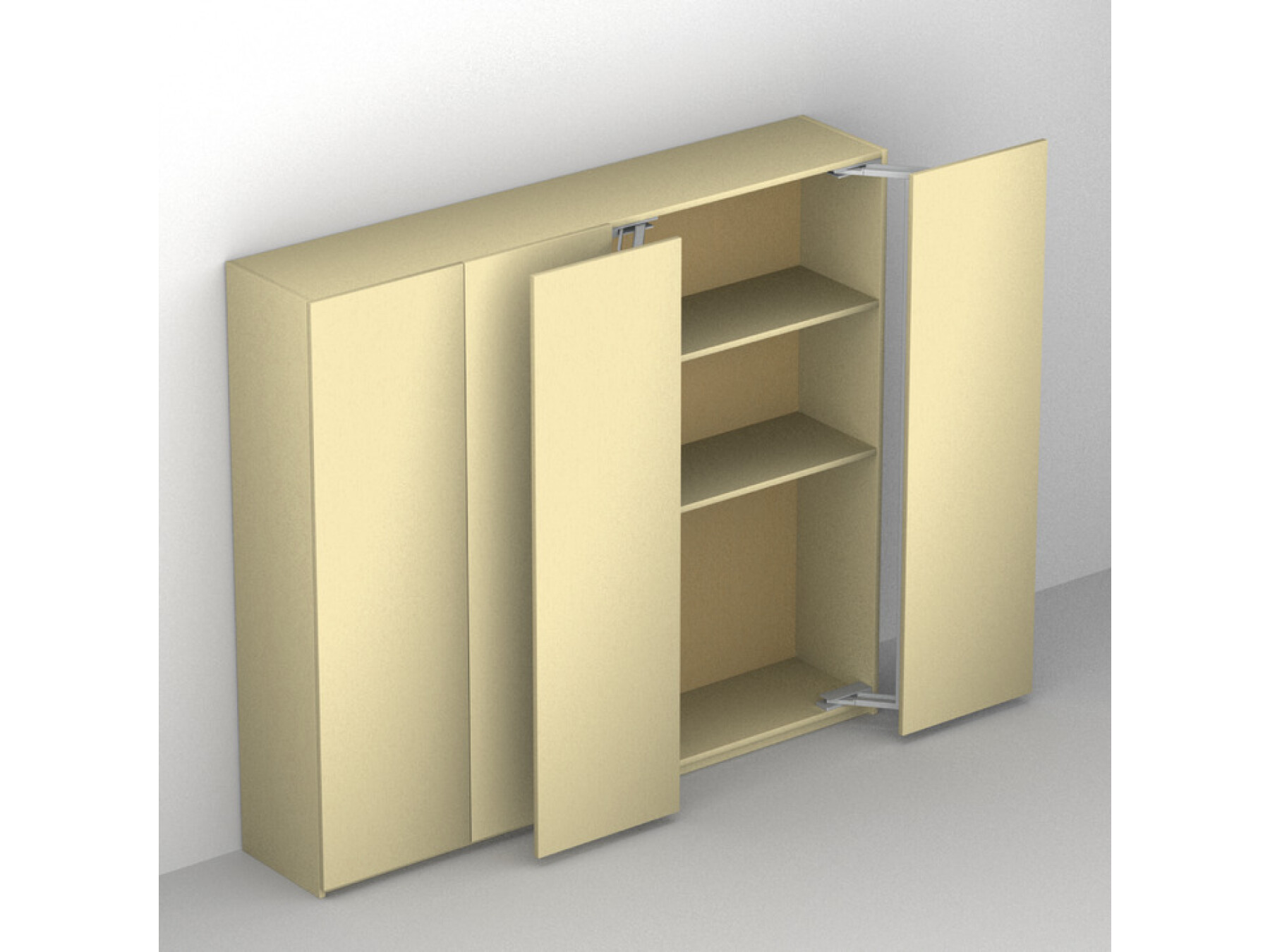

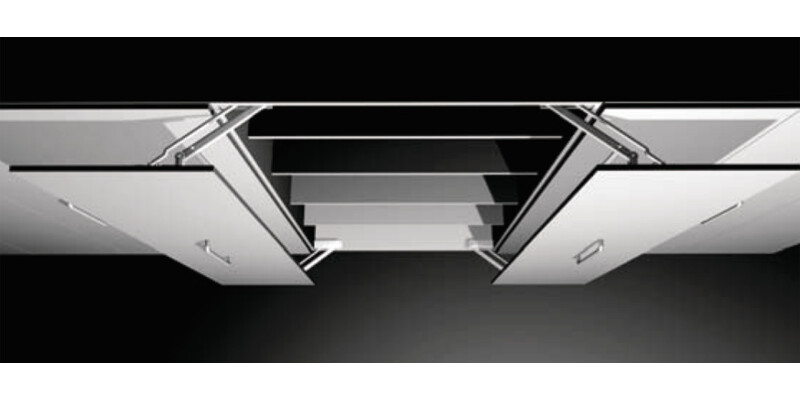

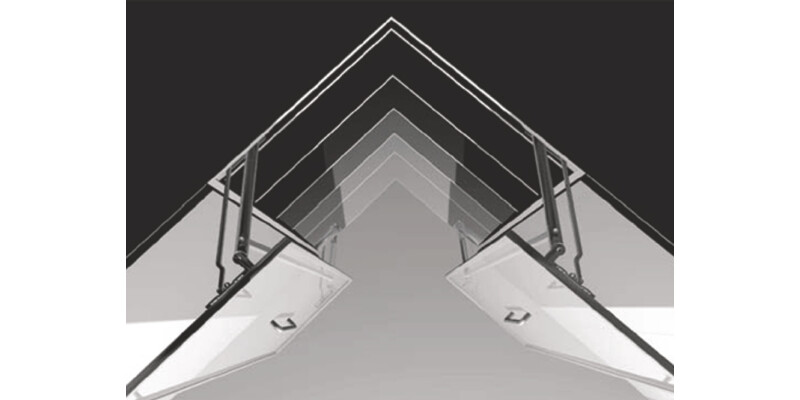

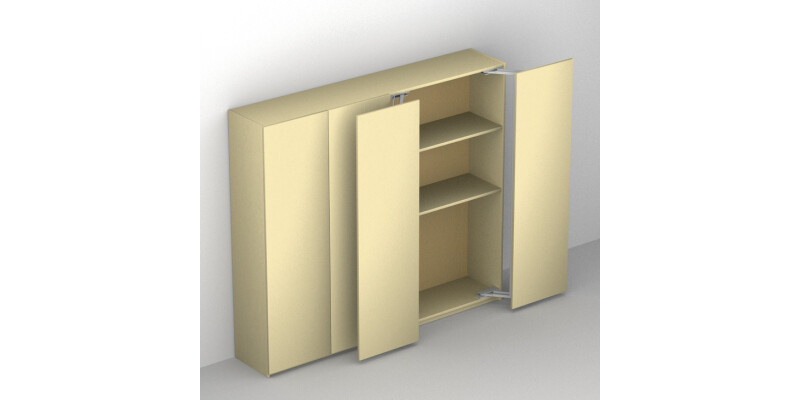

Moves doors forward and away to the side, allowing maximum access to the cabinet
Soft closing
Maximum door weight 16 kg
No hinges needed
Can be used for single doors, double doors, wooden doors and glass doors with frames
Can be used for every type of furniture
Connecting bar and centre hinge to be ordered separately
Specifications
Version
with soft closing mechanism
Door weight max.
20.00 kg
Material
Zinc alloy
Colour/finish
Silver coloured, powder coated
Area of application
For swing clear cabinet doors
Internal cabinet height
2,576.00 mm

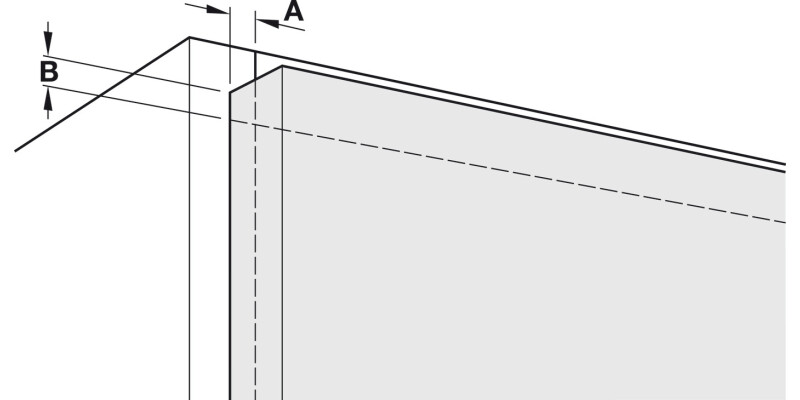

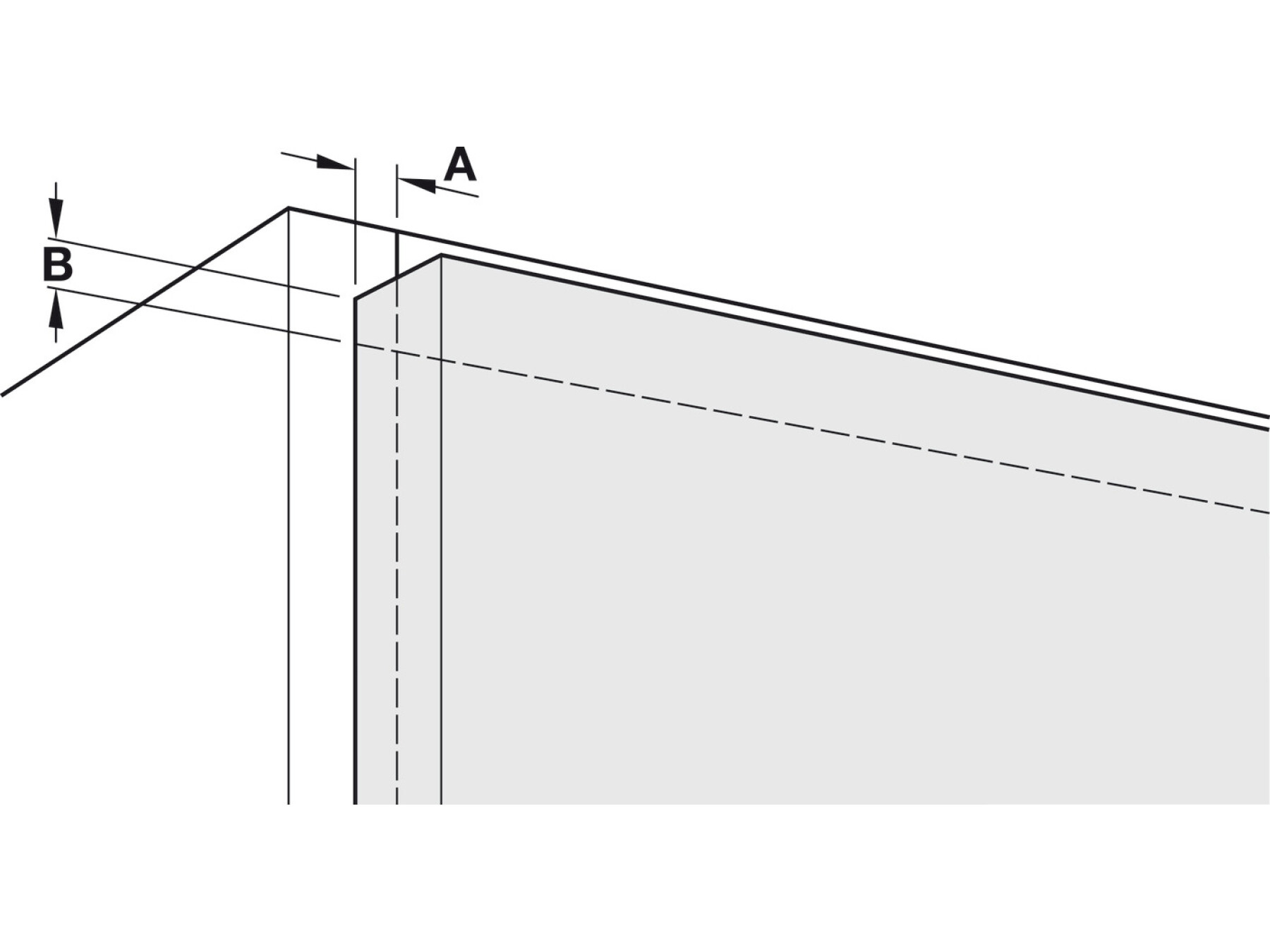

Adjustment facility
+4 mm vertical, ±2 mm horizontal, ±4 mm inclination
Order reference
Connecting bar and centre hinge to be ordered separately.
Supplied with

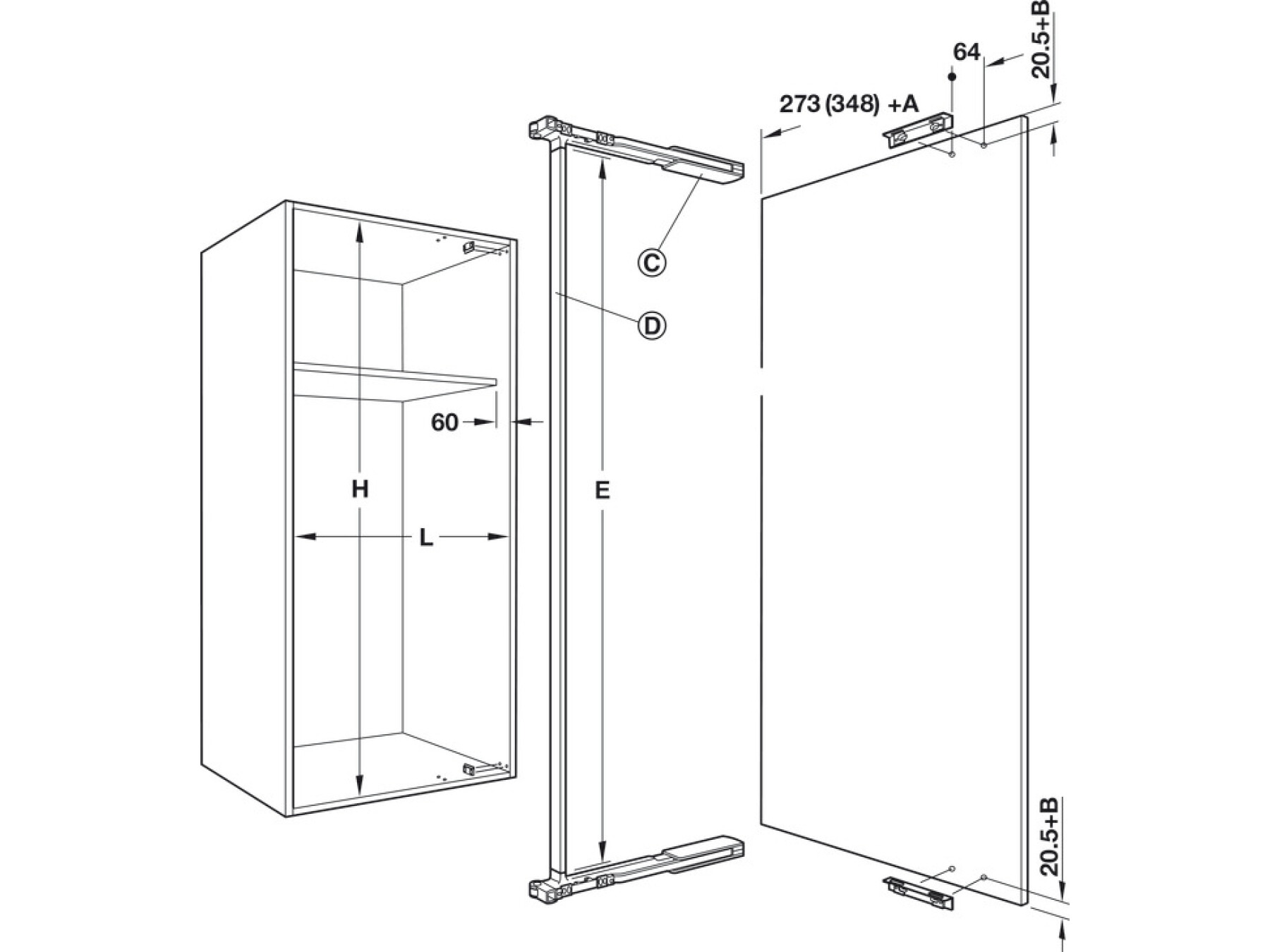

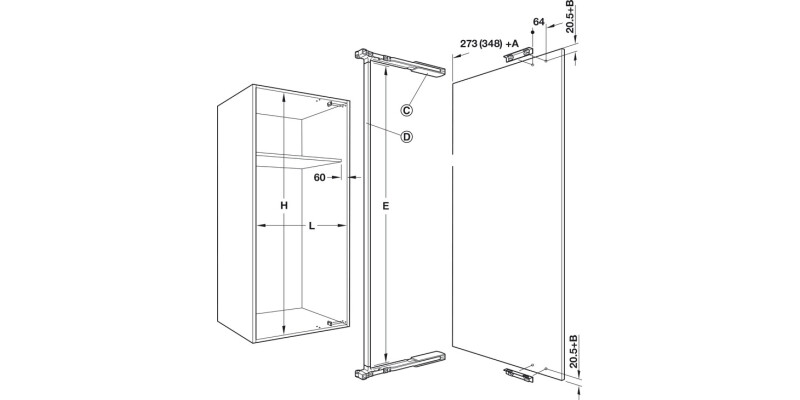

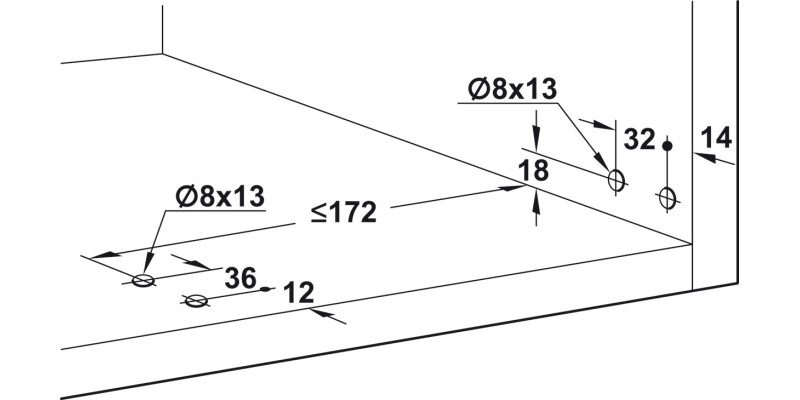

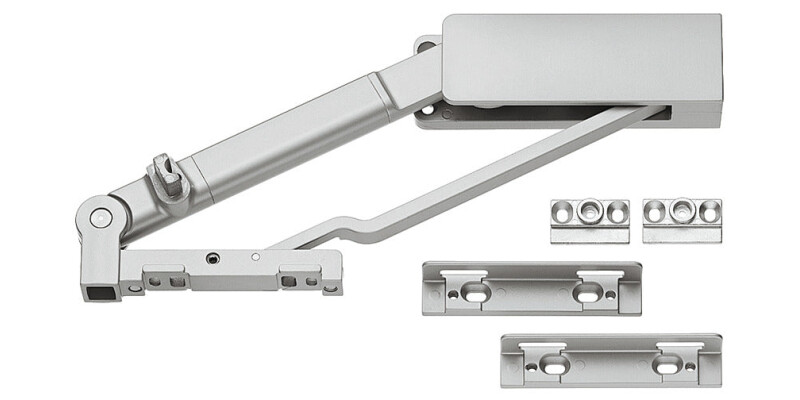

Set consists of 2 x handed fittings for fixing to cabinet ceiling and floor and 2 x door mounting brackets
