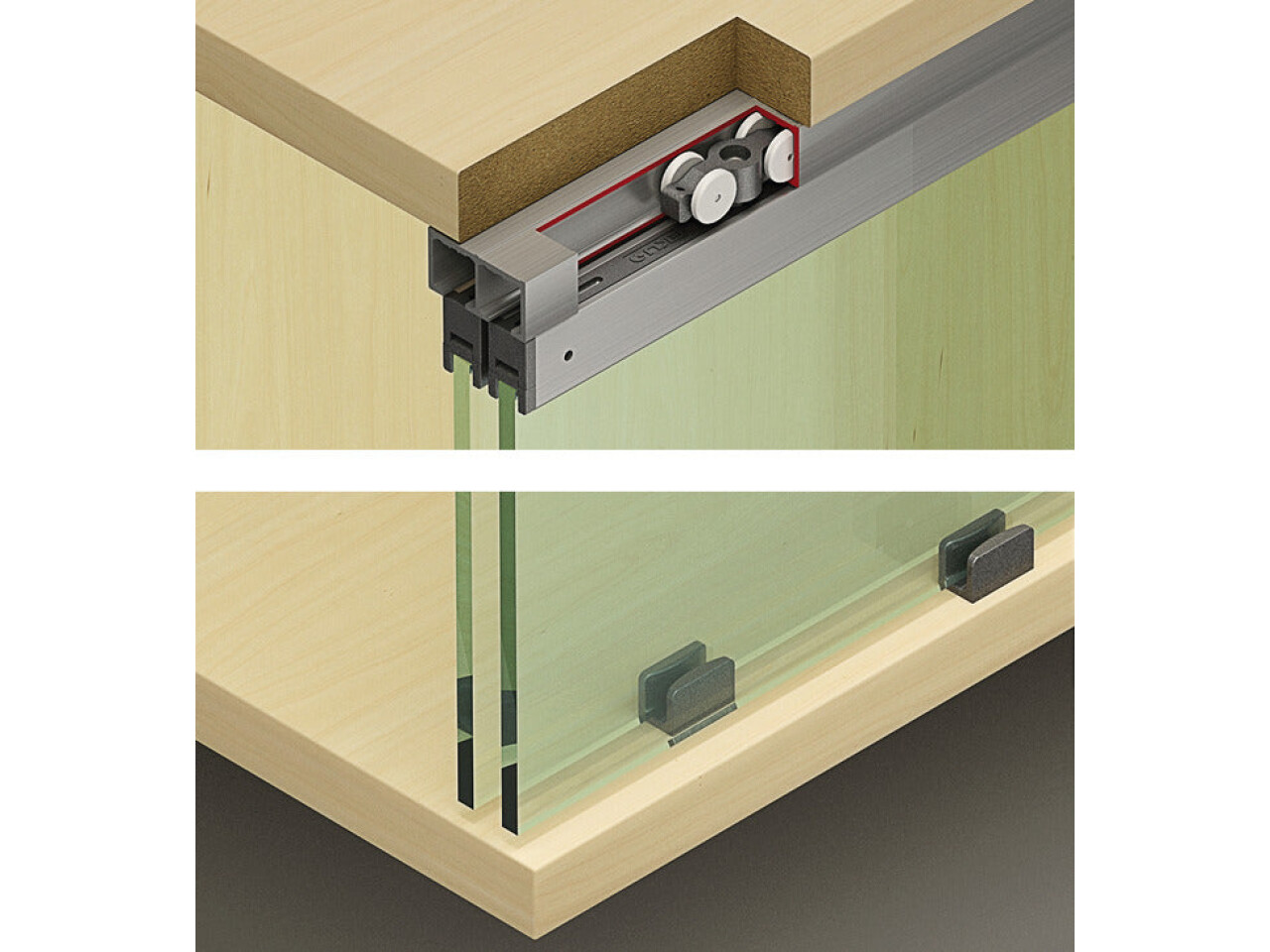

Eku Clipo 16GPK FitSet 2Door
Part Number: 405.82.290
Top hung system, For 2 doors
Price:
£122.10
Per Item
The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide... Read More
Product Information
Product Details
The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide an even softer sliding experience, Hawa have re-invented the roller technology for Hawa-Clipo 16
Soft running - Optimised roller geometry and new high-performance plastic
Extremely quiet - Minimum running noise thanks to low rolling resistance
Durable - Long lasting thanks to new high-performance plastic (quality tested in accordance with DIN-EN 15706 level 3, highest class)

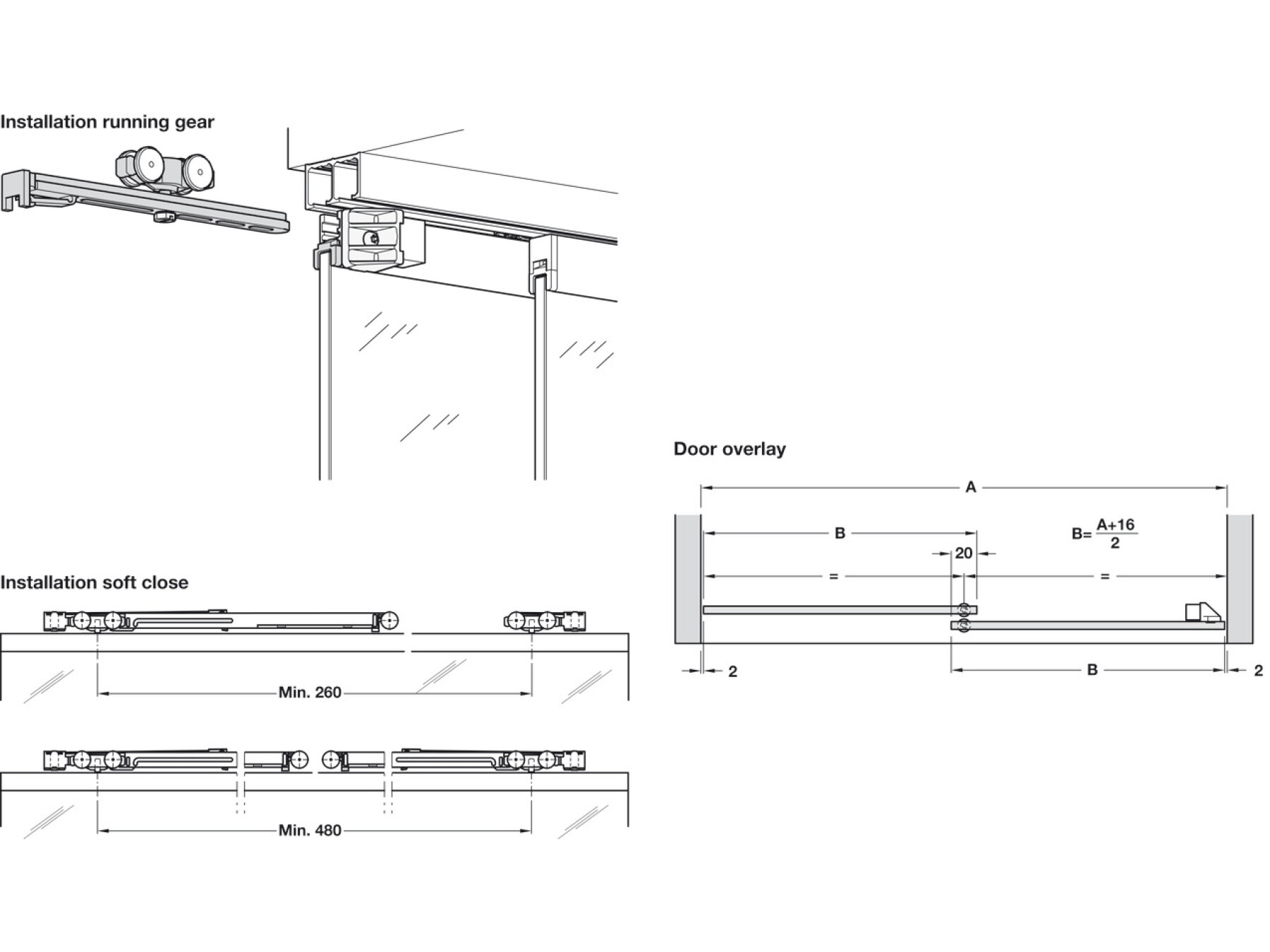

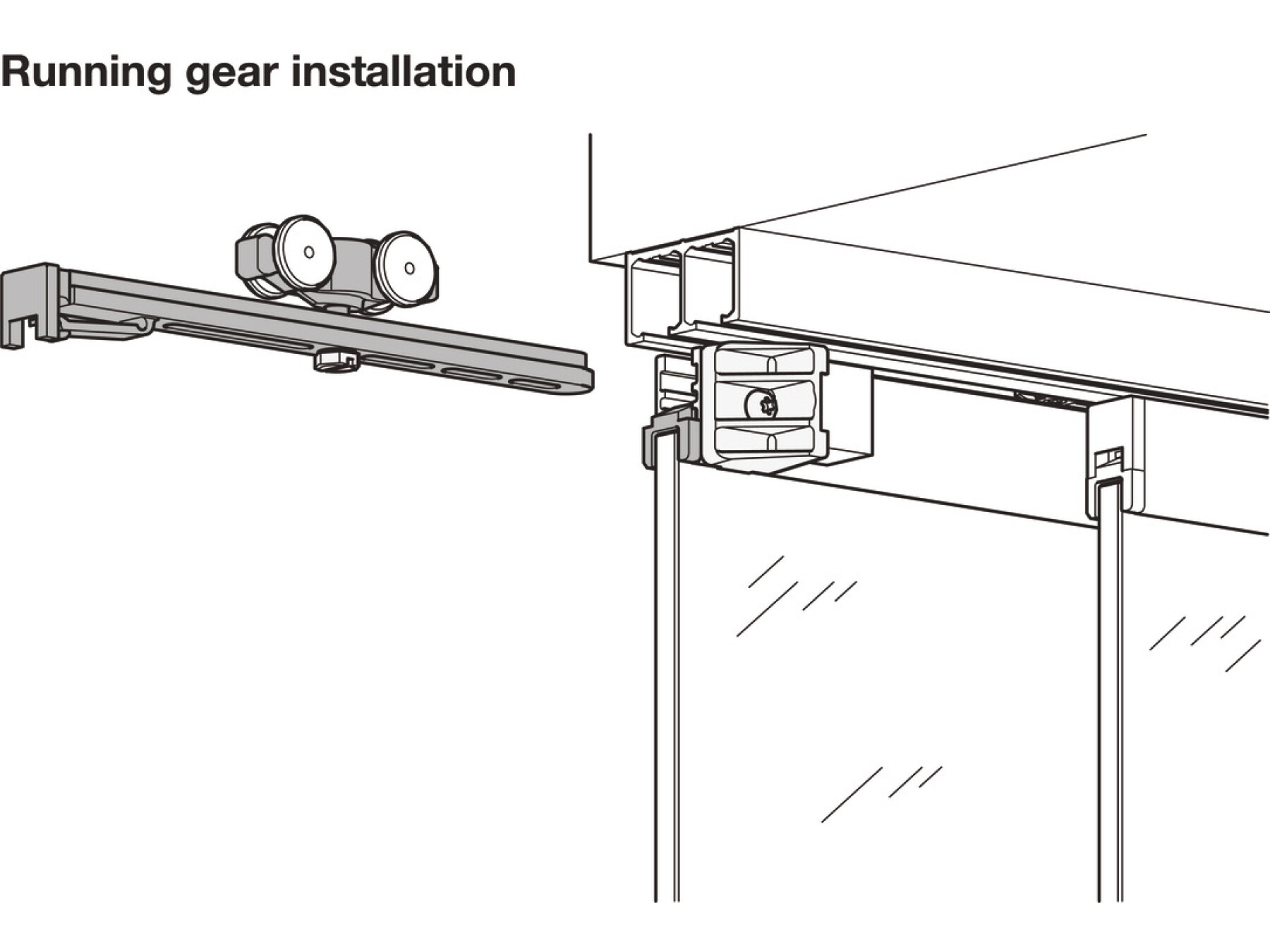

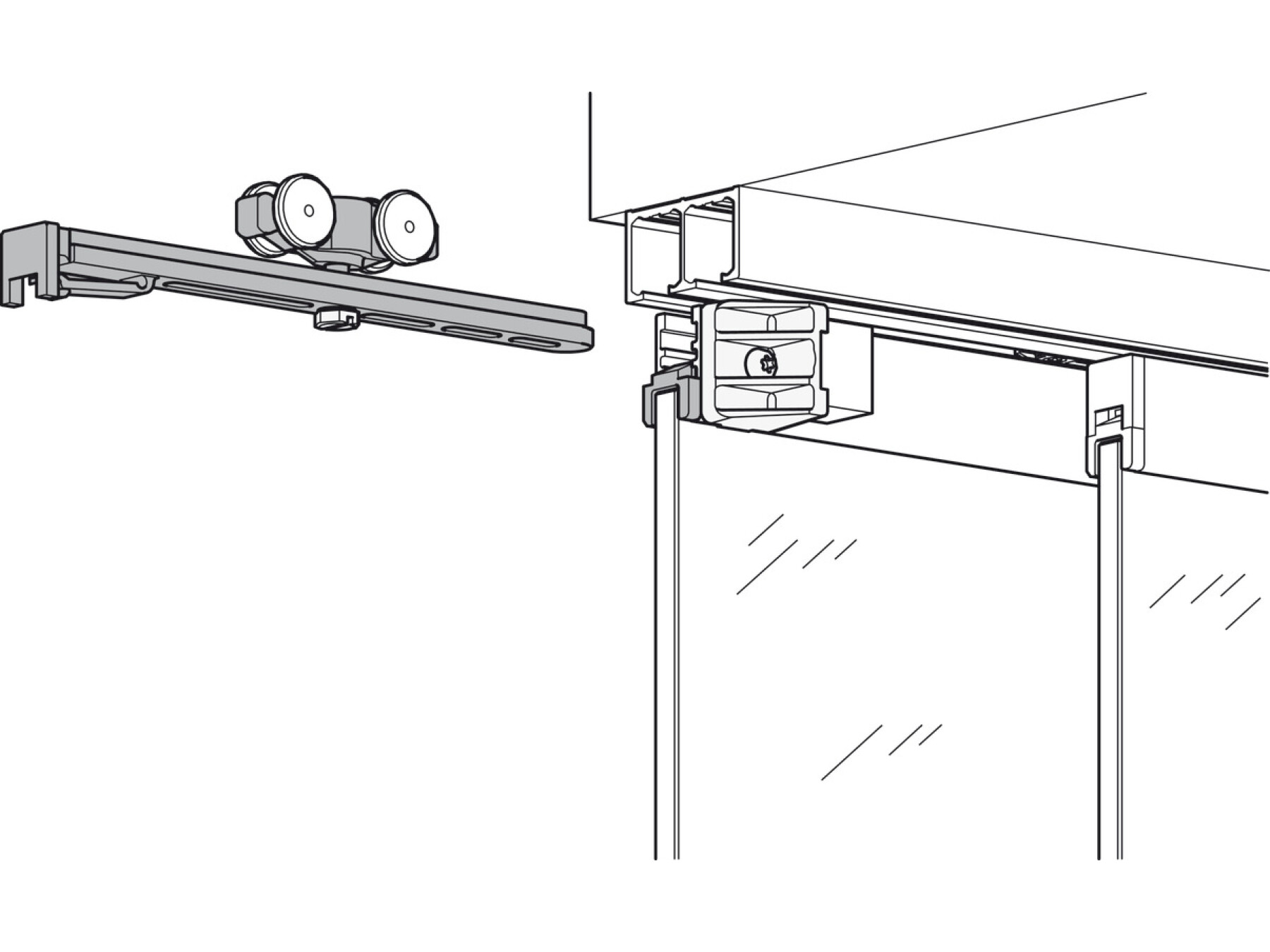

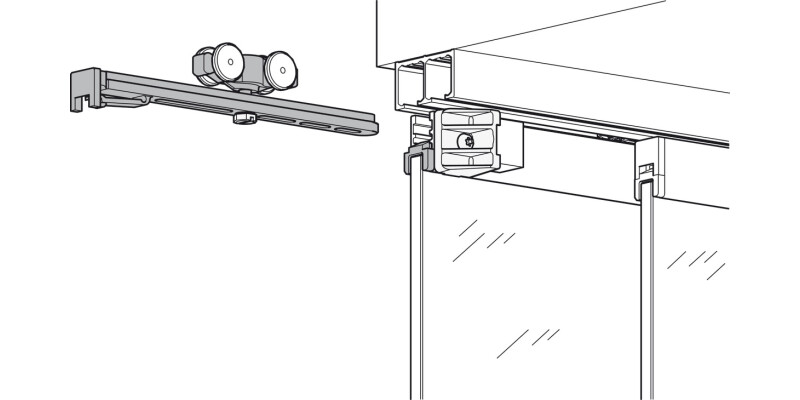

Quick fitting running gear (no tools required)
Order reference

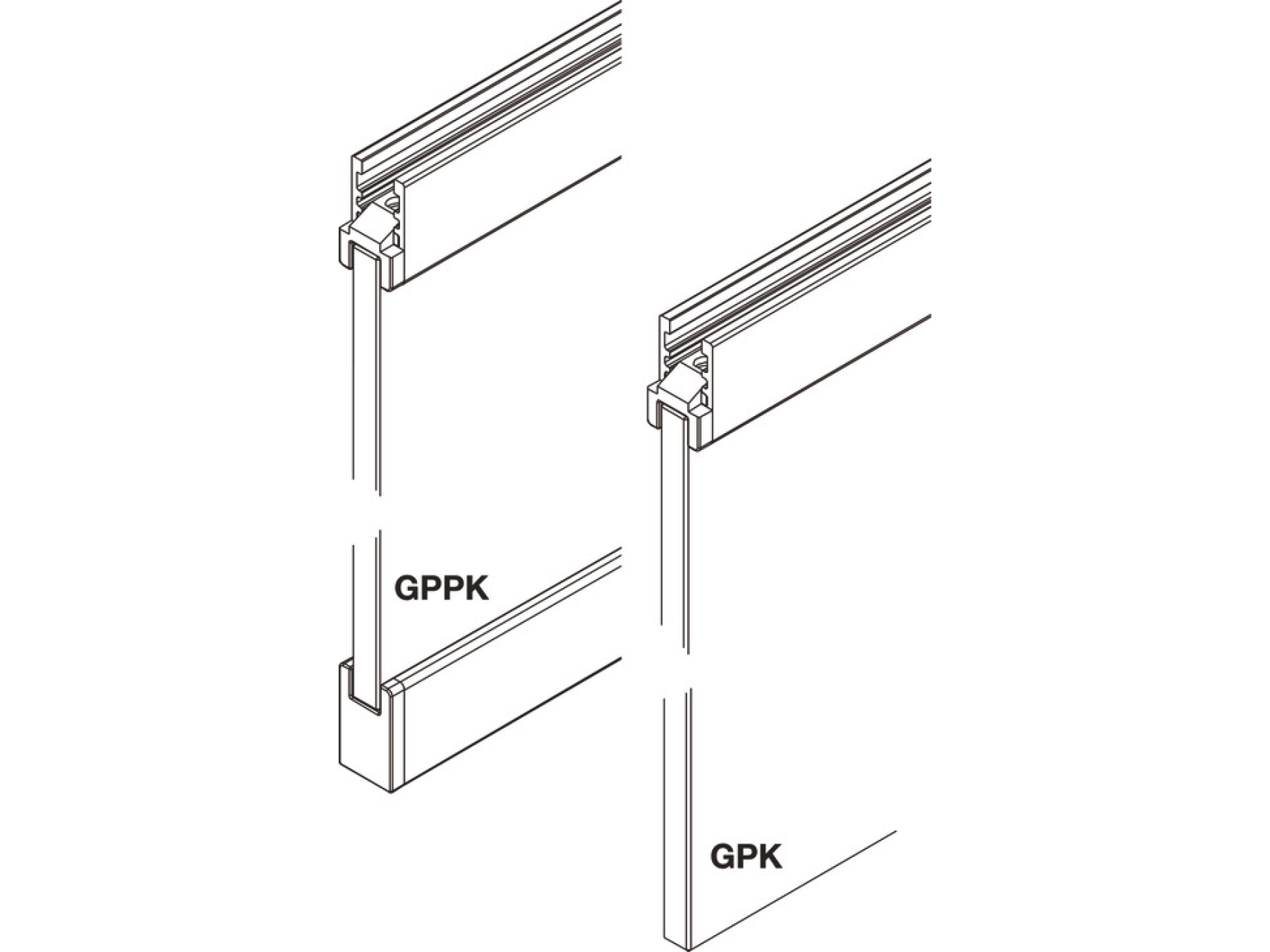

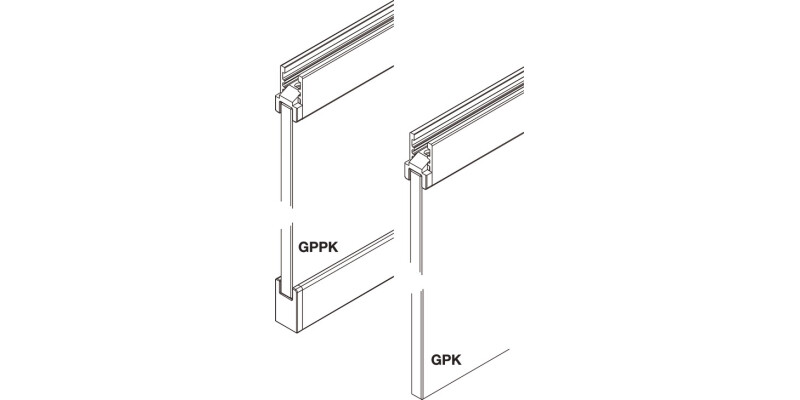

Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately.
Please order soft closing mechanism set separately.
Supplied with
Fitting set includes:
4x Running gear with ball bearing mounted rollers, anthracite plastic
4x Locking part, anthracite plastic
2 x Bottom guide, grey plastic
1 x Door follower, grey plastic
2 x Track stopper, grey plastic
Fixings
Only use tempered safety glas

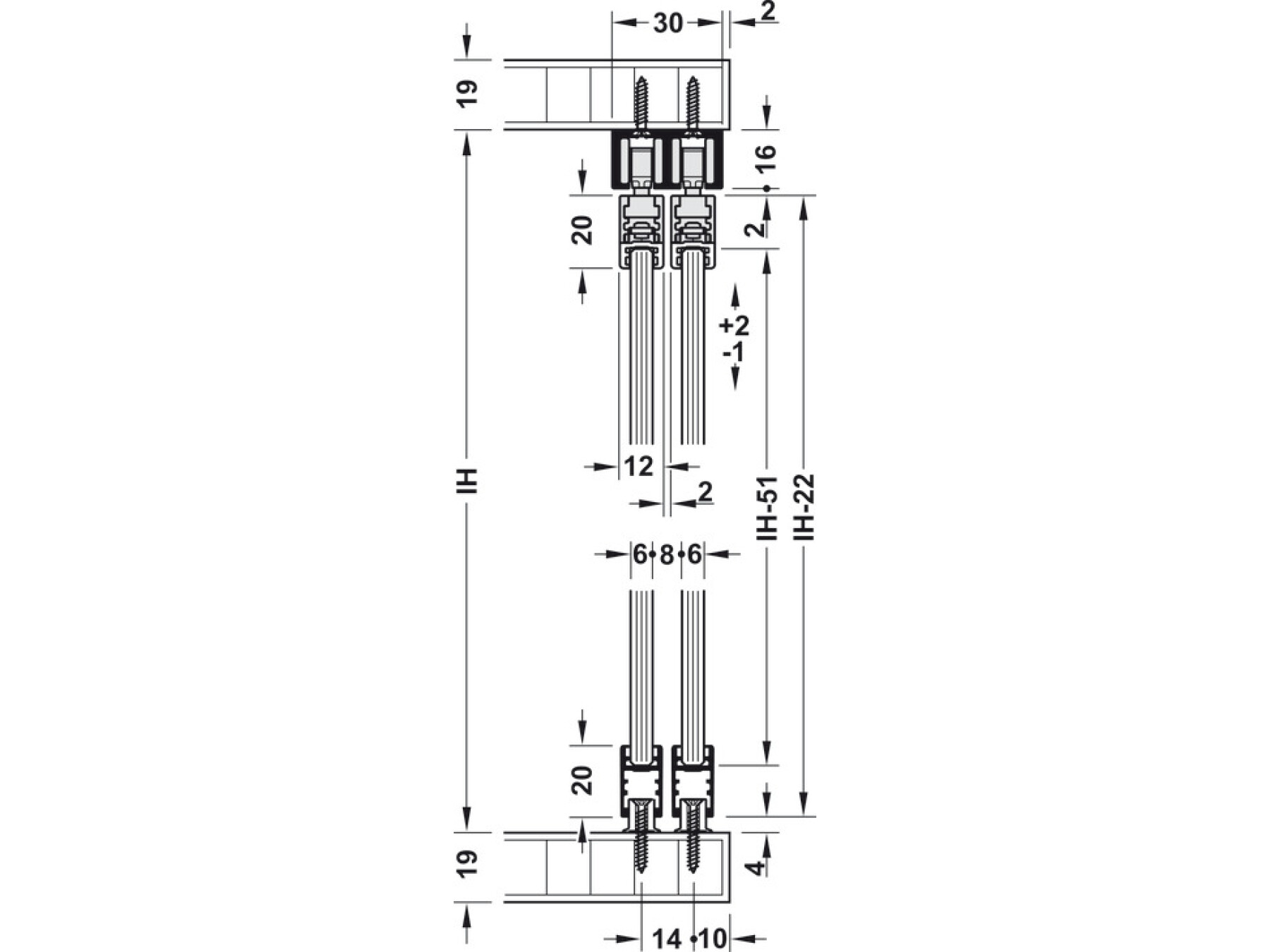

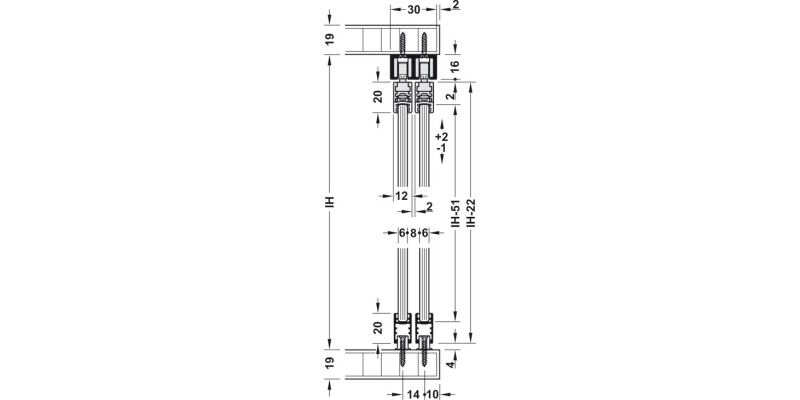

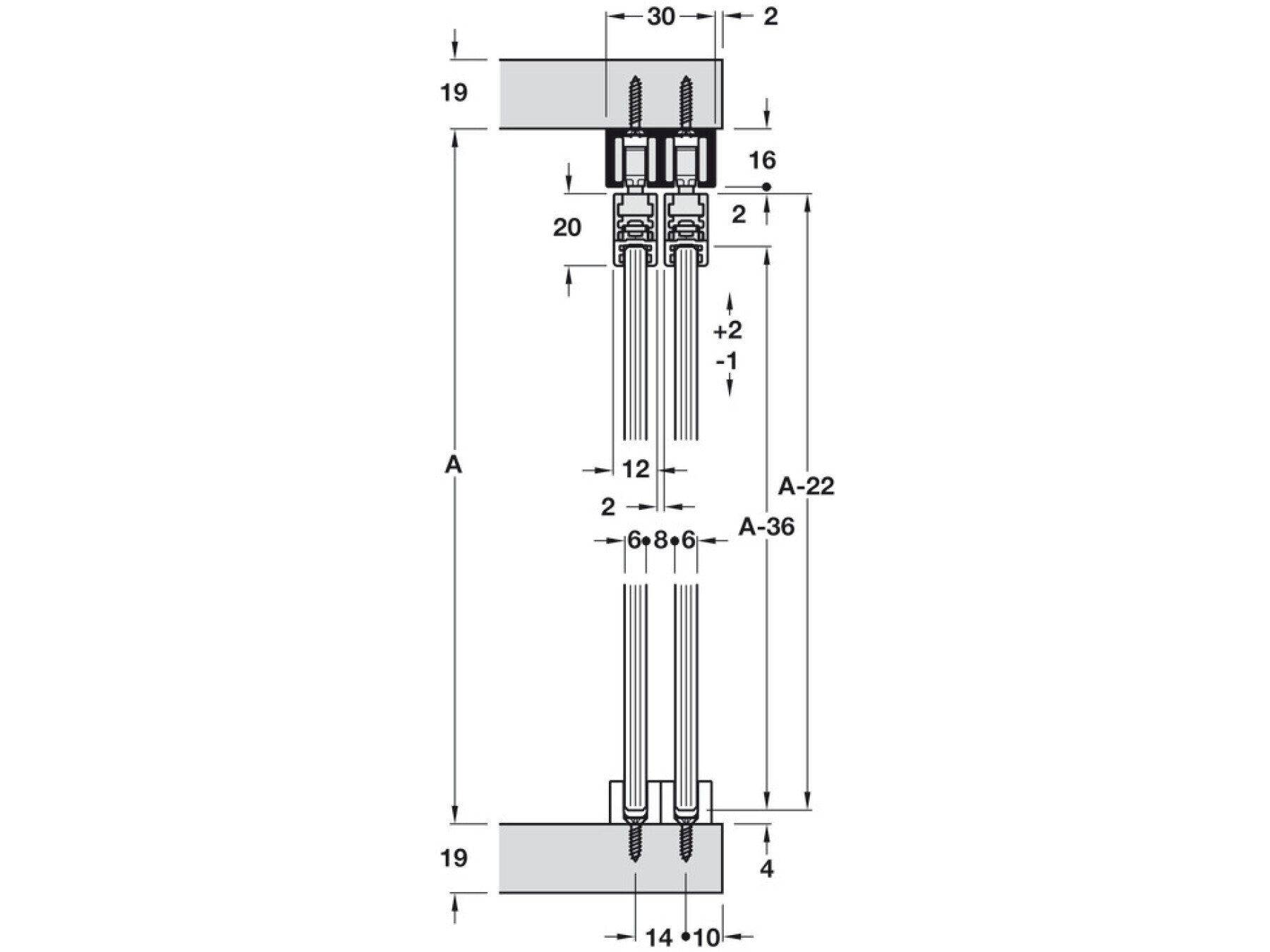

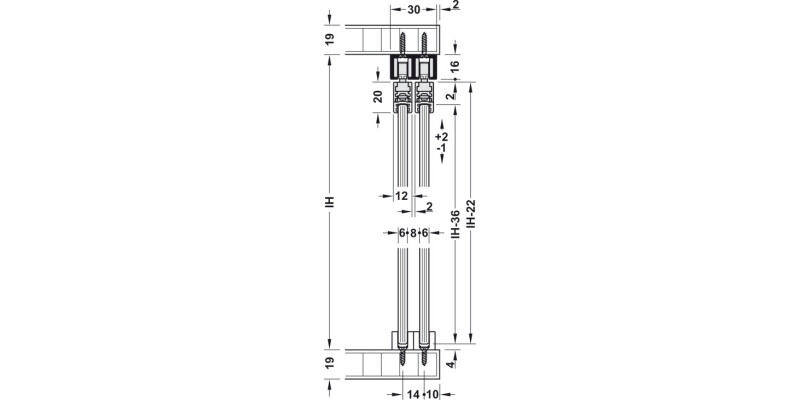

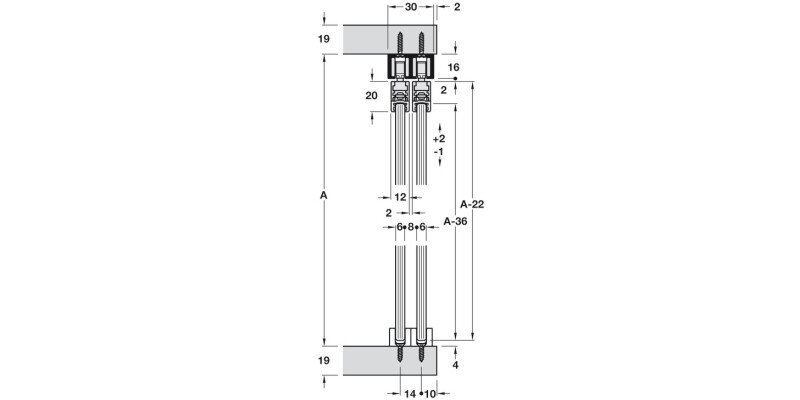

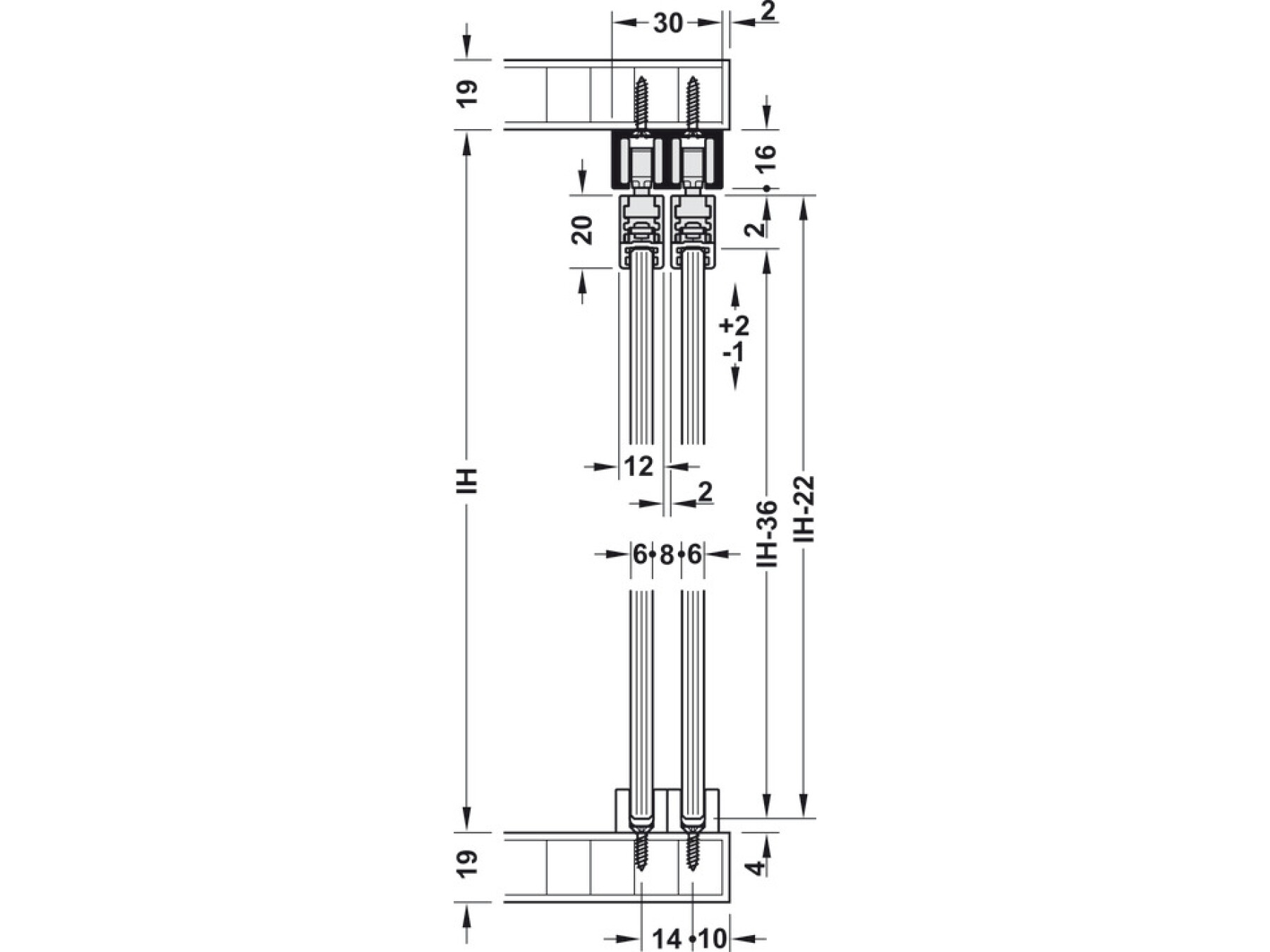

Specifications
Number of door leaves per set
2.00
Version
with top glass retaining profile and visible bottom guide with zero clearance
Soft closing mechanism
With clip-in door stopper
For glass thickness
6 mm
For door width
≤1,000 mm
For door weight
≤16 kg
Cabinet version
with sliding doors without glass drilling
Area of application
Inset glass cabinet doors
For door height
≤1,400 mm
Door stopper
Top clip-in door stopper
Material/finish
PlasticRollers: Plastic
Running position
Top
Number of rollers
2.00
Running gear guided by
Friction bearing
Adjustment facility
Height adjustment: -1 – 2 mm, Height +2/-1 mm
Installation
Screw-on guide, Running gear without tools (quick fixing system)
Door processing
Without glass preparation
Running position
Top
Set
Set without tracks
Type of opening
linear
Number of door wings in a system max.
2
