Eku Clipo 26H IF FitSet 2Dr
Rated 3.5/5 based on 11 customer reviews
Hafele

Eku Clipo 26H IF FitSet 2Dr

  • Product SKU: 405.00.004
  • Availability: In Stock
£128.66

Price inc. VAT

£128.66
Hurry! only 7 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

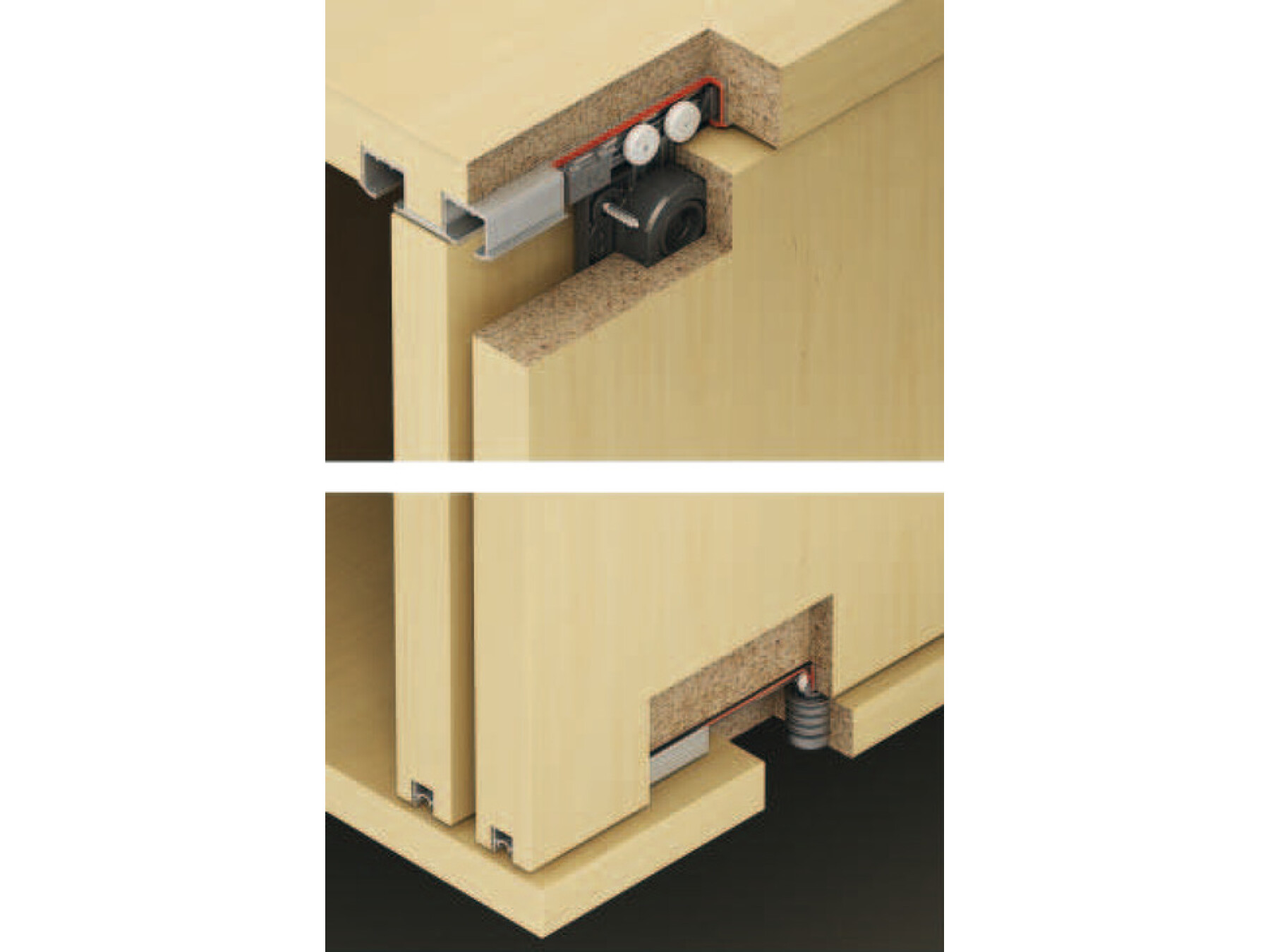

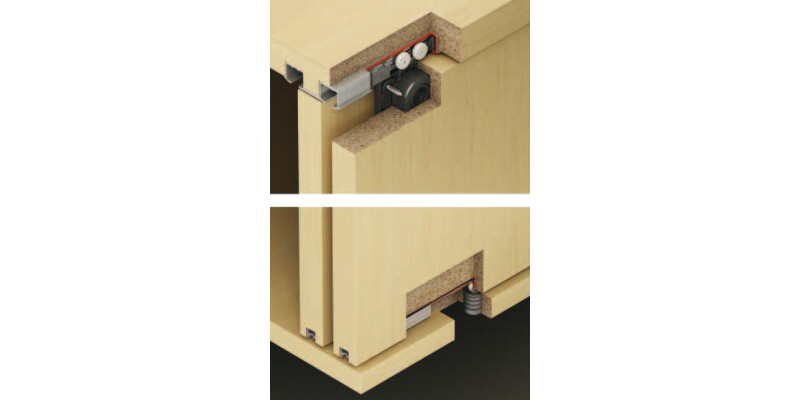

Quality furniture where bi-passing sliding doors are requiredEKU Clipo 26 H IF - 2 rollersRunning gear guided by friction bearing mounting plastic rollerSpring loaded rattle proof bottom guideEKU soft close mechanism can be ordered separately, information on request
  • Version: EKU Clipo 26 H, for 2 doors
  • Application: Inset cabinet doors
  • Installation: Screw and clip fixing
  • Adjustment facility: Height adjustment +/- 2 mm
  • Door weight: Max. 26 kg
  • Door height: Max. 2200 mm
  • Door width: Max. 1000 mm
  • Door thickness: 19-25 mm
  • Height adjustment: 4 mm in total
  • Material: Zinc alloy/Plastic/Rubber

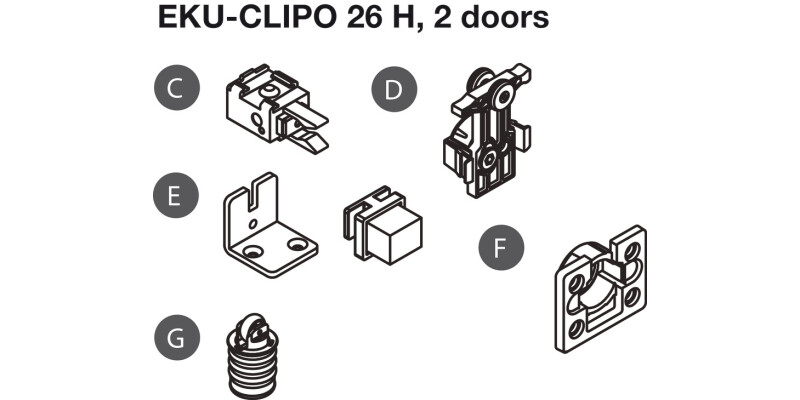

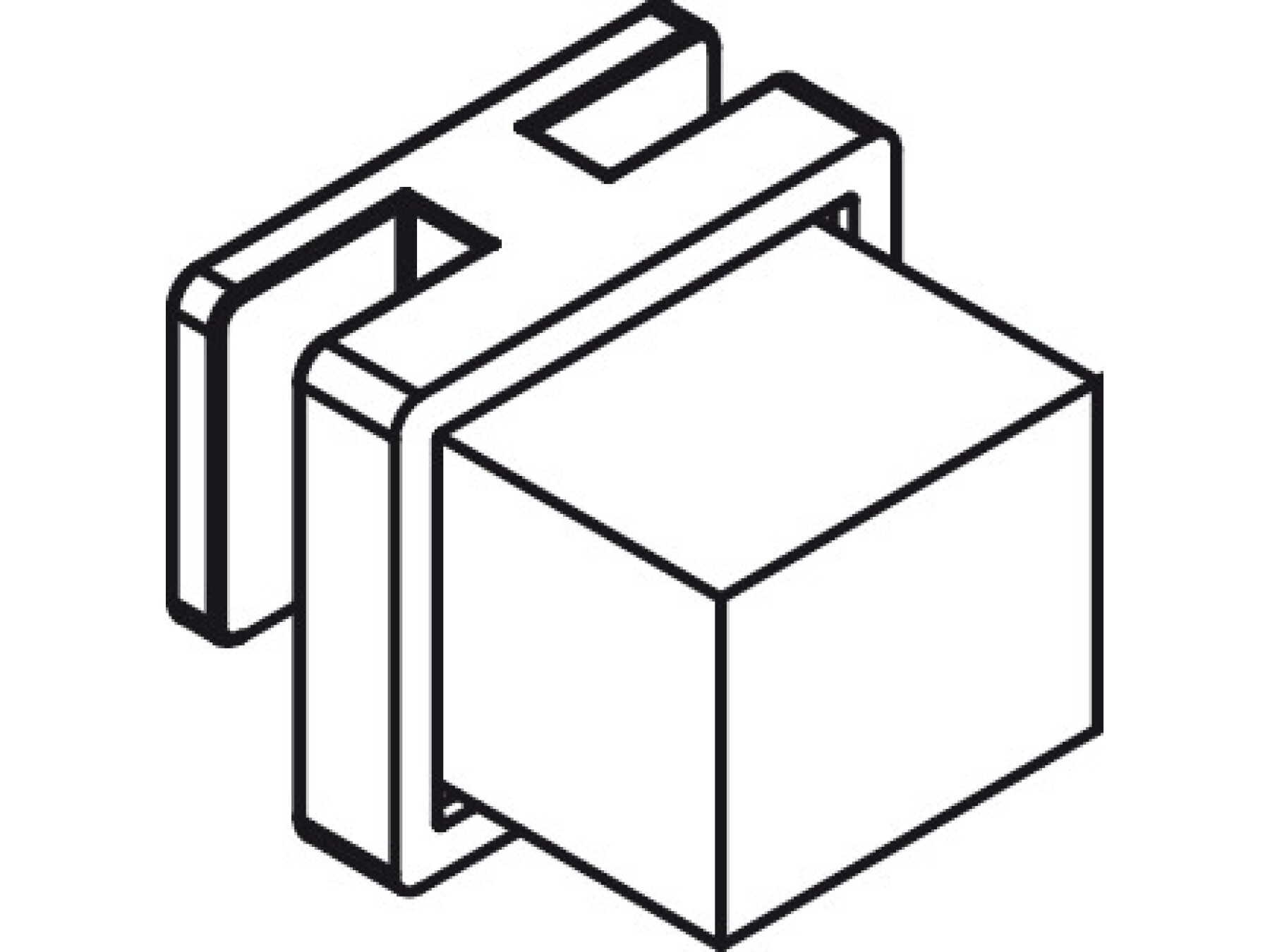

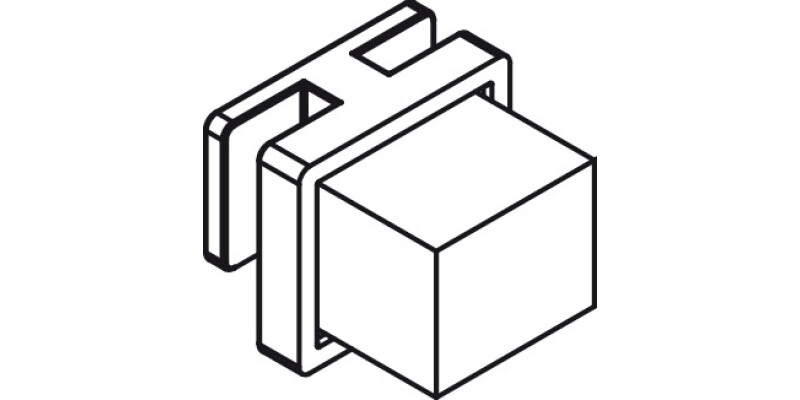

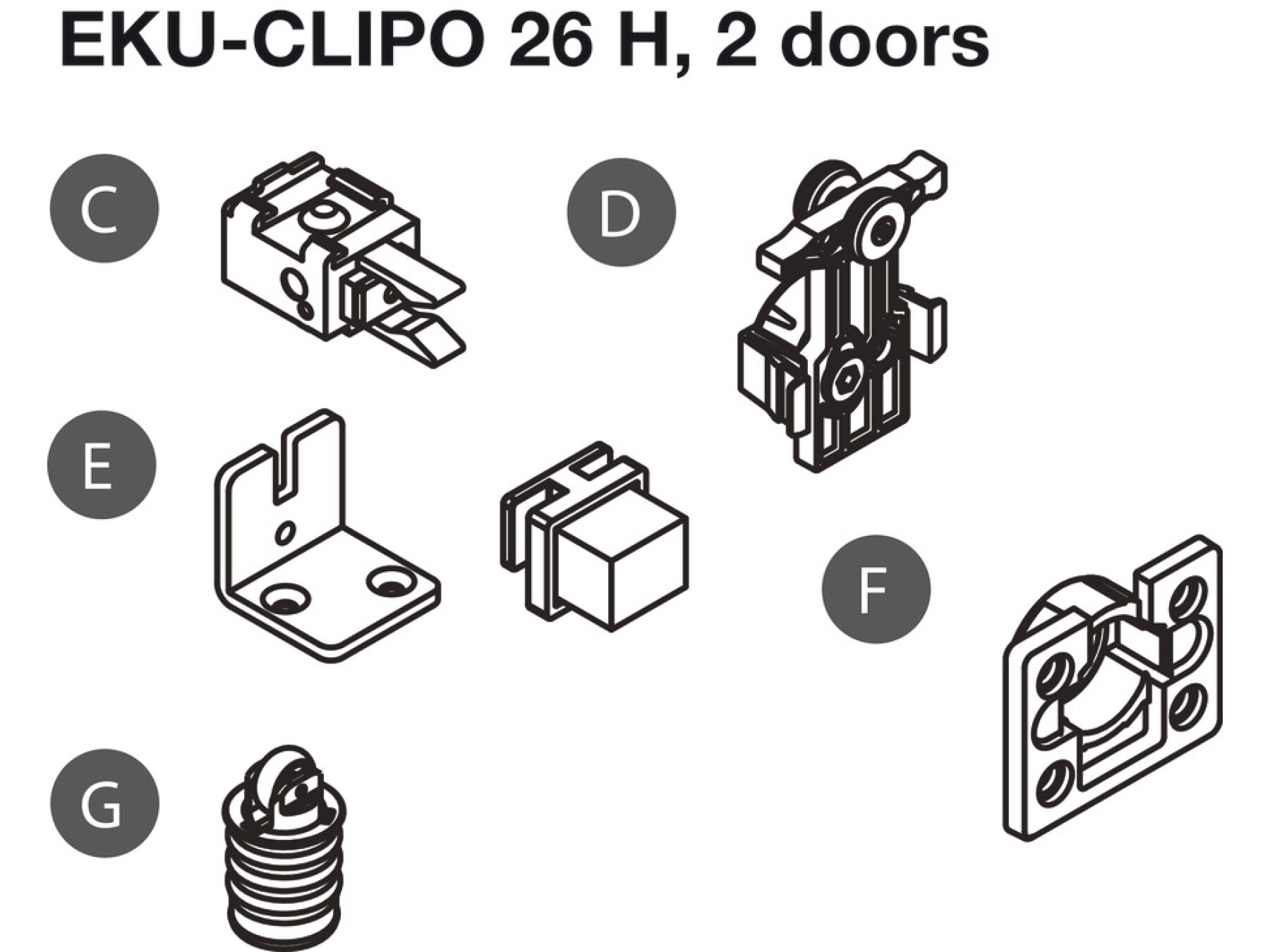

  • Supplied with: Fitting set includes 4x Track stopper, with retaining spring, grey plastic, 4x Running gear, clip fixing or groove mounting, with +/-2 mm vertical adjustment, bright zinc alloy, 1x Suspension fitting, clip fixing, for use with boss-type housing, bright zinc alloy, 4x Housing, boss-type screw fixing, for use with suspension fitting anthracite plastic, 2x Bottom roller, guide spring loaded, for mounting in drilled holes, grey plastic
  • Order reference: Please order running and guide tracks separately.Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.
