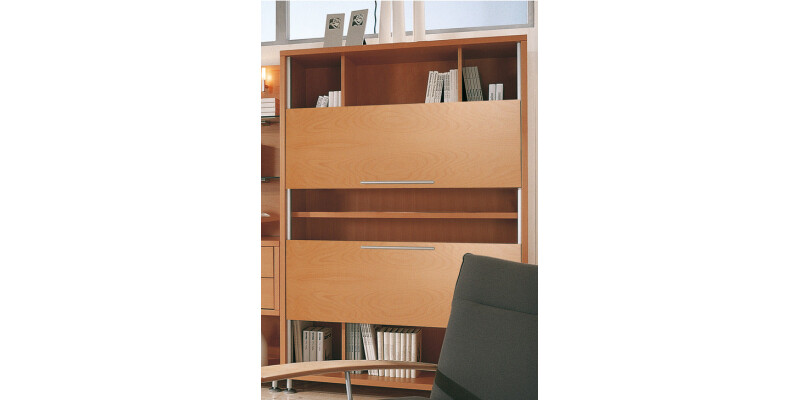

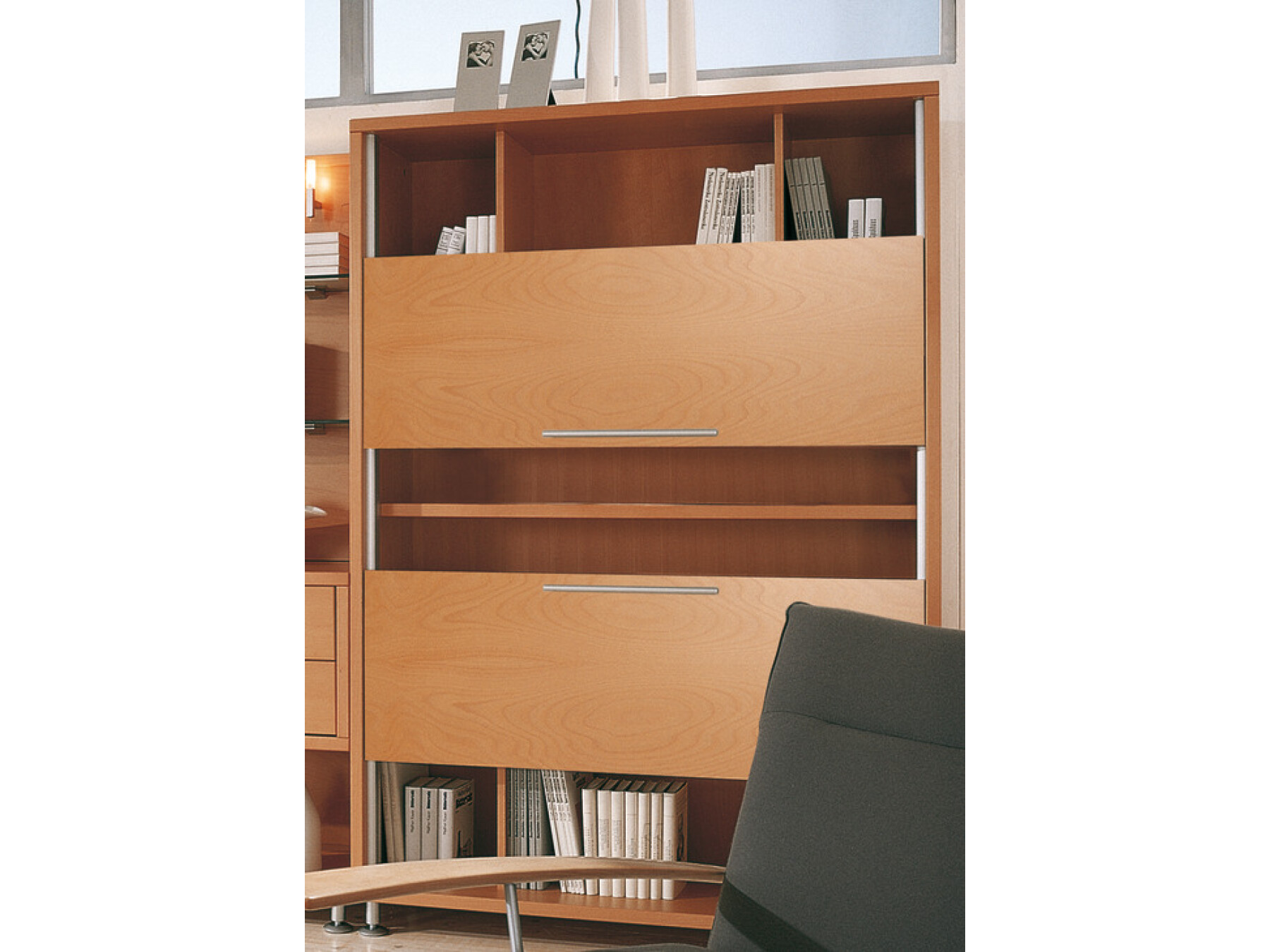

Eku Libra 20H Synchro FitSet 2Dr
For two bi-parting vertical synchronised action sliding timber doors. No counterweight is required as the door acts as a counterweight
- For 2 doors
- 32 day lead time on this product
- Application: Inset or overlay cabinet doors
- Installation: Screw and clip fixing
- Door weight: Max. 20 kg
- Door height: Max. 1000 mm
- Door width: Max. 1600 mm
- Door thickness: Min. 16 mm
- Material: SteelPlasticRubber
- Supplied with: Fitting sets consists of 4 pairs x Running gear, used at top and bottom of unit, left hand with retaining spring, right hand adjustable using SW4 allen key, plug in and screw fix to door panel, with black rubber door buffer and plastic roller with metal axle, grey plastic, 4 x Top bracket, screw fixes to top running gear and guides cord, silver chromatized steel, 4 x Bottom bracket, screw fixes to bottom running gear and guides cord, silver chromatized steel, 4 x Locking pin, secures cord to bottom bracket, steel, 4 x Cord, blue kevlar, 4 pairs x Running gear covers, clip on, anthracite grey plastic, 2 pairs x Cover plates, clip on, anthracite grey plastic, 1 pair x Cord front guides, slots into track A, secured used SW3 allen key, yellow chromatized steel, plastic
- Order reference: Tracks and cover profiles to be ordered separately
