System 2 Btm Roll FitSet 1Door

Part Number: 401.20.001
Bottom rolling system, For 1 door
Price:
£22.56
Per Item
VAT excluded

Fittings for straight sliding, bottom rolling, inset cupboard doorsFor domestic or light duty commercial... Read More

Product Information

Product Details

Fittings for straight sliding, bottom rolling, inset cupboard doors
For domestic or light duty commercial furniture
Face fixed to the rear face of the door

Supplied with

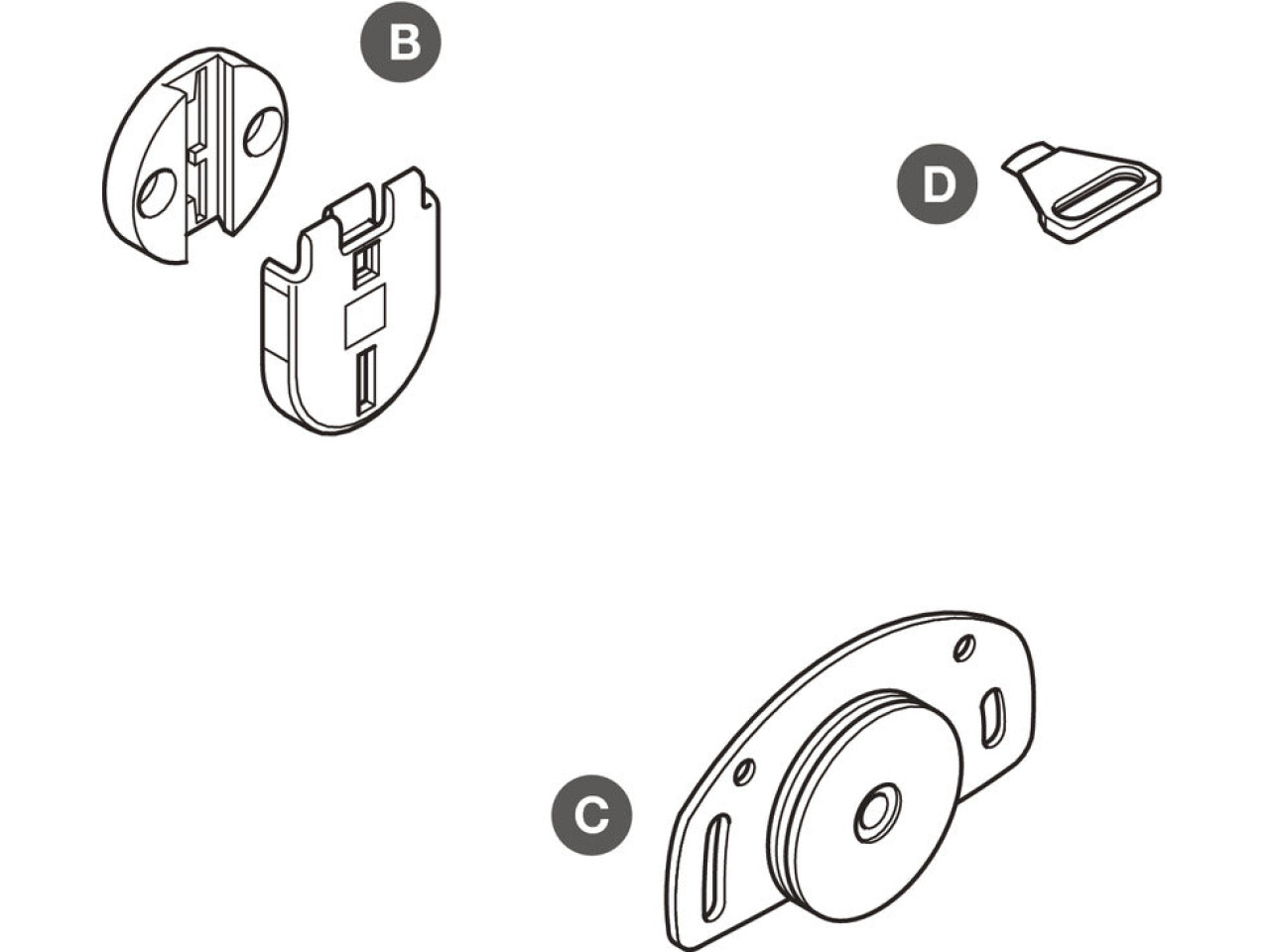

Set consists of 2 x Top guide, clip on, screw fixing, for use with tracks to suit, 54 x 41 mm, black plastic, 2 x Bottom roller, screw fixing, adjustable, for use with tracks to suit, 83 x 43 mm, black plastic, 1 x Track buffer, screw fixing, adjustable, black plastic

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

Specifications

Area of application

Inset cabinet doors

Number of door leaves per set

1.00

For door weight

≤25 kg

For door thickness

16 – 18 mm

Material/finish

Plastic, Black

Adjustment facility

Height adjustment: 11 mm, ± 5.5 mm

Installation

Screw and clip fixing

Hafele Lifetime Guarantee

10 years

Order reference

System 2 top/bottom track to be ordered separately
