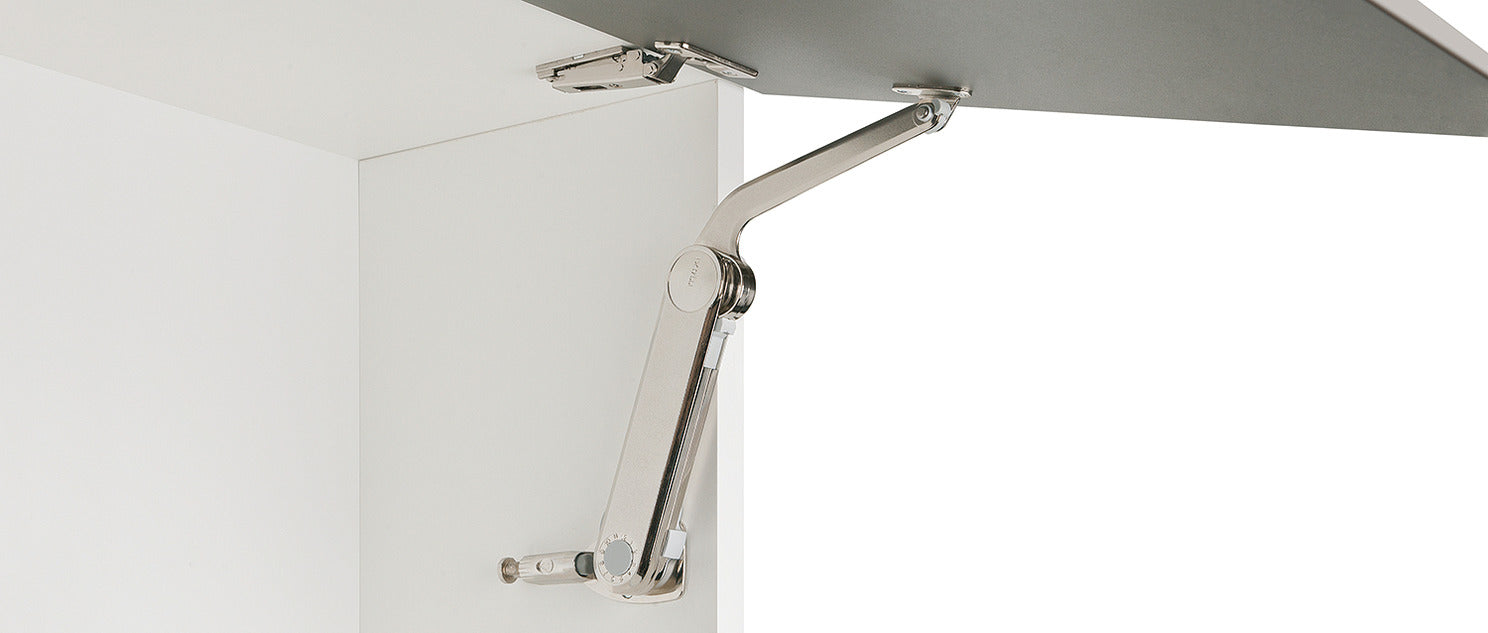

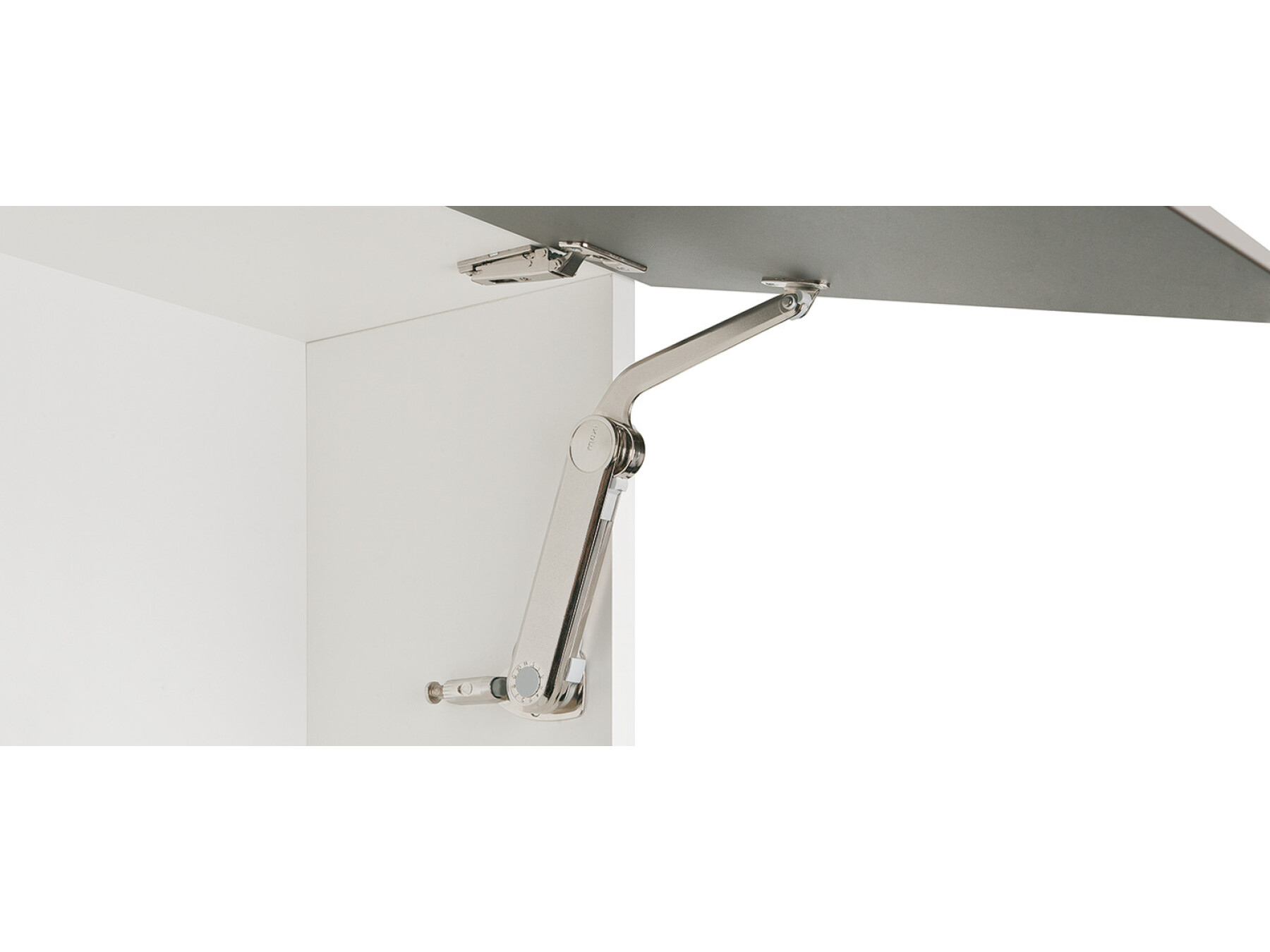

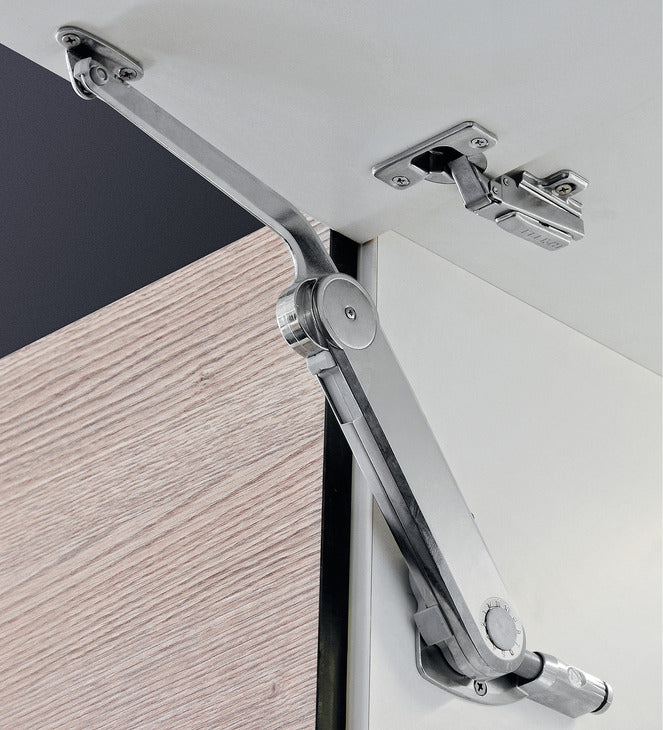

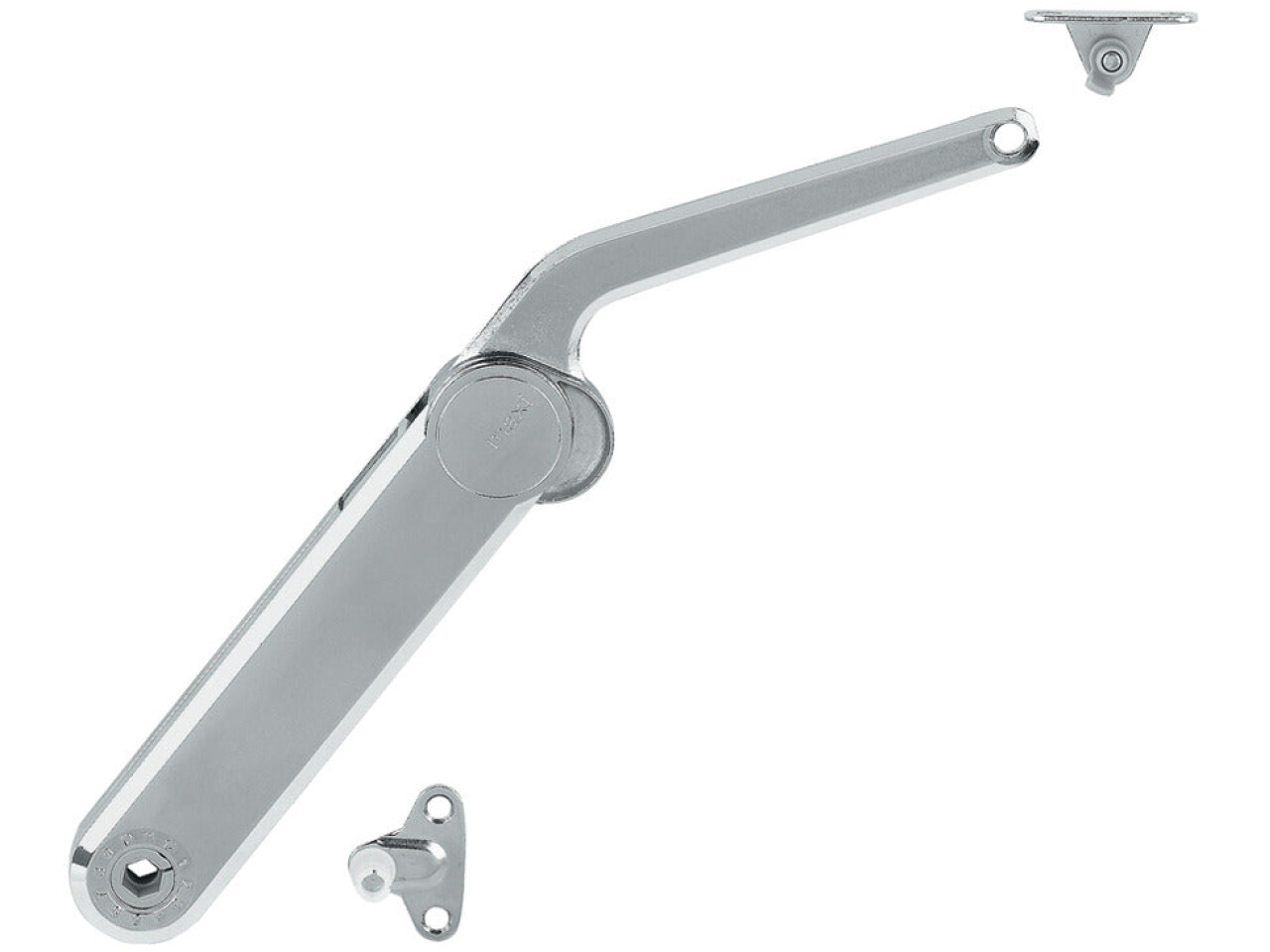

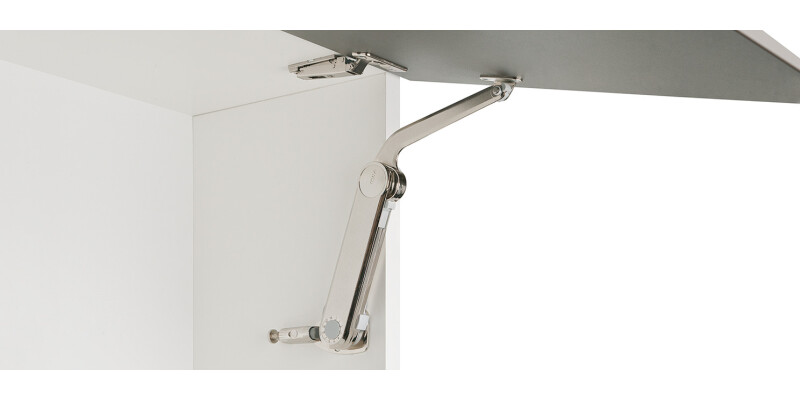

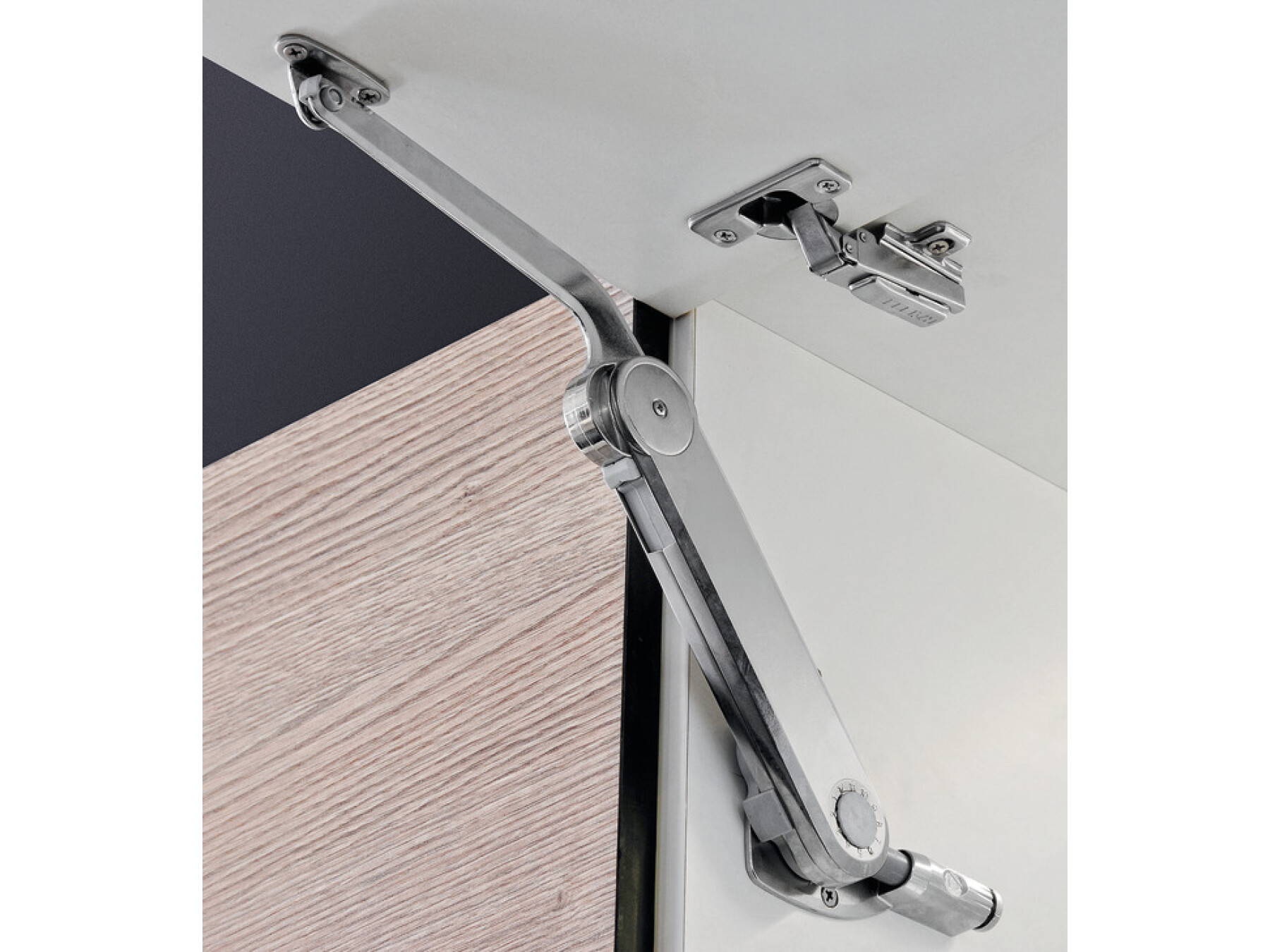

Maxi Lid Stay 37mm Model A NP
With power assisted openingUnhanded designBy changing the installation position and combining Maxi with the... Read More
Product Details

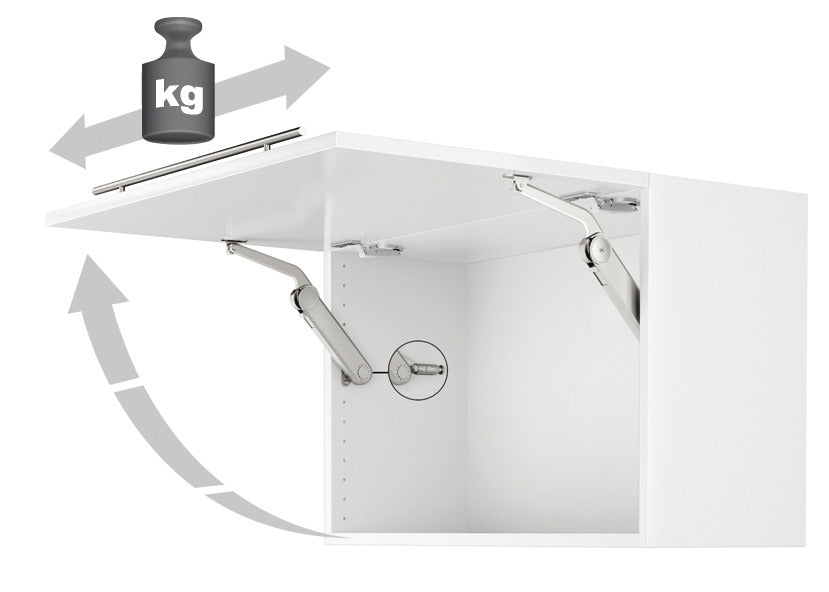

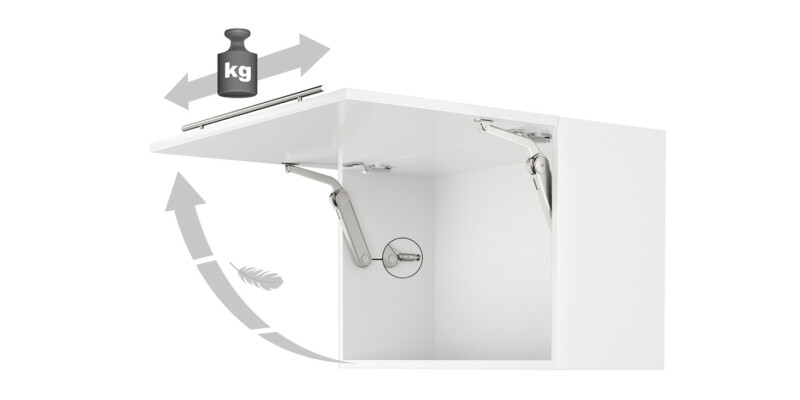

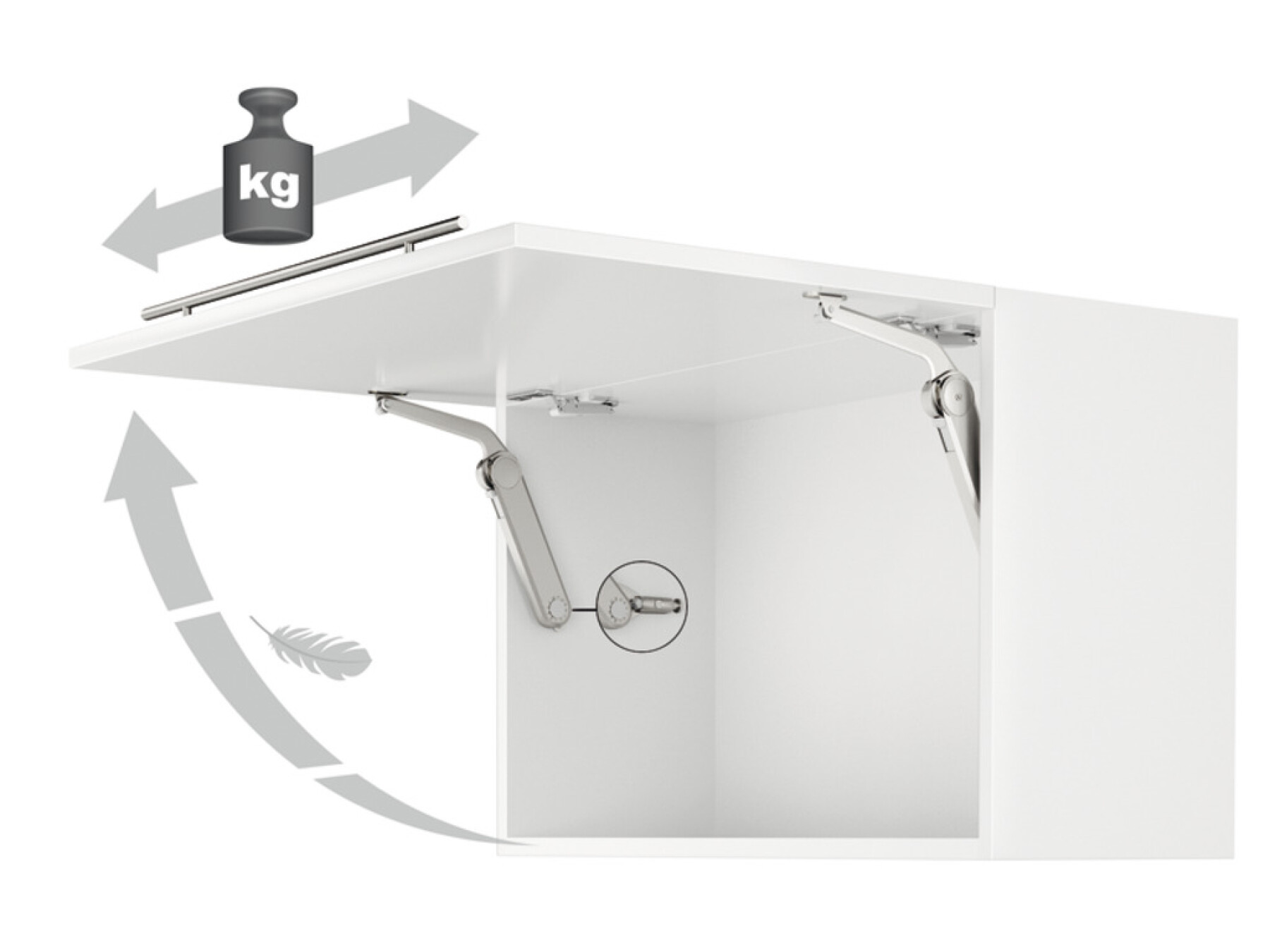

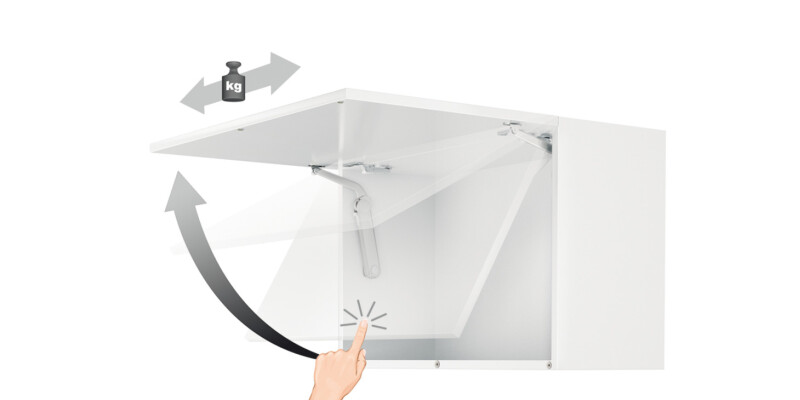

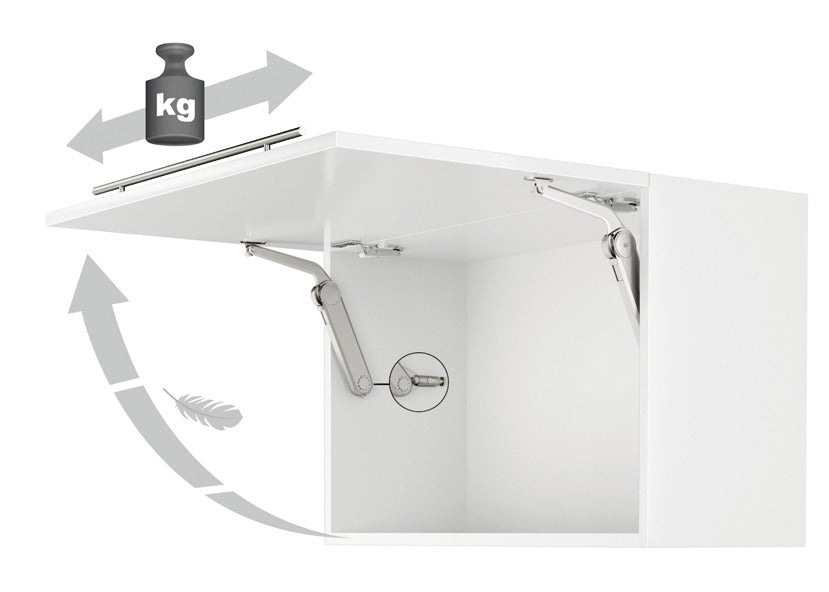

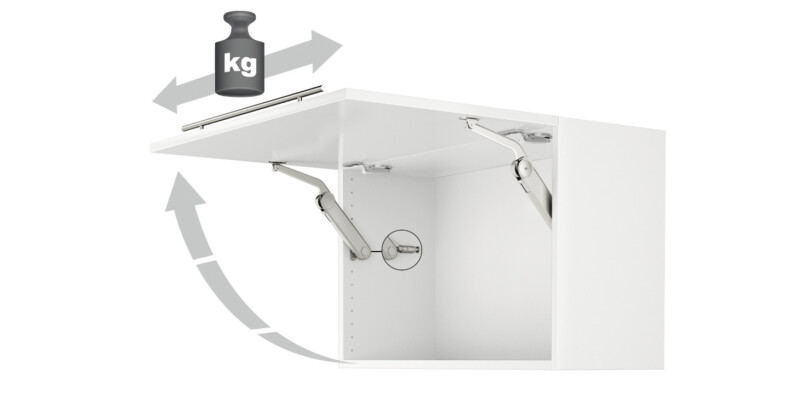

With power assisted opening
Unhanded design

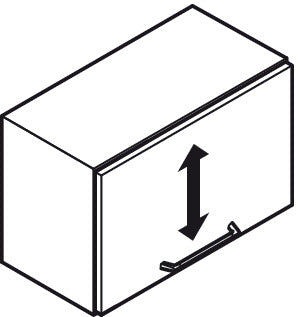

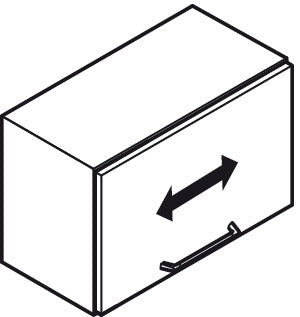

By changing the installation position and combining Maxi with the appropriate accessories all common applications for flaps and openings can be realised
Can be used on one or both sides (depending on the size of the flap)

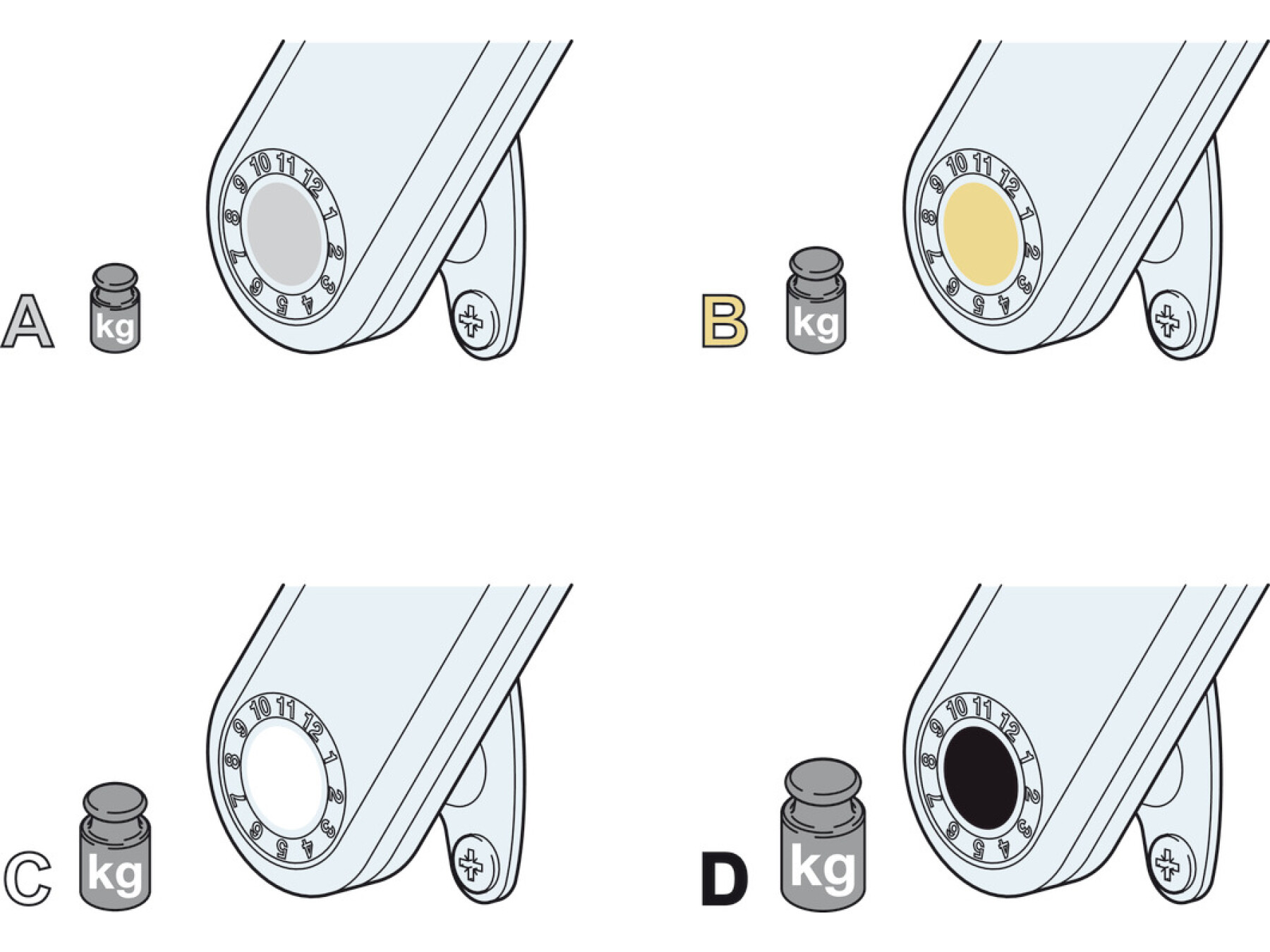

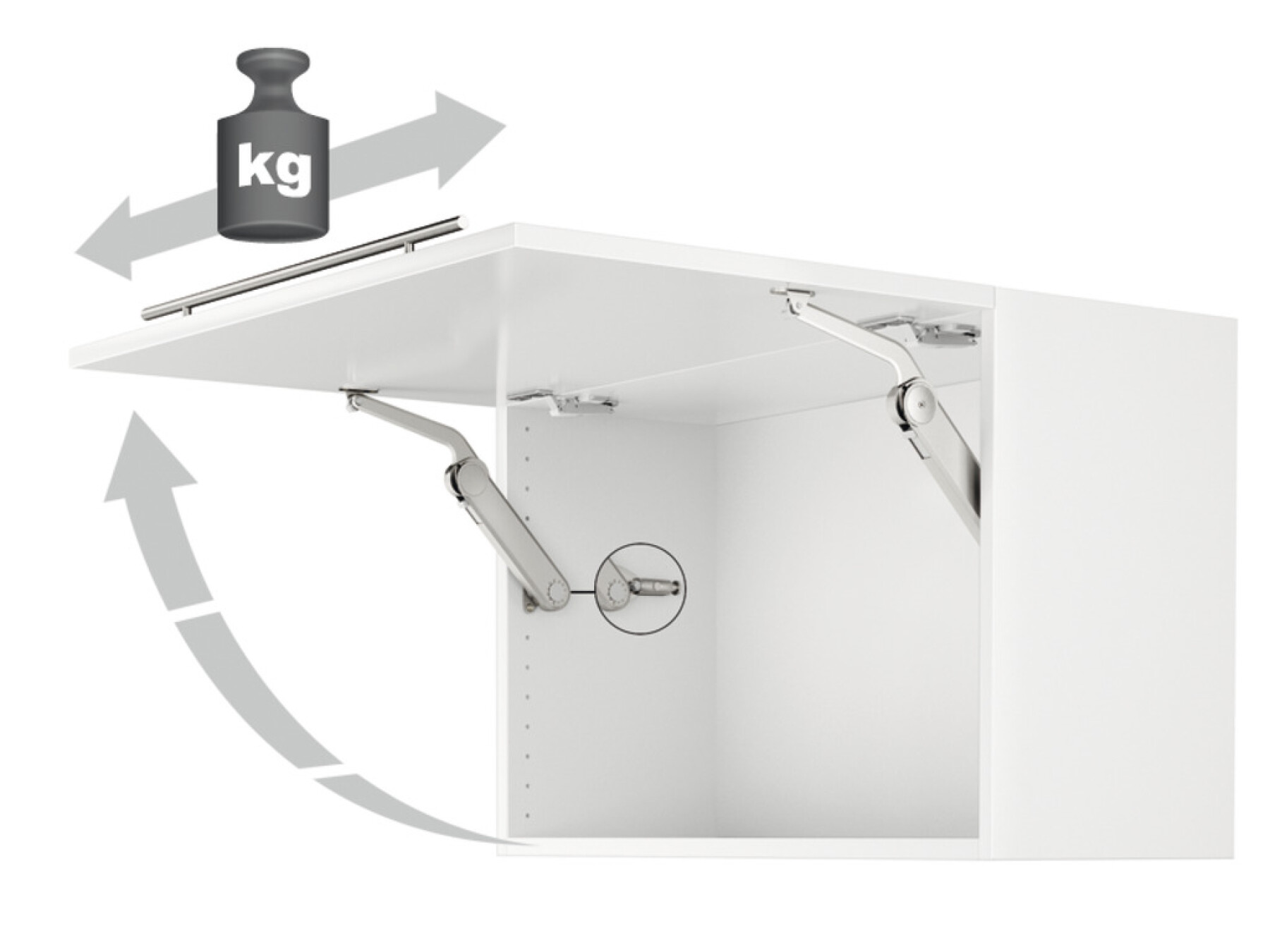

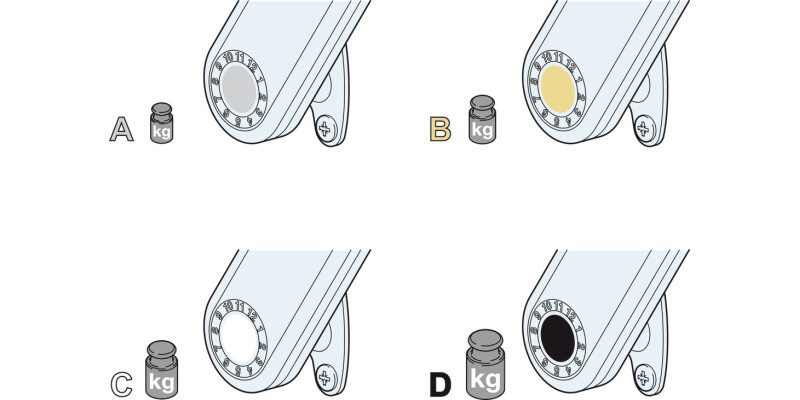

Holding power can be adjusted individually to respective flap weight

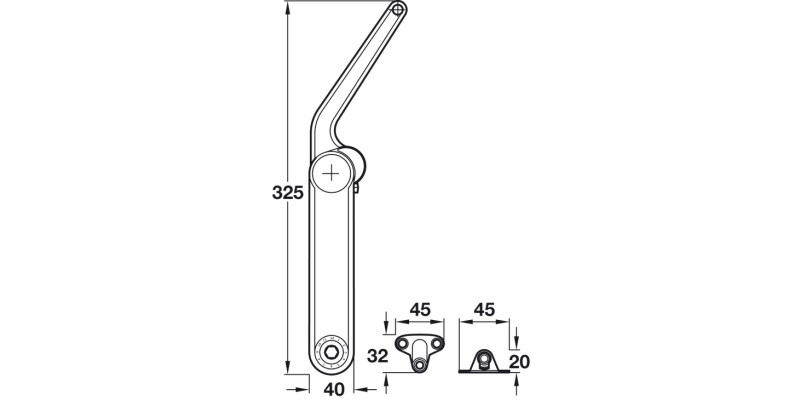

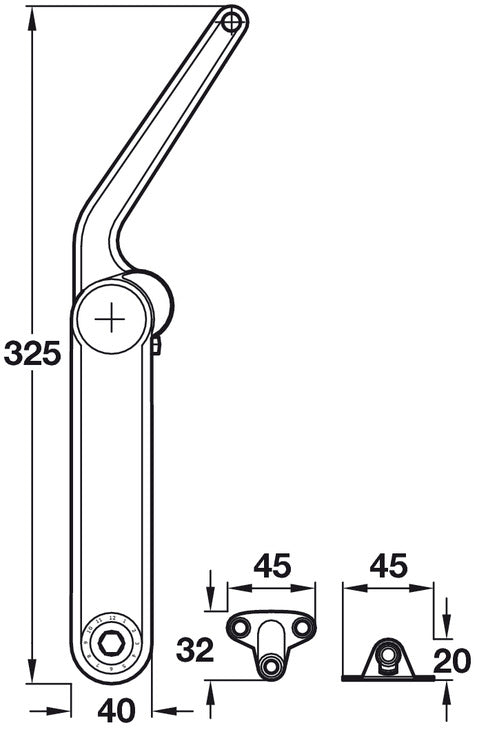

For additional mounting dimensions and sample measurement tables, please see cat. page
Adjustment facility
height adjustment ±2 mm, side adjustment +3/-1 mm, tilting angle ±1.5 mm and adjustment facility for holding power with SW10 hex key
Order reference

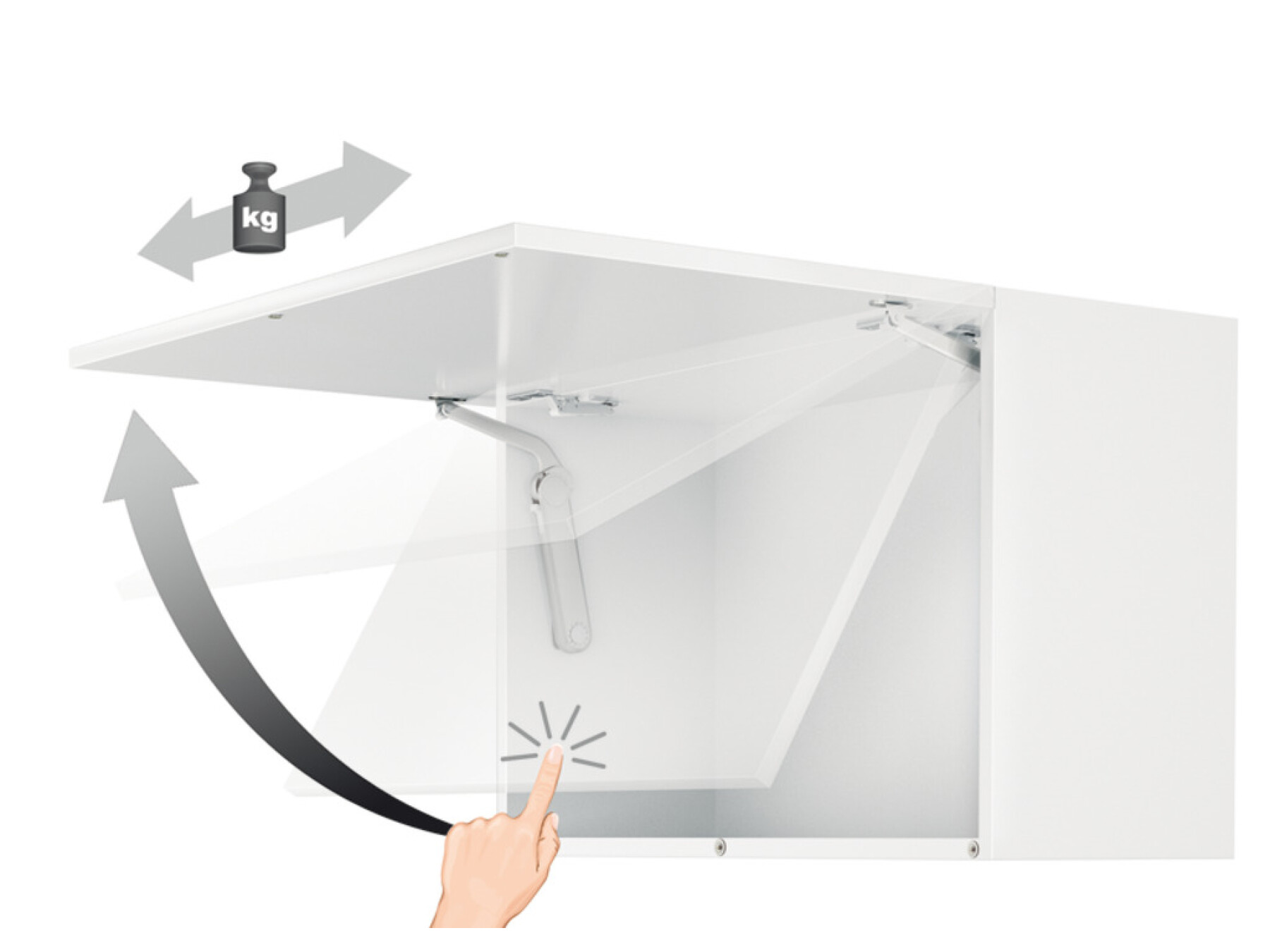

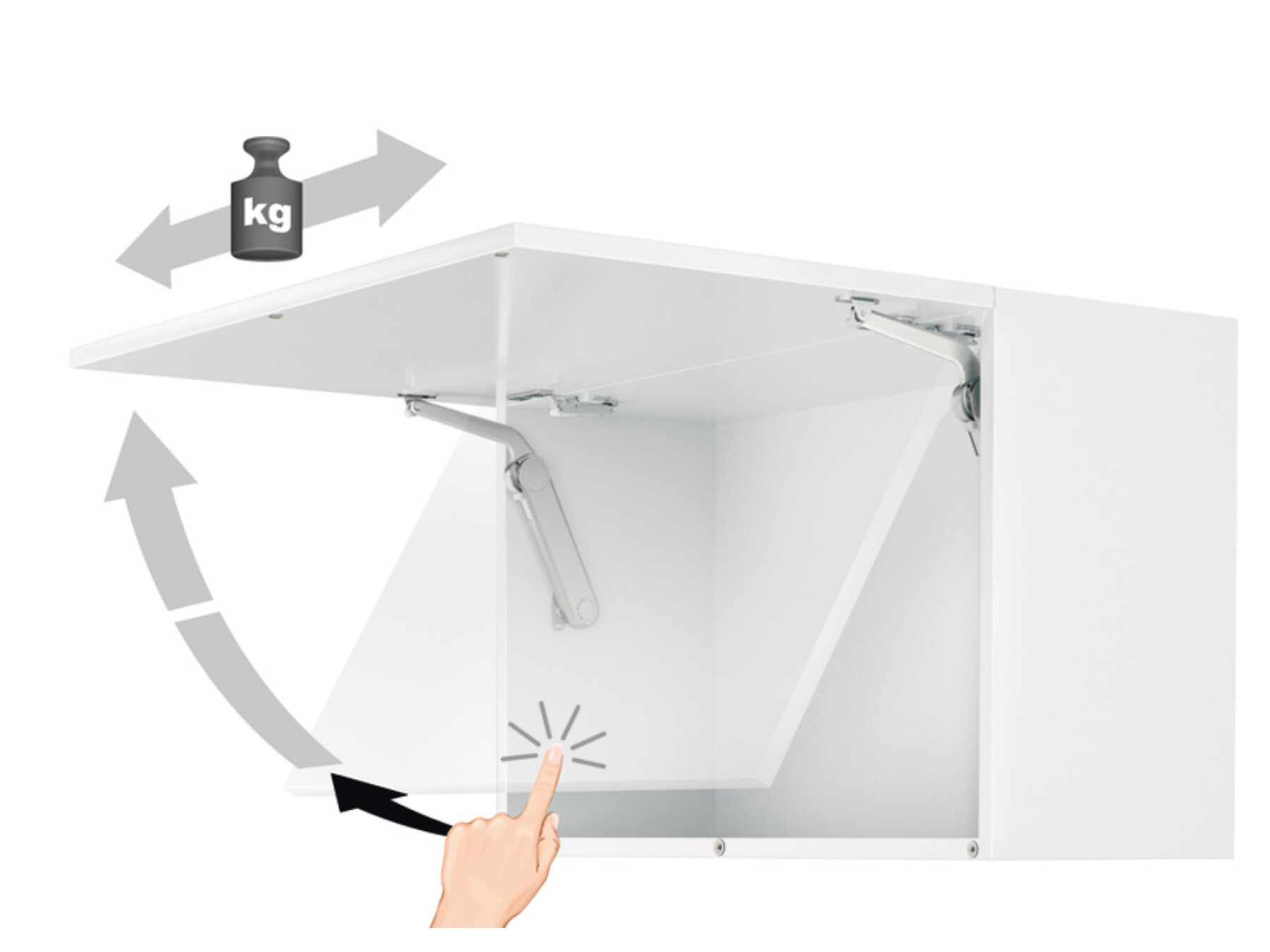

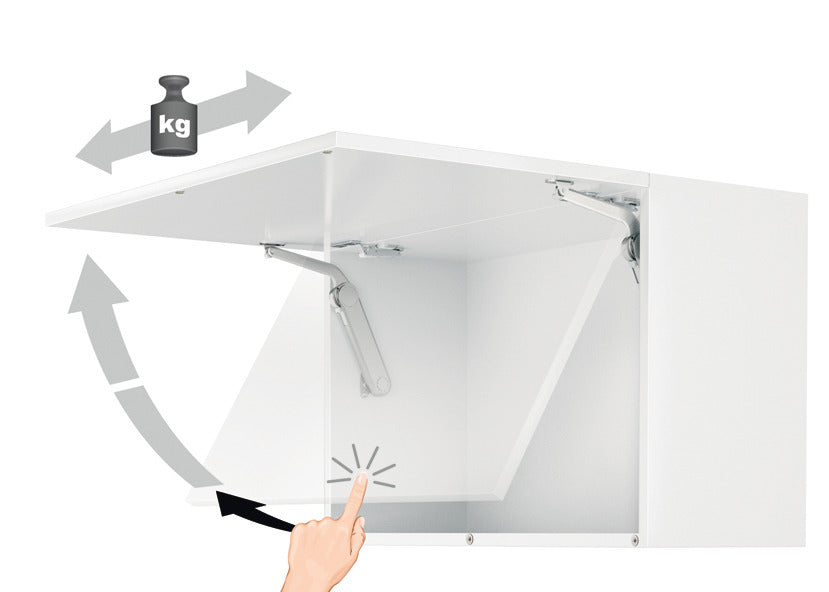

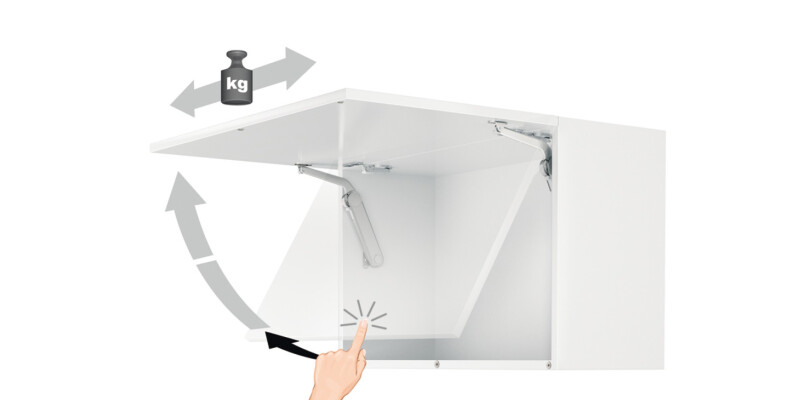

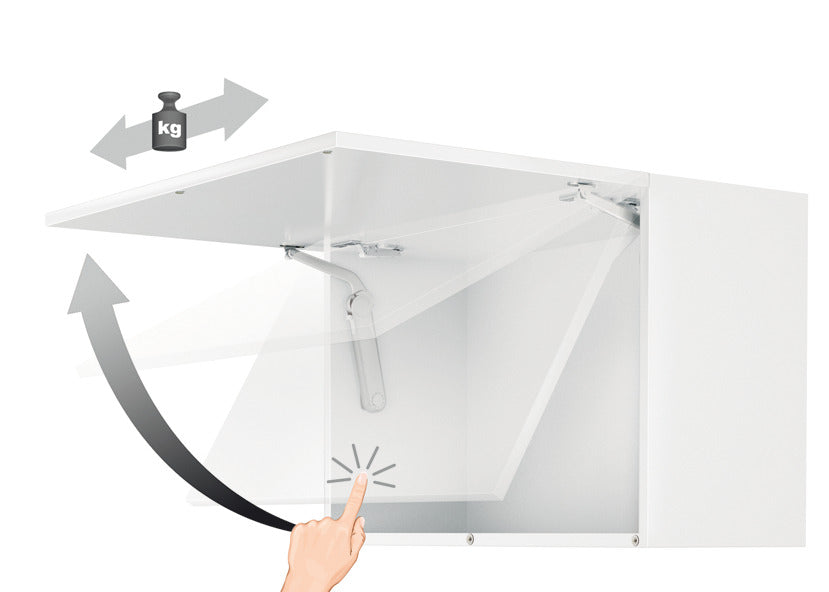

Soft closing mechanism and push door catch (for ‘push-to-open’ or ‘touch opening’ application) available, please order separately
Order Hospa Ø 3.5 raised head screws separately
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application

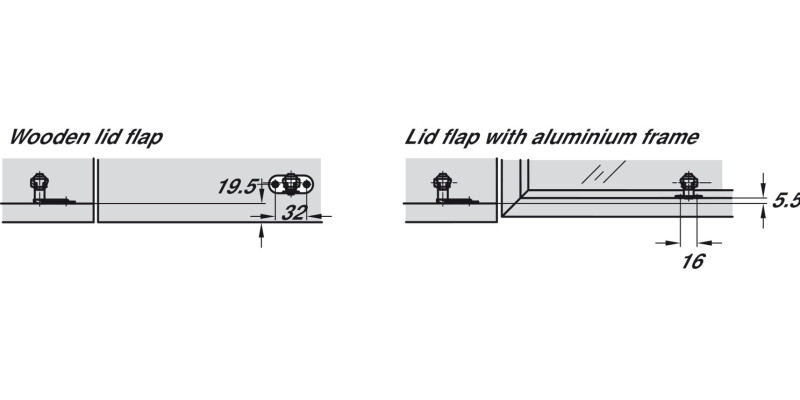

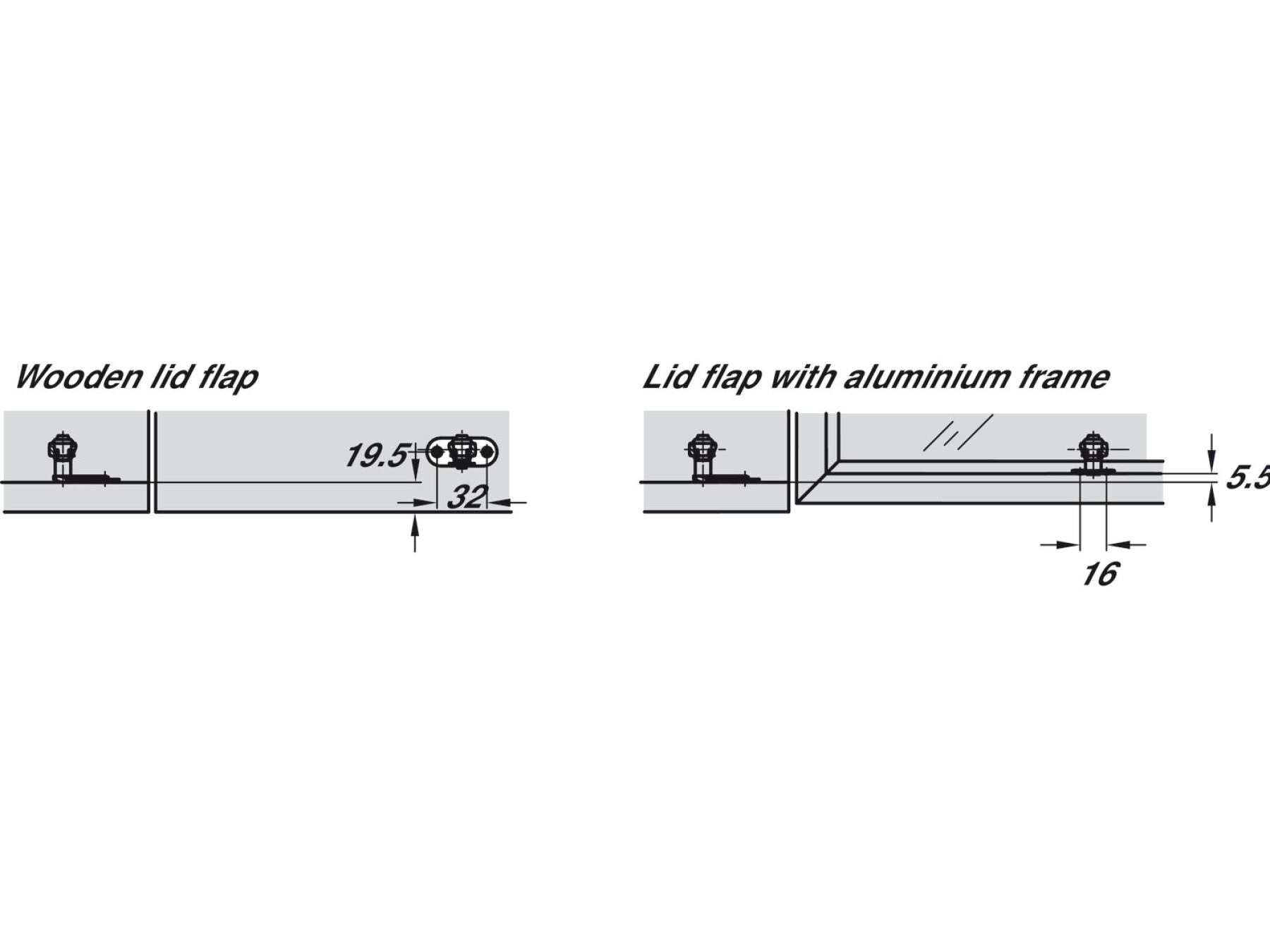

for flaps made from wood or with aluminium frame, from frame width of 45 mm
Version

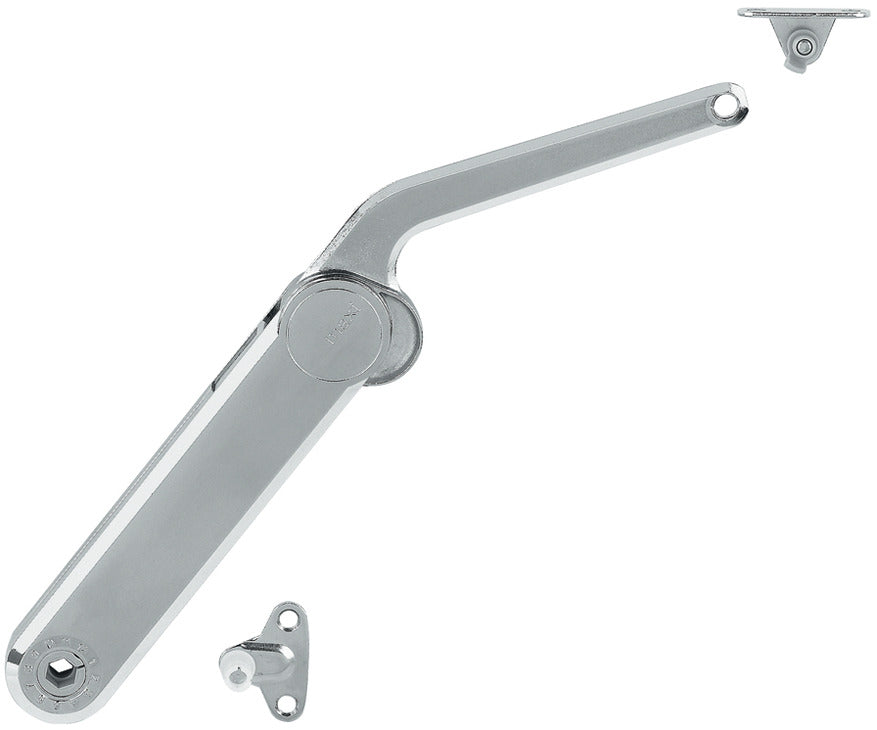

Complete set
Material
Stay: Zinc alloy
Screw-fixing brackets: Steel
Hinge cover and adjusting screw: Plastic
Colour/finish
Fittings, mounting brackets and screw-on brackets: Zinc plated, white, black
For cabinet height

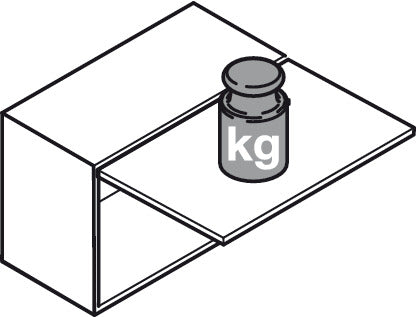

For lid weight
Mounting
Edge distance
Installation

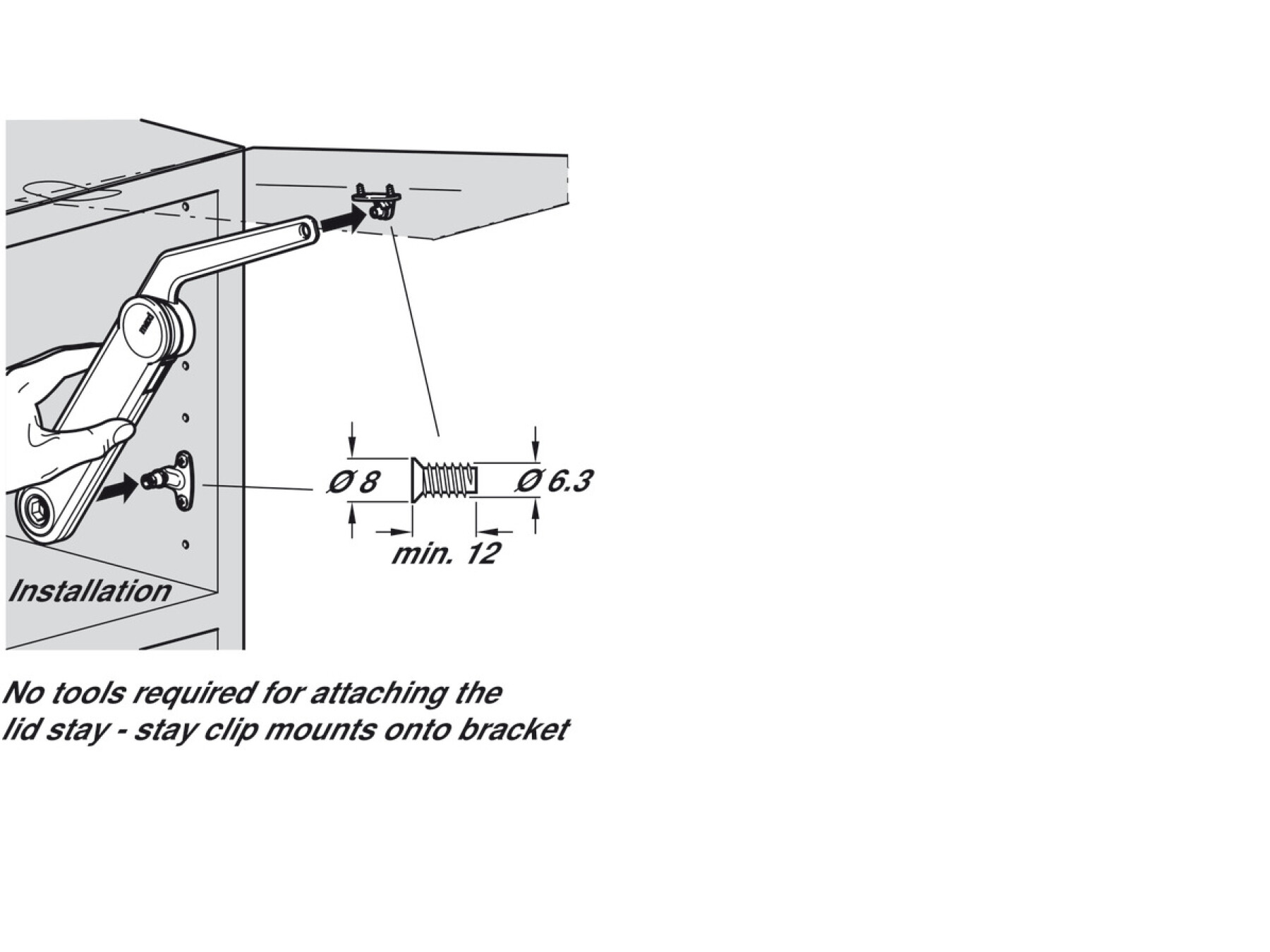

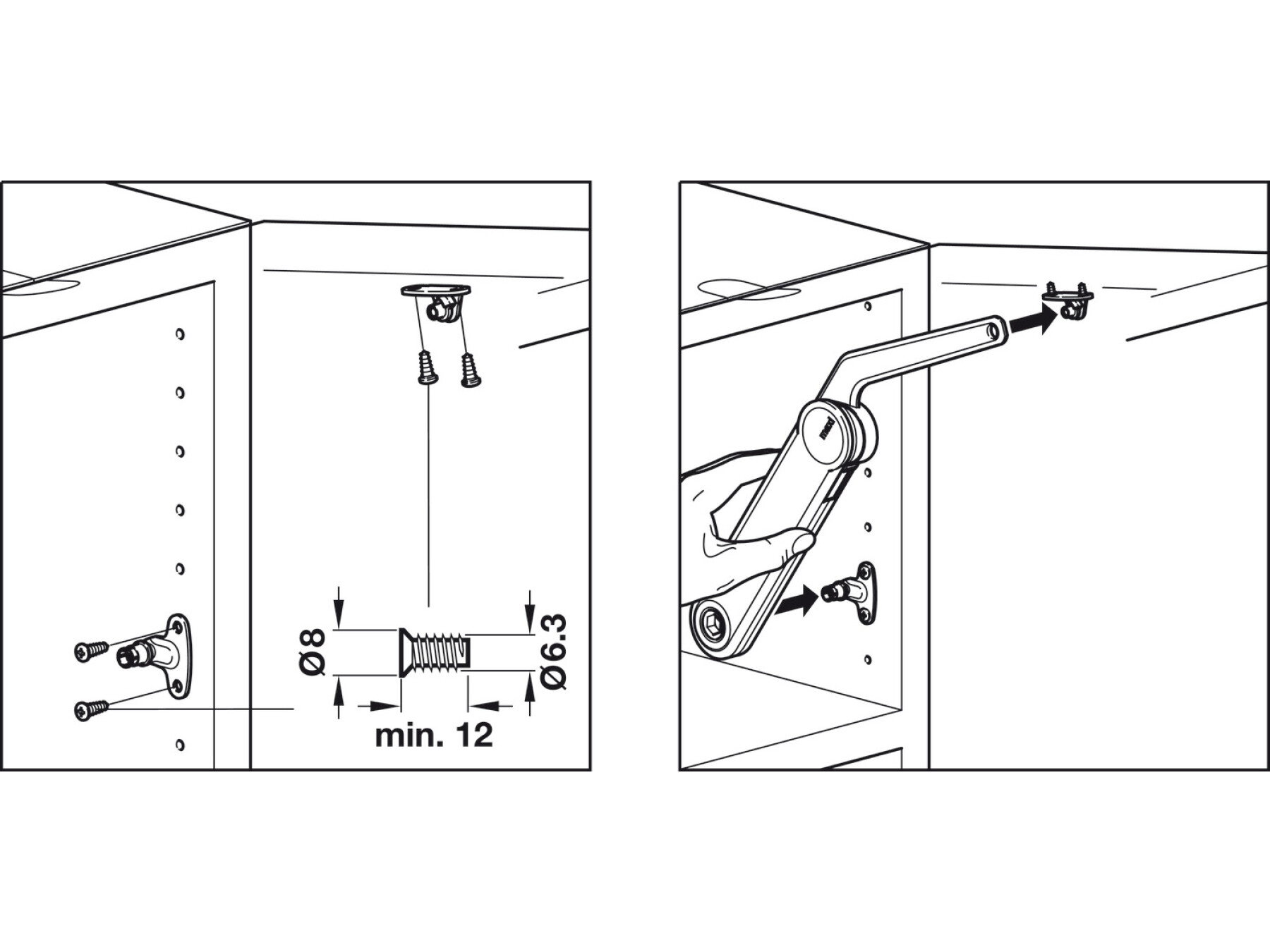

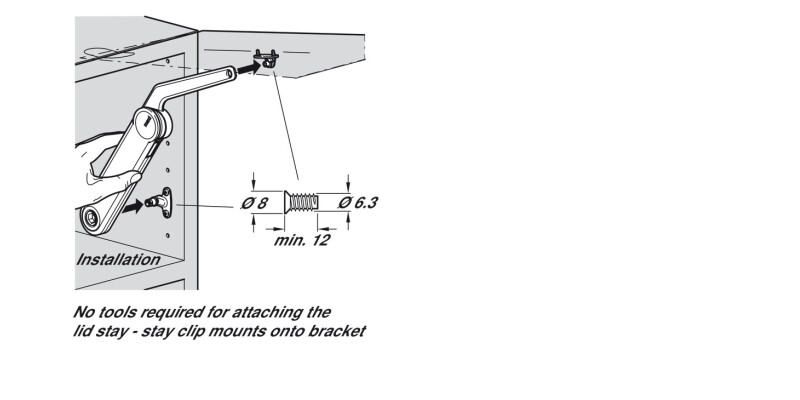

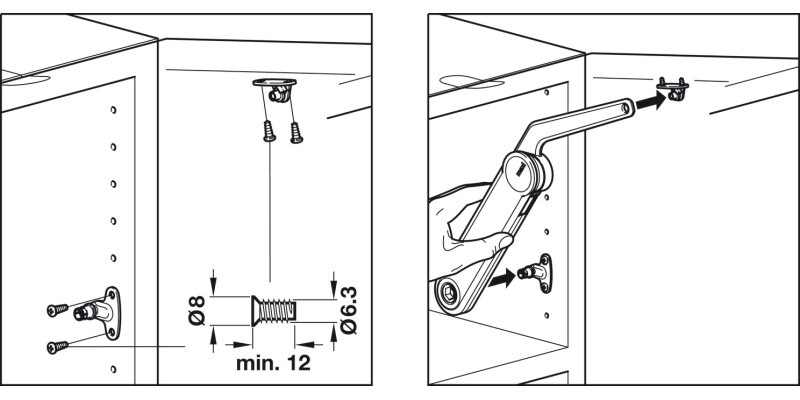

Clip mounting on pre-mounted screw fixing brackets included, no tools required
Hafele Lifetime Guarantee
Supplied with
Installation instructions
