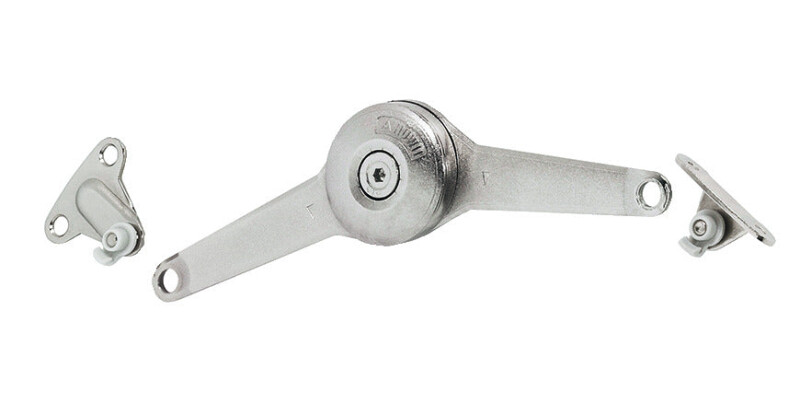

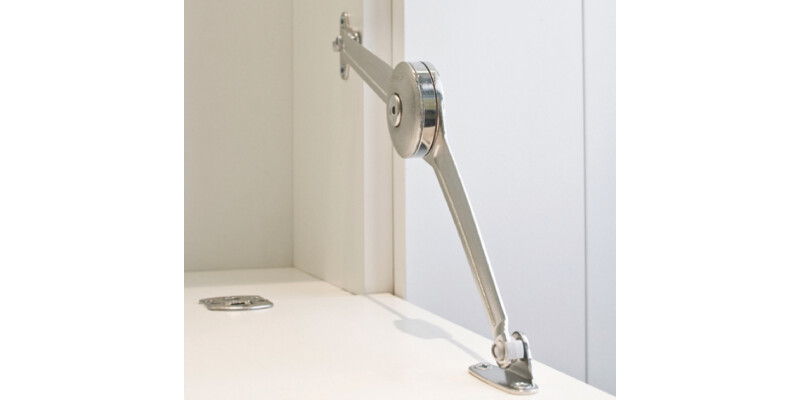

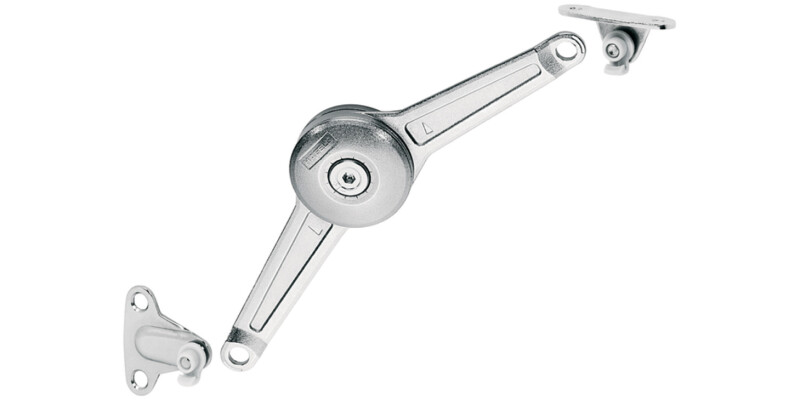

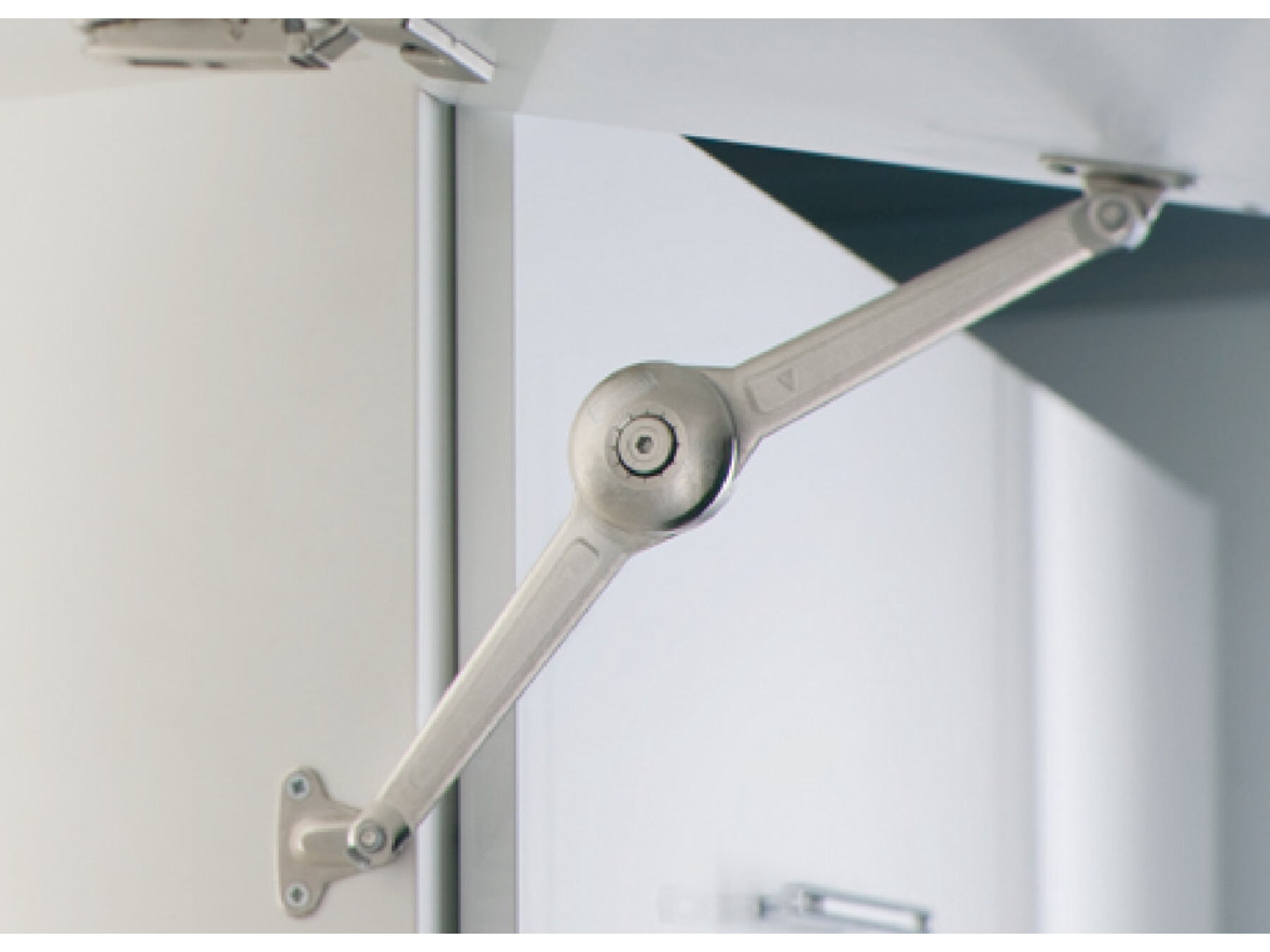

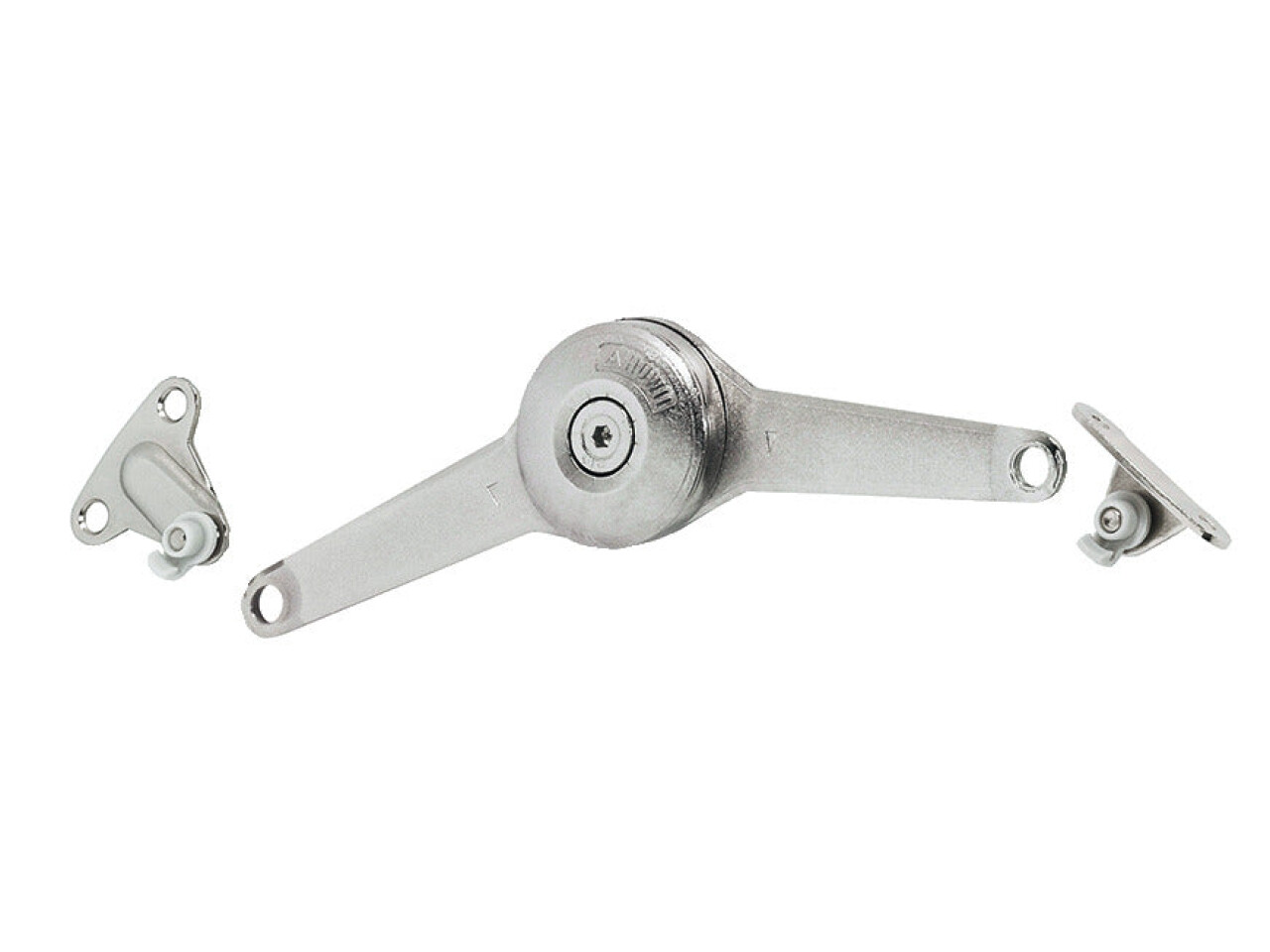

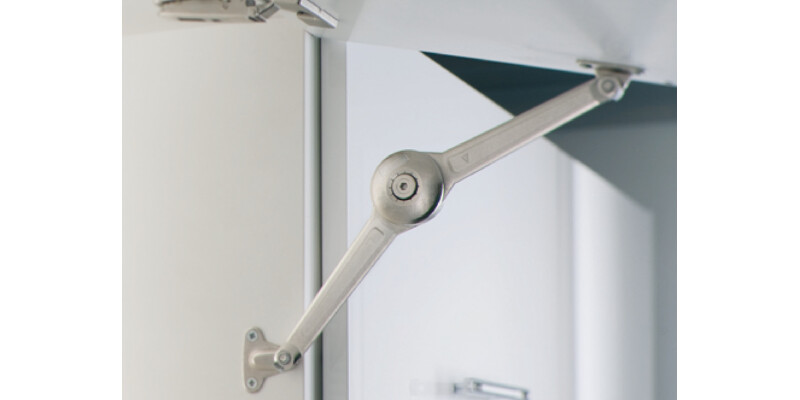

Duo Std Flap/Lid Stay 37mm Varianta NP

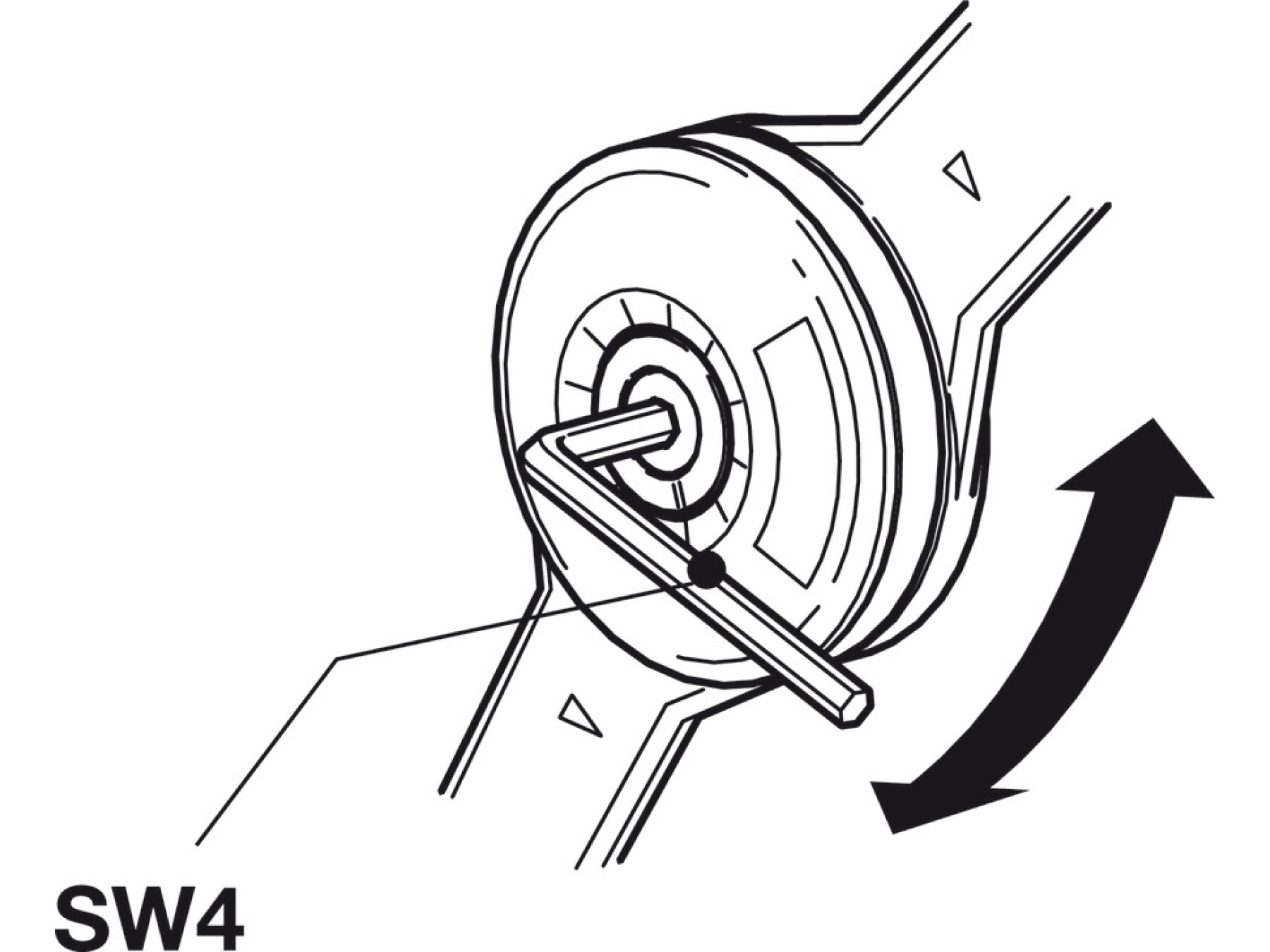

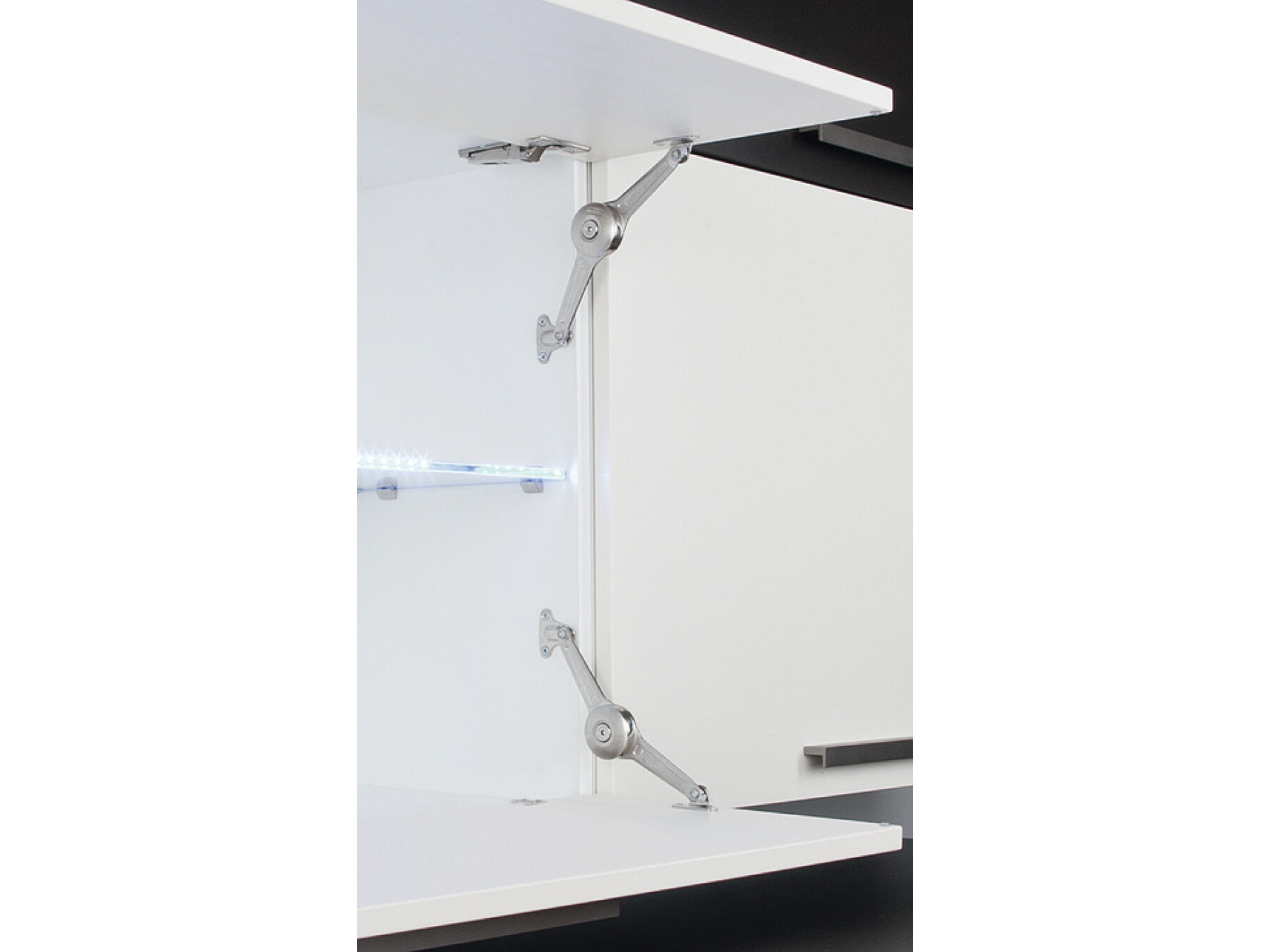

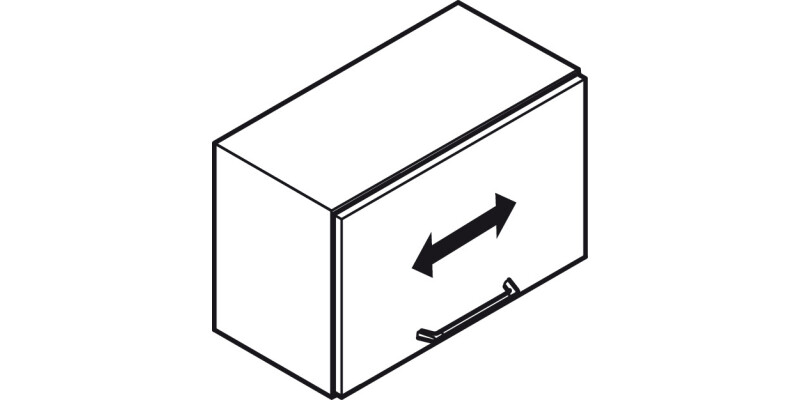

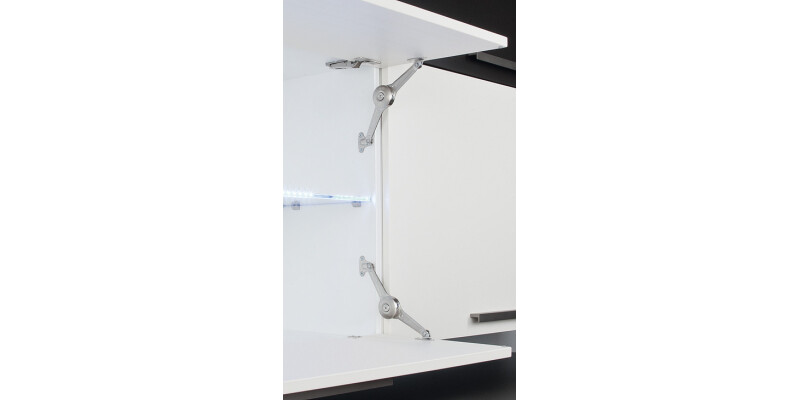

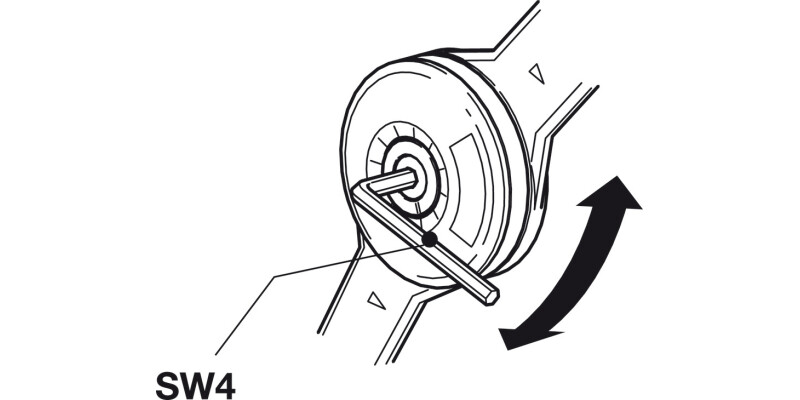

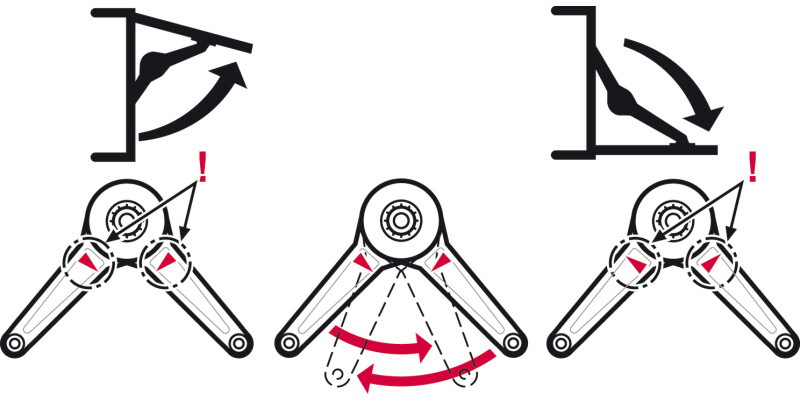

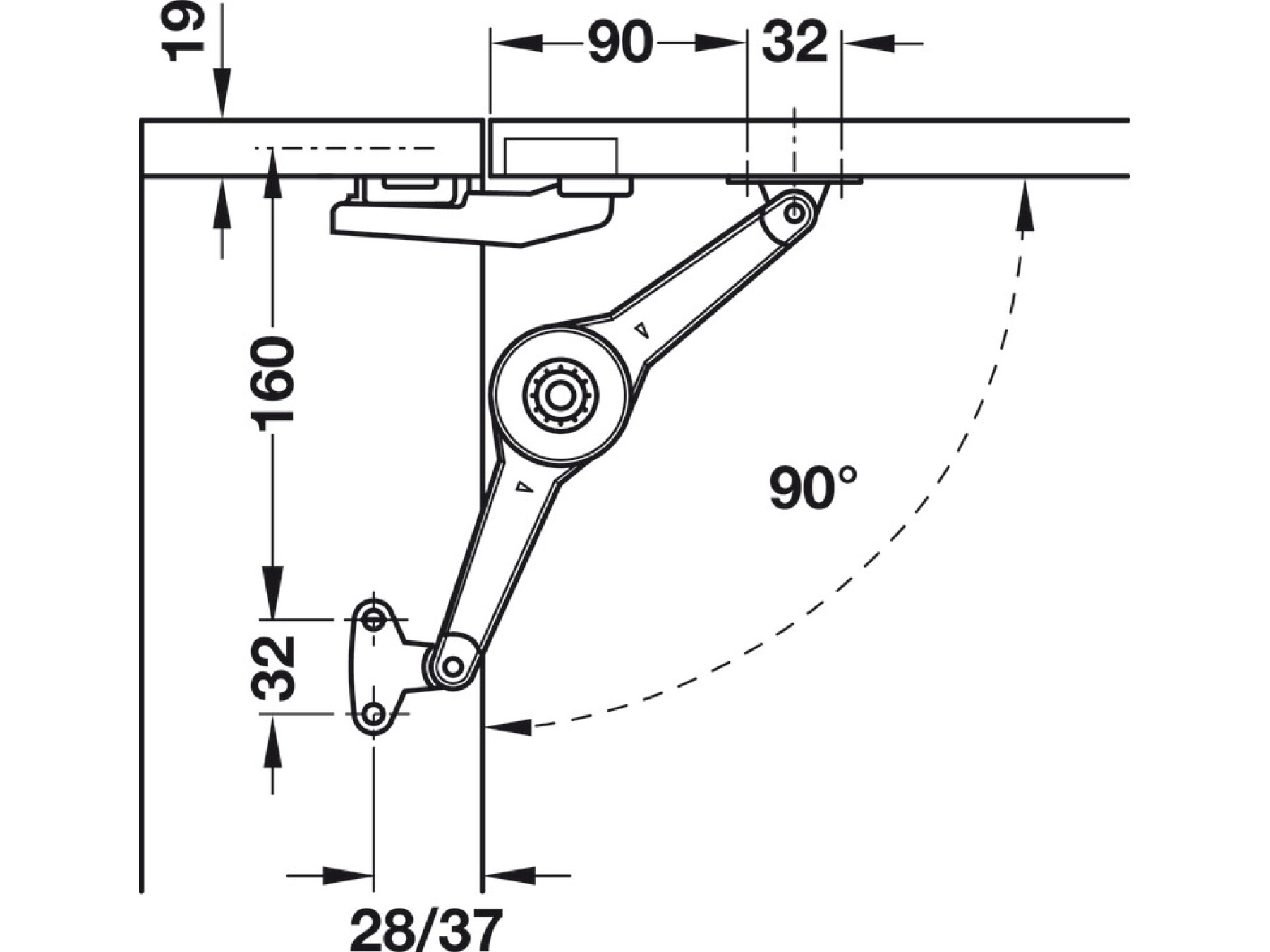

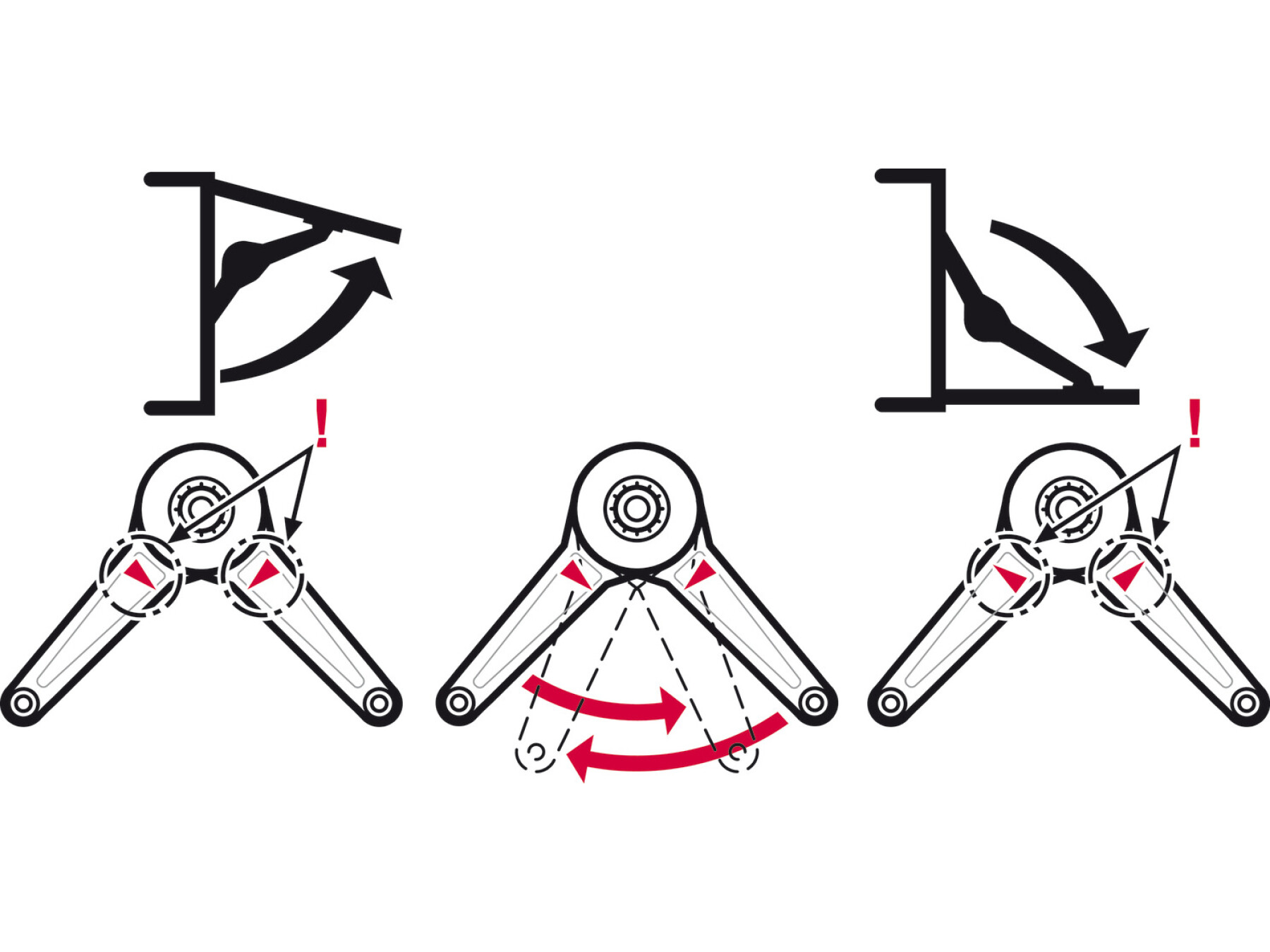

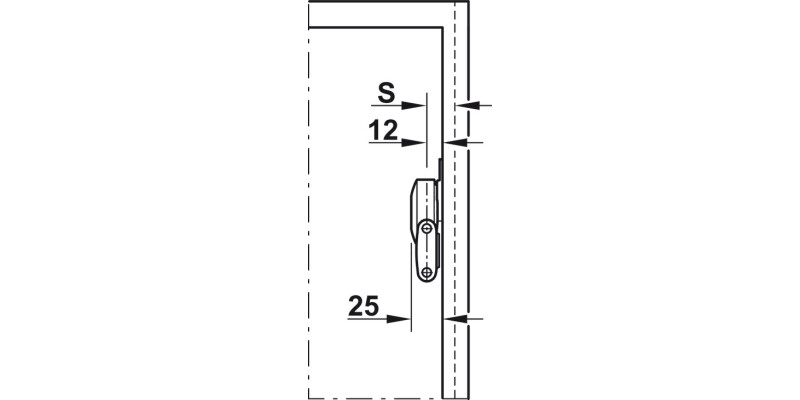

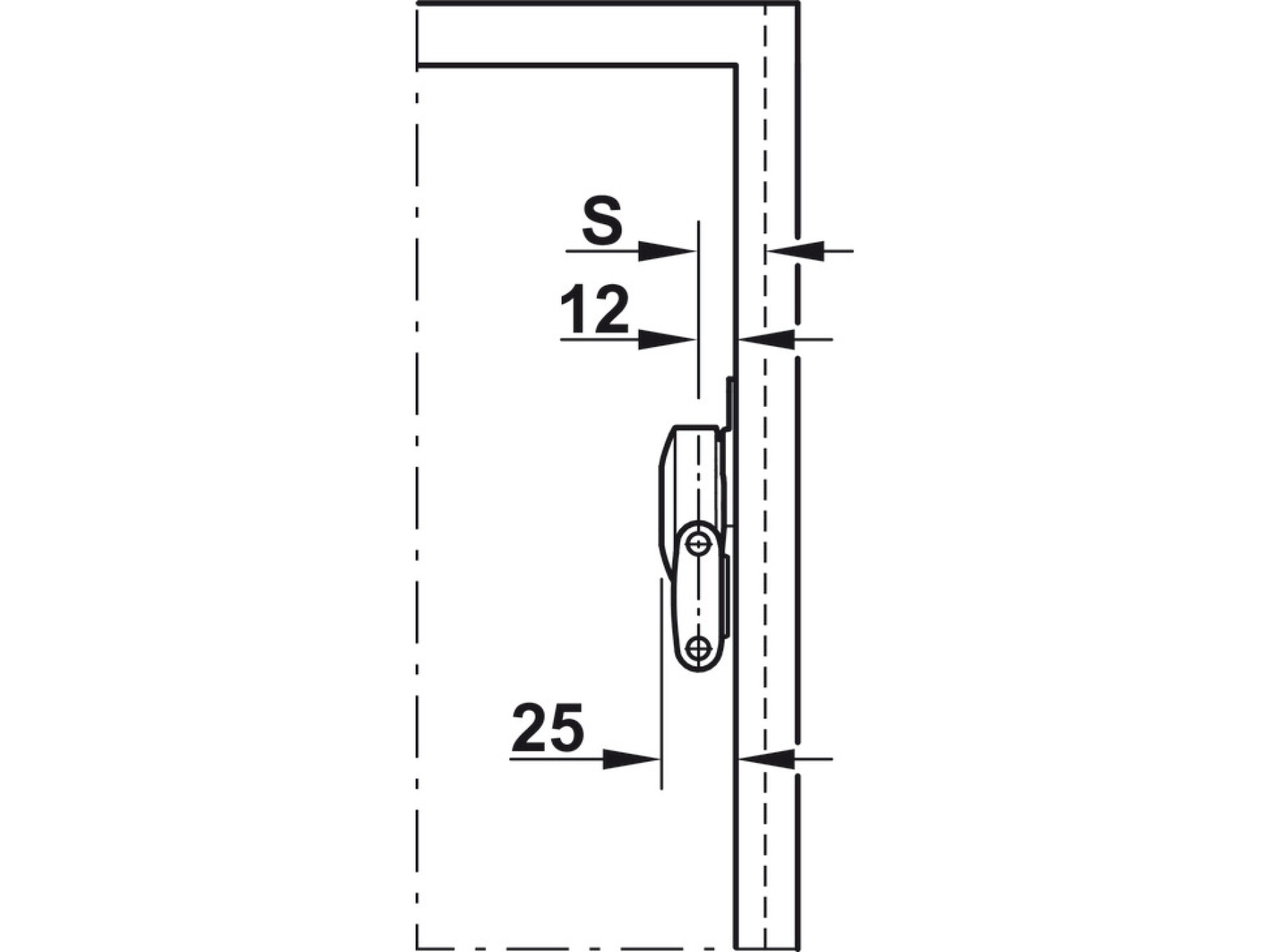

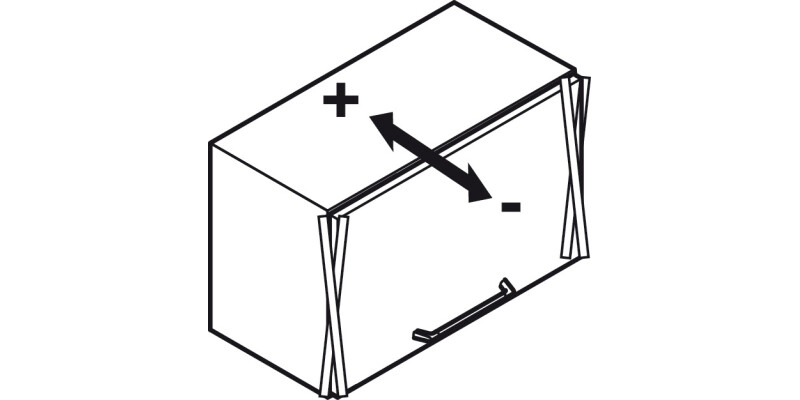

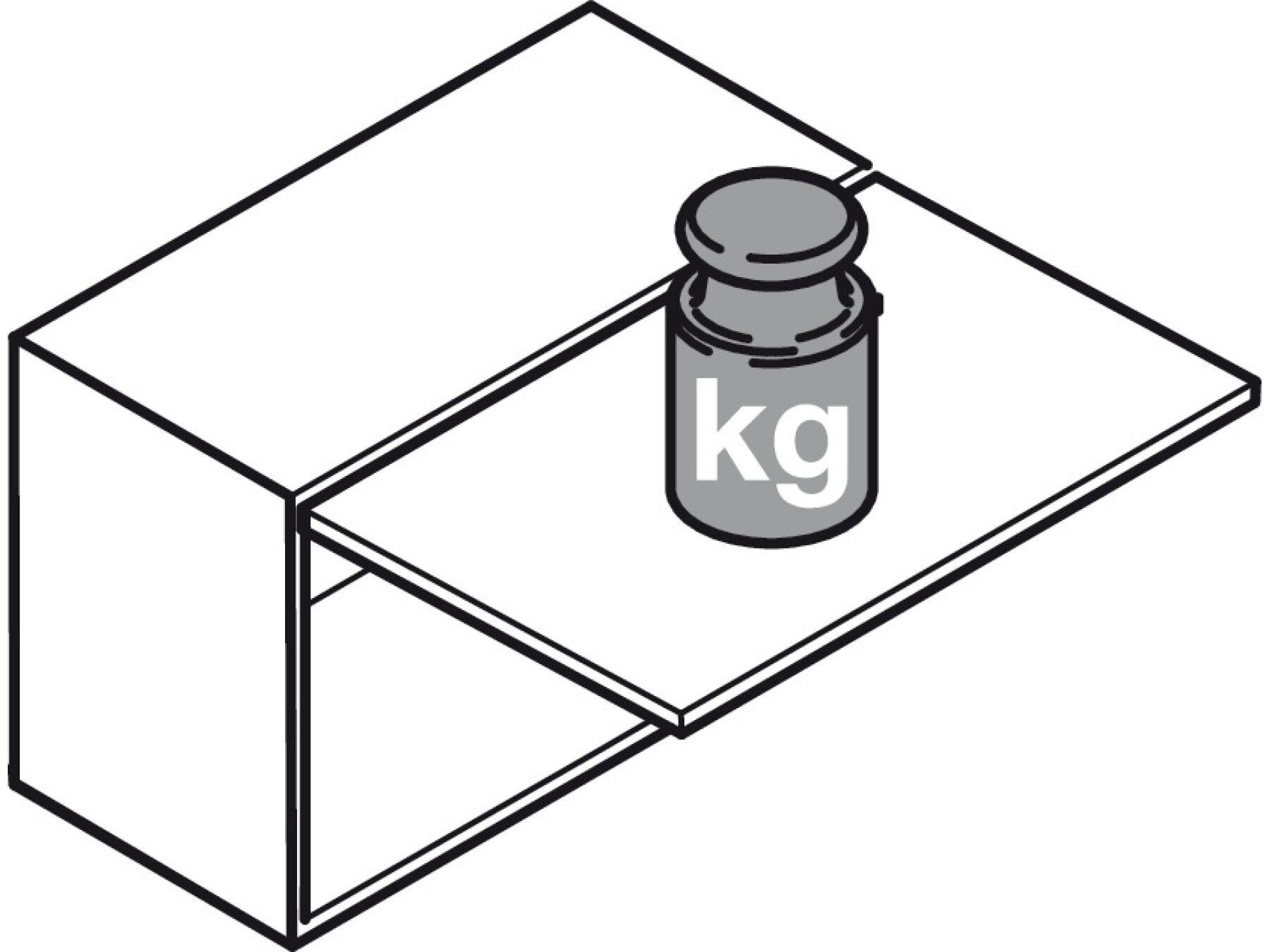

Light version - min. installation depth 130 mm Adjusting the arms (overshear) turns the lid stay into a flap stay Less space required inside the cabinet Wear-resistant friction coupling with large adjusting range Unhanded design With braking and locking mechanisms Holding power adjustment with SW4 Allen key 008.28.446 Self closing function Clip-mounting on pre-mounted screw fixing brackets, no tools required For additional flap information, please see cat. page

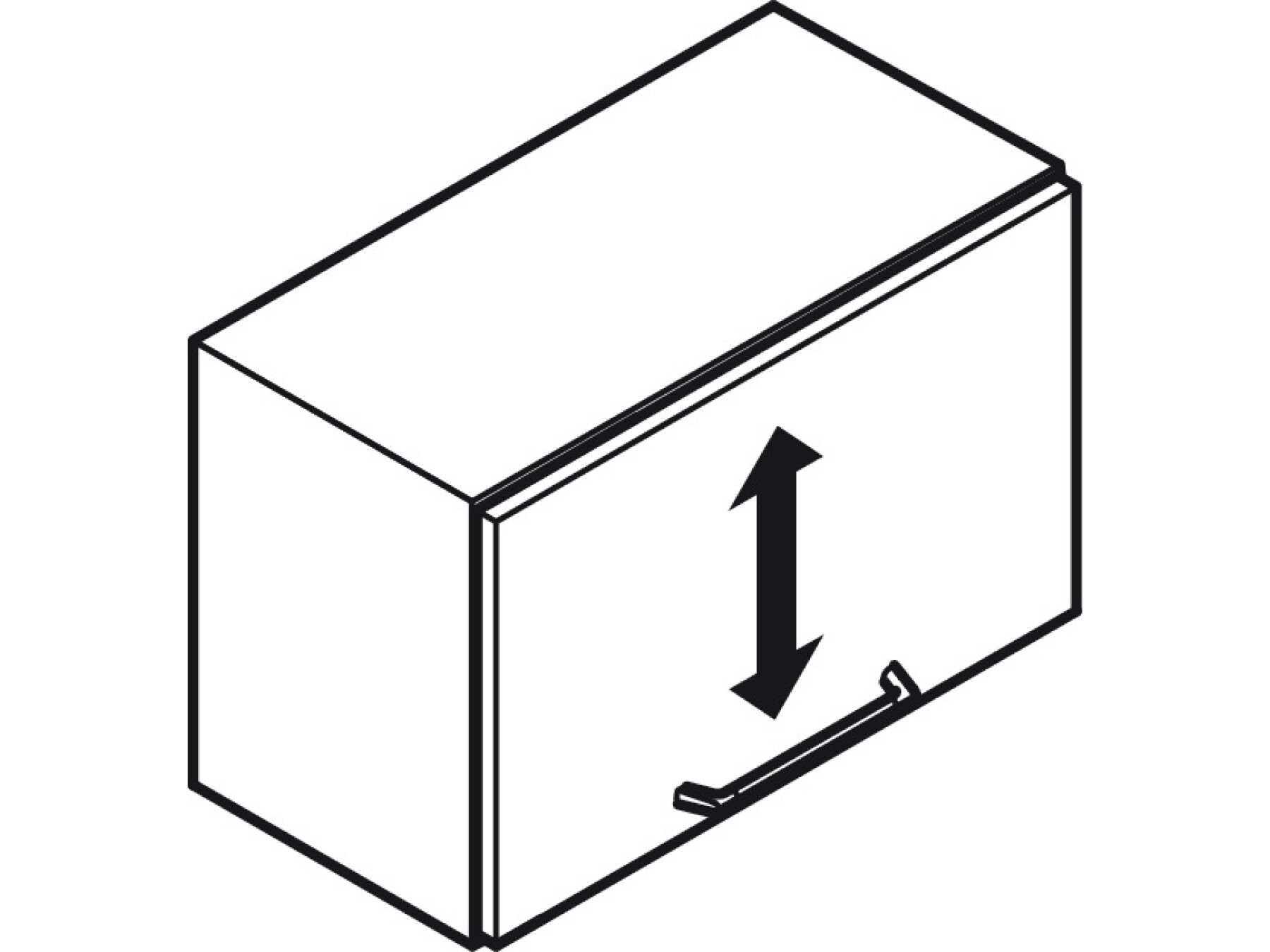

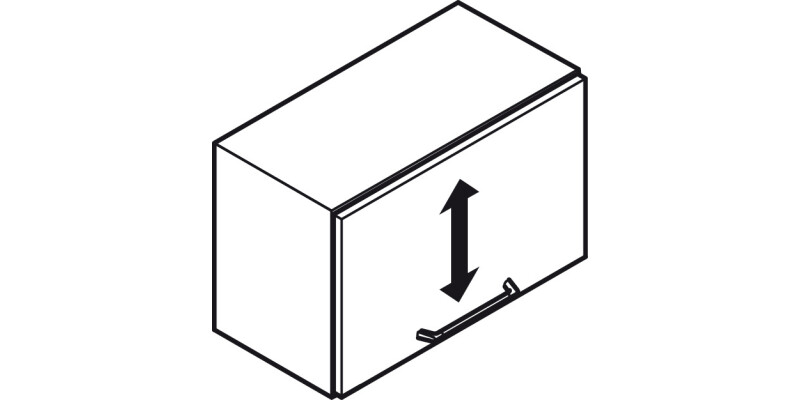

• Application: For wooden lids/lids with aluminium frame, frame width from 45 mm

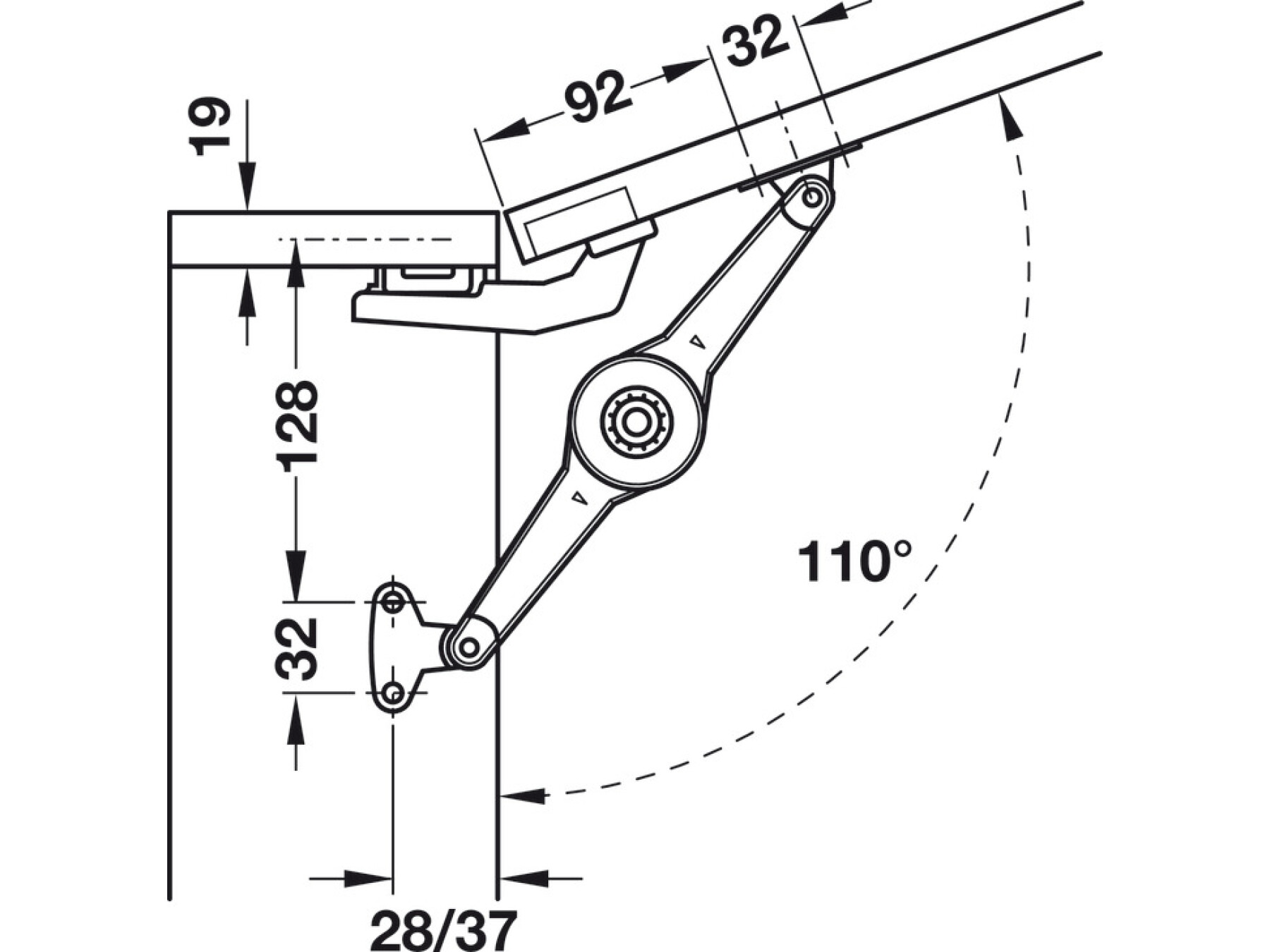

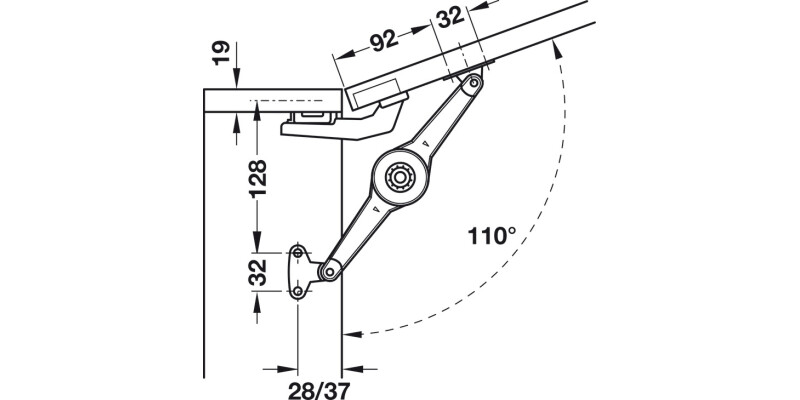

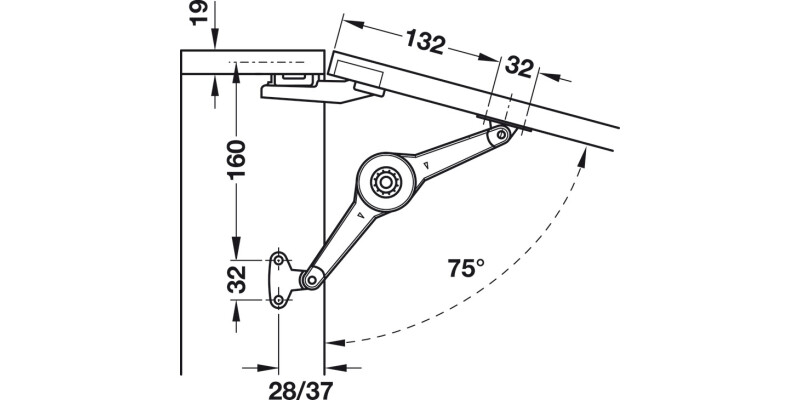

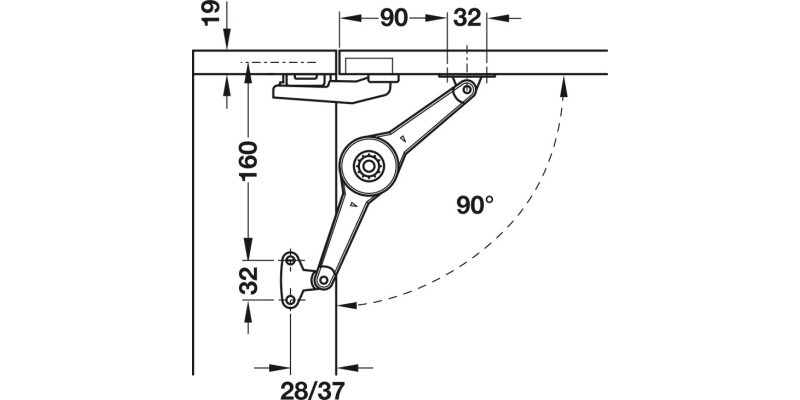

• Opening angle: 75°, 90° or 110°

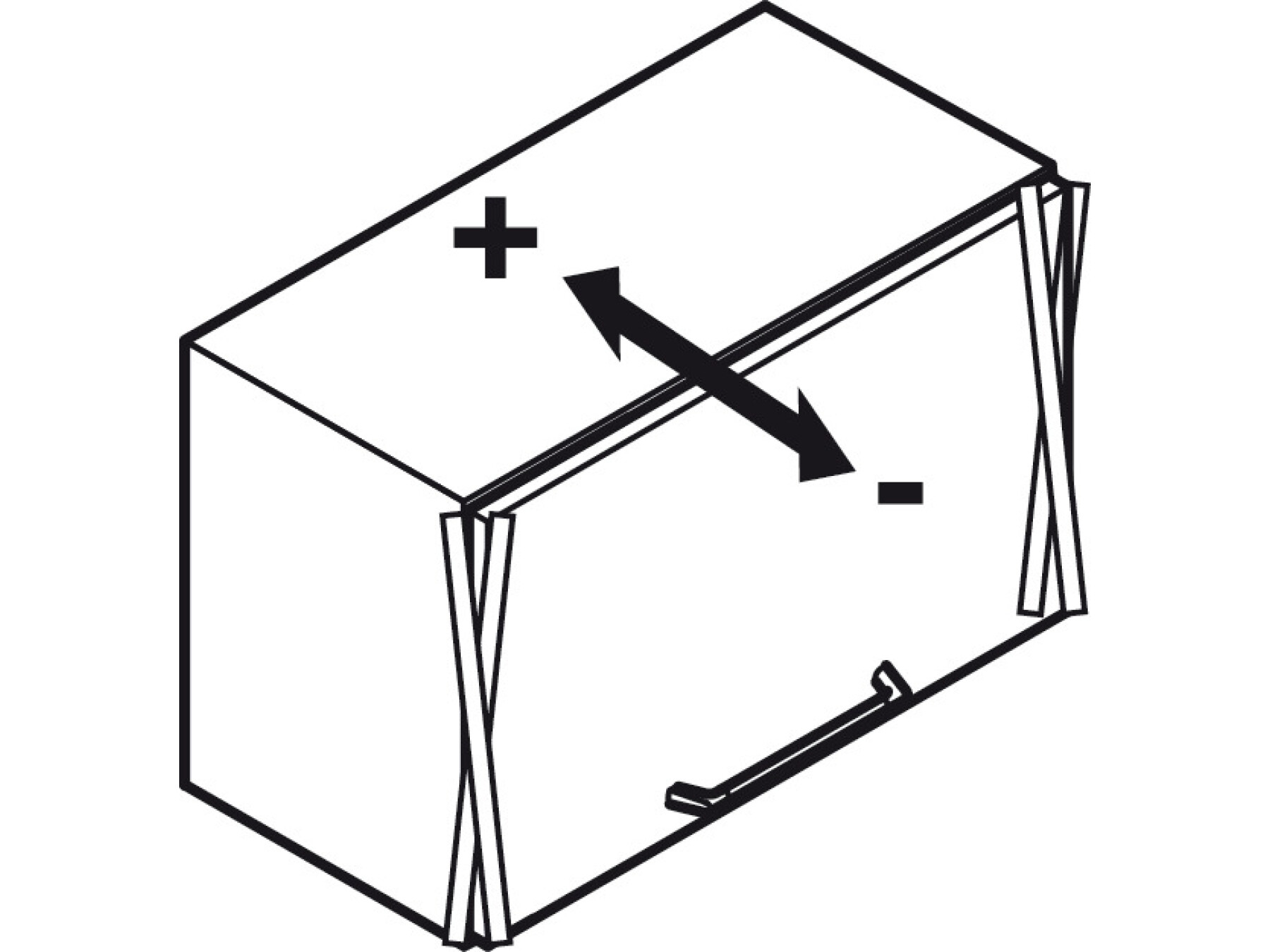

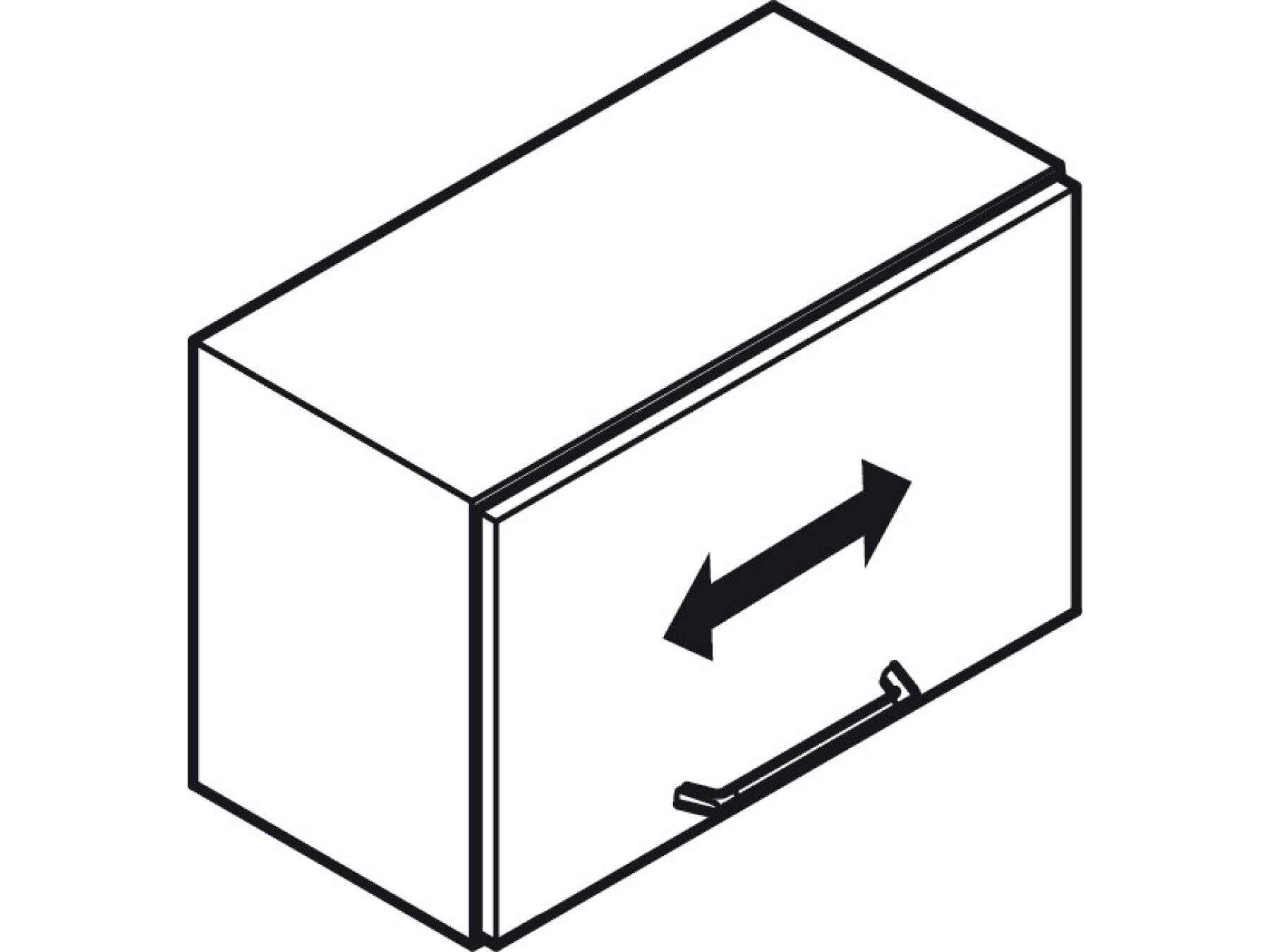

• Adjustment facility: Height ±2 mm, side +3/-1 mm, tilt ±1.5 mm and pull adjustment facility
• Guarantee: 25 years

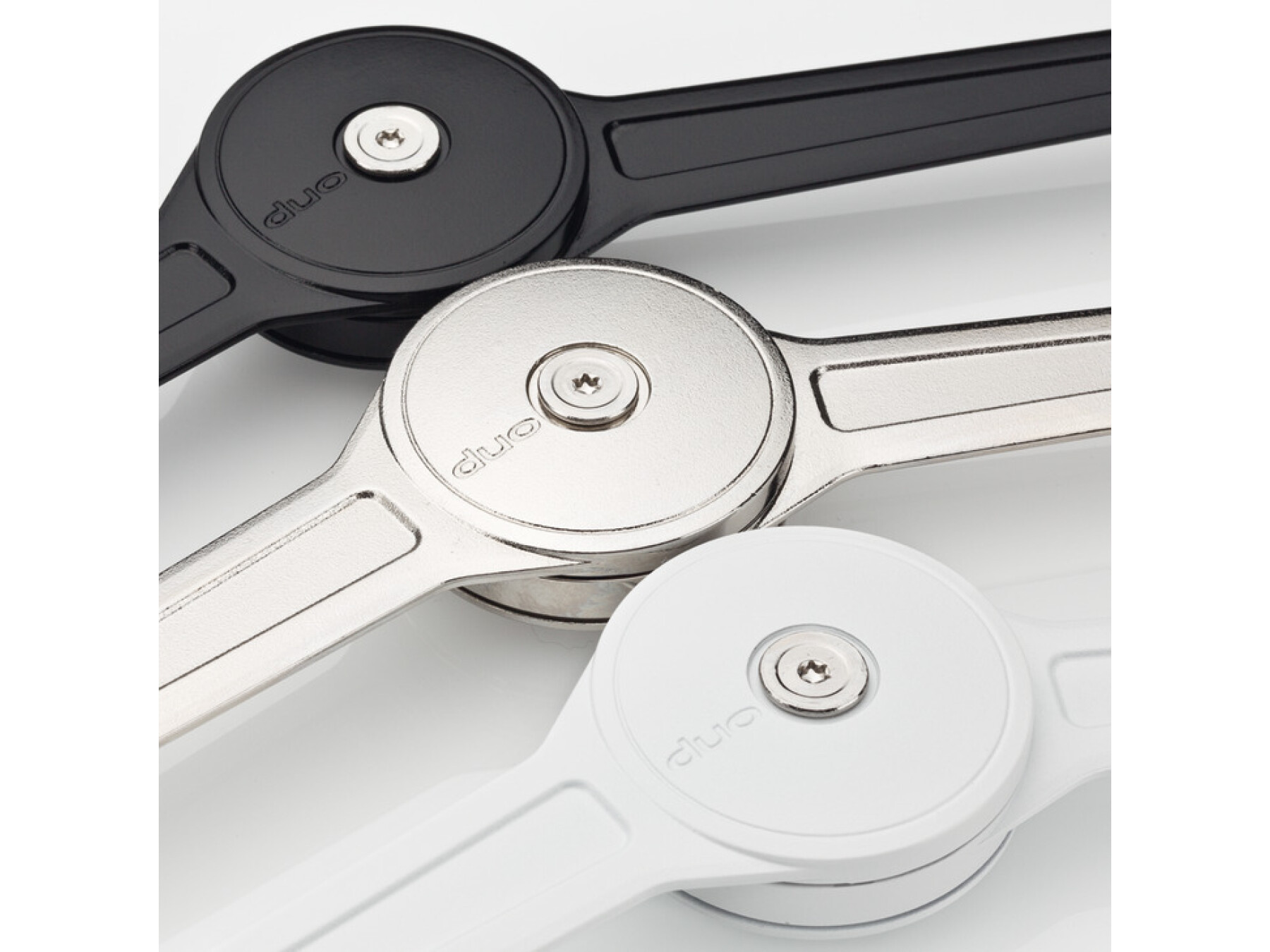

• Material: Stay: Zinc alloy
• Adjustment facility: Height adjustment*Side adjustment*Tilting angle adjustment*Pull adjustment* depends on the hinges that are used

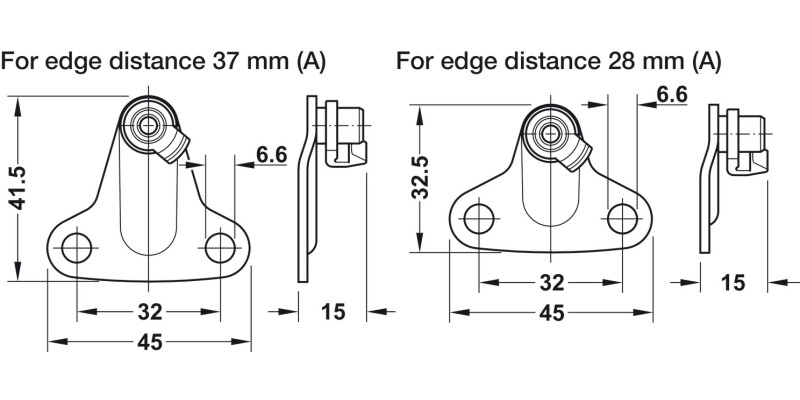

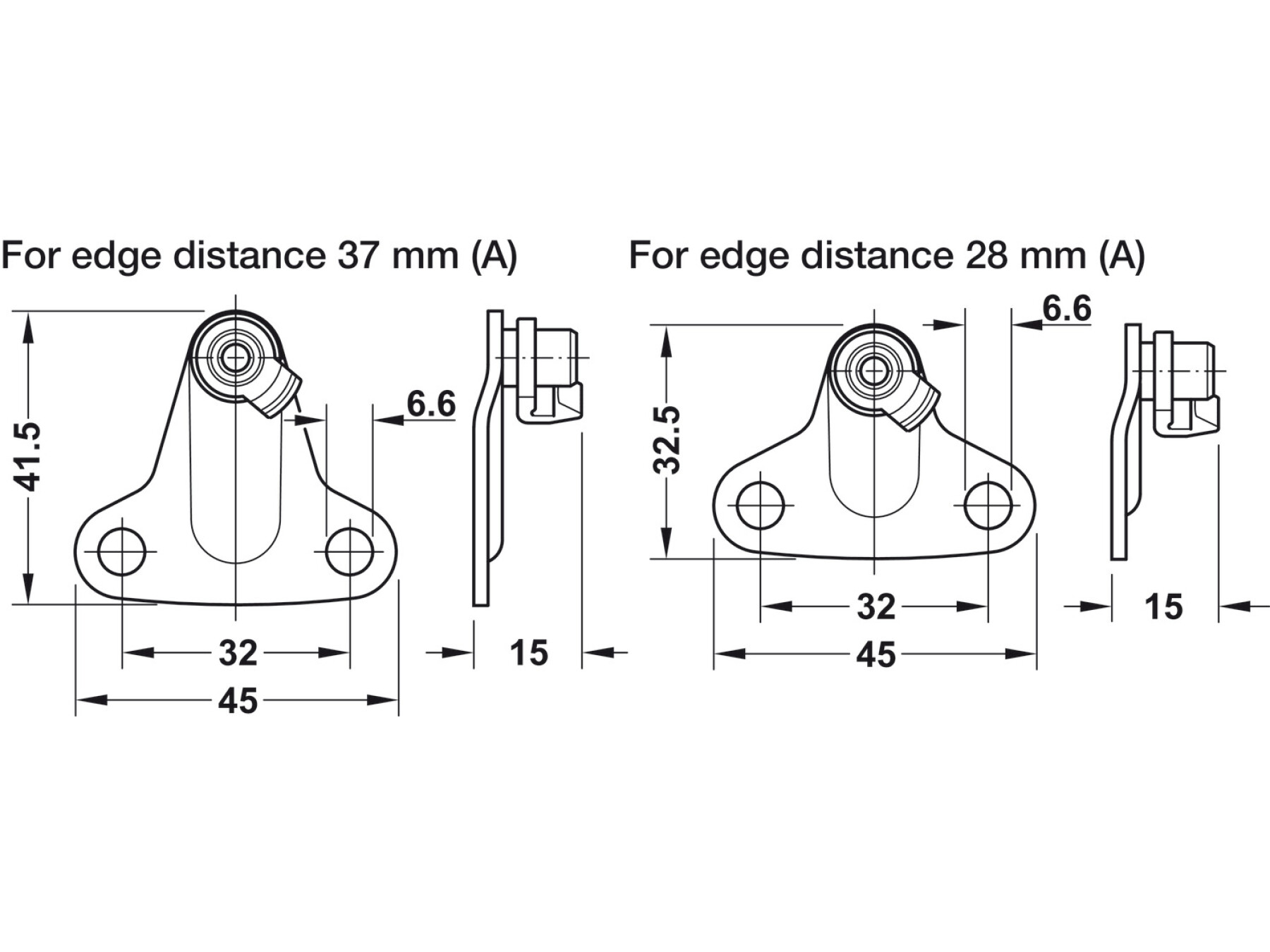

• Supplied with: Fixing brackets
• Order reference: Order Hospa ‚3.5 raised head or Varianta ‚ 5 mm countersunk screws separately
• Warranty information: This product is covered under Hafele`s Lifetime Guarantee. All products covered under the Hafele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification. All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
