Single Door Flap Fitting, Complete Set, Free Flap 3.15

Product Details

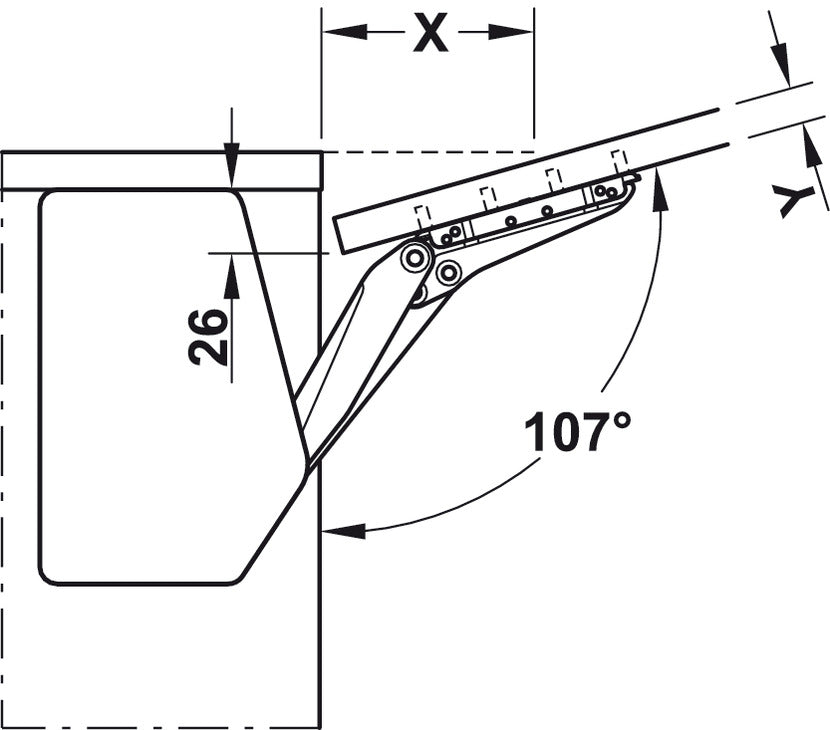

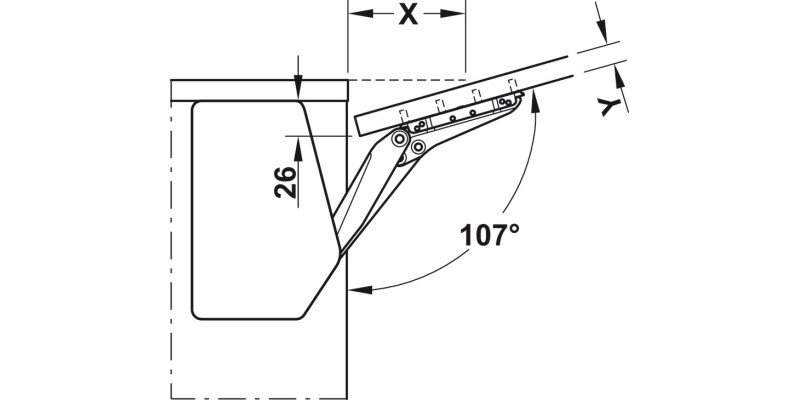

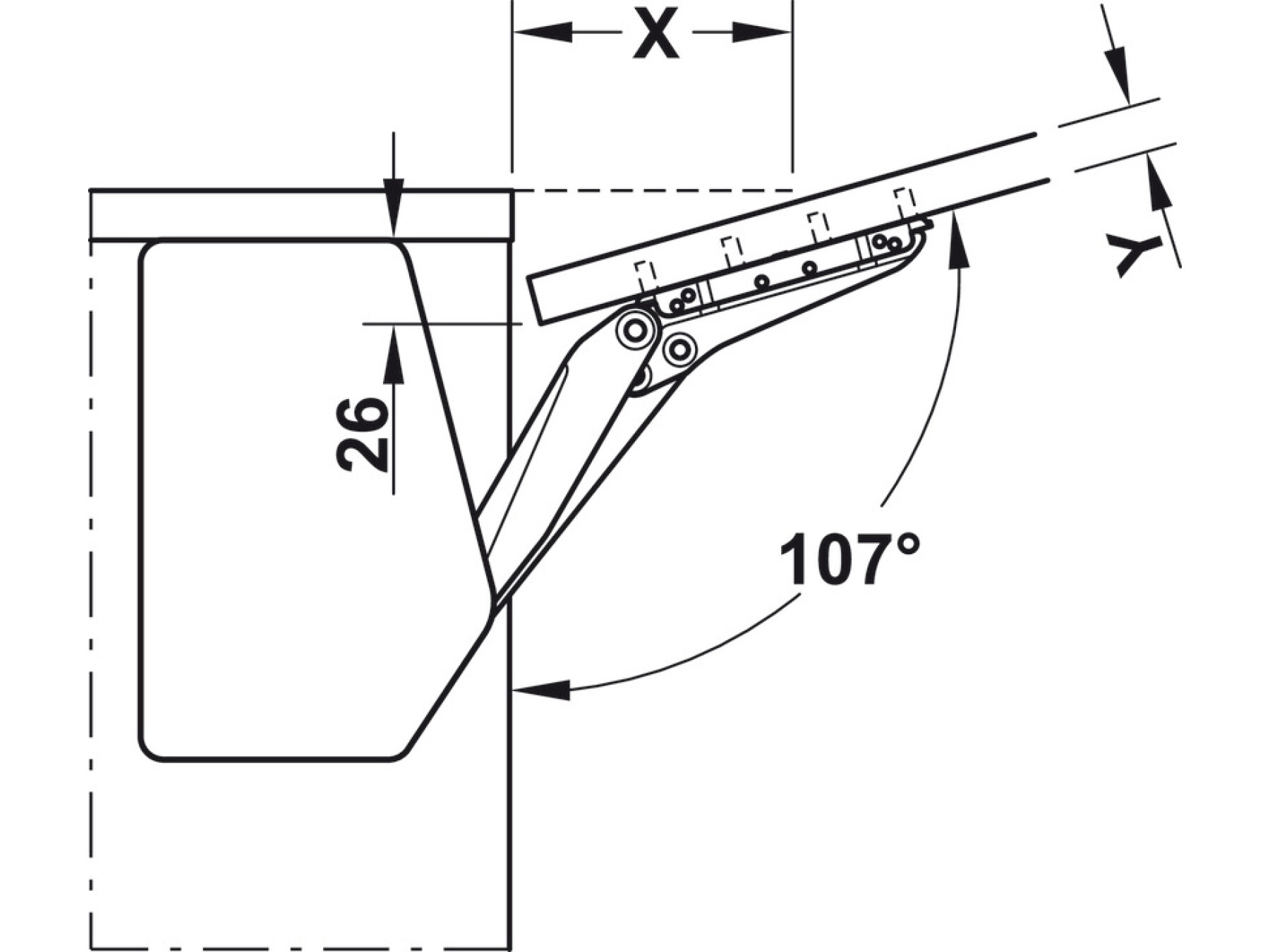

Can I set the opening angle to 90 degrees or 107 degrees?

Yes. This Free Flap fitting set is designed with an adjustable opening angle, letting you choose between 90 degrees and 107 degrees on the fitting. This makes it suitable for different door clearance and use requirements in both living and commercial spaces.

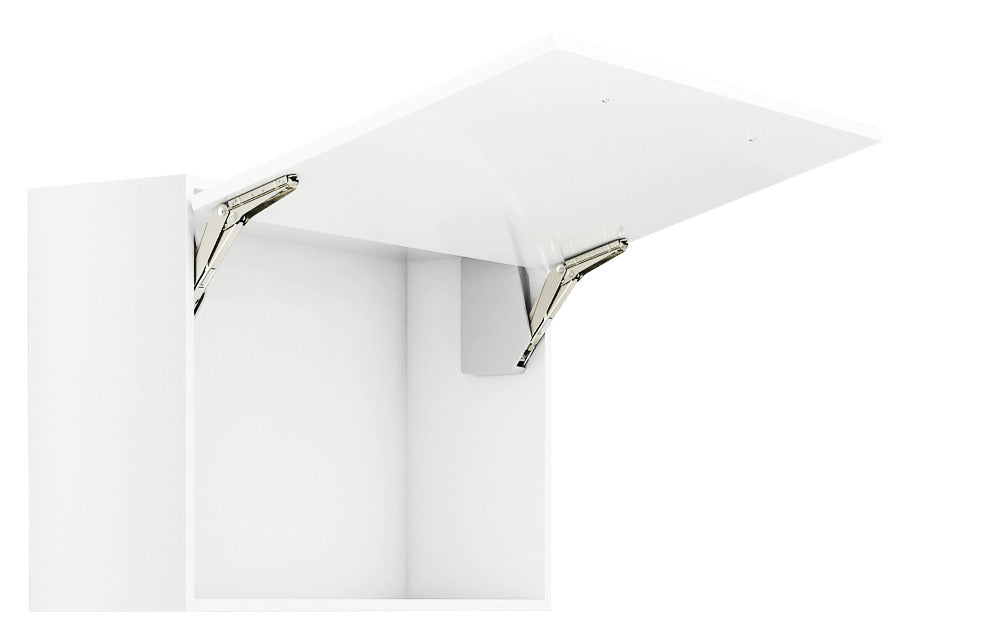

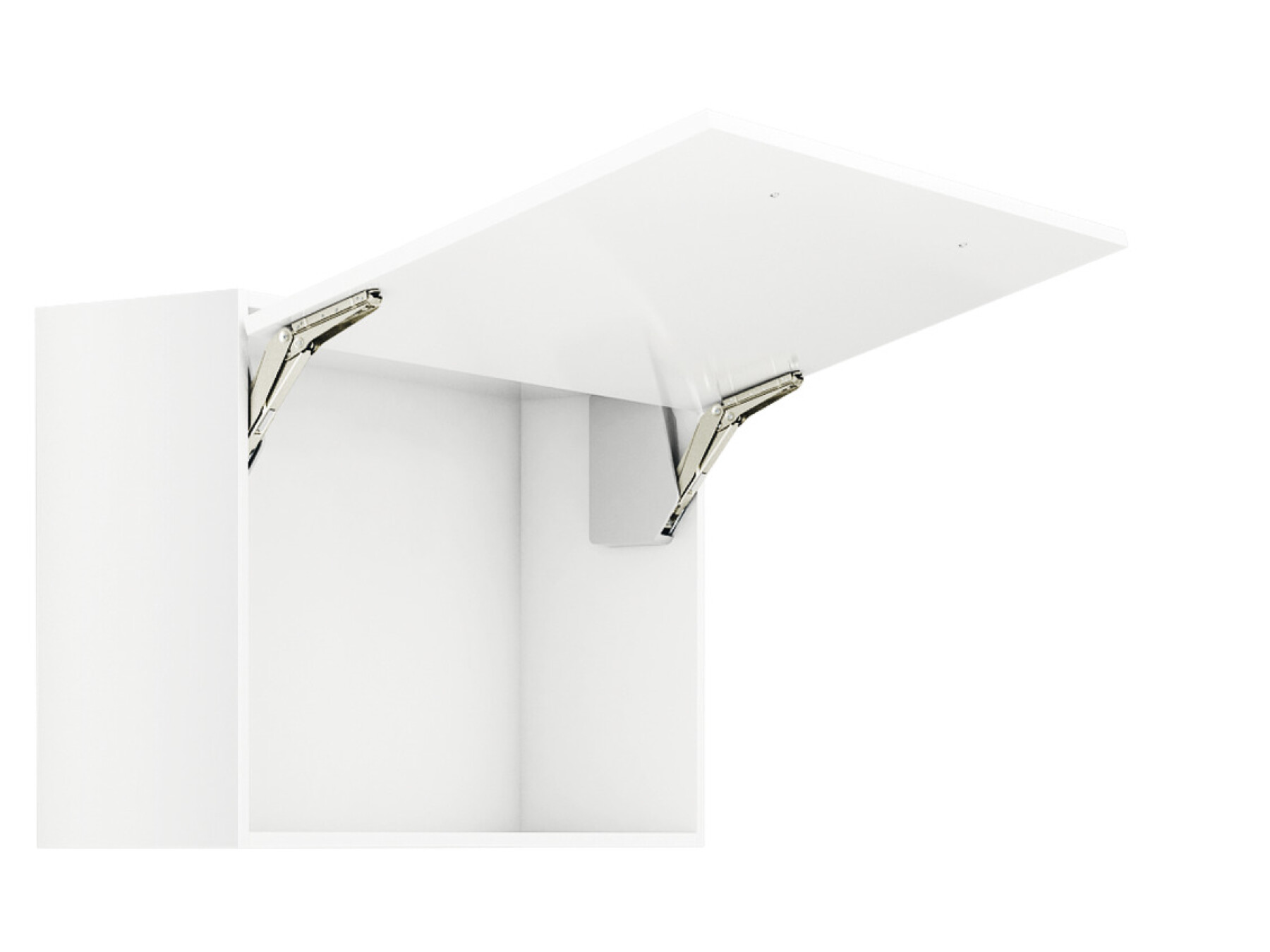

Is this model suitable for larger one piece flaps?

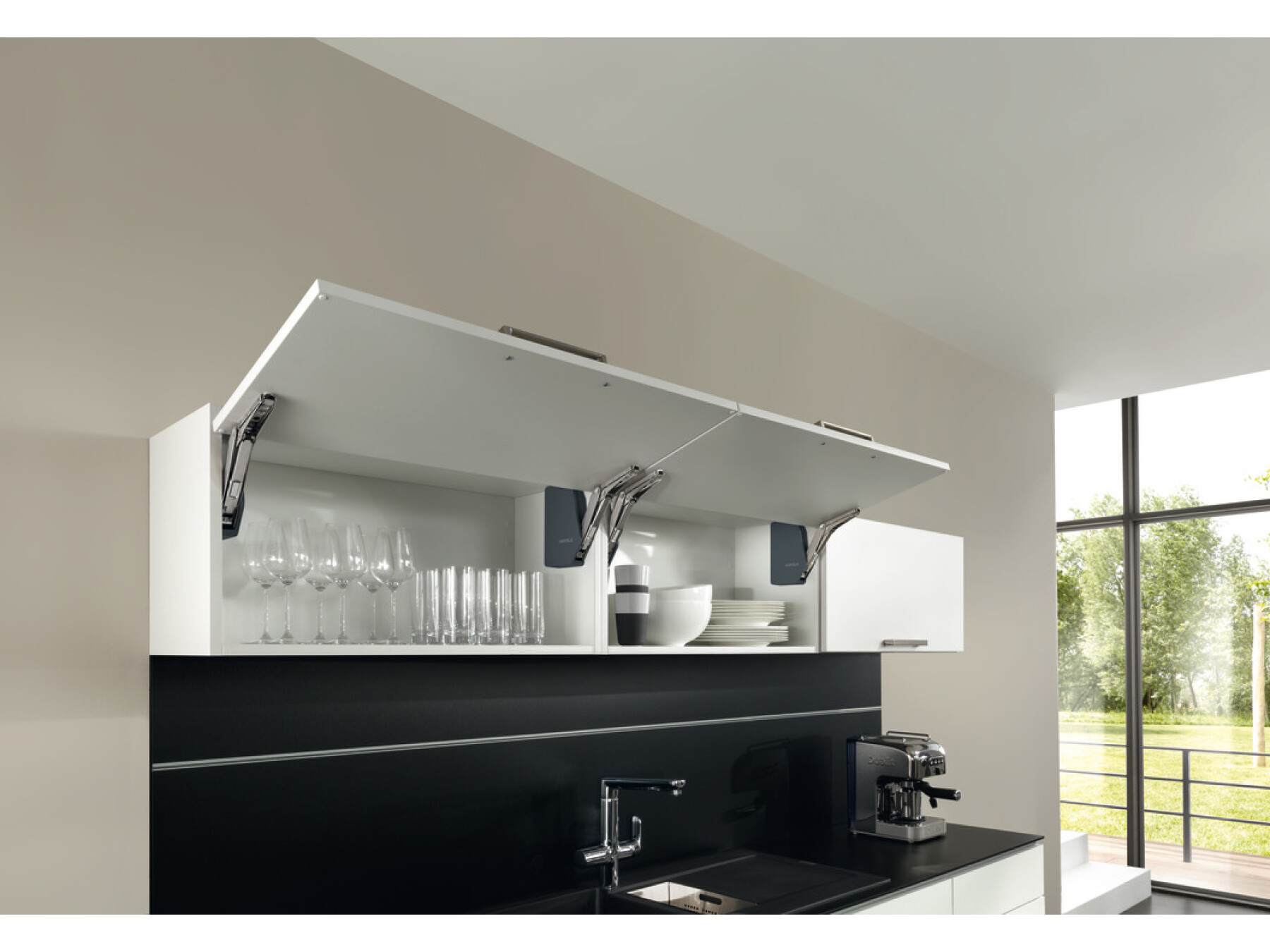

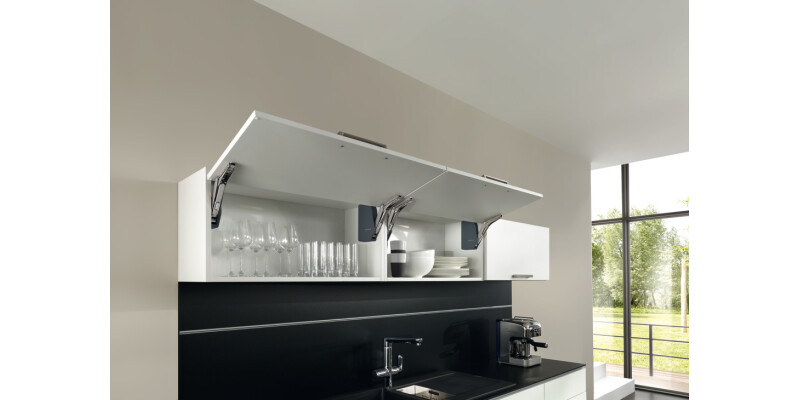

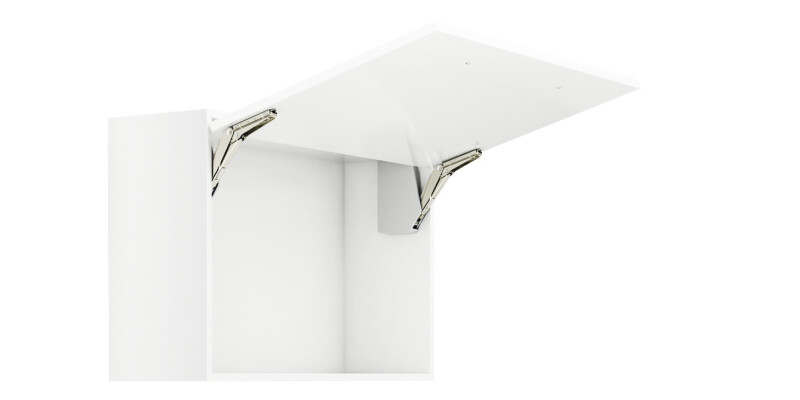

It is intended for large, one piece flaps, including flaps made of wood or with an aluminium frame. If your flap is a single section rather than a multi panel construction, this model is typically the right match.

What does the grey RAL 7035 cover cap option mean?

The set includes grey cover caps in RAL 7035, which help create a neat finish around the fitting. You can use these caps to blend the hardware with the colour scheme of your cabinet or door.

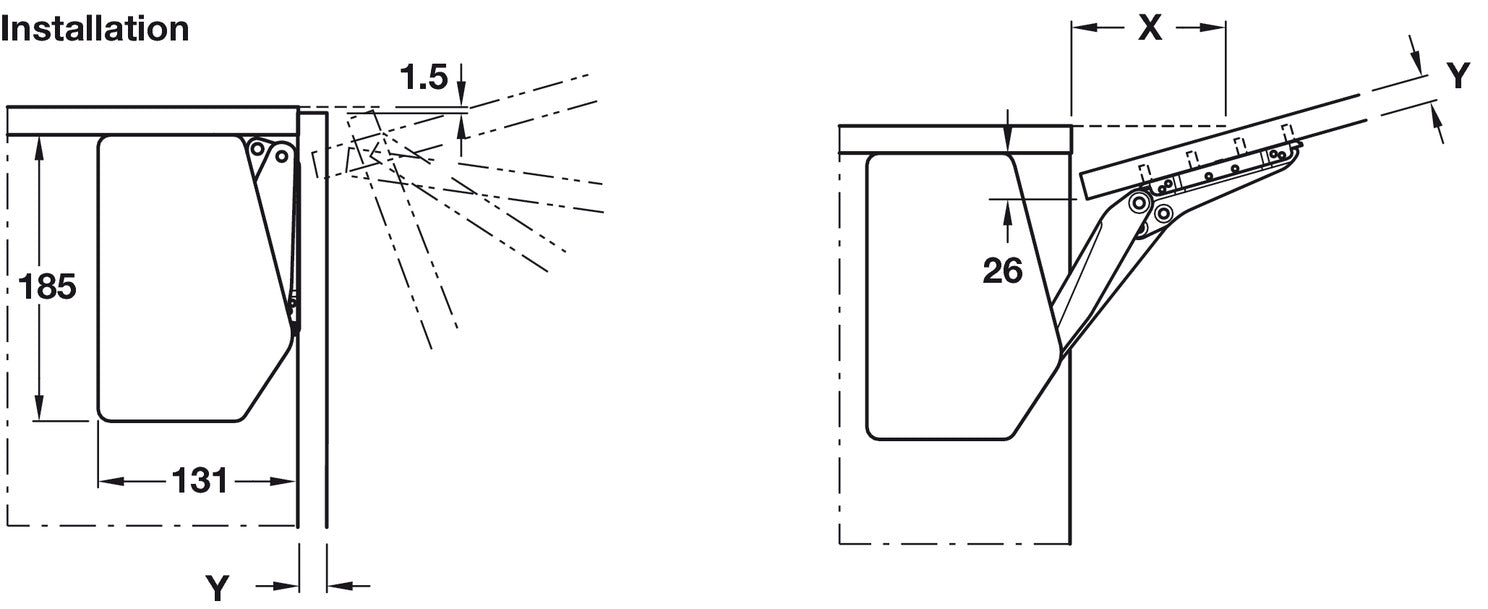

What cabinet height range does the fitting support?

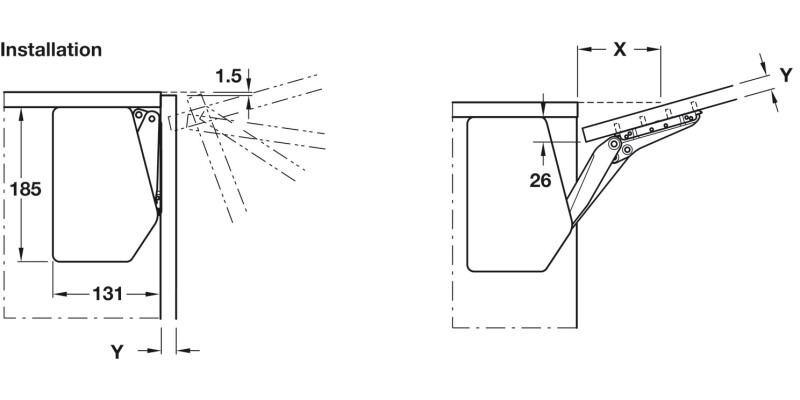

It fits cabinet heights of 350 to 650 mm. Before ordering, check the internal cabinet or application height to confirm the flap sits correctly within the supported range for smooth operation and reliable alignment.

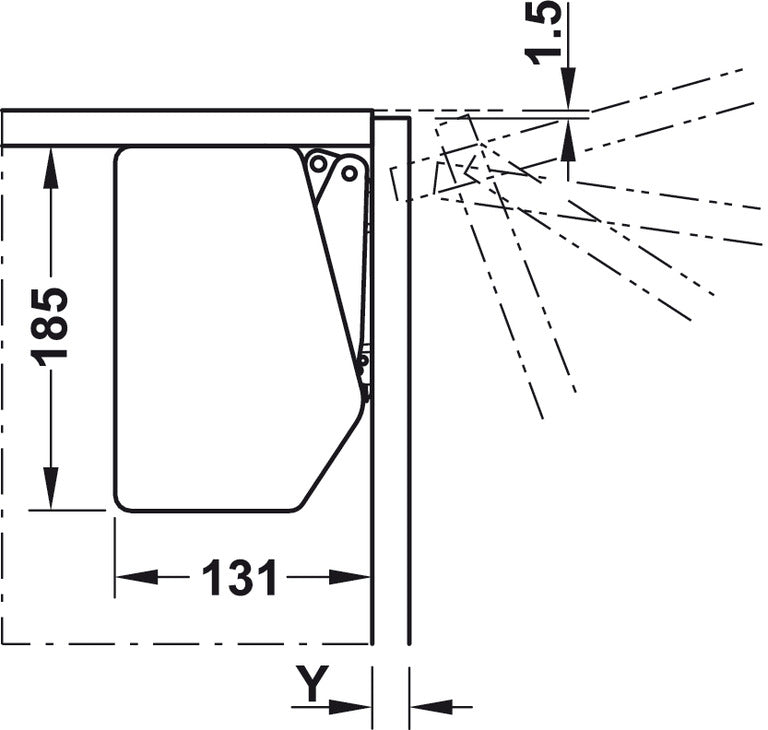

How much fine adjustment is available after installation?

Adjustment is built in for accurate alignment. The system supports ±1.5 mm adjustments for height, side, and tilting angle of the front panel, helping you achieve a consistent reveal and good closing performance.

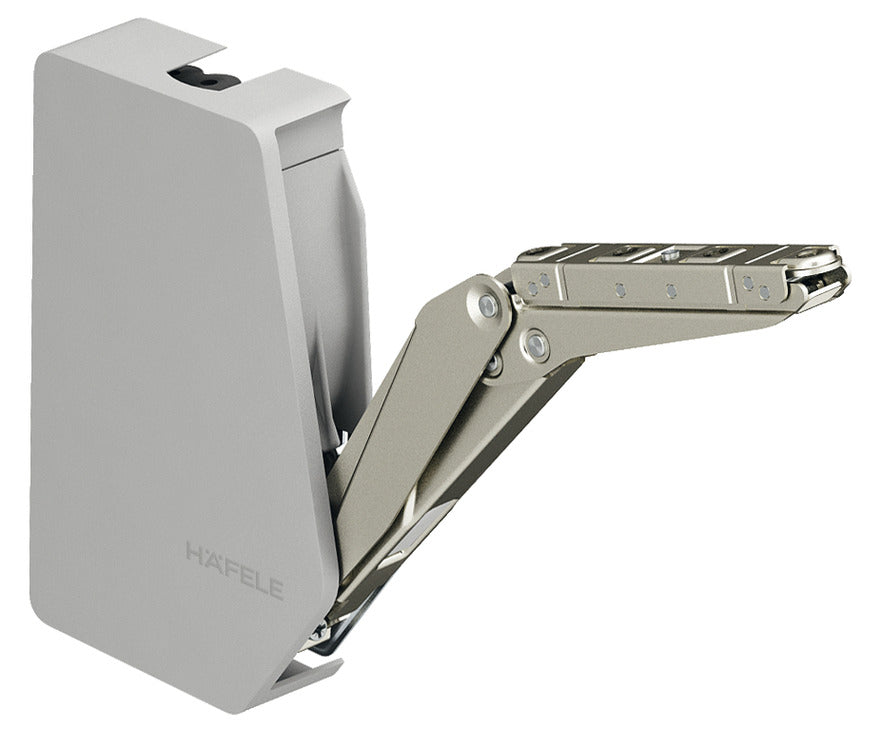

What materials are used in the fitting and the cover caps?

The fitting uses steel with nickel plated components for durability, while the cover caps are plastic in the specified grey finish. This combination is commonly used to balance strength and a clean visible appearance.

Does it come with a long term guarantee?

Yes. The product is covered by the Hafele Lifetime Guarantee, providing 25 years. If you want flap hardware that is designed for long service life, this protection is a helpful reassurance when planning your project.
