Single Door Flap Fitting, Complete Set, Free Flap 1.7

Product Details

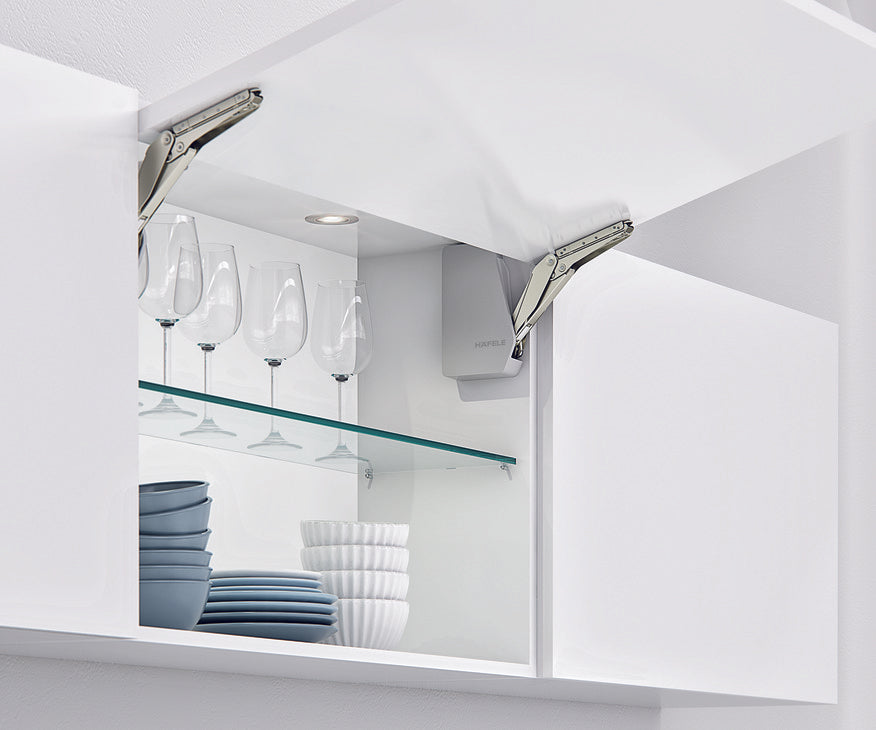

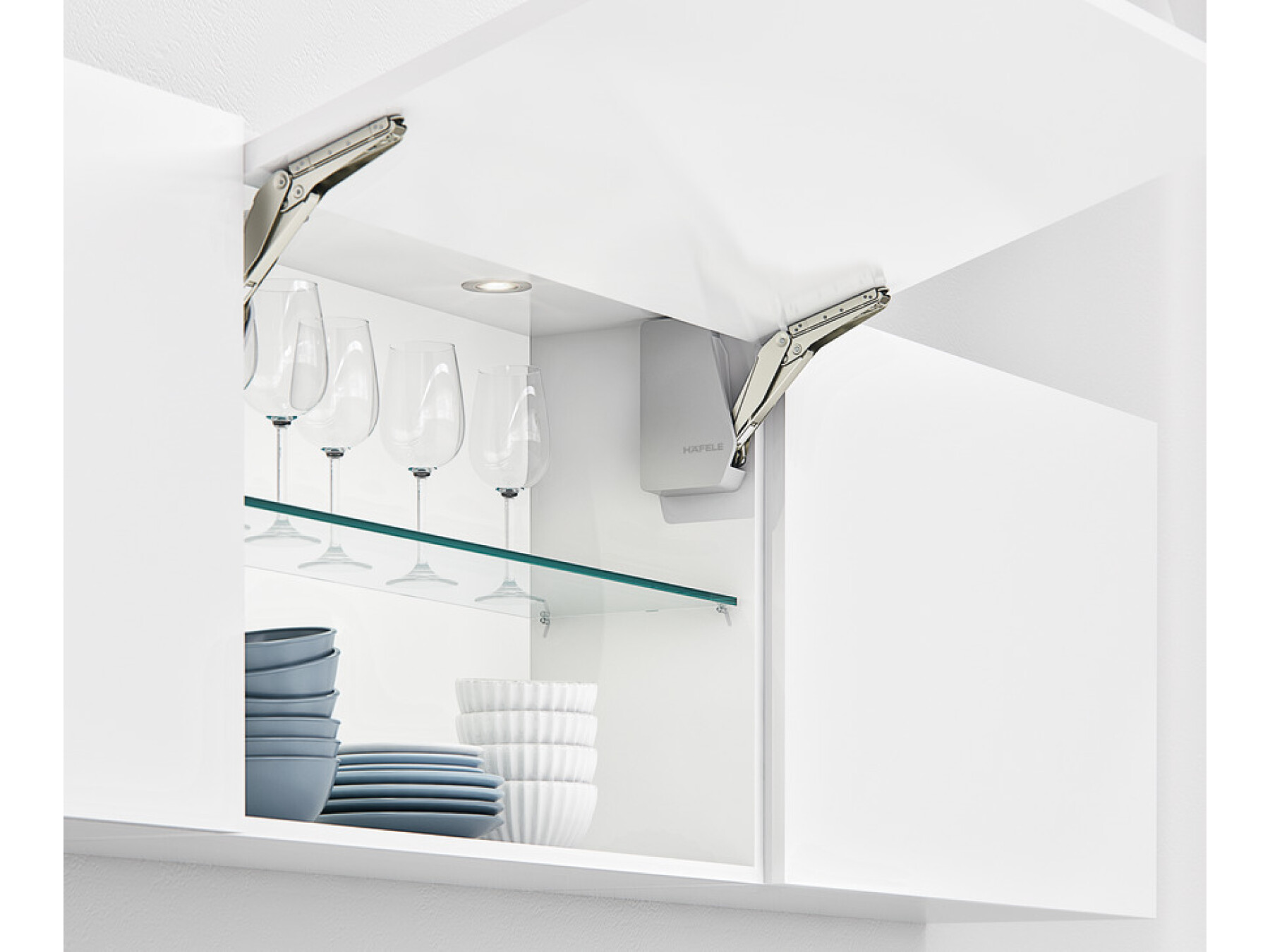

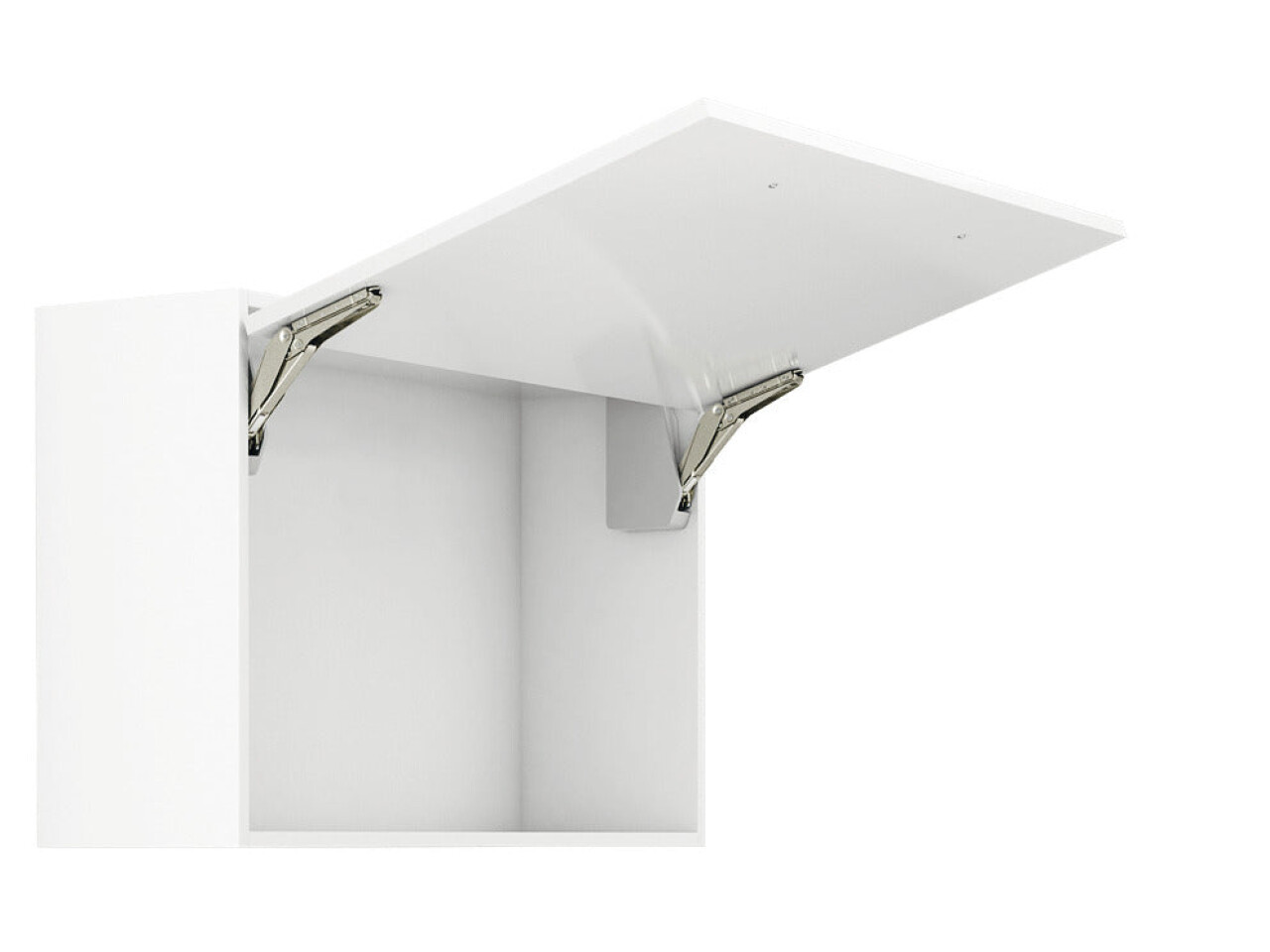

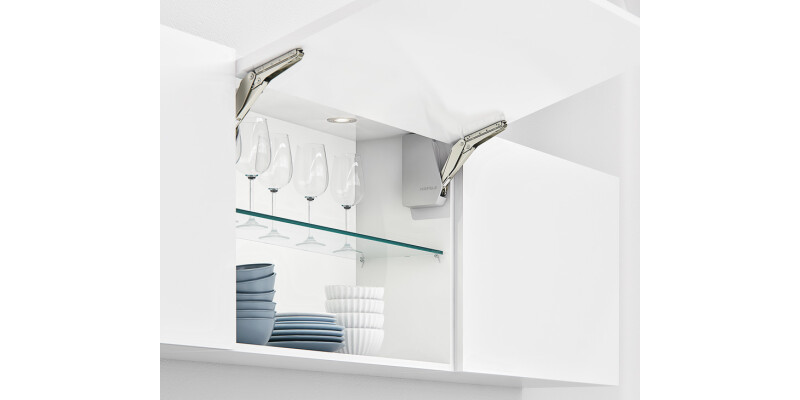

Single Door Flap Fitting, Complete Set, Free Flap 1.7 (Part No: 372.91.322) is a premium flap fitting set designed for clean, controlled lift-up access in both living and commercial furniture. Built for small, one-piece flaps made of wood or fitted with an aluminium frame, this Model C solution delivers smooth operation, secure holding power, and a refined finish that blends neatly into modern cabinet designs.

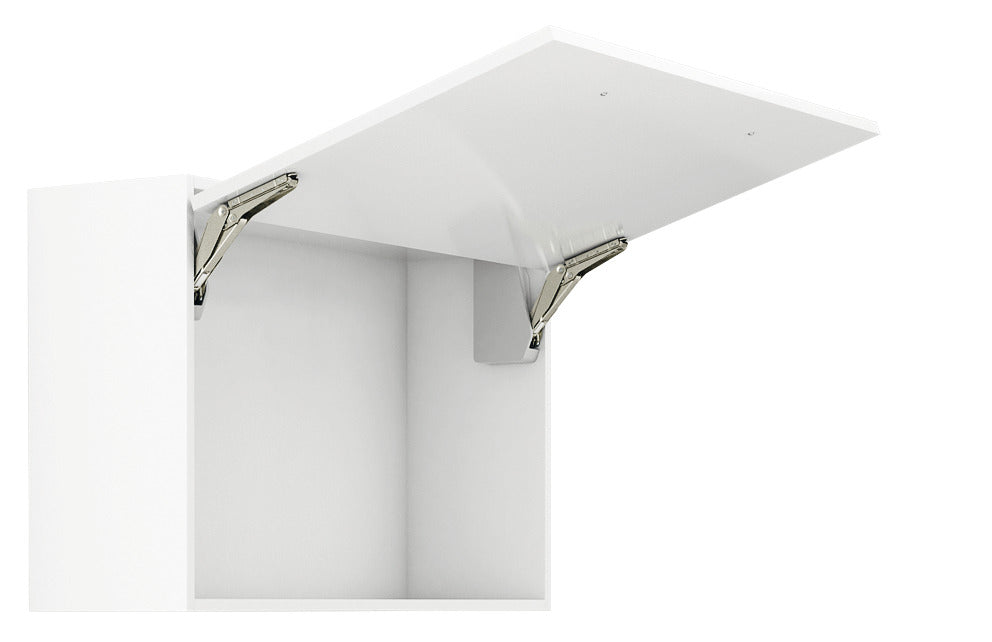

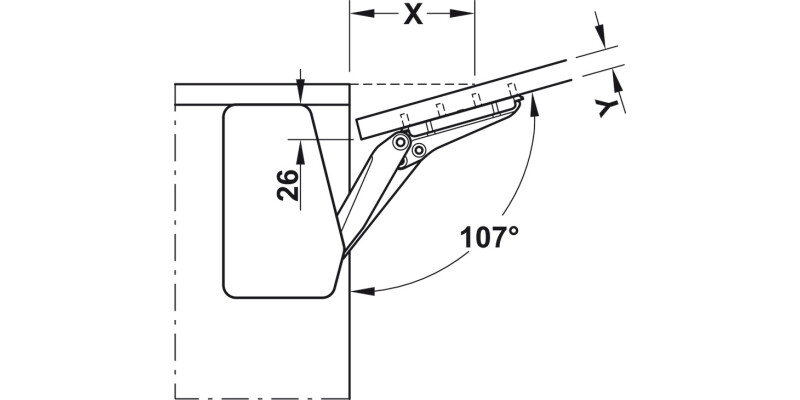

The 107° opening angle gives you generous access while keeping the flap movement practical for day-to-day use. With suitability for cabinets in the 200–450 mm height range, it’s an ideal choice for compact hinged flap applications where space and functionality both matter.

Crafted for durability and performance, the fitting is made from steel with nickel-plated finish for reliable strength and corrosion resistance. The cover caps are finished in grey RAL 7035, helping you achieve a professional, coordinated look. Lid materials supported include wood, glass, or aluminium frame, making it versatile for different project styles.

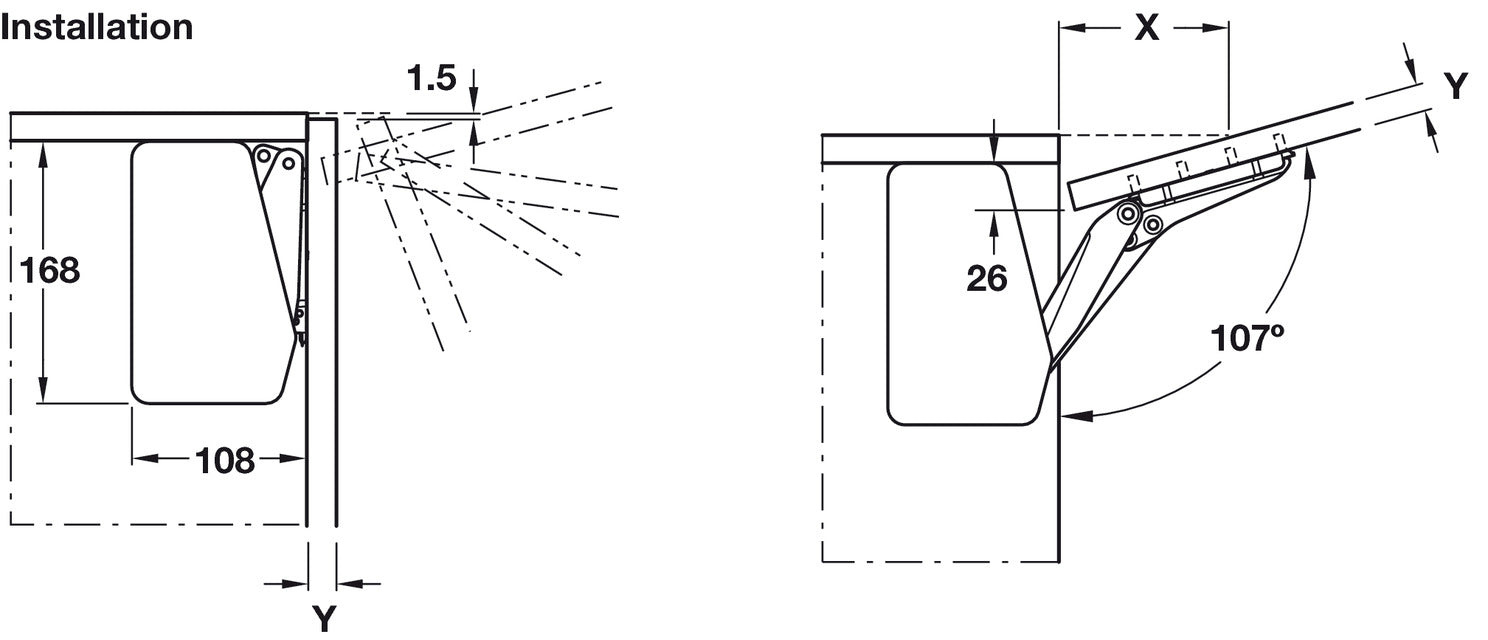

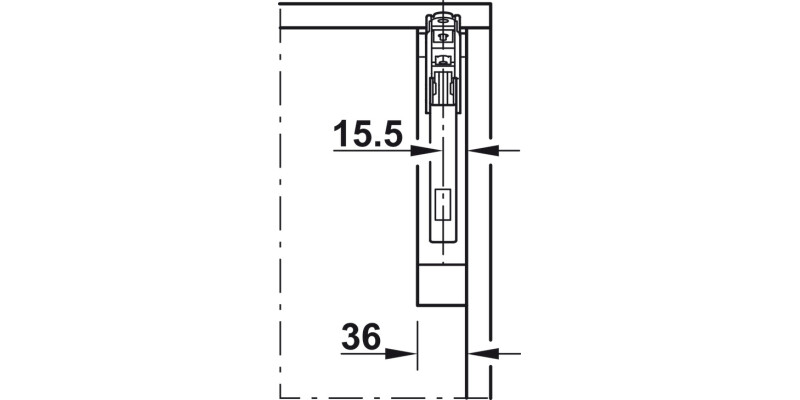

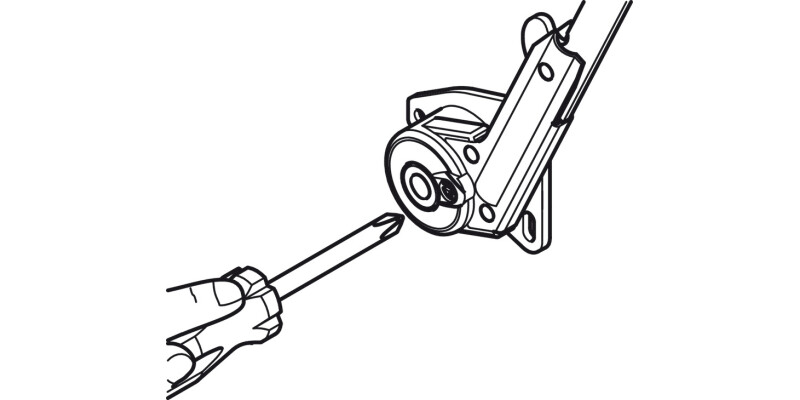

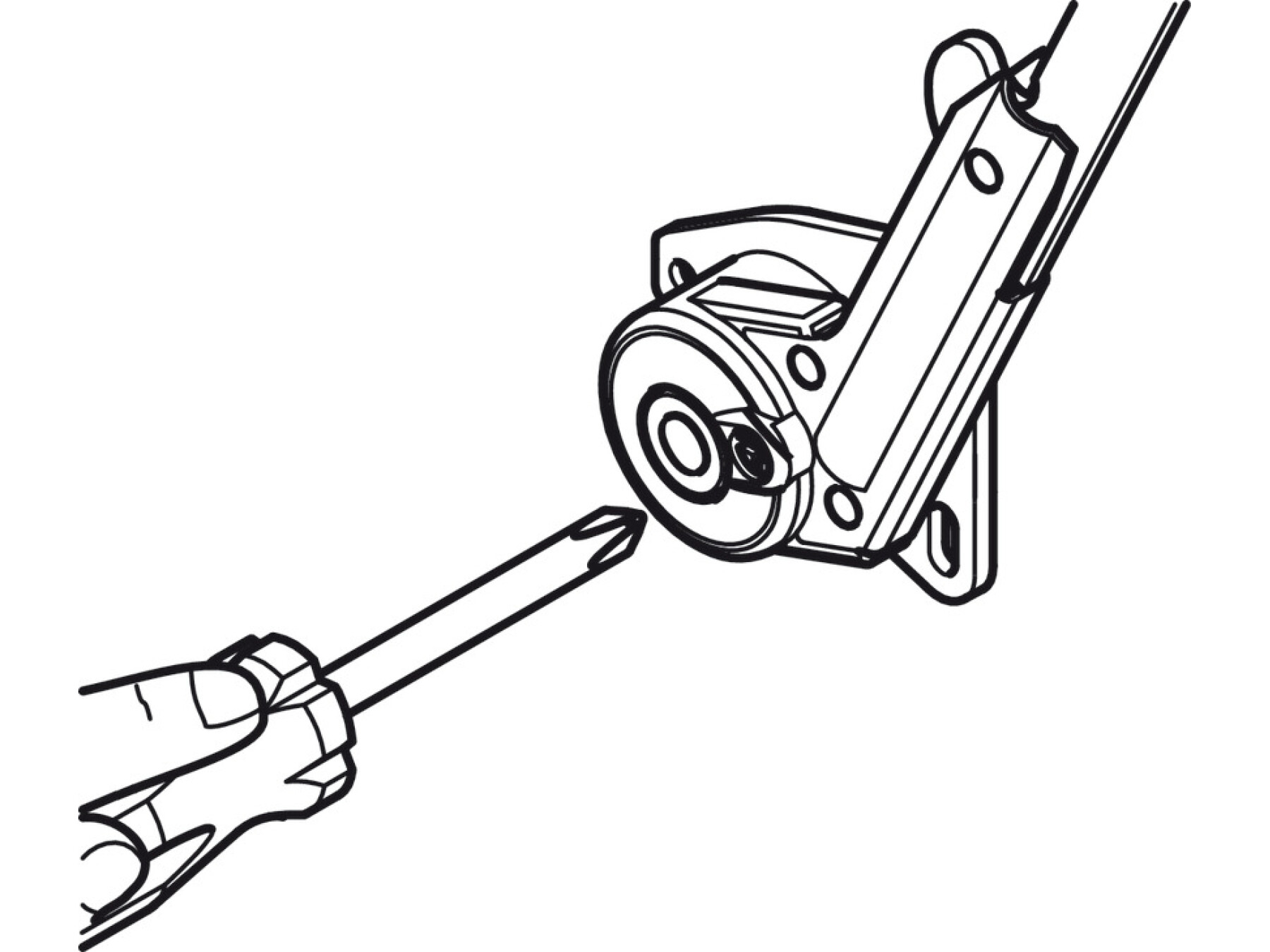

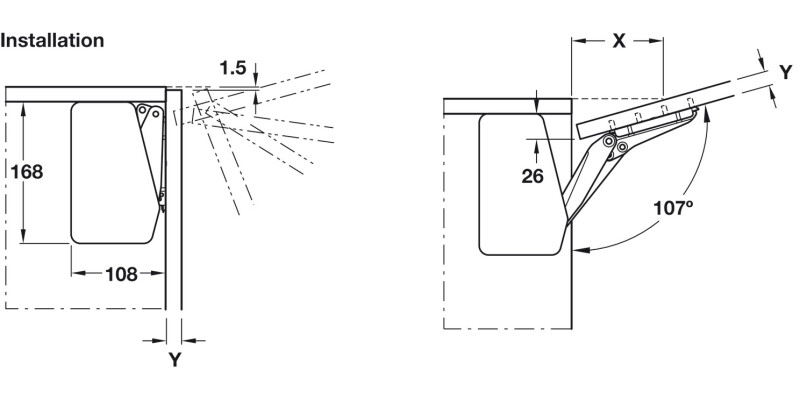

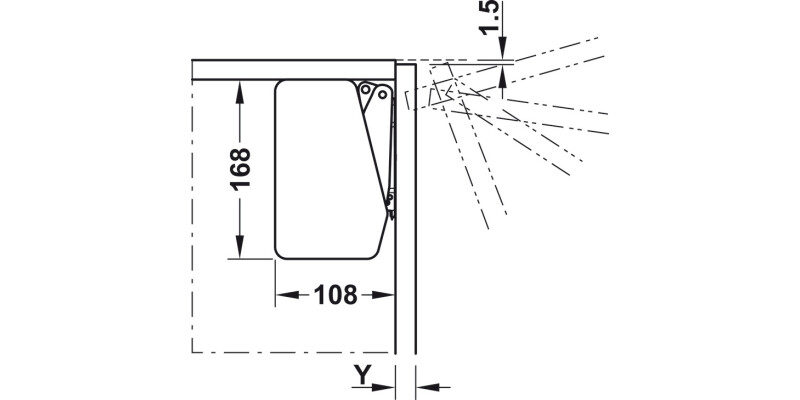

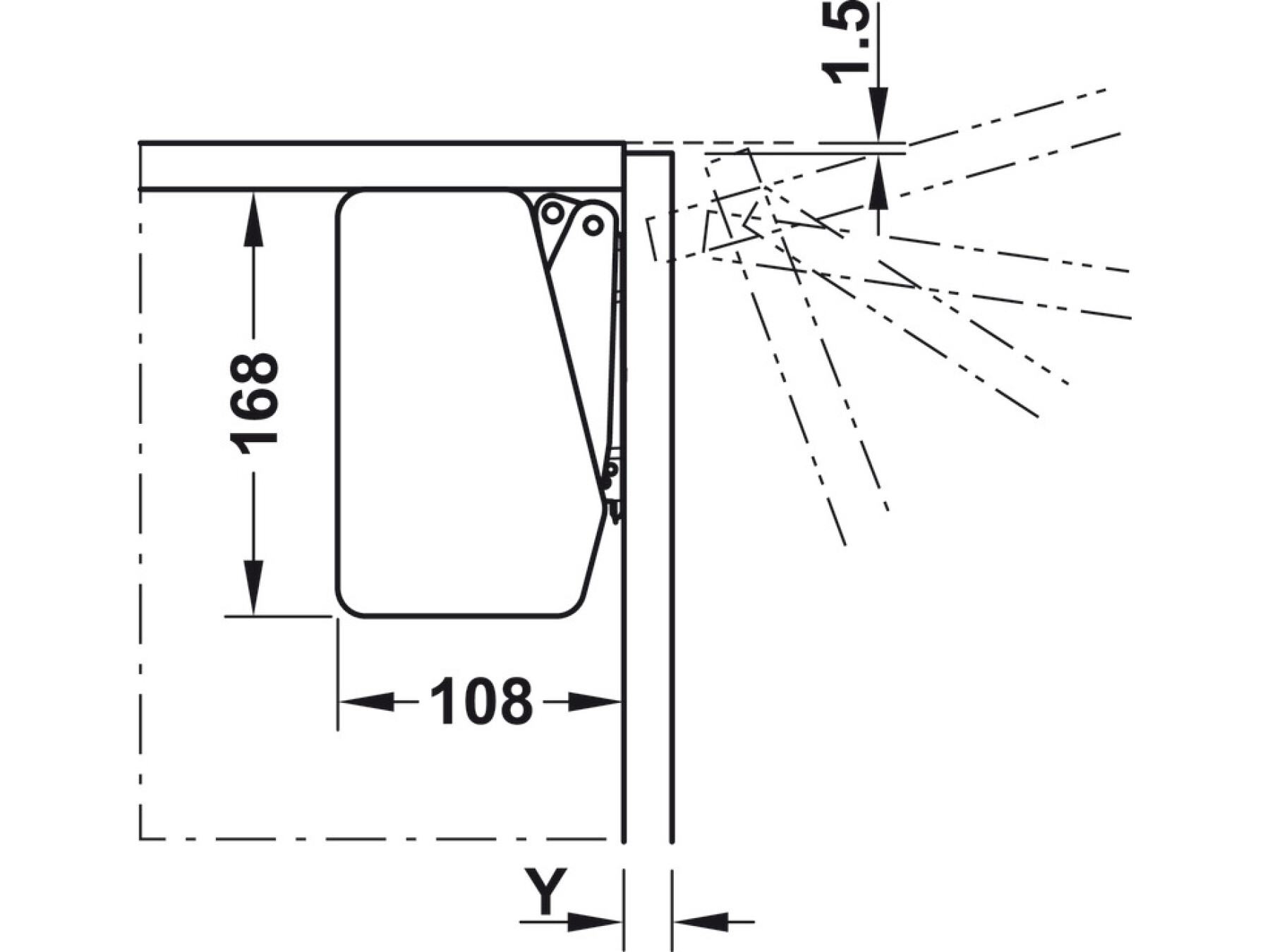

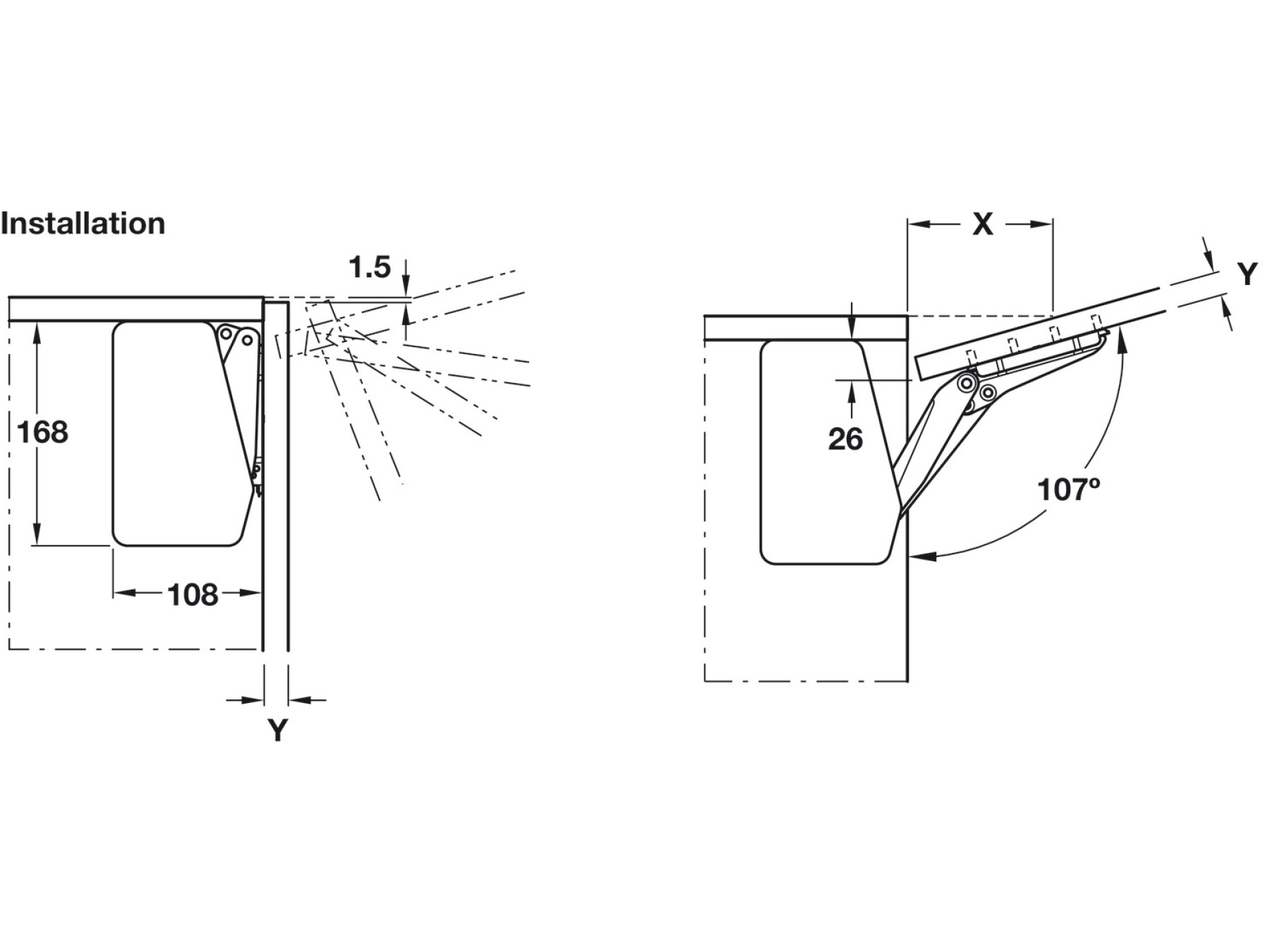

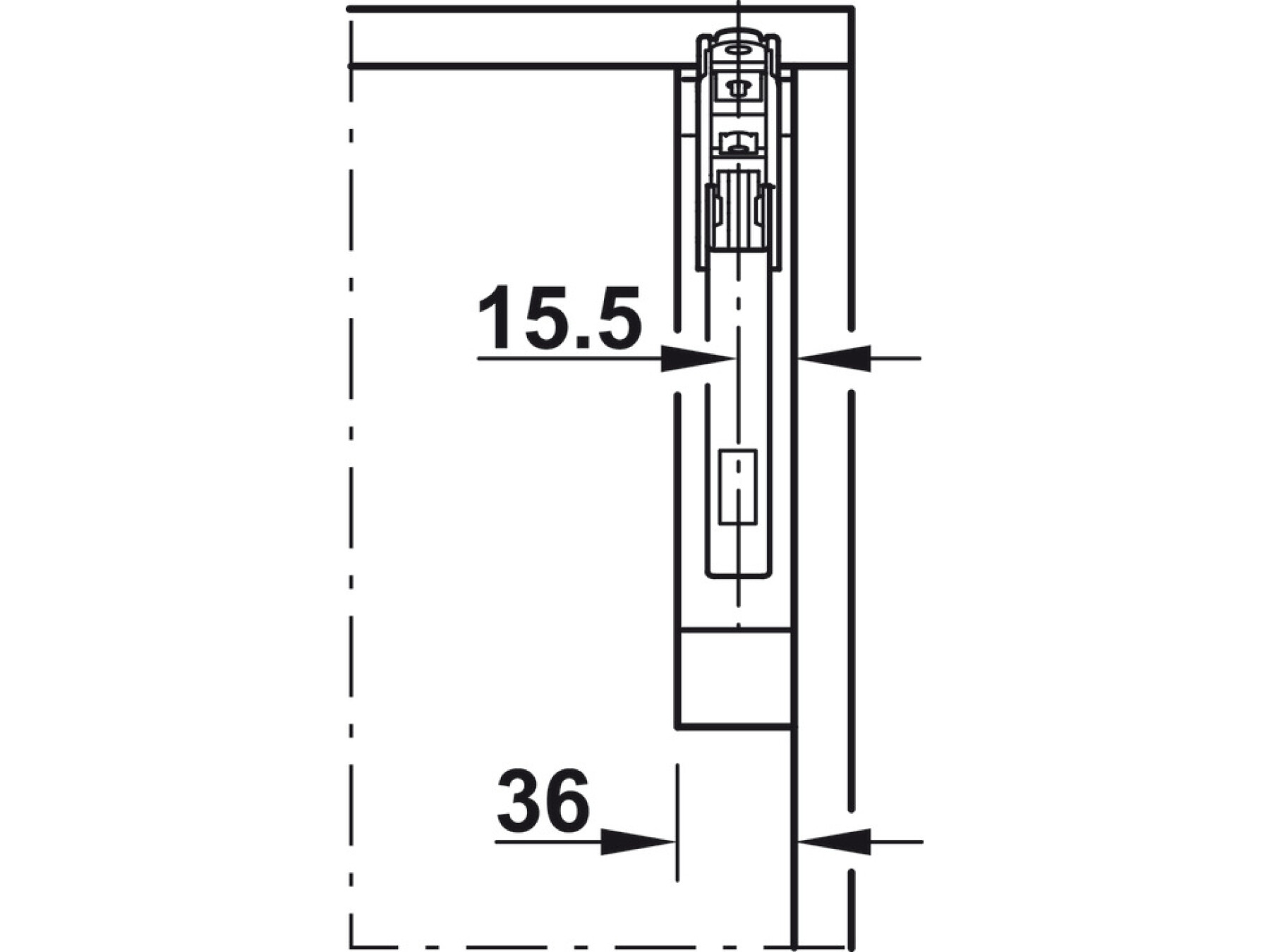

Installation is straightforward: the fitting is screw-fixable, and flap clips connect onto pre-mounted screw-on brackets. For added control, the opening angle can be reduced from 107° to 90° using an opening angle restraint (where required). Fine tuning is also supported with height/side/tilting angle adjustment ±1.5 mm.

Upgrade your furniture build with a dependable component backed by the Häfele Lifetime Guarantee (25 years). Choose the Single Door Flap Fitting, Complete Set, Free Flap 1.7 for a confident, high-quality flap fitting that’s made to last.
