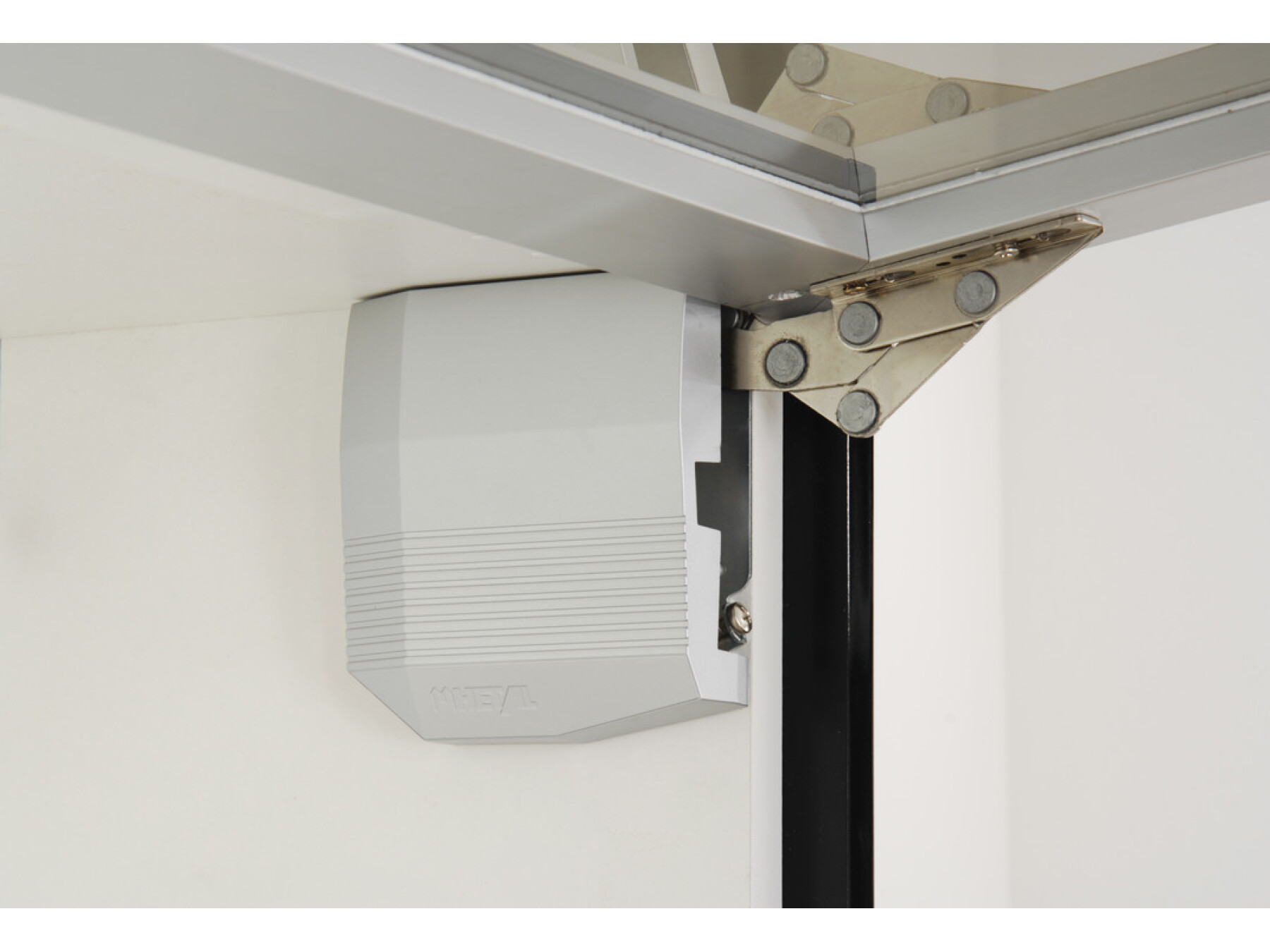

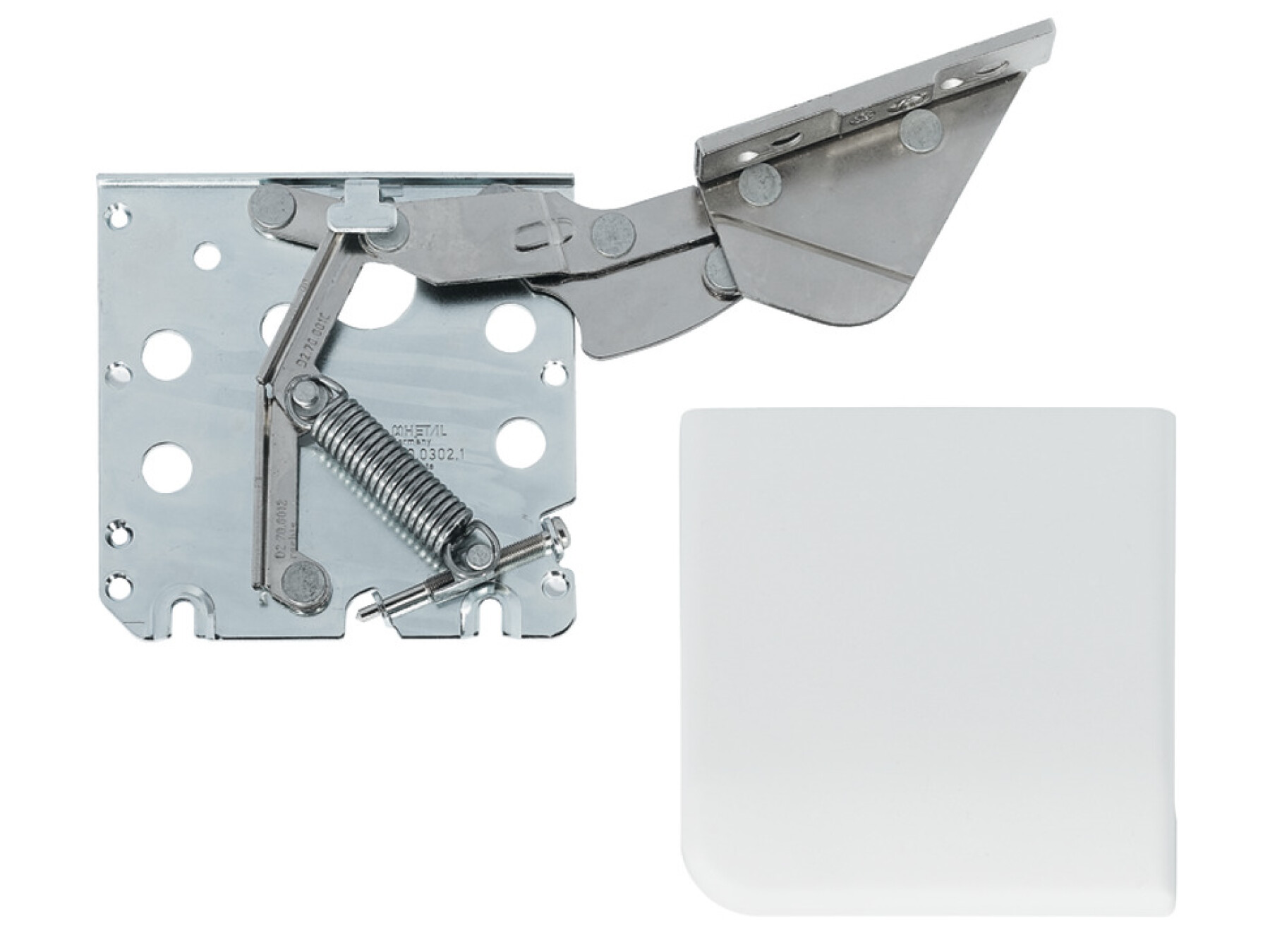

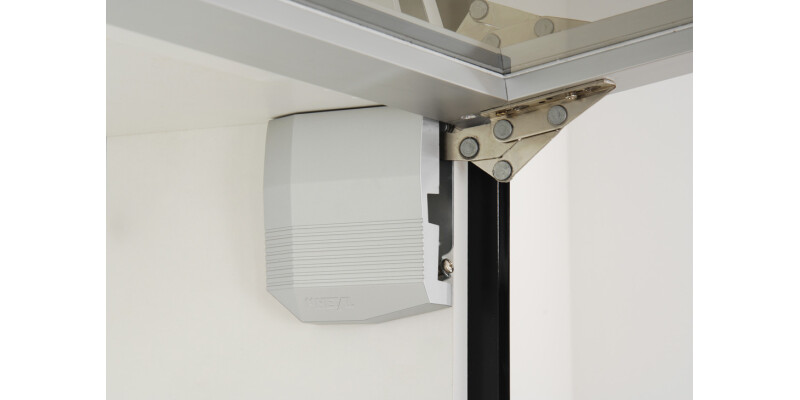

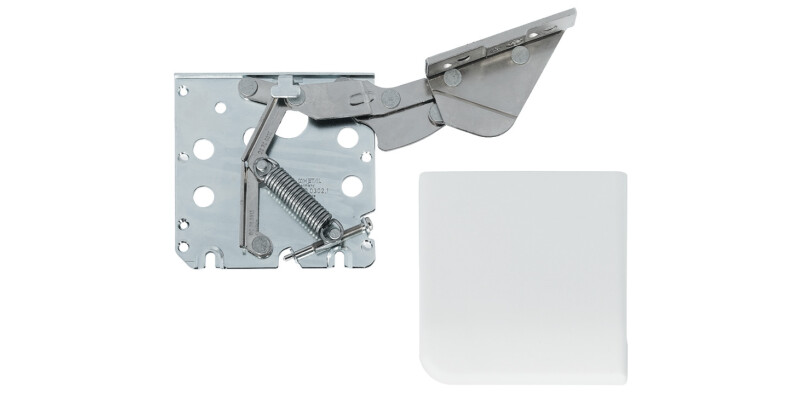

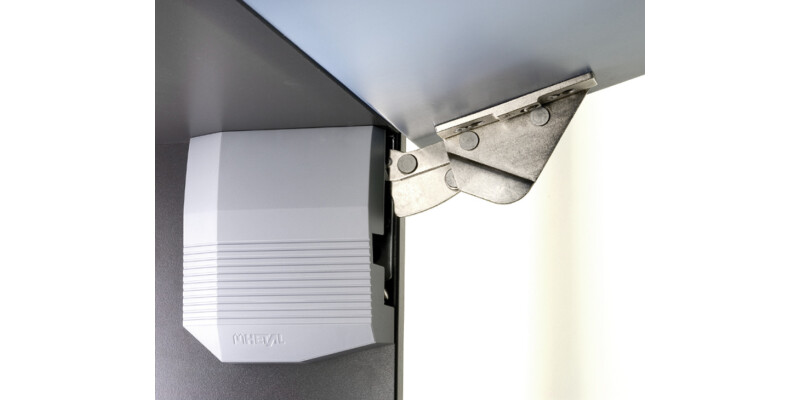

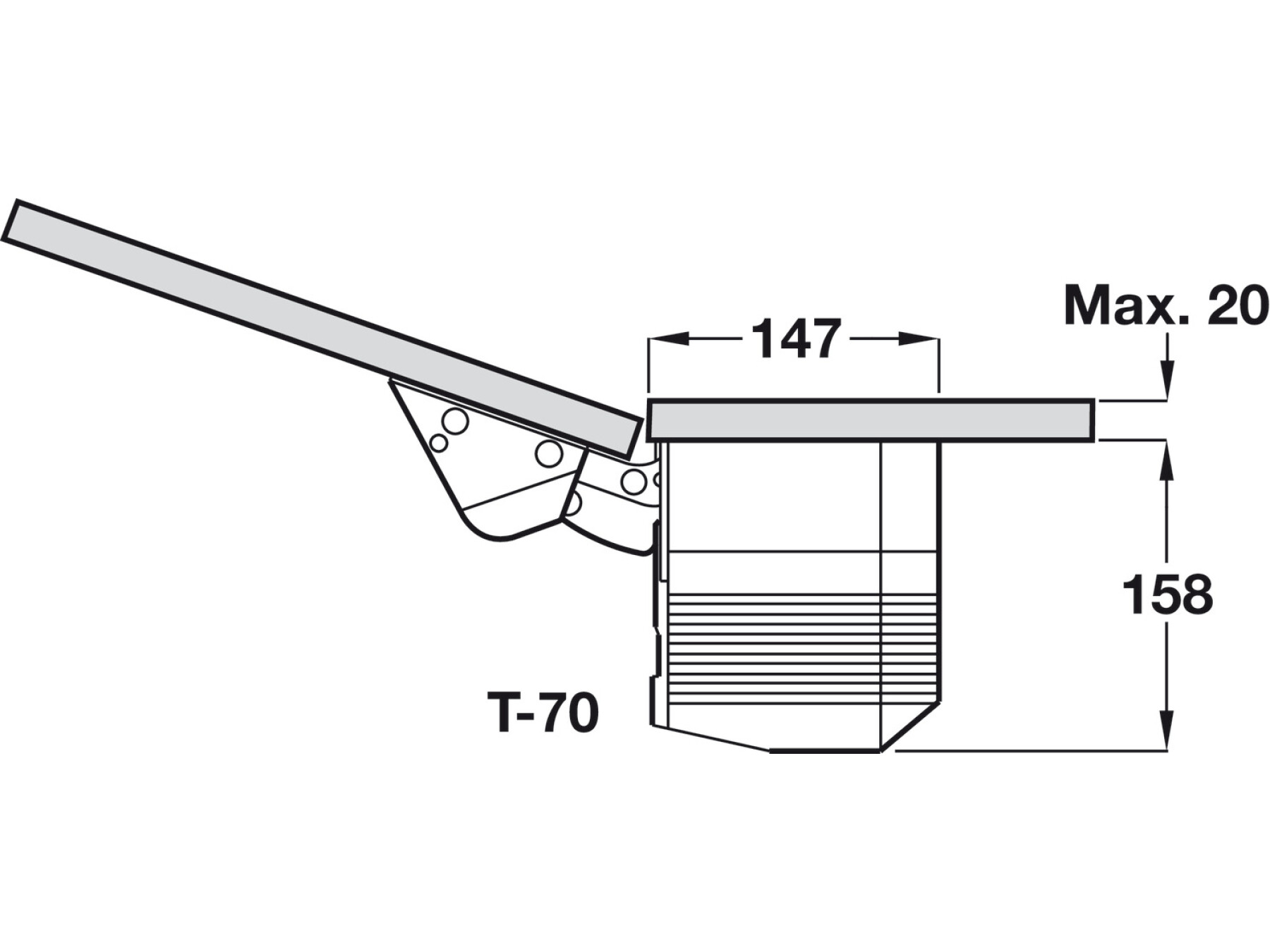

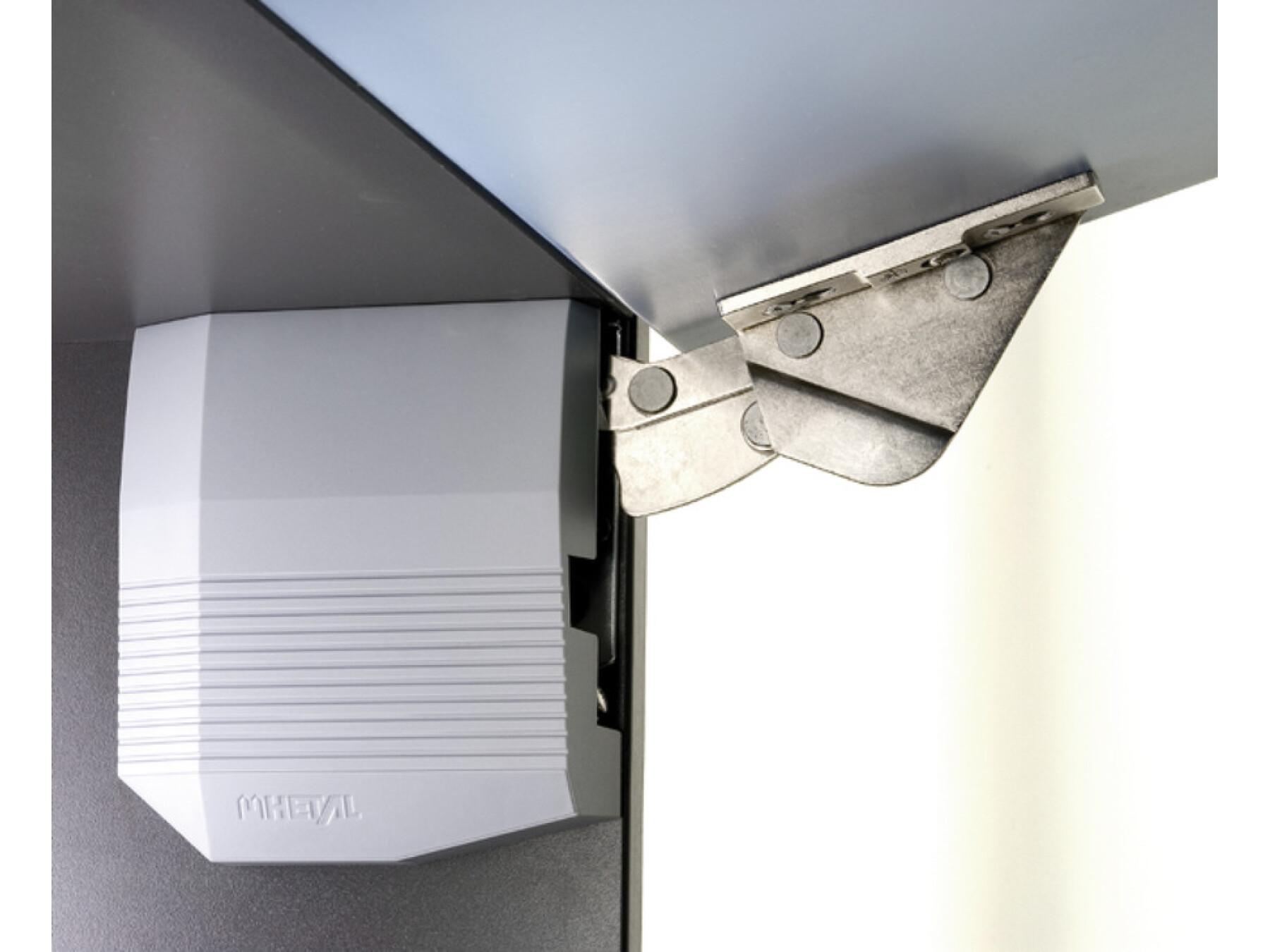

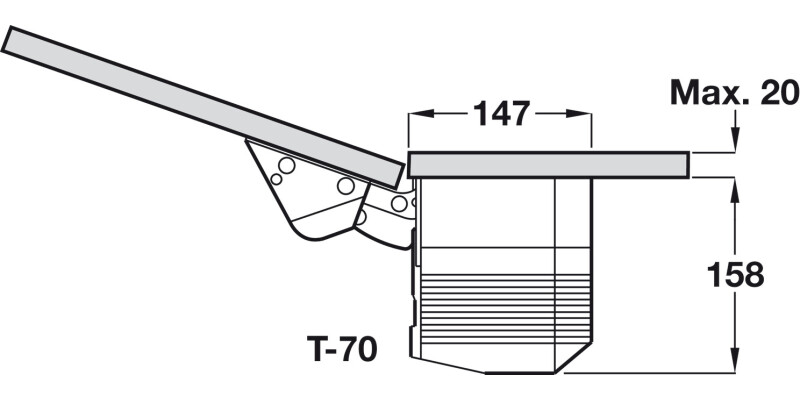

Kinvaro T-70 Flap Fitting
Part Number: 372.46.800
For top box units in kitchens, Galvanized steel
Price:
£41.16
Per Item
No concealed hinges required for top panelAllows additional cabinet installation aboveWith narrow fixing bracket... Read More
Product Information
Product Details
No concealed hinges required for top panel
Allows additional cabinet installation above
With narrow fixing bracket for framed doors
Spring-assisted action for easy opening: Different springs included allow for many different door panel weight and sizes
Integrated adjustable damped action gives quiet, gentle closing

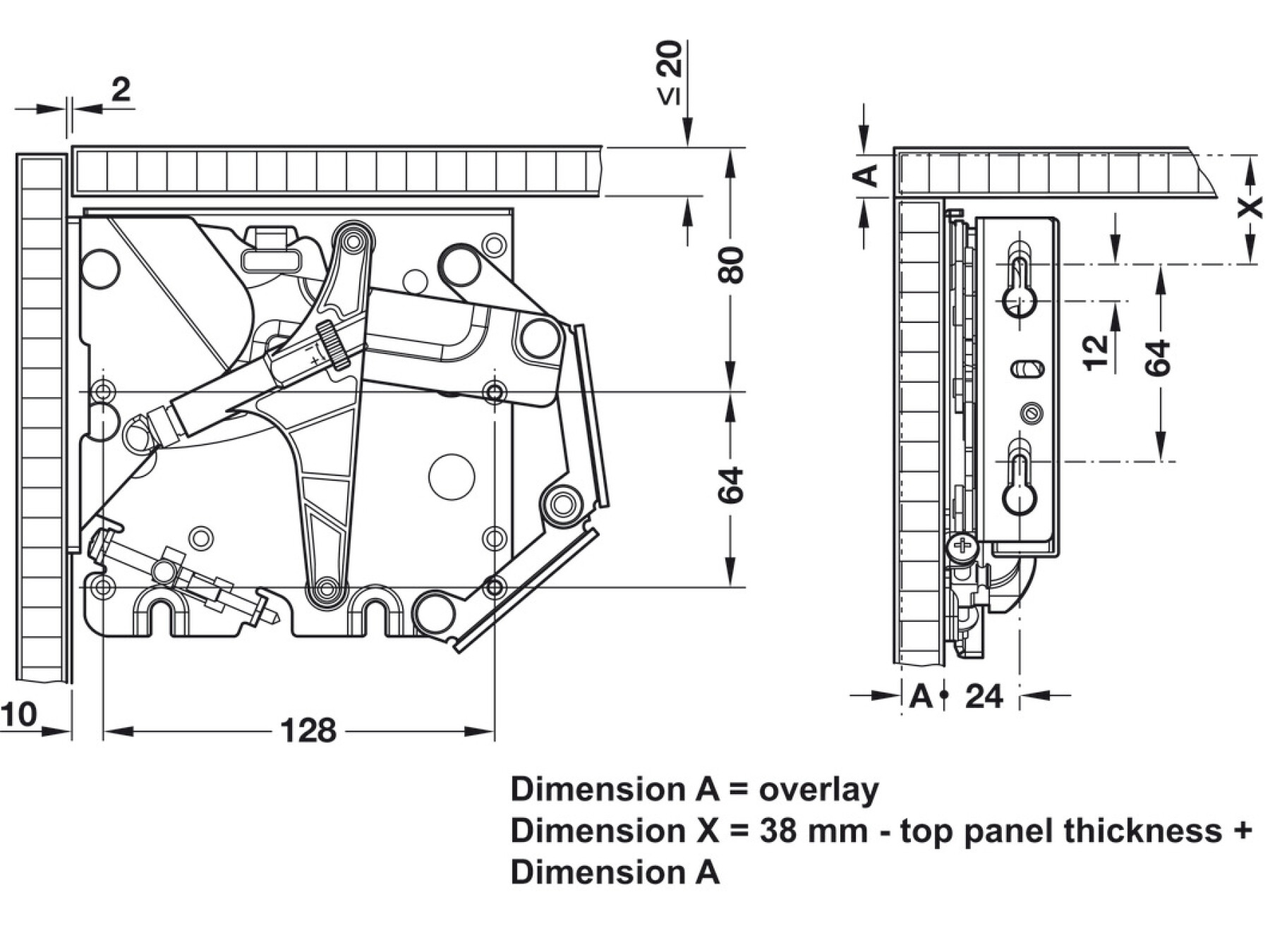

Installation note
Flap width: 1000 mm for 355 mm height (MDF flap), 600 mm for 450 mm height (chipboard or MDF flap)
Variable opening angle, holds the flap securely at any opening position from 45° to 100 or 110°
When using a bar handle please trial mount first
Specifications
Area of application
For top box units in kitchens
Not suitable for inset doors
For chipboard or MDF flaps only
Material
Fitting and springs: Steel
Cover caps: Aluminium
Cover colour
Cover caps: White
Lid material
Wood
For cabinet width
600 – 1,000 mm
For cabinet height
283 – 450 mm
For lid weight
0.7 – 8.5 kg
Model
Kinvaro T-70
Installation
Screw fixing
For lid height
283 – 450 mm
Order reference
Also available for aluminium frame doors on request
Supplied with
Fixings for carcase side wall and fitting instructions
