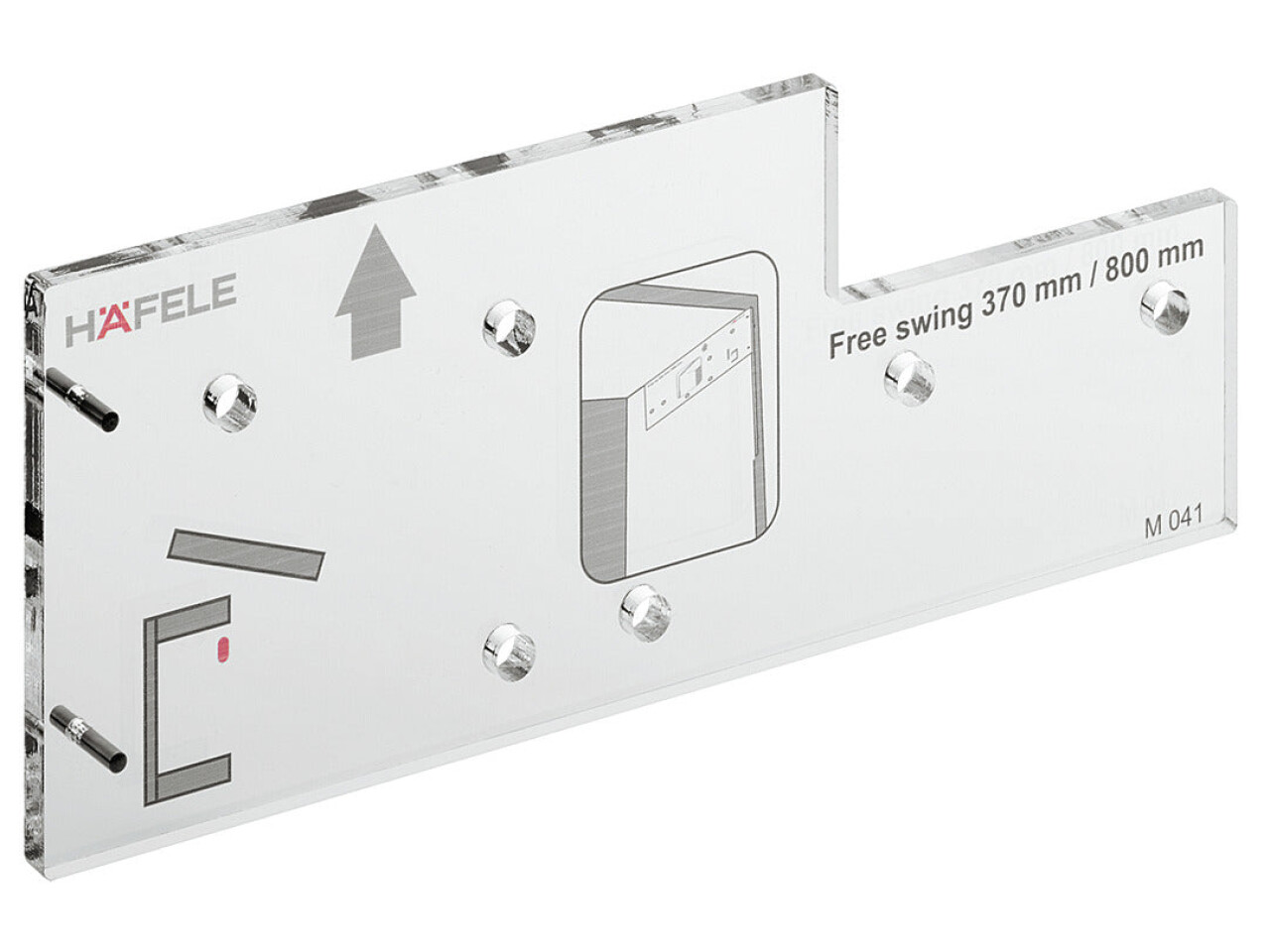

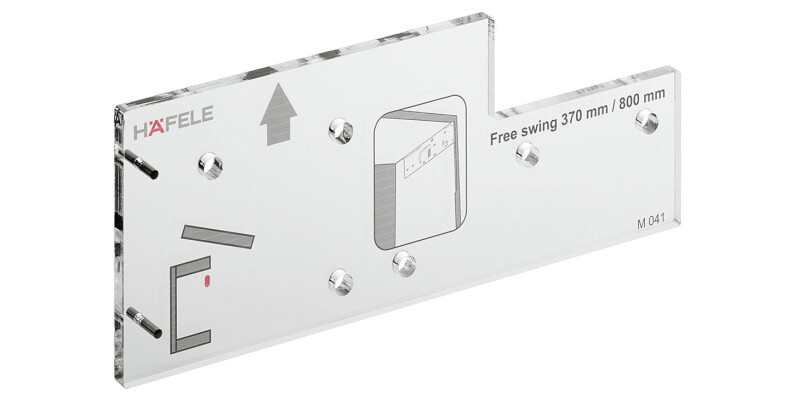

Drilling Jig for Free Swing Flap Fitting

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

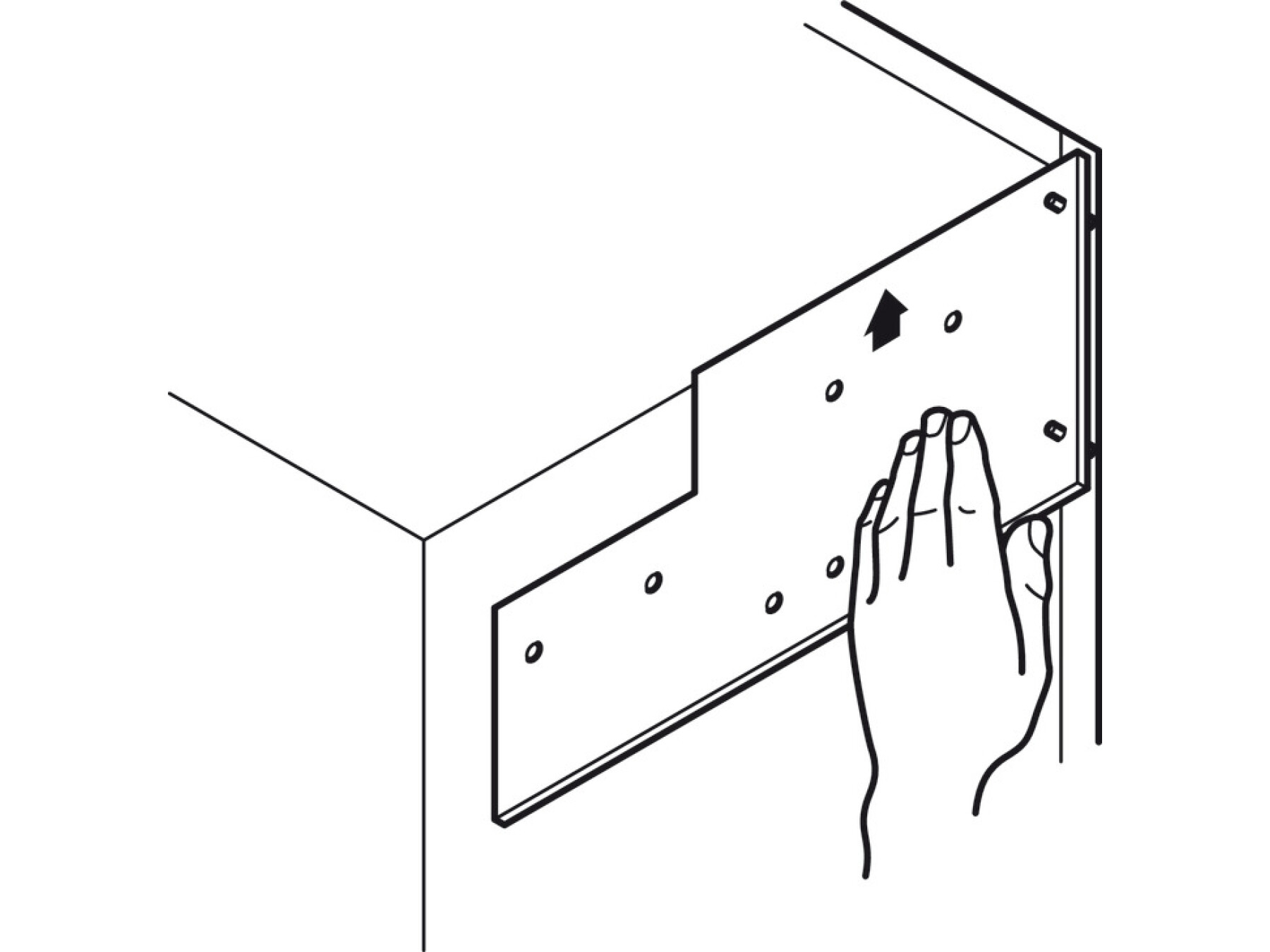

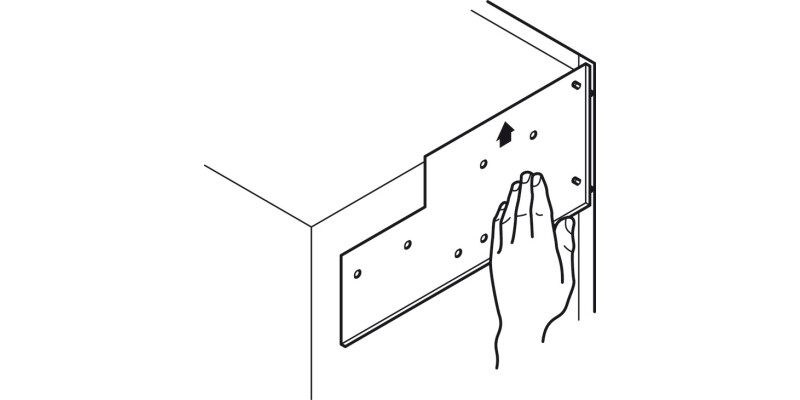

Drilling pattern, see installation instructions of the fitting. The drilling jig is positioned in the top left or top right cabinet corner.

Please order self centering drill bit ∅ 5 mm (Cat. No. 001.25.792) separately.
