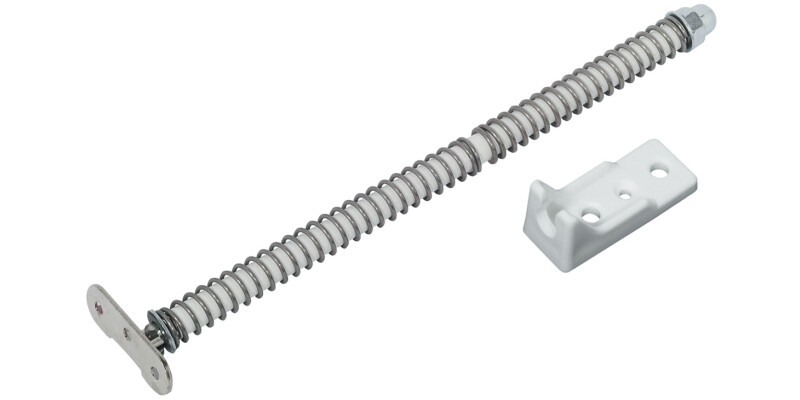

Flap-Ex Flap Hinge
Part Number: 365.52.708

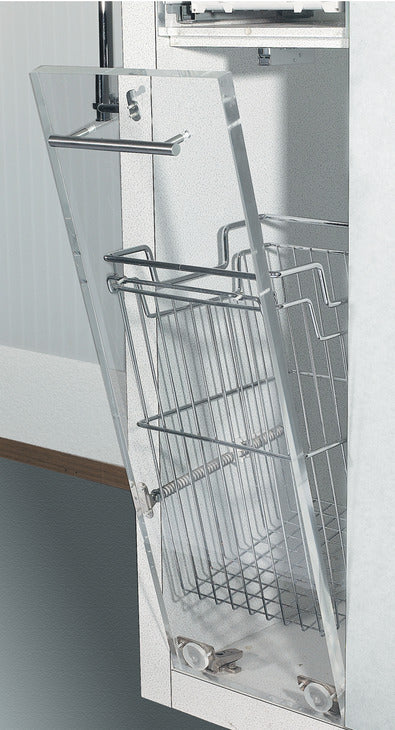

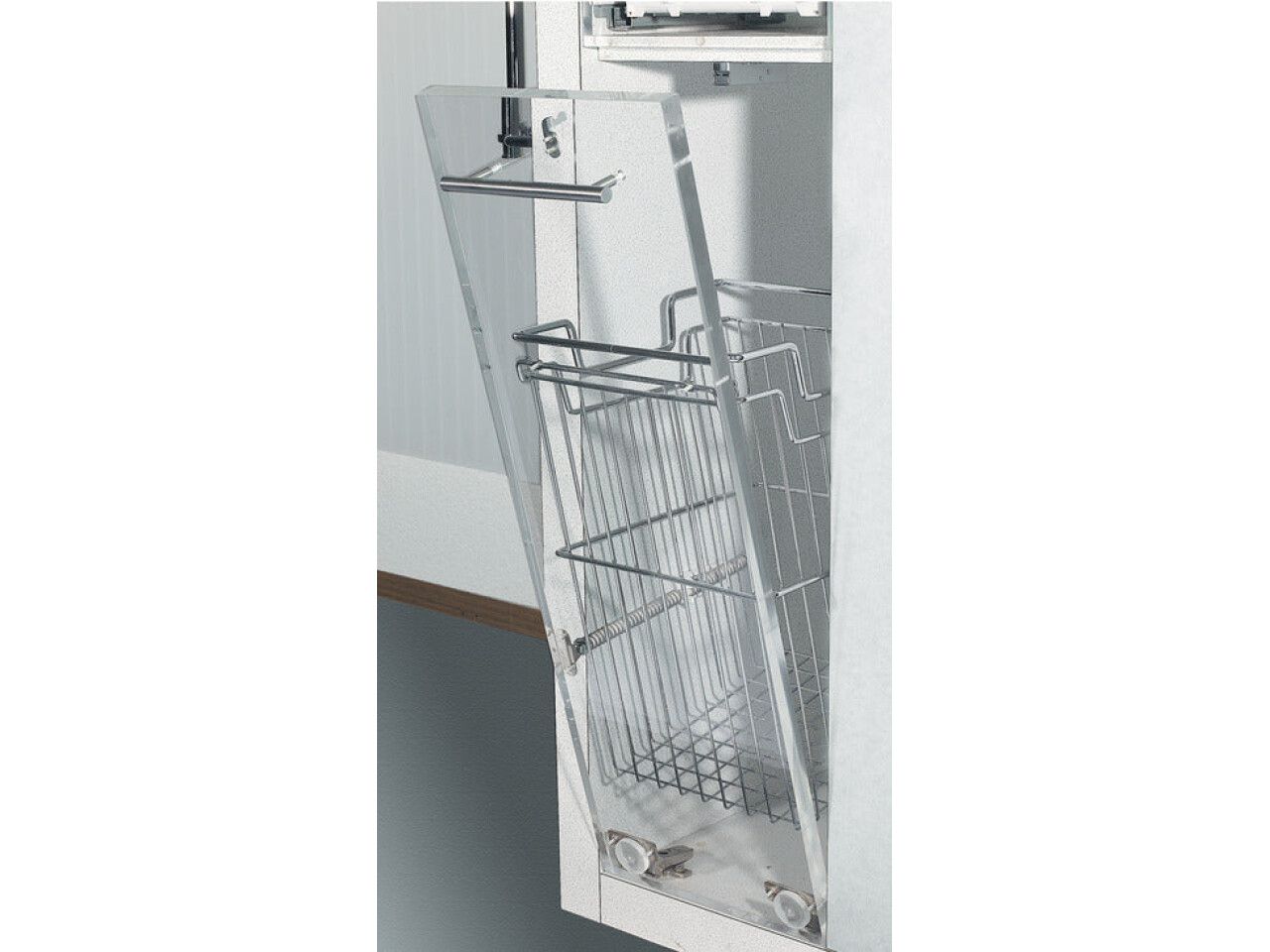

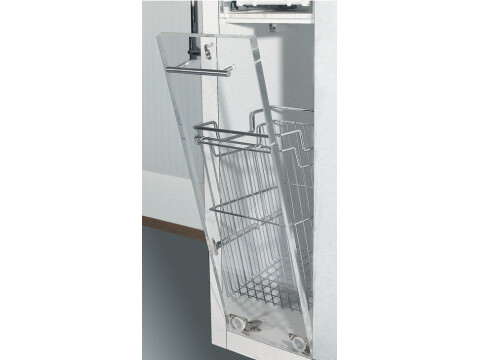

Particularly suitable for installation in cabinets with front flaps, White plastic
Price:
£14.84
Per Item
Suitable for installation in front flap cabinets min. 820 mm high, min. 400 mm wide with min. installation depth... Read More
Product Information
Product Details
Suitable for installation in front flap cabinets min. 820 mm high, min. 400 mm wide with min. installation depth 270 mm
Important: Designed to support a chipboard front with maximum dimensions 590 mm high, 400 mm wide, 19 mm thick, maximum weight when full 5 kg
Installation note

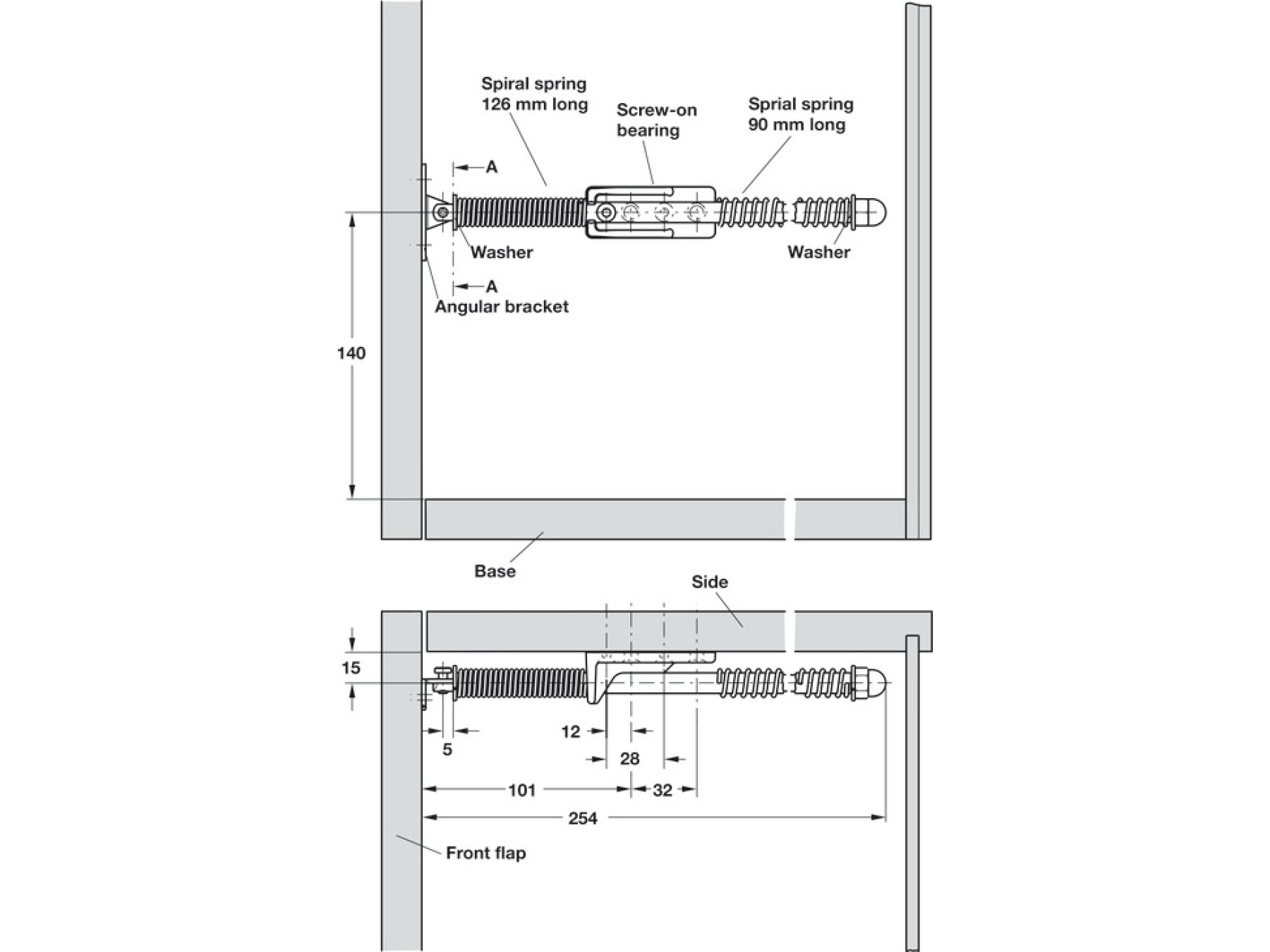

Assembly
Screw angular bracket to front panel.
Screw screw-on bearing to cabinet side panel.
Push round bar between the two spiral springs into the screw-on bearing.
Suitable for
Front flaps with max. dim. 400 x 590 x 119 mm (W x H x D) for 1 Flap-Ex fitting, for filler weight of max. 5 kg
Order reference
For installation of the front flap, 2 cup hinges and a Mini Latch catch should be ordered separately
Order Varianta Ø 5 raised head and Hospa Ø 4.0 mm countersunk screws separately
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?

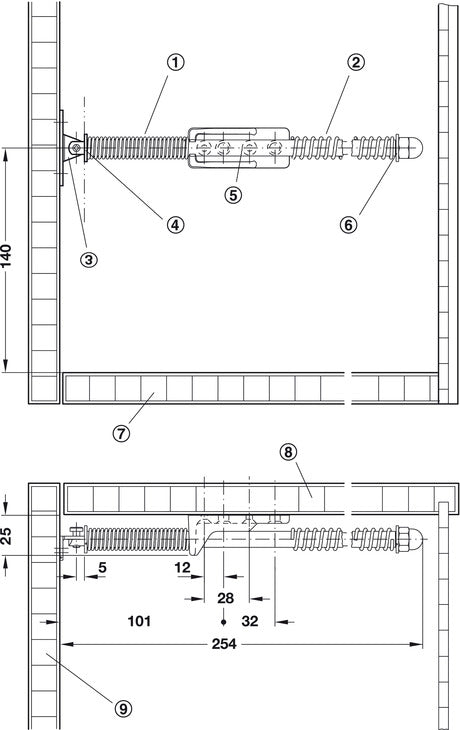

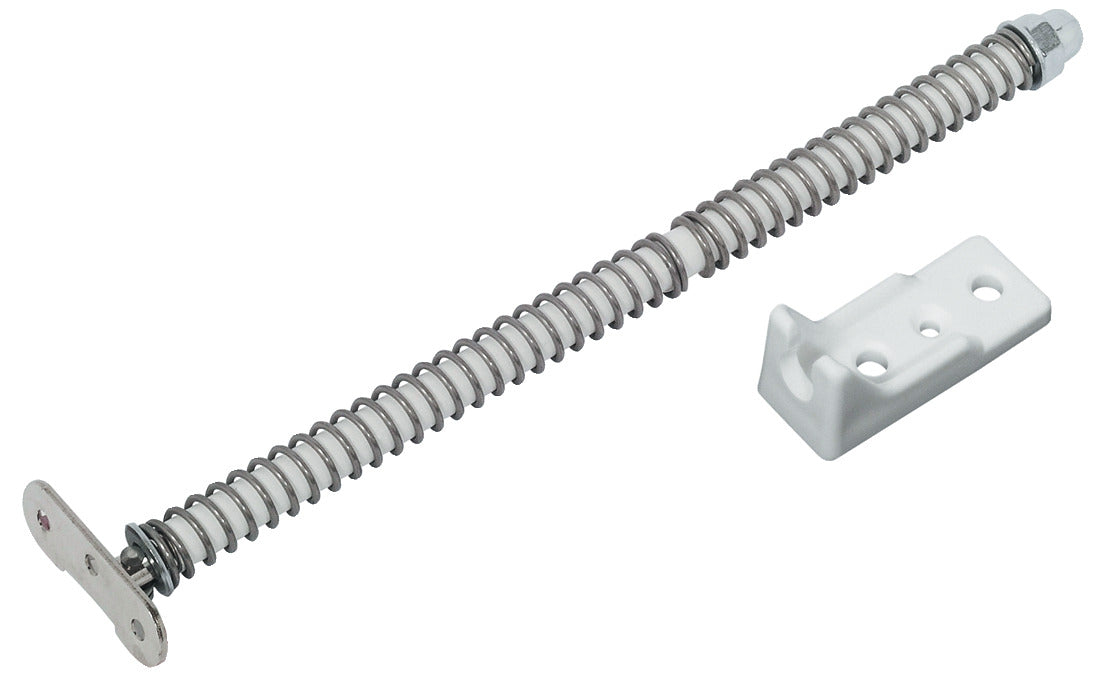

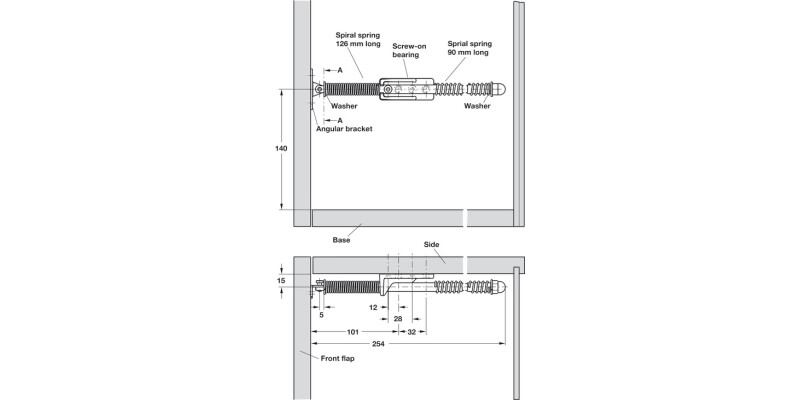

Supplied with
1 Angular bracket
1 Rod with plastic sleeve
2 Washers
2 Spiral springs: front 126 mm long, rear 90 mm long
1 Bearing, packed loose
Mounting instructions:

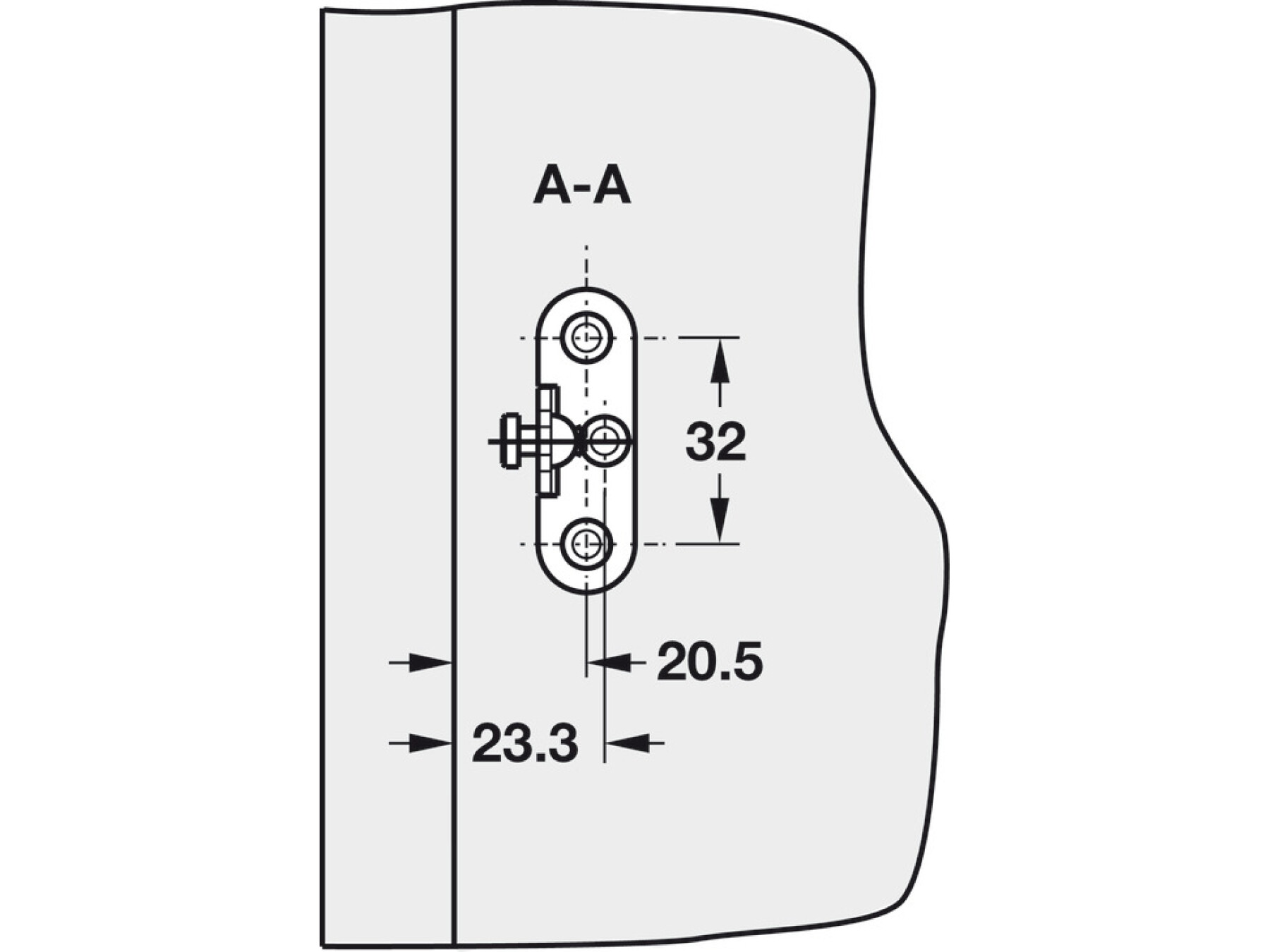

Screw fix angular bracket to front panel and bearing to side panel
Push rod into bearing between the two spiral springs
Specifications
Area of application
Particularly suitable for installation in bathroom and laboratory cabinets with front flaps
Version
With spring bearing in opening and closing direction
For max. filling weight of 5 kg
Material
Bracket: Steel
Bearing and sleeve: Plastic
Colour/finish
Zinc plated, sleeve and screw-on bearing: White
Cover colour
Sleeve and screw-on bearing: White
Opening angle
27 °
Installation
Bracket and bearing: Screw fixing
