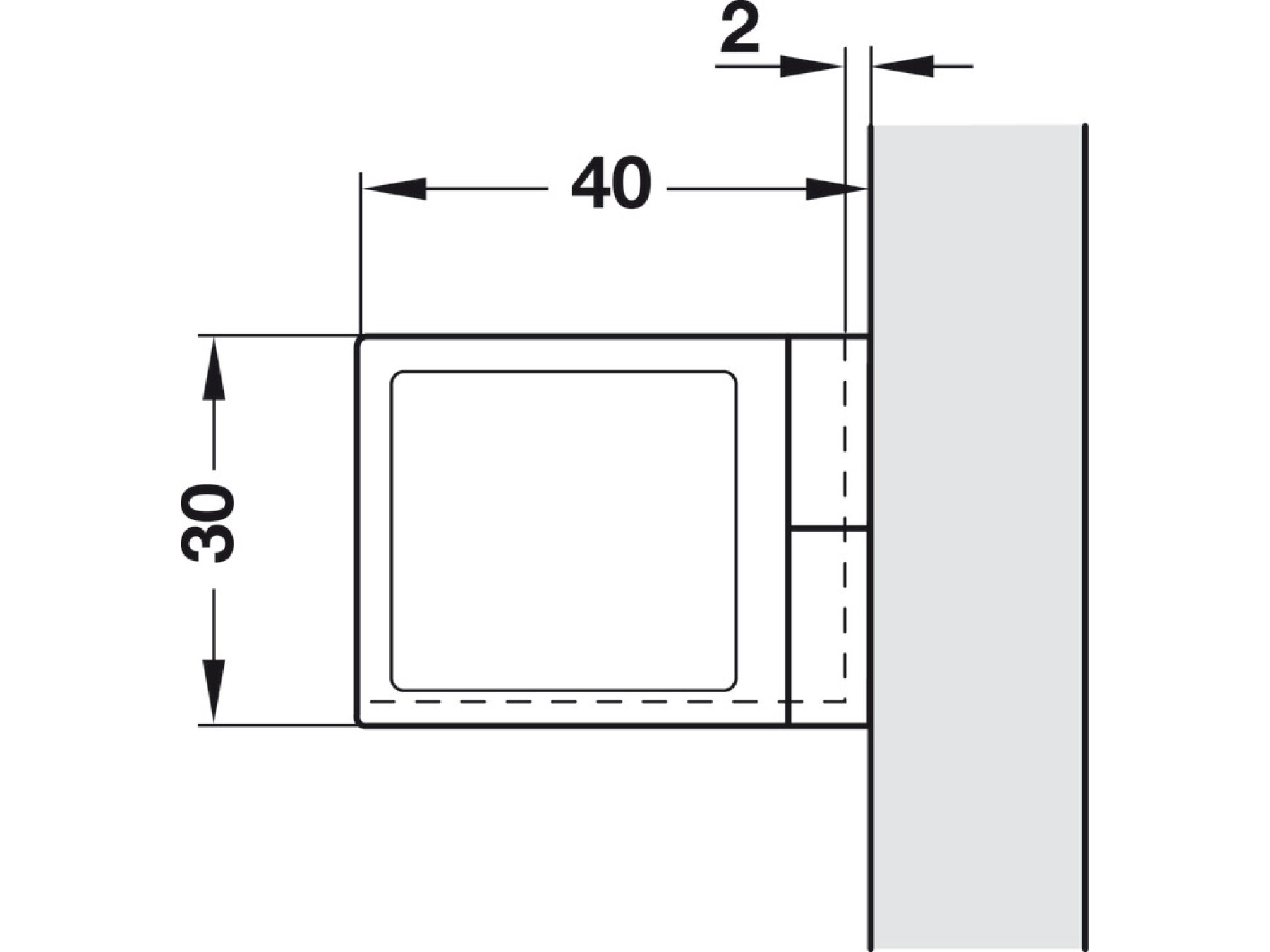

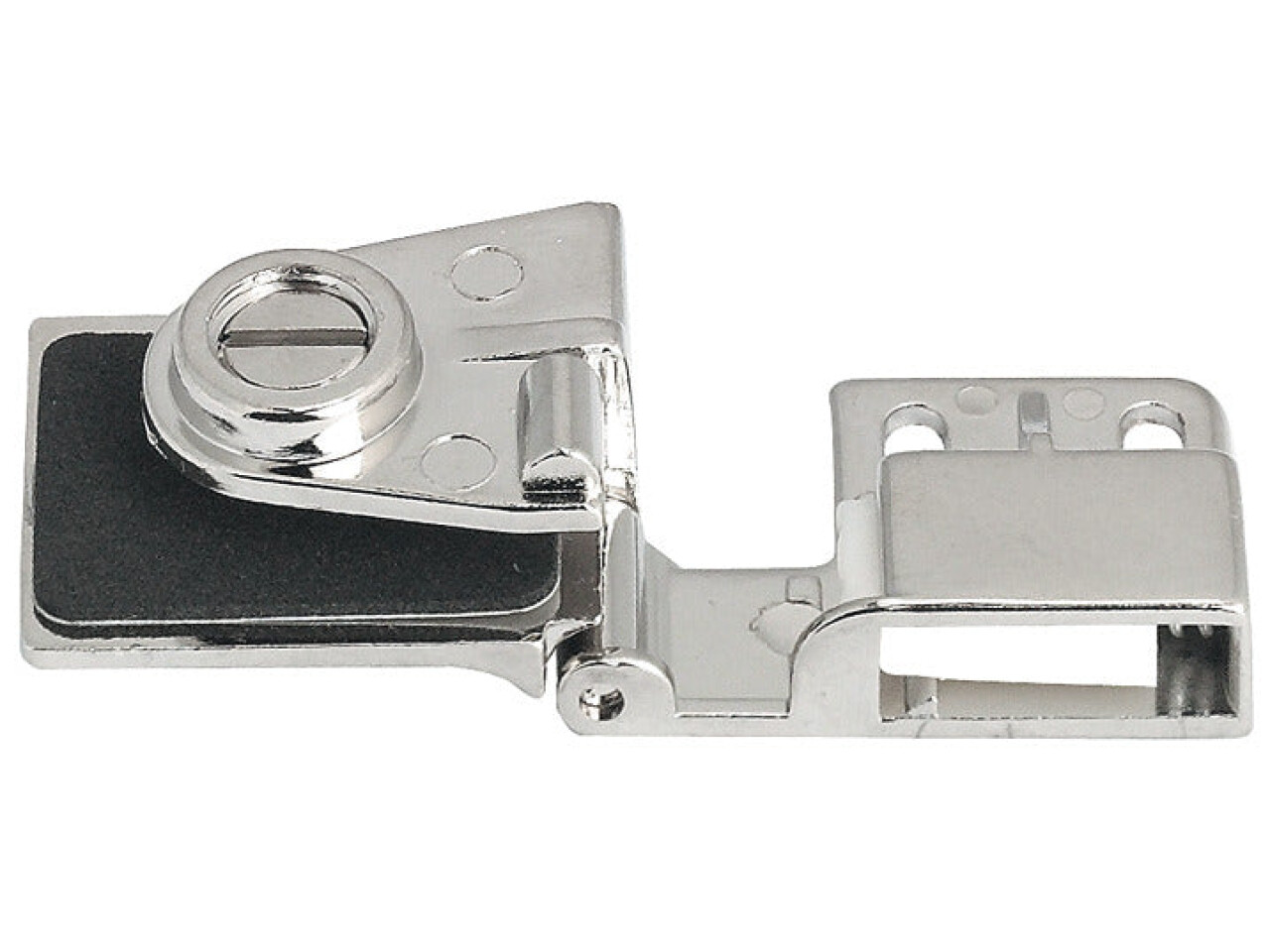

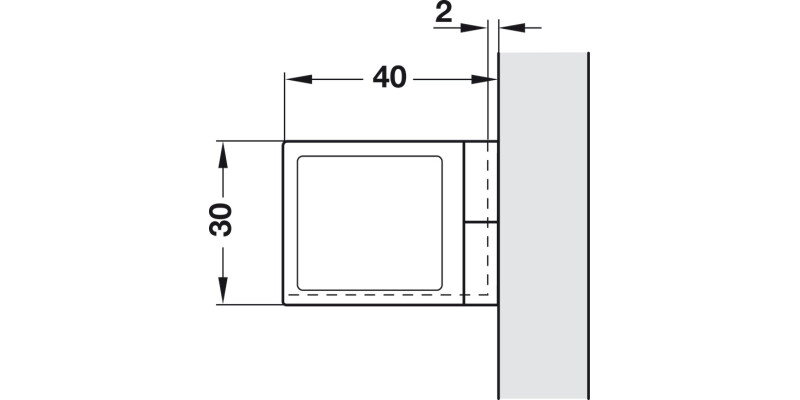

170D Glass Door Middle Hinge PCP
Part Number: 361.93.242
Zinc alloy, Polished chrome plated
Price:
£12.55
Per Item
Product Information
Product Details
Specifications
Furniture Construction
for glass/wood constructions
Material
Zinc alloy
Colour/finish
polished, chrome plated

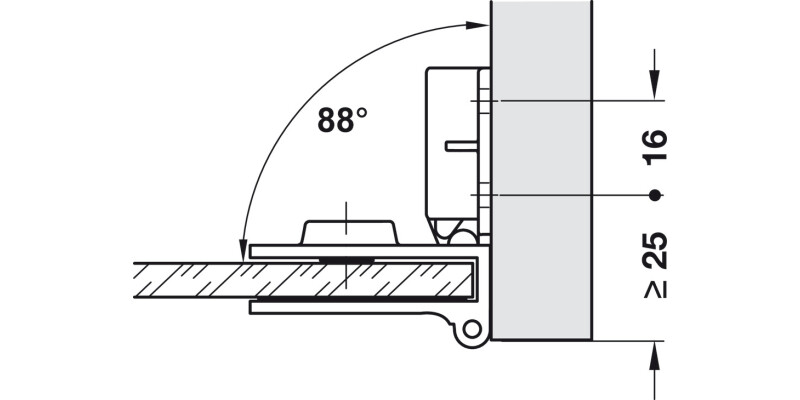

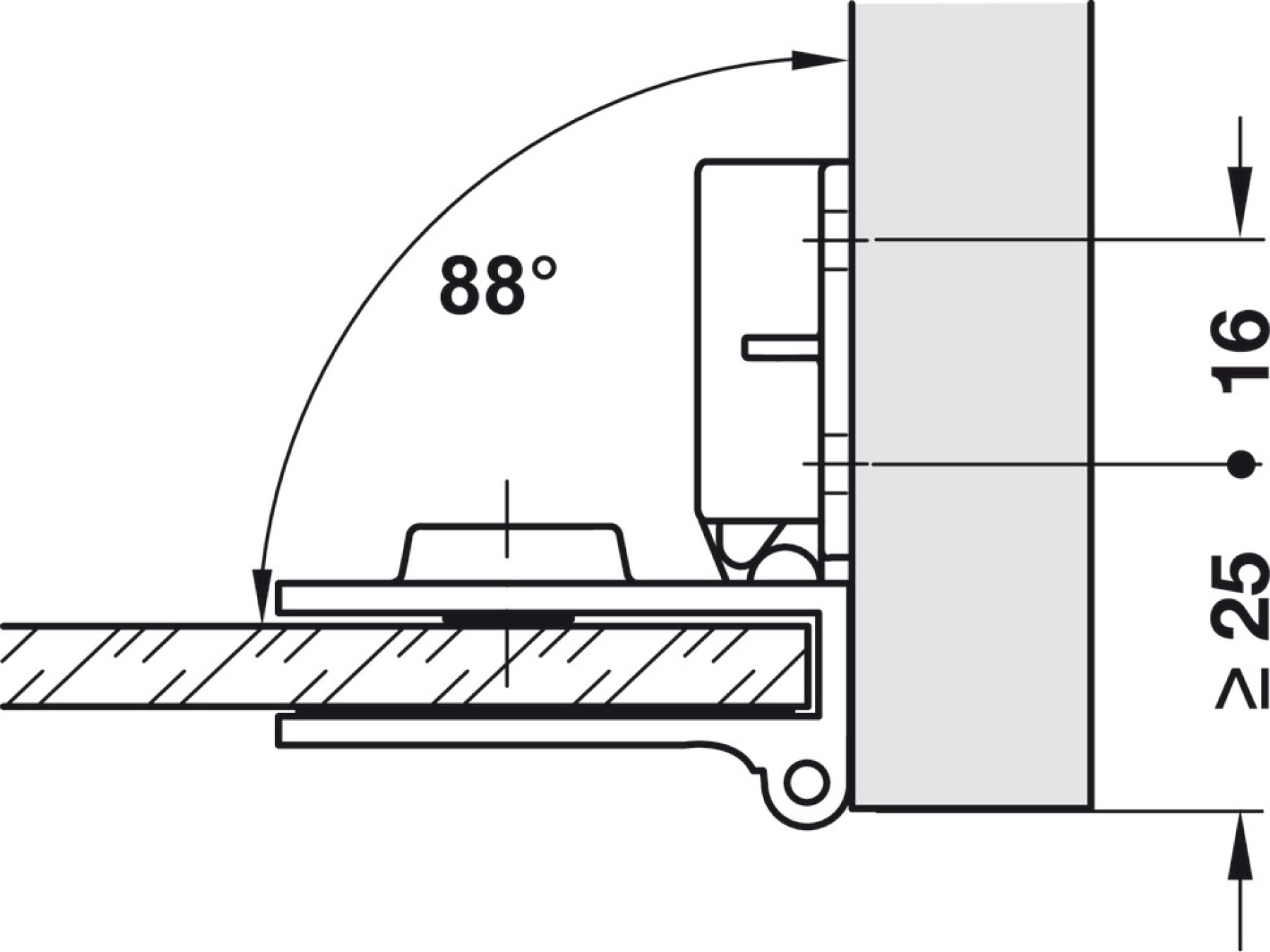

Opening angle
170°

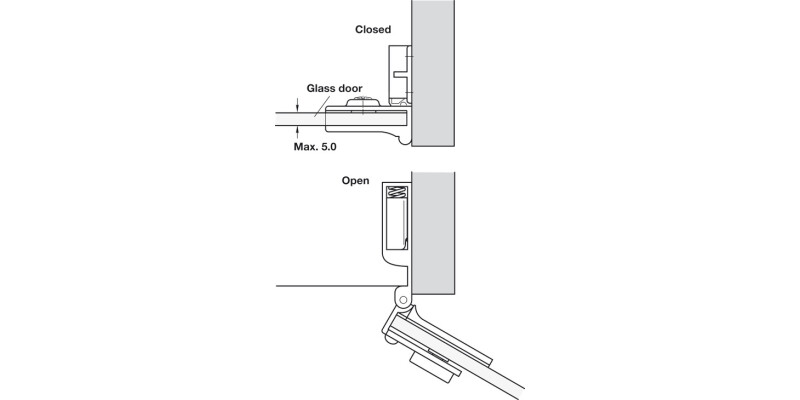

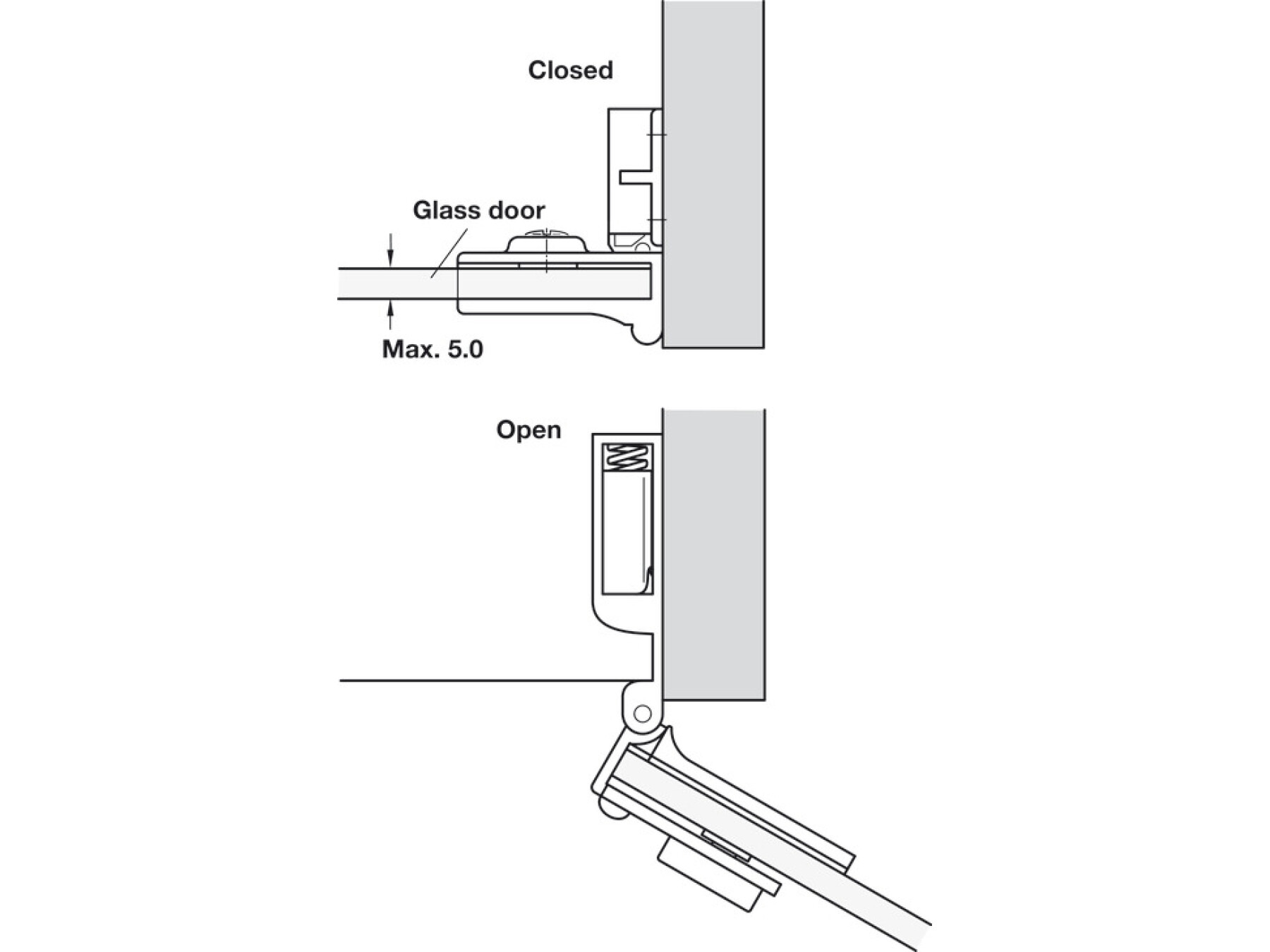

For glass thickness
≤5 mm
For door material
Glass
Door processing for assembly
without glass drilling
Door construction
Inset
Area of application
For inset glass doors
For door width
≤450 mm
For door height
≤600 mm
Adjustment facility
height and depth adjustment
Equipped with
with catch

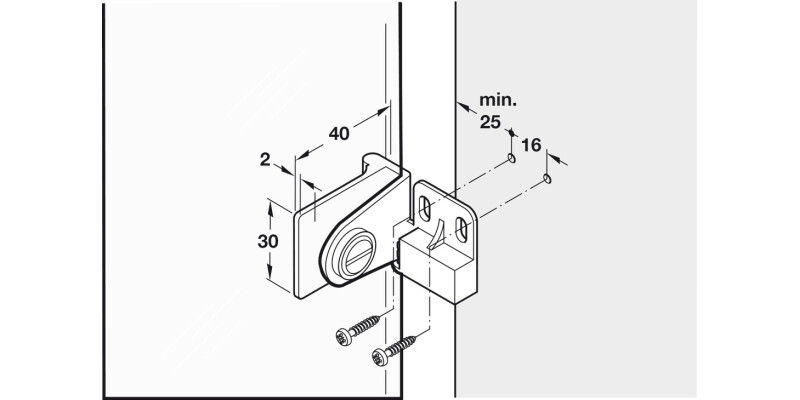

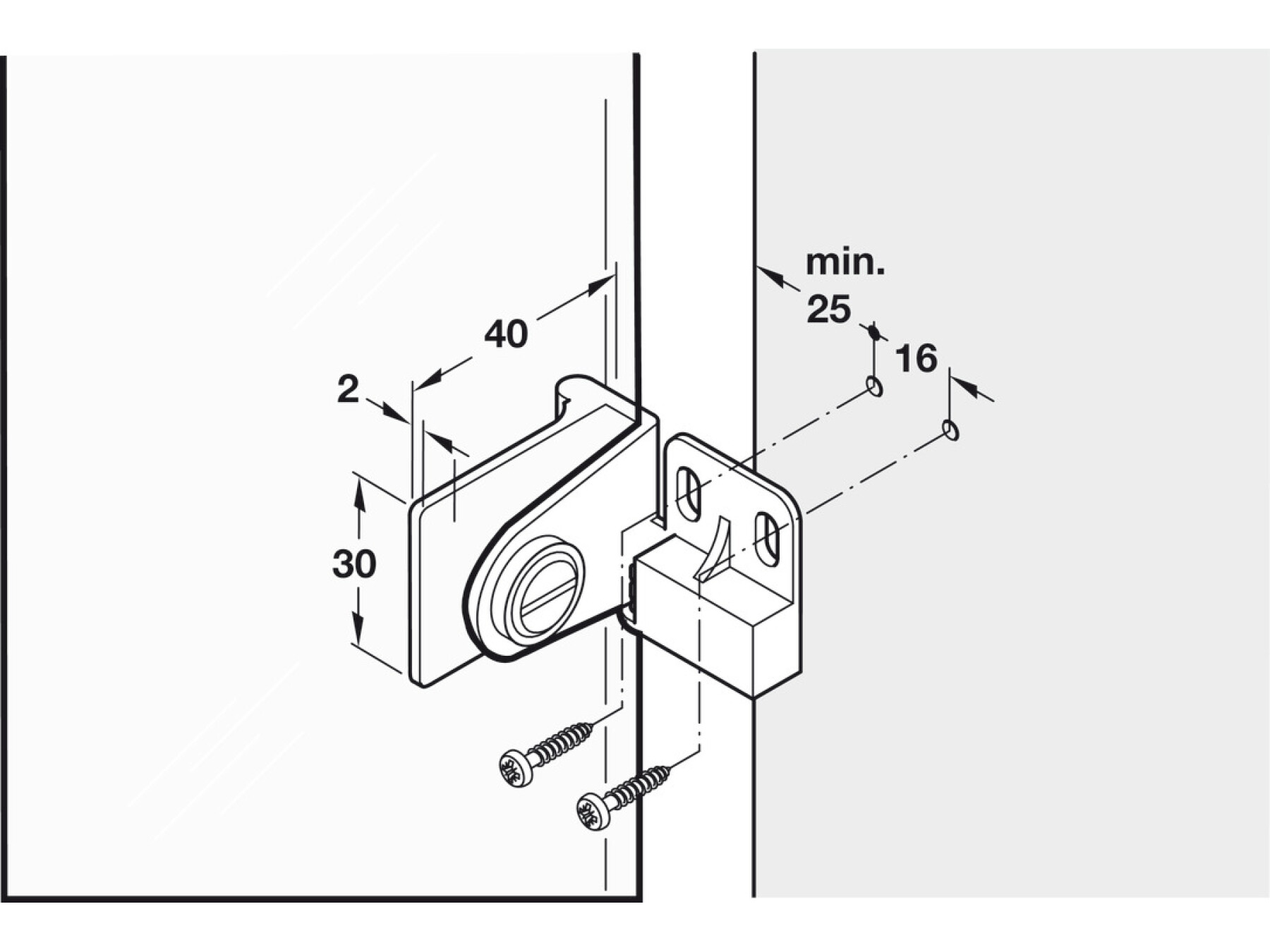

Installation
for screw fixing to side panel, for clamping to glass door
Door width max.
450.00 mm
Door height max.
600.00 mm
Supplied with
Comprising:
2x hinges, (1x right hand, 1x left hand)
2x rubber pads mounted top and bottom
