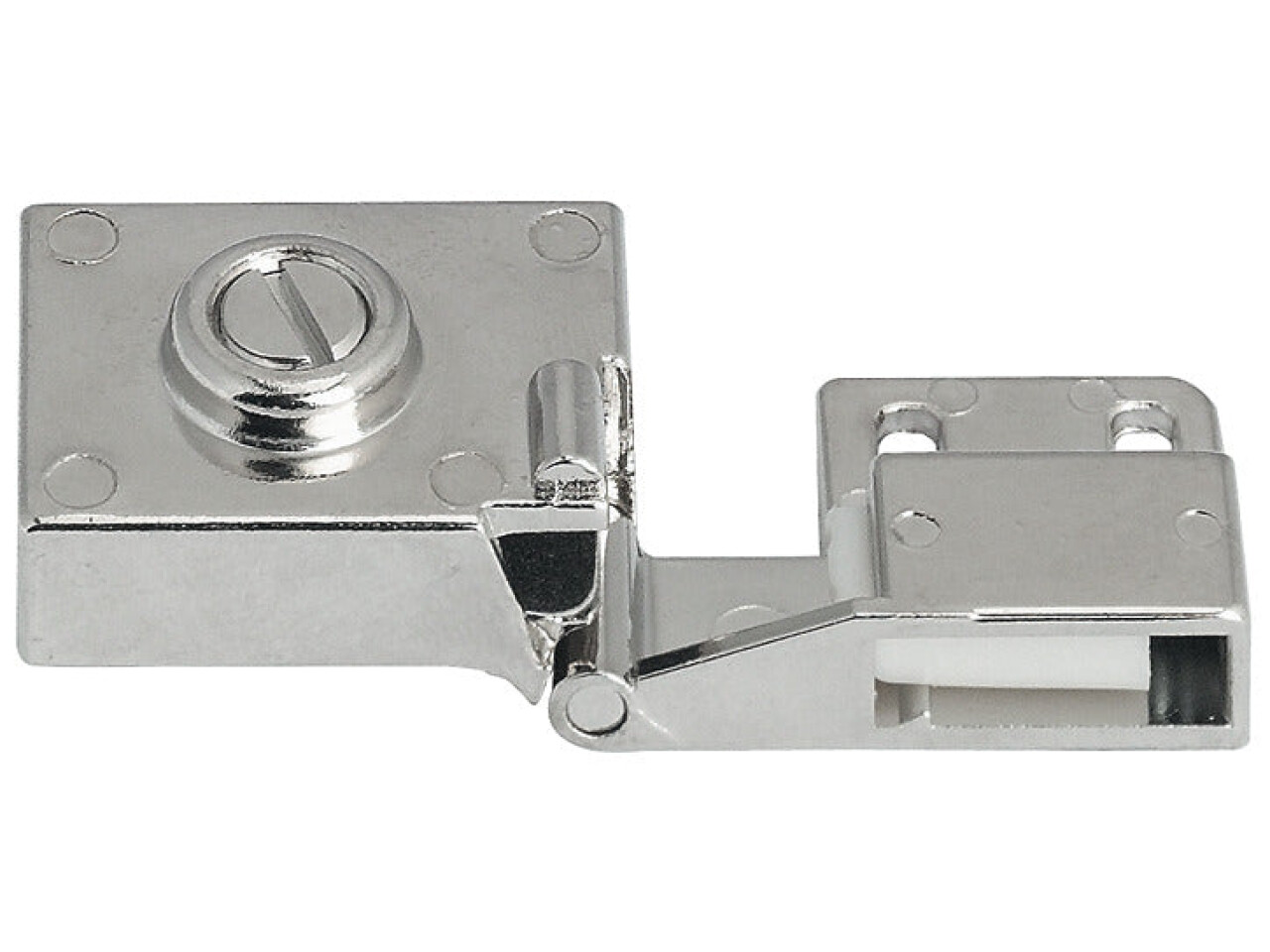

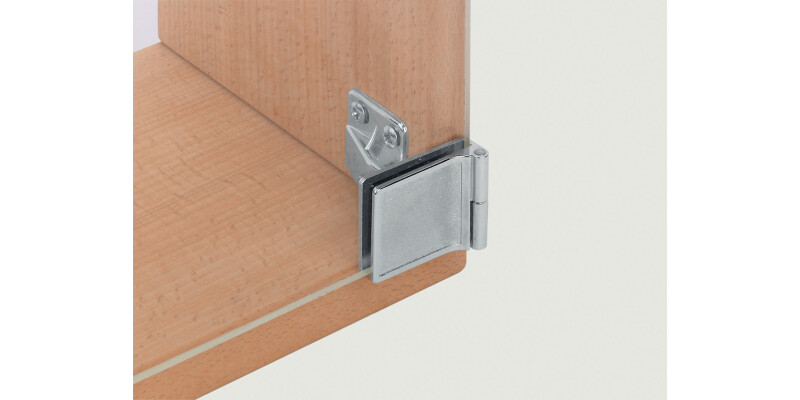

170D Glass Door Hinge Set ZA CP
Part Number: 361.93.240
Door mounting without glass drilling, Chrome plated
Price:
£11.93
Per Item

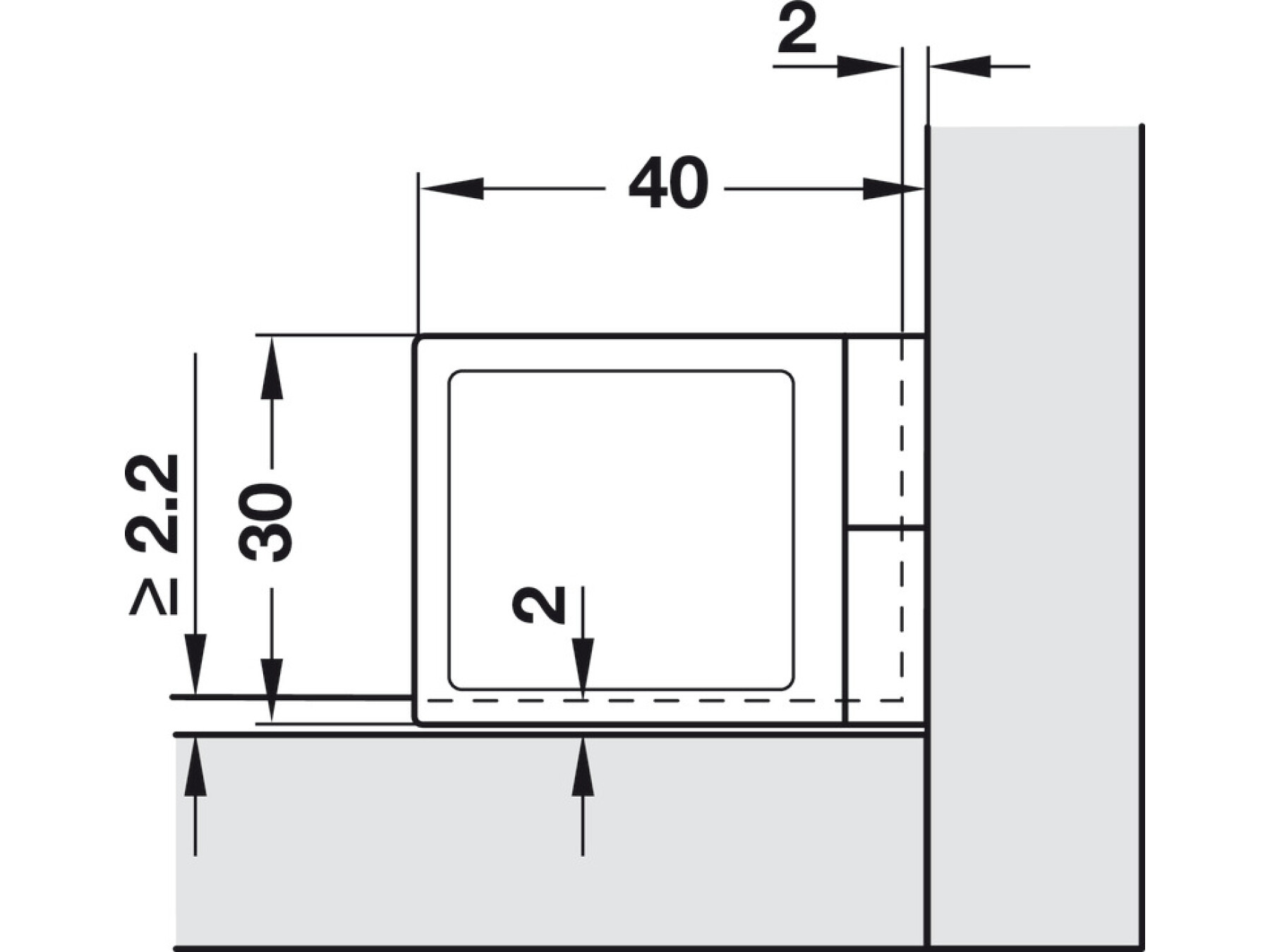

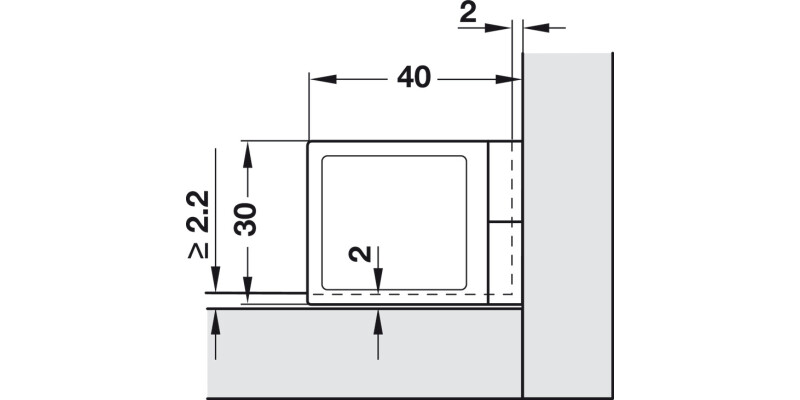

A surrounding gap of 3 mm must be taken into consideration when cutting the glass.
Product Information
Product Details
A surrounding gap of 3 mm must be taken into consideration when cutting the glass.
Specifications
Furniture Construction
for glass/wood constructions
Material
Zinc alloy
Colour/finish
polished, chrome plated

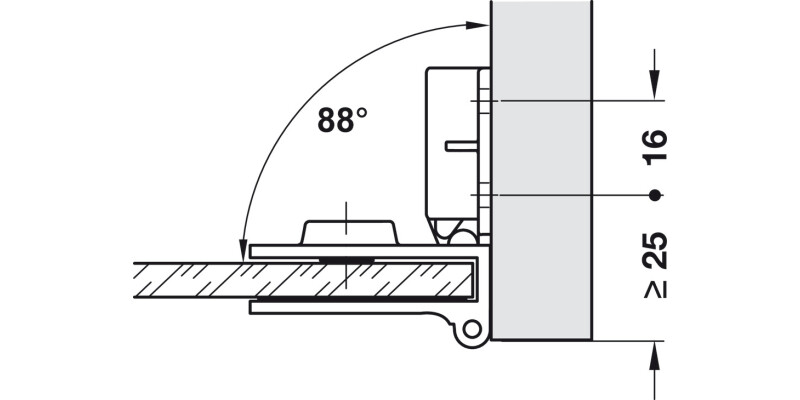

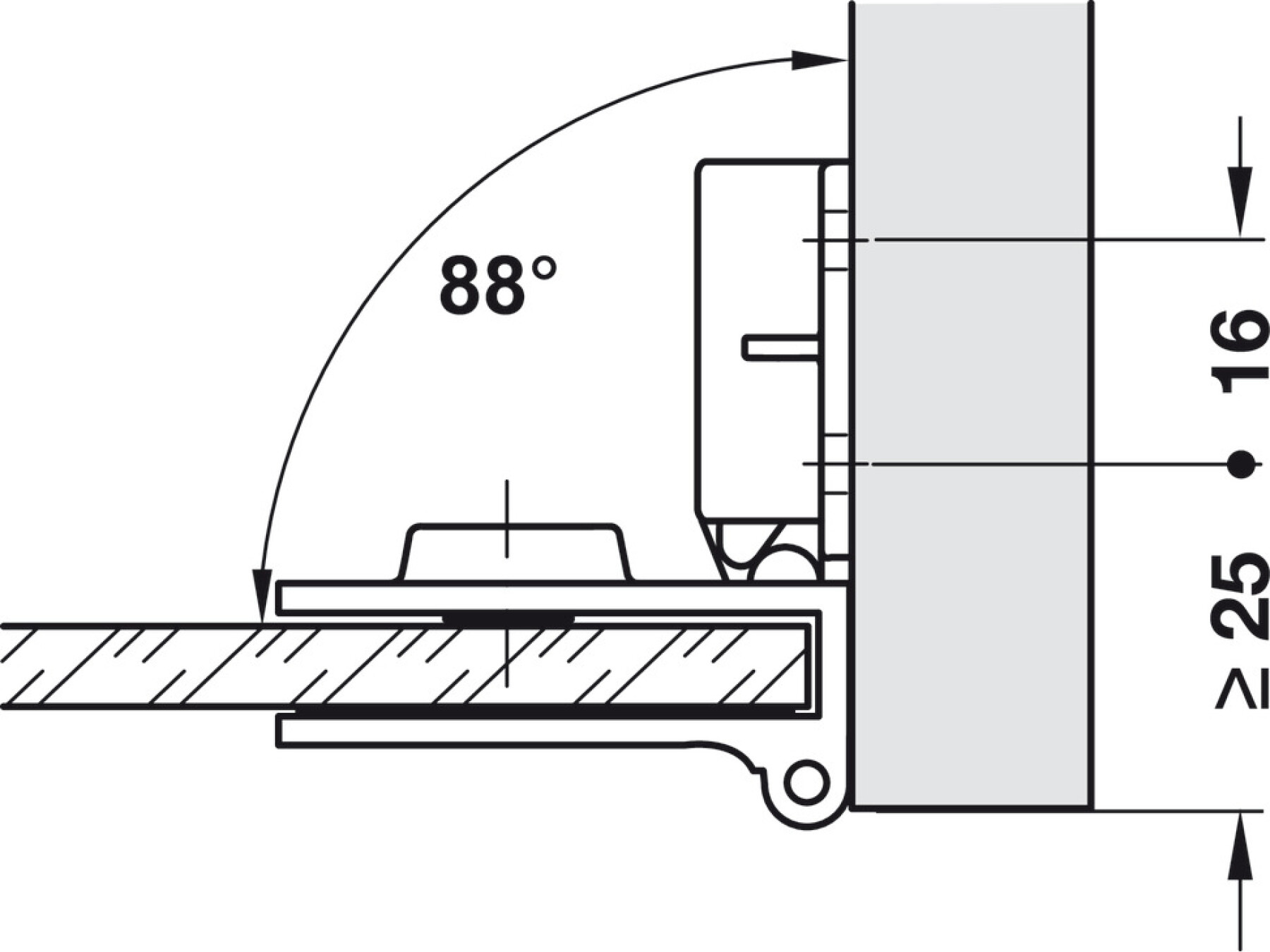

Opening angle
170°

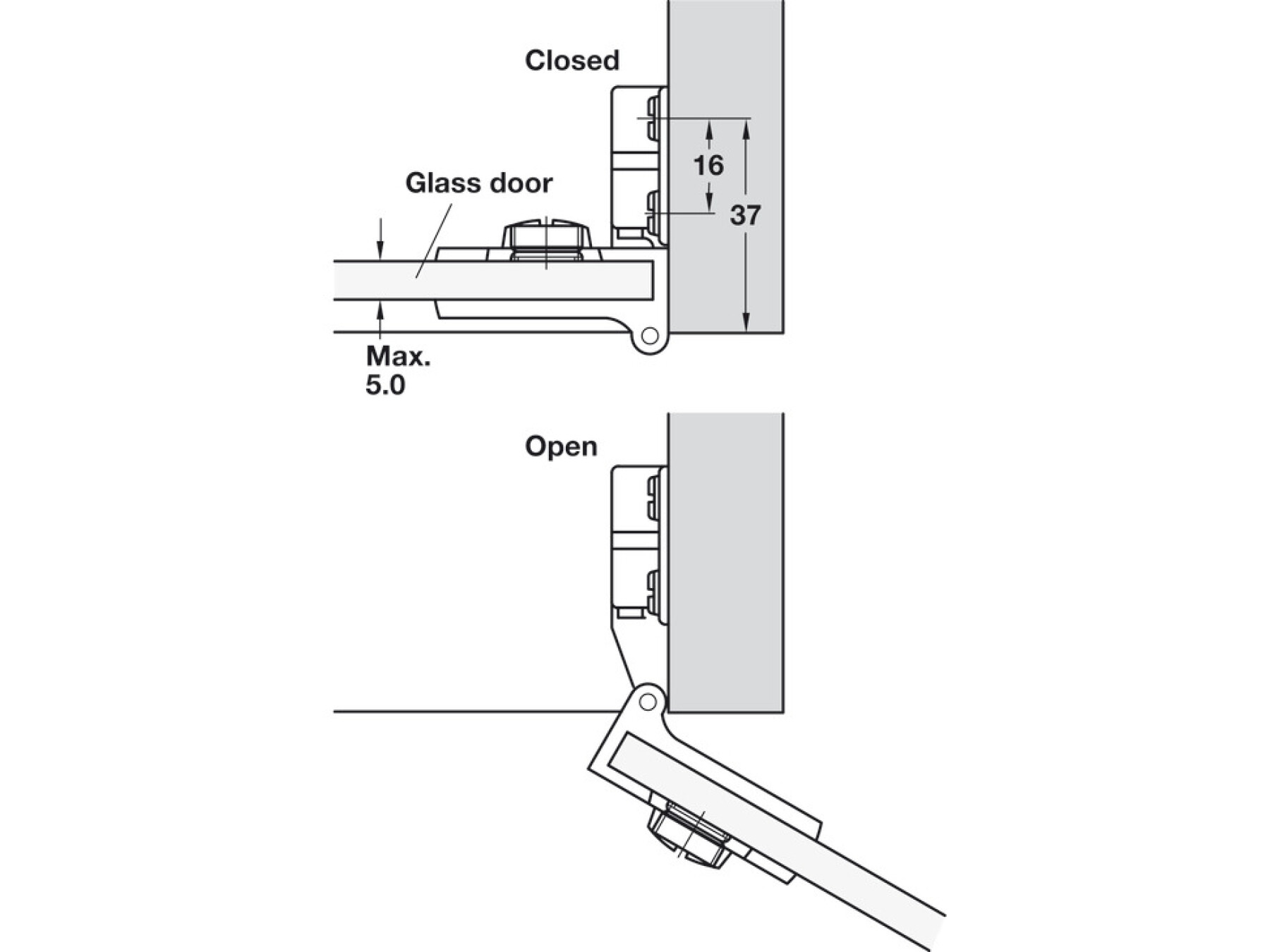

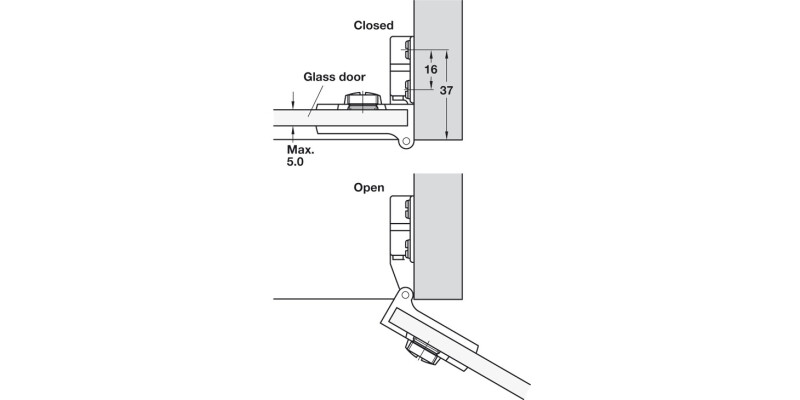

For glass thickness
≤5 mm
For door material
Glass
Door processing for assembly
without glass drilling
Door construction
Inset
Area of application
For inset glass doors
For door width
≤450 mm
For door height
≤600 mm
Adjustment facility
height adjustment via slot
Equipped with
with catch
Installation
for screw fixing to side panel, for clamping to glass door
Door width max.
450.00 mm
Door height max.
600.00 mm
Order reference
From door height >600 mm a centre hinge must be ordered.
Supplied with
Comprising:
2x hinges, (1x right hand, 1x left hand)
2x screws
2x rubber pads mounted top and bottom
