105D Chest Lid Hinge Grey/White
Part Number: 356.53.730

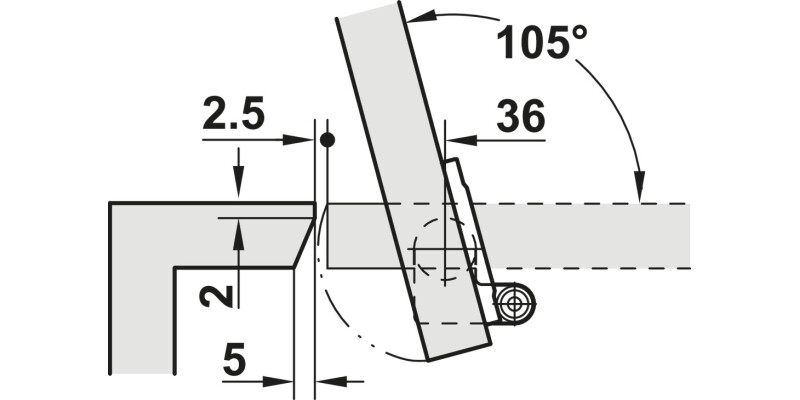

Opening angle 105°, White
Price:
£69.12
Per Item
Supplied with Set consists of:2x hinges2x mounting plates2x cover caps, black or whiteInstallation... Read More
Product Information
Product Details

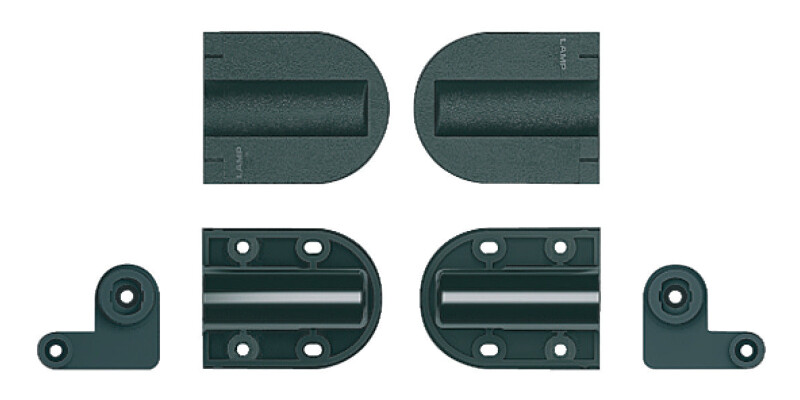

Supplied with

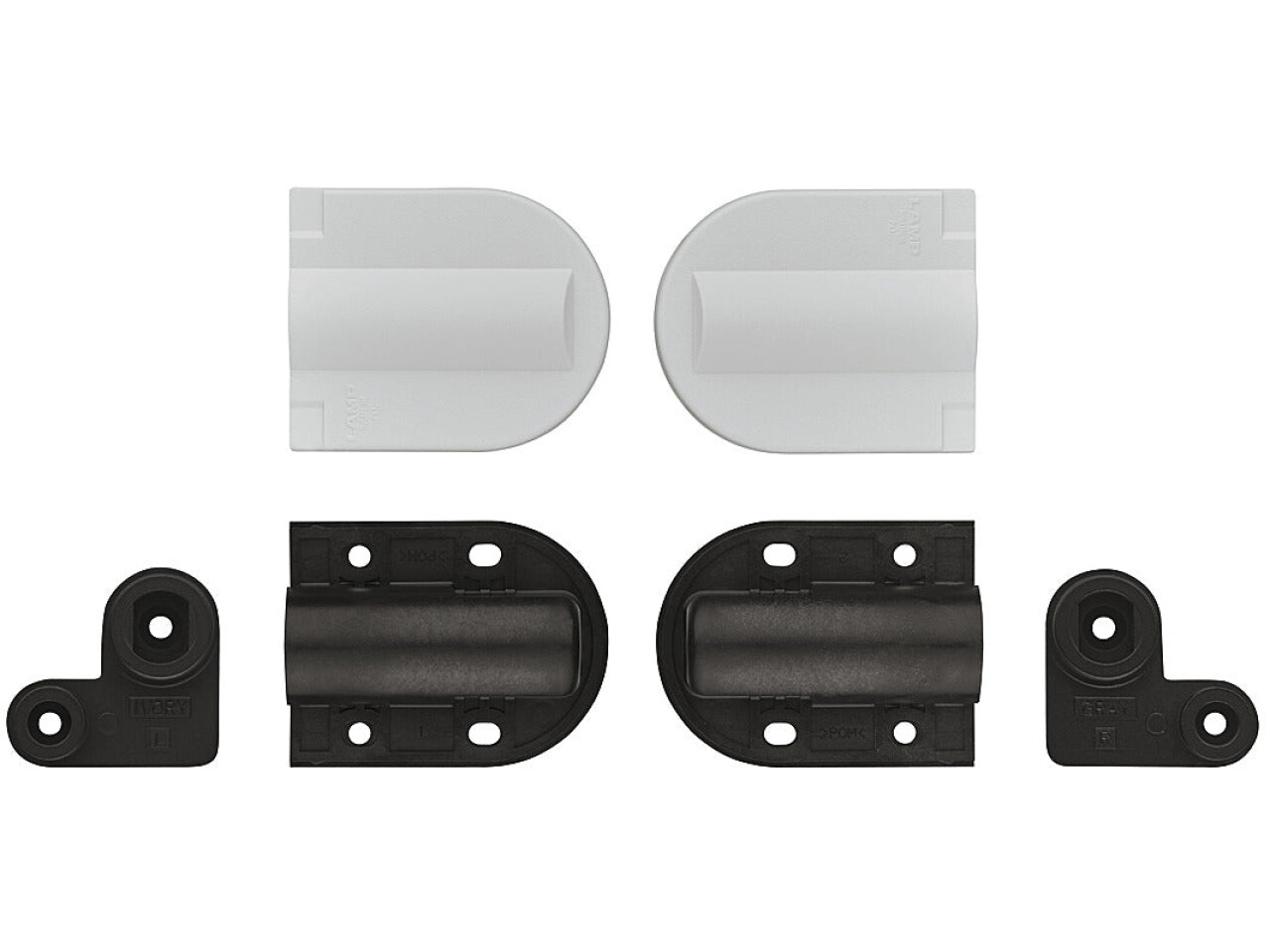

Set consists of:
2x hinges
2x mounting plates
2x cover caps, black or white
Installation instructions
Guidelines for choosing the right hinge
The calculated torque values apply to lids made from 19 mm thick chipboard with density 700 kg/m³. Please carry out a stop test in the event of differences and in borderline cases.
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Torque
600 – 800 Ncm
Area of application

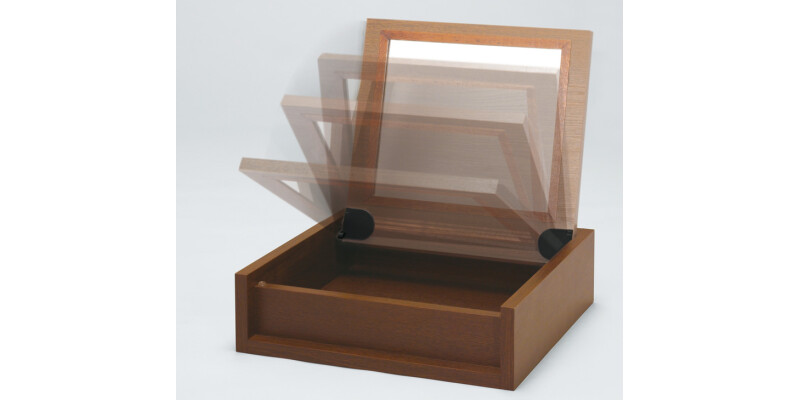

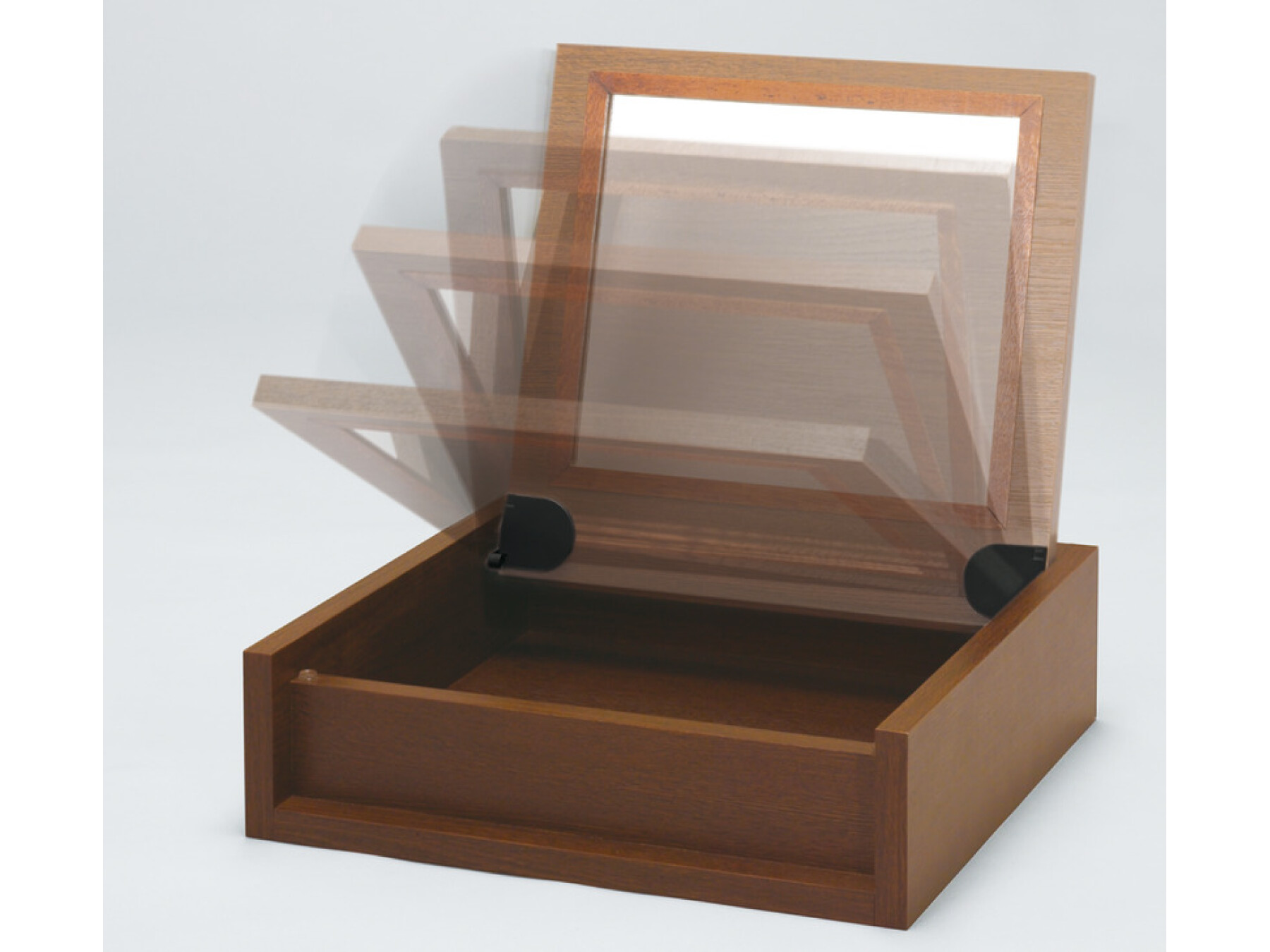

For chest lids
Material
Hinge and cover cap: Plastic
Mounting plate: Aluminium
Soft closing mechanism: Stainless steel

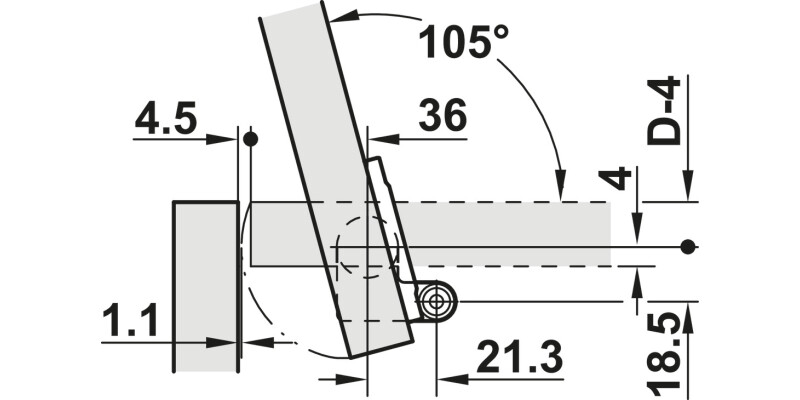

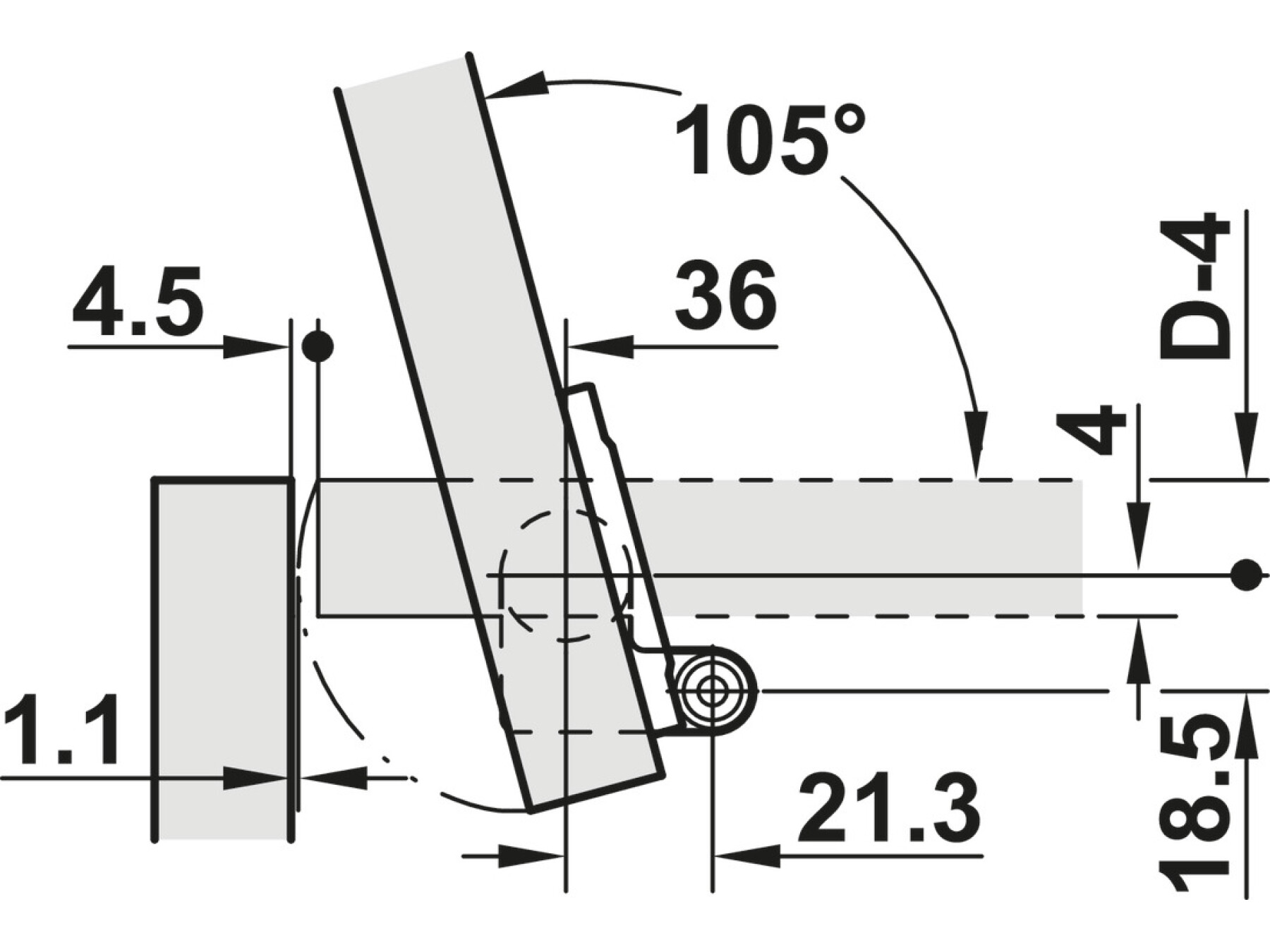

Opening angle
105.00 °

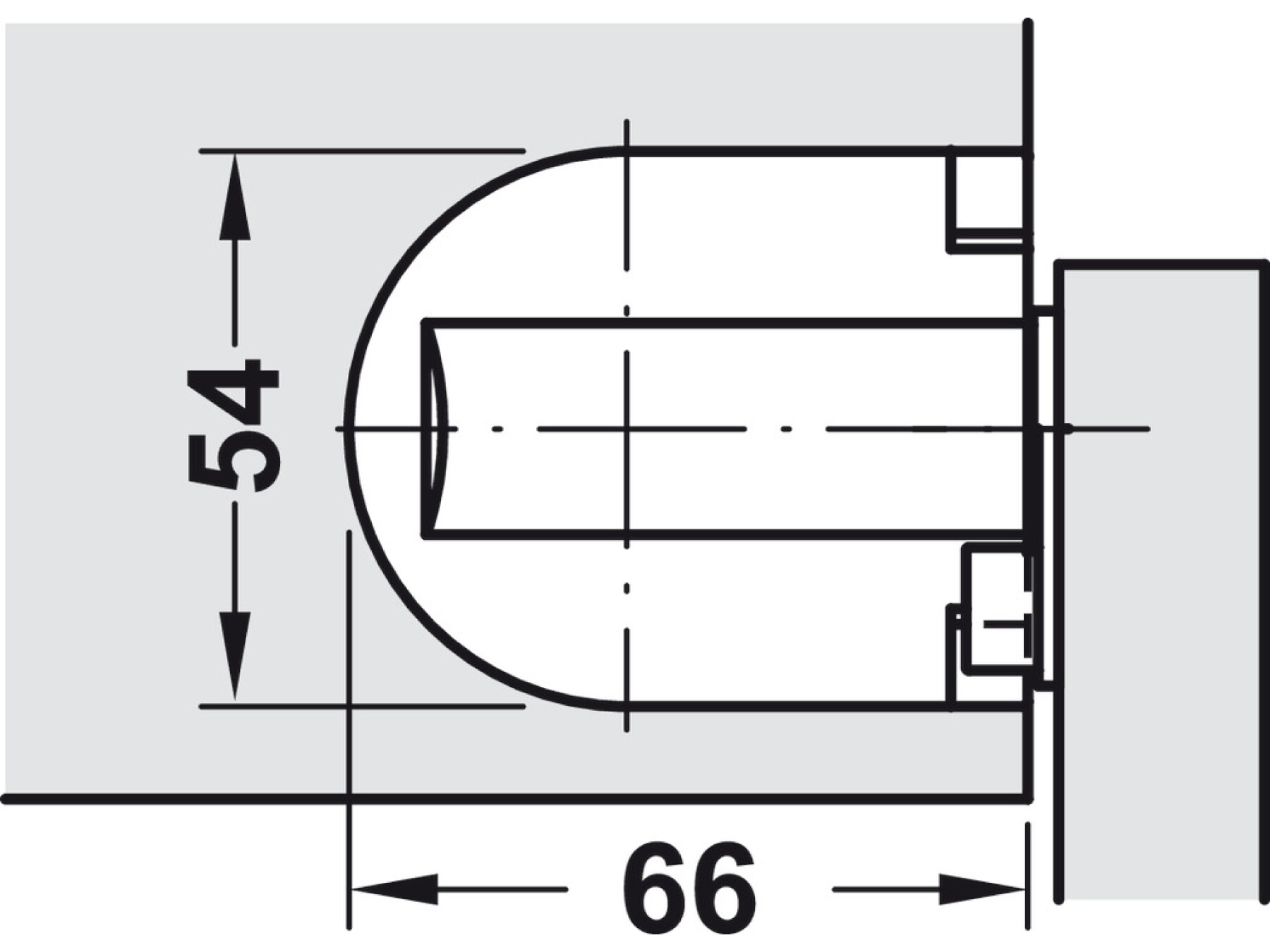

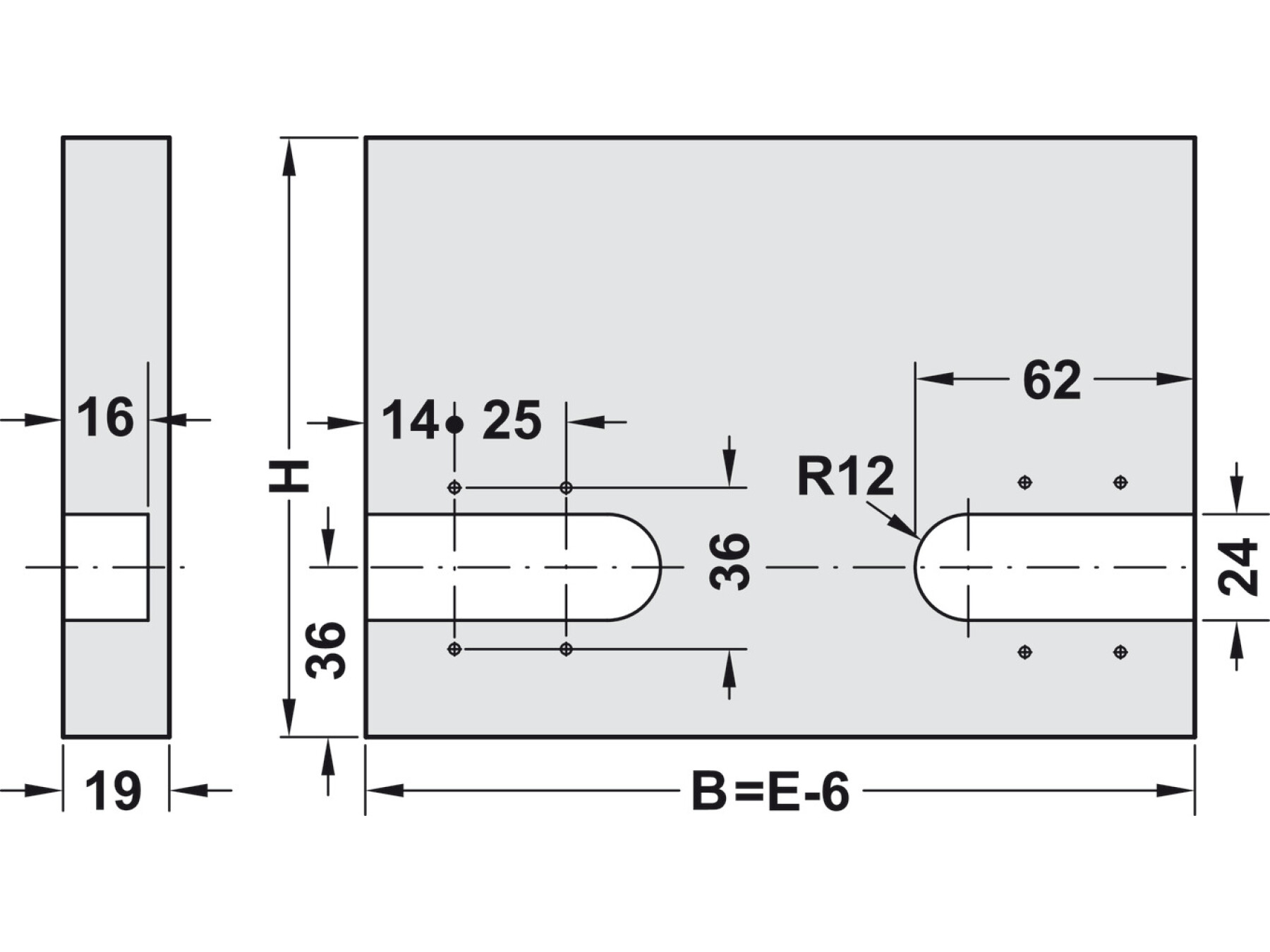

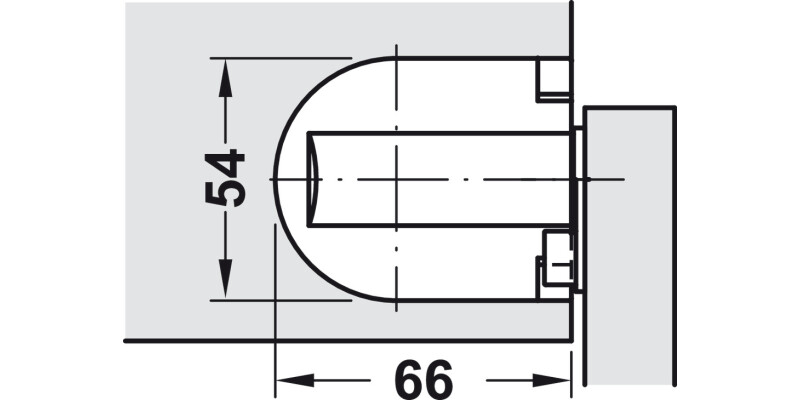

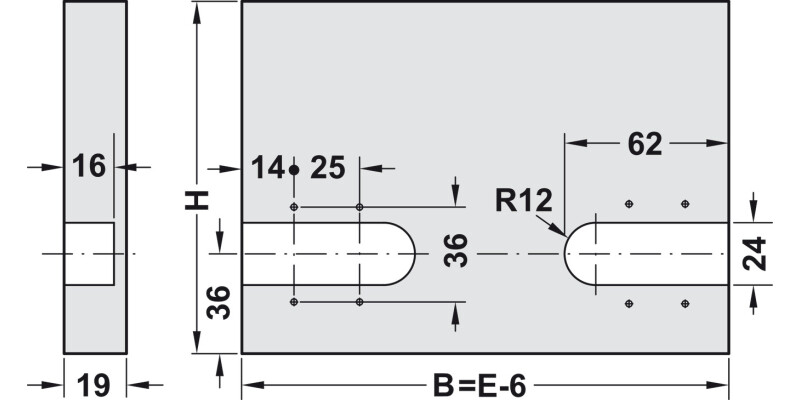

Installation
For recess mounting
