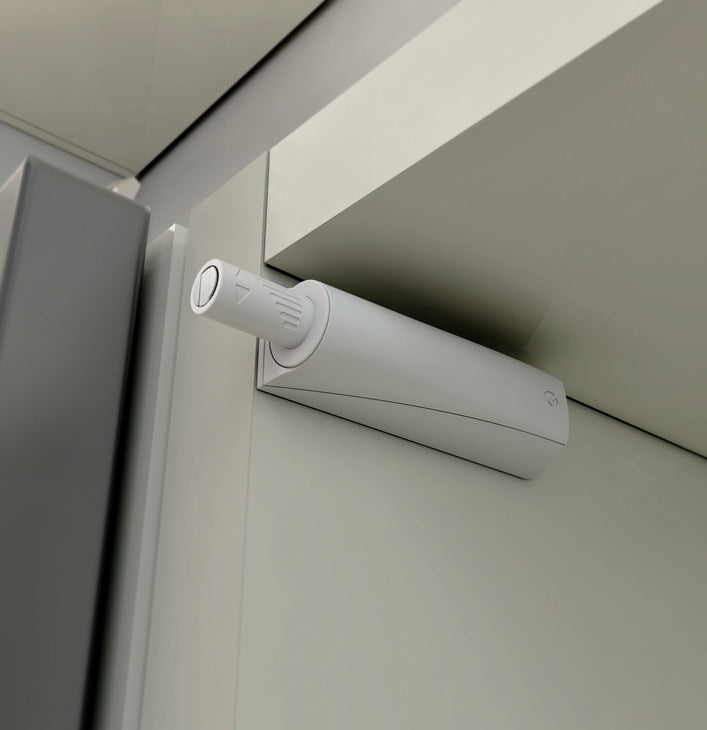

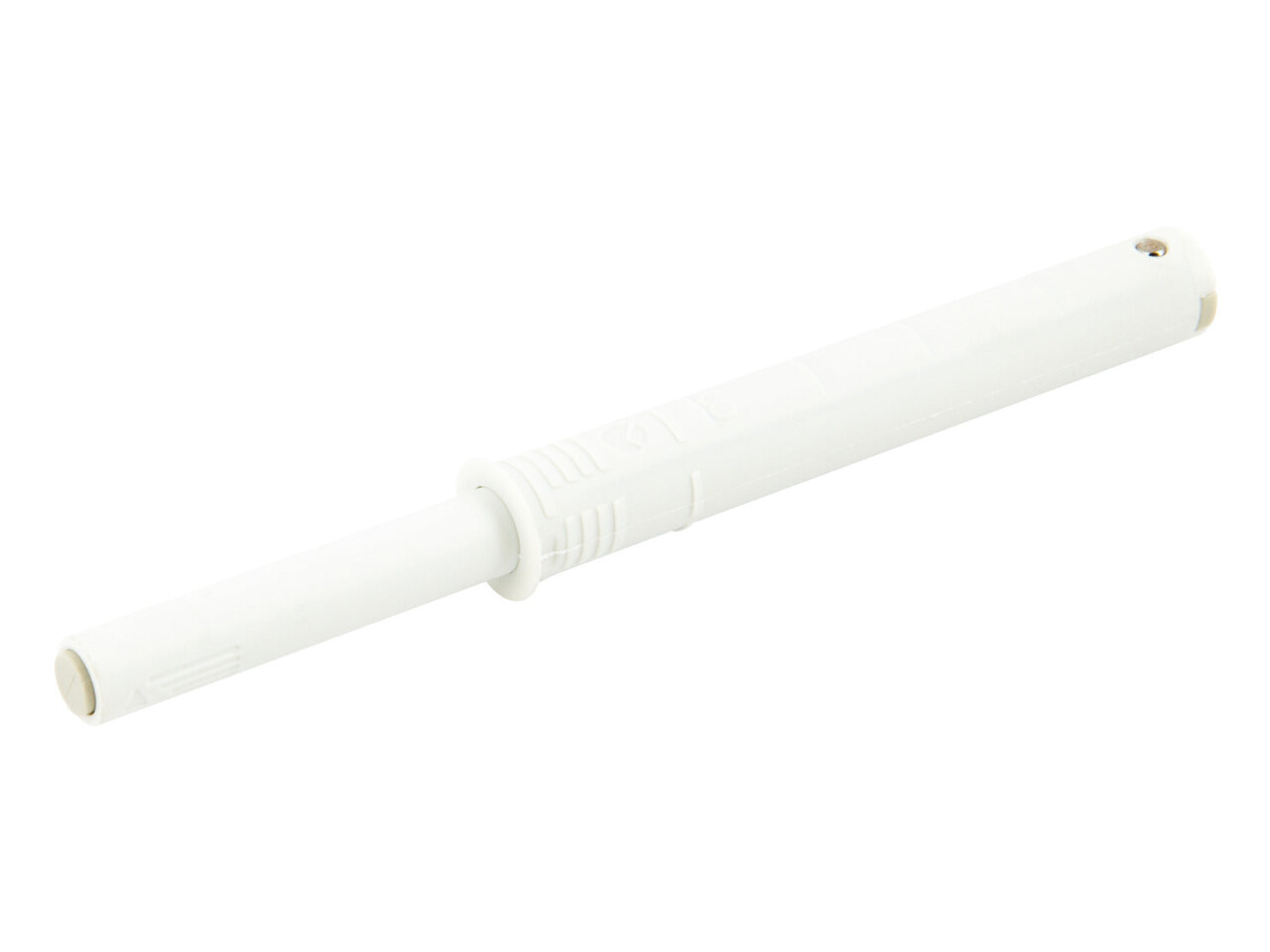

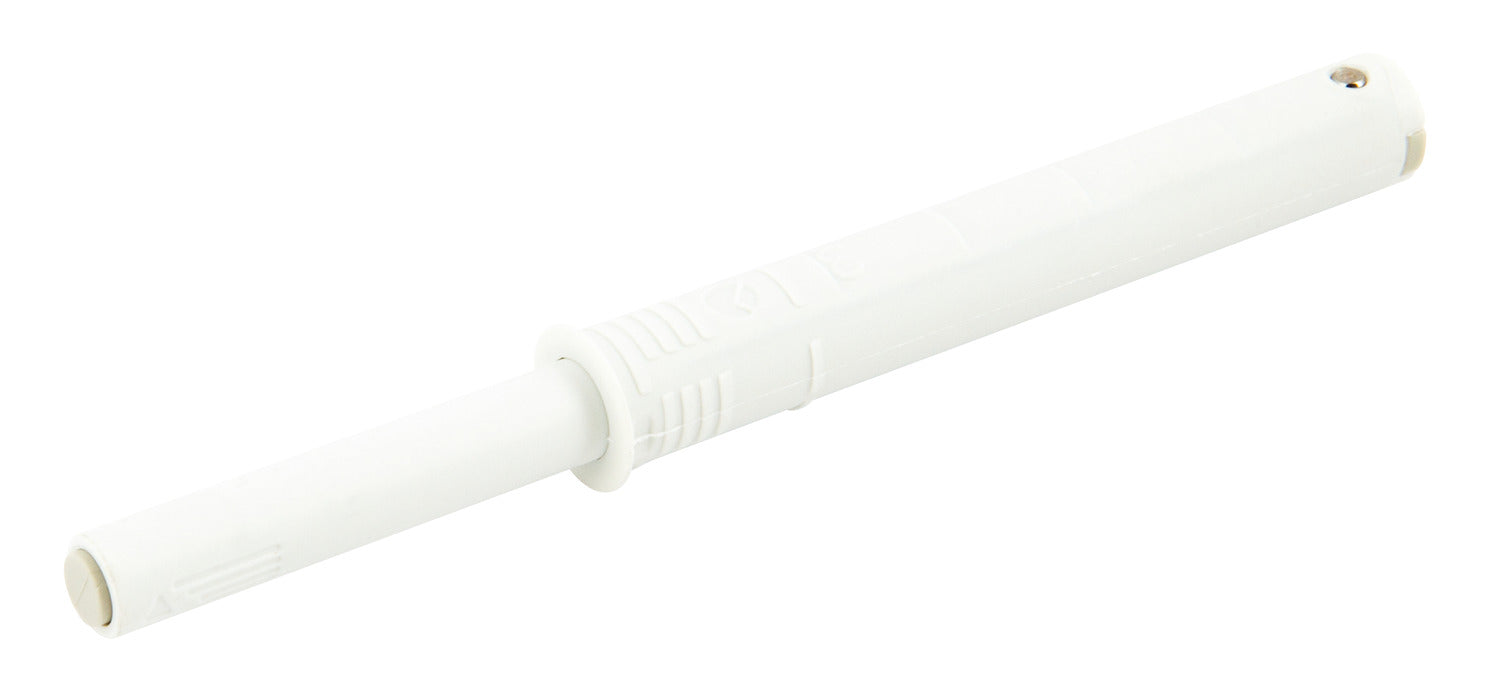

K Push Tech Conc Long w Buffer Wht
Part Number: 356.12.717
White
Price:
£4.13
Per Item
Mechanism provides a silent yet powerful operationSuitable for a wide range of doorsFor installation in a Ø10mm... Read More
Product Information
Product Details
Mechanism provides a silent yet powerful operation
Suitable for a wide range of doors

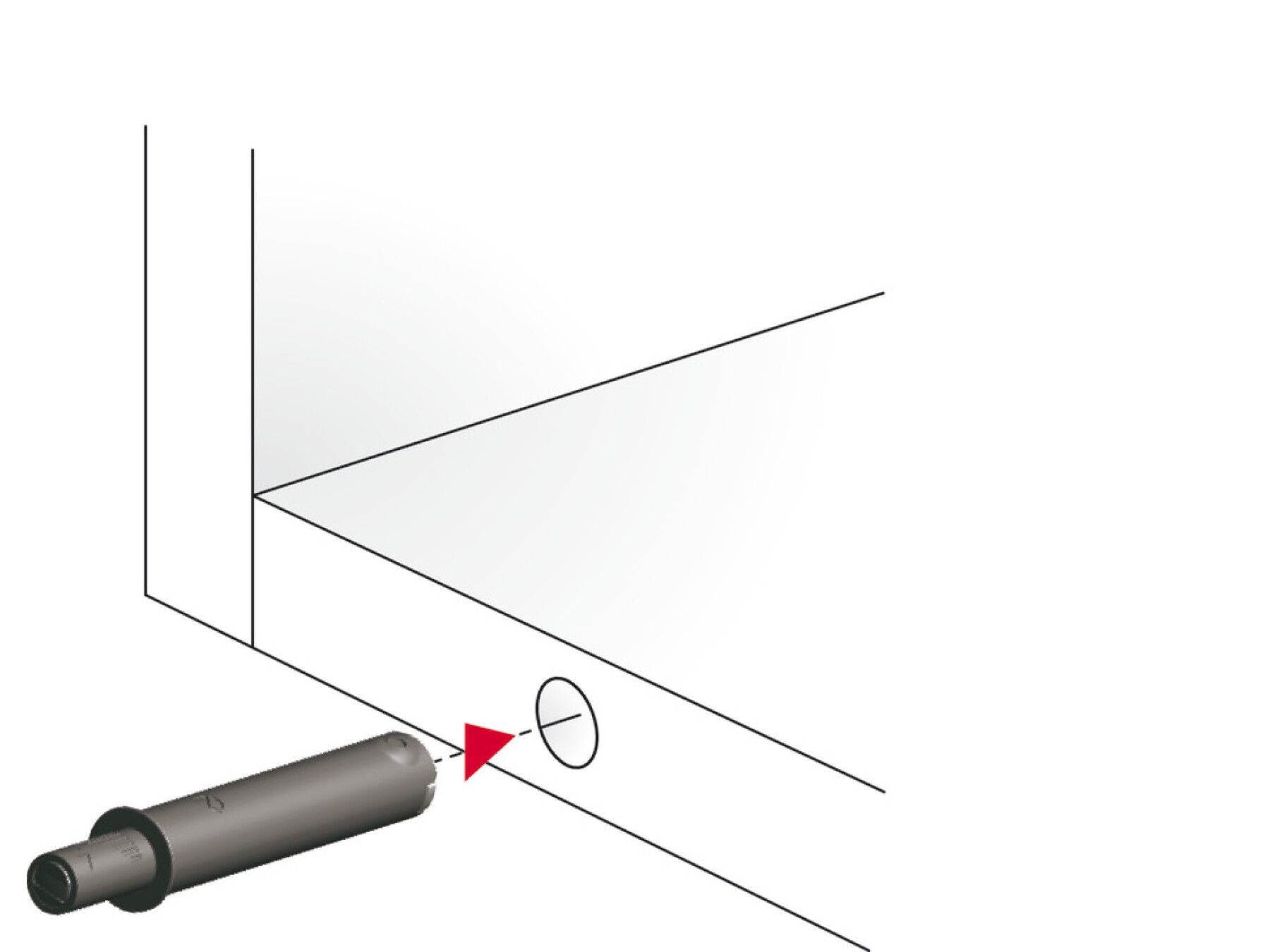

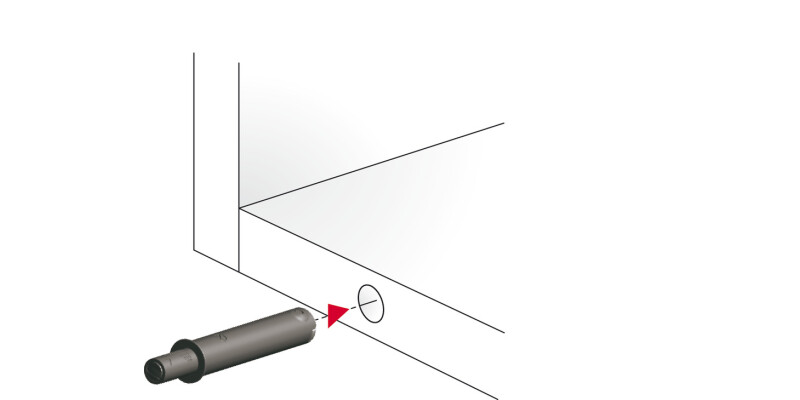

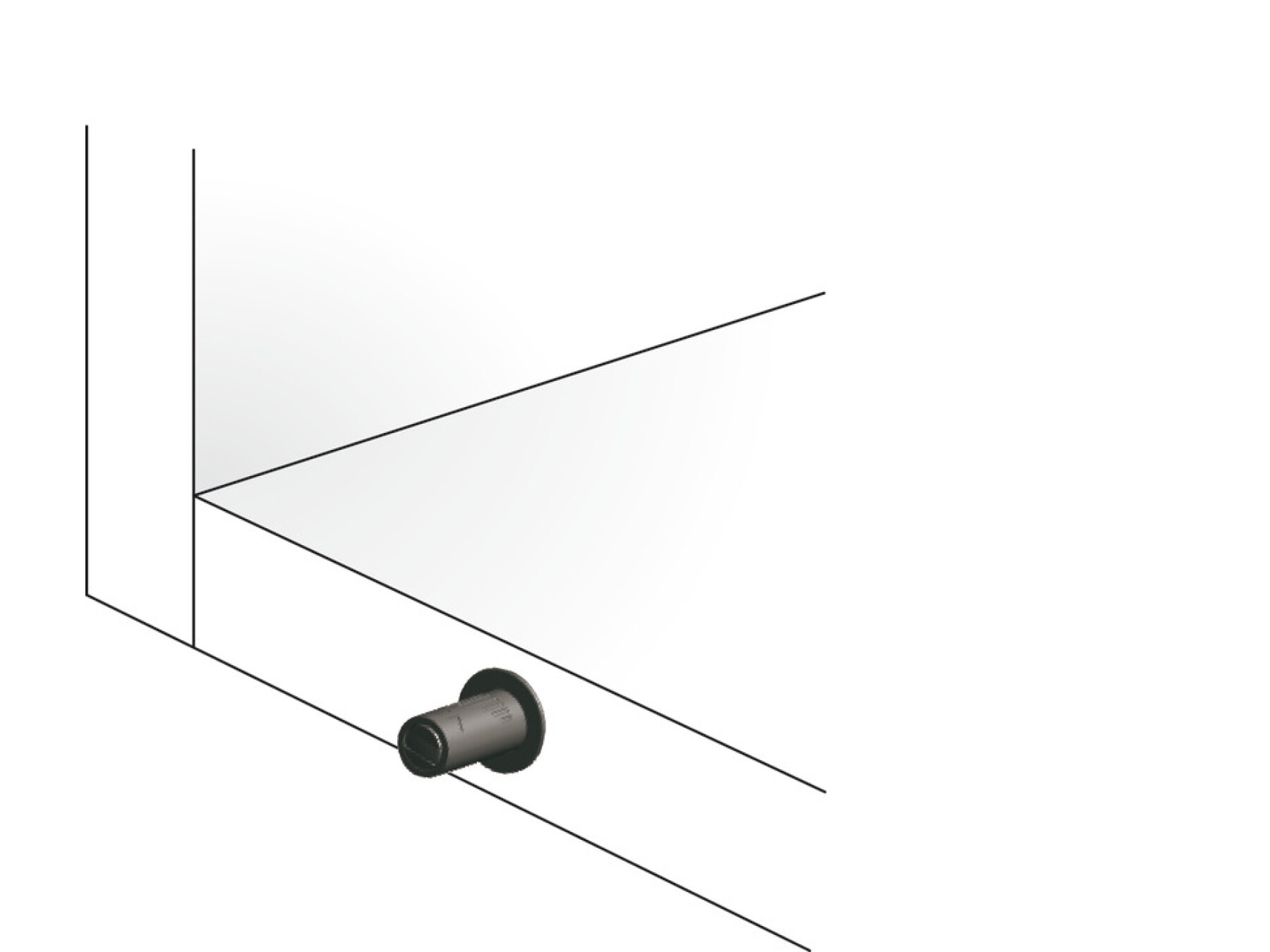

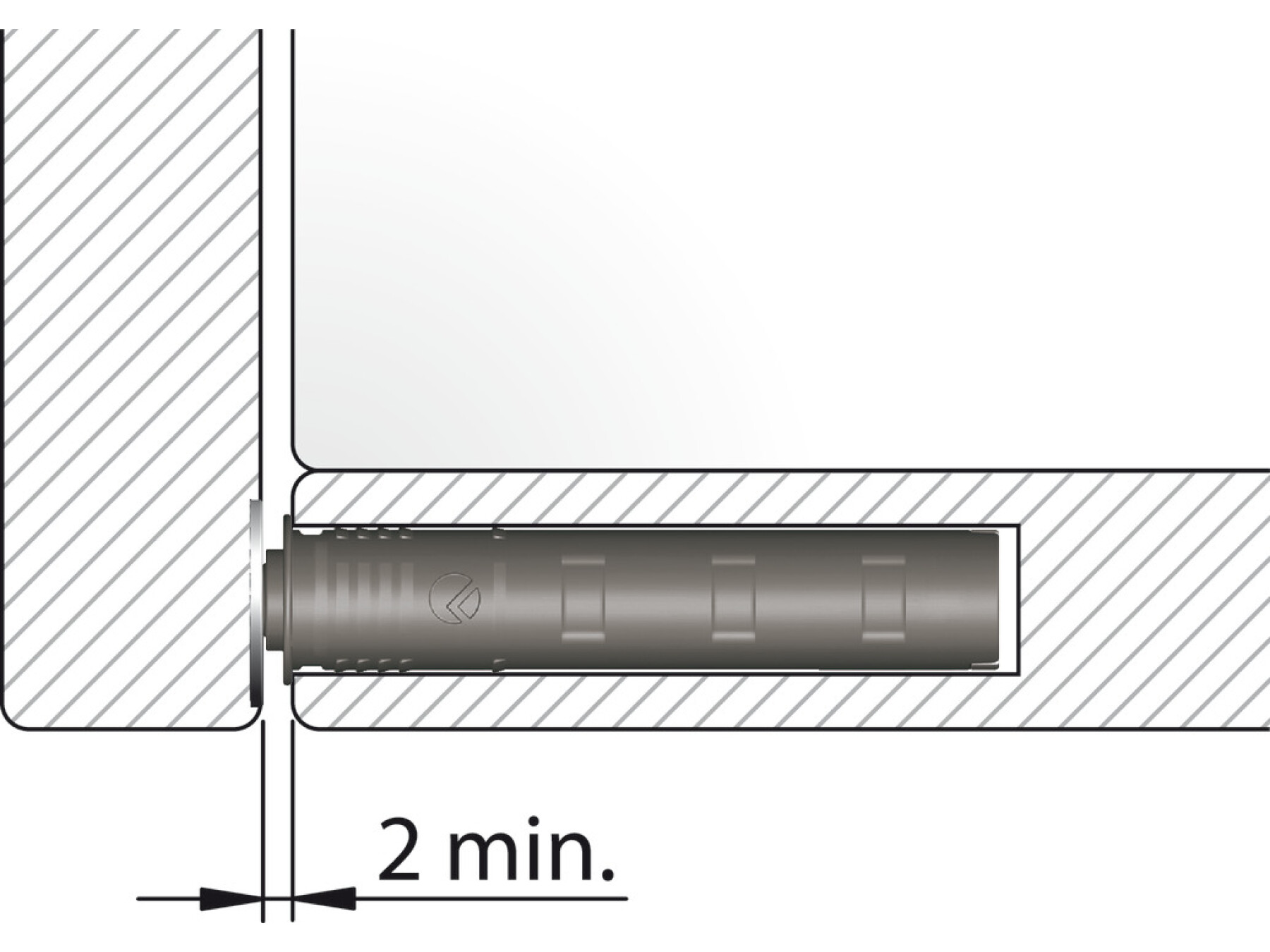

For installation in a Ø10mm hole or order surface mount fitting separately
Available either with magnet or with buffer
Order magnet version for cabinets using unsprung or negative hinges
Order buffer version for cabinets using sprung hinges
Important: Do not press or release the spring until the K Push is fully installed
Specifications
Installation

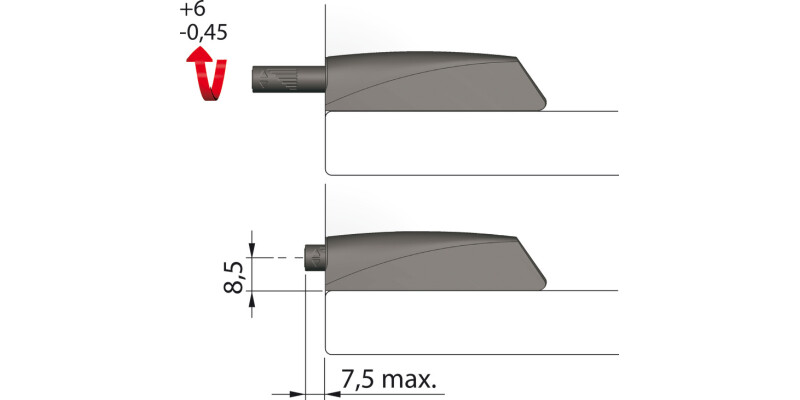

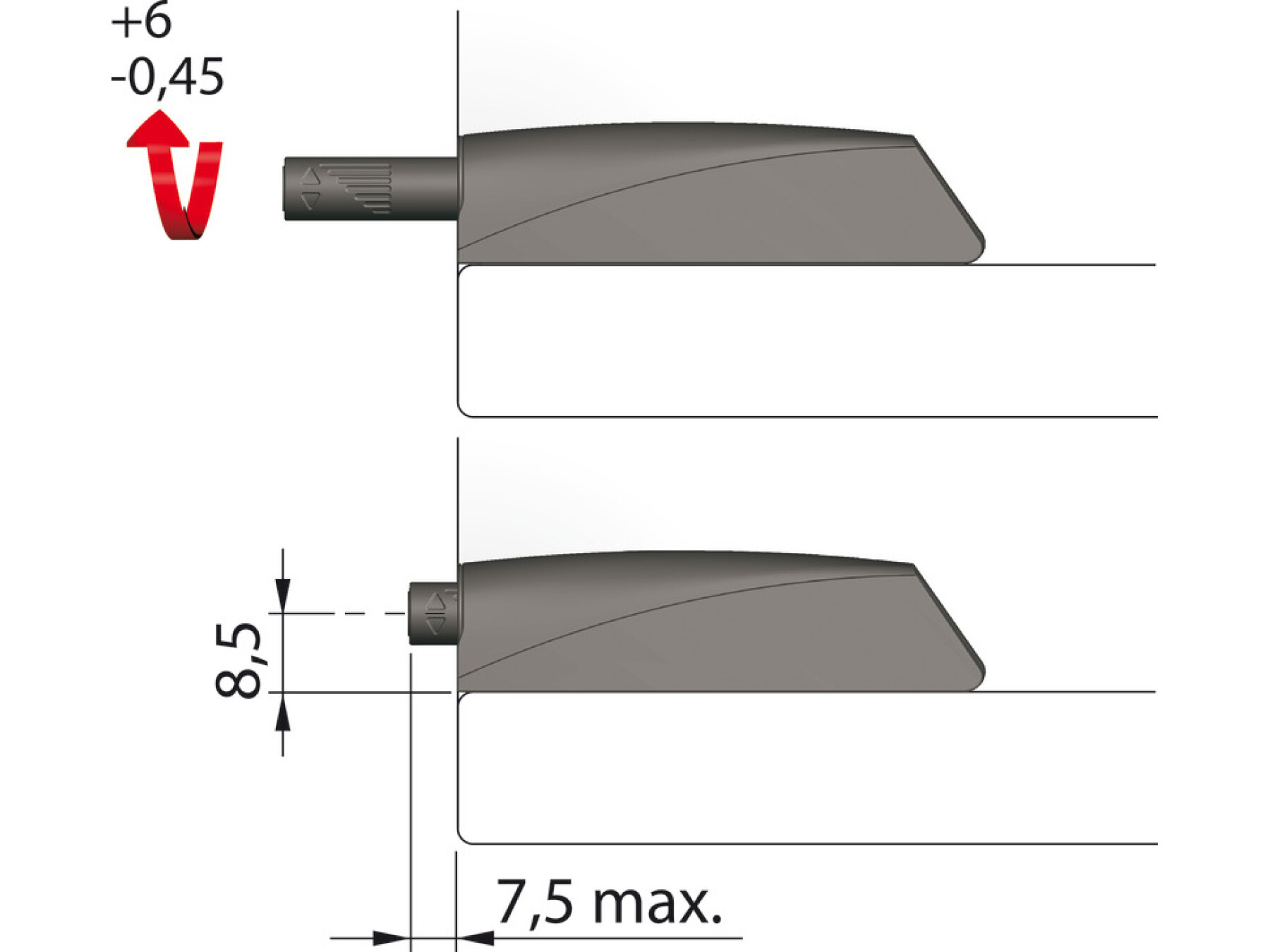

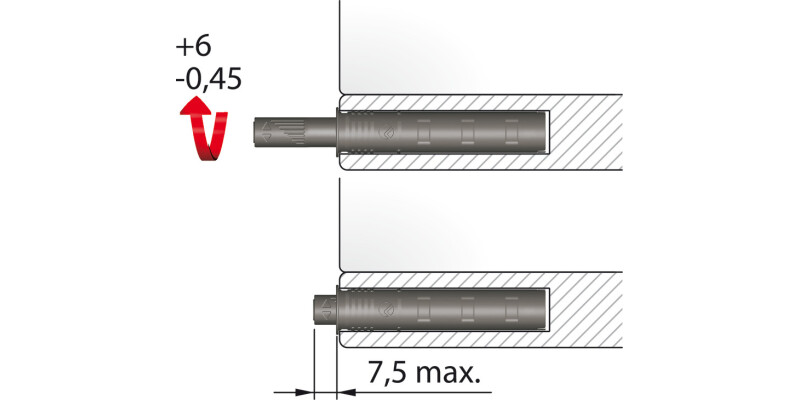

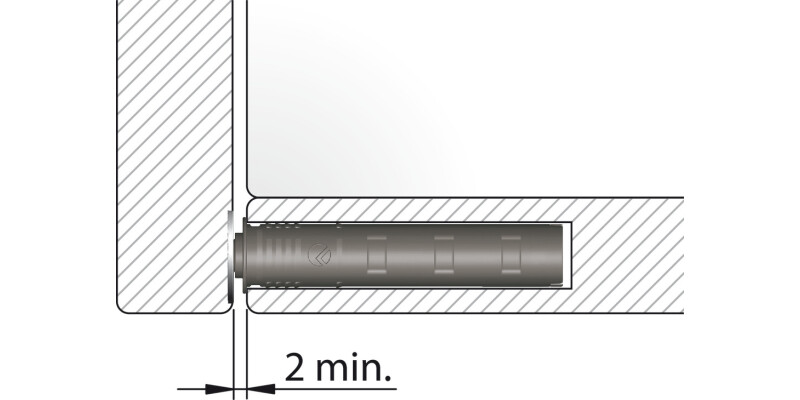

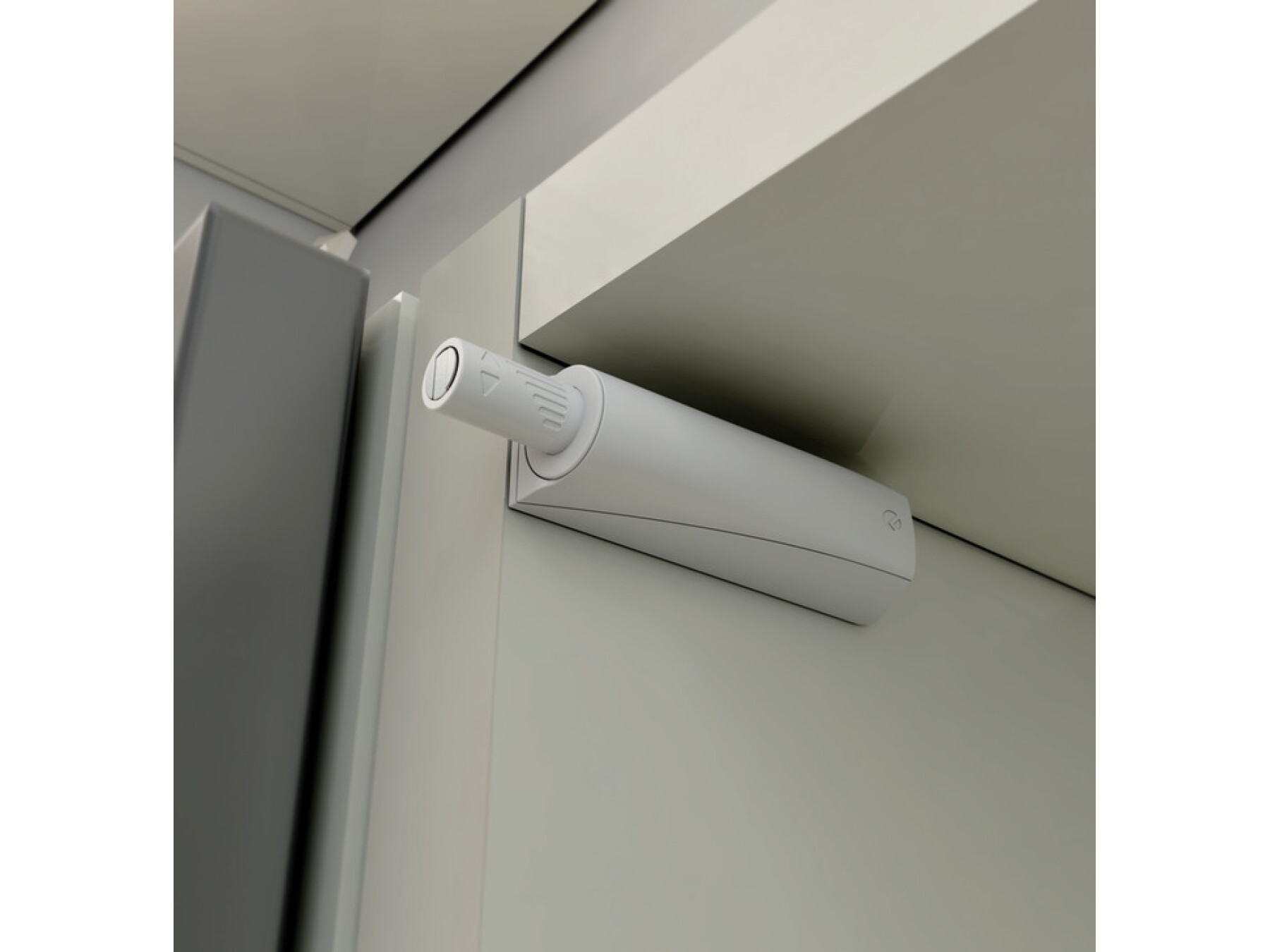

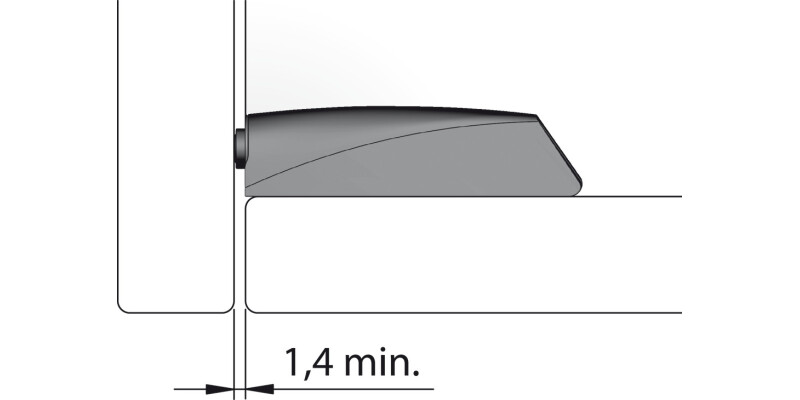

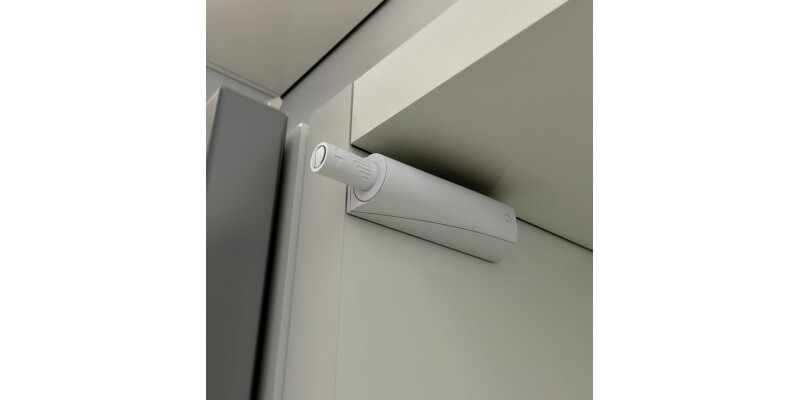

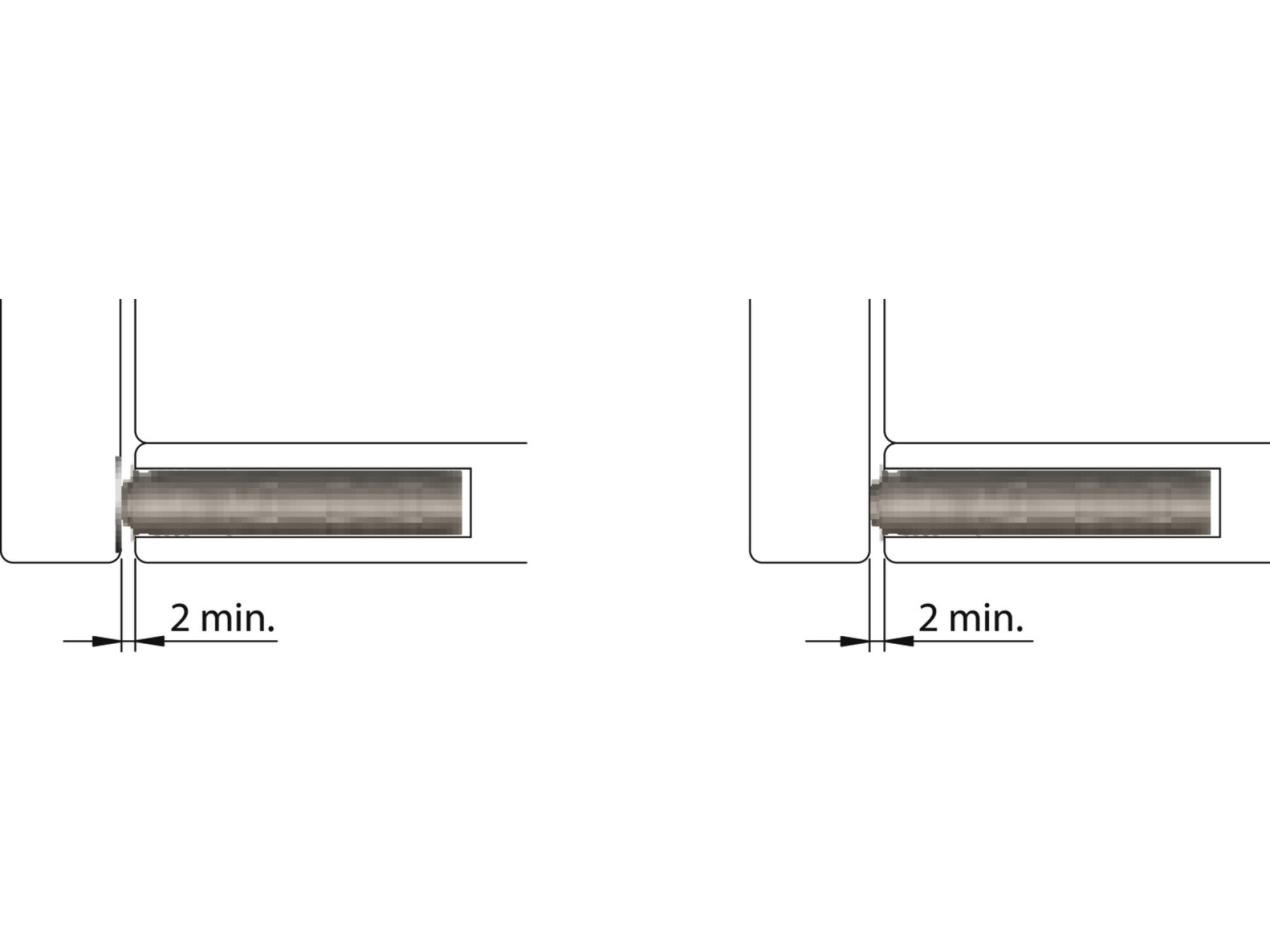

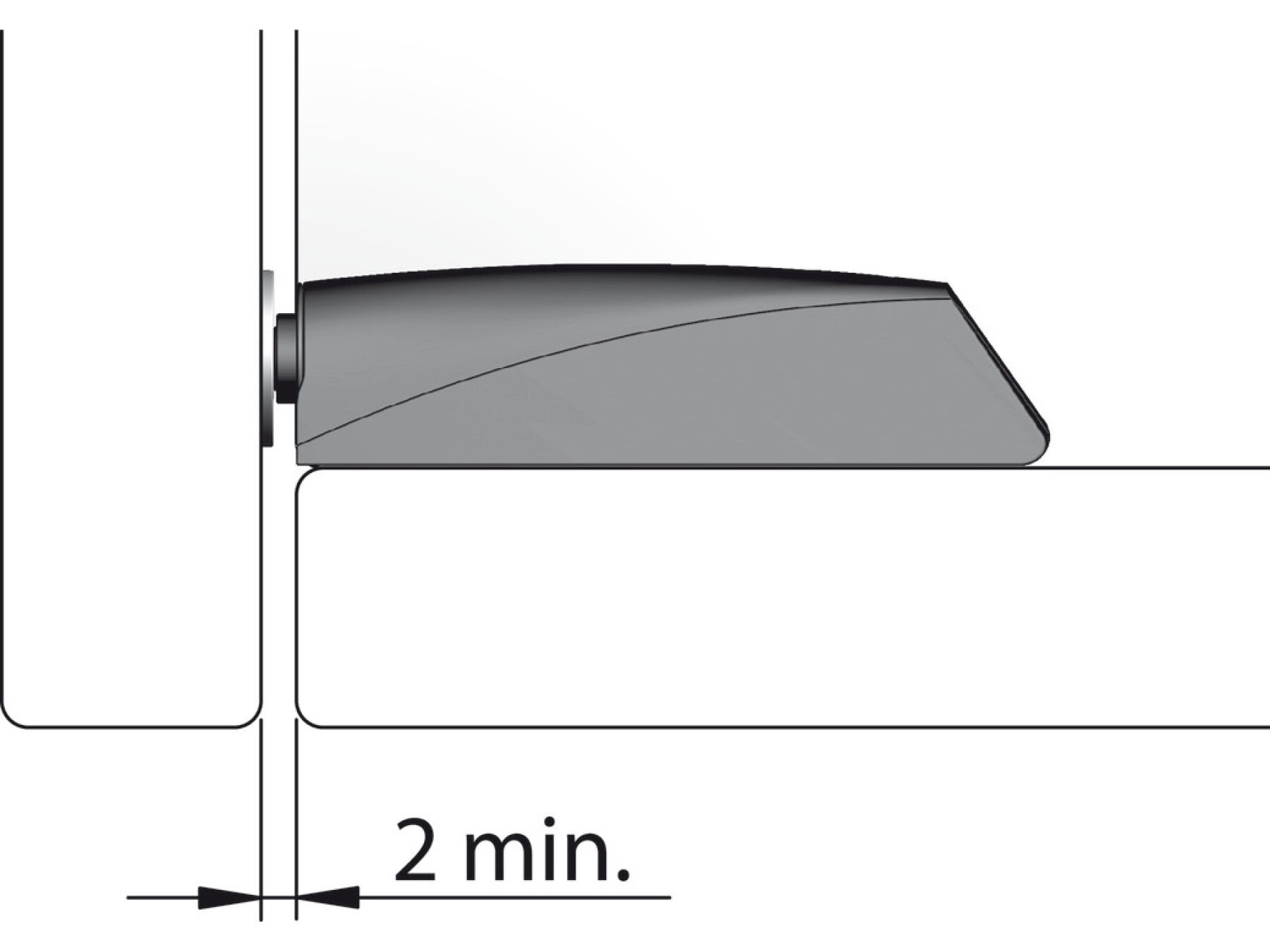

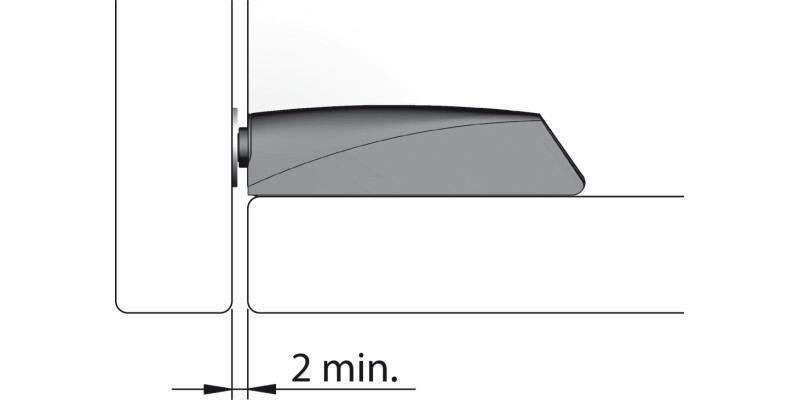

Recess or surface mounted
Version
With rubber buffer
Area of application

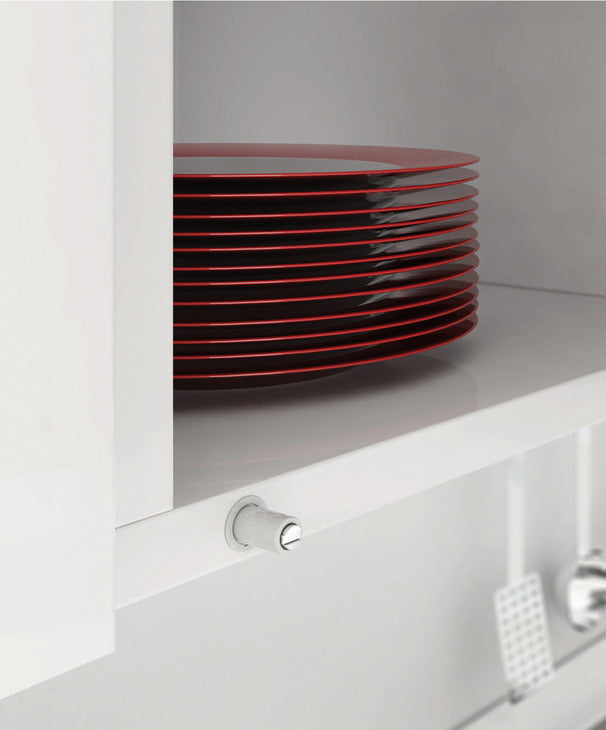

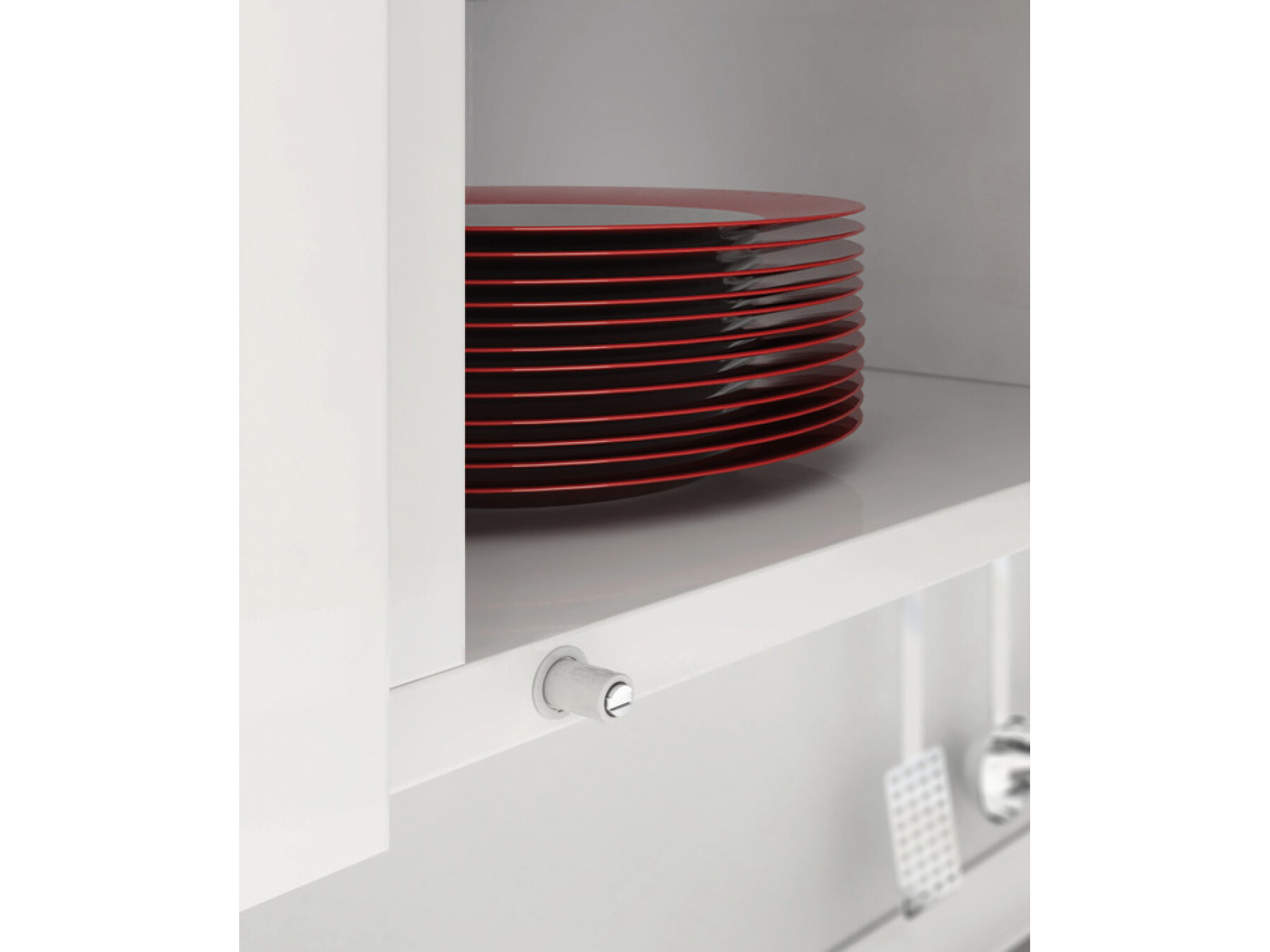

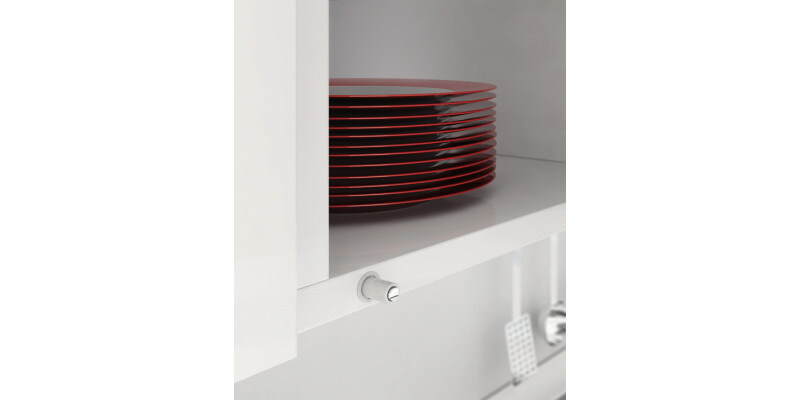

For opening doors without handles
Material
Plastic

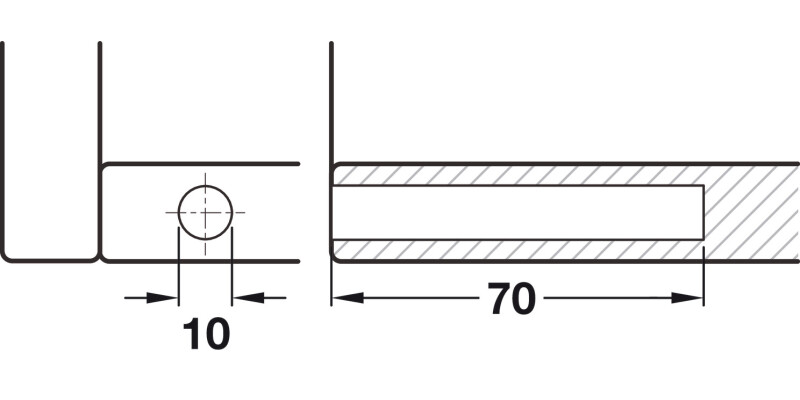

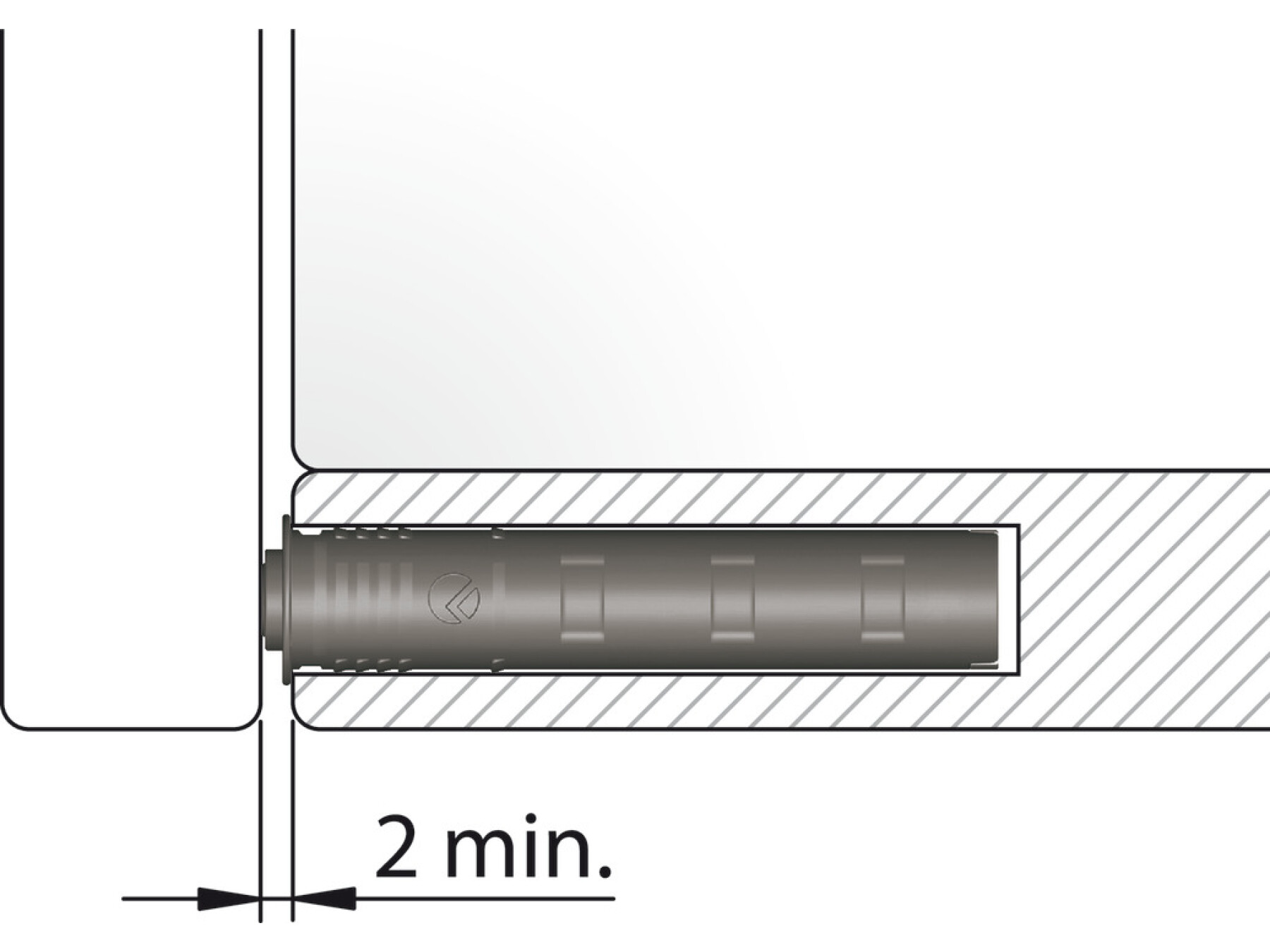

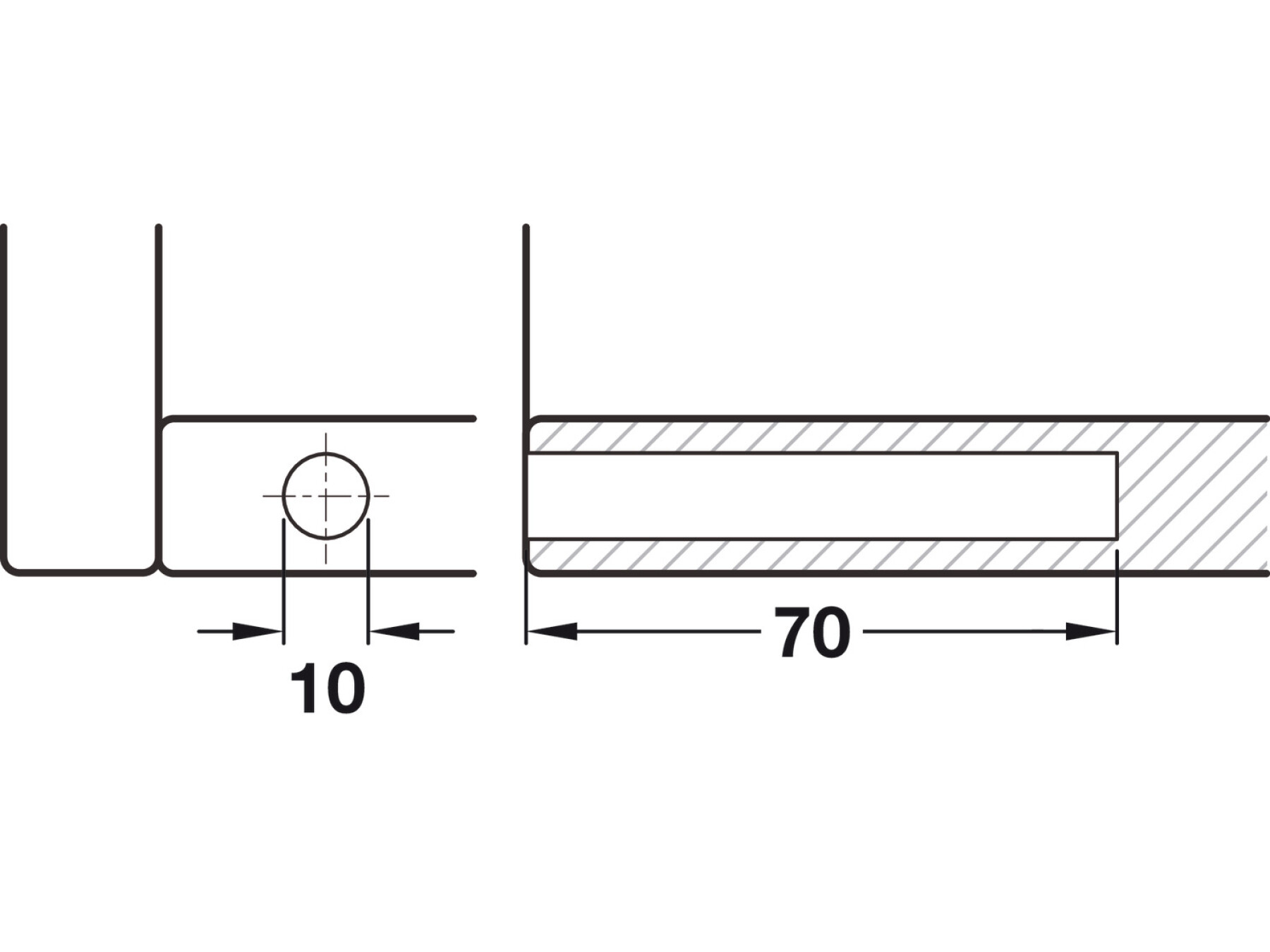

For drill hole Ø
10.00 mm

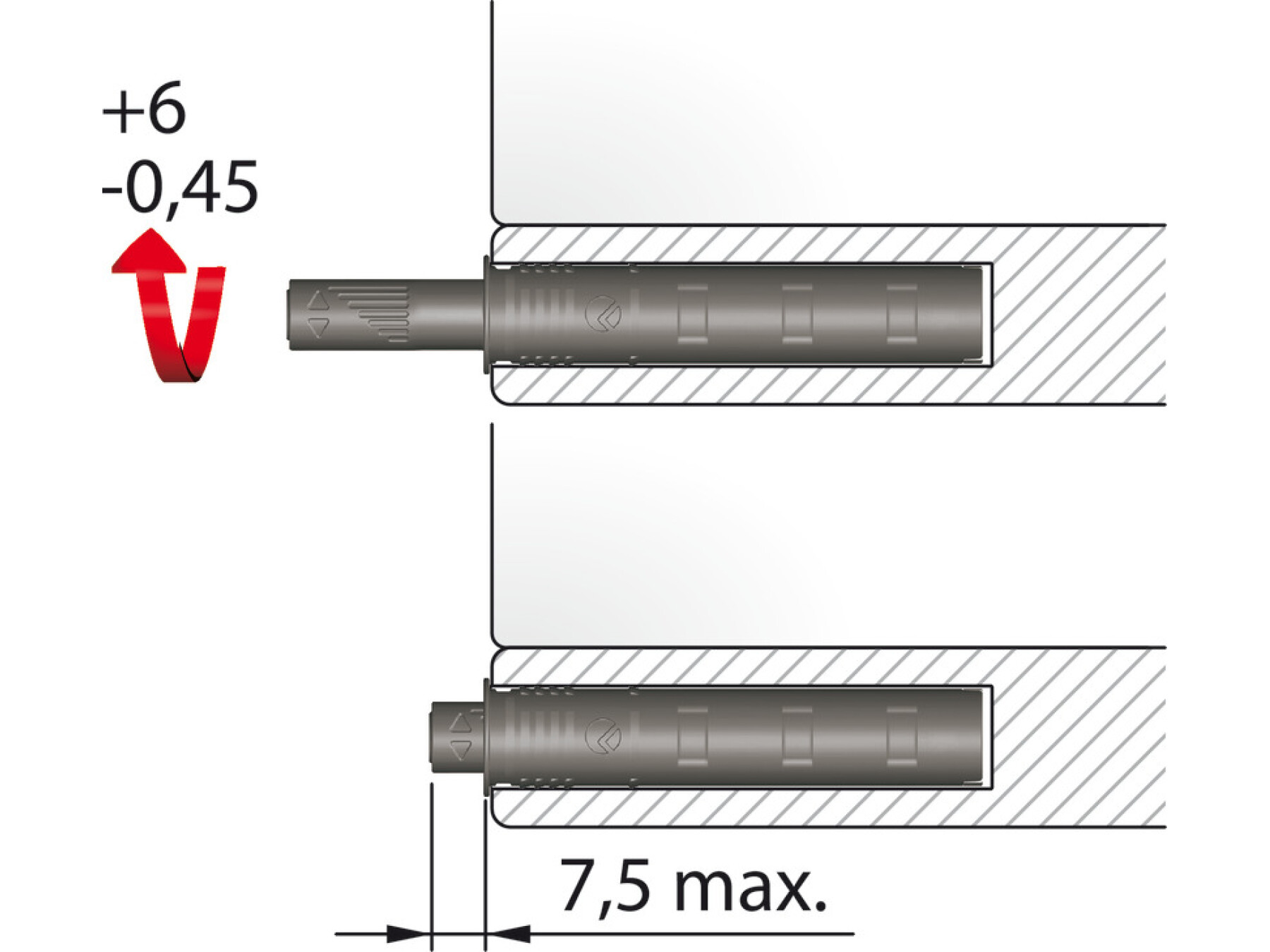

Drilling depth
70.00 mm
Order reference

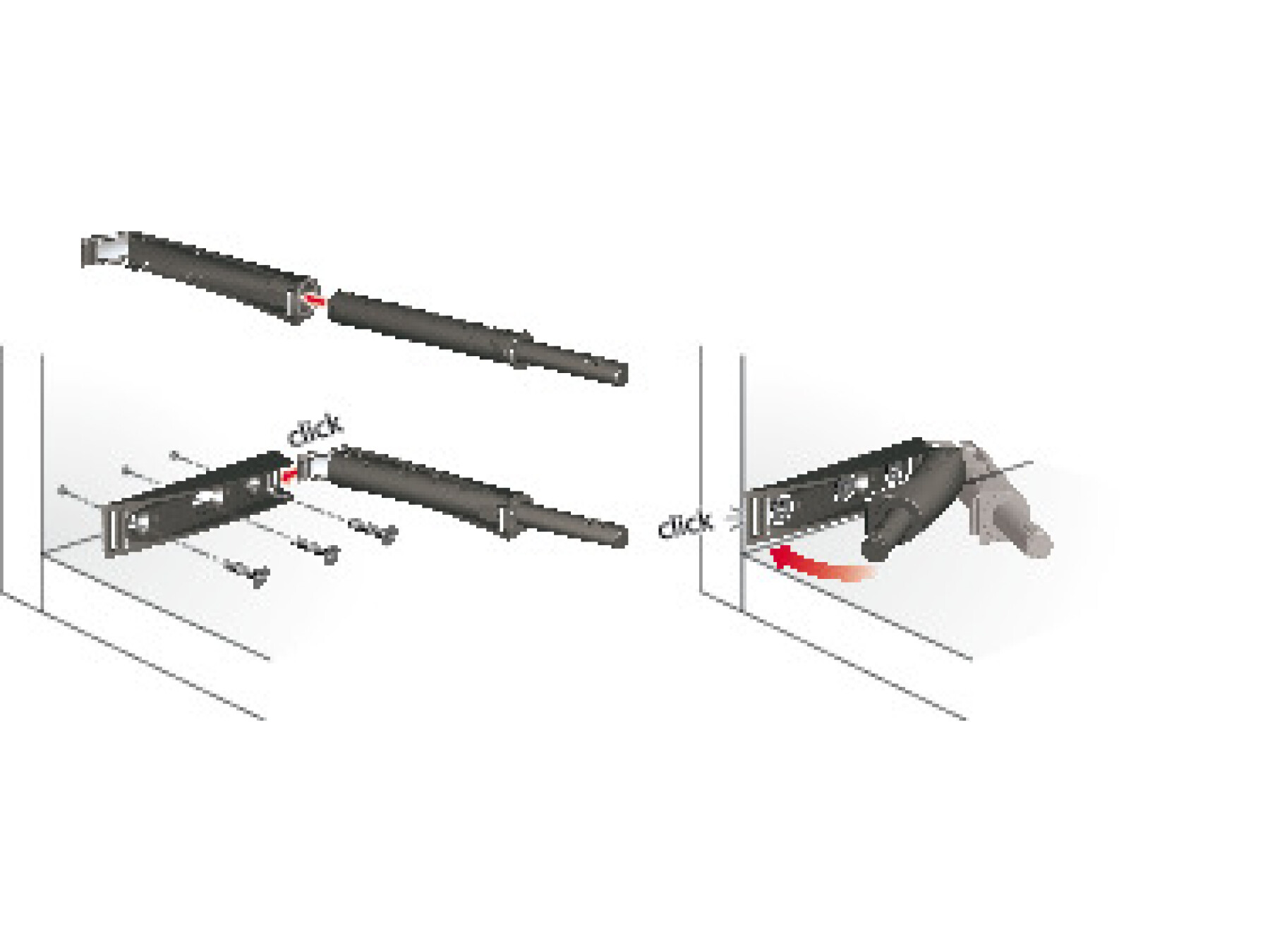

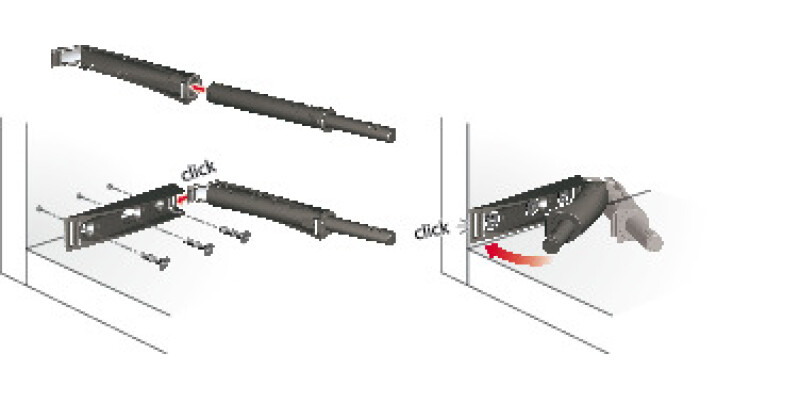

Order surface mount separately if required - See below
Hospa Ø 3.5 mm required (not supplied)
