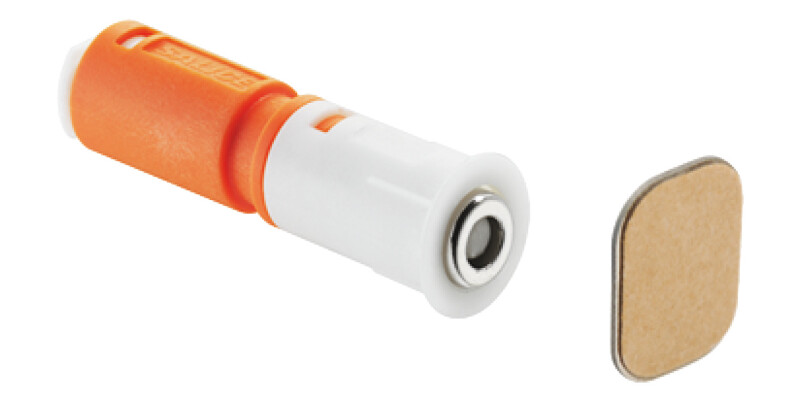

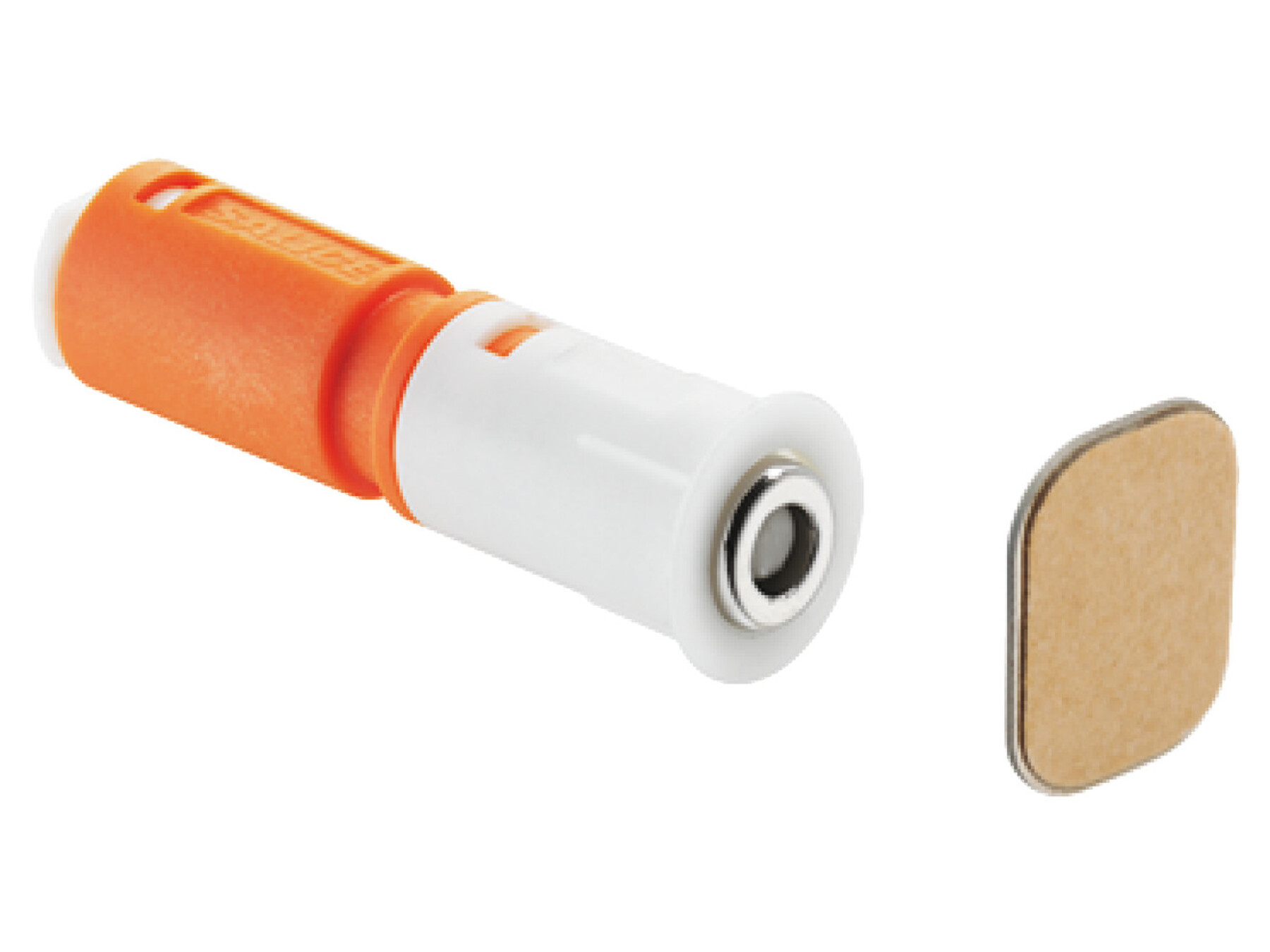

Push Magnetic-Add Catch wo Eject Pin

Part Number: 356.06.471
For front panels with width of more than 1200 mm or if 3 or more Push hinges are being used, Without eject pin
Price:
£4.75
Per Item
VAT excluded

Without eject pinWith counterplate for glue fixingUse additional magnet for door fronts 1200 mm and above or when... Read More

Product Information

Product Details

Without eject pin
With counterplate for glue fixing
Use additional magnet for door fronts 1200 mm and above or when using 3 or more push hinges

Installation

For mounting in drilled hole in cabinet top panel or base panel and installation with cruciform adapter housing

Position the additional magnet at some distance to the magnetic push catch in order to achieve a uniform gap pattern.

Specifications

Colour/finish

Orange, Beige

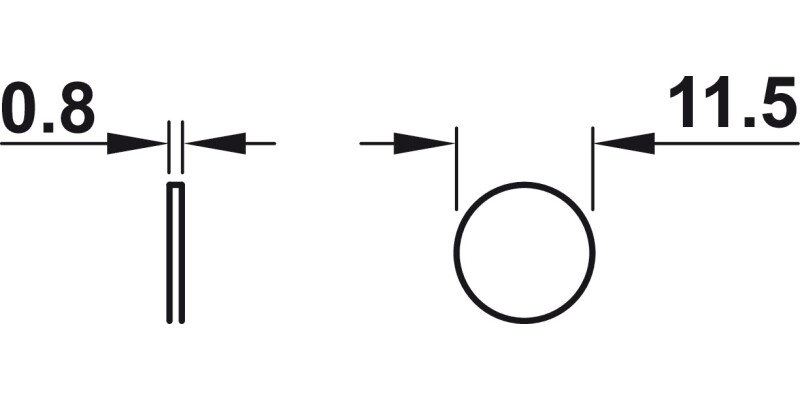

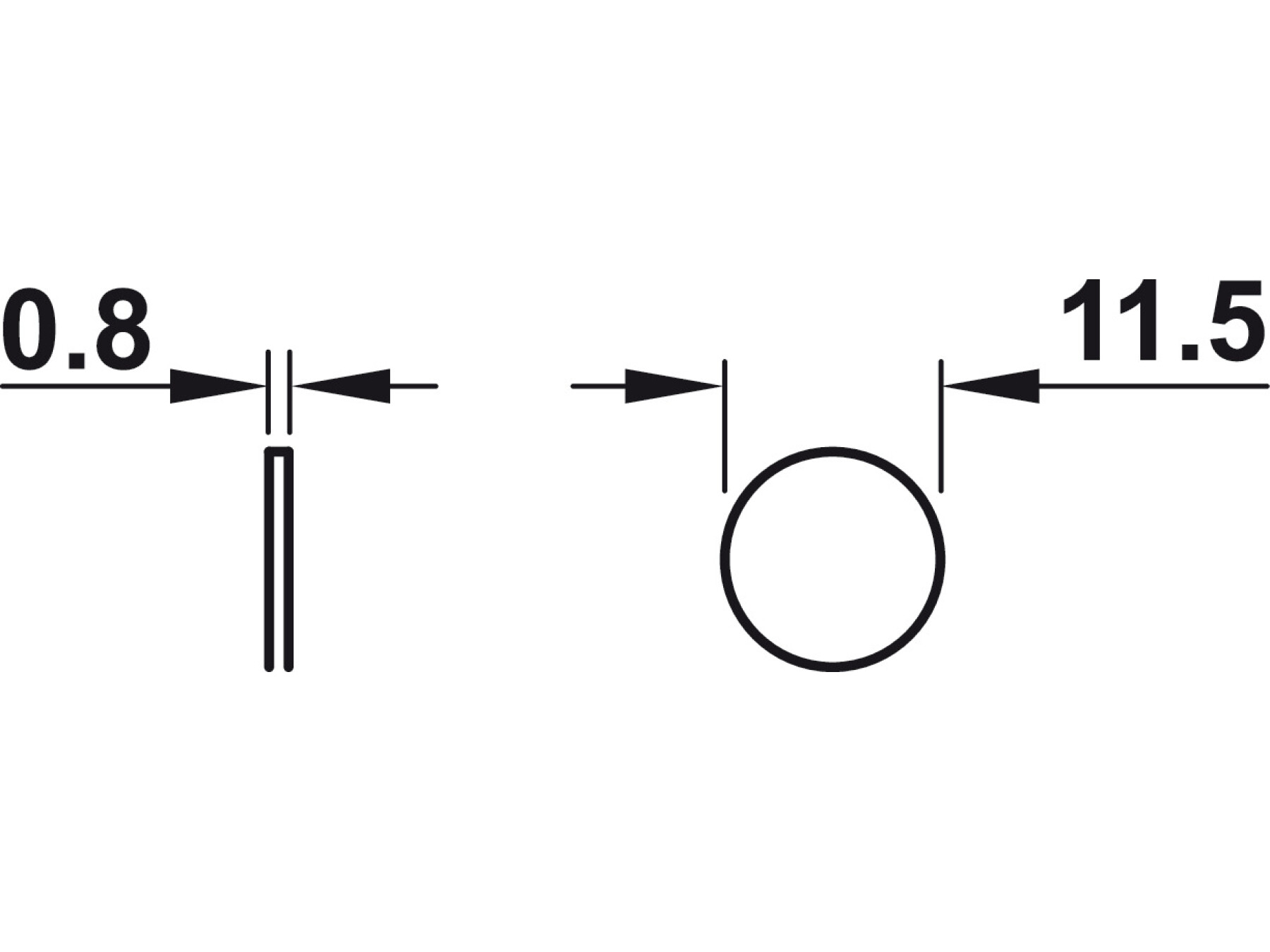

Thickness

0.80 mm

Diameter

11.50 mm

Version

With counterplate for glue fixing

Area of application

For use with Maxi Touch 'push-to-open' or 'touch opening' application

Material

Plastic

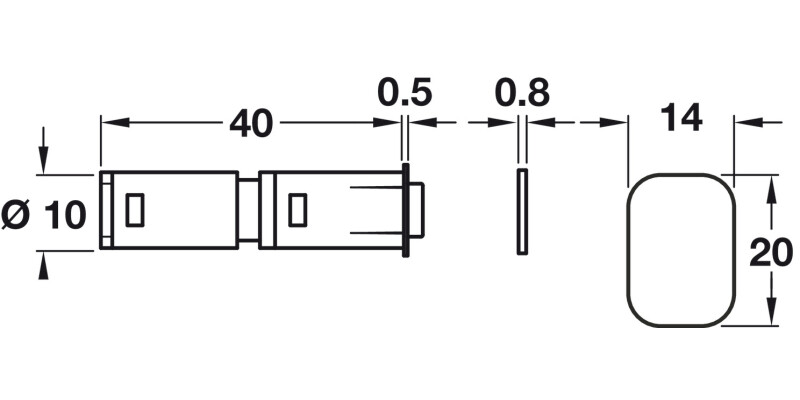

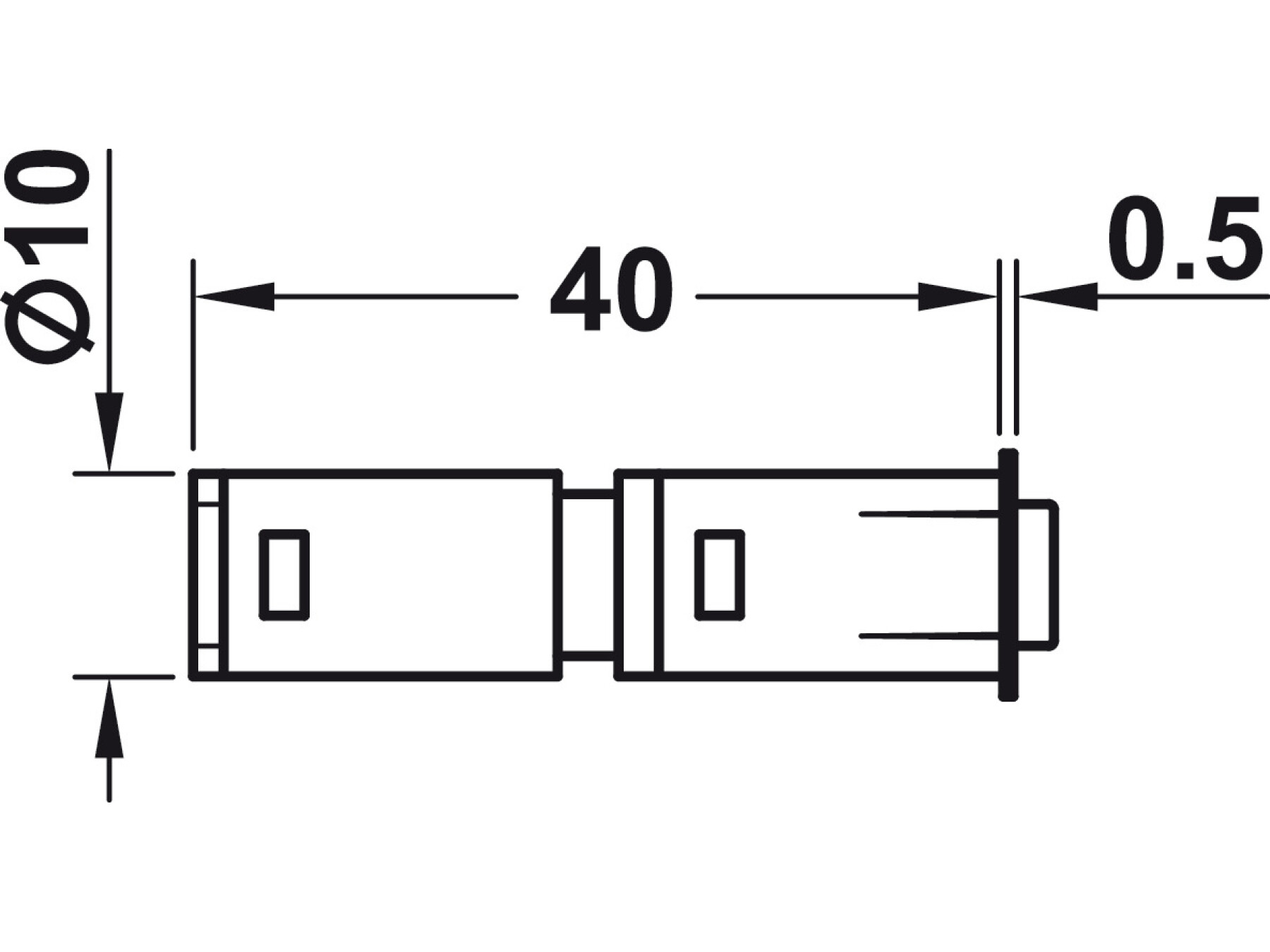

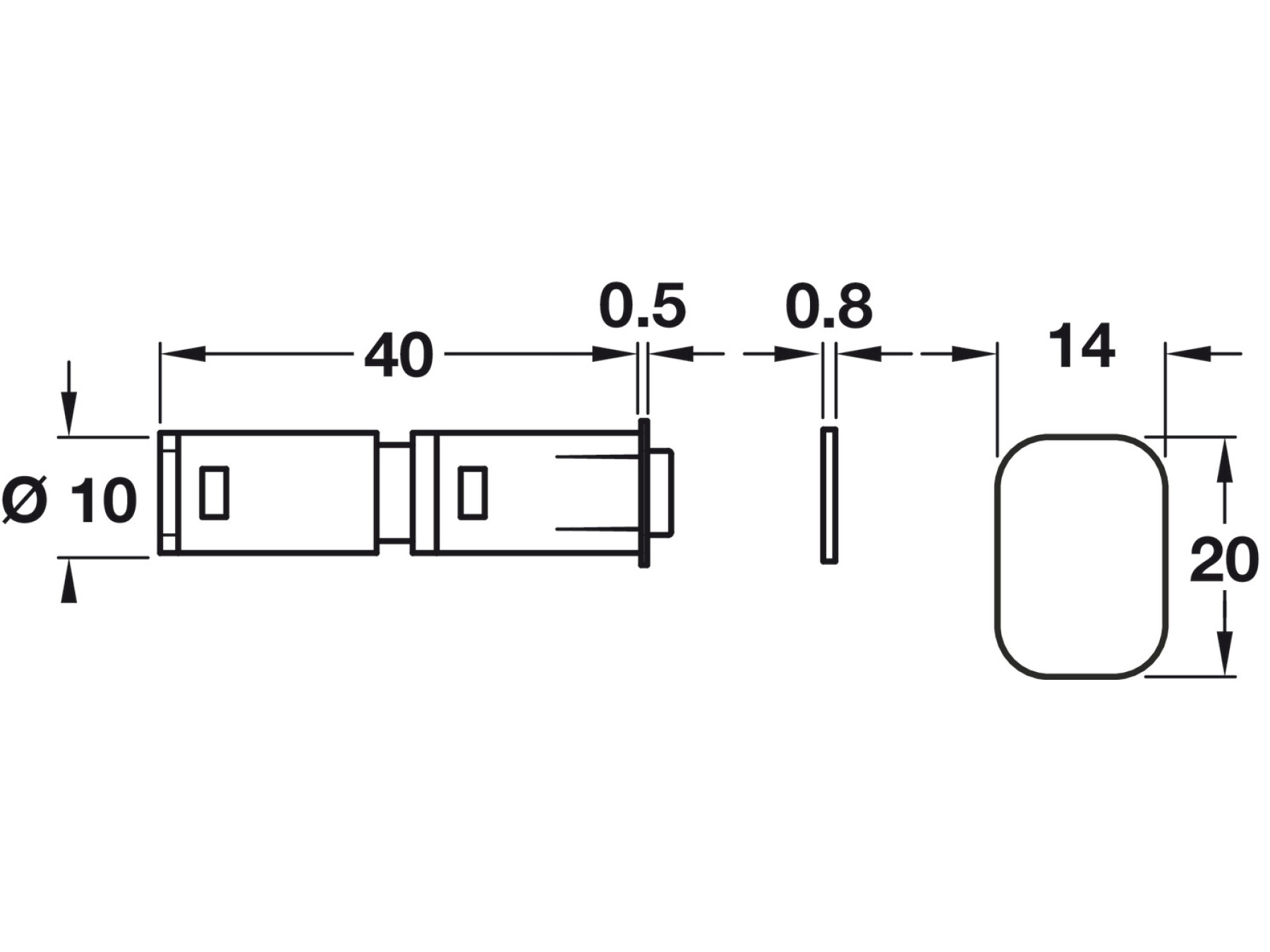

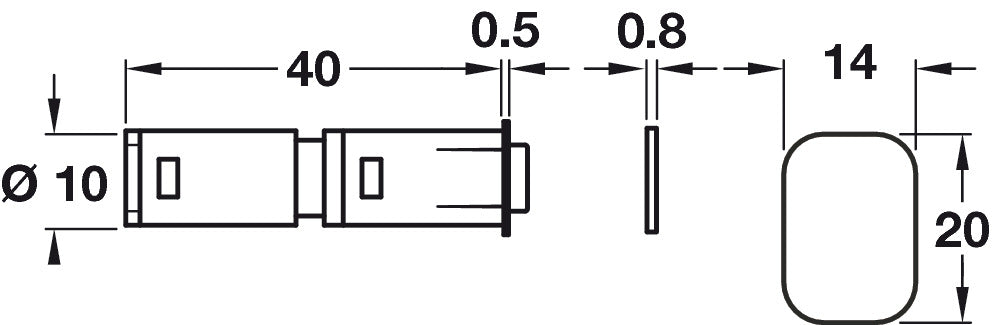

For drill hole Ø

10.00 mm

Drilling depth

40.00 mm

Drill hole Ø

10.00 mm
