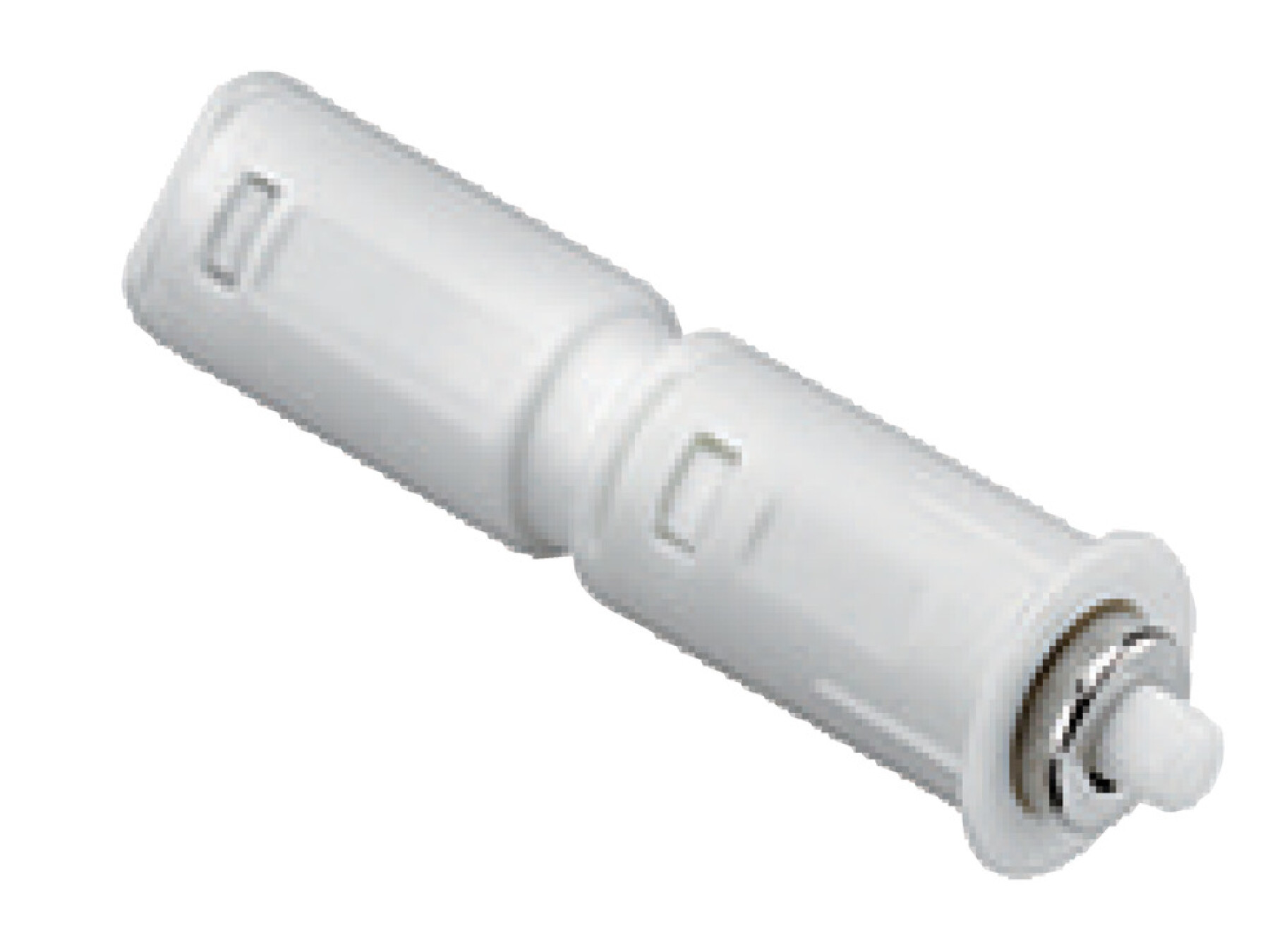

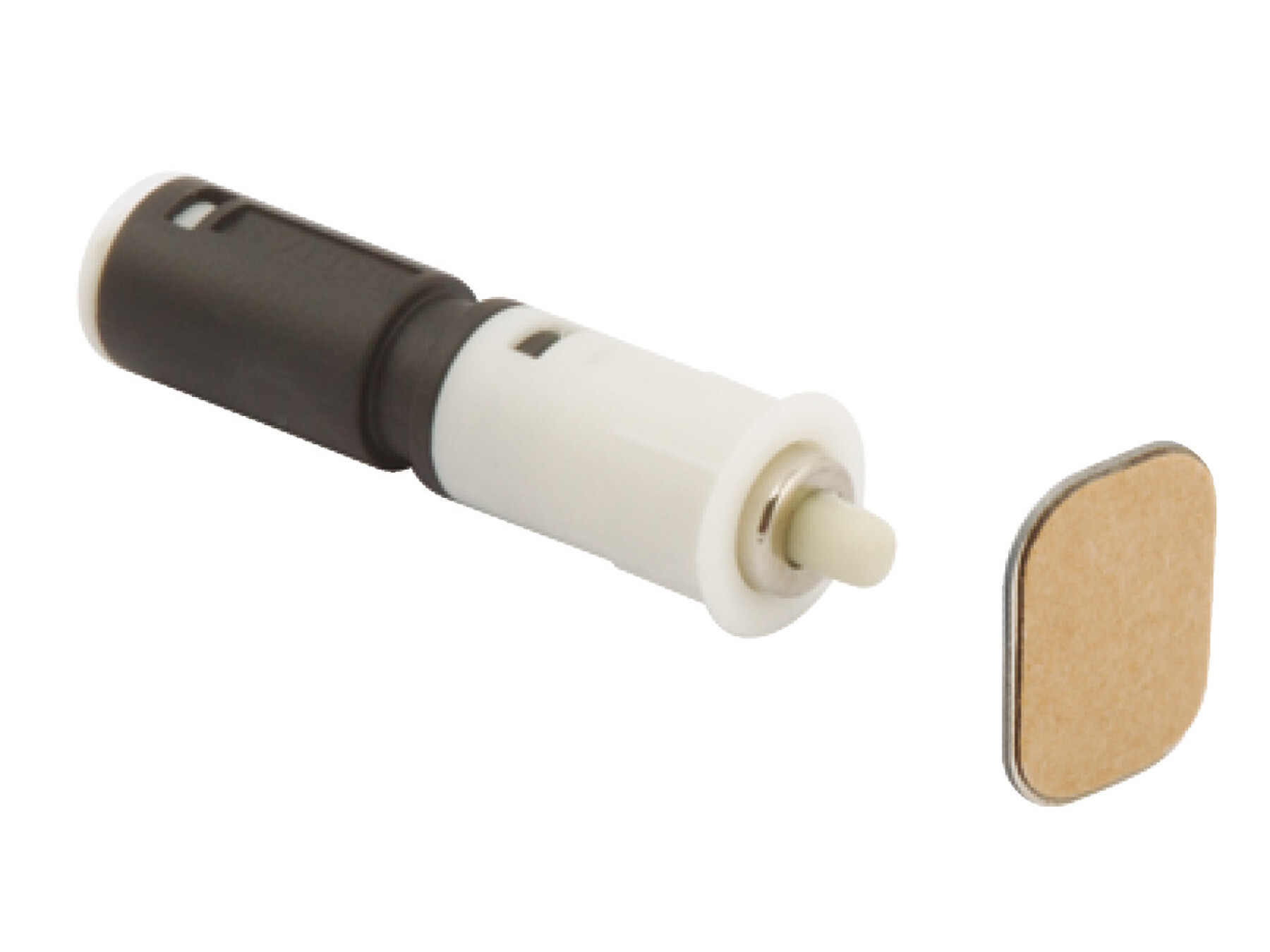

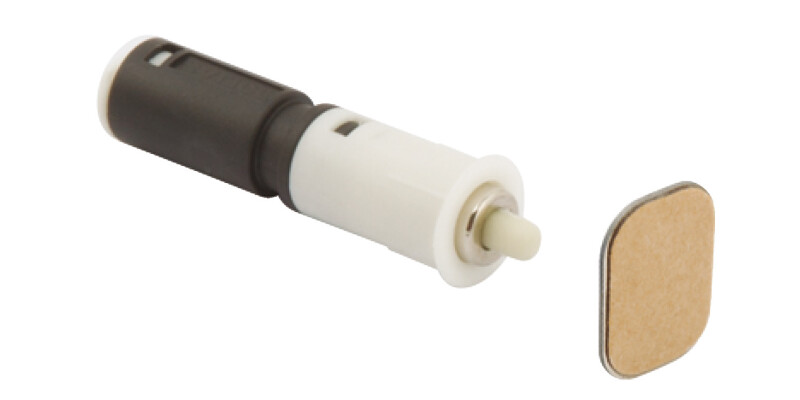

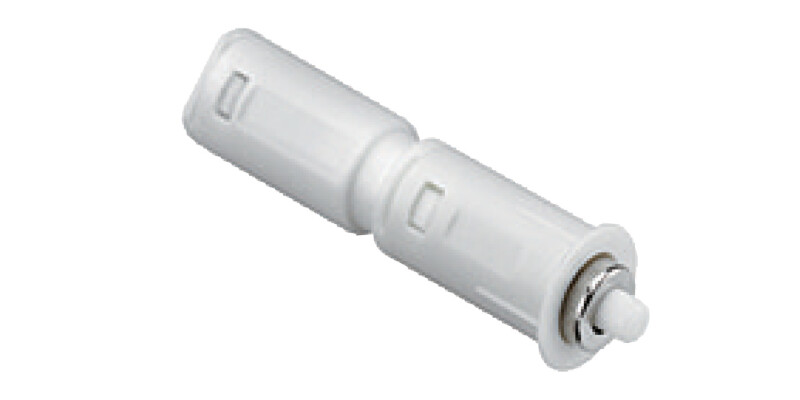

Push Magnetic-Catch w Counter Plt Glue
Part Number: 356.06.461
For use with Maxi touch 'push-to-open' or 'touch opening' application, installation: Counterplate for glue fixing
Price:
£6.78
Per Item
Installation for mounting in drilled hole in cabinet top panel or base panel and installation with cruciform... Read More
Product Information
Product Details
Installation
for mounting in drilled hole in cabinet top panel or base panel and installation with cruciform adapter housing
Area of application
For use with Maxi Touch 'push-to-open' or 'touch opening' applications
For mounting in drilled hole in cabinet top or base, or with adapter housing
Required door gap for release min. 2.5 mm.

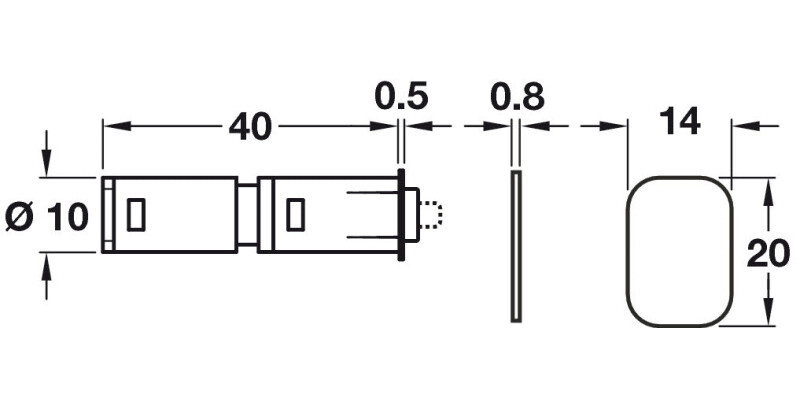

Specifications
Colour/finish
Black, Beige

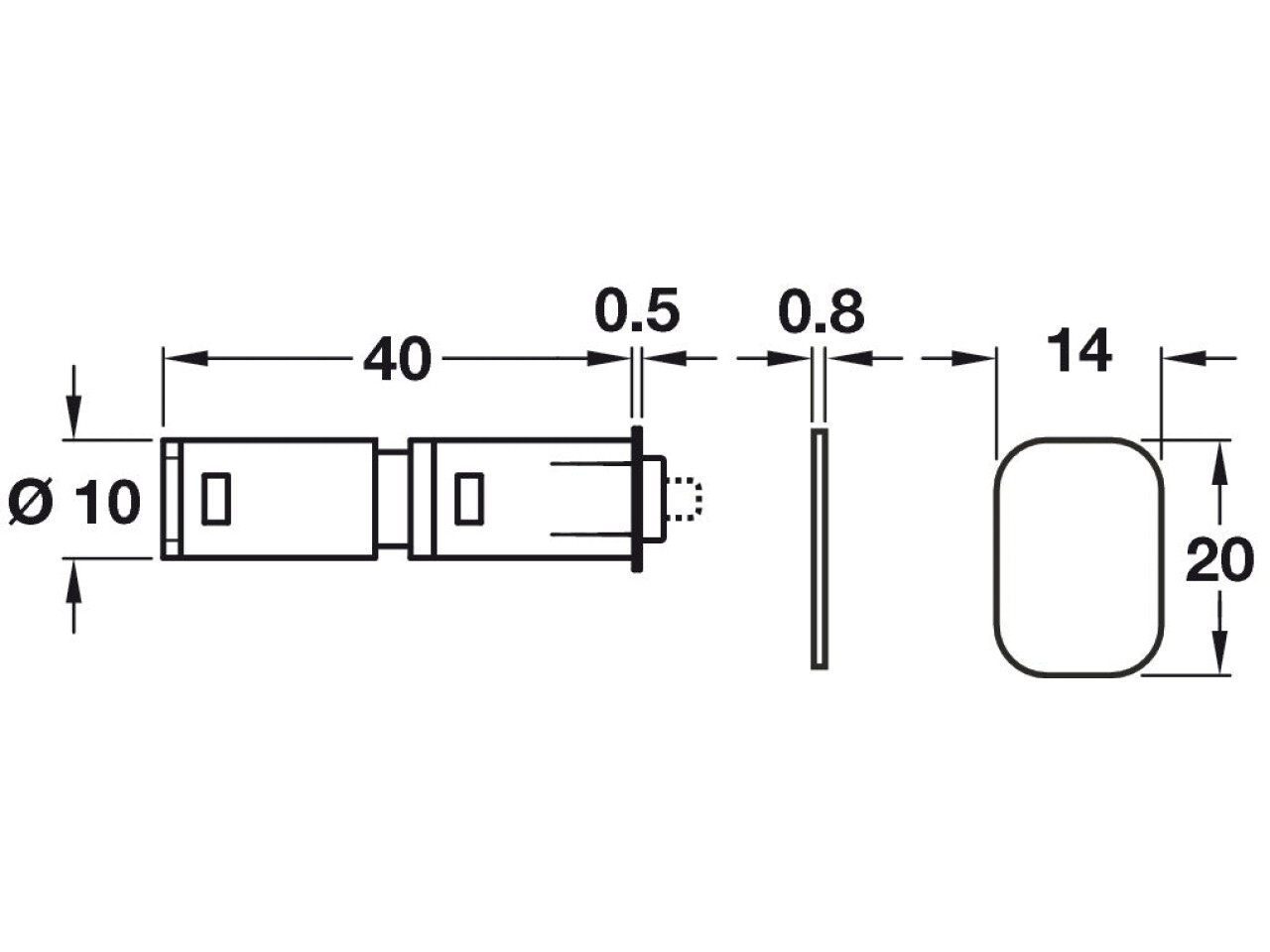

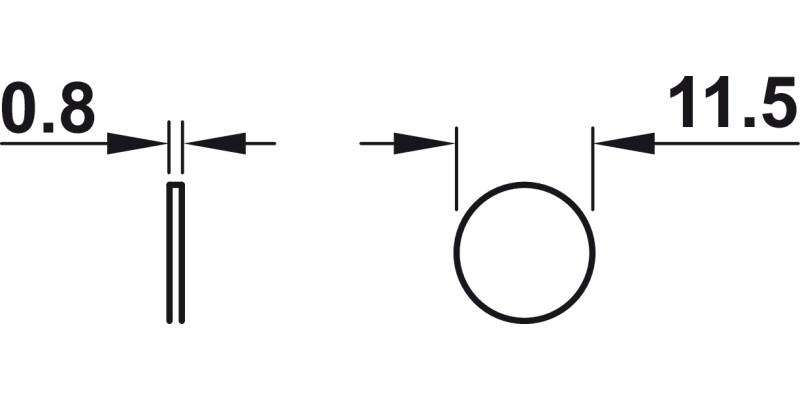

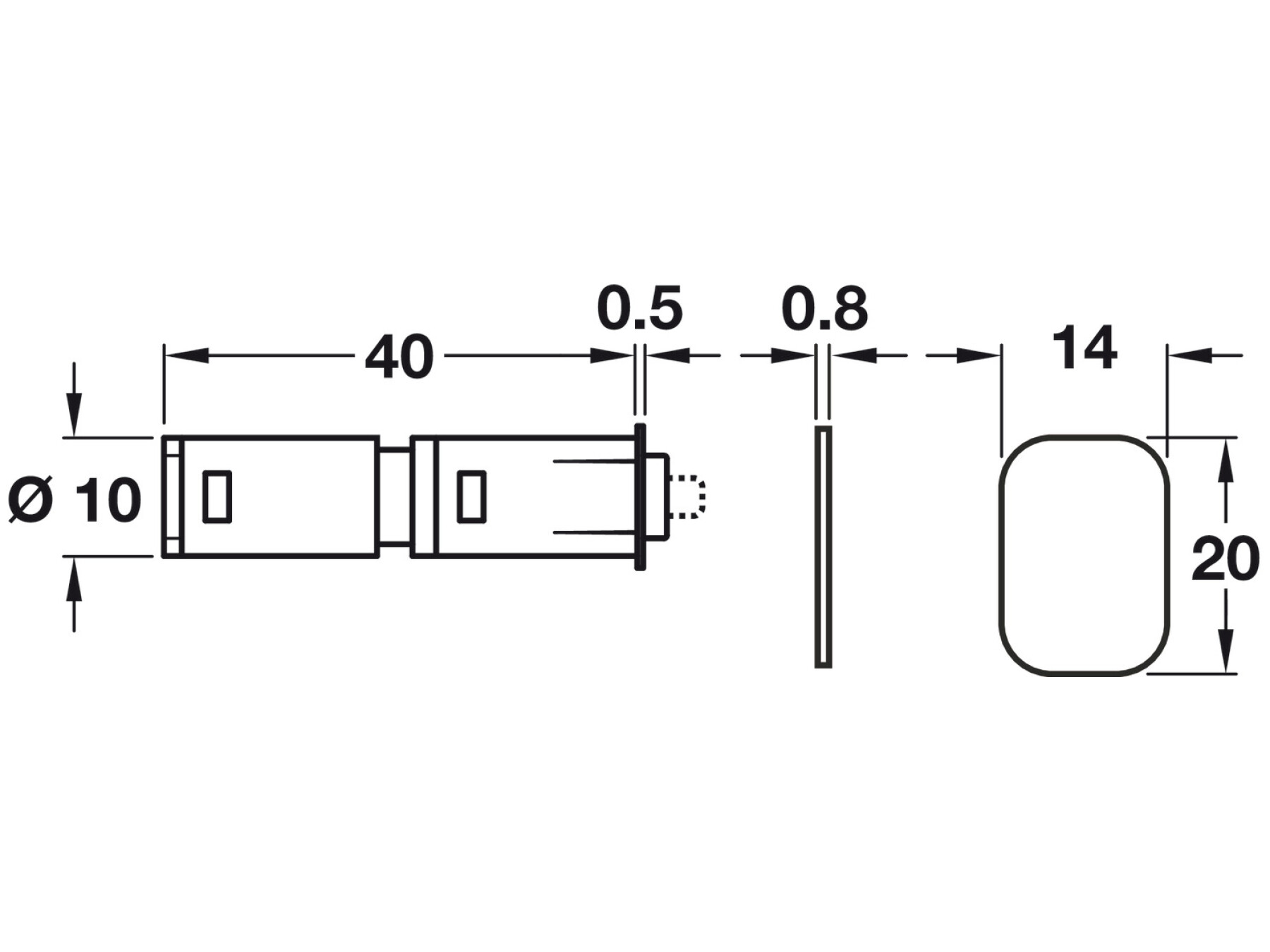

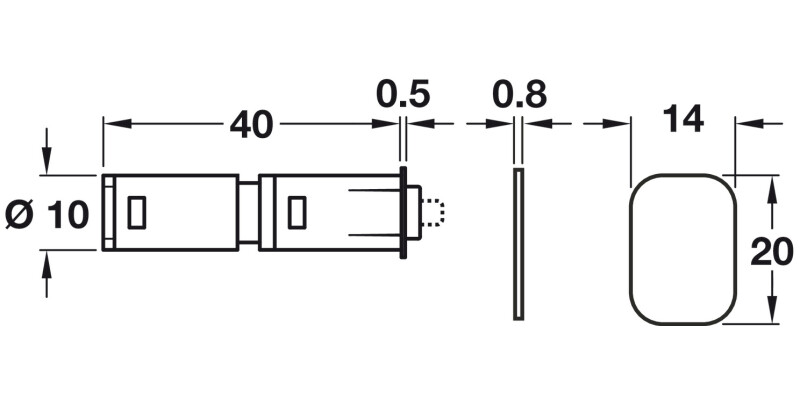

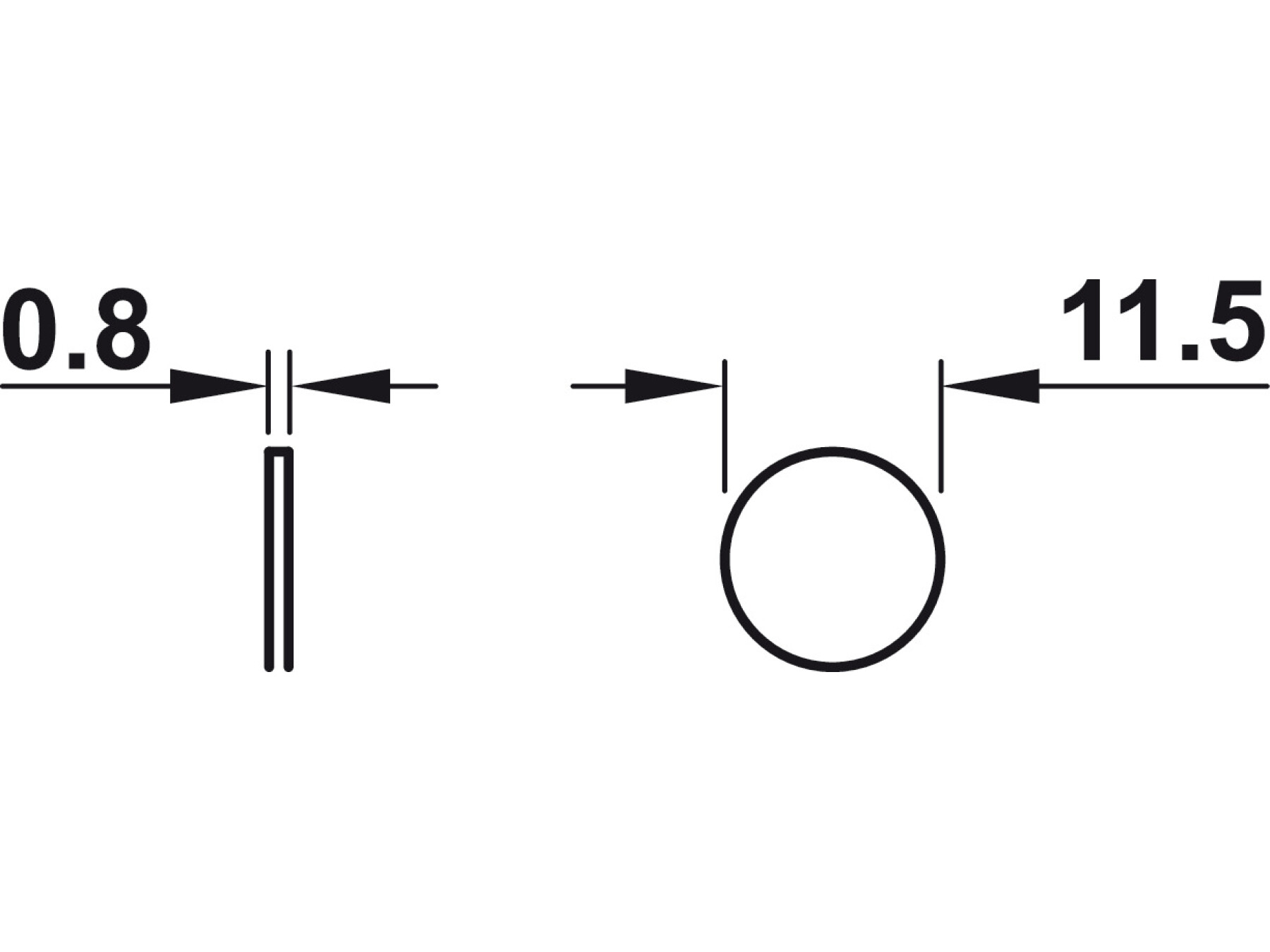

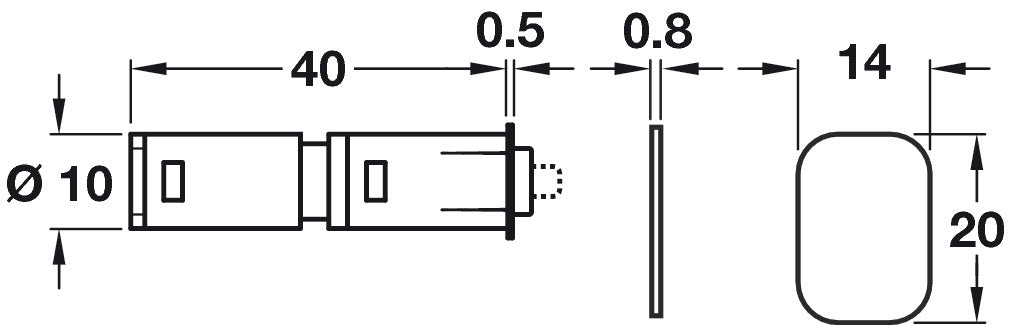

Diameter
11.50 mm
Material
Plastic
Adjustment facility
Depth adjustment: >2.5 mm
For drill hole Ø
10.00 mm
Drilling depth
40.00 mm
Drill hole Ø
10.00 mm
