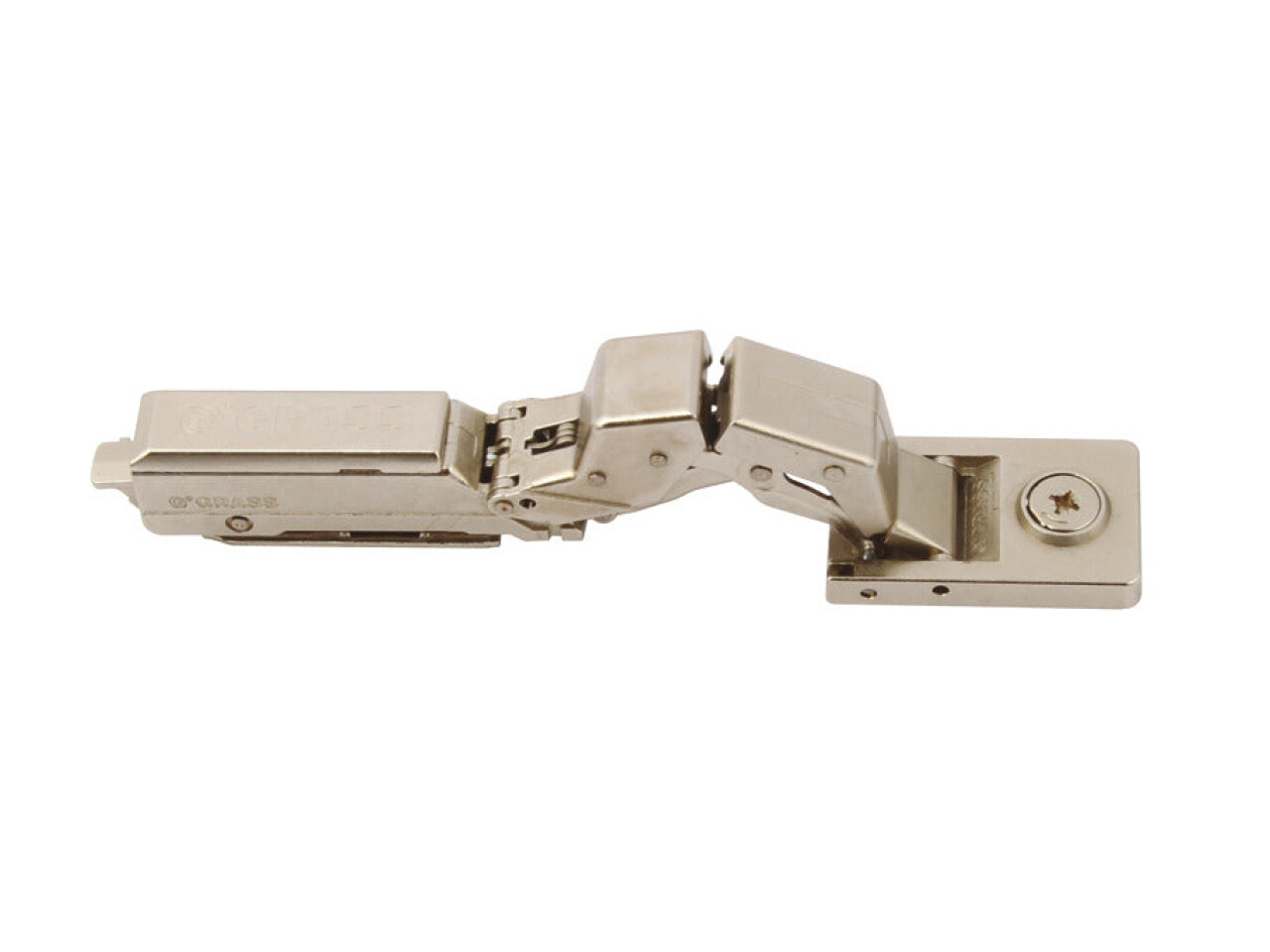

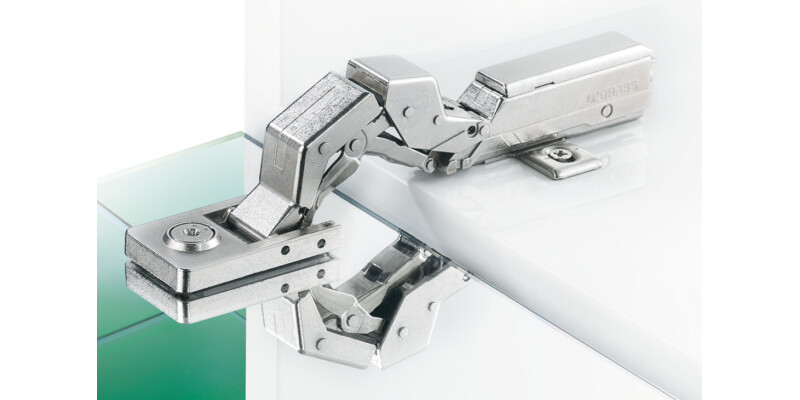

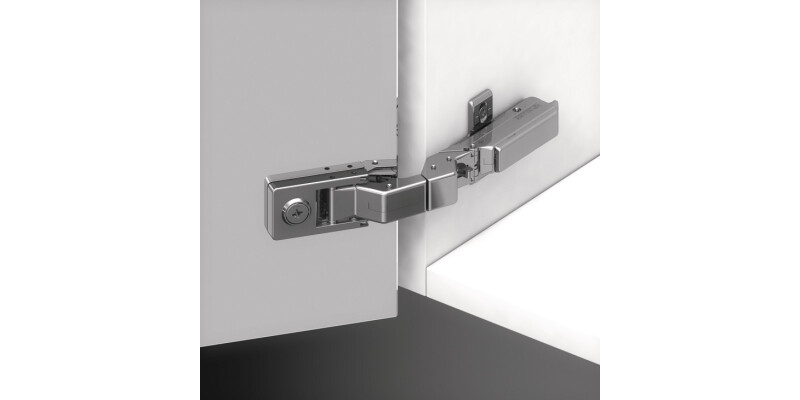

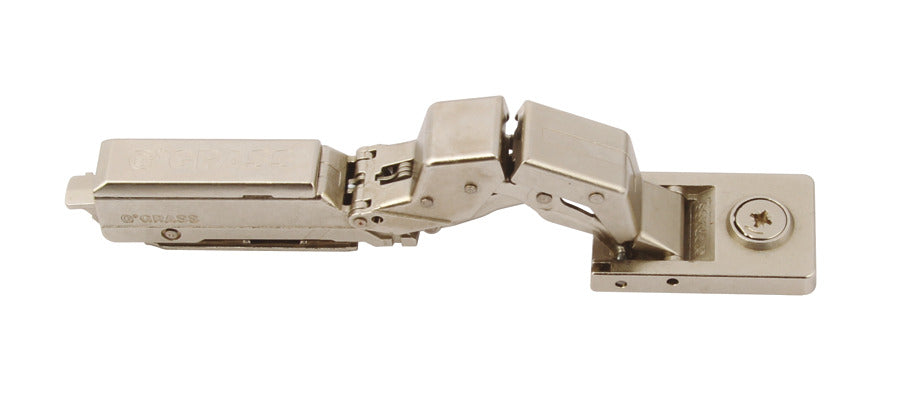

Tiomos Mirro 125D Hinge 3-8mm Tipmatic
Part Number: 348.41.440
Glass thickness 3-8 mm, Tipmatic, nickel plated
Price:
£11.64
Per Item
Quick final assembly without glass drillingFor mirror doors with thickness 3–8 mmHigh overlay up to 19... Read More
Product Information
Product Details
Quick final assembly without glass drilling
For mirror doors with thickness 3–8 mm
High overlay up to 19 mm
Adjustment facility
Side adjustment 2 mm, Height adjustment -2.5 – 2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment via mounting plate
Installation

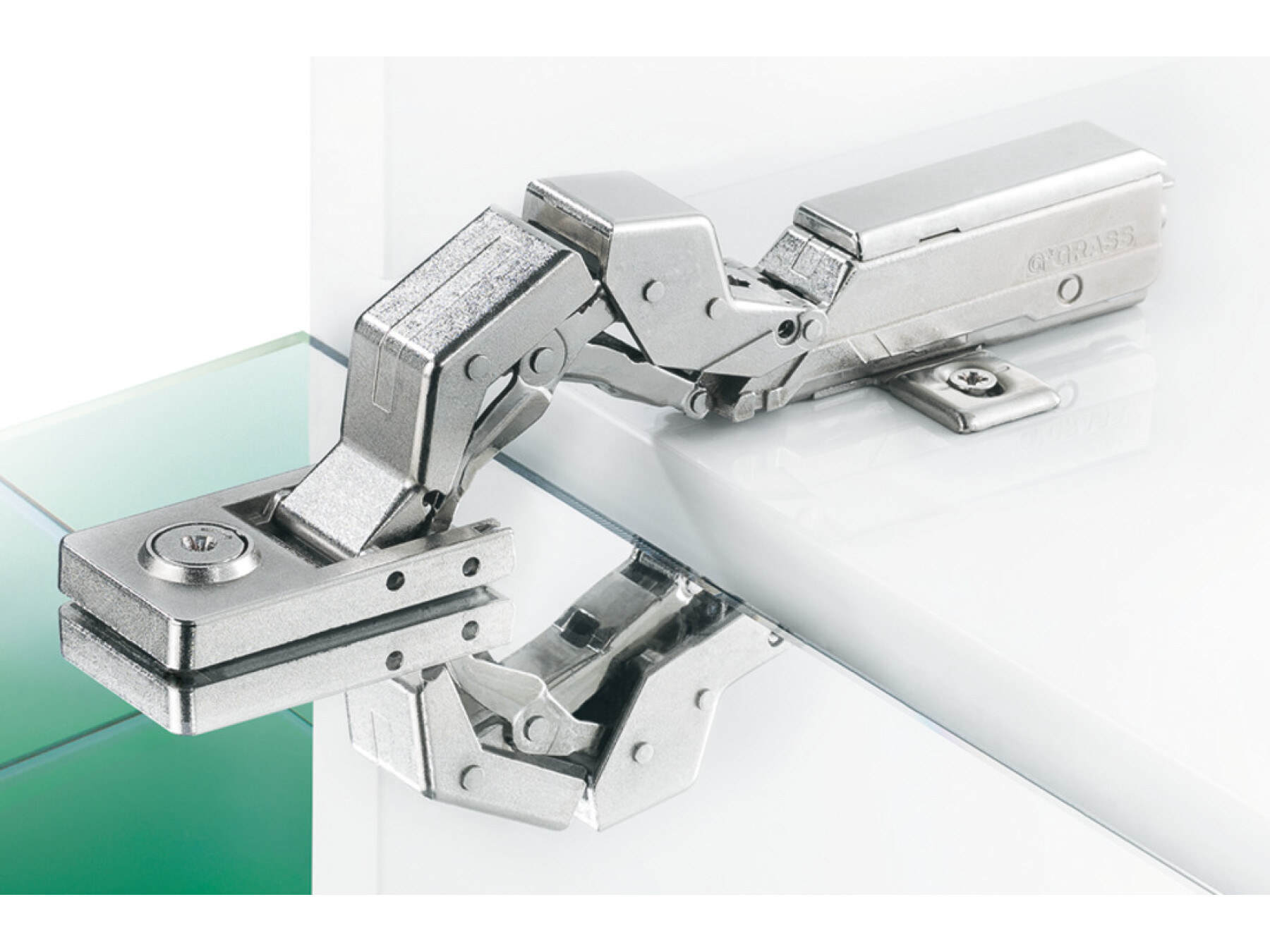

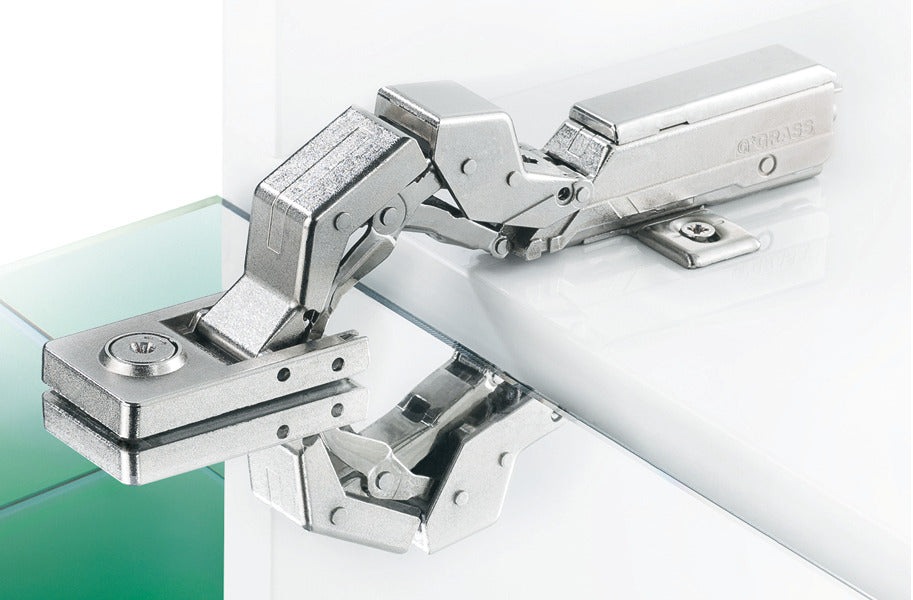

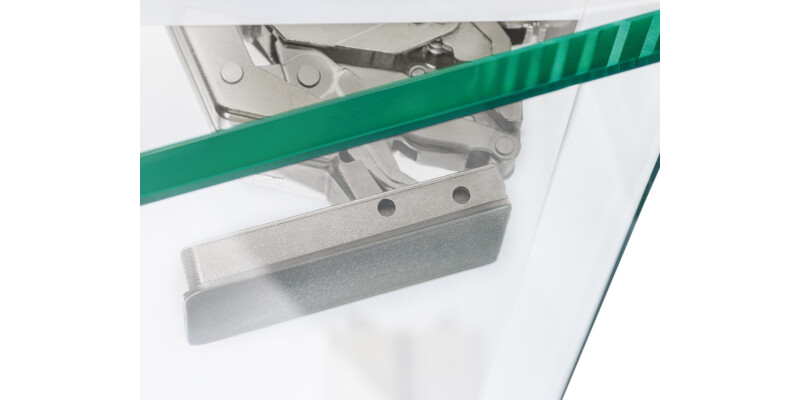

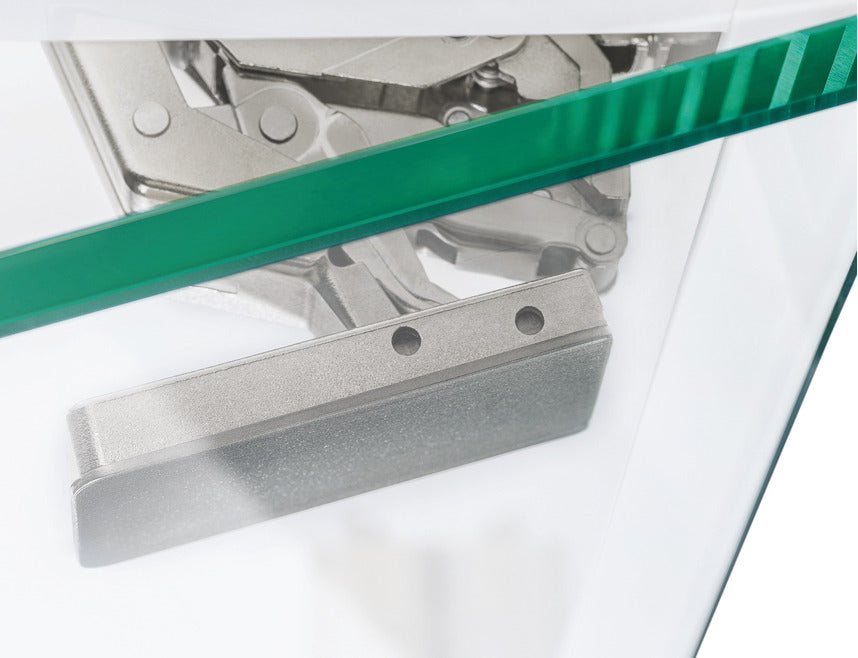

Fastening to door by gluing of a zinc alloy adapter
of the door to the hinge by sliding onto the adapter and using a cam

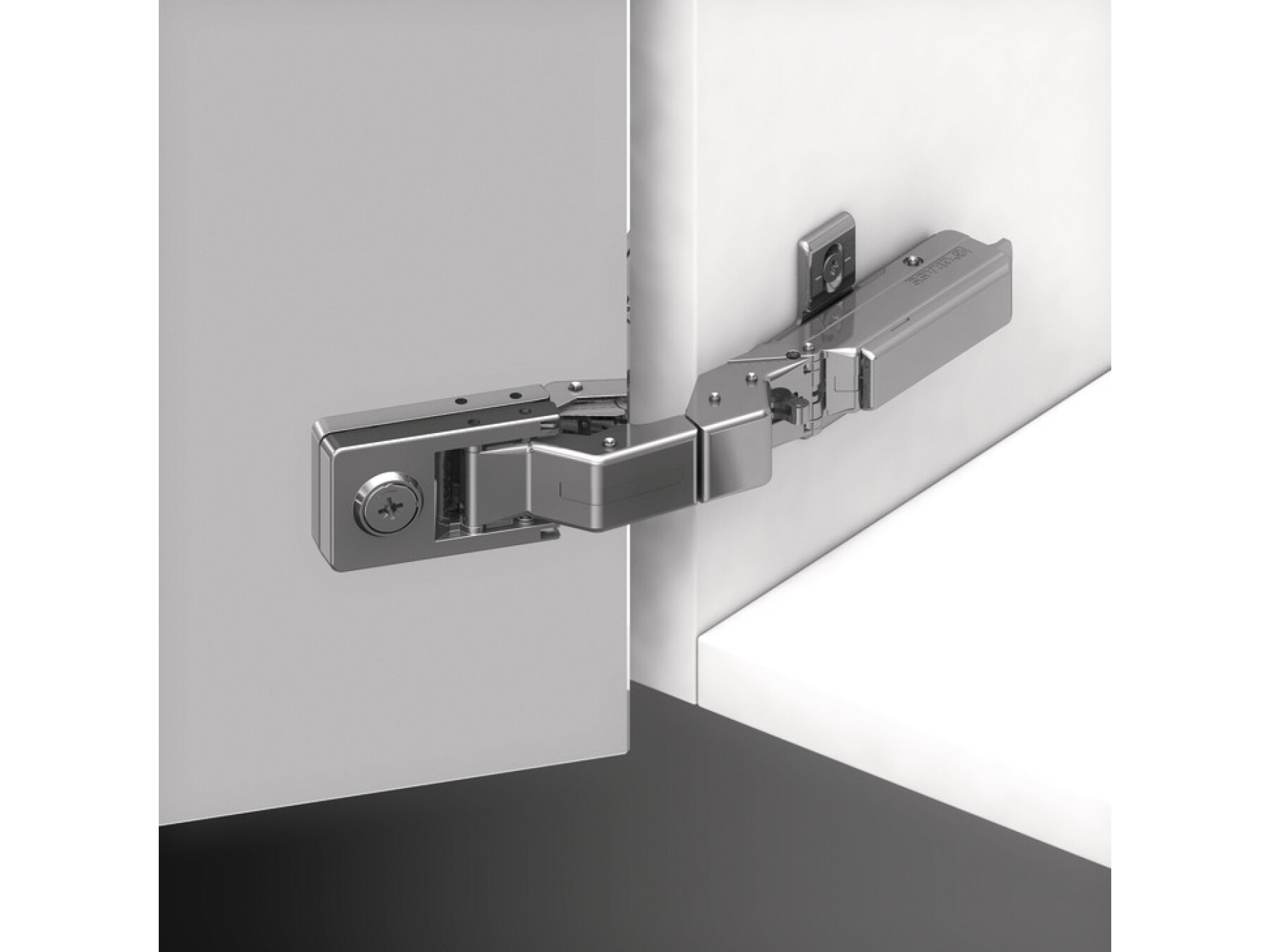

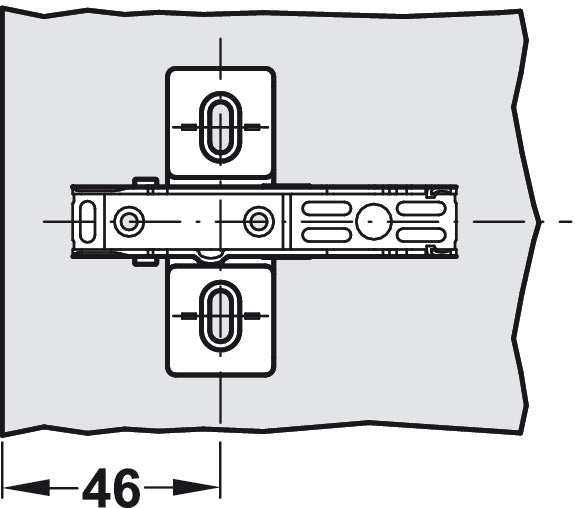

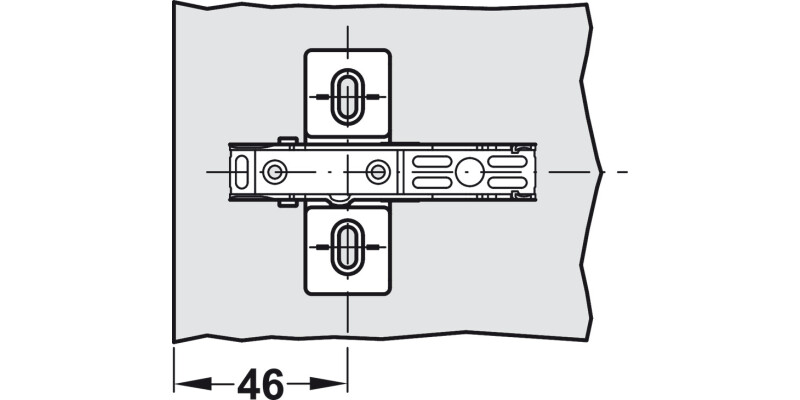

door to cabinet without tools (clip system)
Installation note

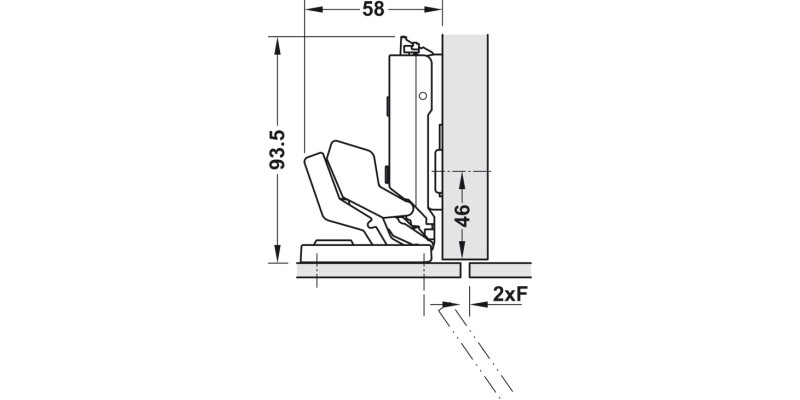

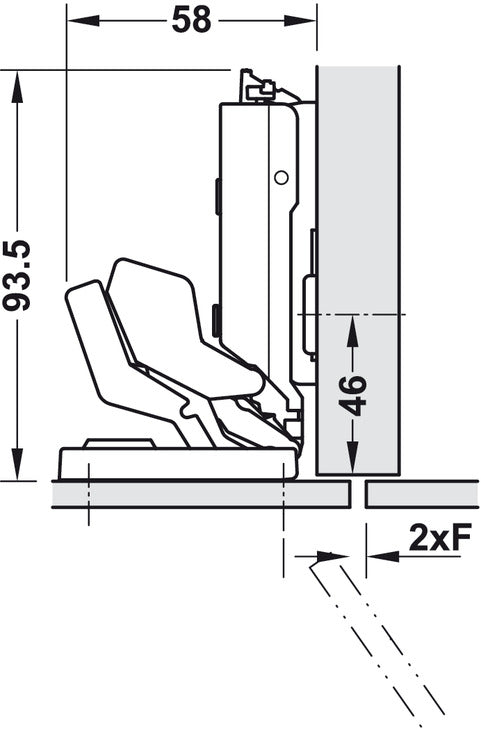

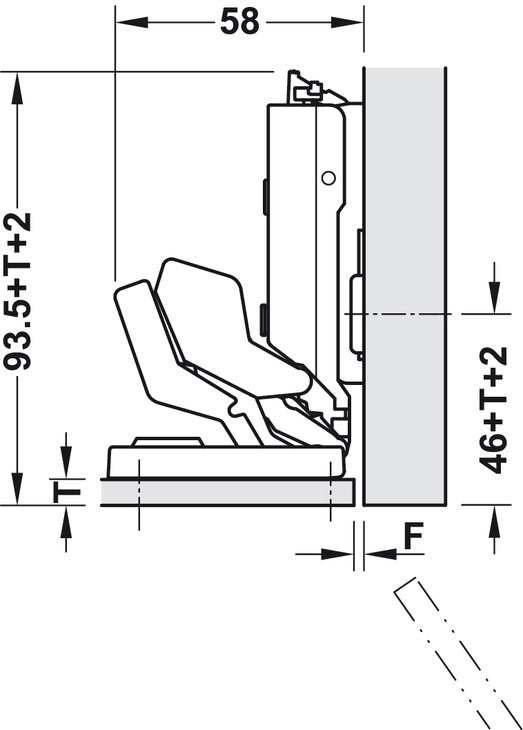

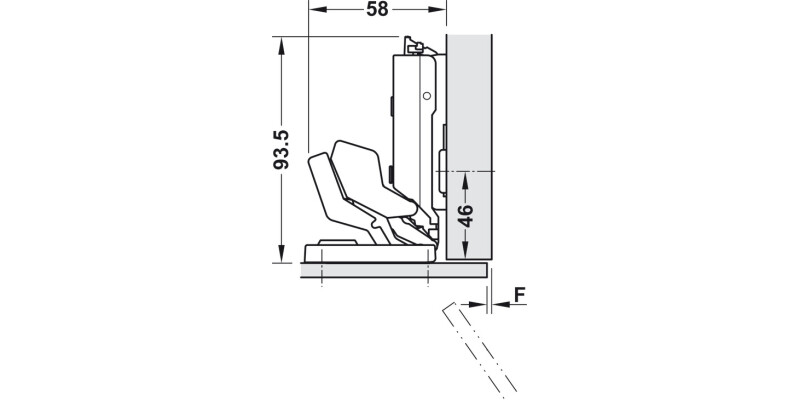

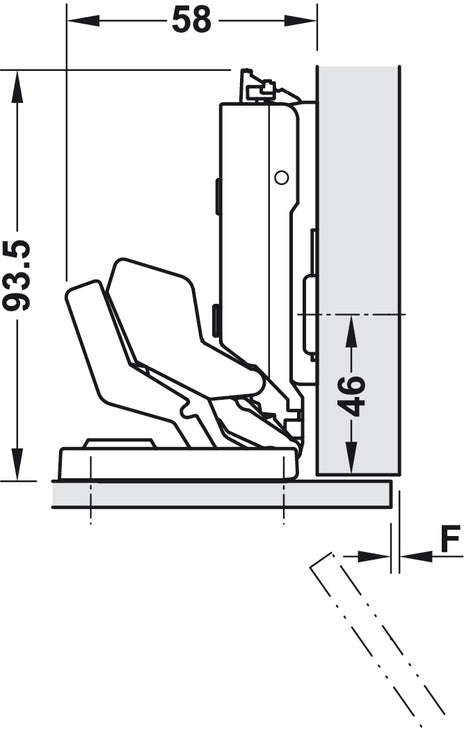

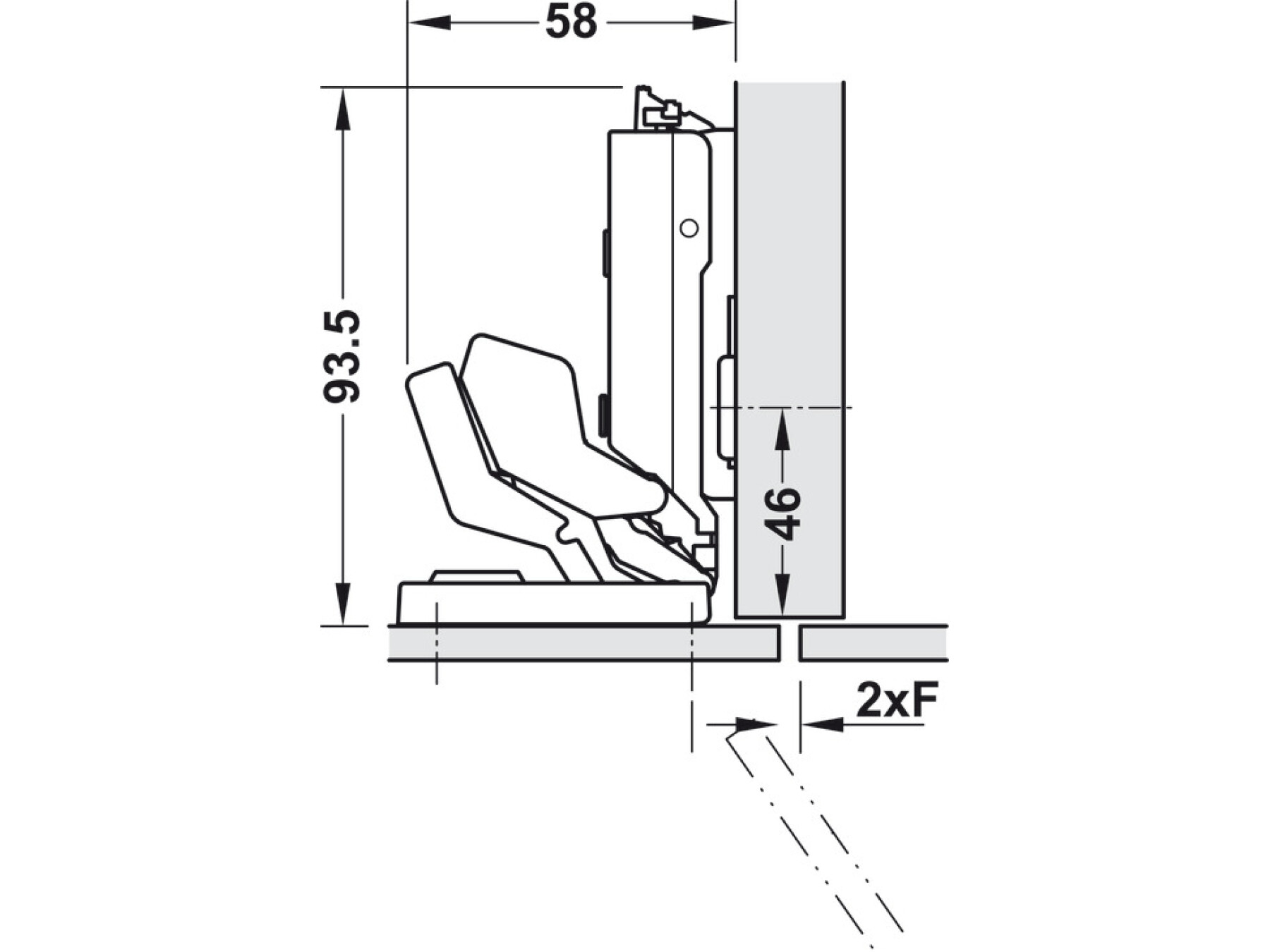

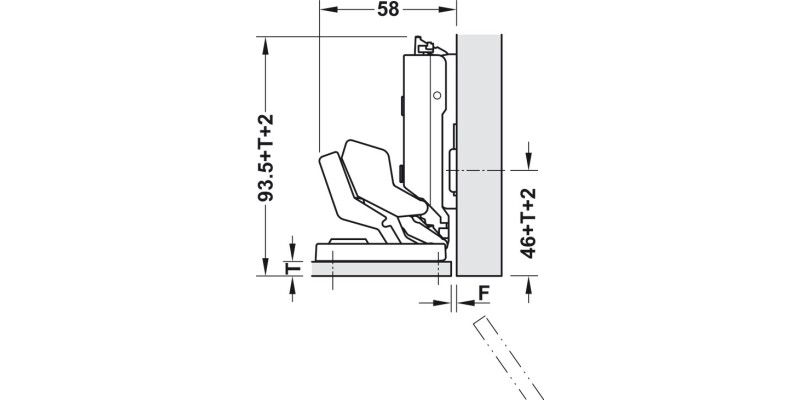

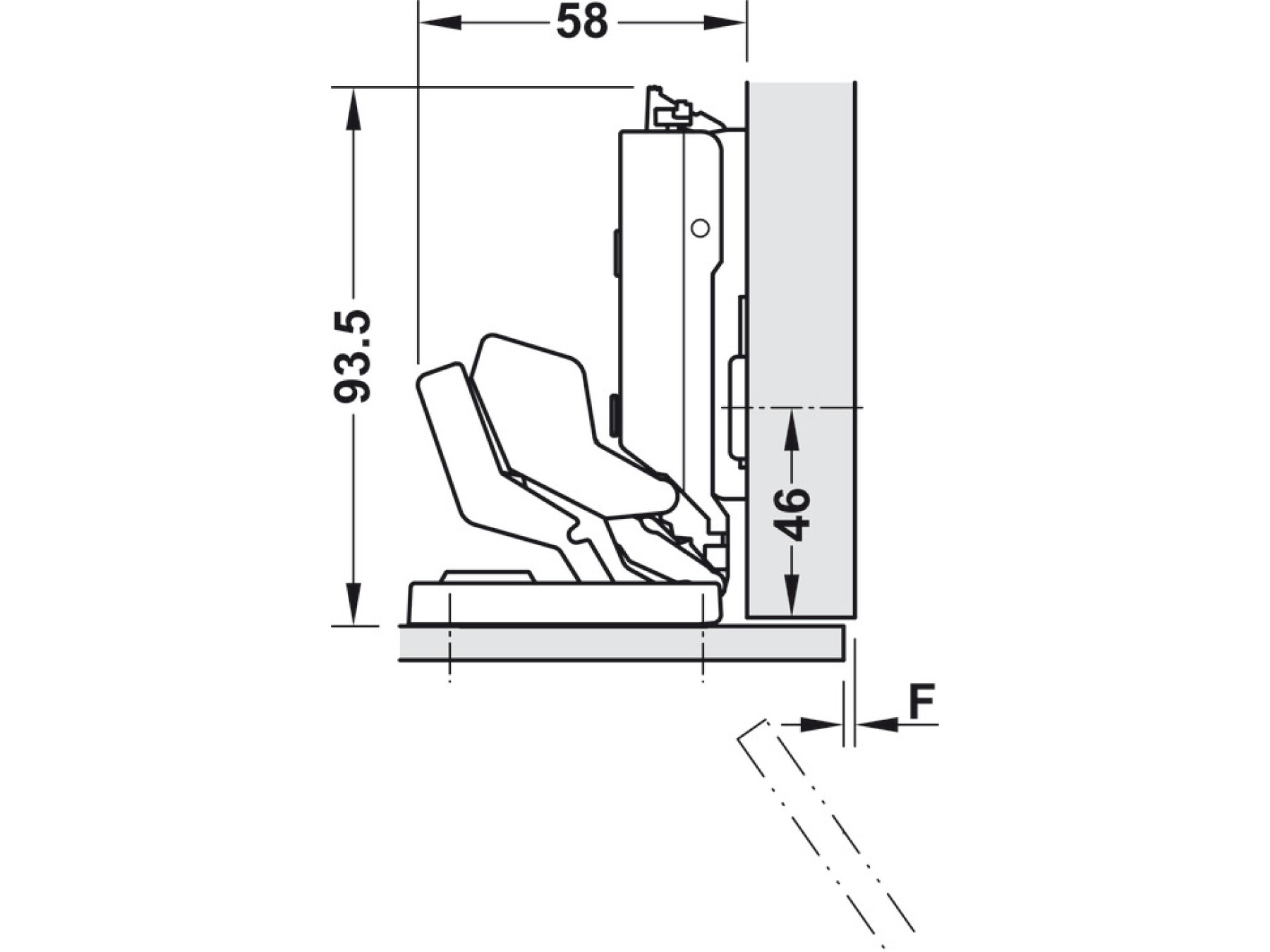

Minimum gap F = 2 mm.

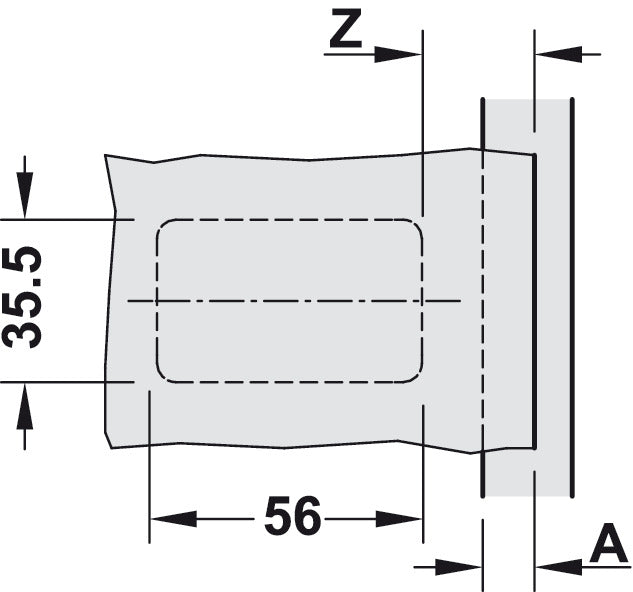

Applies to hinge with factory settings, glass thickness from 3 to 8 mm with chamfered edges (r = 1mm) and gluing dim. Z from 4 to 26 mm
All reveals must be at least 1.5 mm, otherwise there is a risk of breakage.

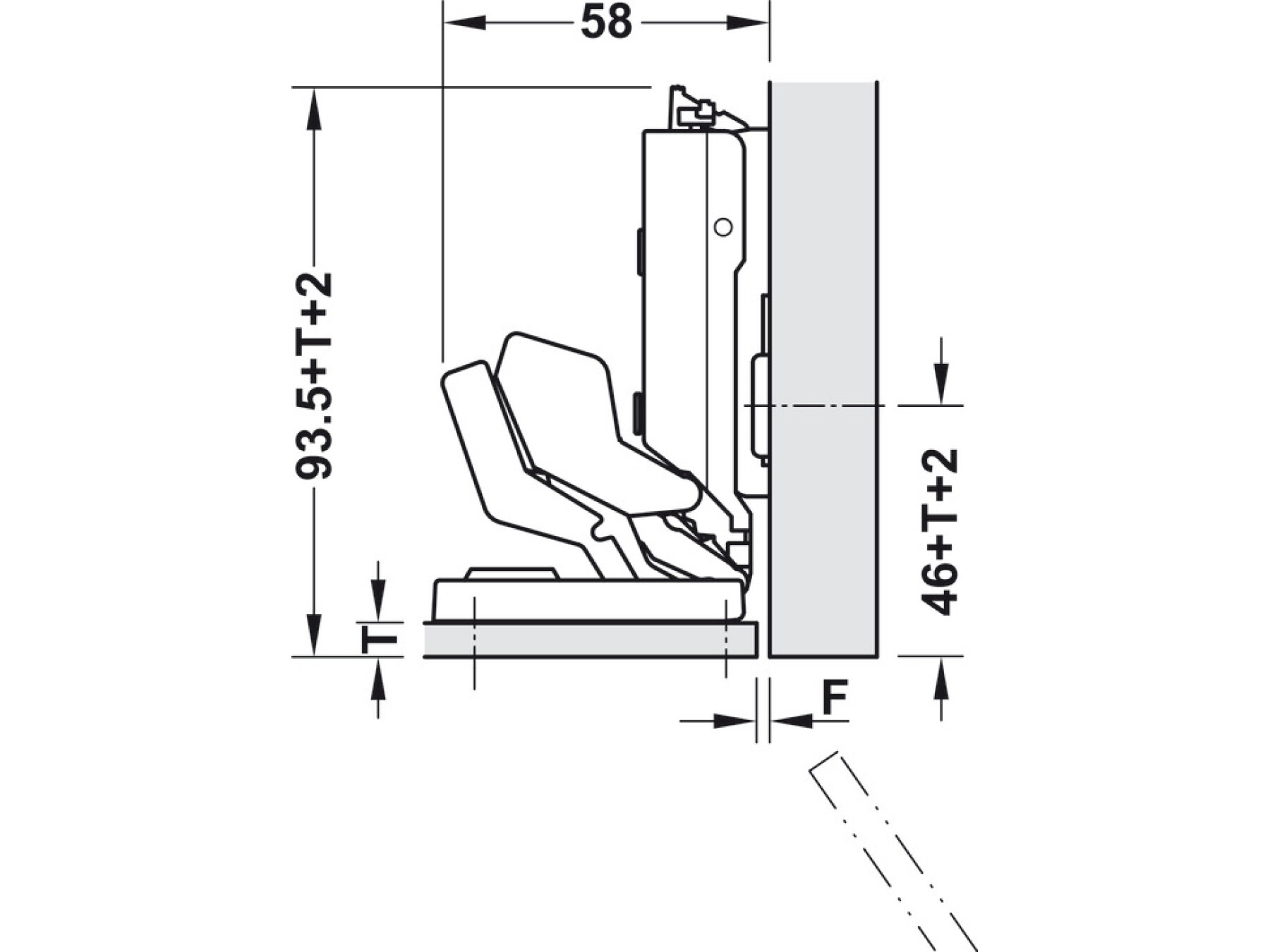

Minimum gap F = 2 mm.
Applies to hinge with factory settings, glass thickness from 3 to 8 mm with chamfered edges (r = 1mm) and gluing dim. Z from 4 to 26 mm
Specifications
Area of application
for mirror or clear glass doors with a thickness of 3–8 mm
Crank type
Cranked
Door processing for assembly
Material
Zinc alloy
Opening angle
125°
For glass thickness
3 – 8 mm
Cup fixing
for screw fixing
Order reference
Please order mounting plate Cat. No. 348.38.551 separately.
