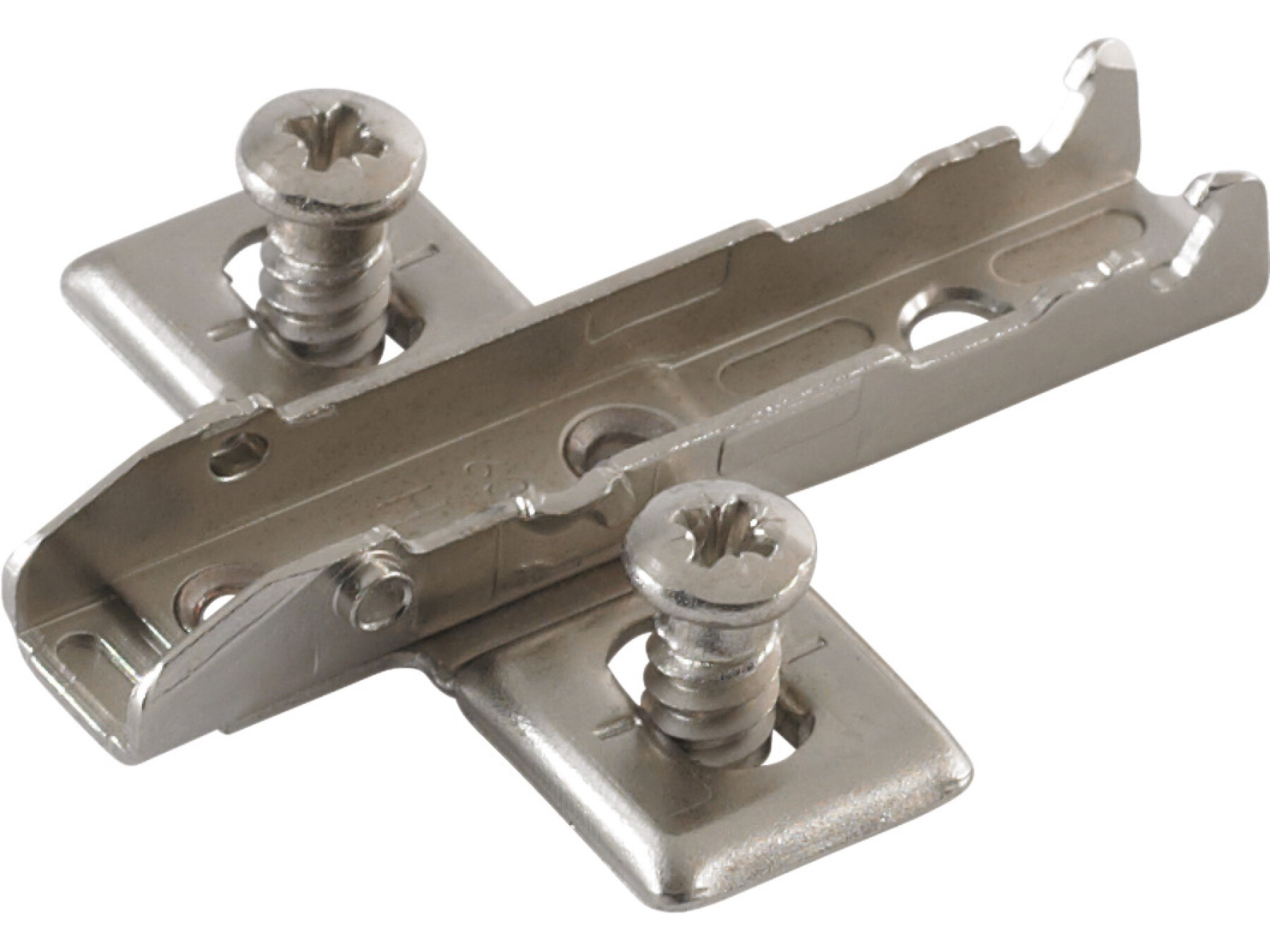

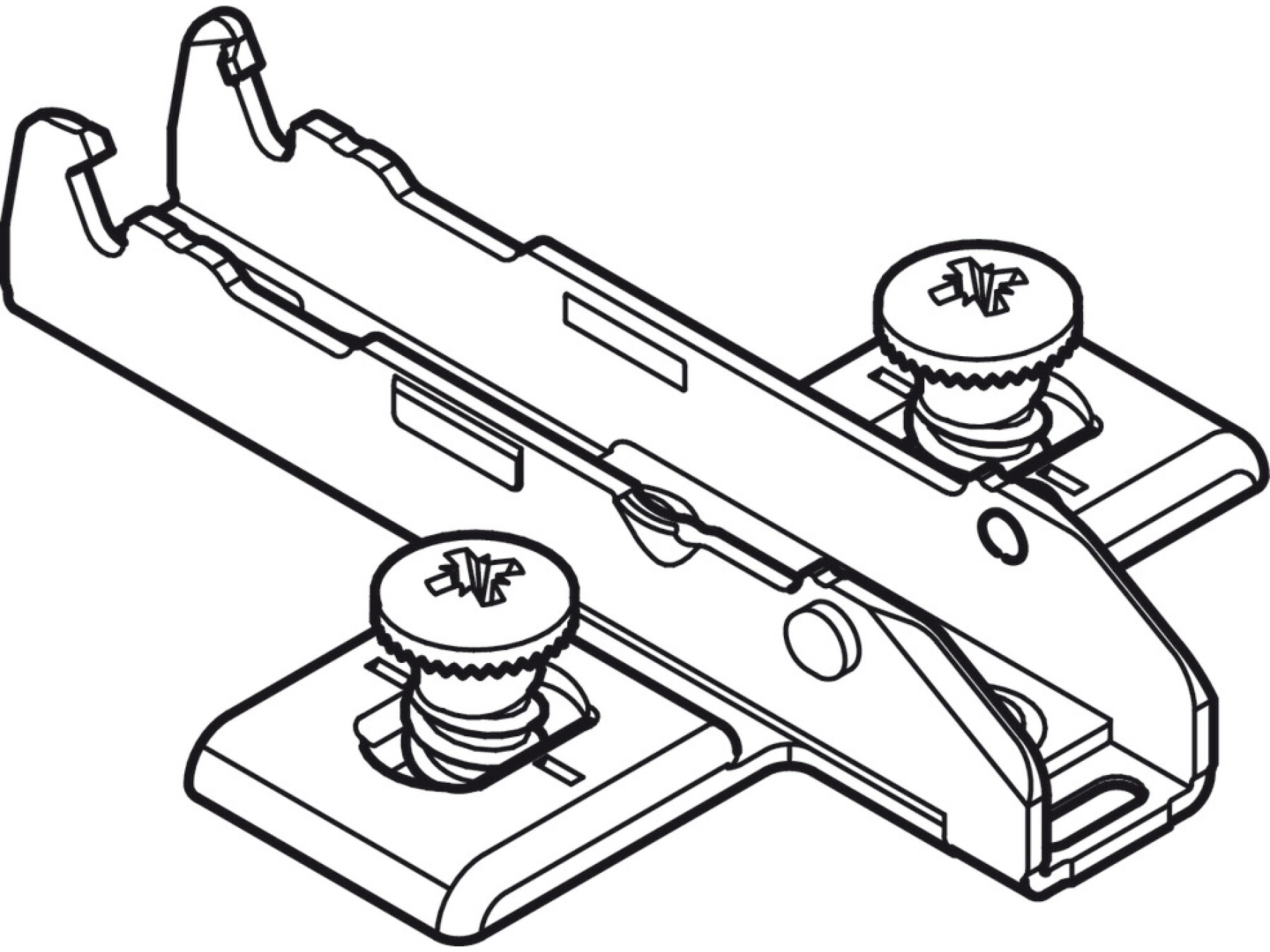

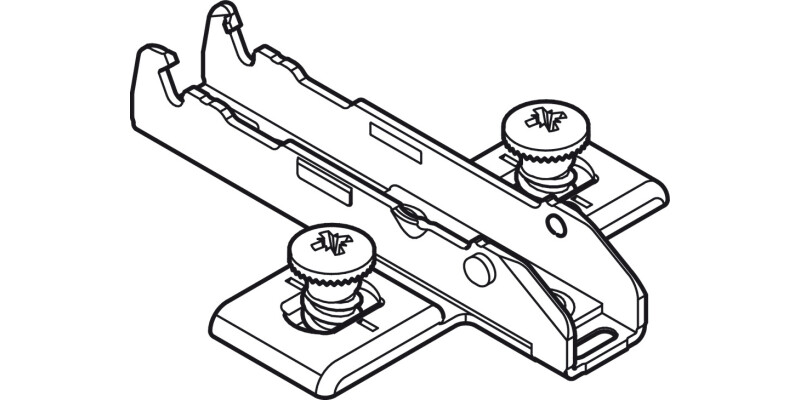

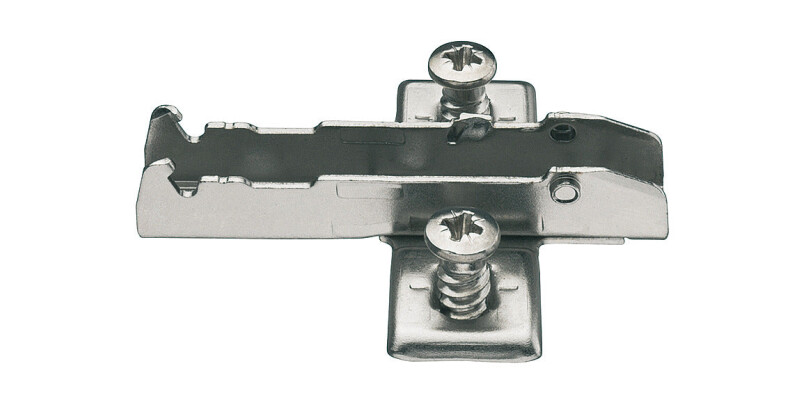

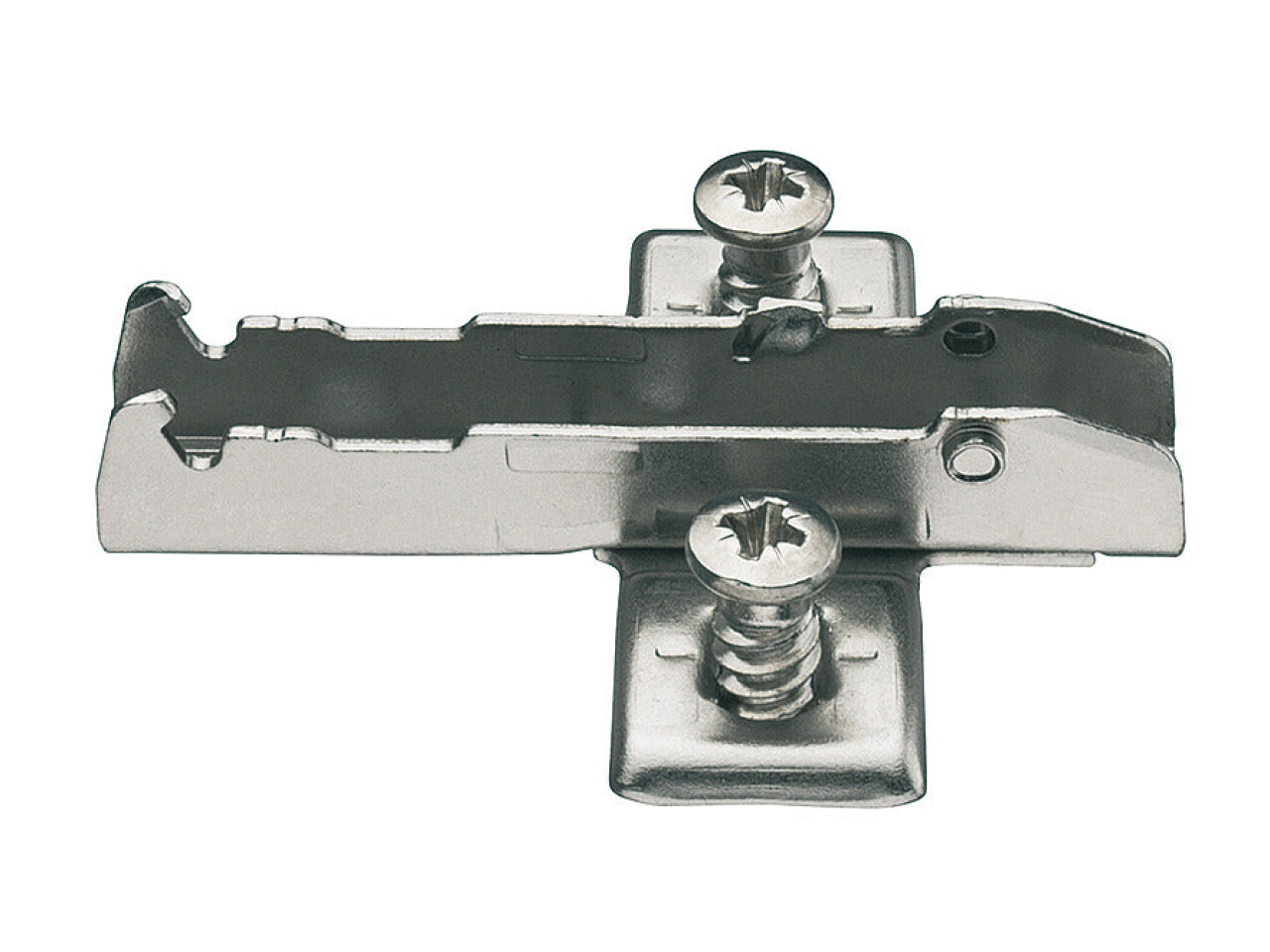

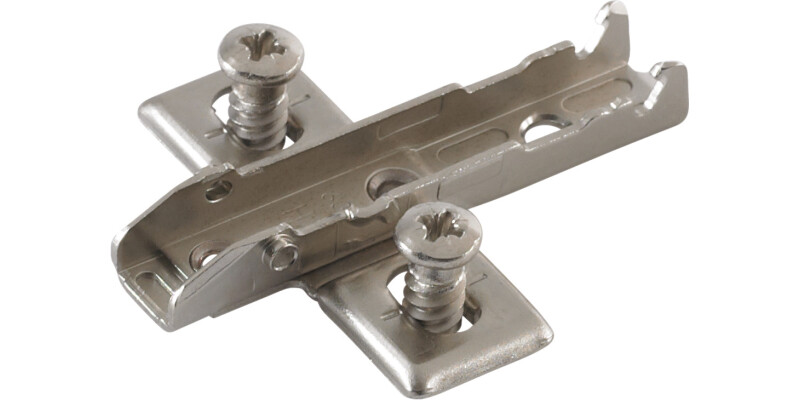

Tiomos Econ 0mm Mounting Plate Click 3 Cruci PM
Part Number: 348.38.551
Height adjustment via slot, Height 0 mm
Price:
£1.05
Per Item
Product Information
Specifications
Area of application
For Tiomos click on fixing hinges only
Version
Two part plate
Material
Steel
Colour/finish
nickel plated

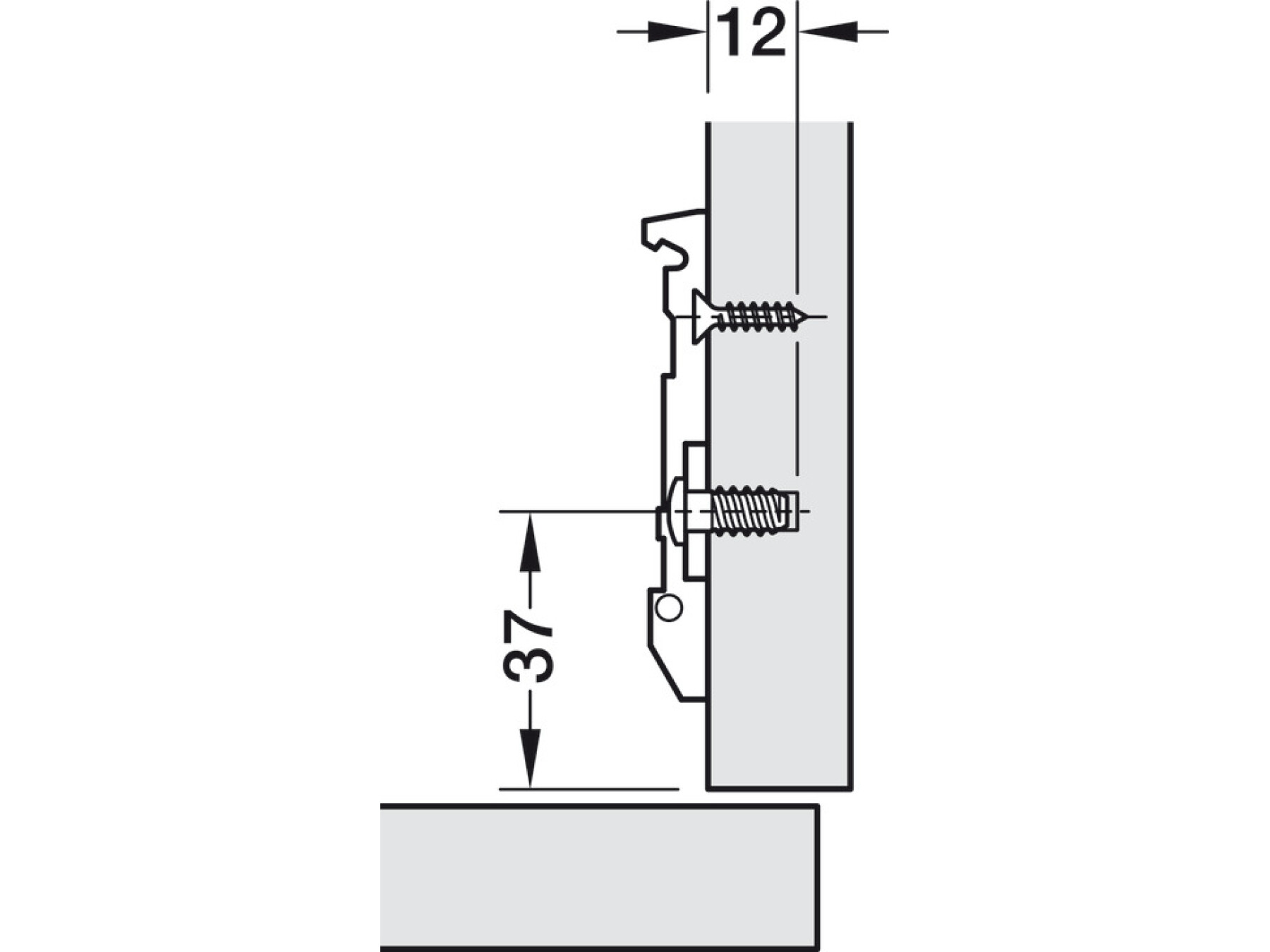

For drill hole Ø
5.00 mm
Drilling depth
12.00 mm
Screw length
13.50 mm
Screw distance
32.00 mm
Edge distance
37.00 mm
Adjustment facility
Height adjustment Via slot ±2,5 mm
Fixing method
clip system
Mounting plate version
for screw fixing with pre-mounted pan head Euro screws
Distance
Model
Tiomos
Model series
Tiomos
Order reference
Hospa screw and dowel fixing versions available
