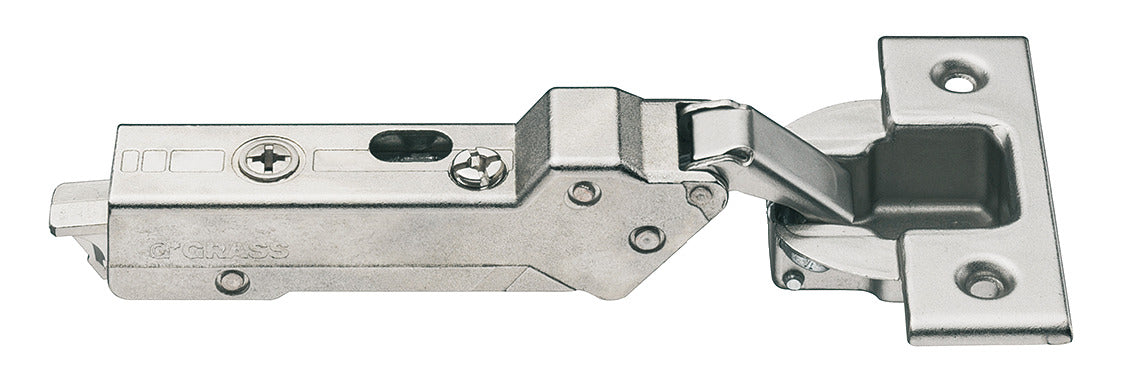

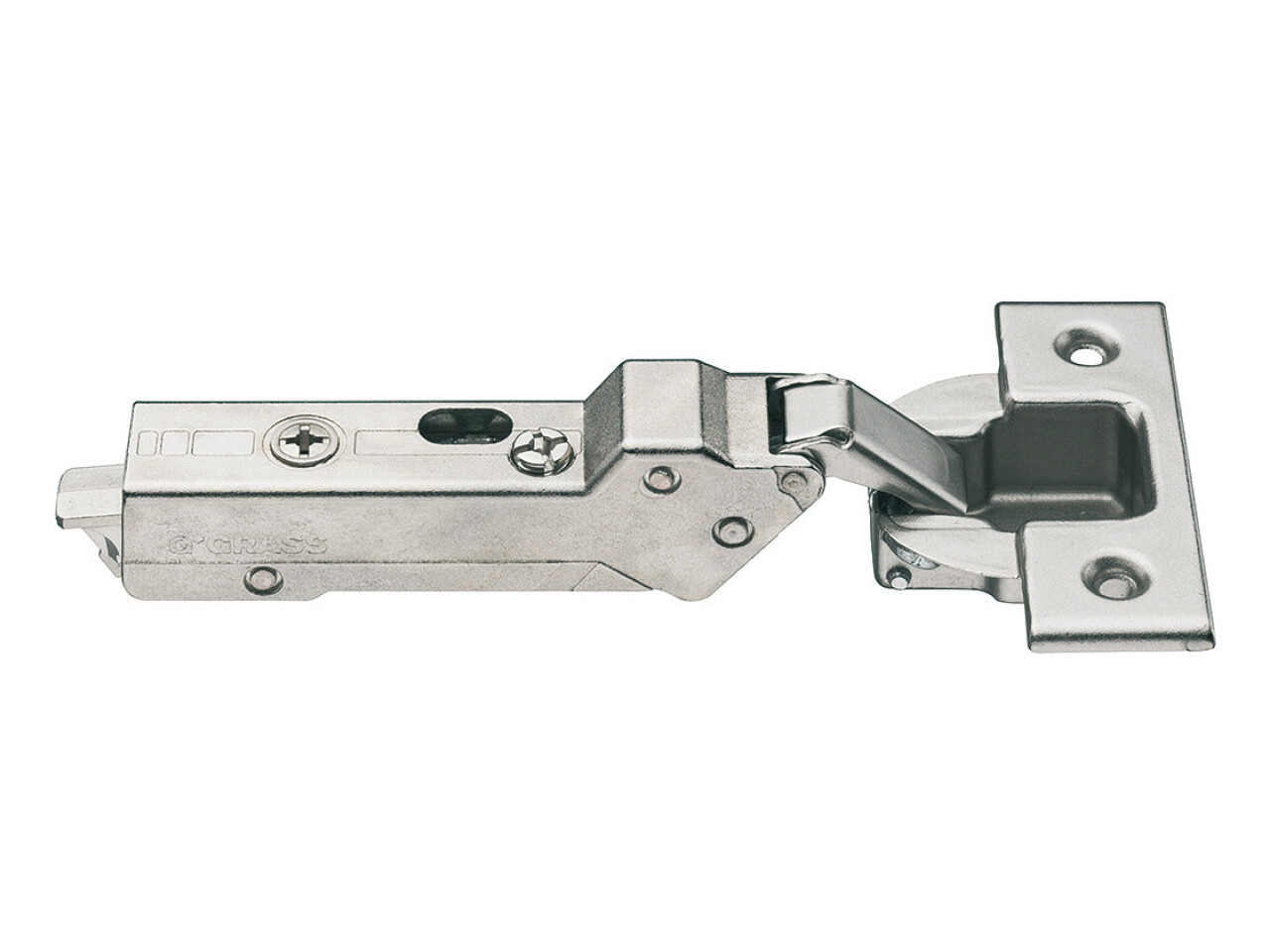

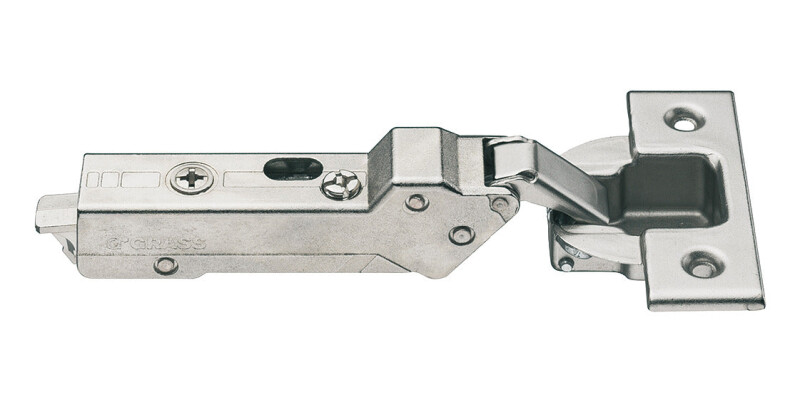

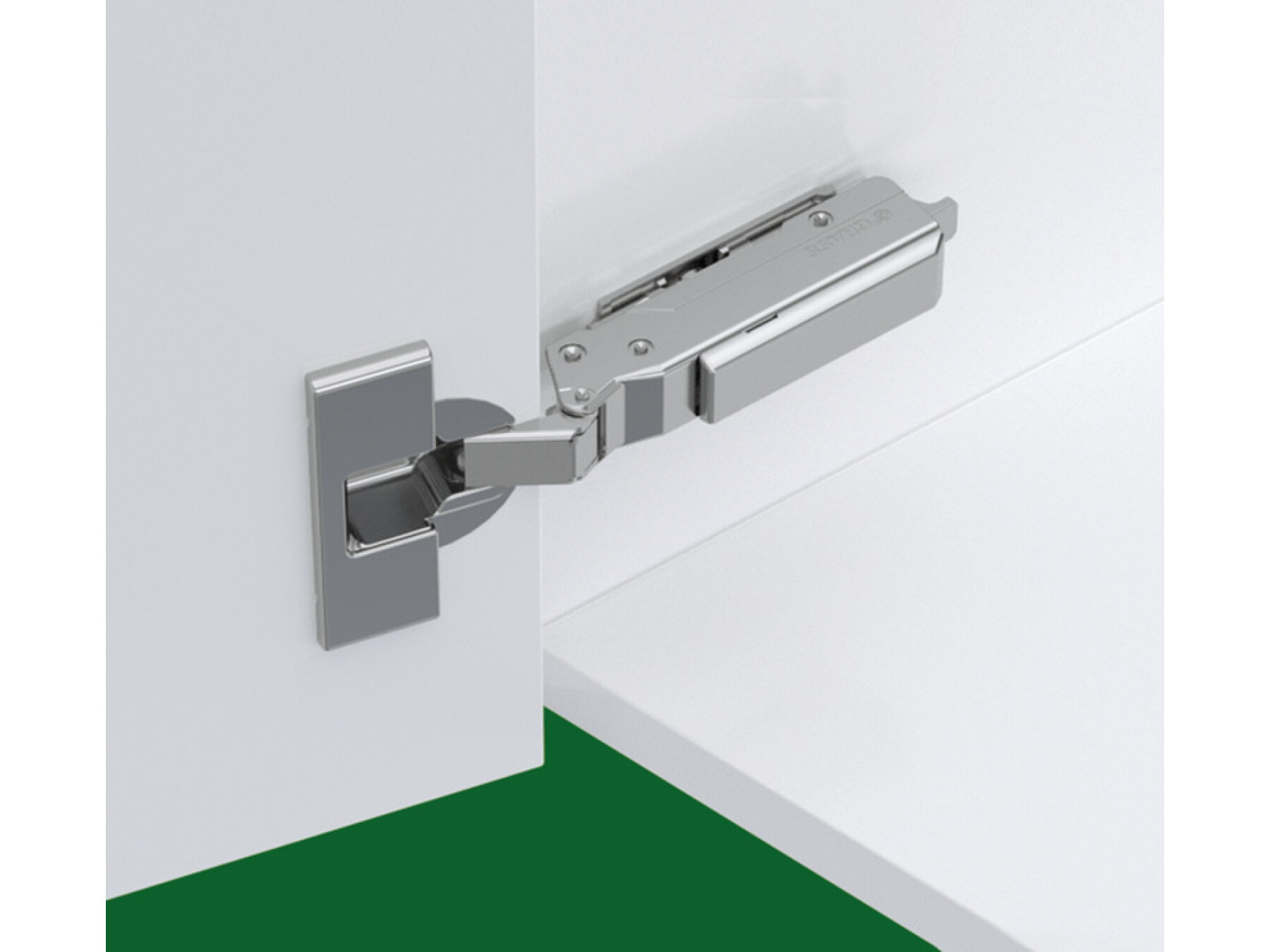

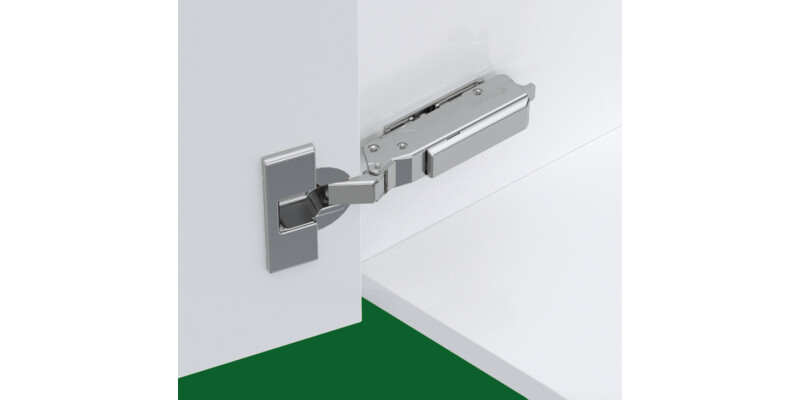

Tiomos 120D Hinge Click wo SC SF Full+
Part Number: 348.36.600
For standard applications with convenient opening angle, Without soft close, screw fixing cup 45/9.5
Price:
£4.10
Per Item
Ø 35 mm cupAdjustment facility Side adjustment 2 mm, Height adjustment -2.5 – 2.5 mm, Depth adjustment... Read More
Product Information
Product Details
Ø 35 mm cup
Adjustment facility
Side adjustment 2 mm, Height adjustment -2.5 – 2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
| Minimum gap | |||||
|---|---|---|---|---|---|
| Door thickness mm | Distance to cup E mm | ||||
| 3,0 | 4,0 | 5,0 | 6,0 | 7,0 | |
| 16 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| 17 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| 18 | 0,7 | 0,7 | 0,7 | 0,7 | 0,7 |
| 19 | 0,9 | 0,9 | 0,9 | 0,9 | 0,9 |
| 20 | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 |
| 21 | 1,4 | 1,3 | 1,3 | 1,3 | 1,3 |
| 22 | 3,0 | 2,0 | 1,5 | 1,5 | 1,5 |
| 24 | 6,4 | 5,4 | 4,4 | 3,4 | 2,4 |
| Minimum gap F | |||||
| Door overlay mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22* | |
| 3 | 4 | 5 | 6 | 7 | 0 | |||
| 3 | 4 | 5 | 6 | 7 | 2 | |||
| 3 | 4 | 5 | 6 | 7 | 3 | |||
| Distance to cup E mm | Mounting plate distance mm | |||||||

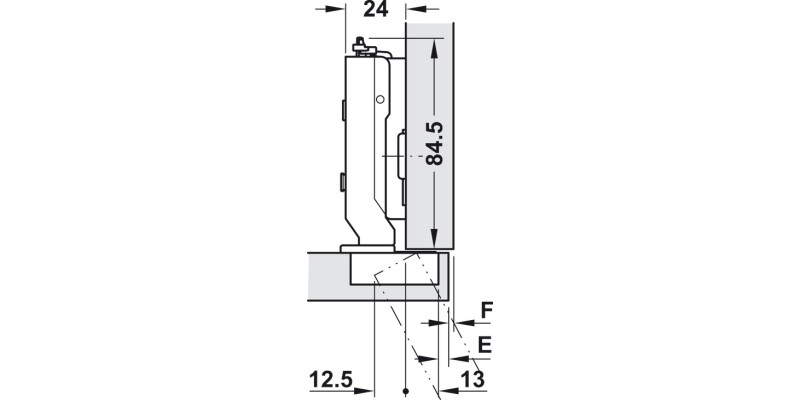

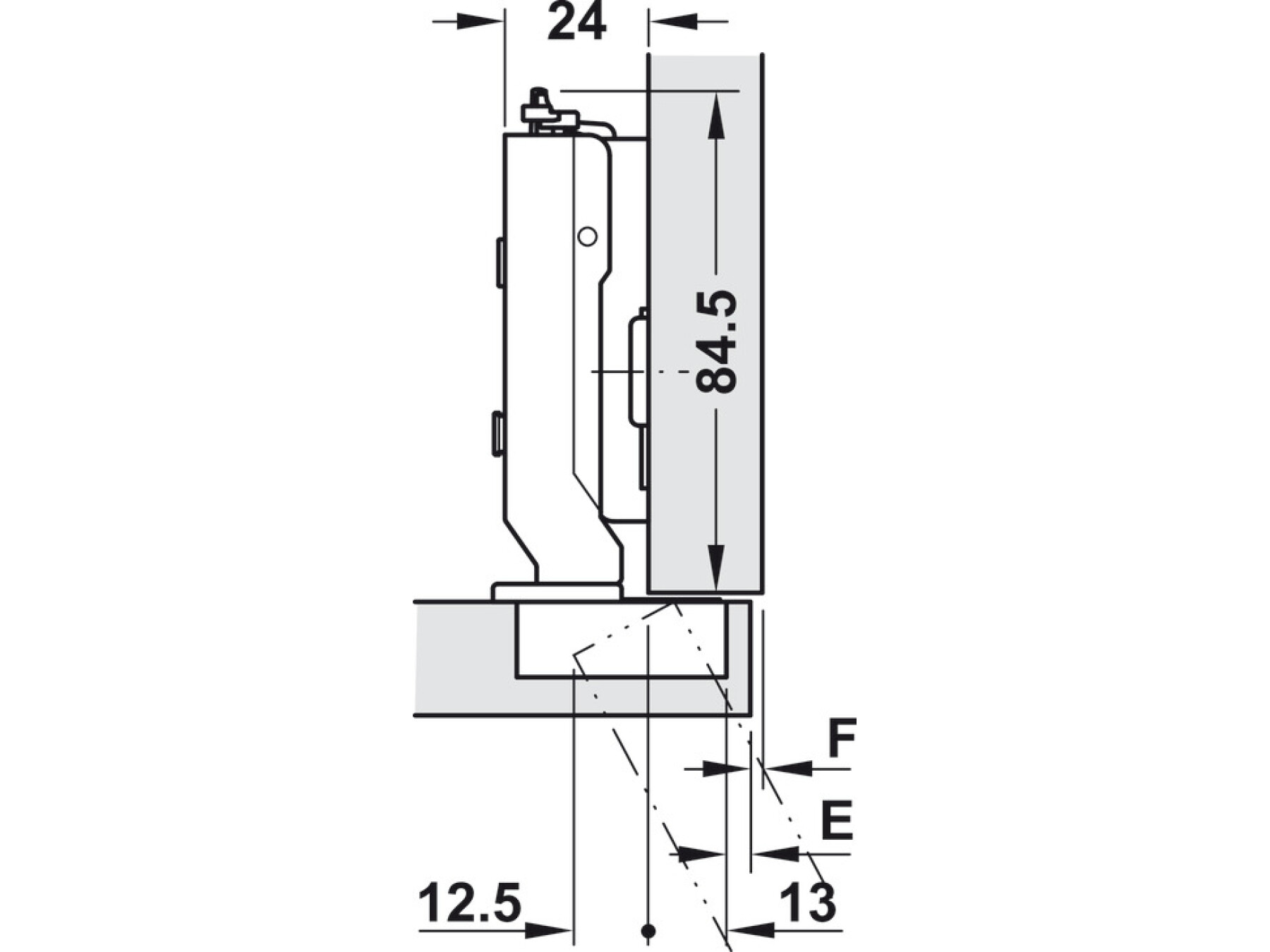

The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.
Specifications
Area of application
For standard applications with convenient opening angle
Model No.
F045138485228
Concealed hinge version
Full overlay
Crank type
Cranked
For door material
Wood
Door processing for assembly
with cup drilling
Material
Steel
Colour/finish
nickel plated
Opening angle
120°
Cup drilling depth
12.60 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

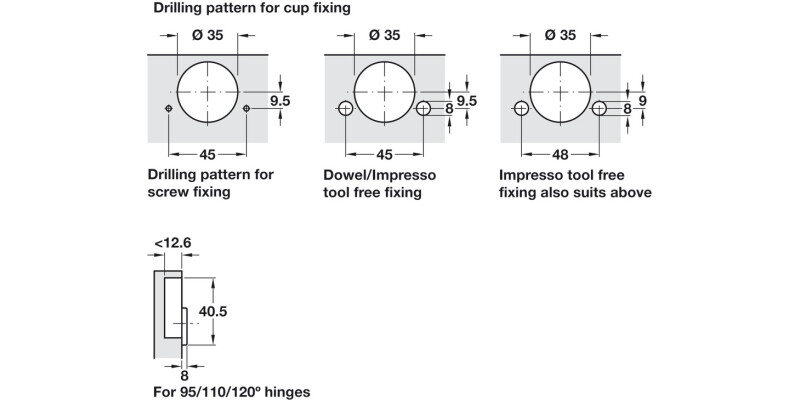

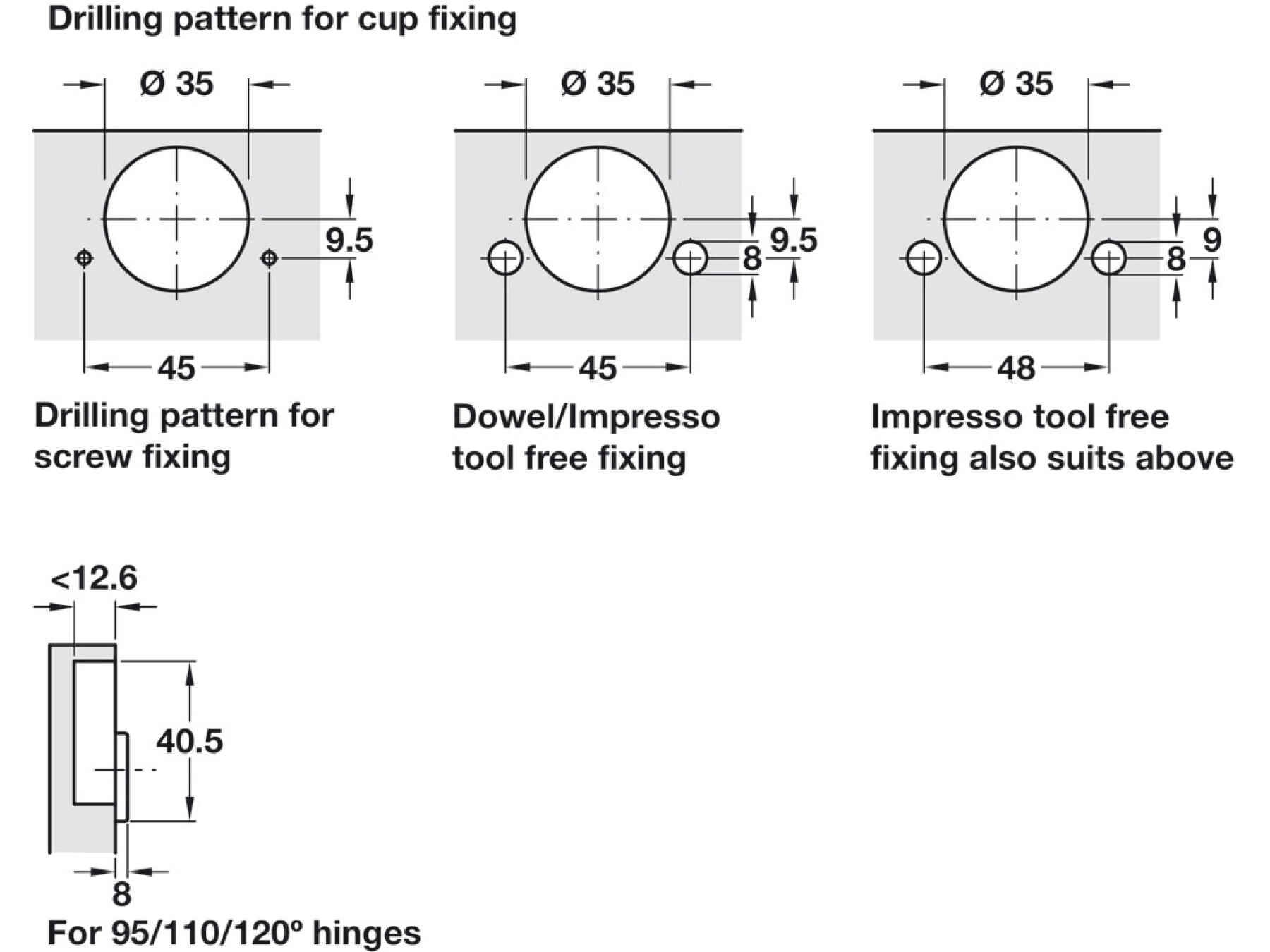

Drilling pattern
45/9.5
Installation

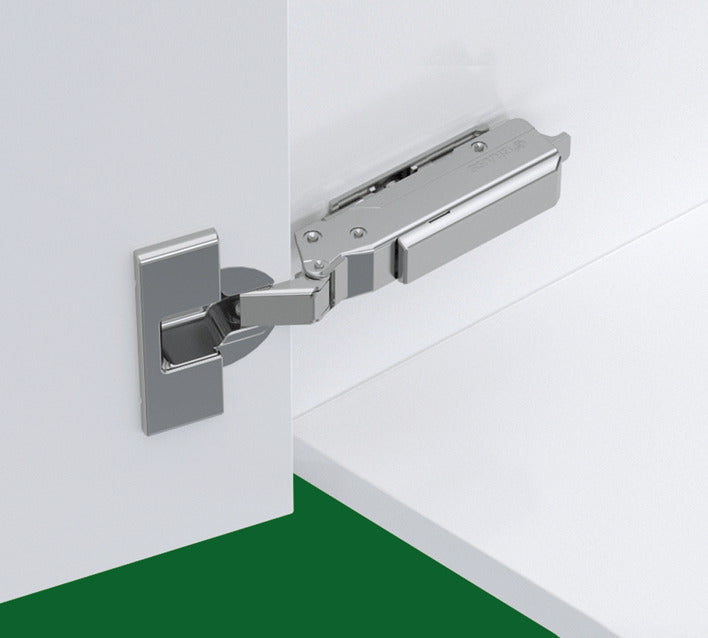

Door on cabinet without tools with clip system
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
