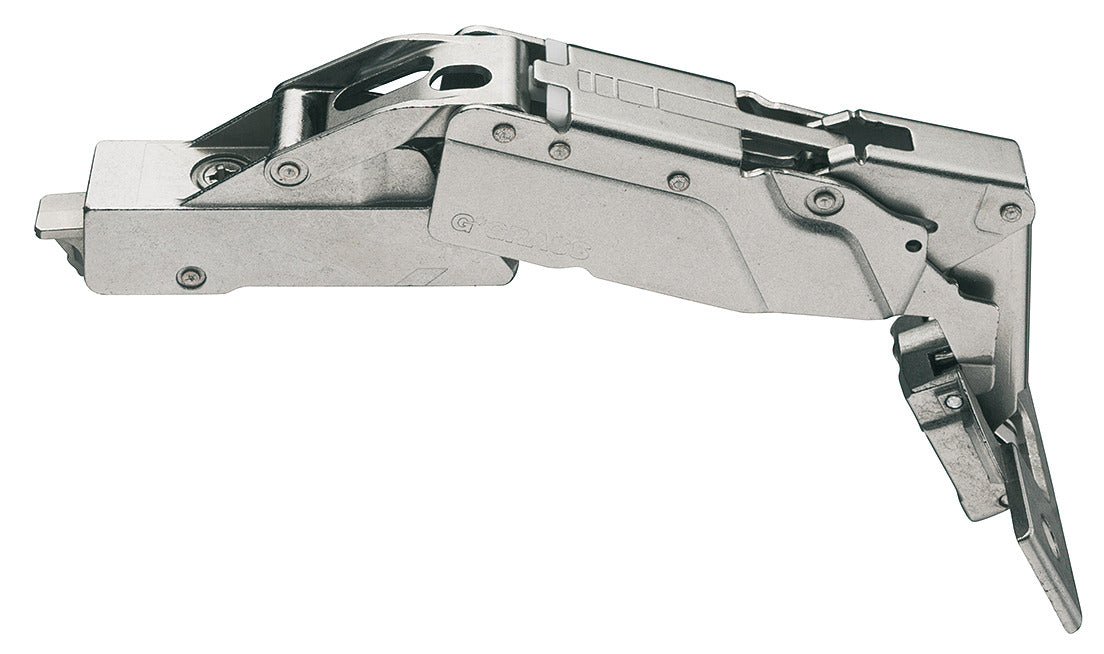

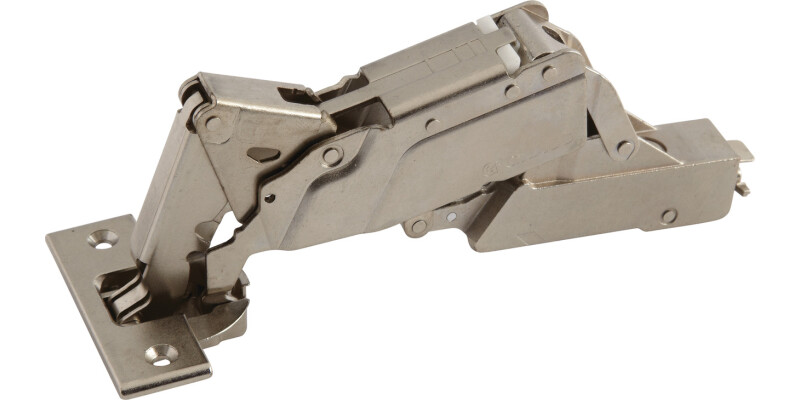

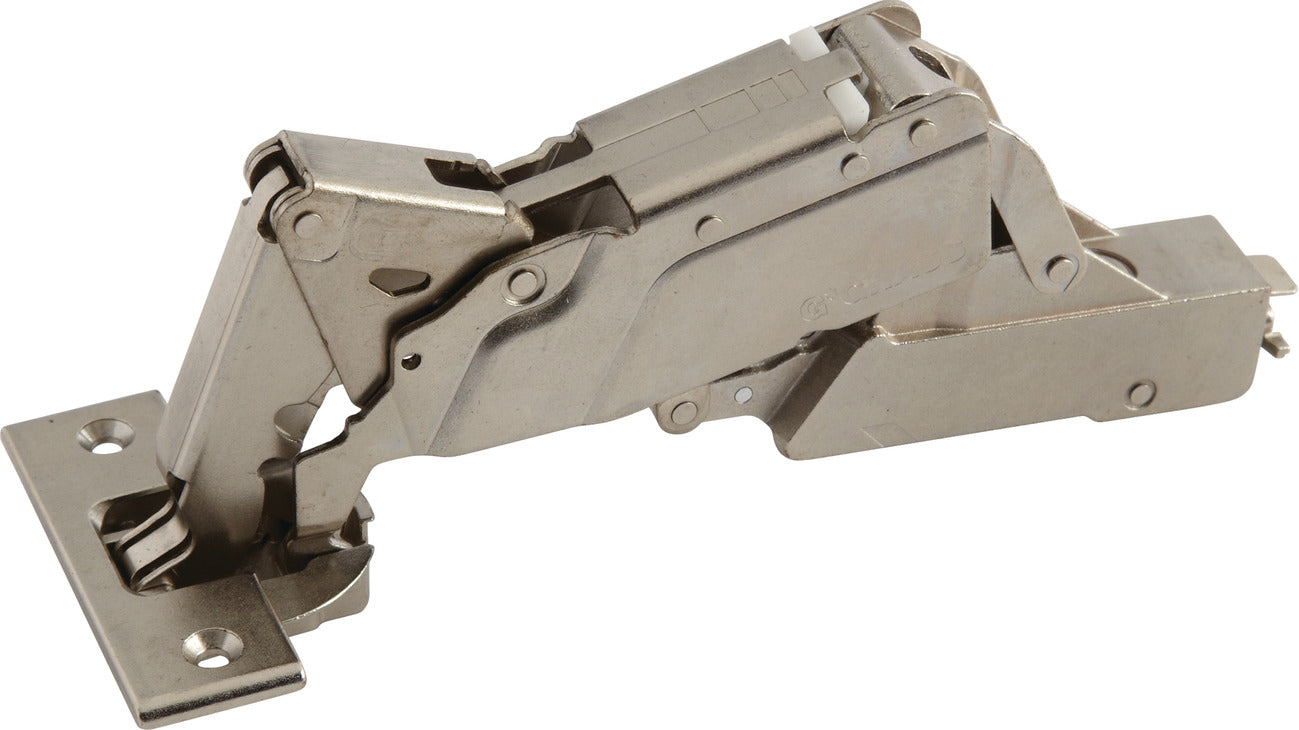

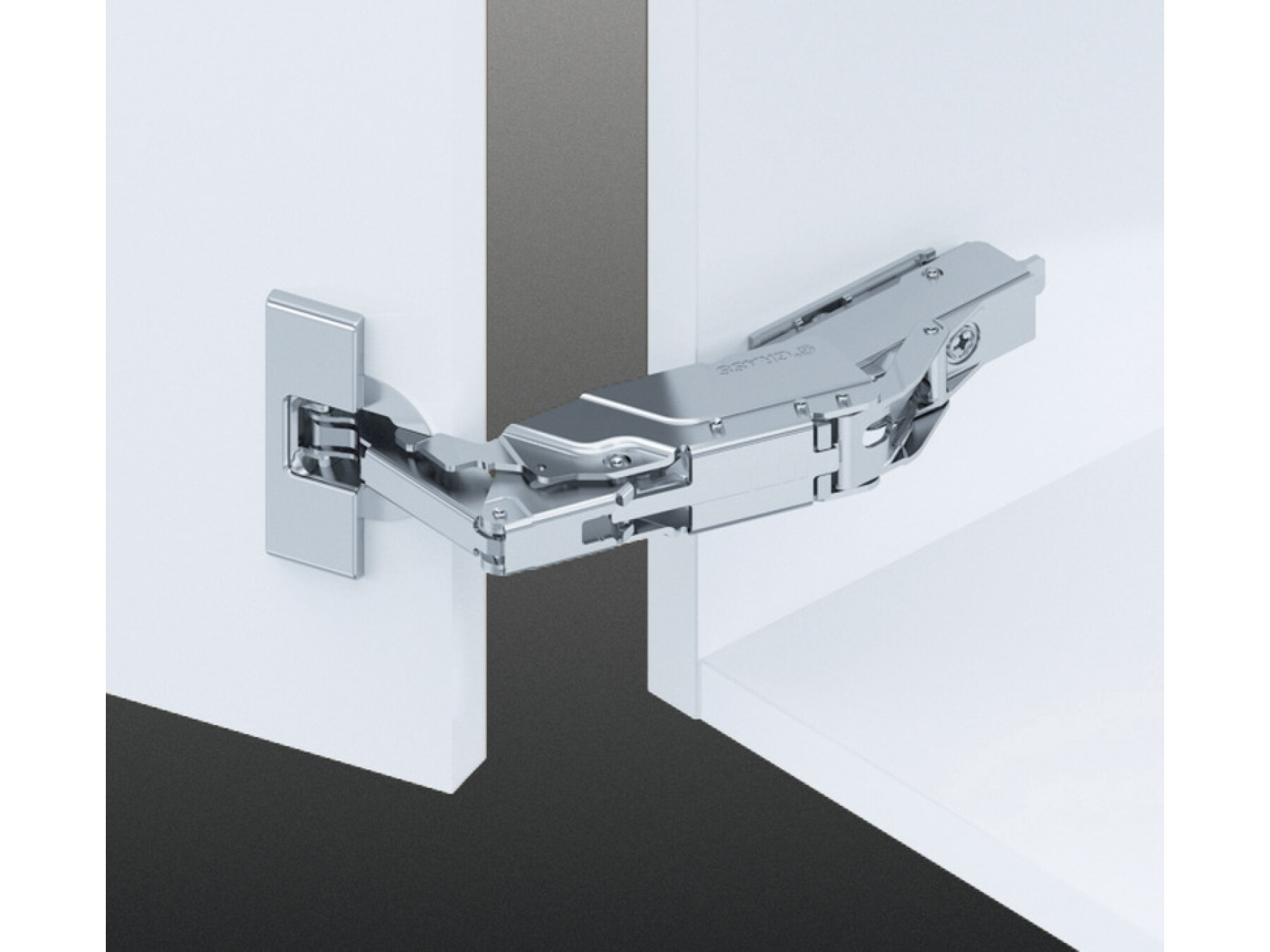

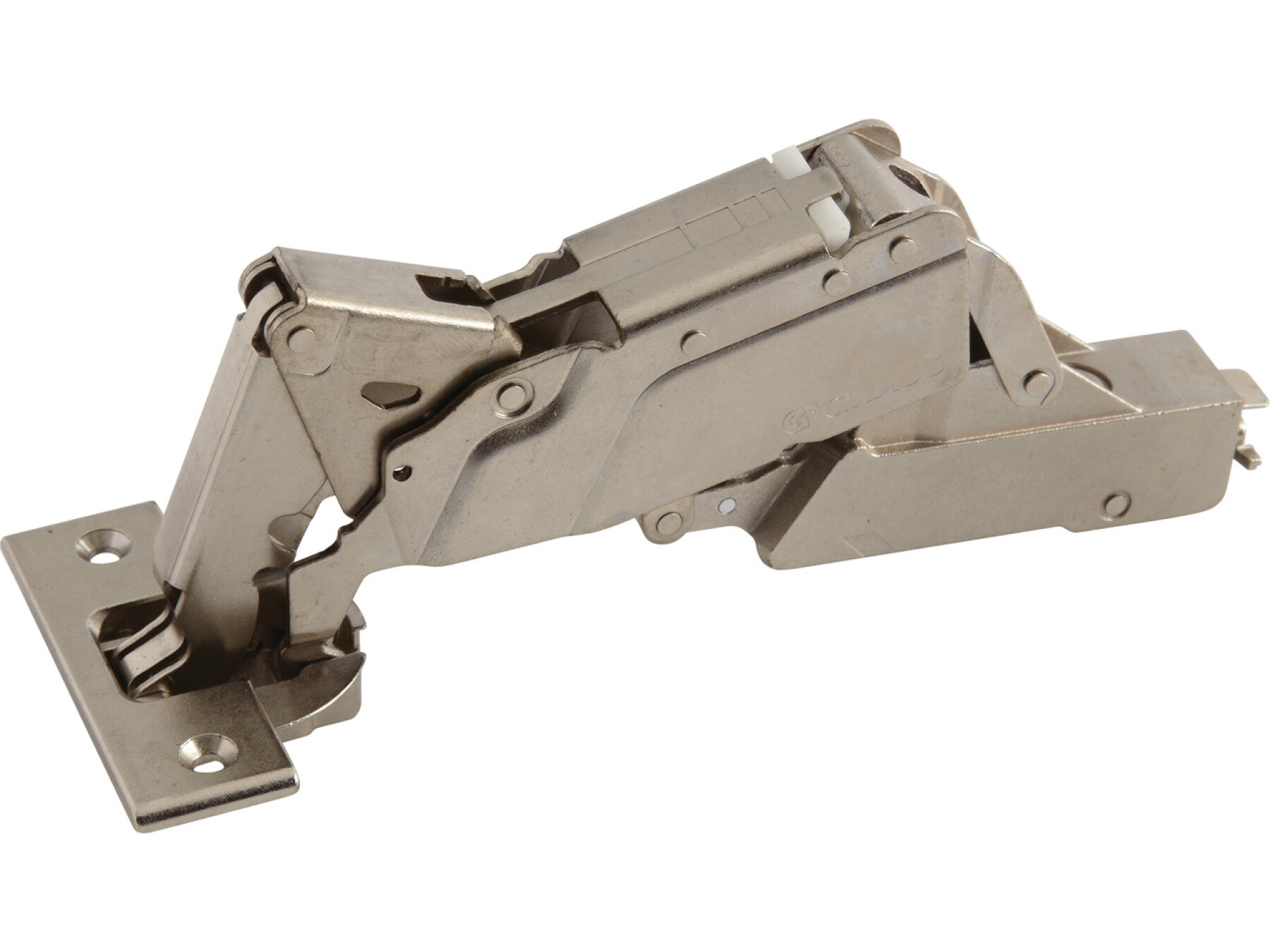

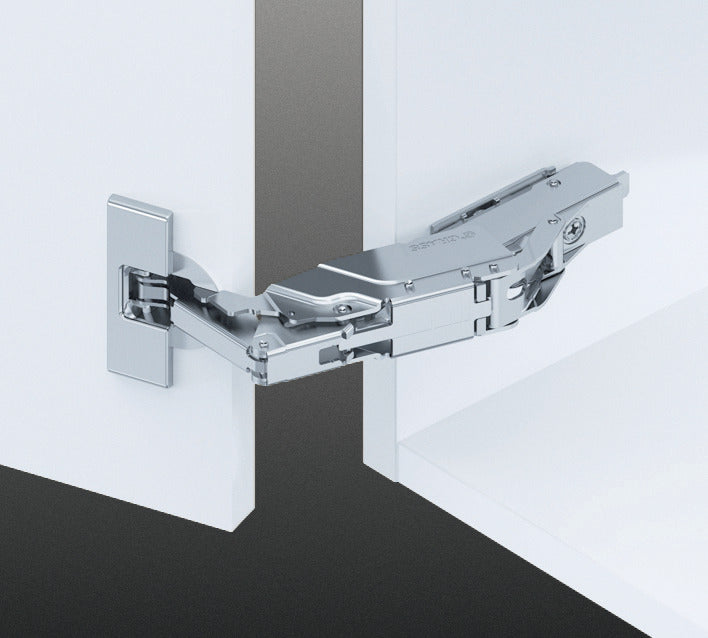

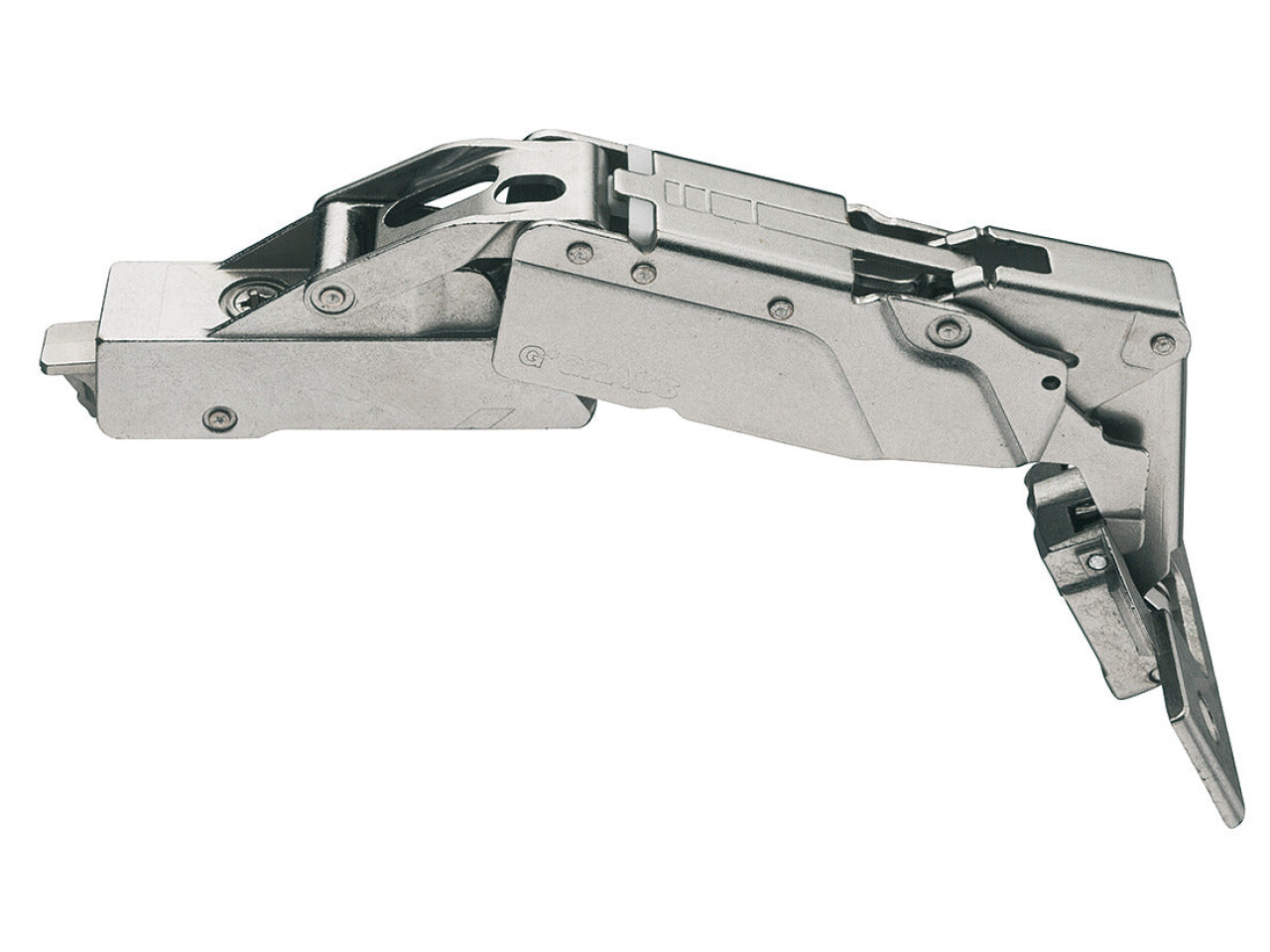

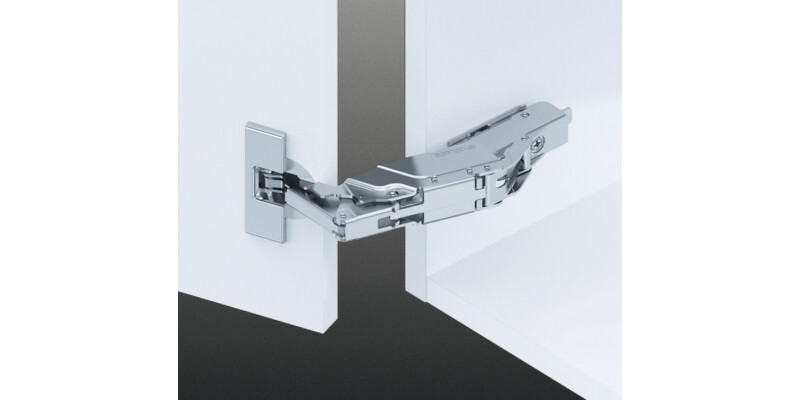

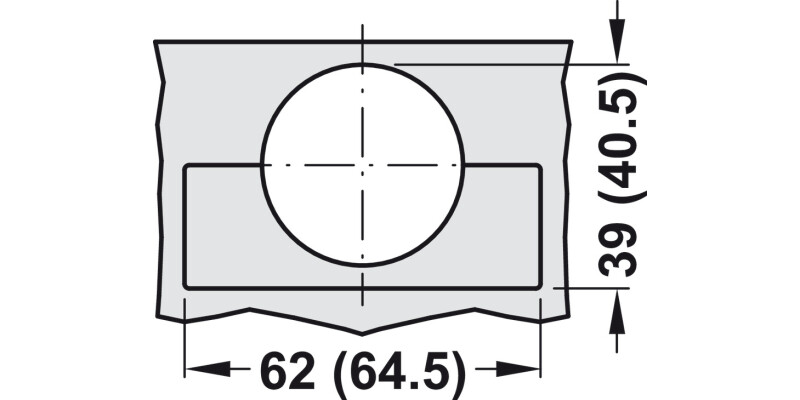

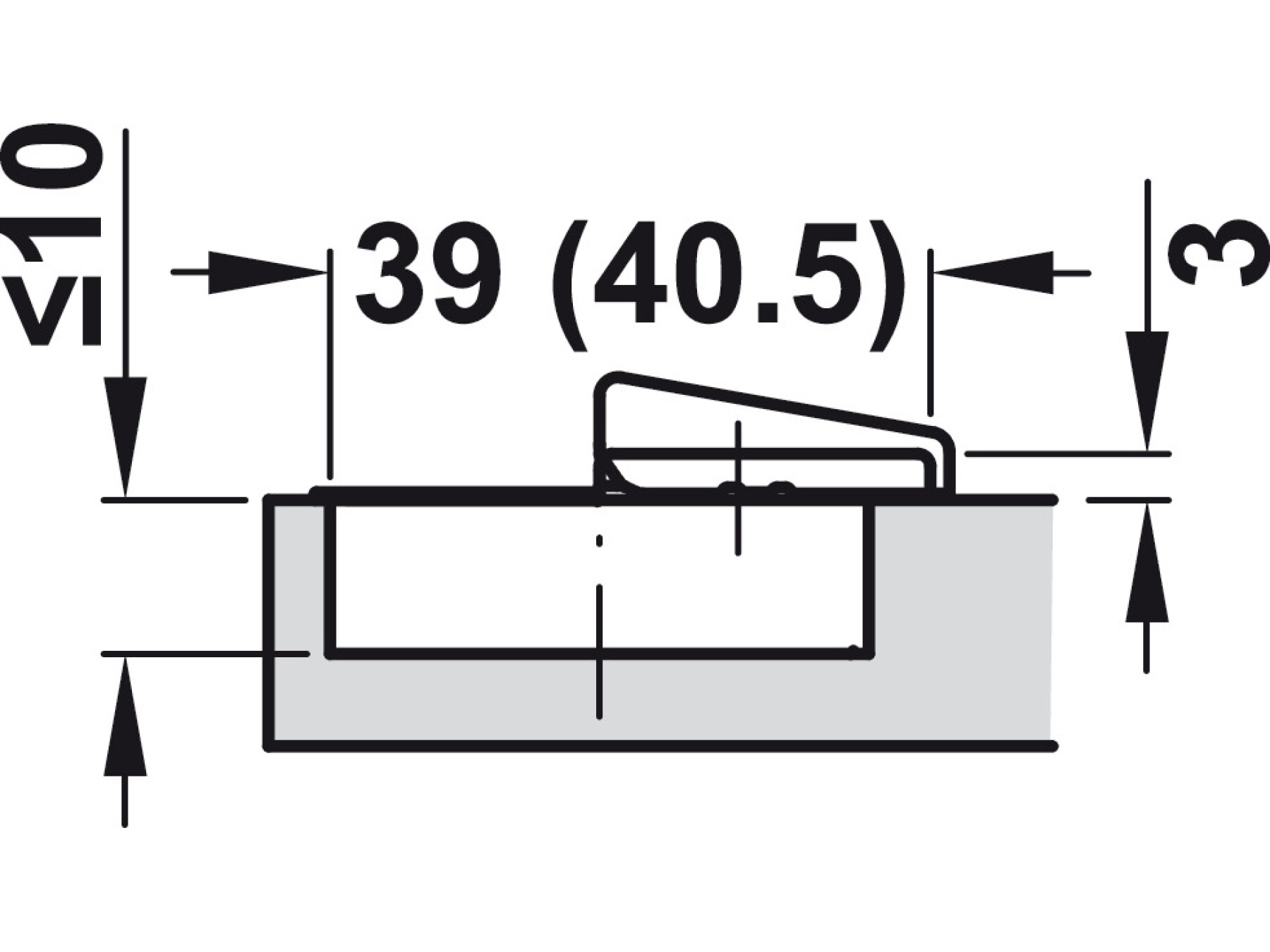

Tiomos 160D Hinge Click w SC SF Half
Part Number: 348.32.802
Click on arm, With soft close, screw fixing cup, 45/9.5, nickel plated
Price:
£10.67
Per Item
For standard applicationsØ 35 mm cupZero protrusion makes this ideal for cabinets with internal drawer boxes or... Read More
Product Information
Product Details
For standard applications
Ø 35 mm cup
Zero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelves
With finger protection
Adjustment facility
Side adjustment 2 mm, Height adjustment -2.5 – 2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
Image shows with hinge cover cap not included, to be ordered separately

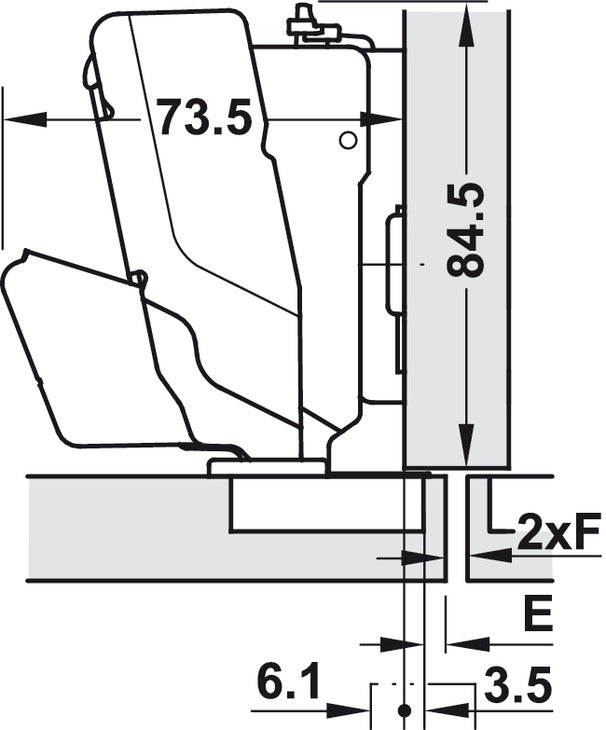

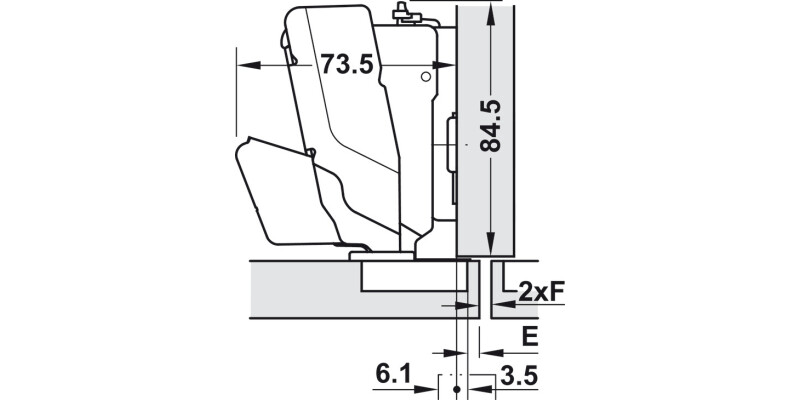

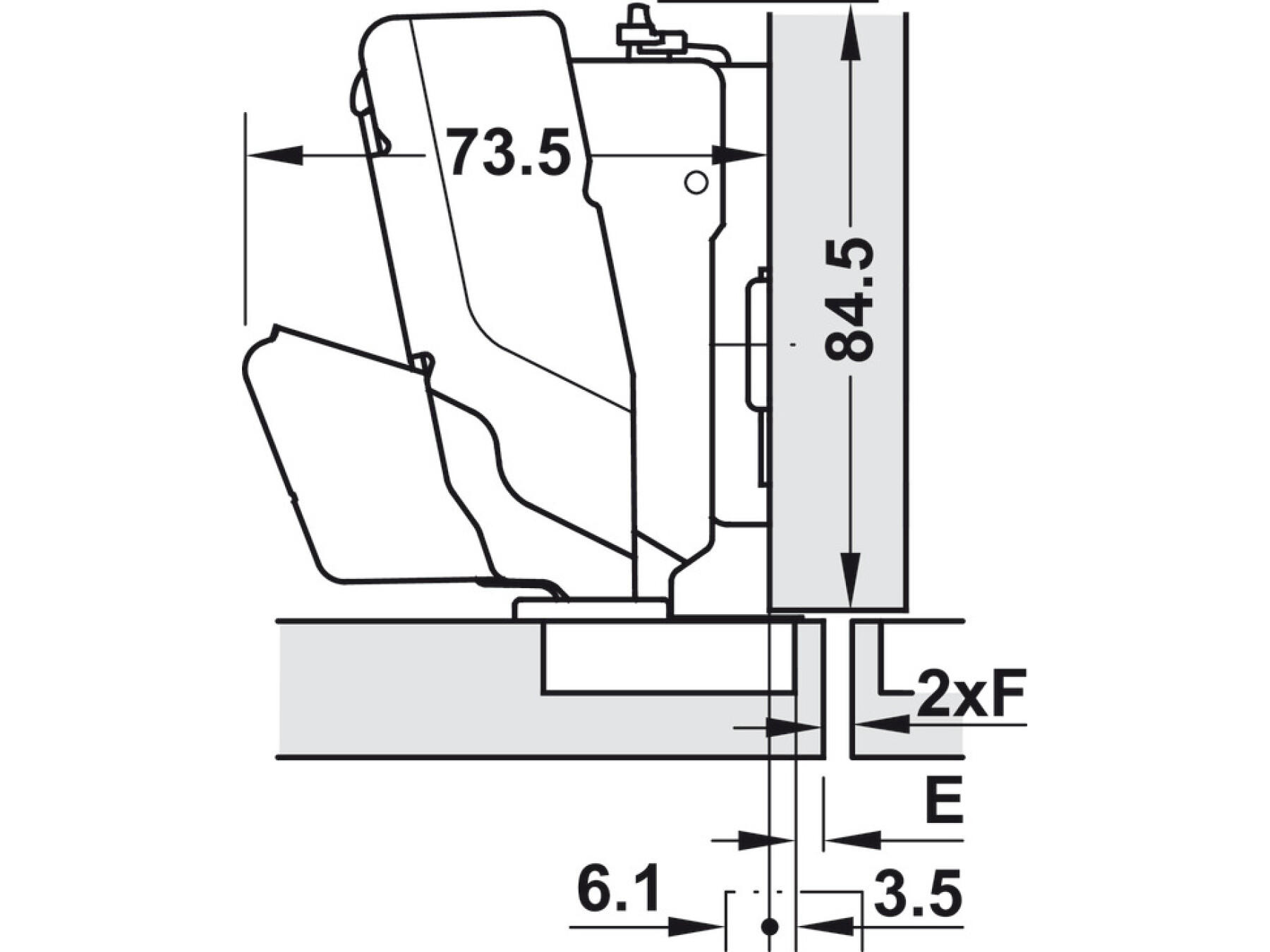

| Door overlay mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5.5 | 6.5 | 7.5 | 8.5 | 9.5 | 10.5 | 11.5 | 12.5 | 13.5 | 14.5 | 15.5 | |
| 3 | 4 | 5 | 6 | 7 | 8 | -2 | |||||
| 3 | 4 | 5 | 6 | 7 | 8 | 0 | |||||
| 3 | 4 | 5 | 6 | 7 | 8 | 2 | |||||
| 3 | 4 | 5 | 6 | 7 | 8 | 3 | |||||
| Distance to cup E mm | Mounting plate distance mm | ||||||||||
Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm
Specifications
Area of application
for cabinets with internal pull outs or extending trays
Functionality
With soft closing mechanism
Model No.
F028138563217
Concealed hinge version
Half overlay mounting/twin mounting
Crank type
Cranked
For door material
Wood
Door processing for assembly
with cup drilling
Material
Cup: Zinc alloy, Hinge arm: Steel
Opening angle
155°

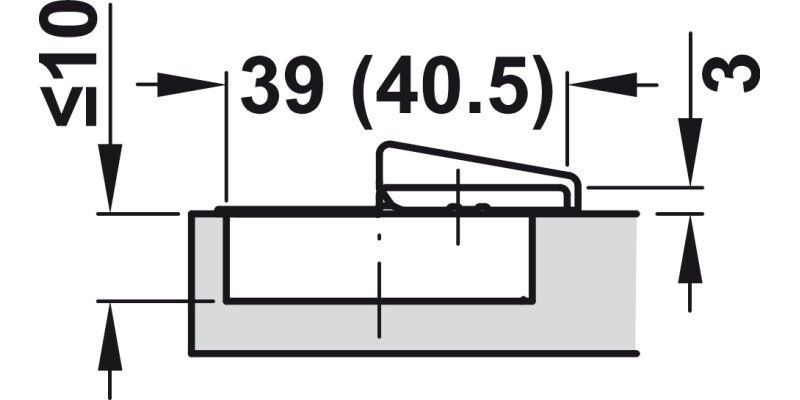

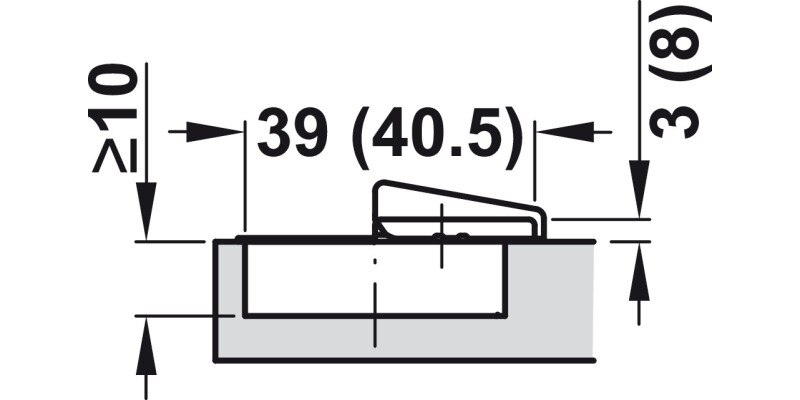

Cup drilling depth
10.00 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

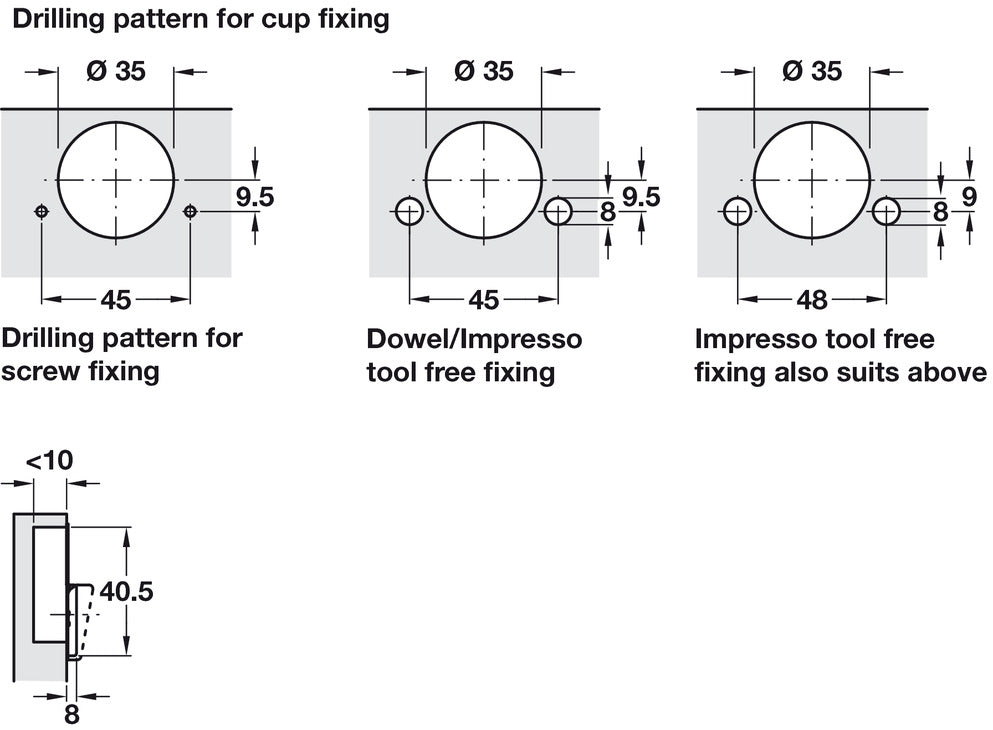

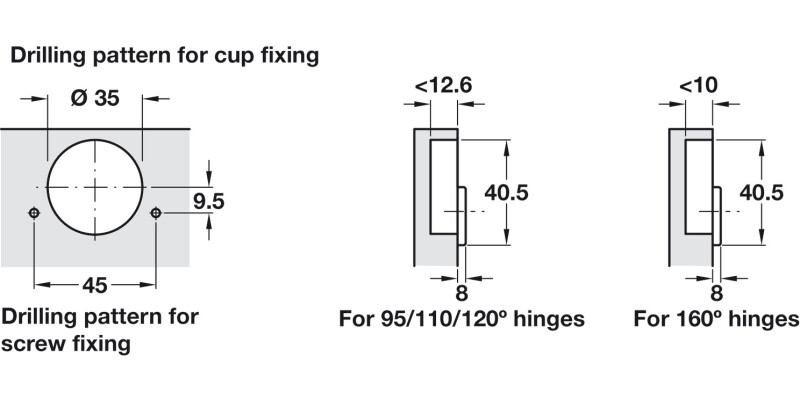

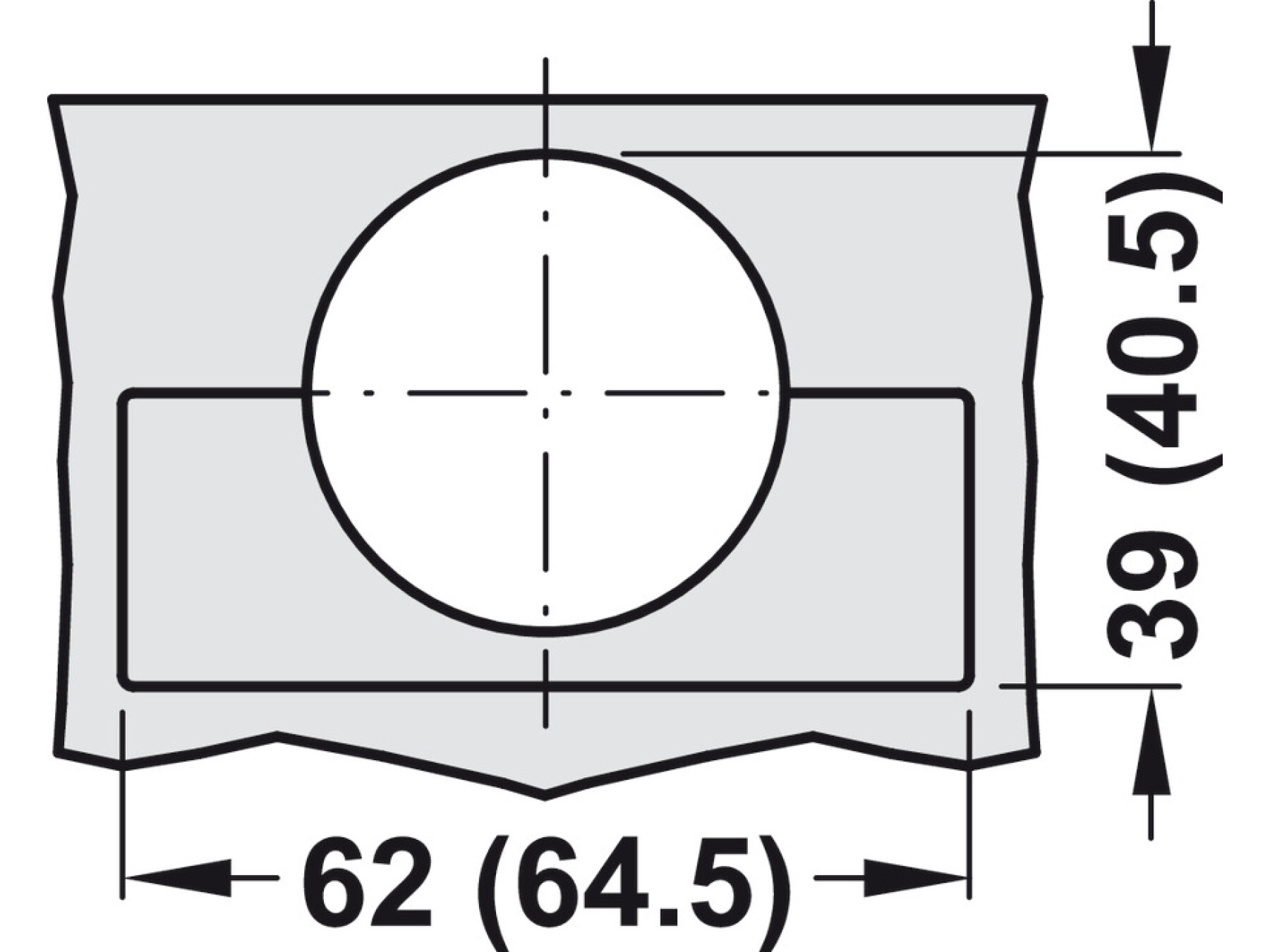

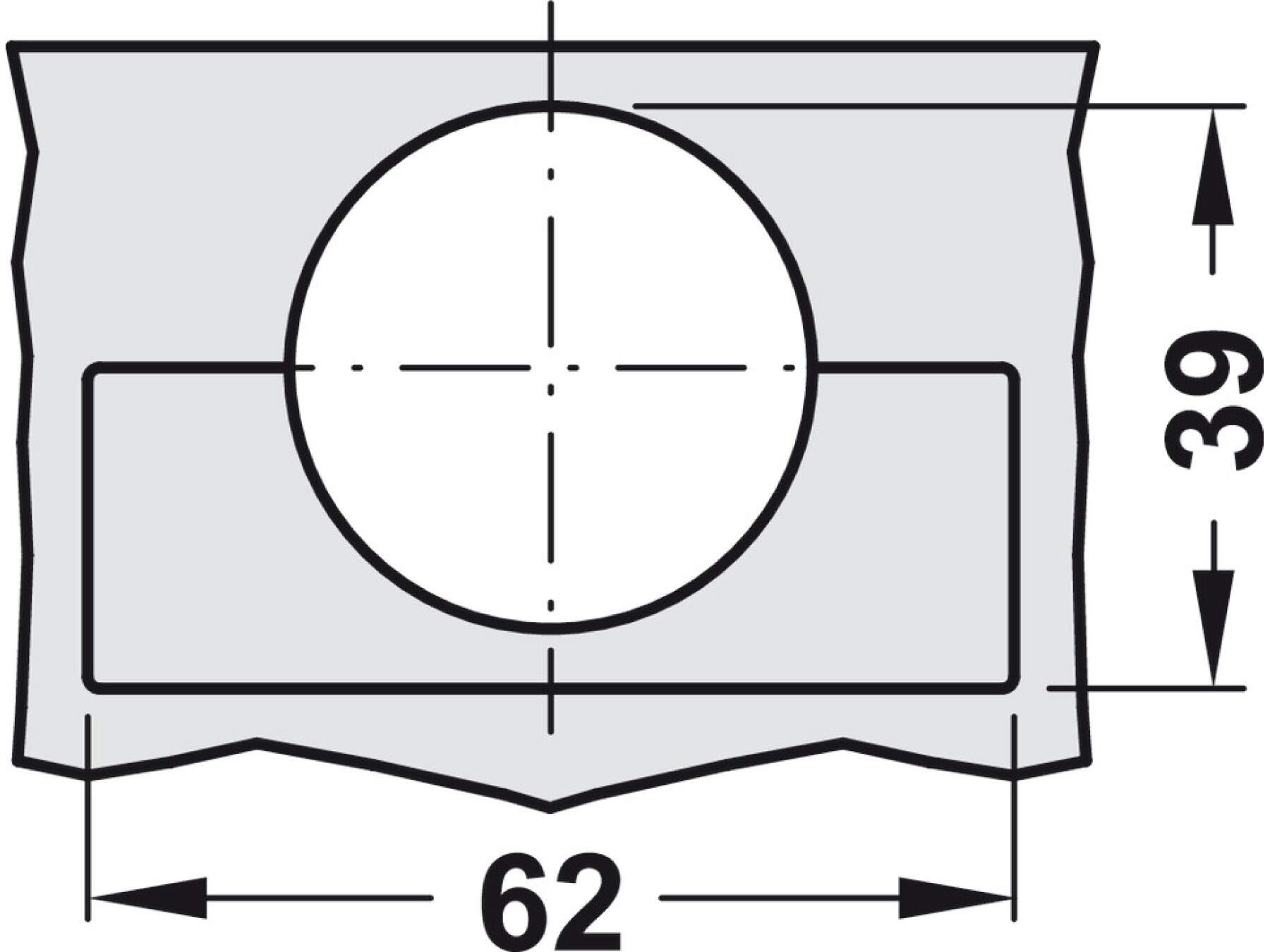

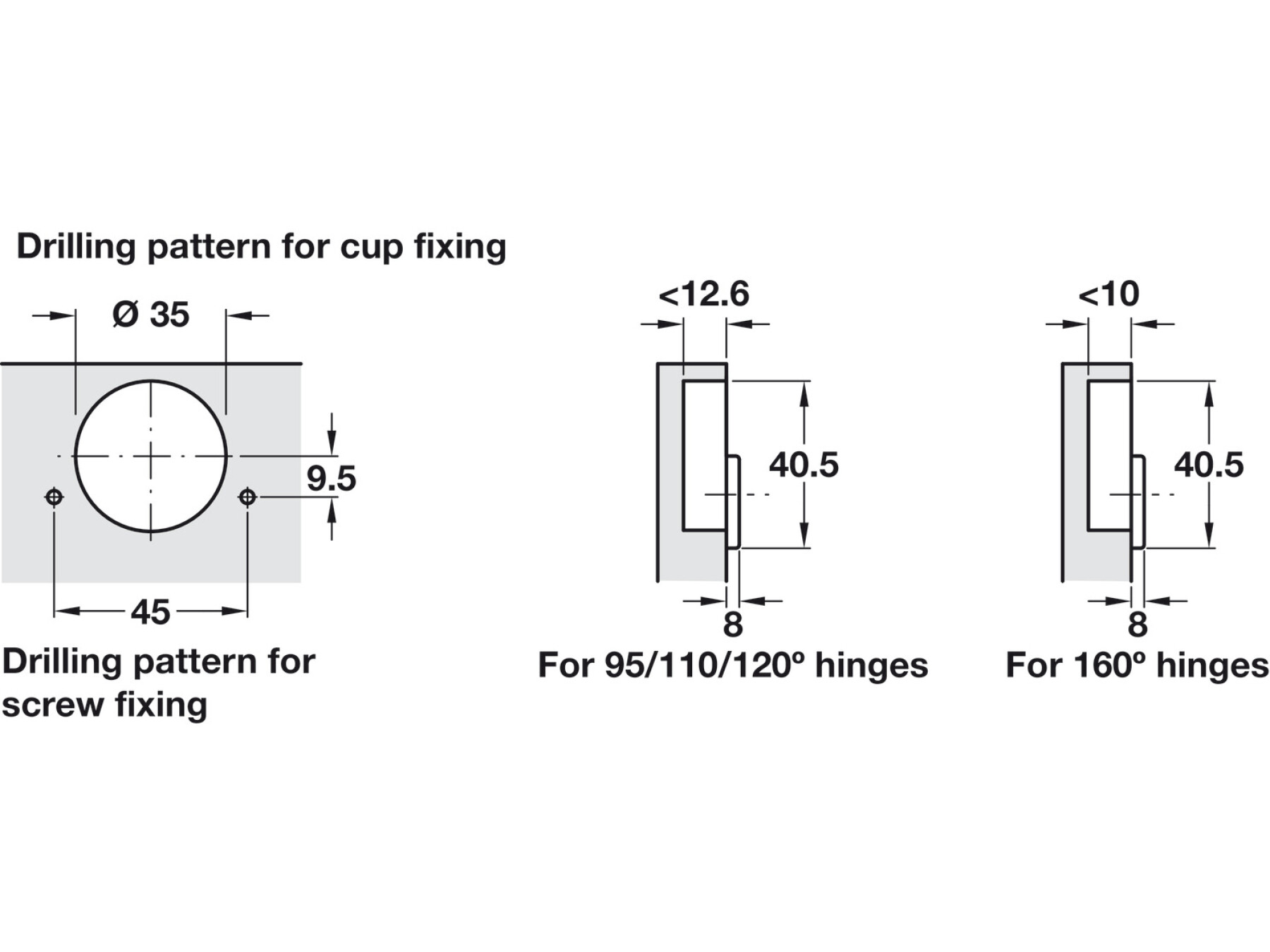

Drilling pattern
45/9.5
Installation
Door on cabinet without tools with clip system
