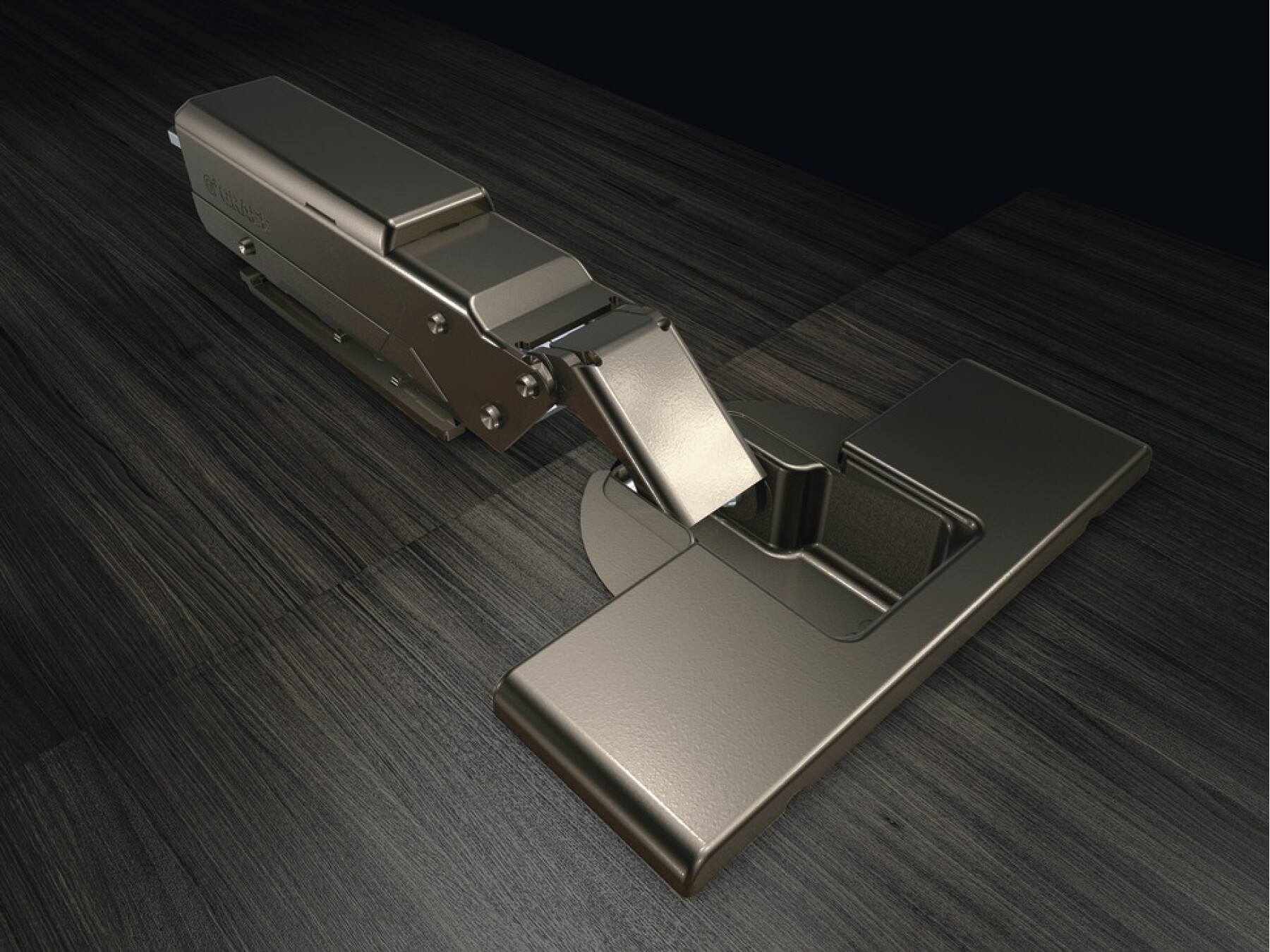

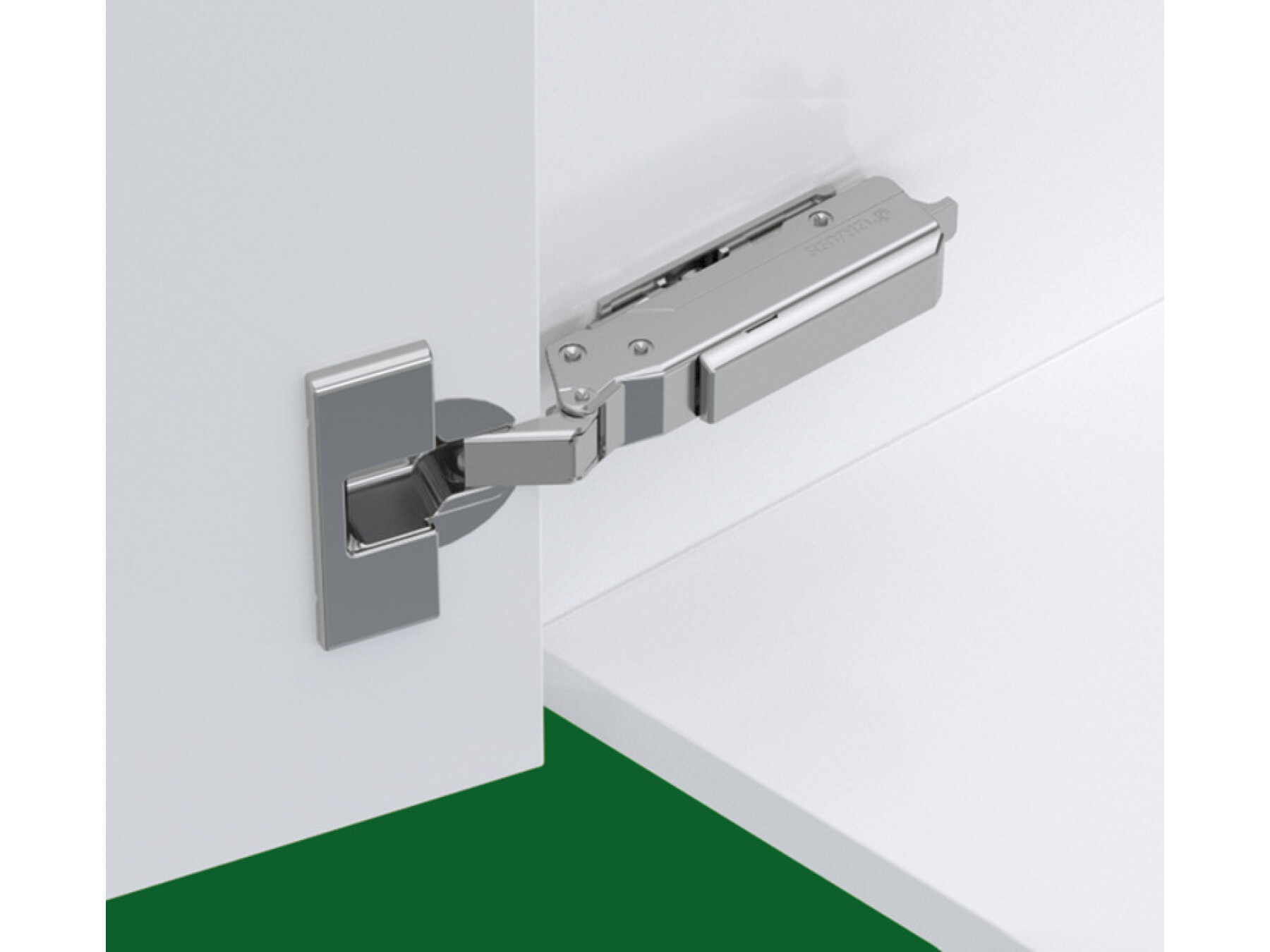

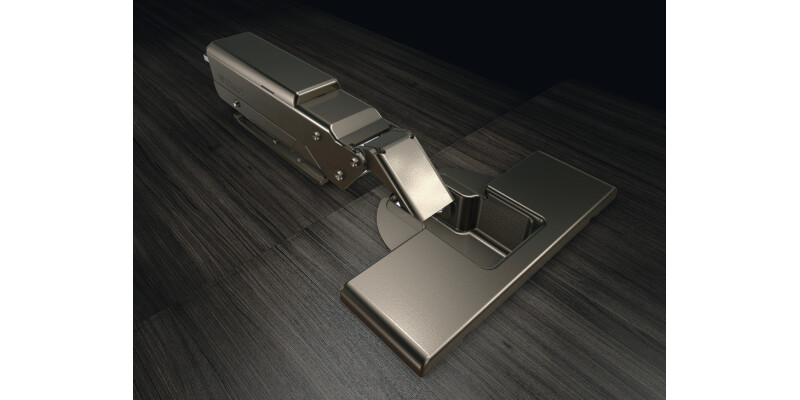

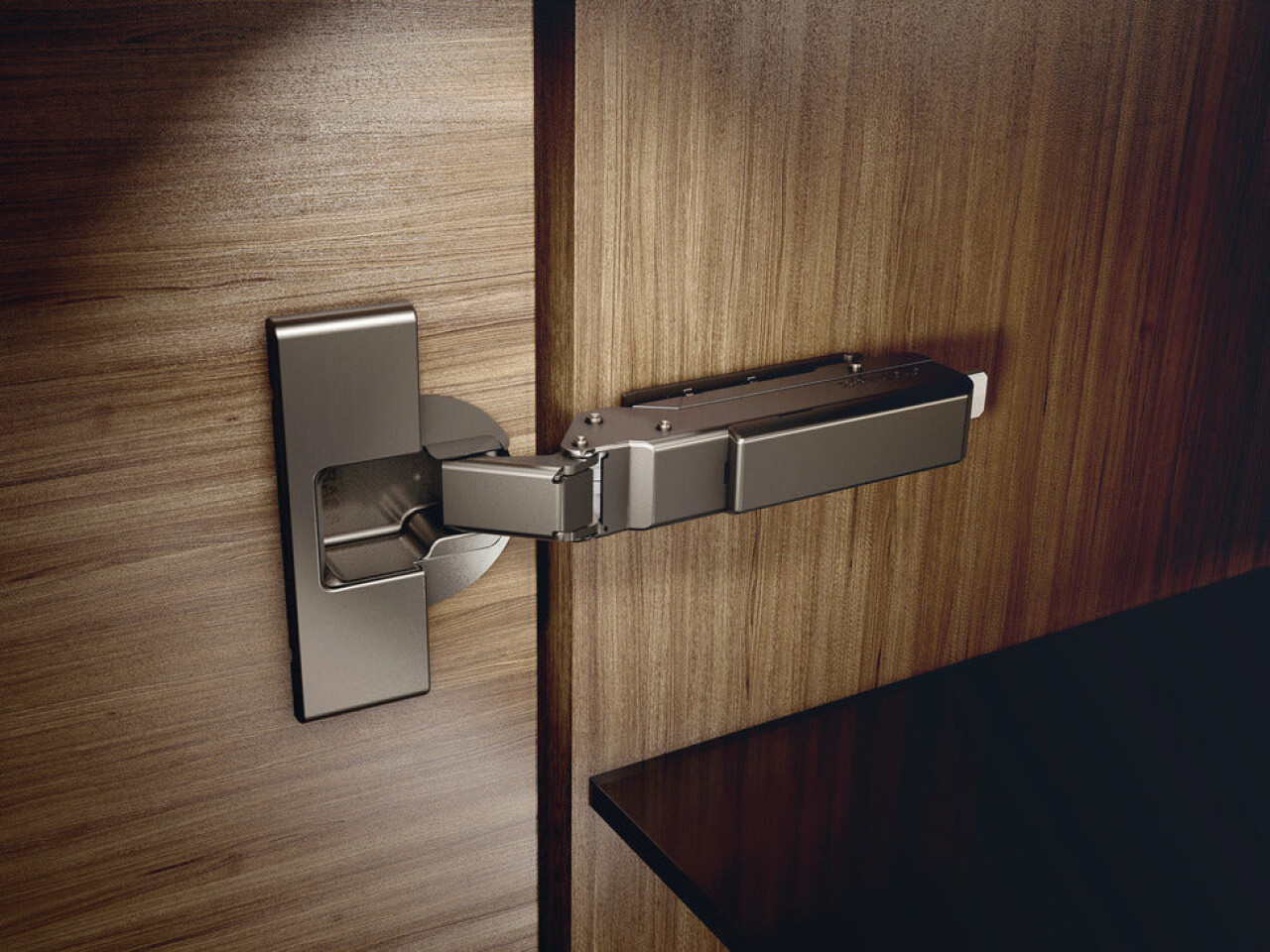

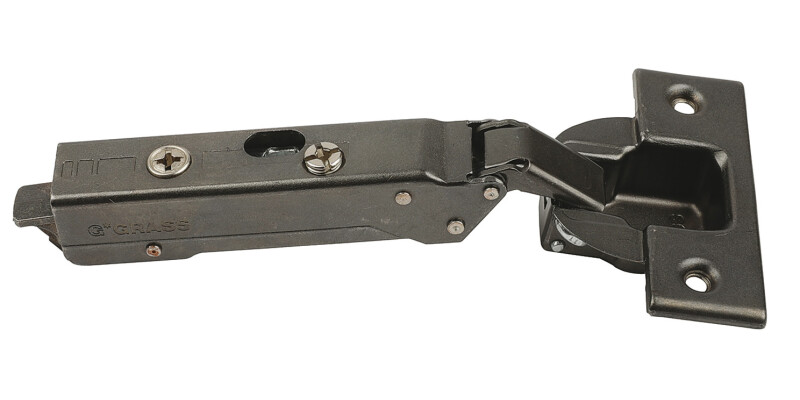

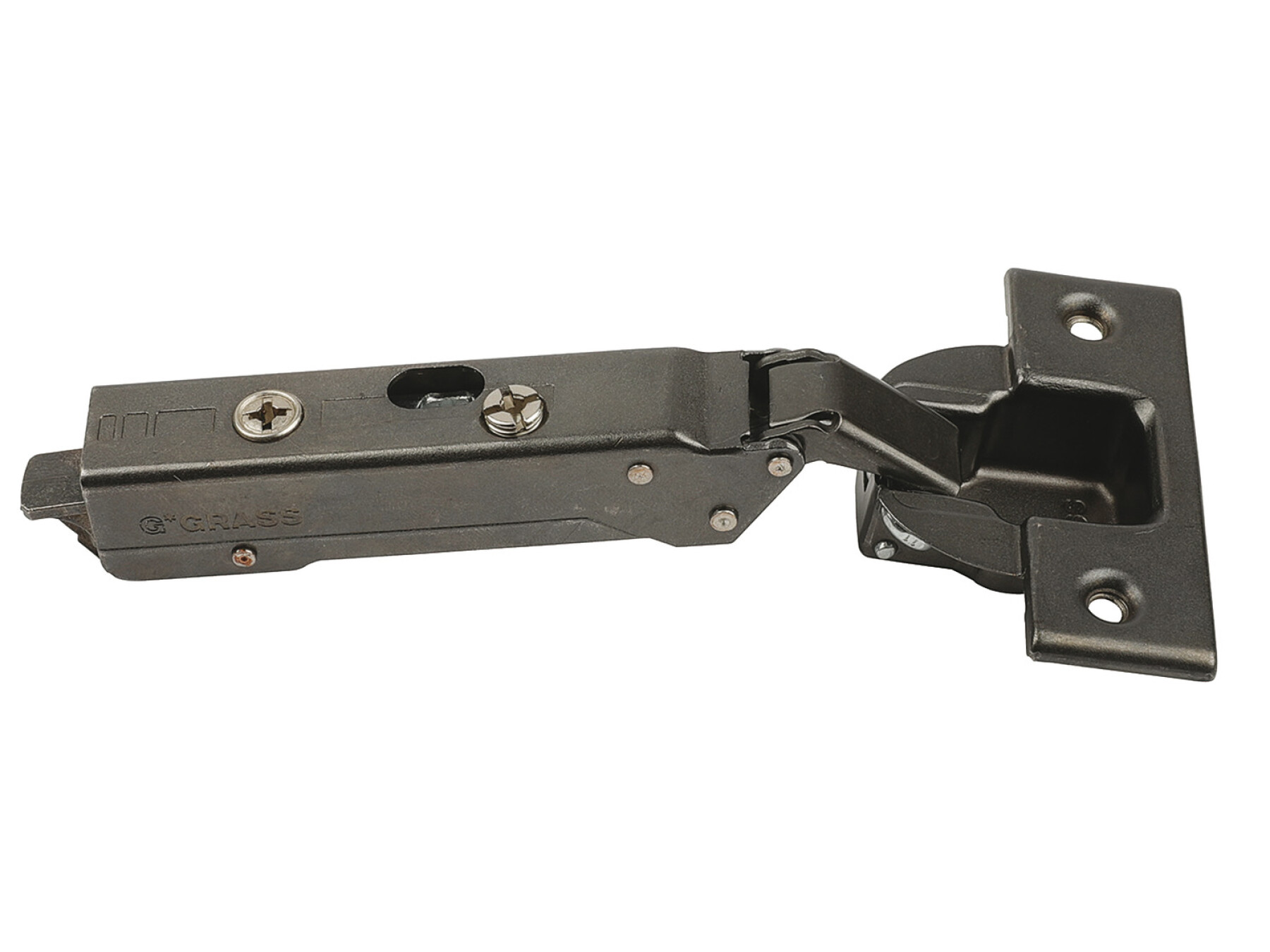

Tiomos 110D Hinge Click SC Ful Night/Ant
With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)With opening mechanism for comfortable opening of front panels without handlesOptimum gap dimensions up to 24 mm door thickness
- Application: For standard applications
- Opening angle: 110 °
- Overlay:: Full
- Hinge arm: Click on
- For door thickness: Up to 24 mm (for door thicknesses 24 mm and above, a trial fitting is recommended)

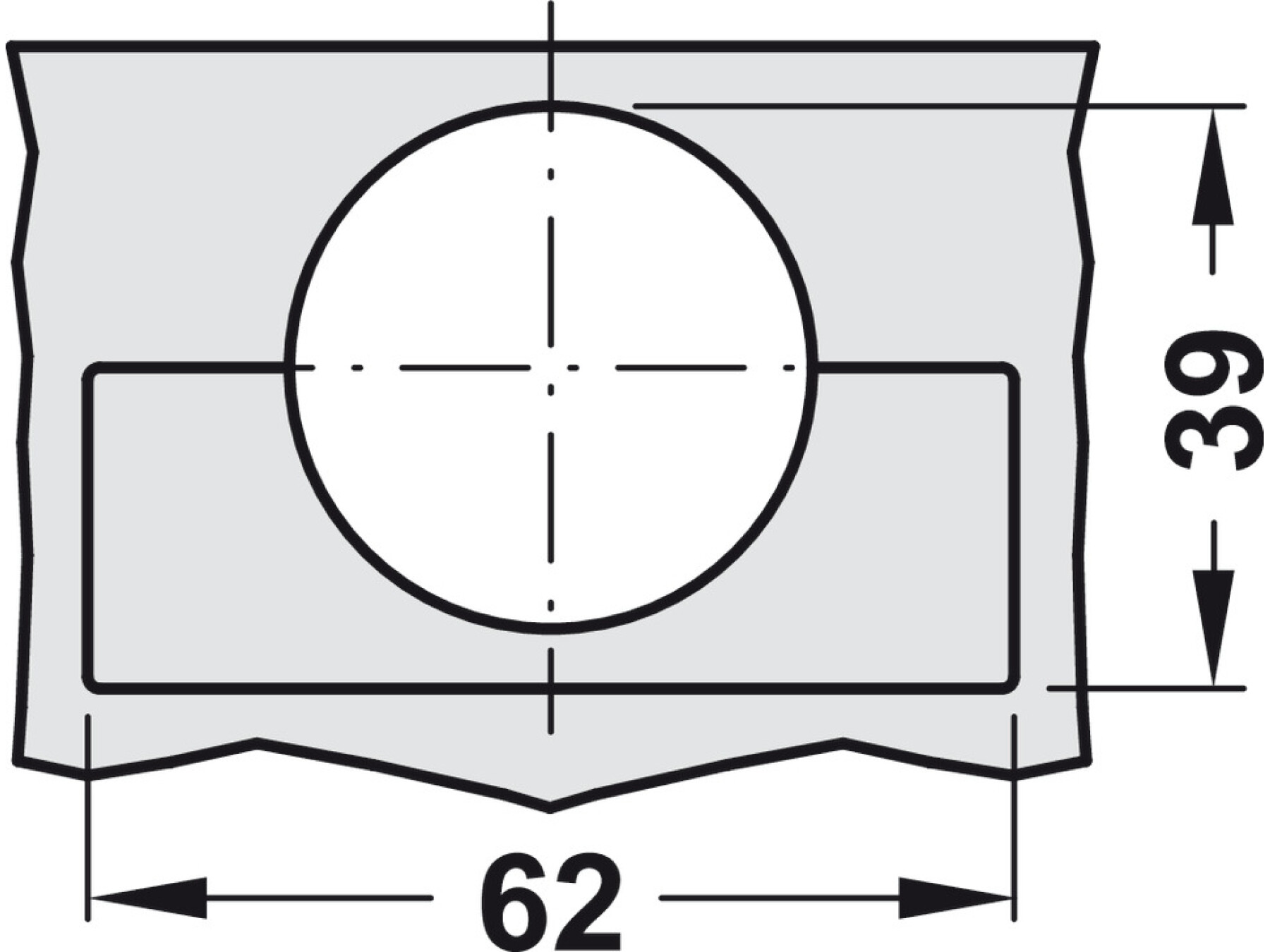

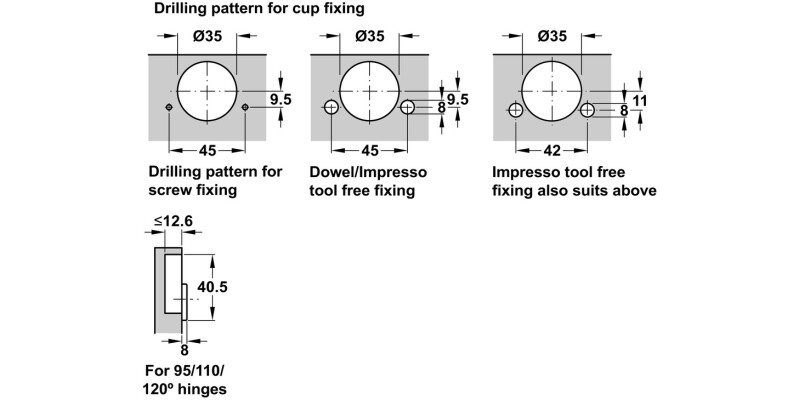

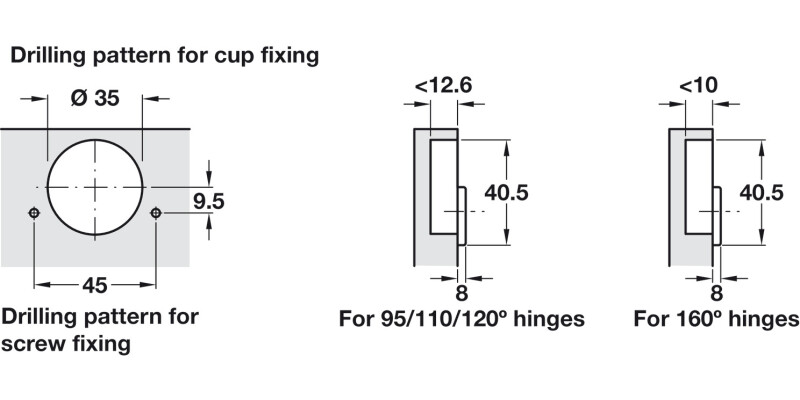

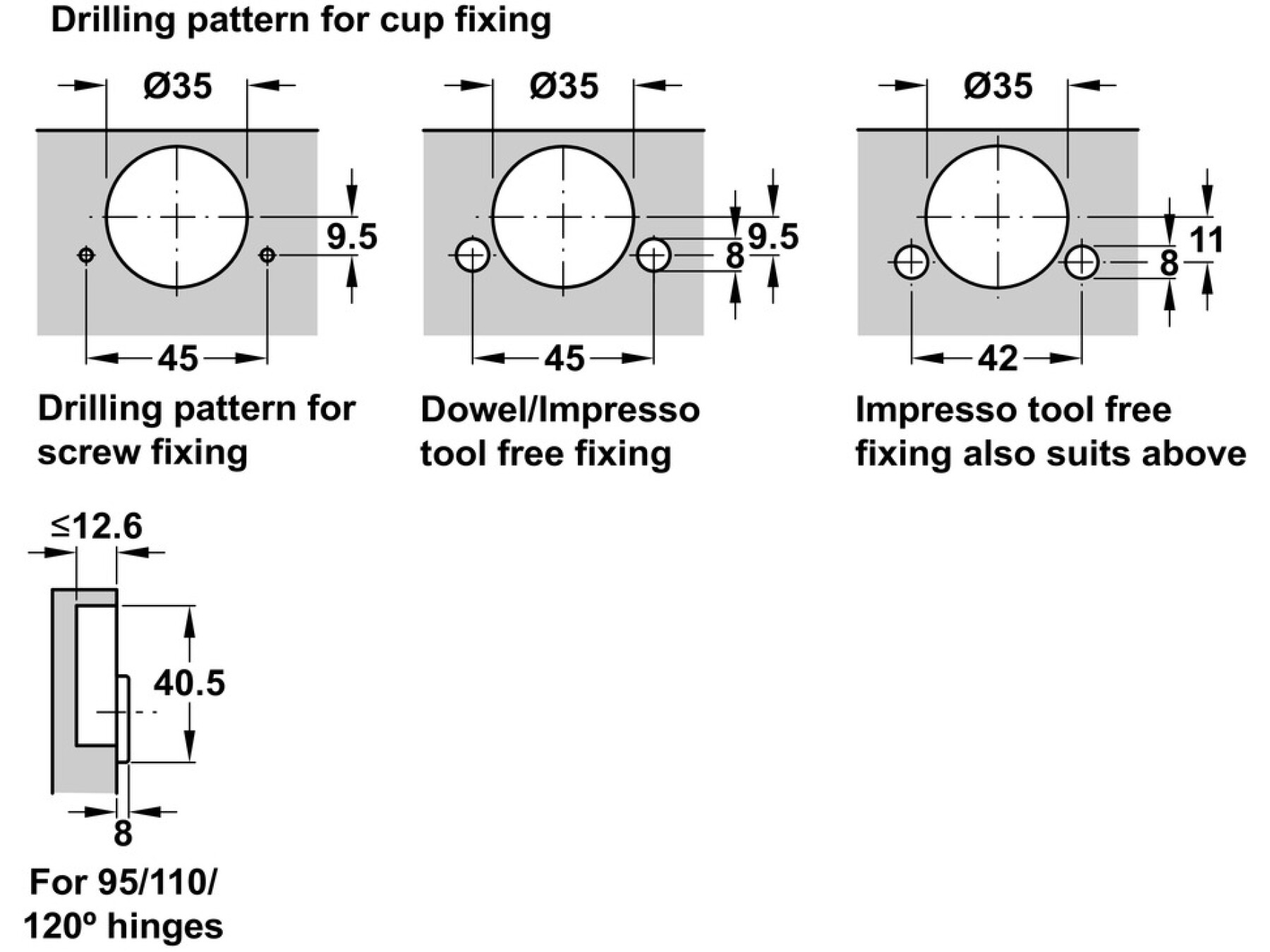

- Drilling pattern: 45/9.5 mm

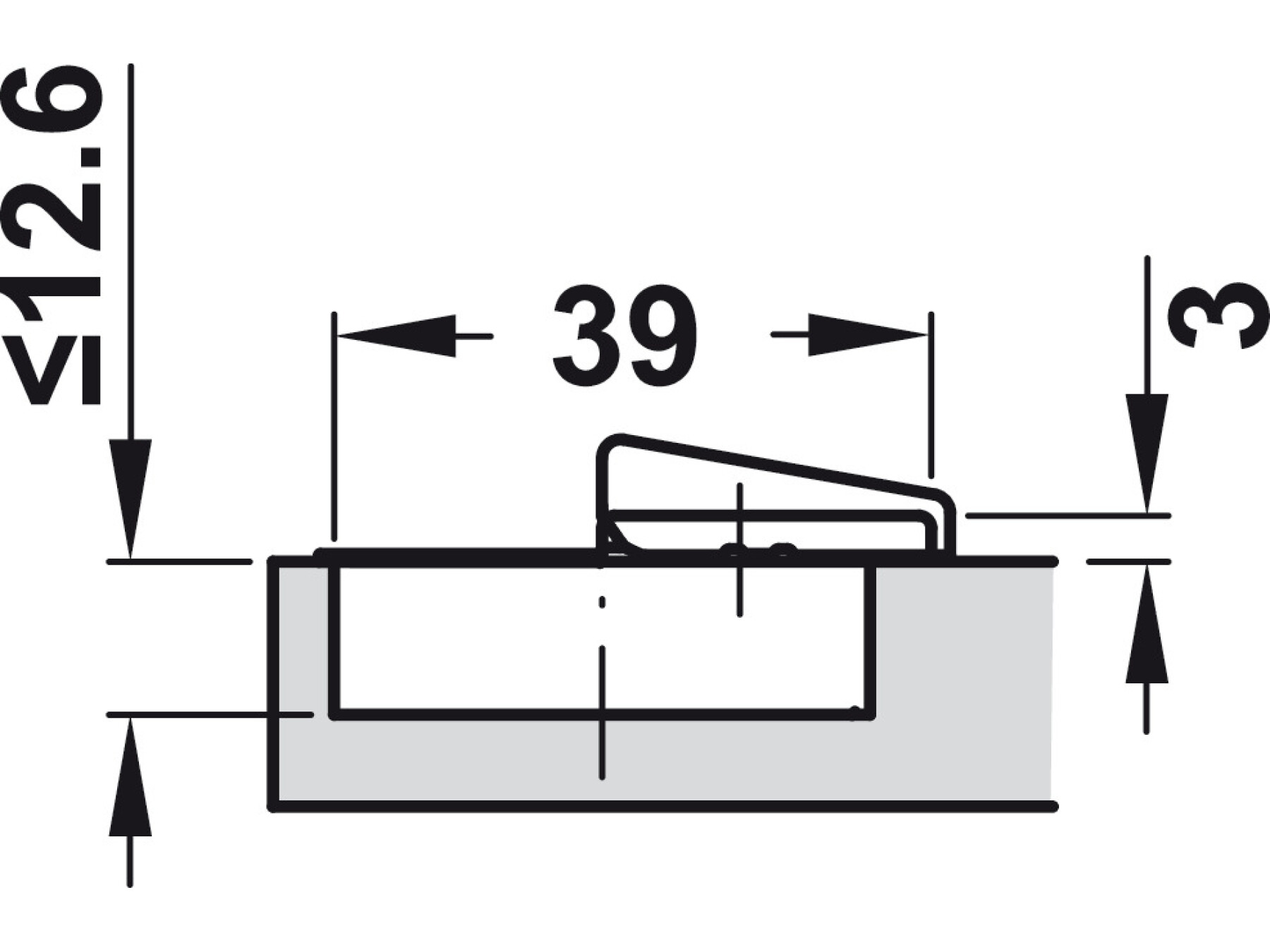

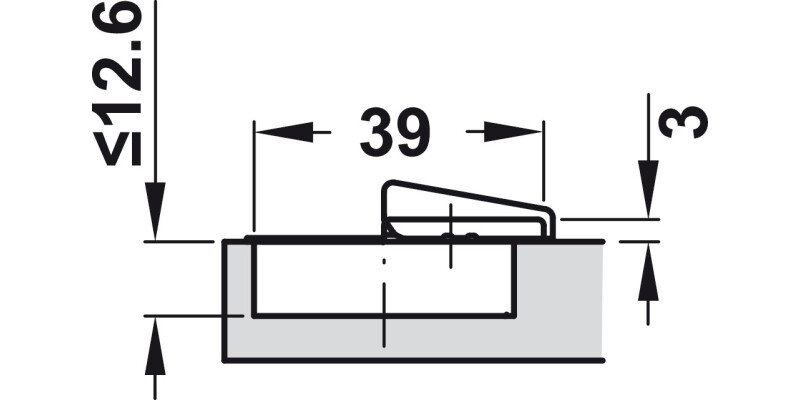

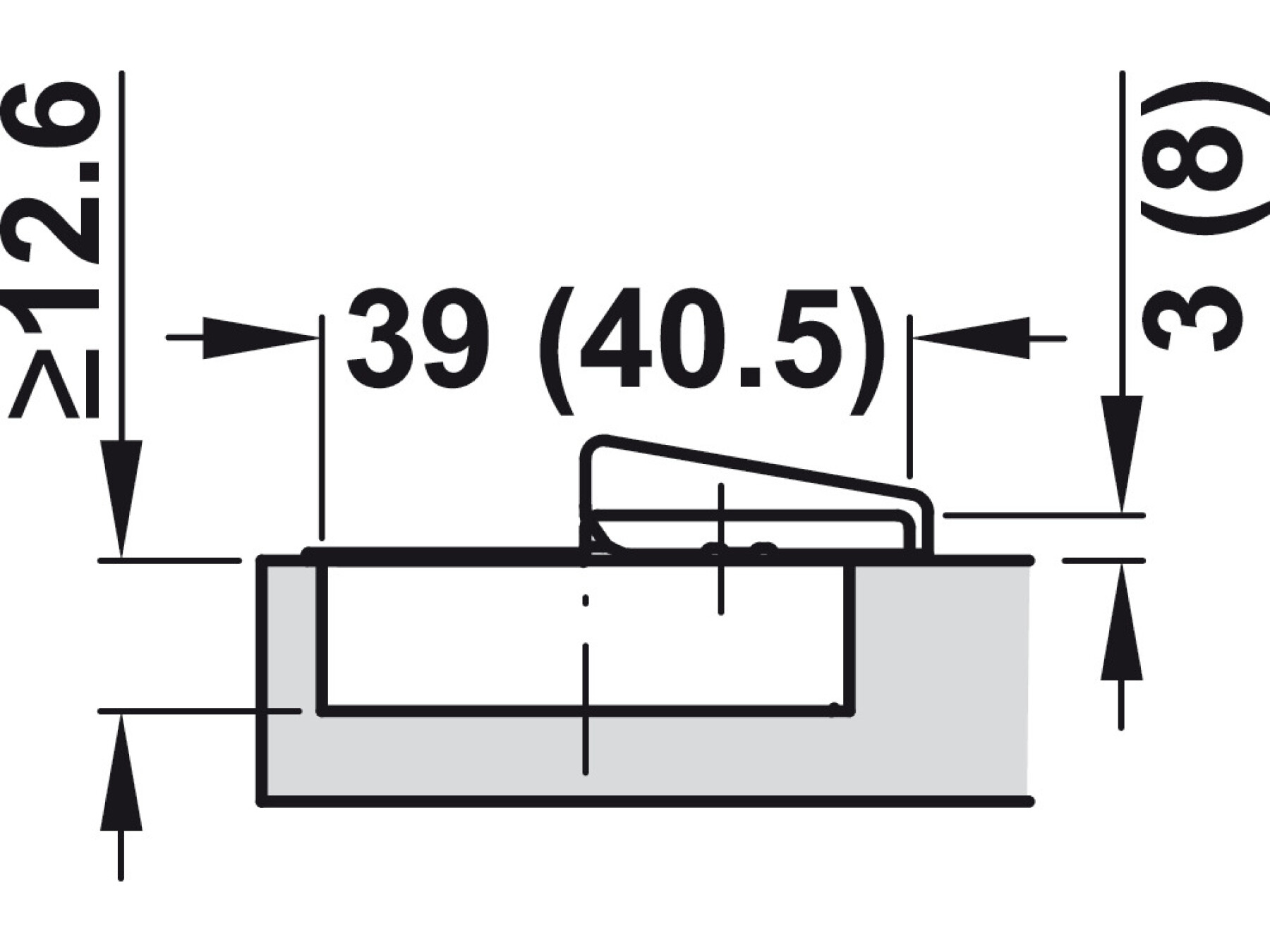

- Drilling depth: Hinge cup 12.6
- Material: Cup and hinge arm: Steel

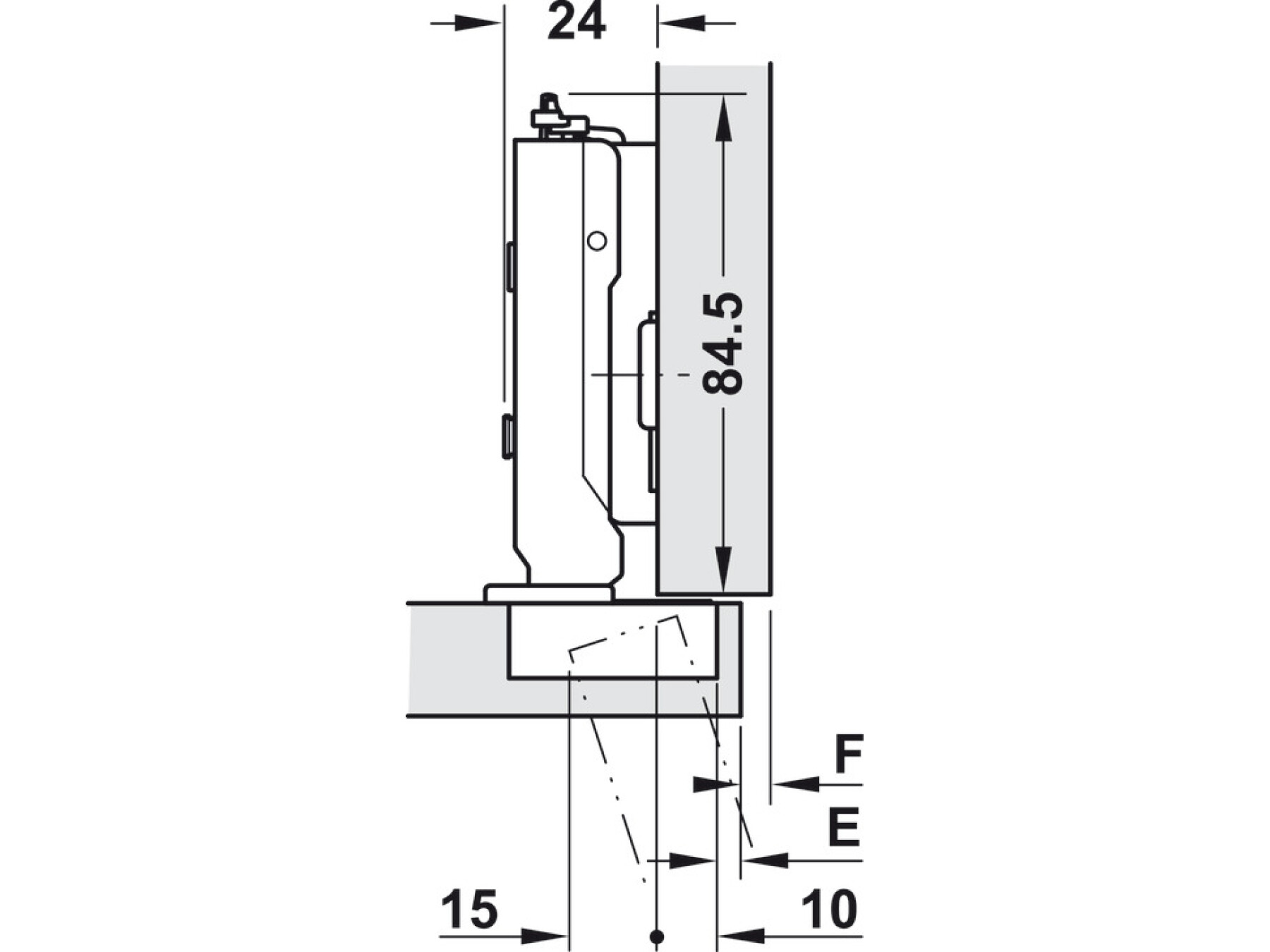

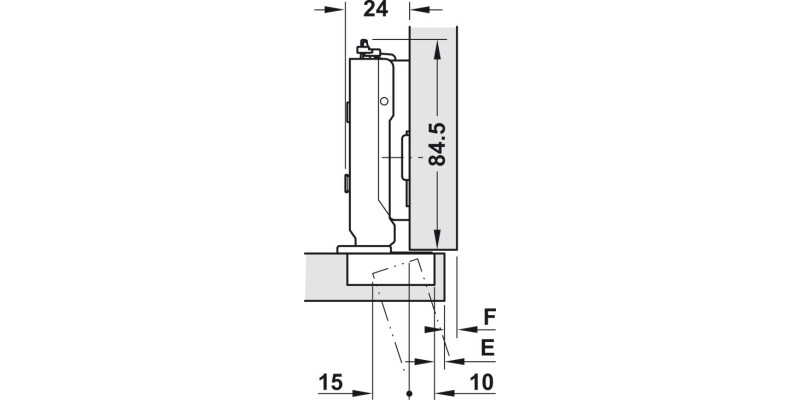

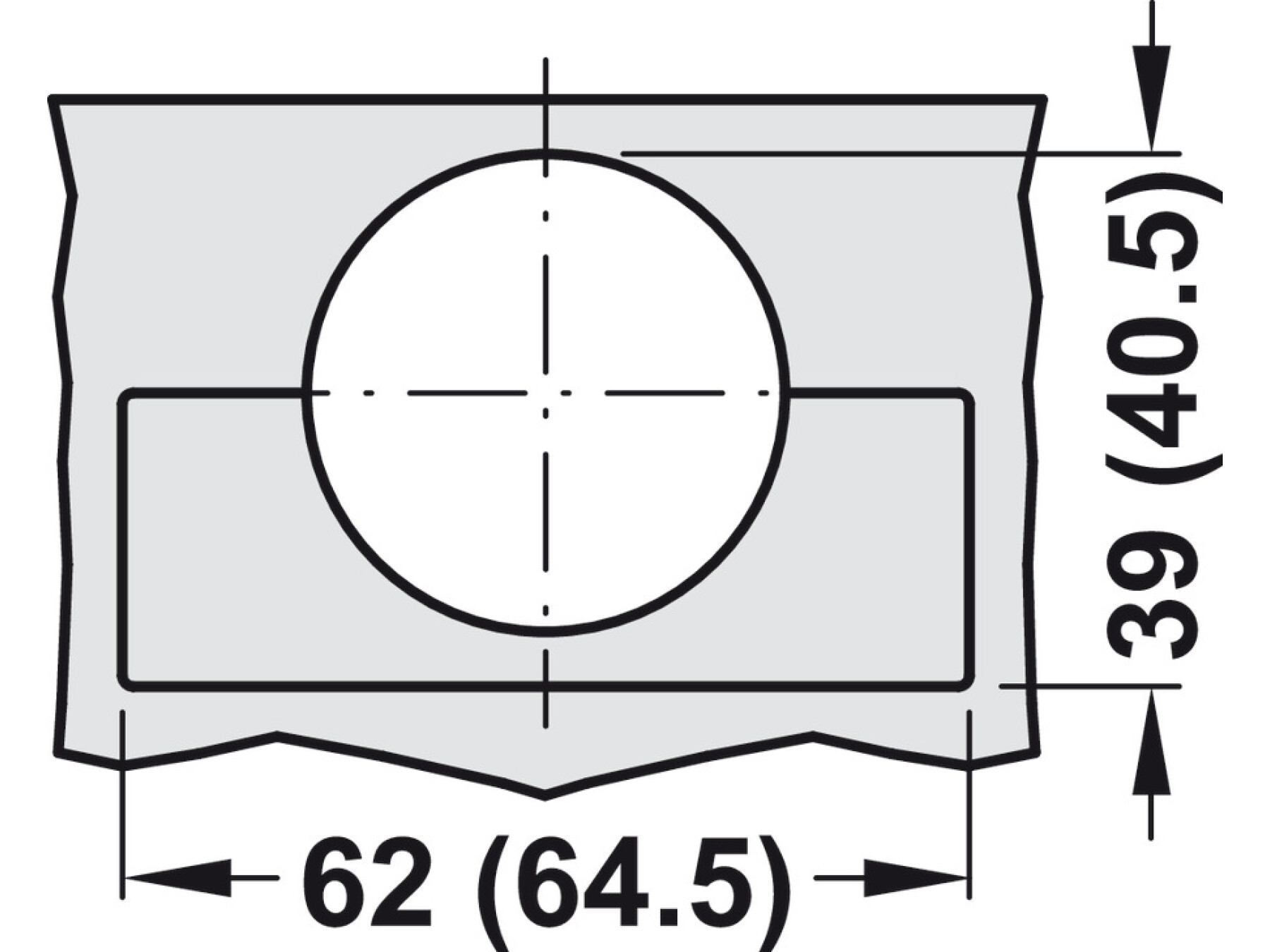

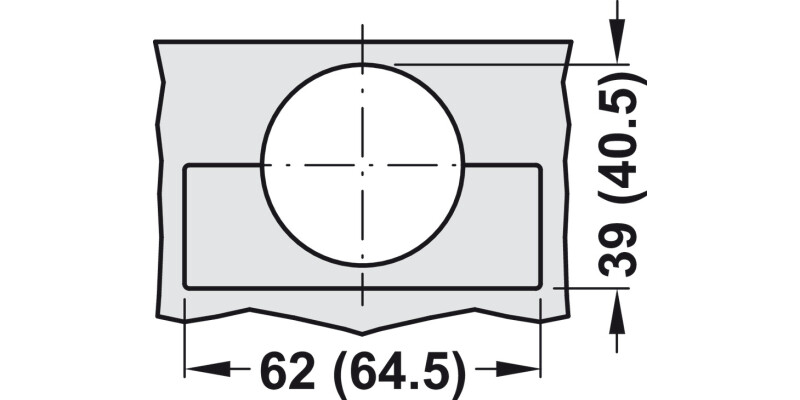

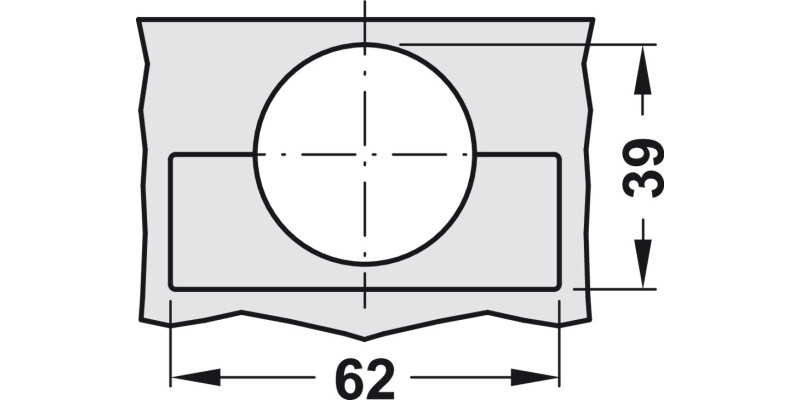

- Note: The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.For hinges with opening mechanism please order Grass Tipmatic separately.
- Order reference: Order mounting plate and Hospa √ò 3.5 mm countersunk screws separately
