Tiomos PCC Pie Cut Hinge Click wo SC SF
Part Number: 348.29.600

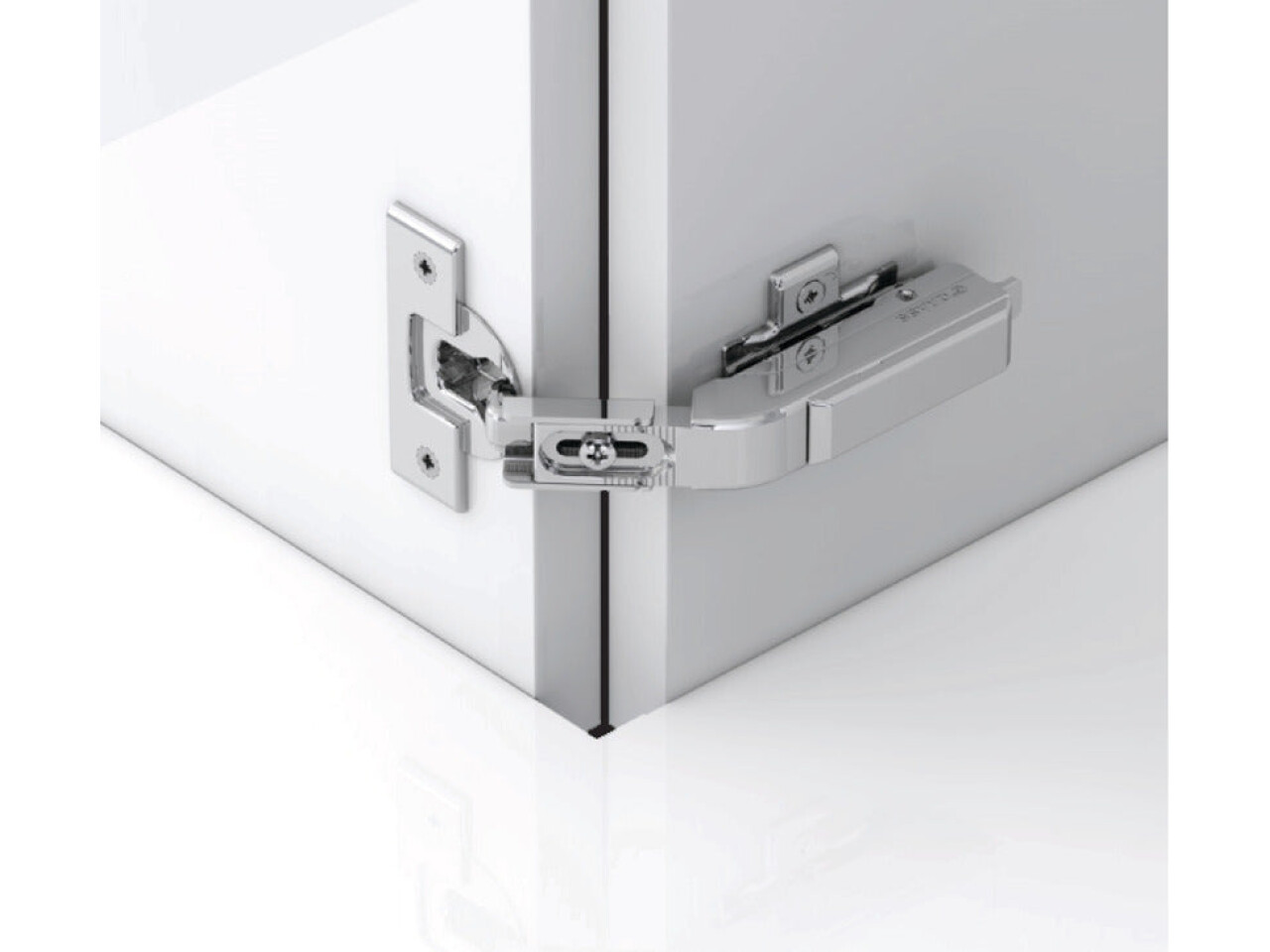

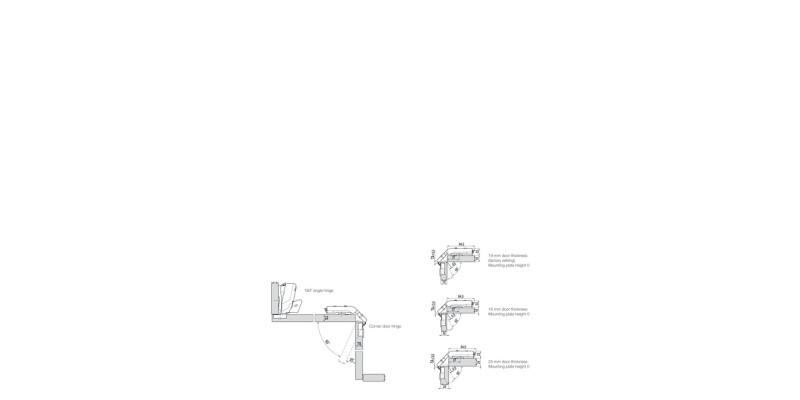

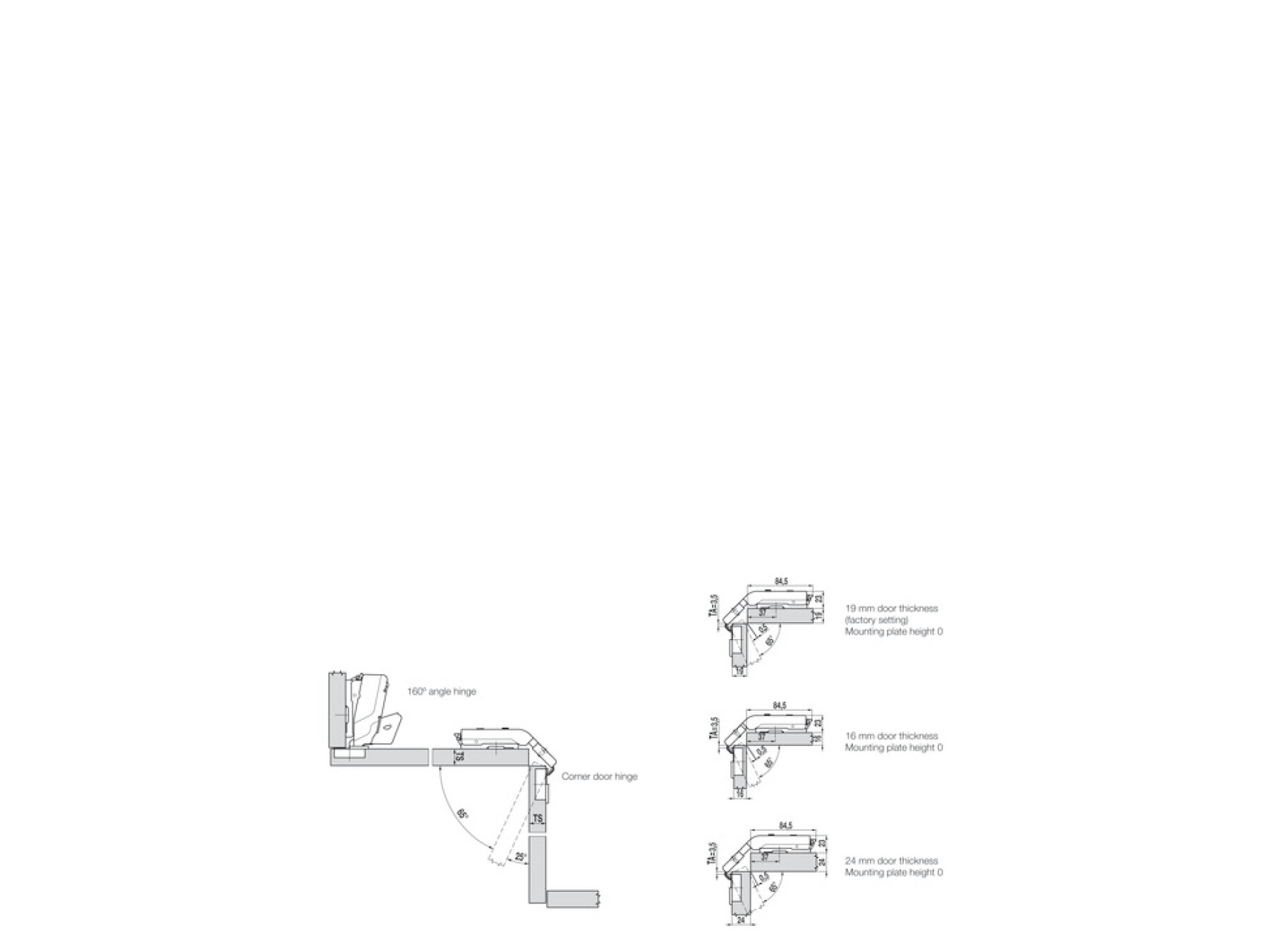

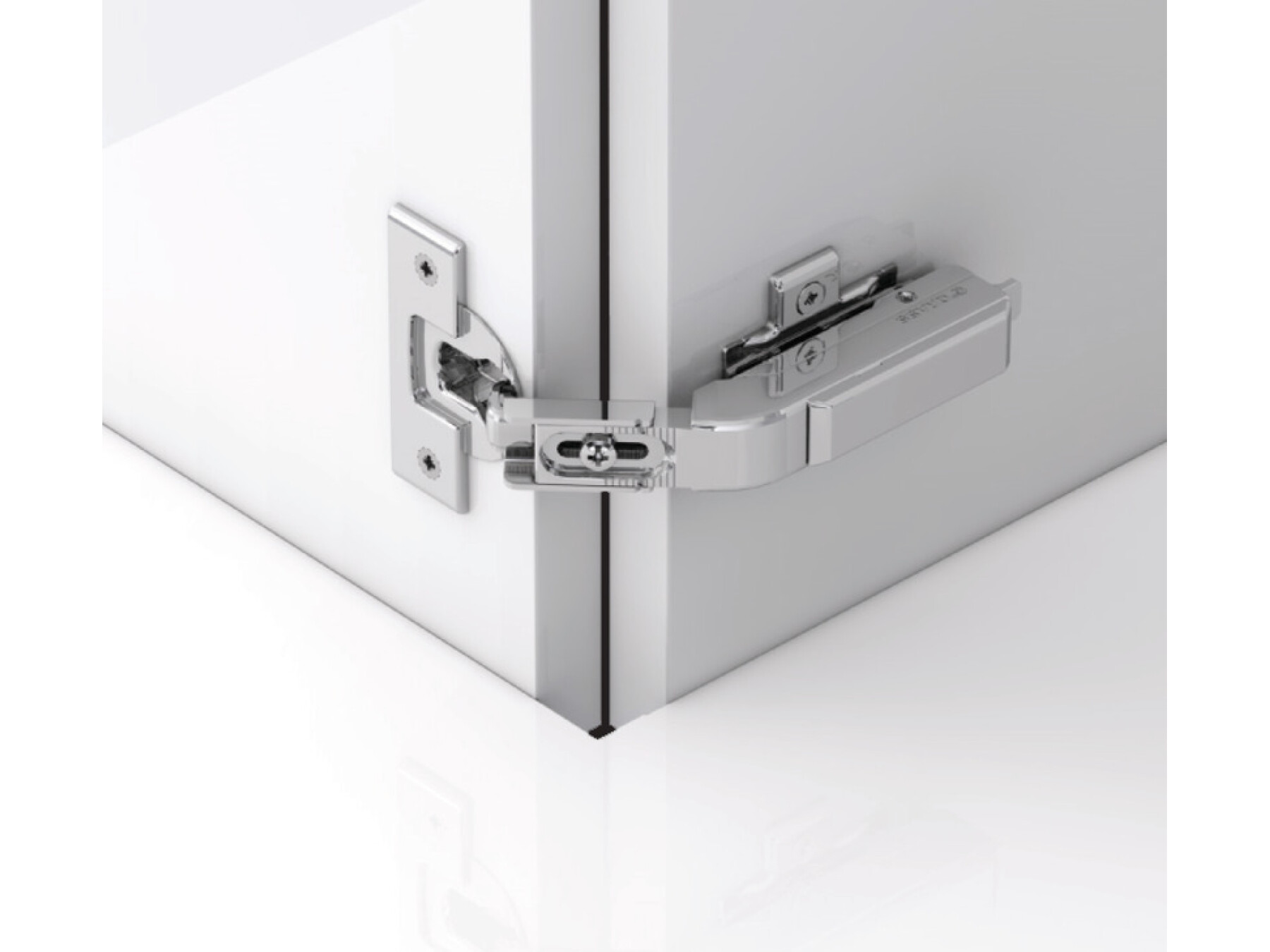

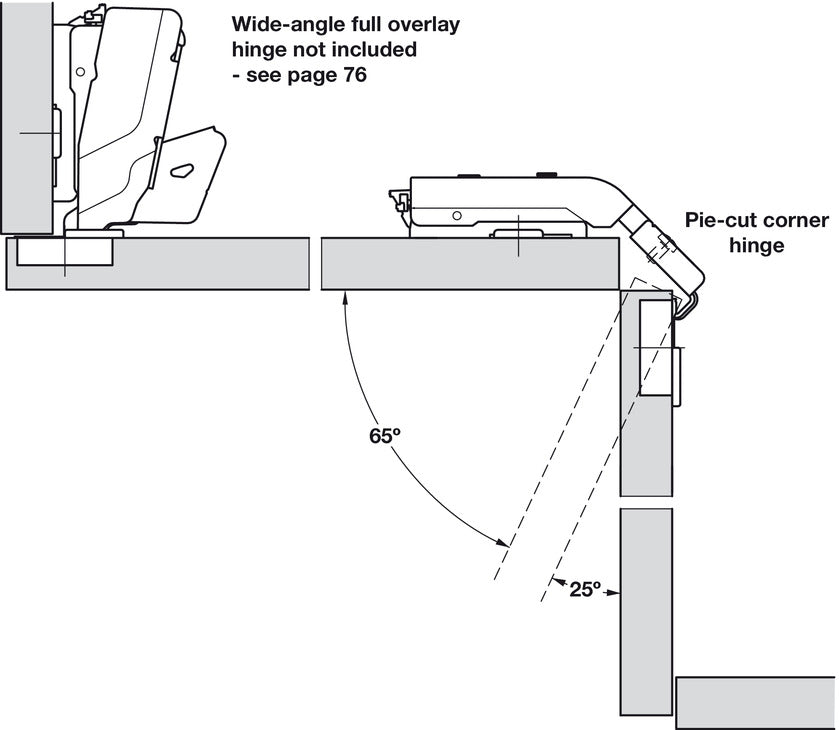

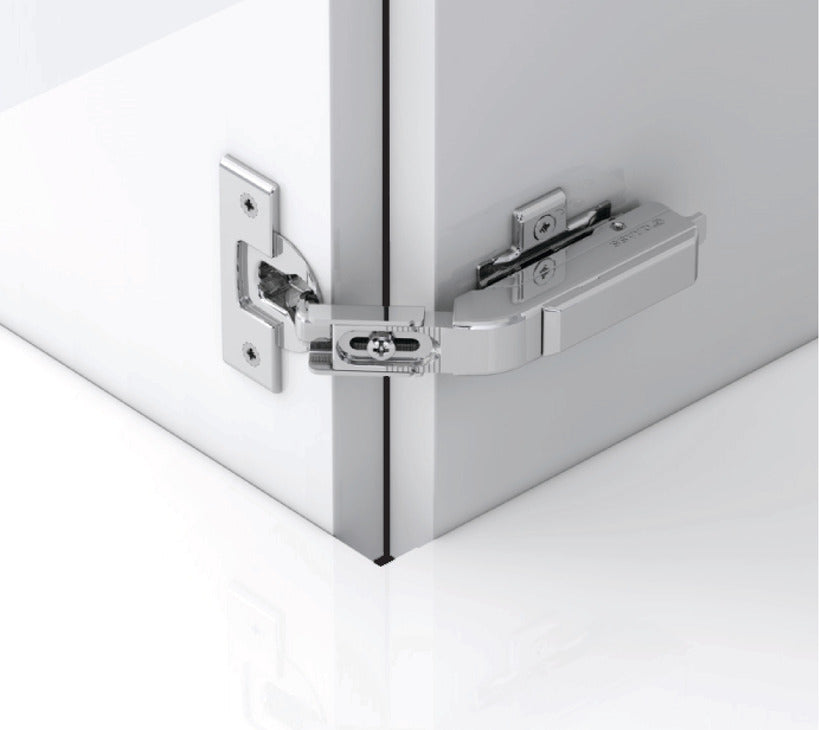

For connecting two corner cabinet doors, Screw fixing, without soft close
Price:
£9.21
Per Item
For connecting two corner cabinet doorsLow cup drilling depth of 11.8 mmØ 35 mm cupWith full cup drill hole... Read More
Product Information
Product Details
For connecting two corner cabinet doors

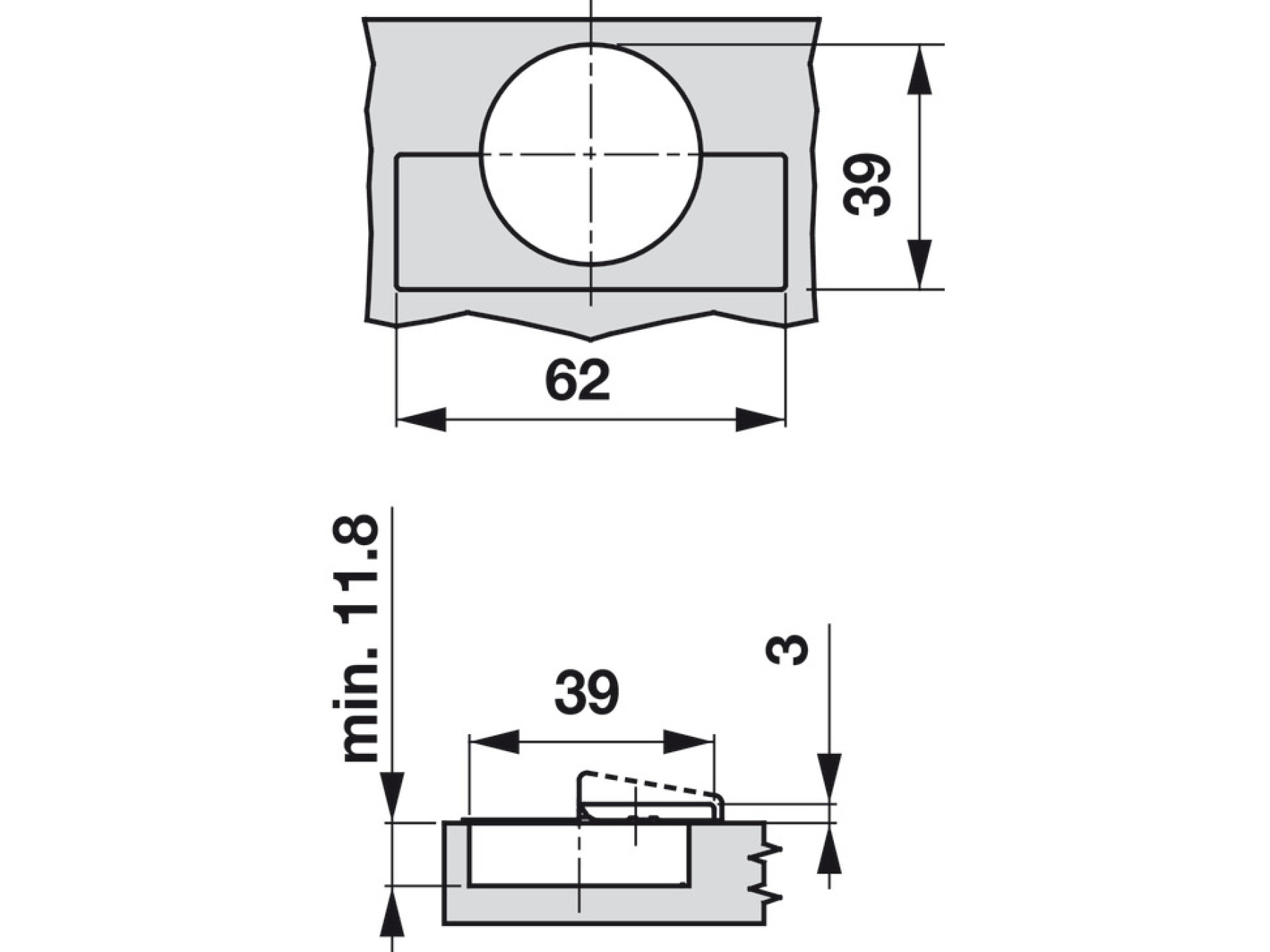

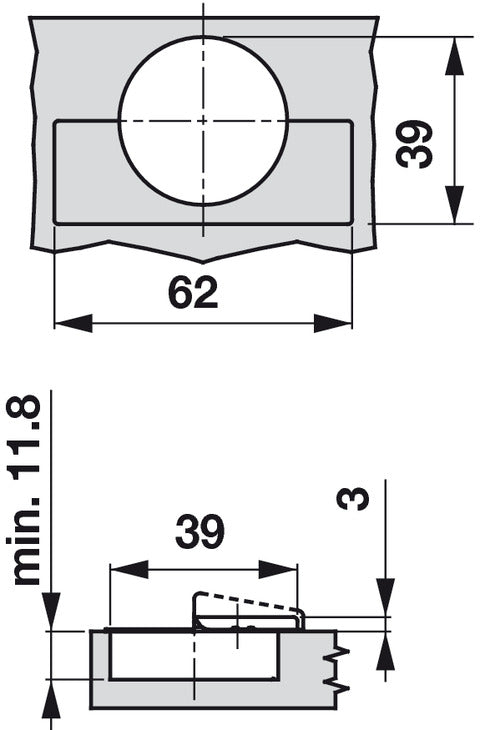

Low cup drilling depth of 11.8 mm
Ø 35 mm cup
With full cup drill hole

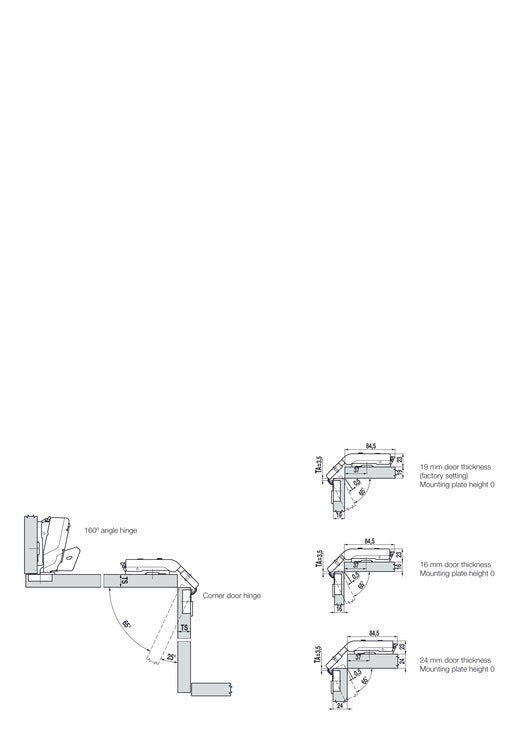

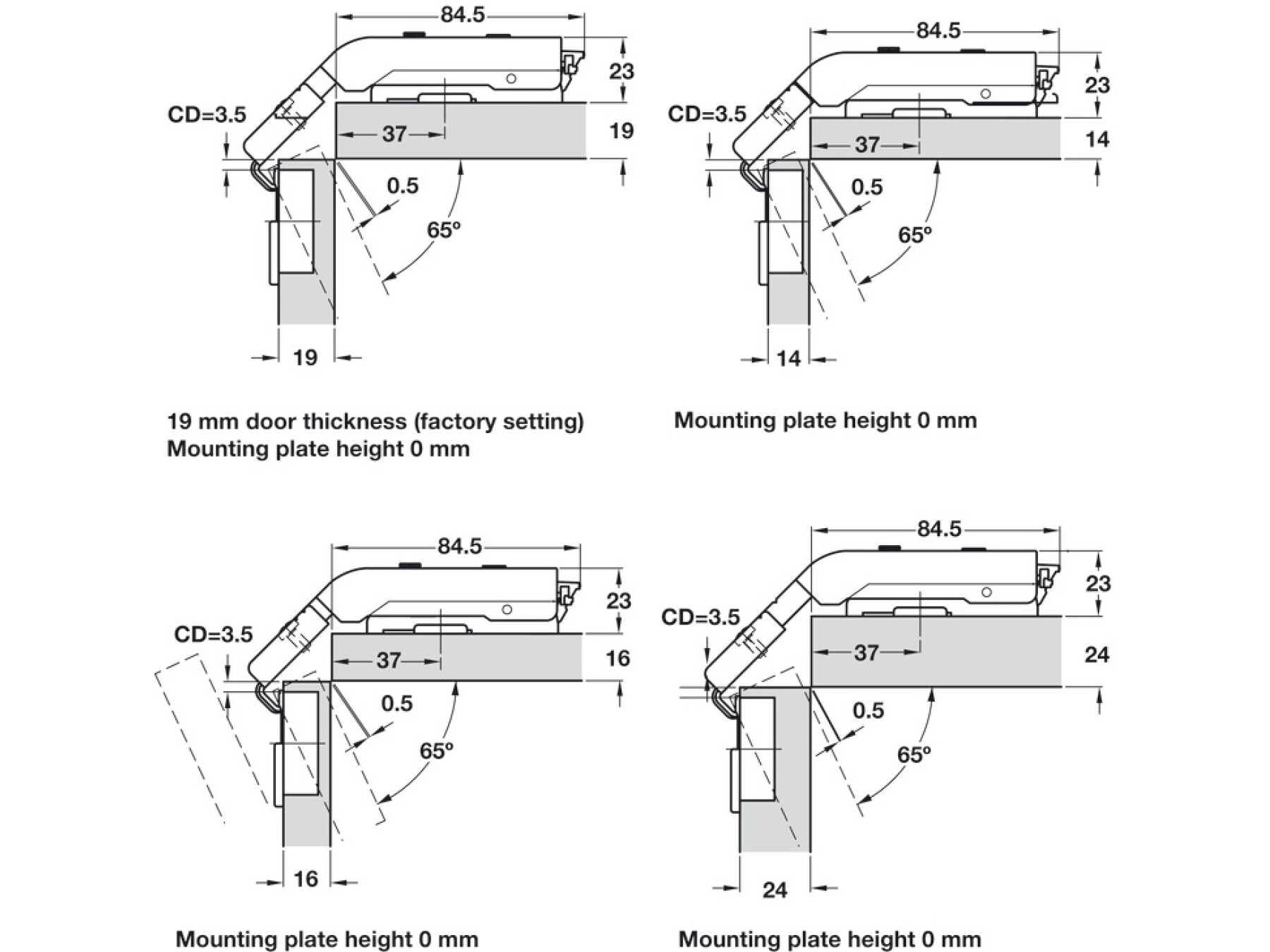

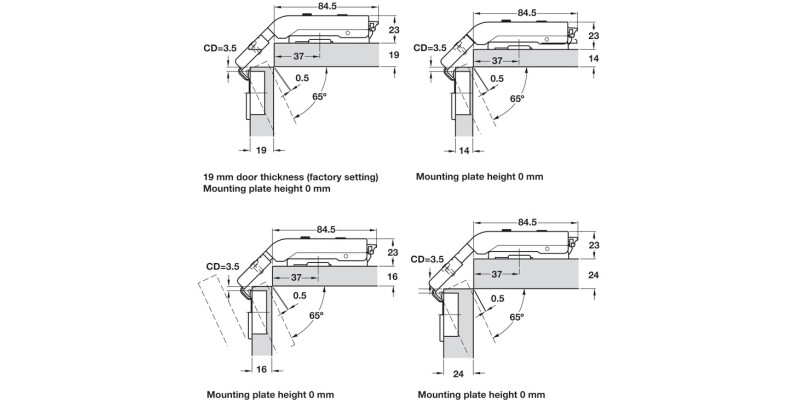

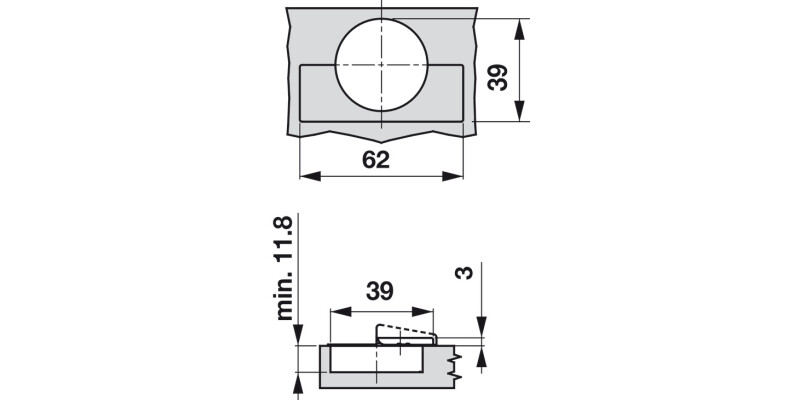

Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
Specifications
Functionality
Without soft closing mechanism
Model No.
F045138517228
Crank type
Straight
Door processing for assembly
with cup drilling
Material
Zinc alloy
Colour/finish
Cup drilling depth
11.80 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

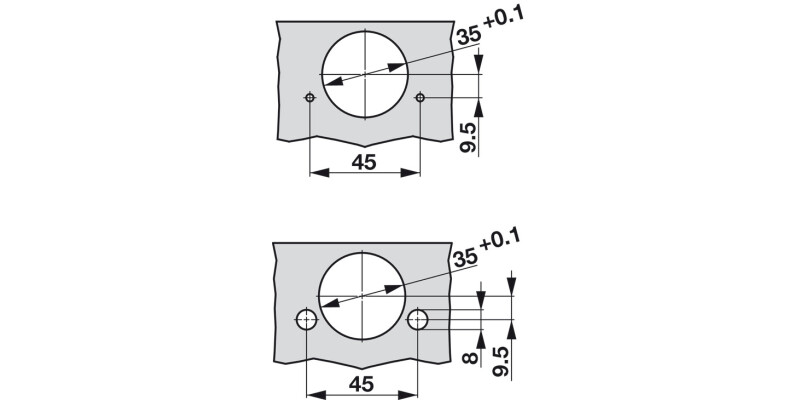

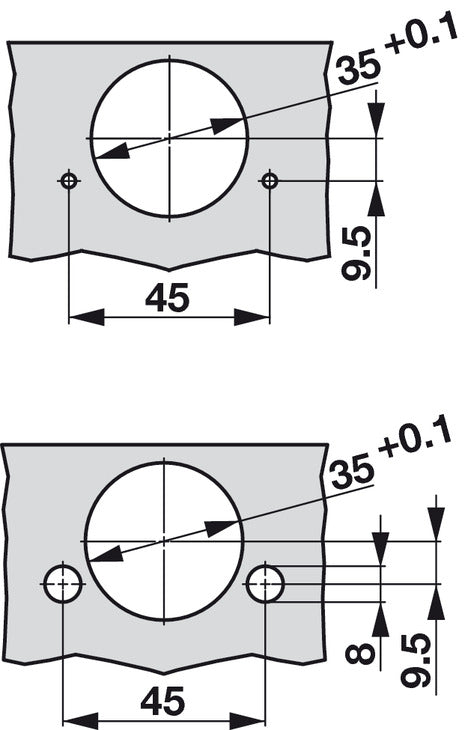

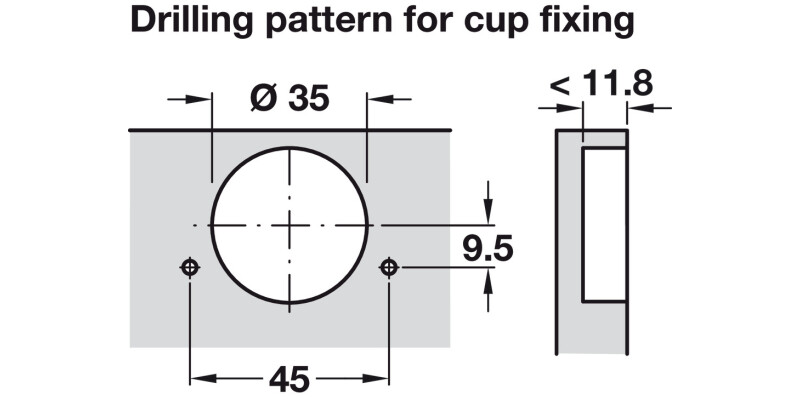

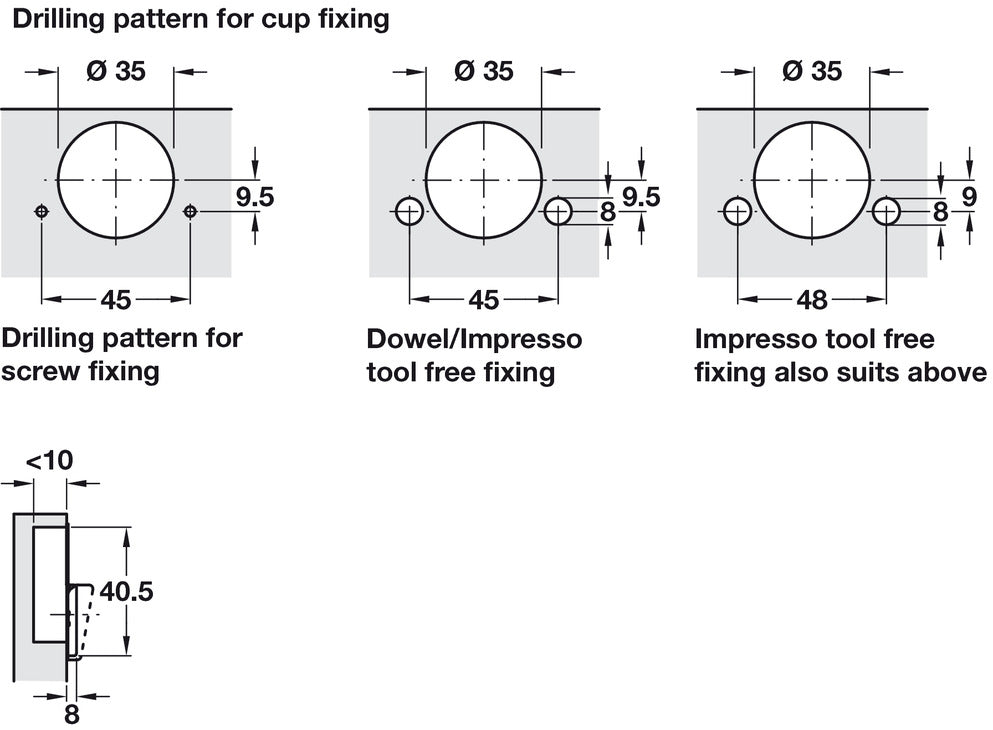

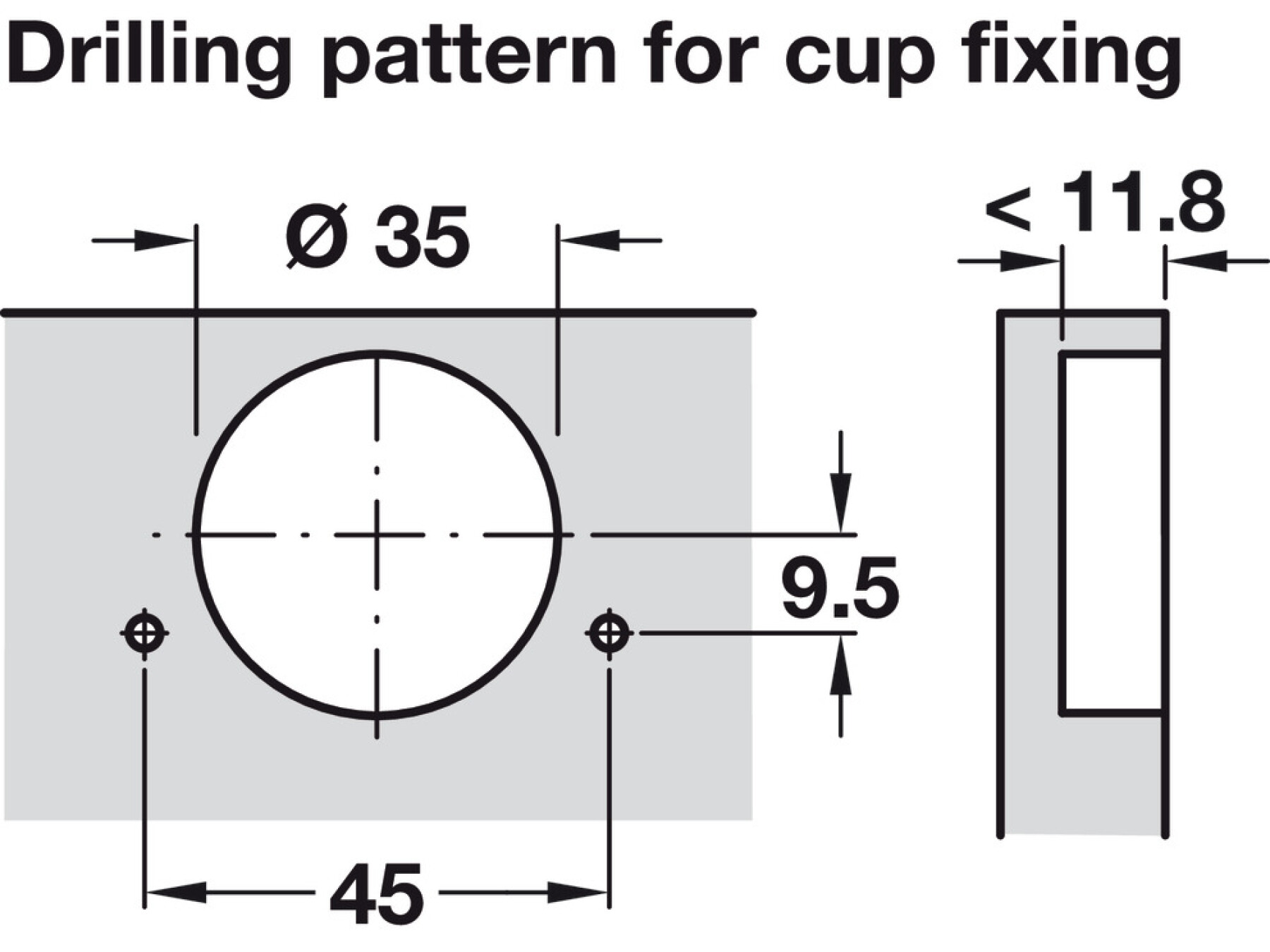

Drilling pattern
45/9.5

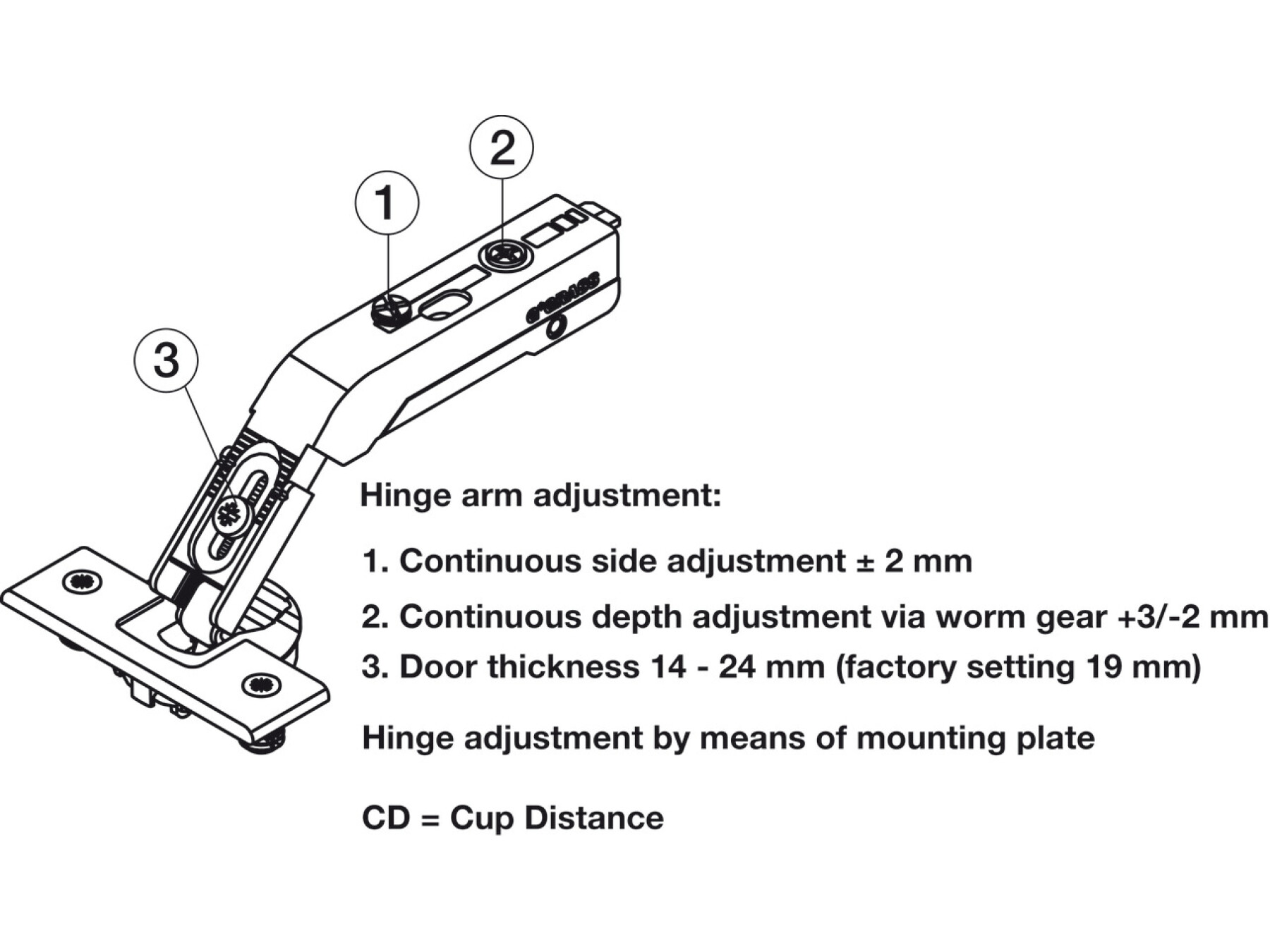

Adjustment facility
3-dimensional adjustment with appropriate mounting plate
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
