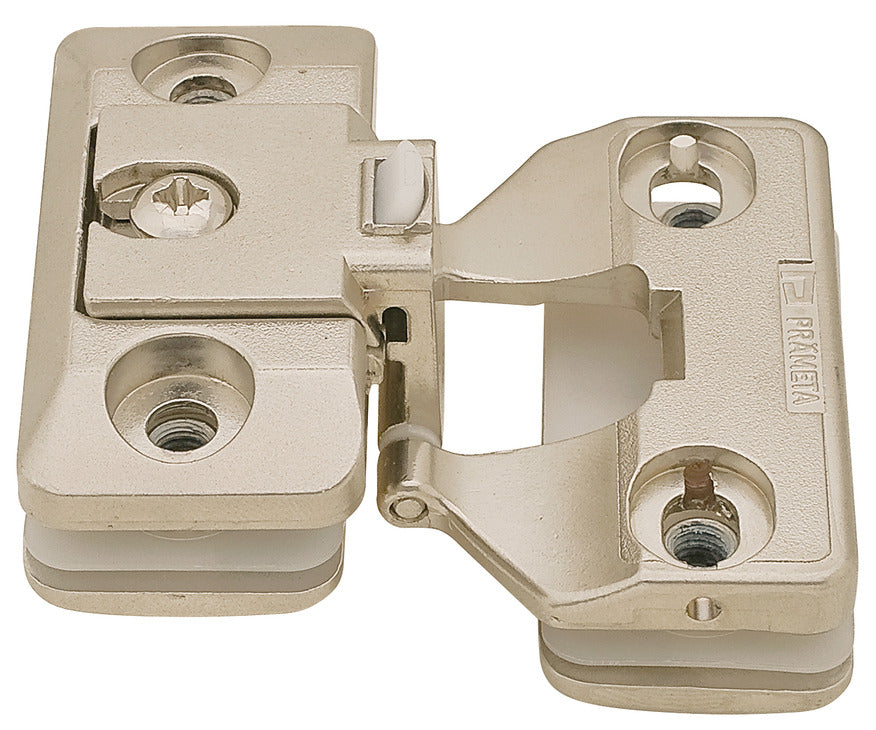

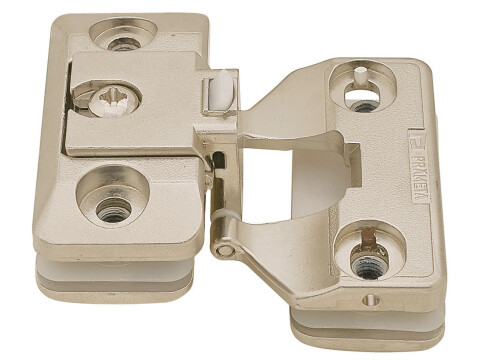

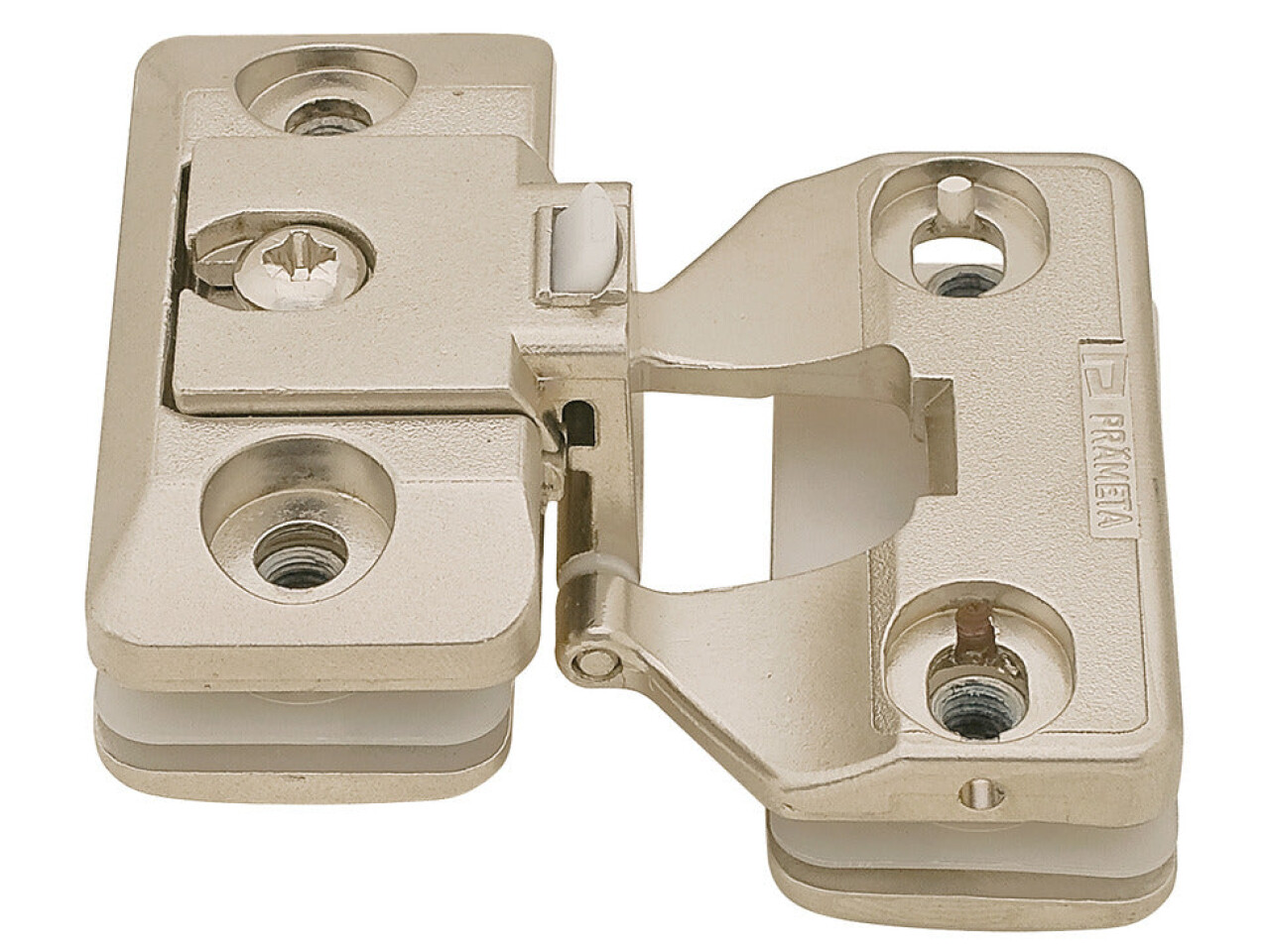

180D Glass Door Hinge ExAxle Inset
Part Number: 344.88.700
For all glass constructions, Nickel plated
Price:
£54.03
Per Item
3 mm gapAxle Ø 5 mm, length 32 mmWith catch Glass drilling required Glass drilling required
Product Information
Product Details
3 mm gap
Axle Ø 5 mm, length 32 mm
With catch
Glass drilling required
Glass drilling required
Specifications
Material
Zinc alloy
Colour/finish
nickel plated
Opening angle
190°
For glass thickness
5 – 8 mm
Knuckle diameter
3.00 mm
For door material
Glass

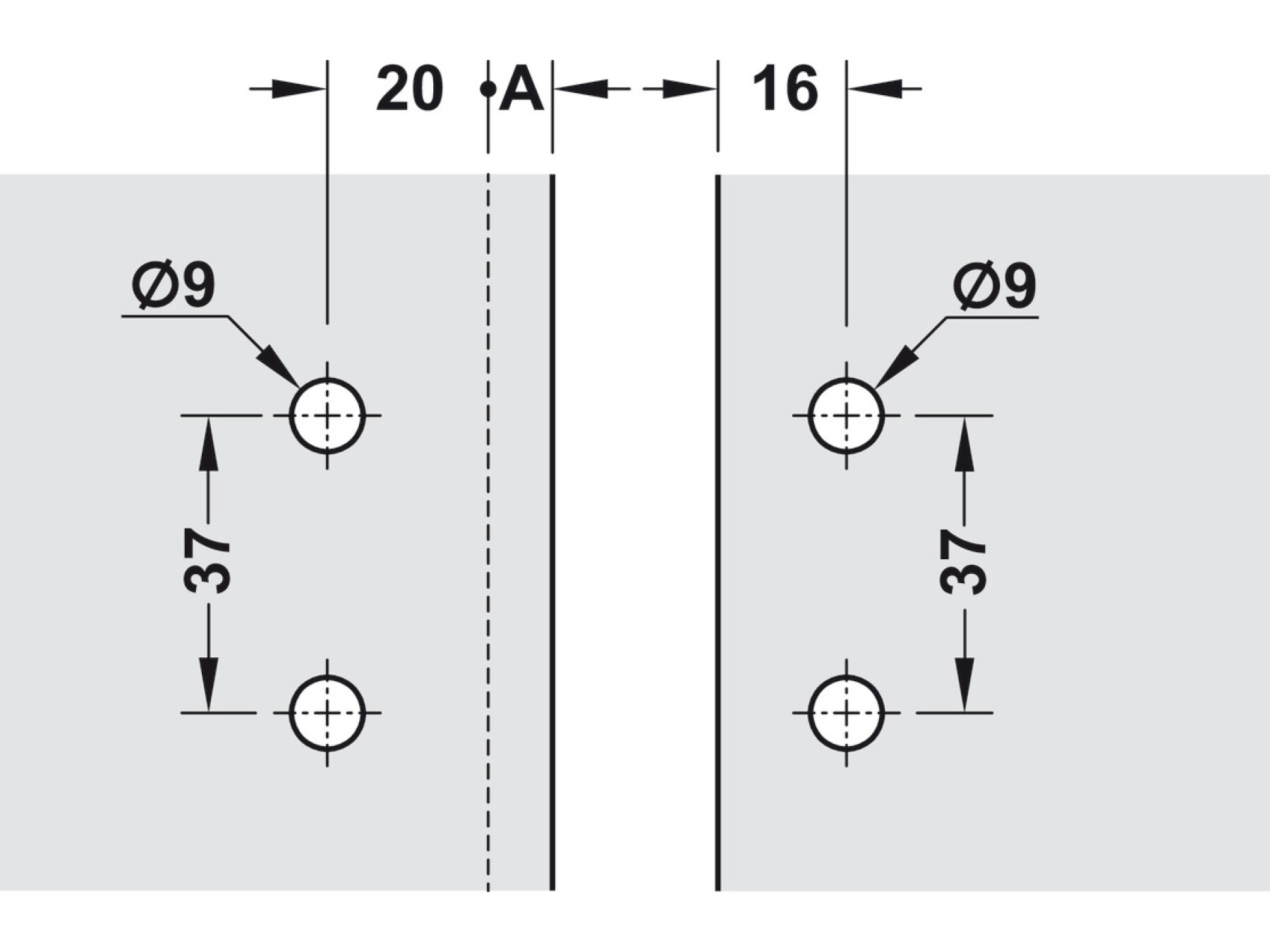

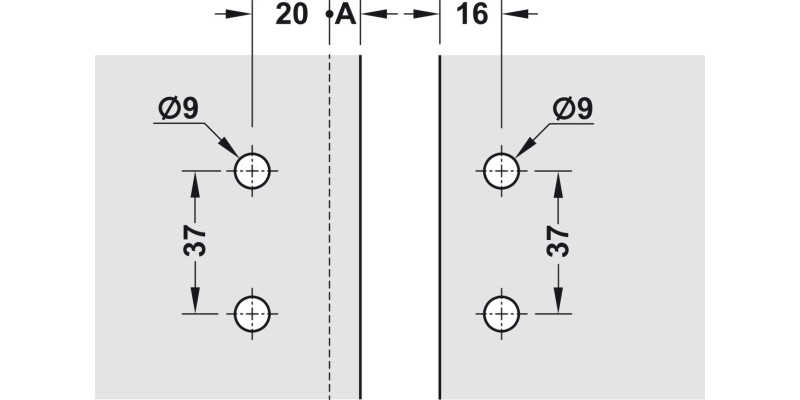

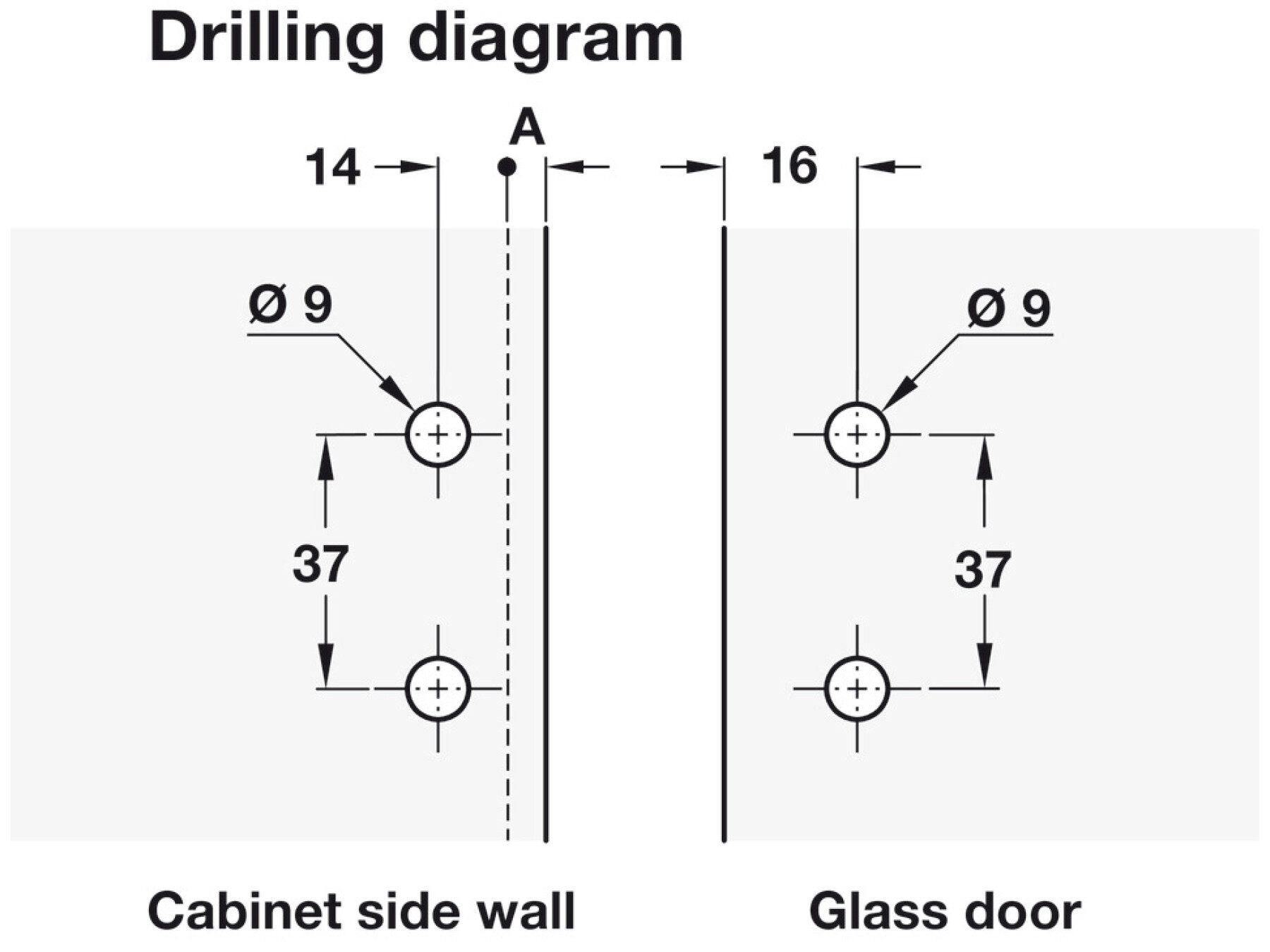

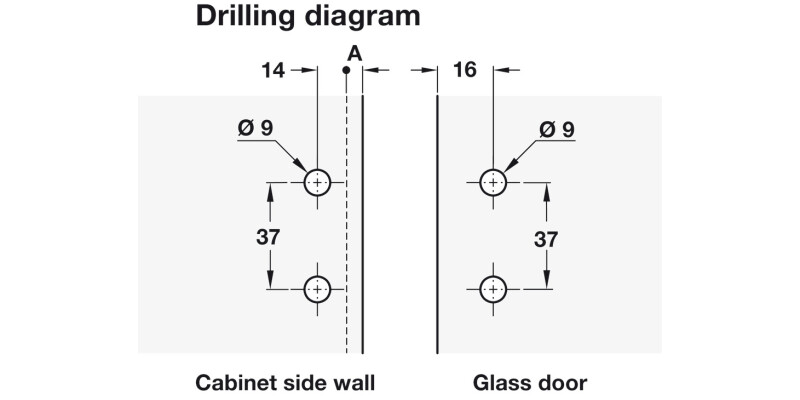

For drill hole Ø
9 mm
Door construction
Inset
Area of application

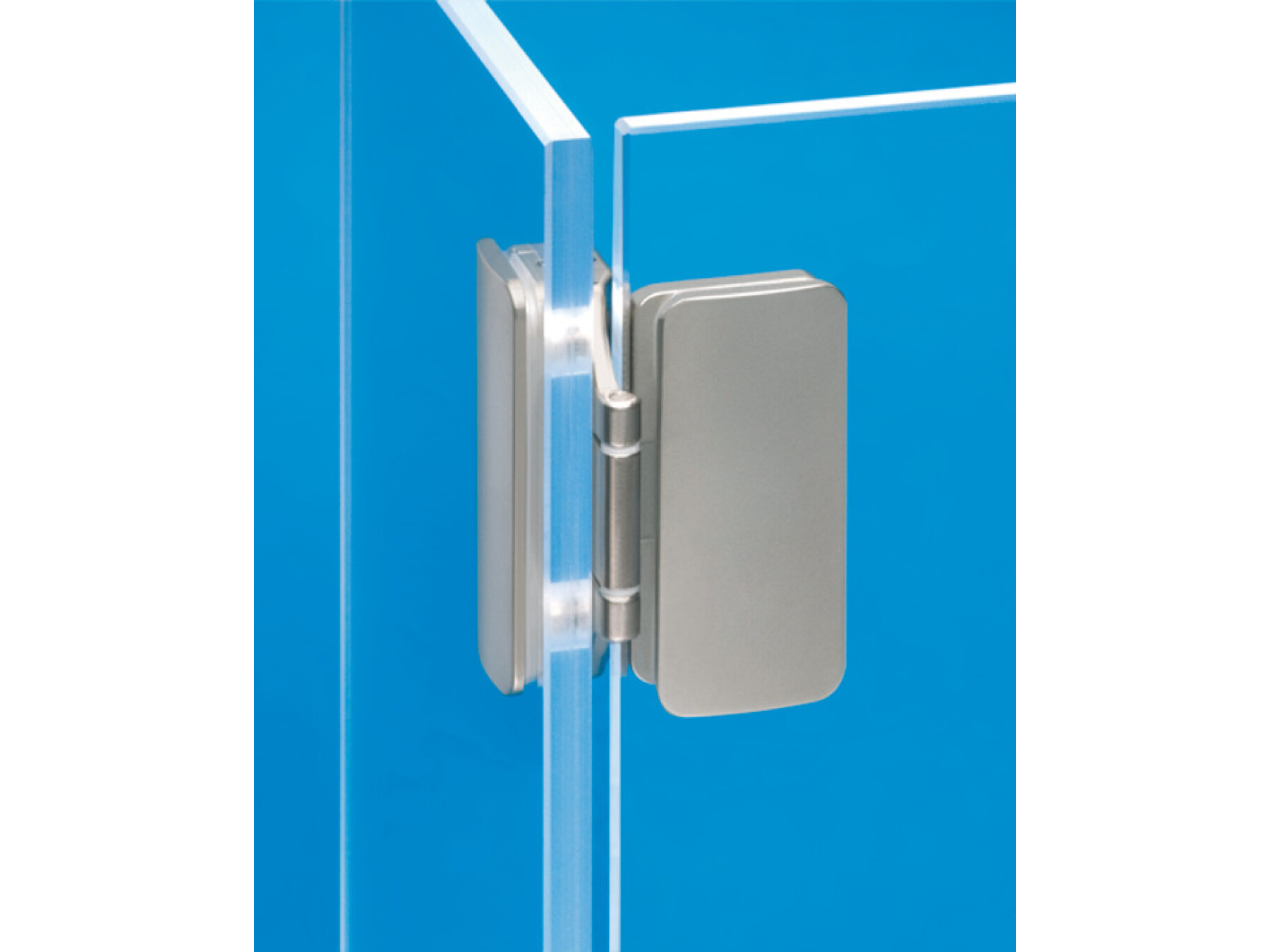

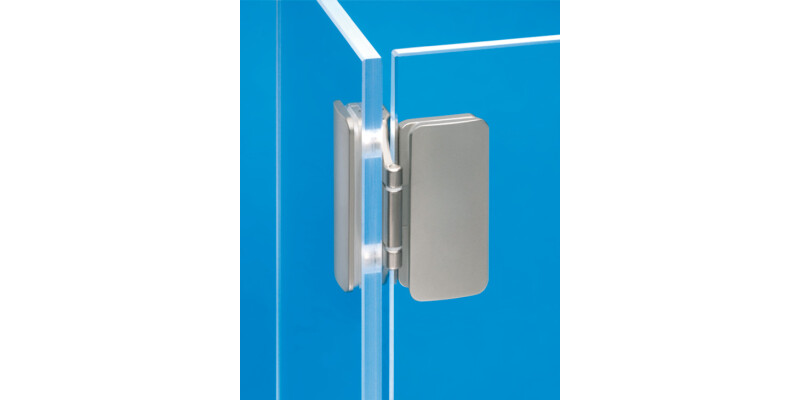

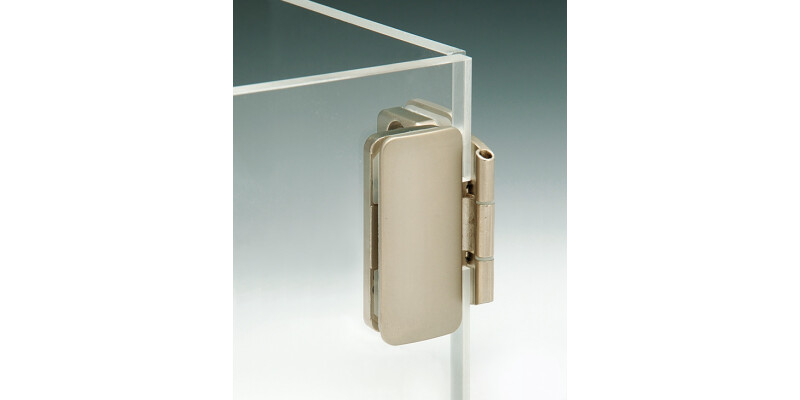

For all glass constructions, with inset doors

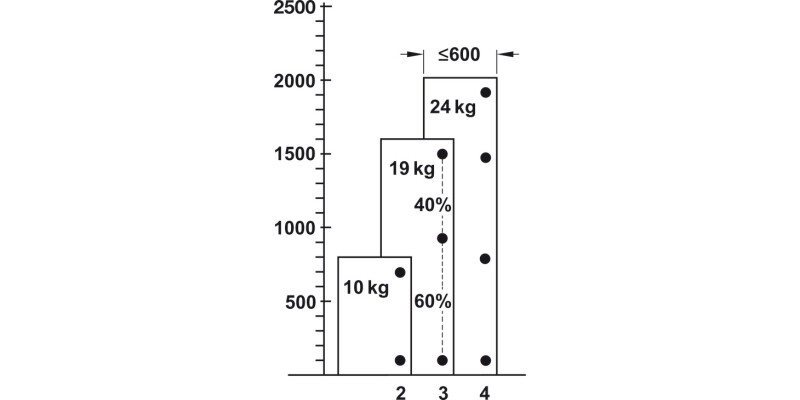

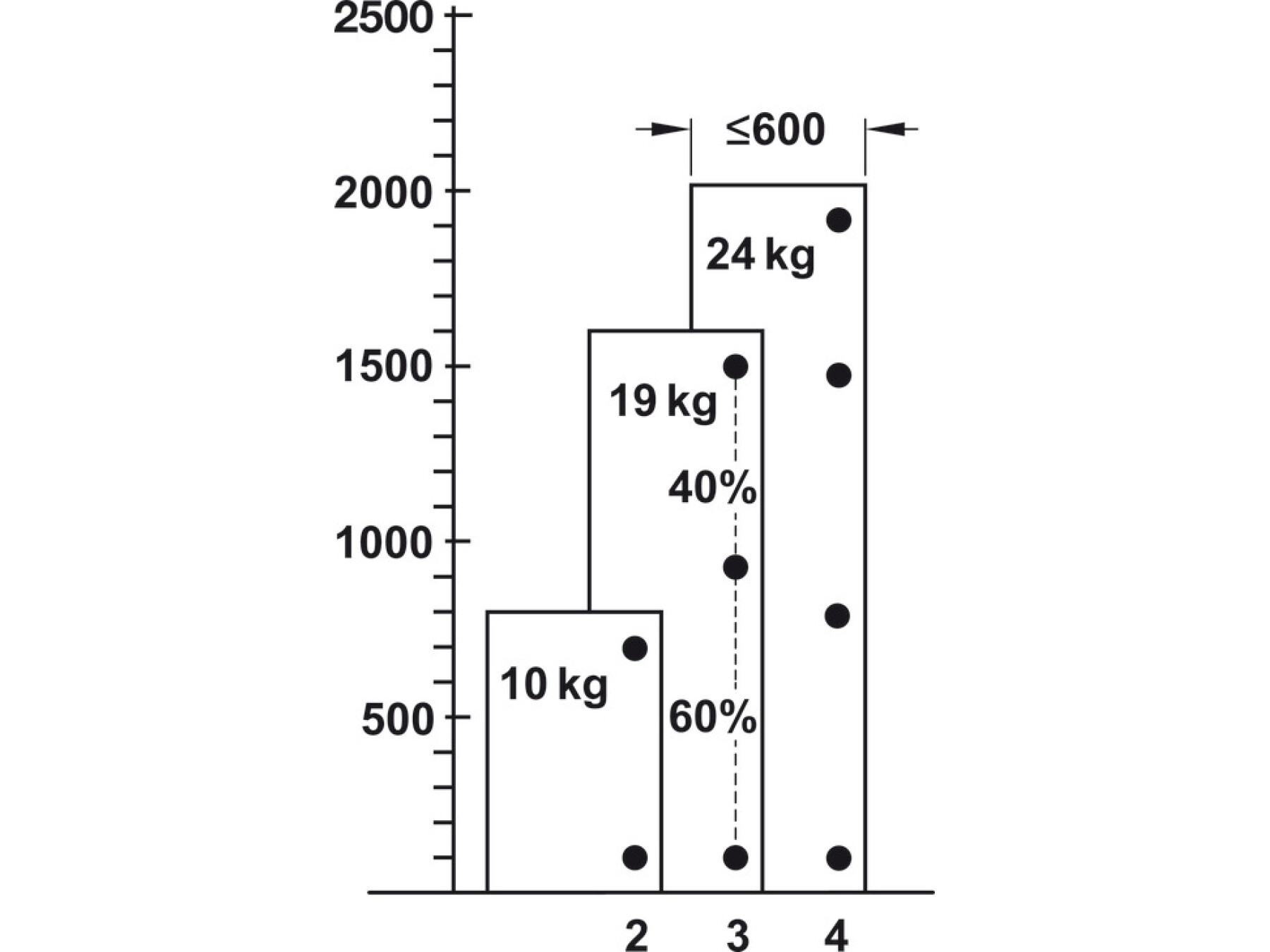

For door width
≤600 mm
Adjustment facility
Side adjustment -2 mm, Height adjustment -1 – 1 mm
Equipped with
with catch
Door width max.
600.00 mm
Supplied with
1 all-glass cabinet hinge
Fixing screws
Plastic spacer plates
