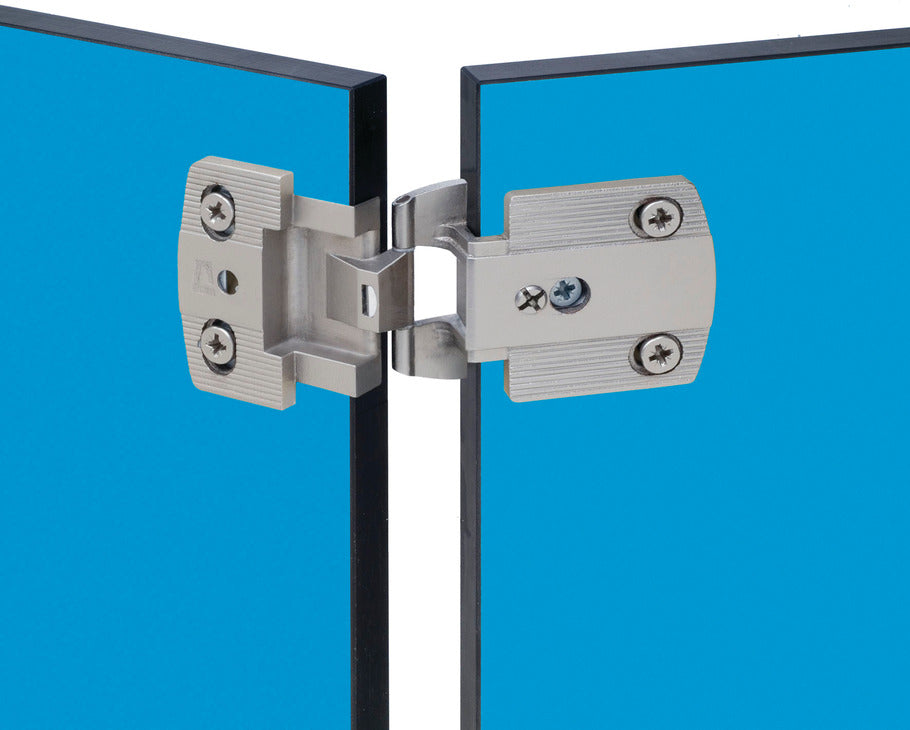

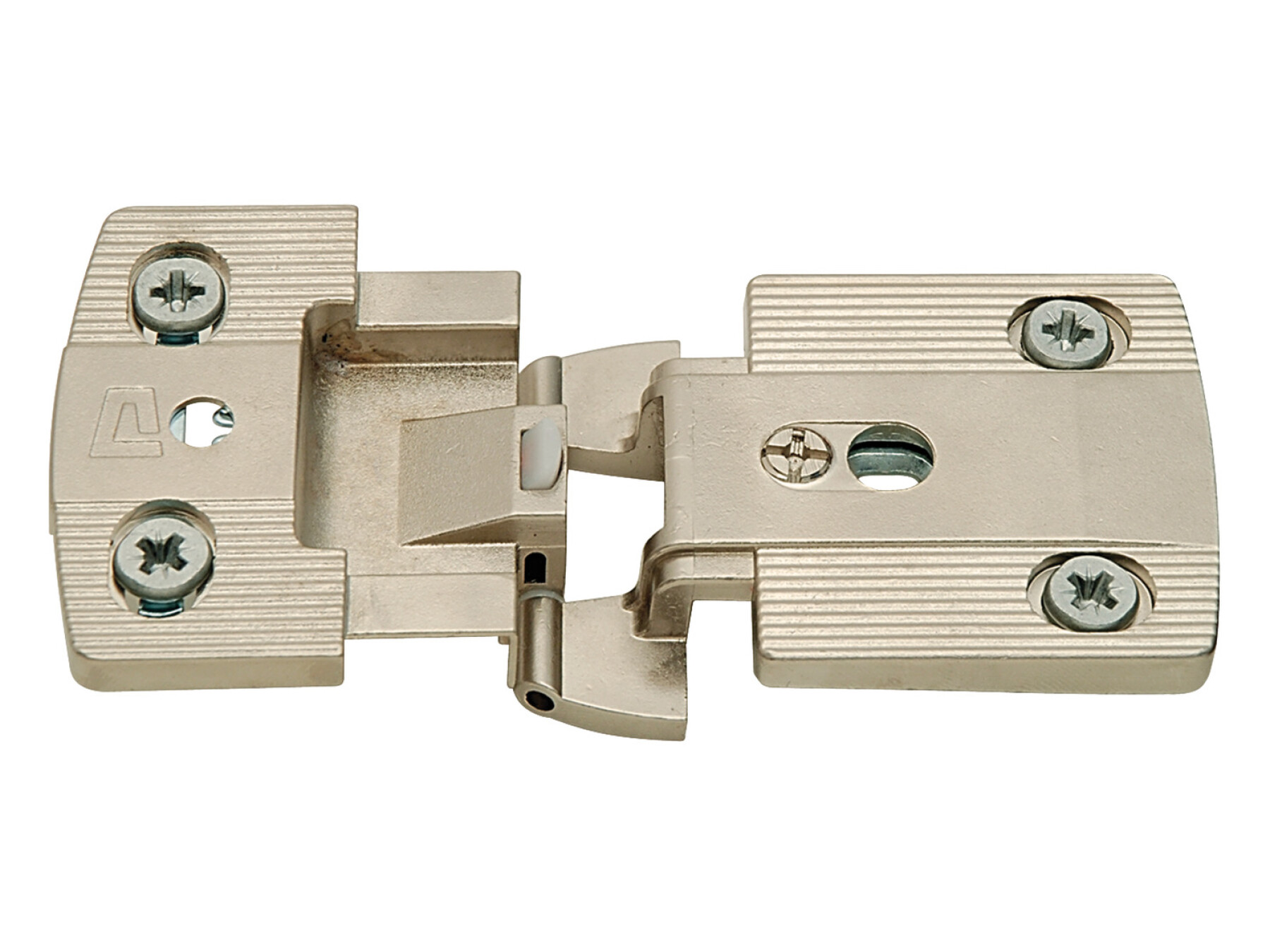

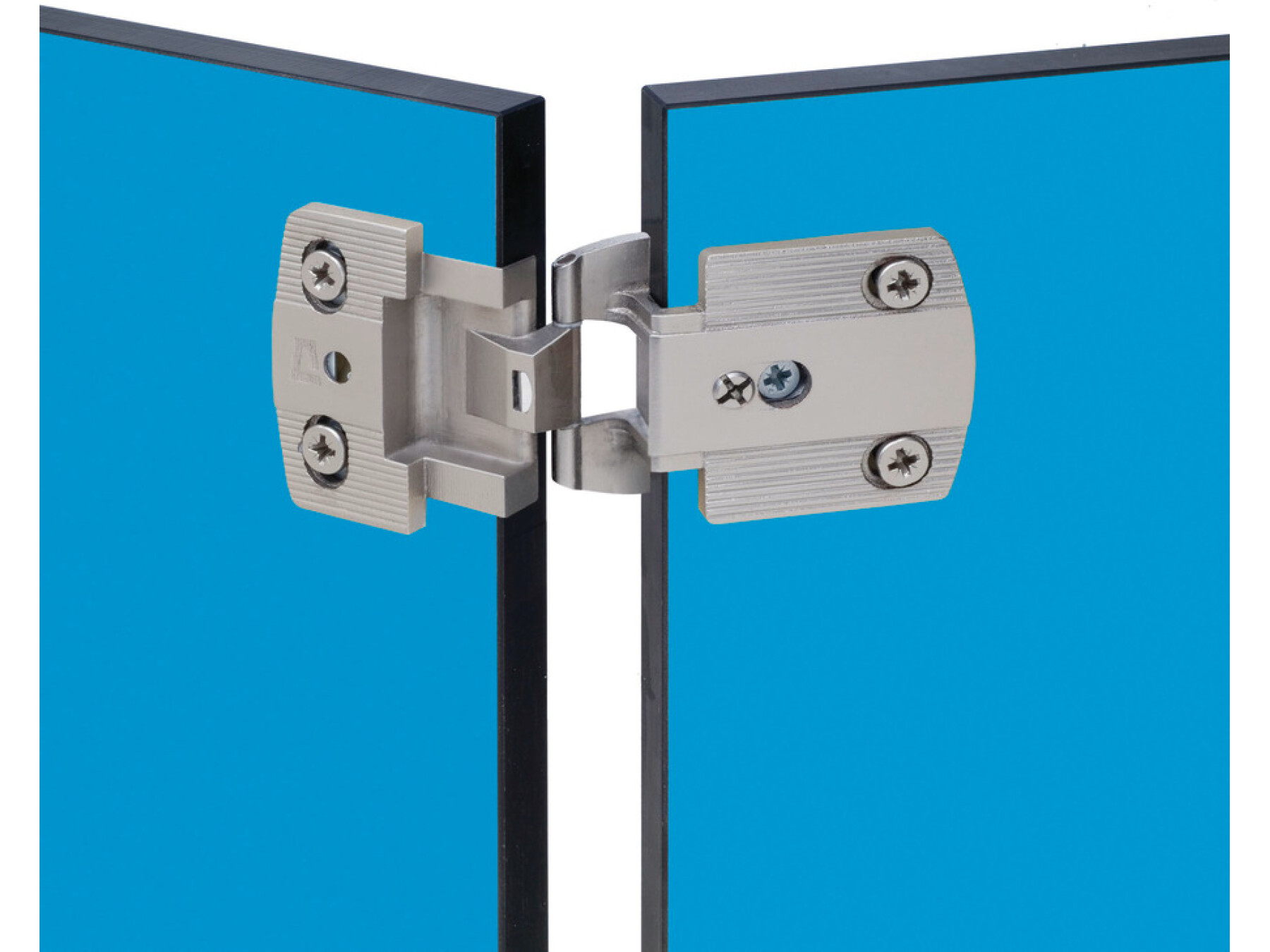

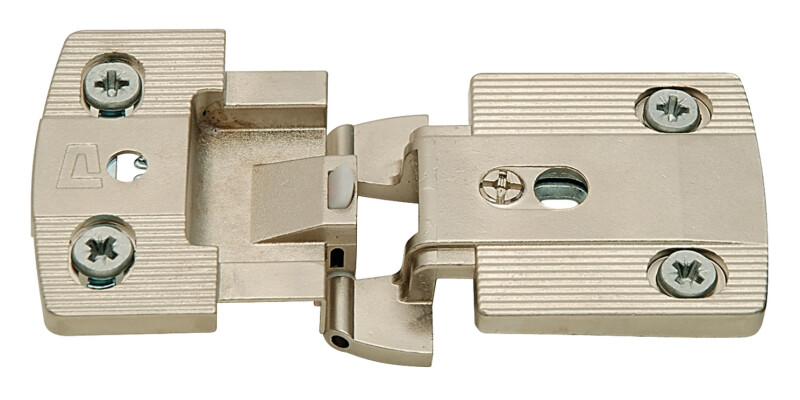

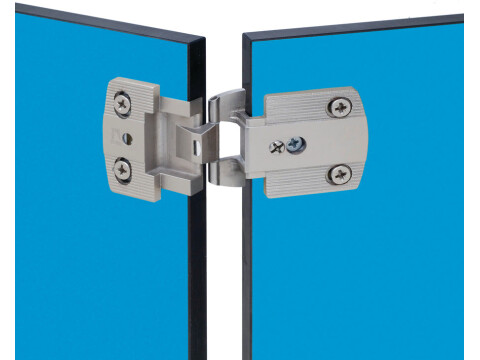

270/240D Hinge 5mm ExAxle 3.5mm 10/13
Part Number: 344.75.760
Shallow design, Overlay 3.5 mm, 10/13 mm side wall thickness for side/centre panel mounting
Price:
£21.57
Per Item
Ø 5 mm axle, 47 mm length0 mm door offset from 140° opening angle270° opening angle for full overlay, 240°... Read More
Product Information
Product Details
Ø 5 mm axle, 47 mm length
0 mm door offset from 140° opening angle
270° opening angle for full overlay, 240° for half overlay
With catch
Maximum project quality in compliance with ANSI grade 1 (100,000 cycles)

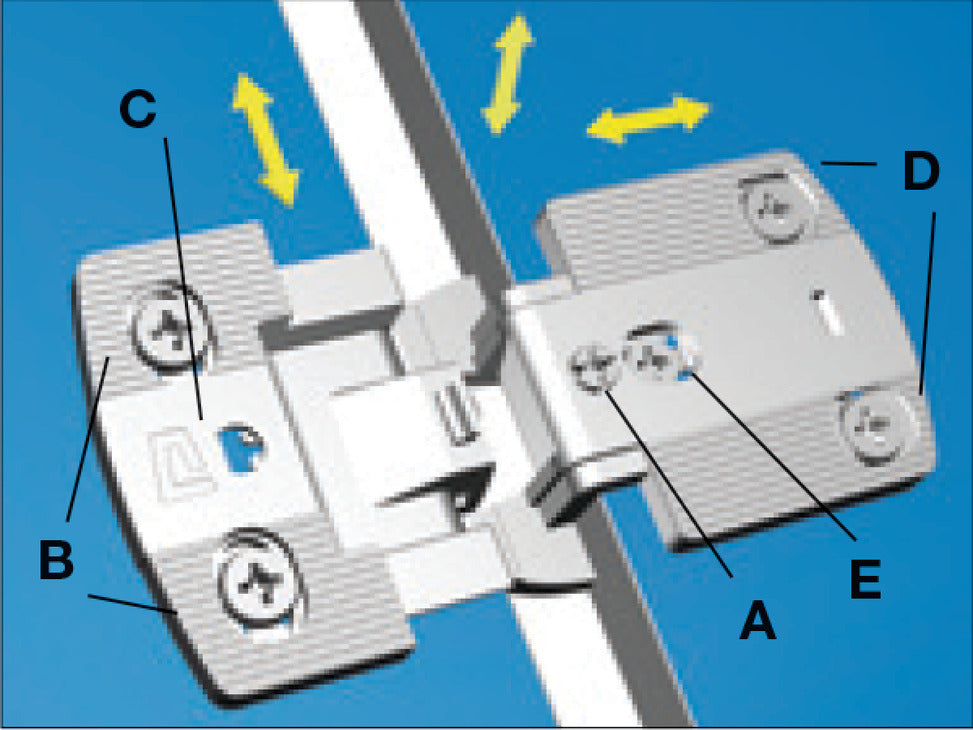

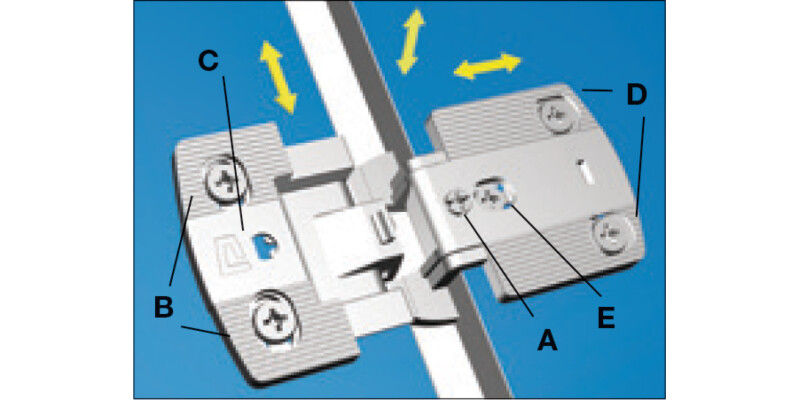

Adjustment facility
Side adjustment: 1 mm, Height adjustment: -2 – 2 mm, Depth adjustment: ±1 mm, Height adjustment in cup part via eccentric, Depth adjustment via horizontal slots in side component
Other colours available on request
Specifications
Area of application
For thin doors
for laminate panels (HPL)
Concealed hinge version
Full overlay/half overlay mounting
For door material
Laminate

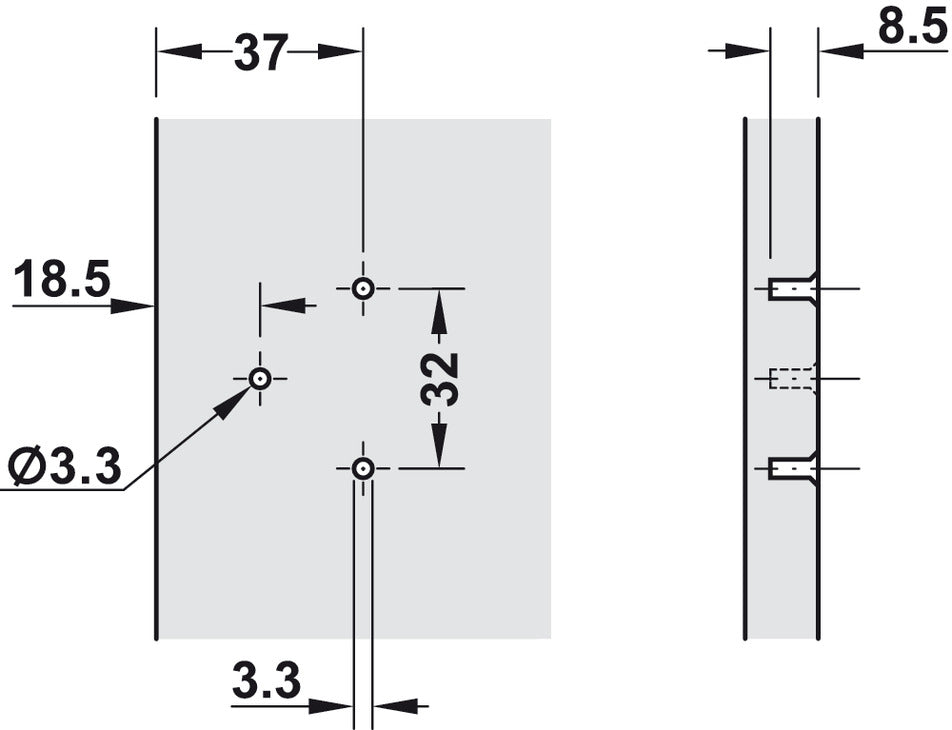

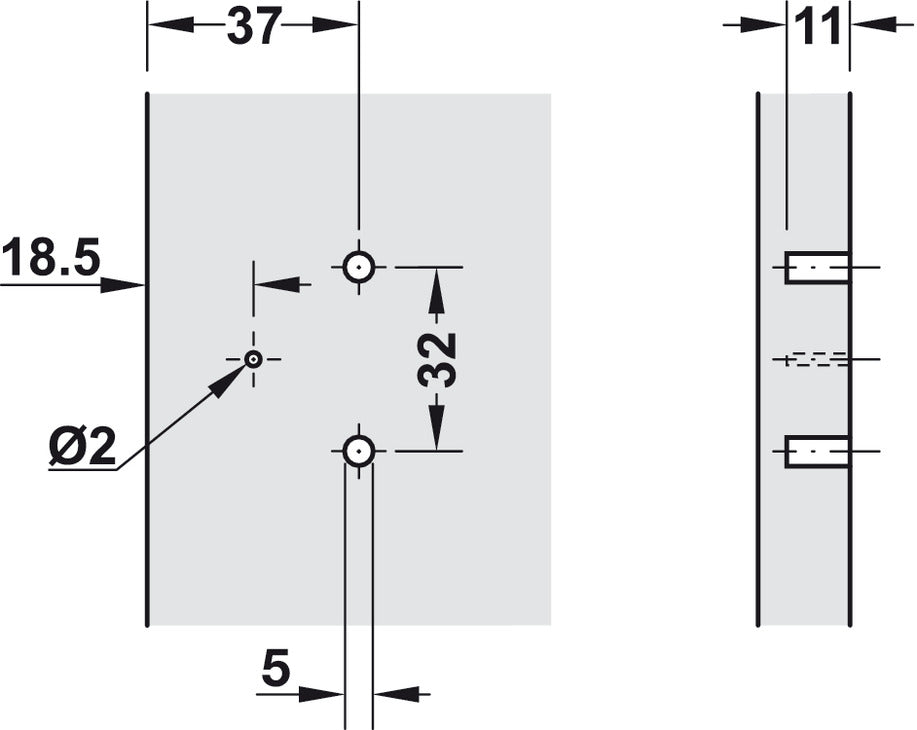

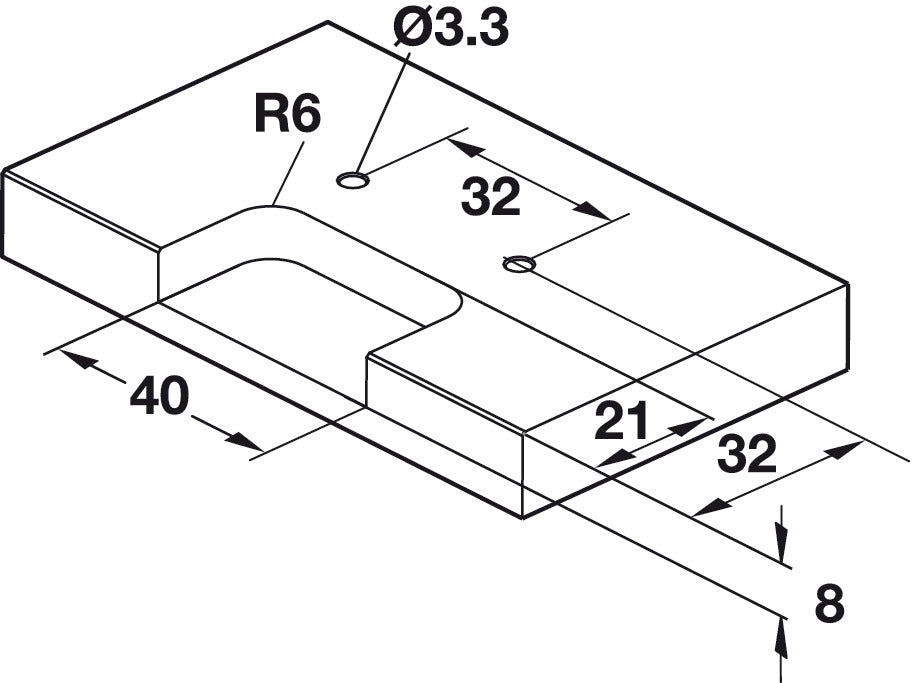

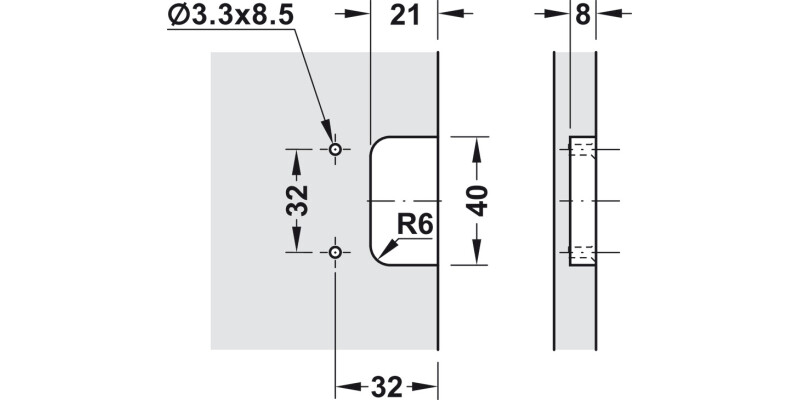

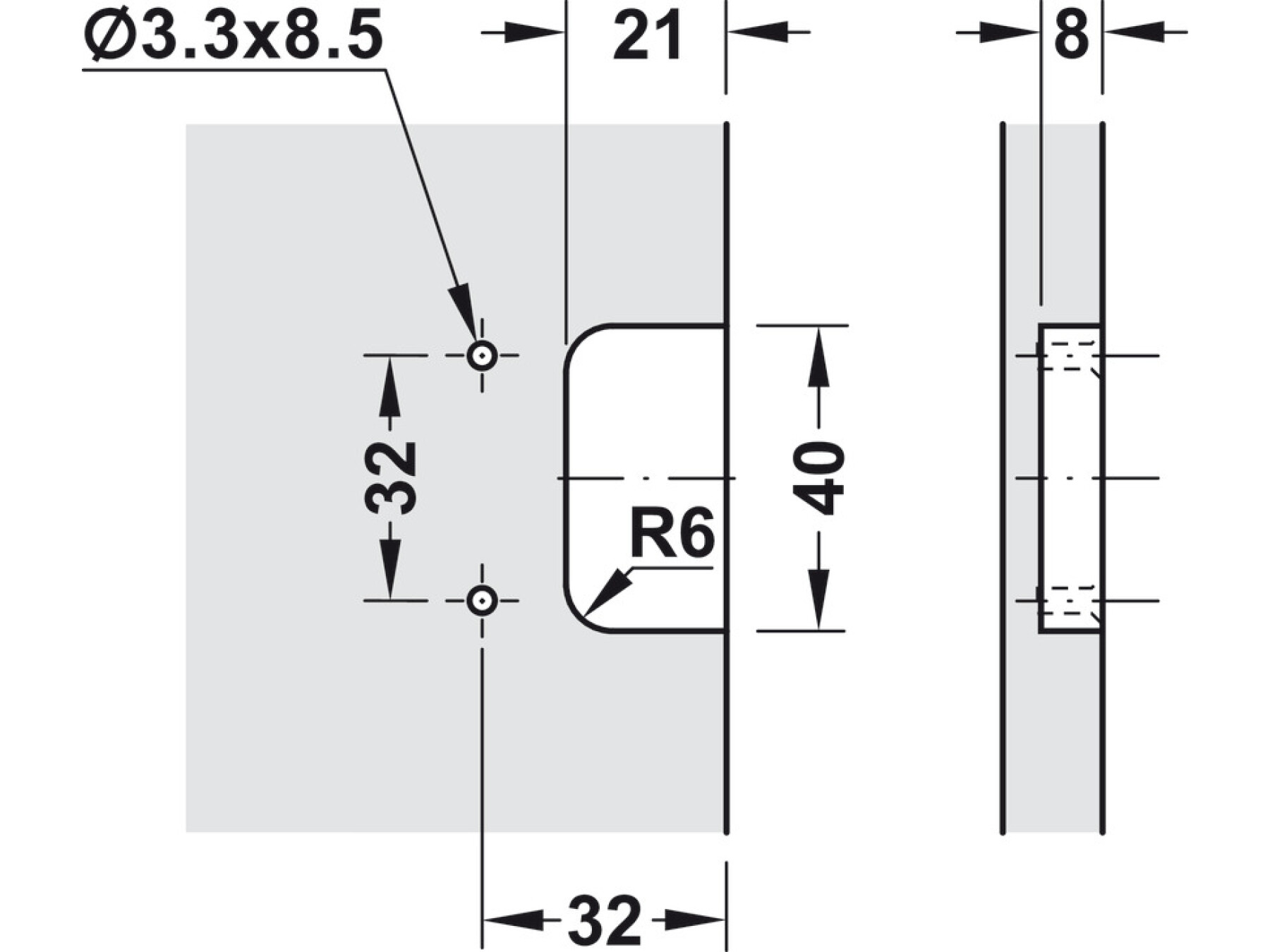

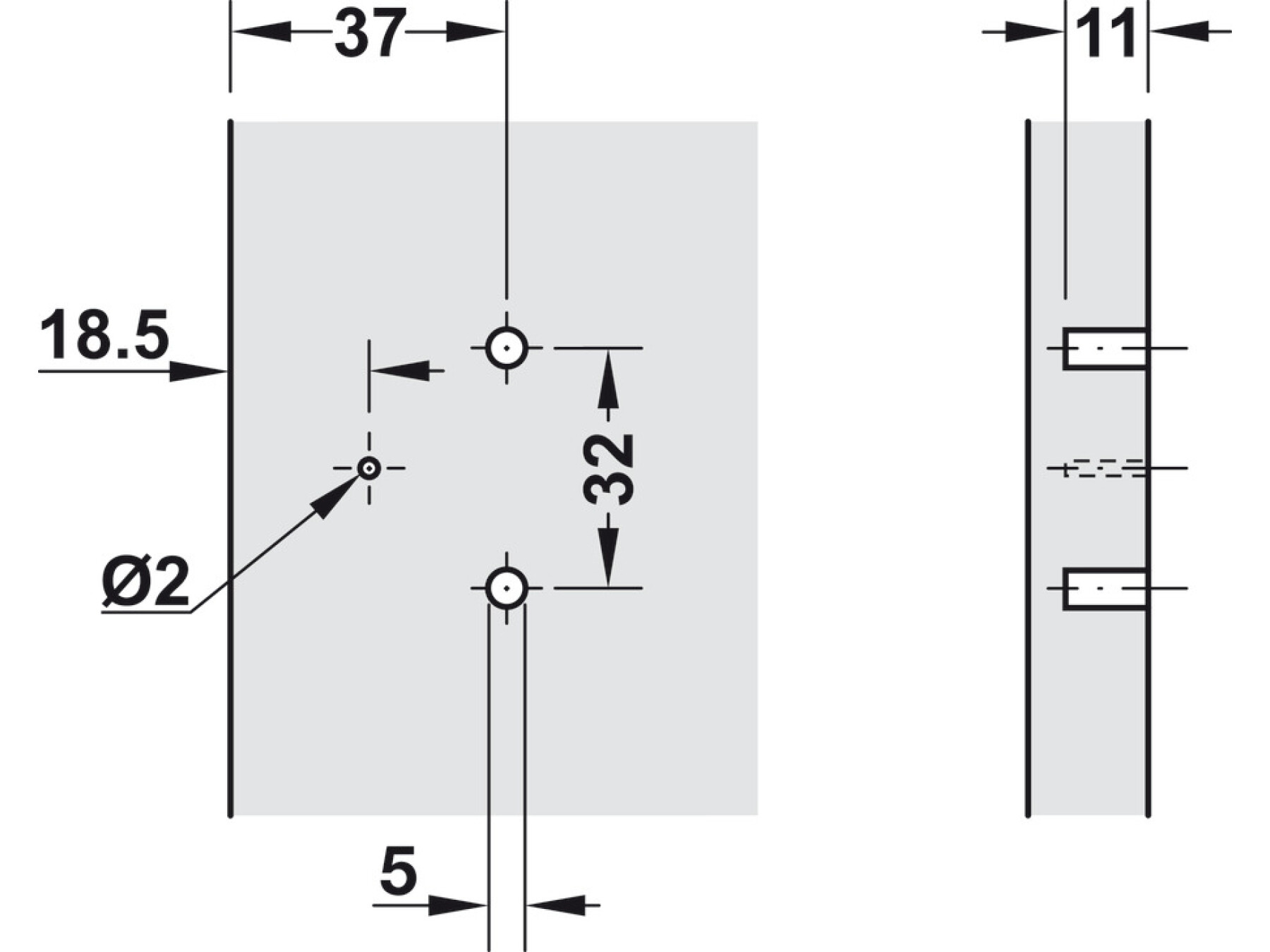

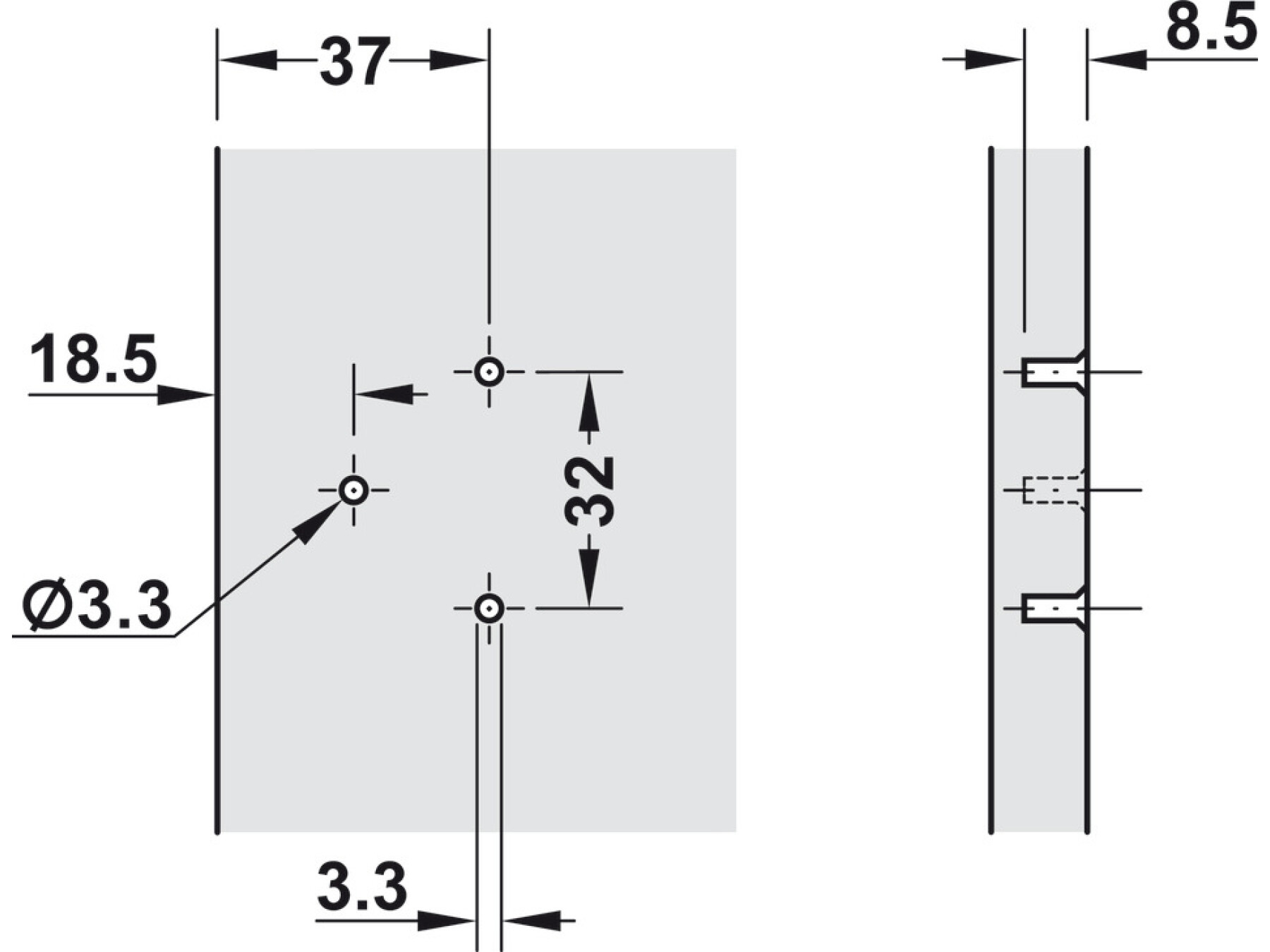

Door processing for assembly
Without
Material
Zinc alloy
Colour/finish
nickel plated
Opening angle
240°
For door thickness
10 – 13 mm
Knuckle diameter
5.00 mm
Knuckle length
47.00 mm
Gap
6.00 mm
Installation

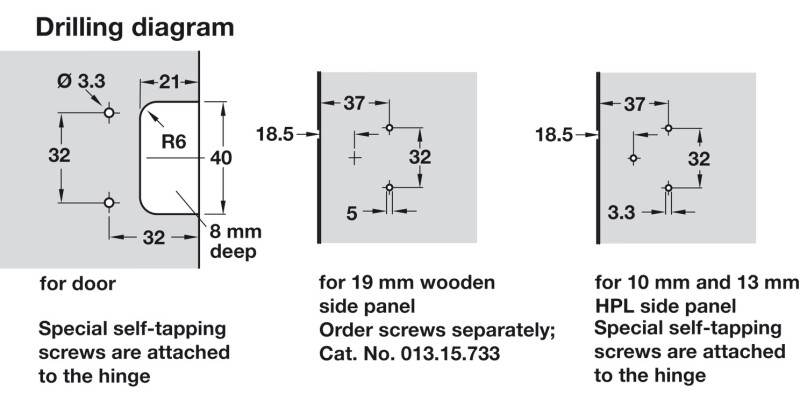

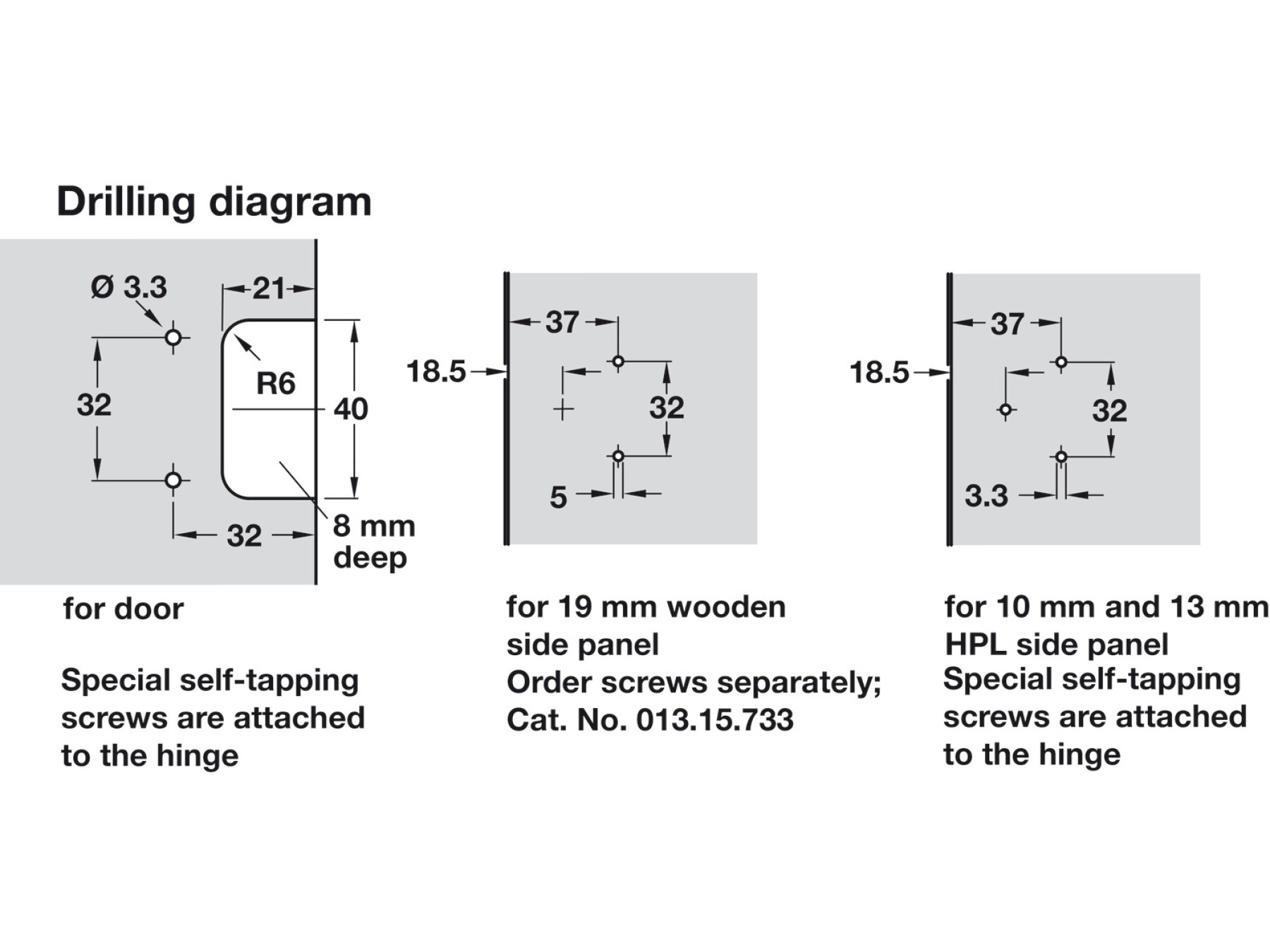

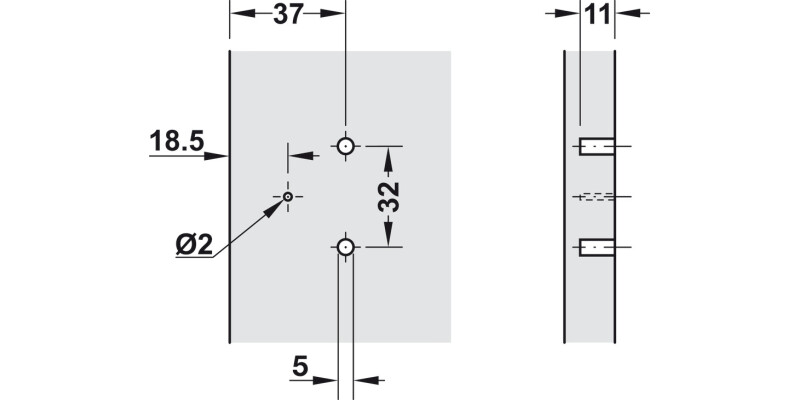

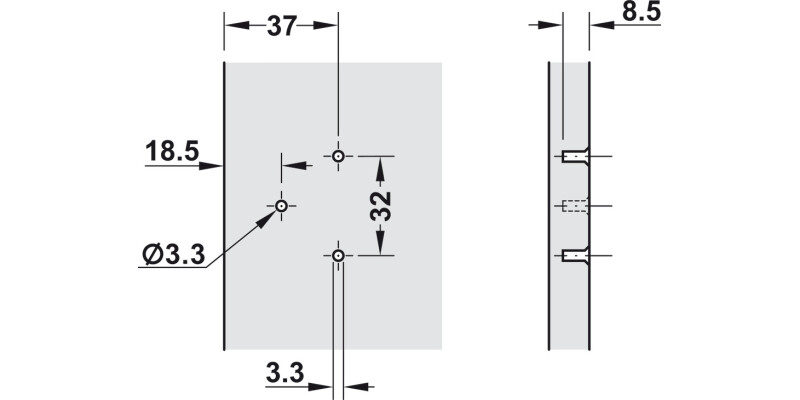

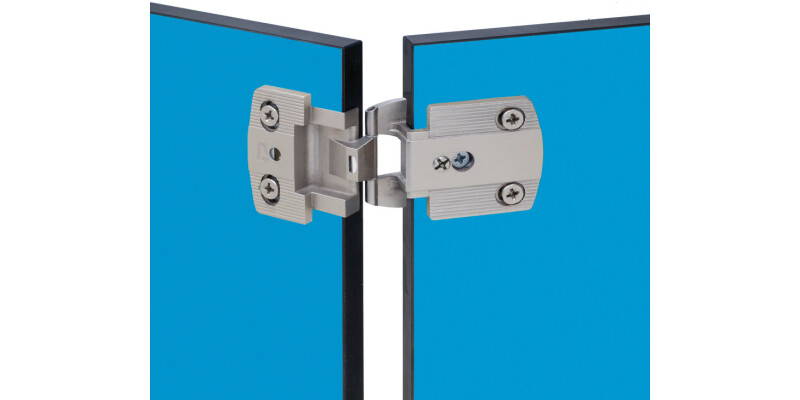

For corner or centre panel mounting, 6 mm gap
Hinge arm fixing
For screw fixing
Supplied with
Hinge
Fixing material (specially coated self-tapping screws)
