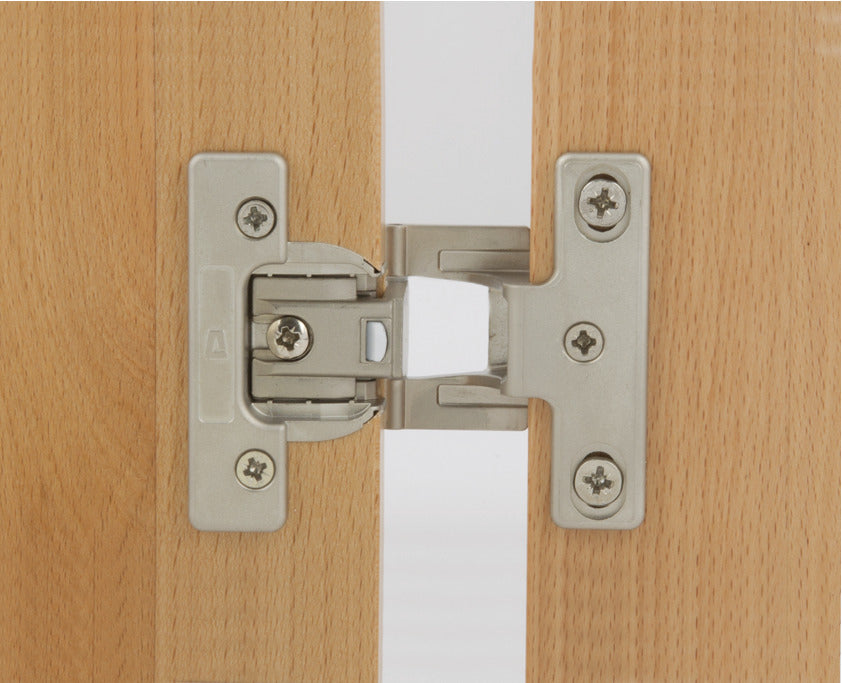

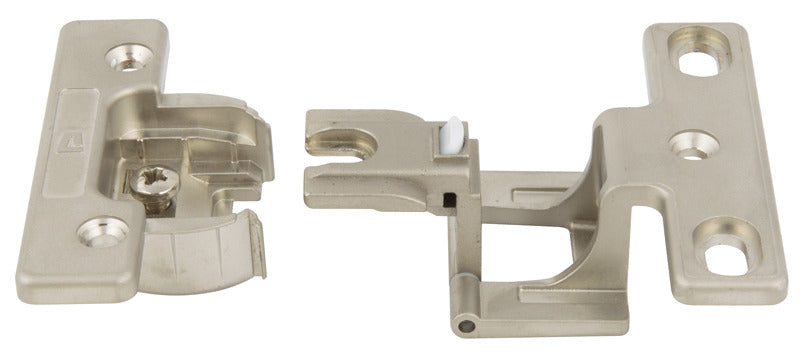

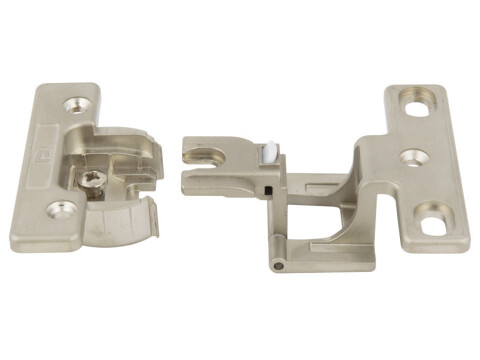

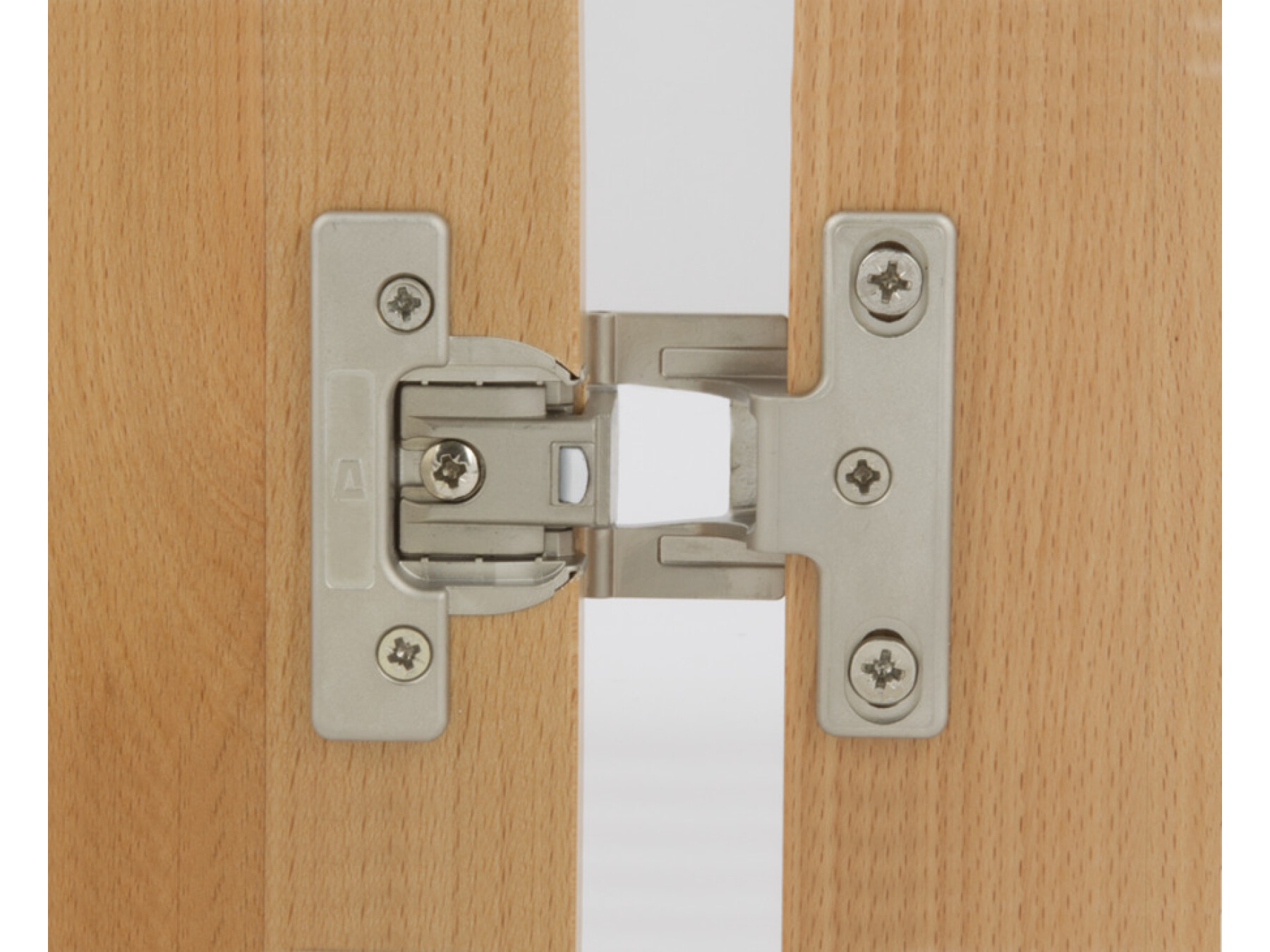

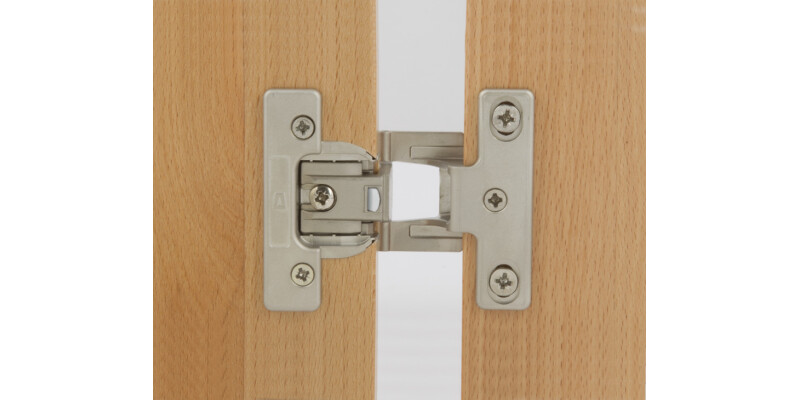

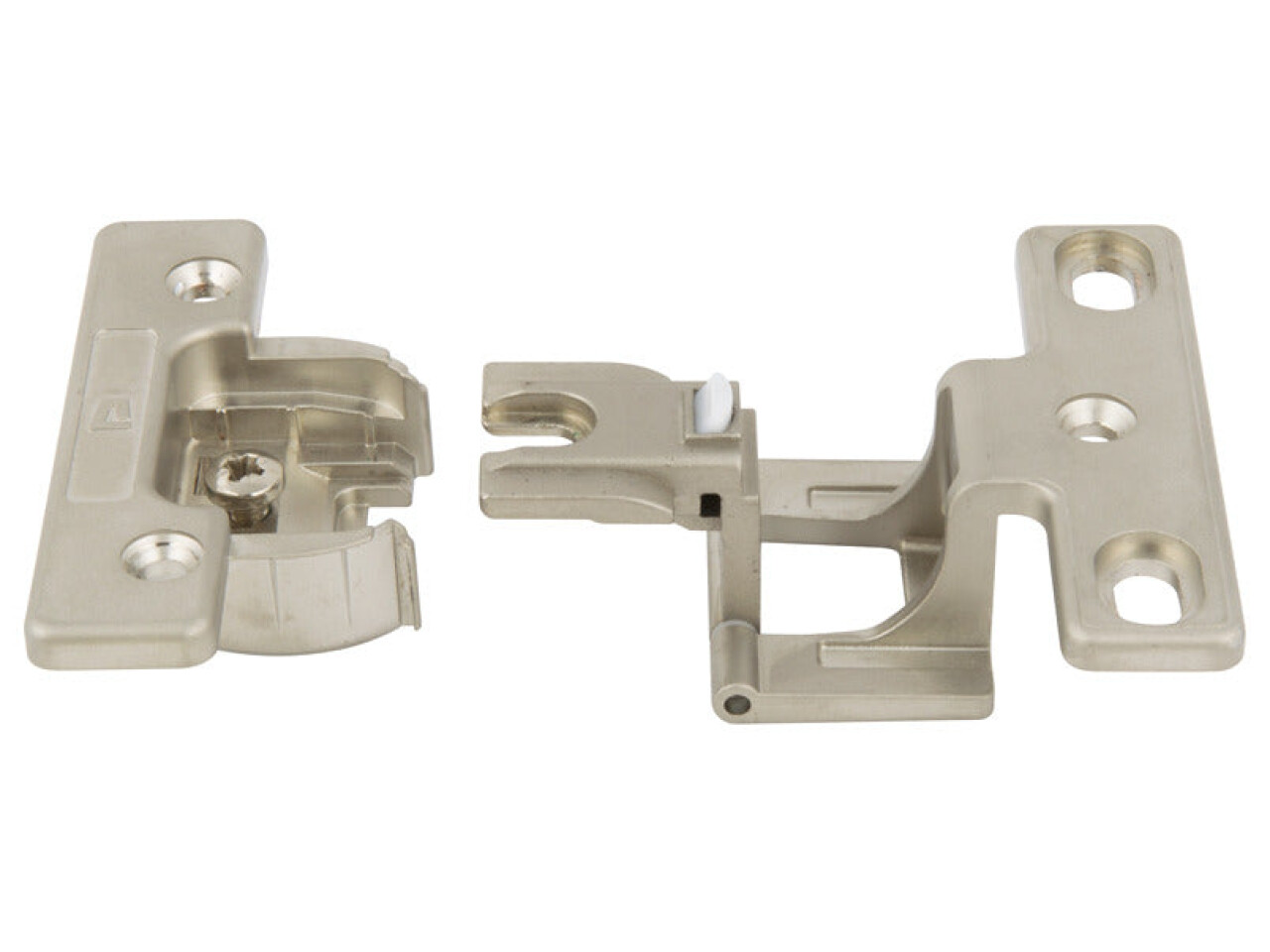

270D Hinge ExAxle w Short Arm NP
Part Number: 344.01.100
Nickel plated
Price:
£12.34
Per Item
For modular system cabinets/frame systems/rebated edge doorsFor cabinets made of steel, wood and compact laminate... Read More
Product Information
Product Details
For modular system cabinets/frame systems/rebated edge doors
For cabinets made of steel, wood and compact laminate boards
Hinge arm only 4 mm thick
With catch
Area of application
For modular system cabinets/frame systems/rebated edge doors
For cabinets made of steel, wood and compact laminate boards
Installation
Assembling of cup and hinge arm via a screw with metric thread
Protrusion of the hinge arm into the interior of the carcass 21.5 mm
Special Euro screws for fastening of the hinge arm are optional
Specifications
Concealed hinge version
Full overlay

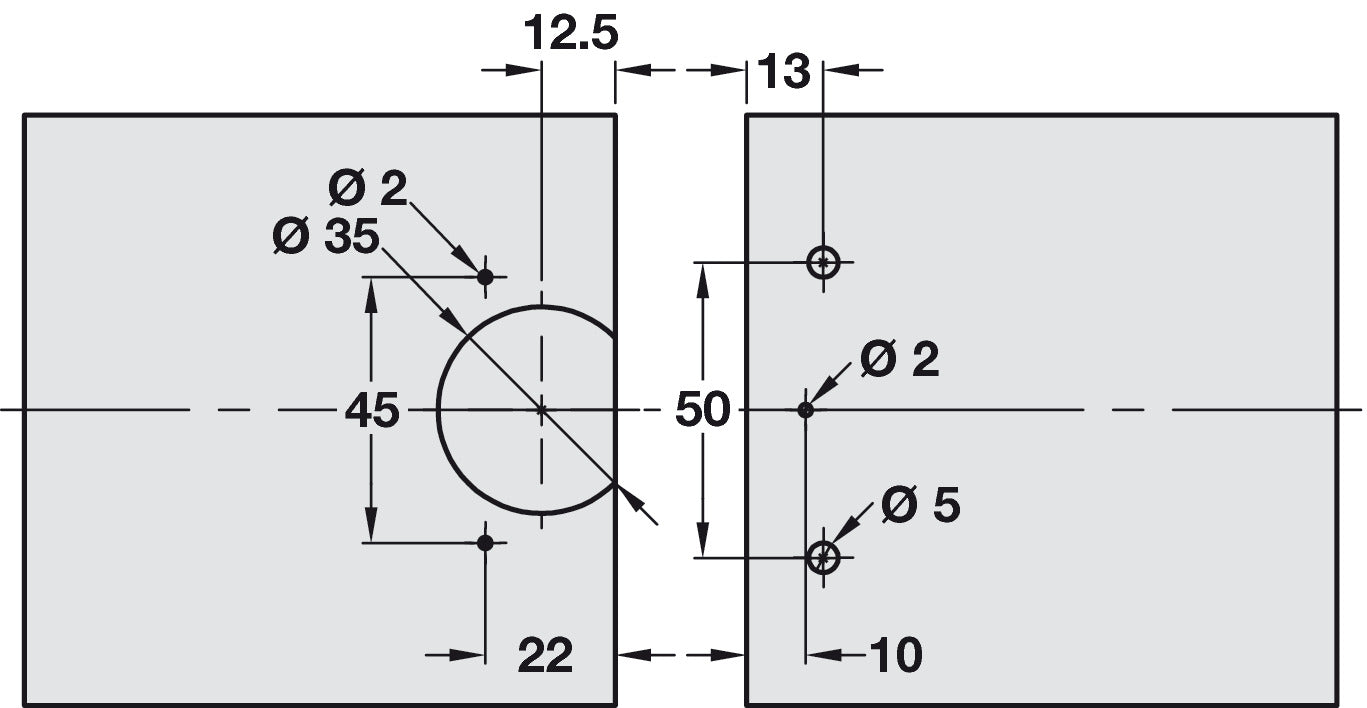

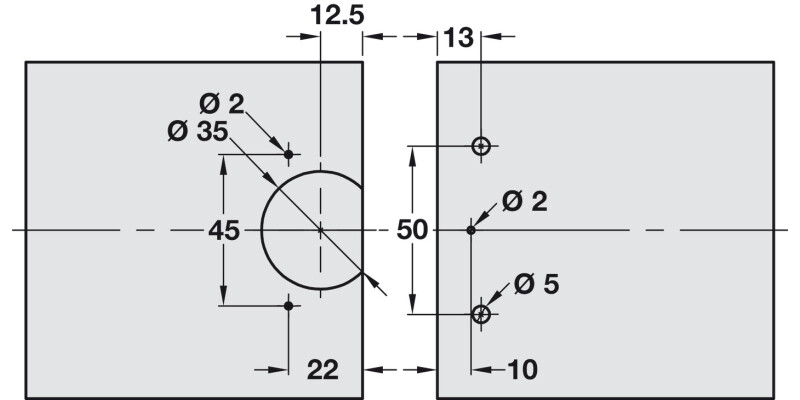

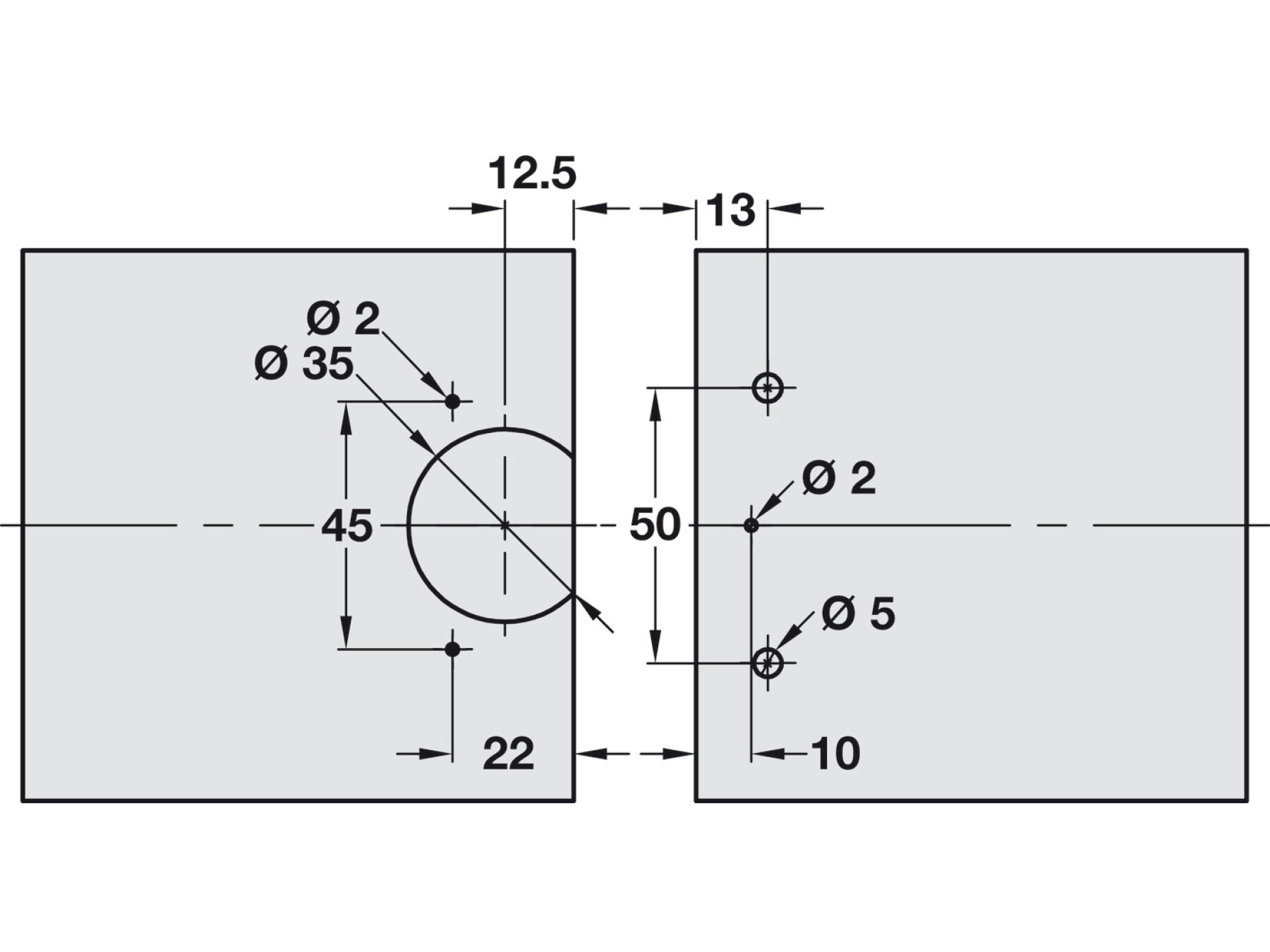

Door processing for assembly
with glass drilling
Material
Zinc alloy
Colour/finish
nickel plated
Opening angle
270°
Cup drilling depth
13.00 mm
Cup drilling Ø
35.00 mm
Adjustment facility
Side adjustment 3 mm, Depth adjustment ±3 mm
Supplied with
Fixings
