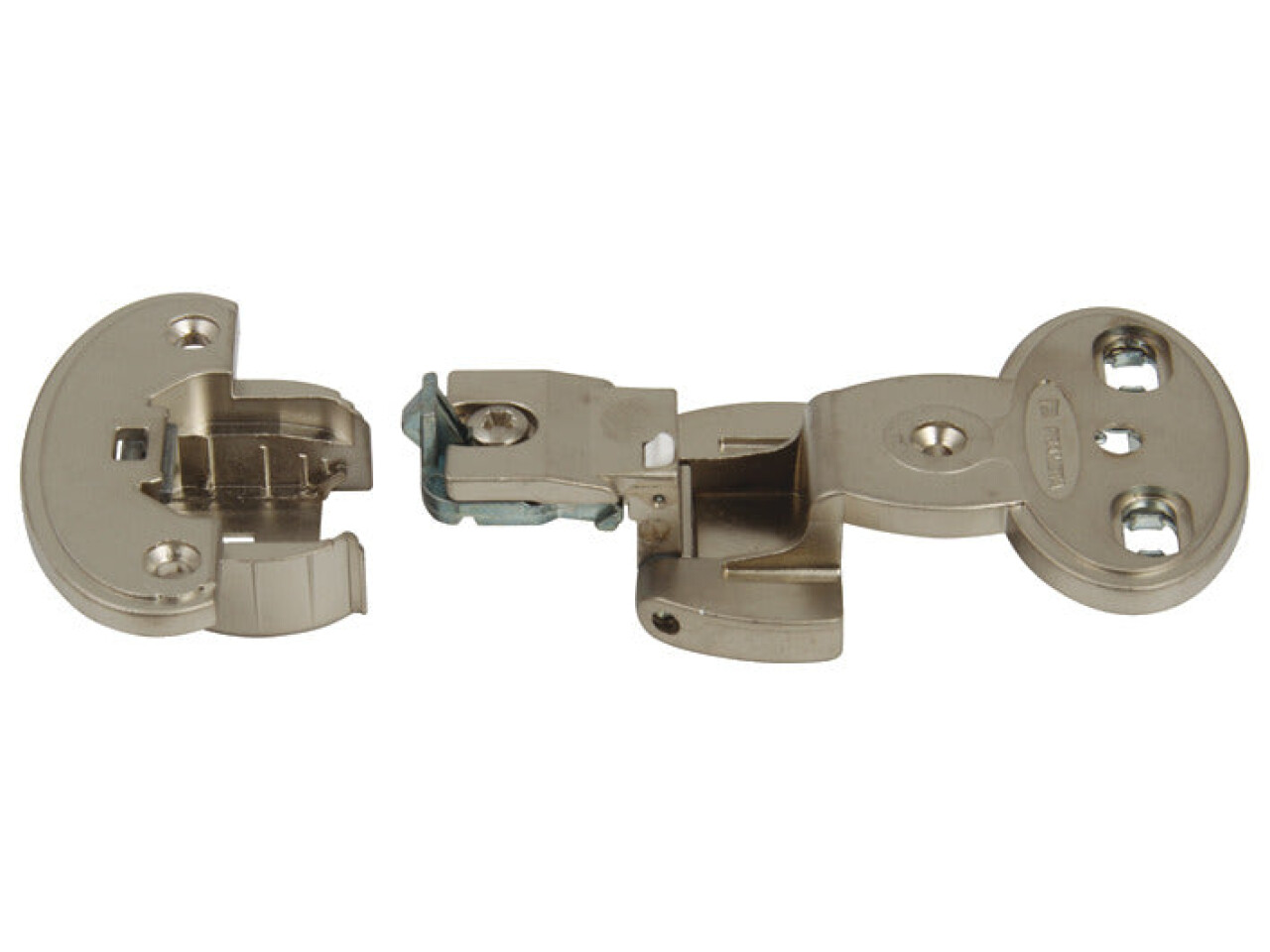

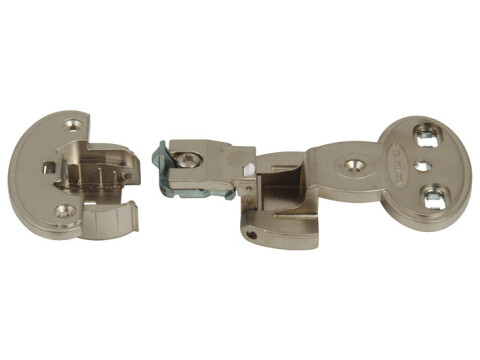

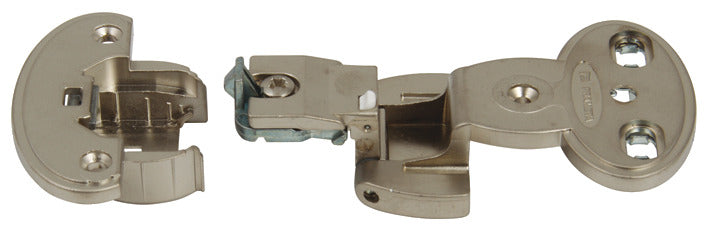

Aximat 300 240D Sgl PivotHingeArm Qk CLR
Part Number: 344.00.921
Order hinge arm and cup separately, Centre panel mounting
Price:
£9.28
Per Item
Solid design, eliminates the risk of fingers getting caught inside the hinge itselfCan be retro fittedTested in... Read More
Product Information
Product Details
Solid design, eliminates the risk of fingers getting caught inside the hinge itself
Can be retro fitted
Tested in accordance with ANSI Grade 1 and DIN ISO standards
With catch
Order reference
Order Aximat 300 hinge cup seperately
Order Hospa Ø 3.5 raised head and Varianta Ø 5.0 mm countersunk screws separately
This hinge is ideal for retro-fitting and replacing hinges where there is a risk of finger entrapment
For new installations we would however recommend the 180° Aximat 300 hinge
Specifications
Version
Quick mounting

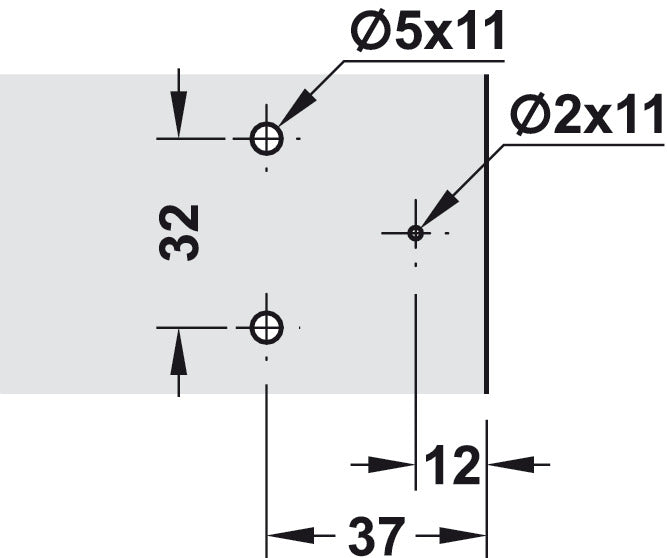

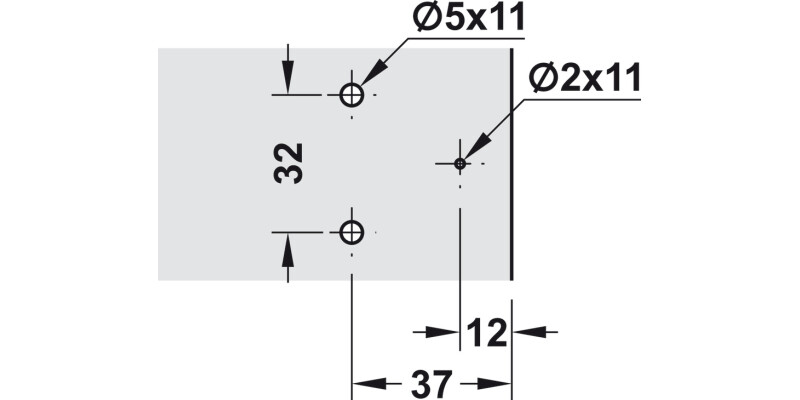

Door processing for assembly
with cup drilling
Material
Zinc alloy
Colour/finish
matt
Opening angle
240°
Adjustment facility
With 2 way adjustment: Lateral -3 mm. Vertical ±2 mm
Installation
Centre panel mounting
