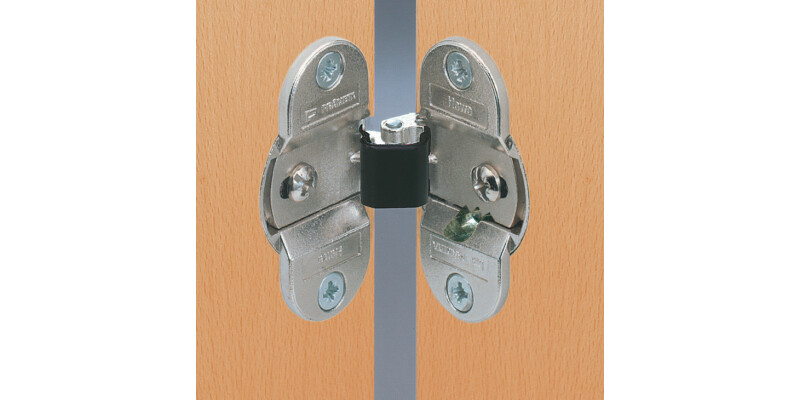

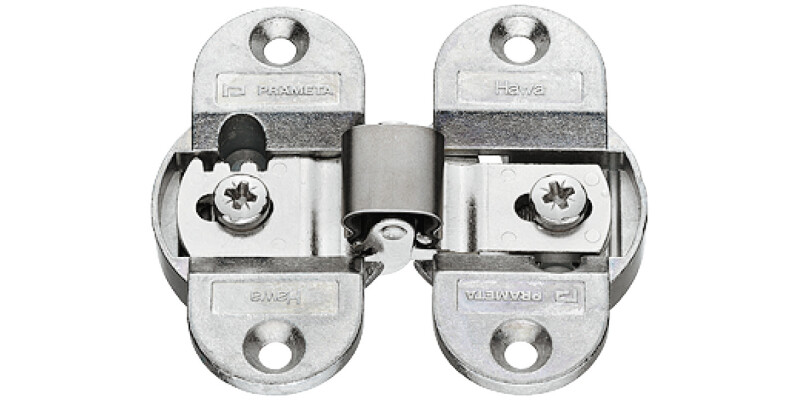

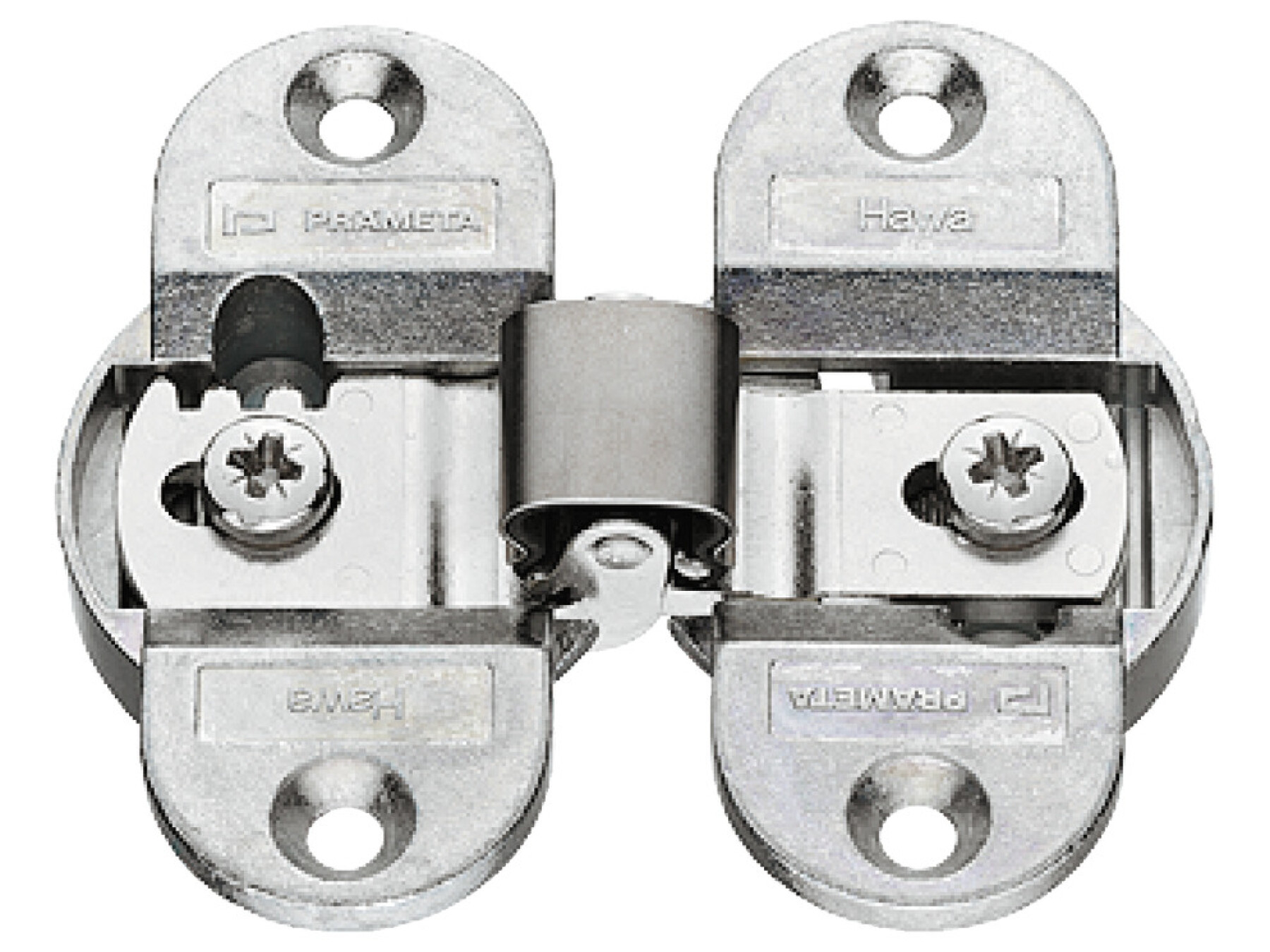

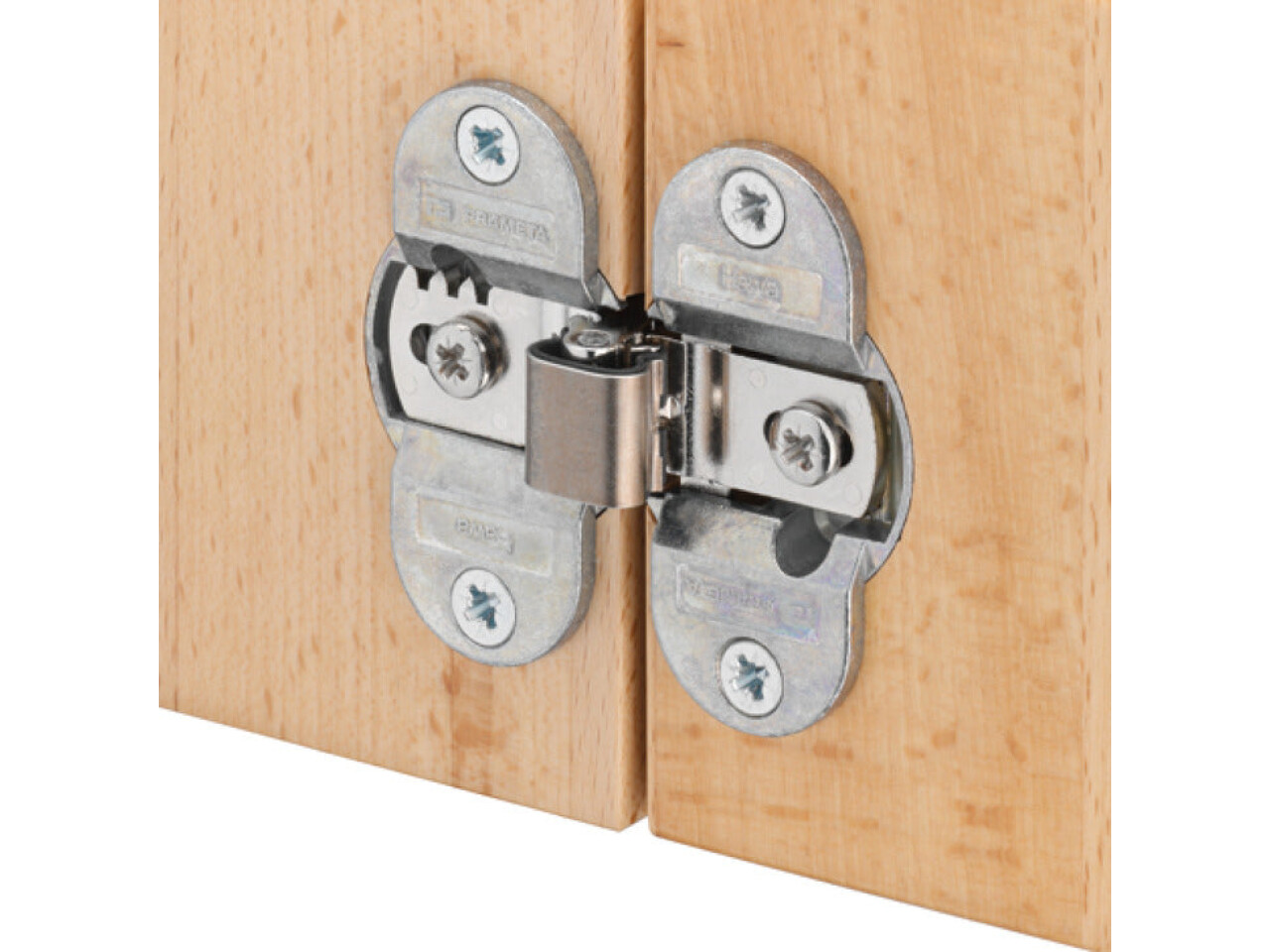

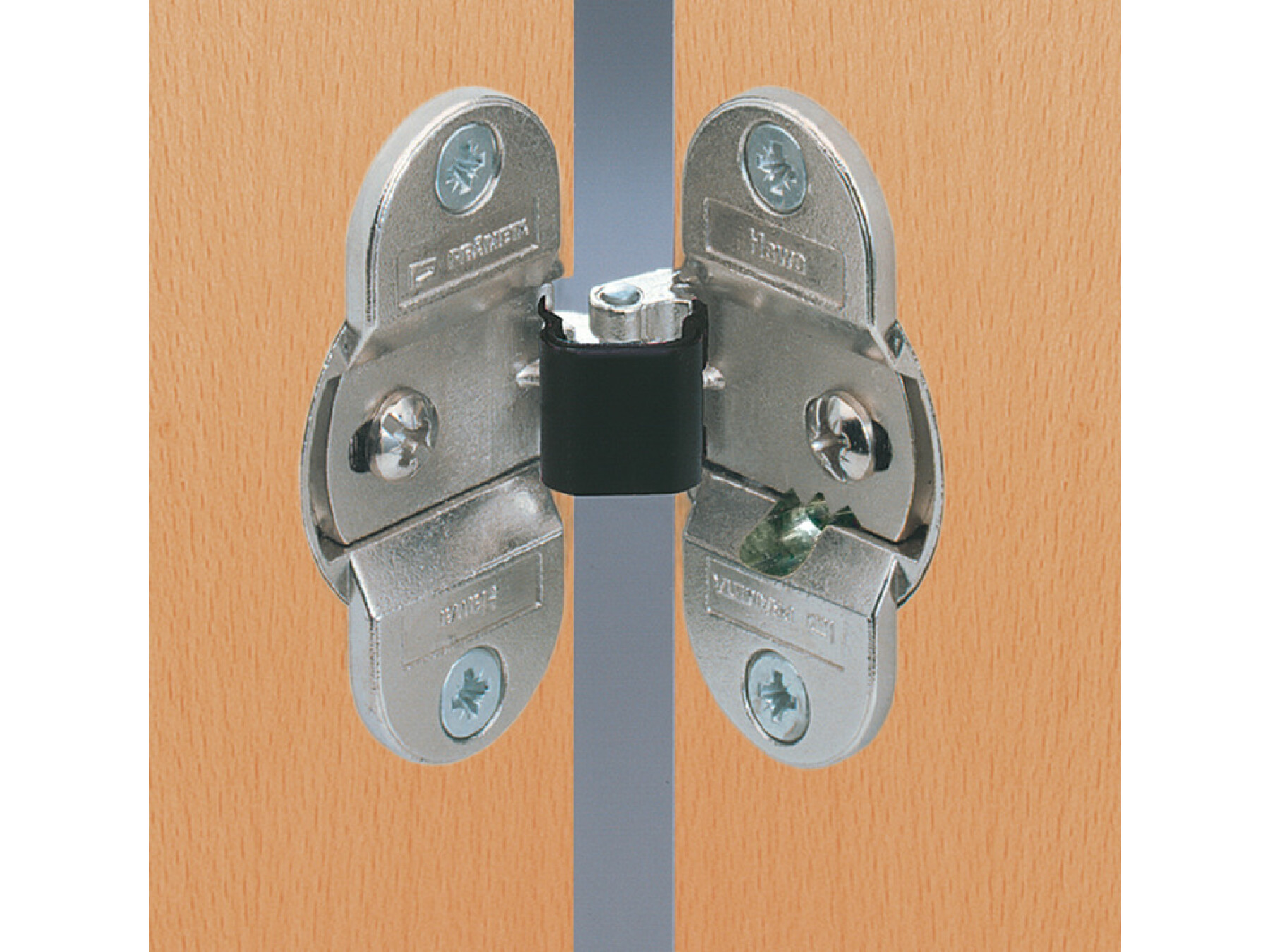

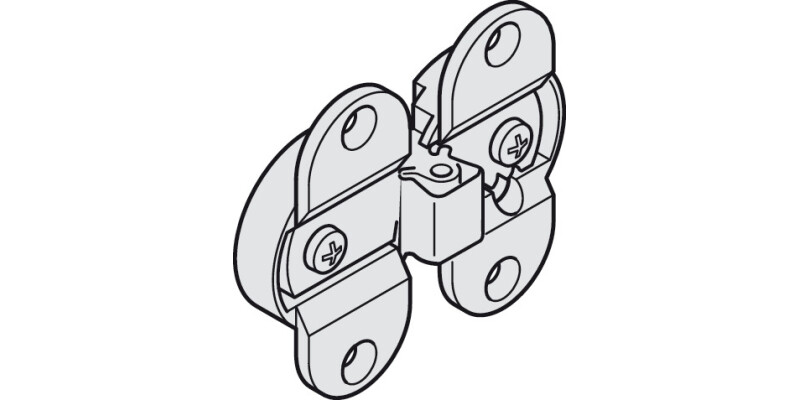

180D Hinge for Folding Doors ScrFix
Part Number: 343.91.600
Inwards opening only, Screw fixing cup
Price:
£22.41
Per Item
Suitable for free swinging or guided folding doorsInward opening onlyAdjustable offset of the turning pointSelf... Read More
Product Information
Product Details
Suitable for free swinging or guided folding doors
Inward opening only
Adjustable offset of the turning point
Self closing (uniform spring strength independant of gap width and pivot point position)
Hardened steel axle in maintenance free plastic bearings

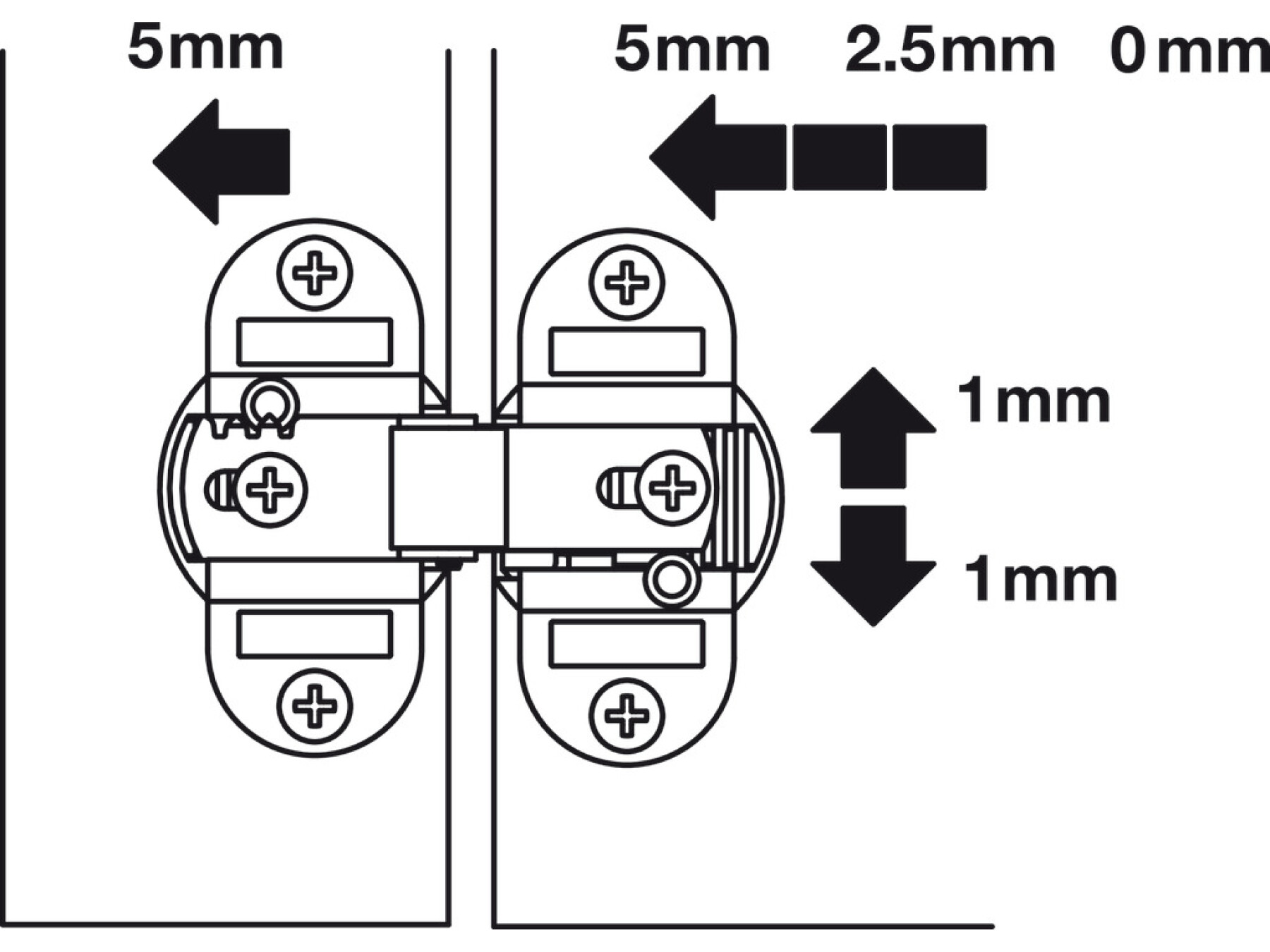

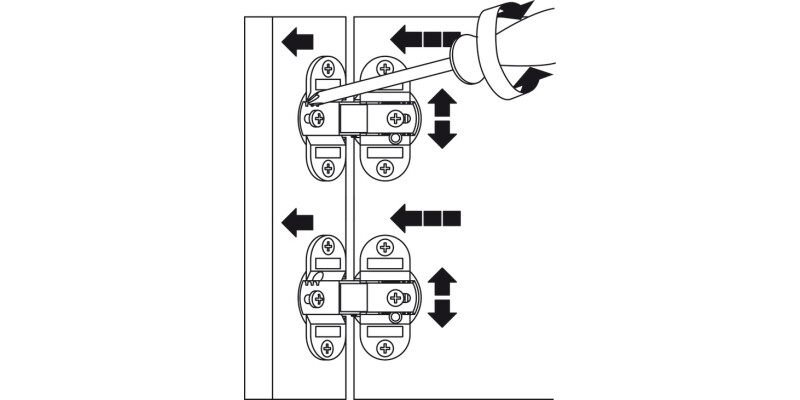

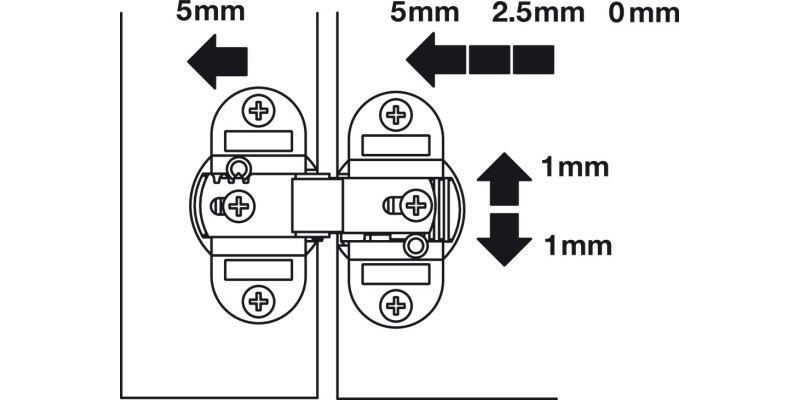

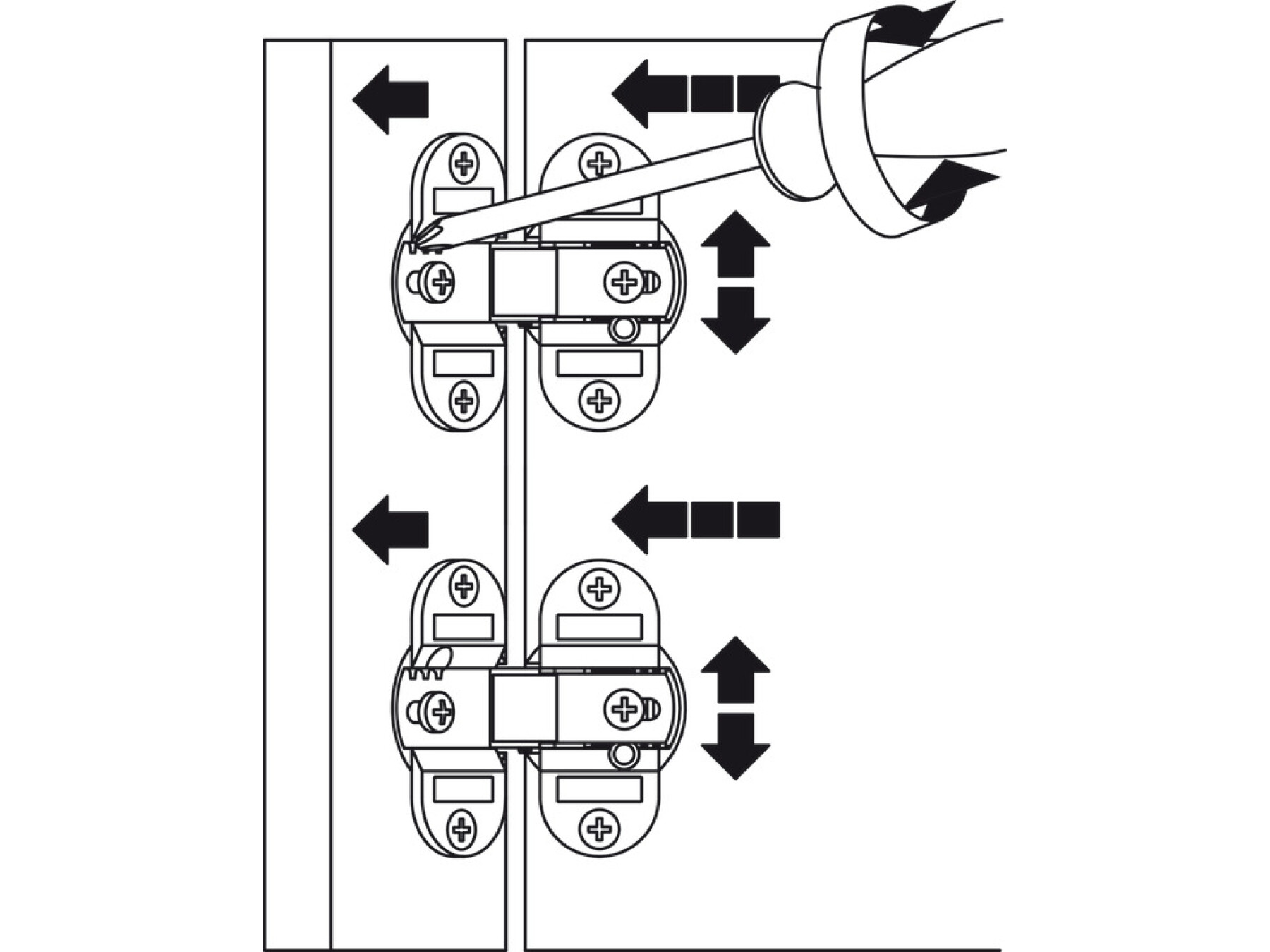

Adjustment facility
Side adjustment: 0 – 5 mm, Height adjustment: -1 – 1 mm, Adjustable gap 0–10 mm (factory setting 3 mm gap, pivot point 1.5 mm off centre)
Installation note

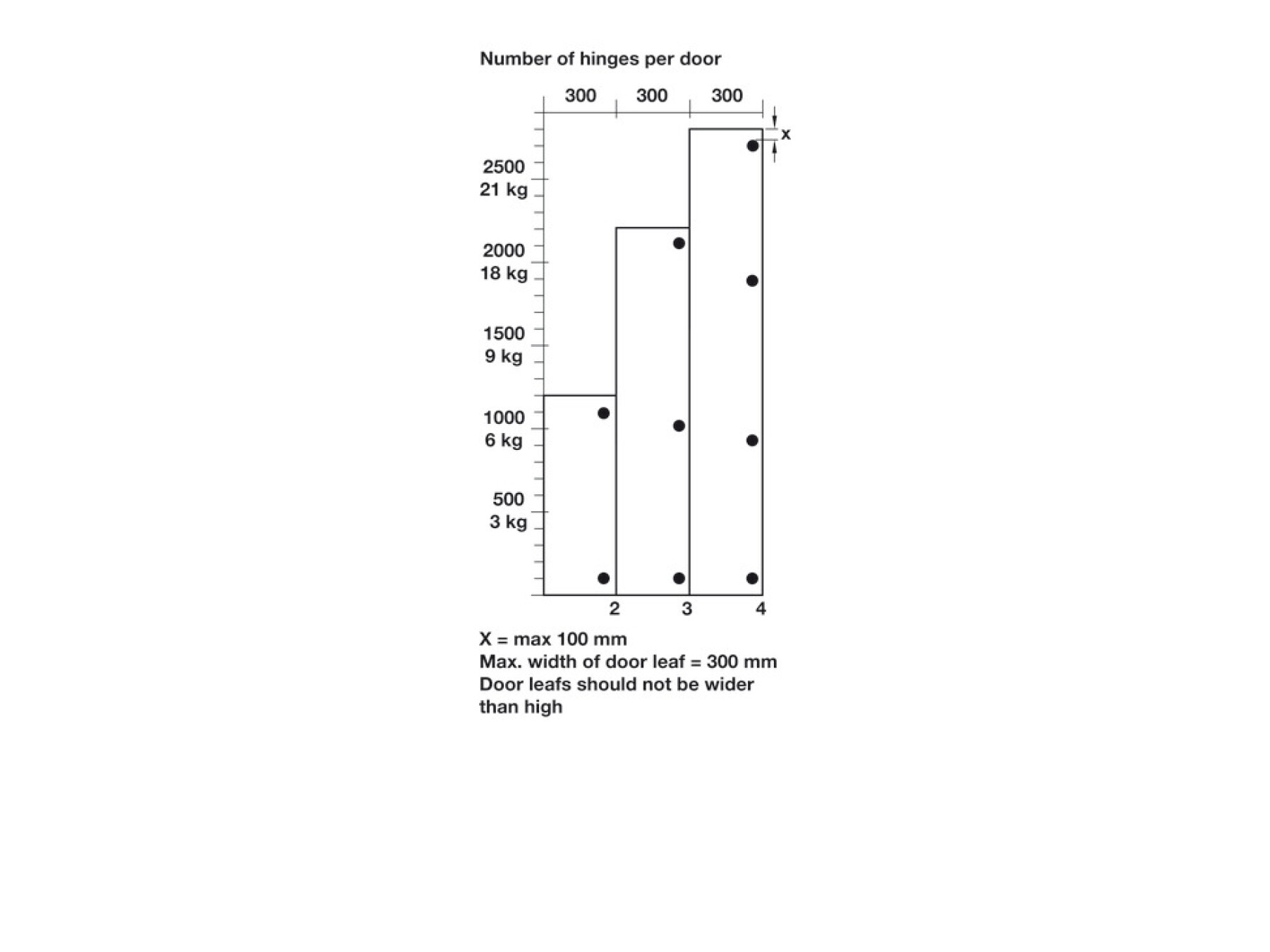

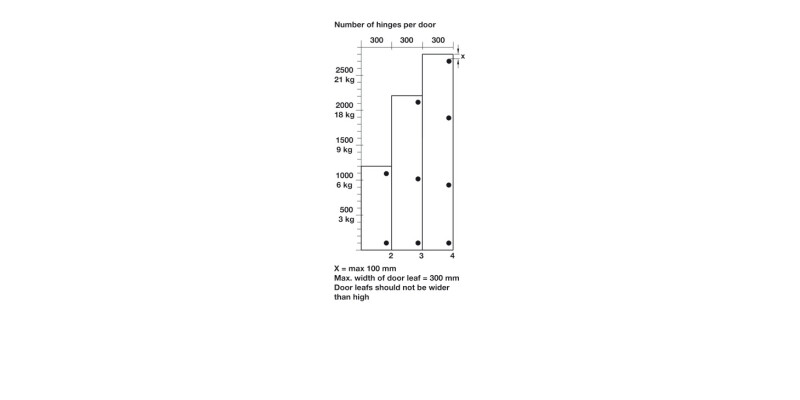

Plan number and position of folding door hinges in accordance with the number and position of the door hinges
Provide spacer with gap > 0 mm
Plan number and position of folding door hinges in accordance with the number and position of the door hinges
Provide spacer with gap > 0 mm
Specifications
Area of application
for folding doors
Version
With spring: Extending and folding spring force stabilised,
with adjustable pivot offset
For door material
Wood
Door processing for assembly
Without
Material
Zinc alloy
Colour/finish
Cup: nickel plated, Hinge arm: zinc plated
Opening angle
180°
For door thickness
≥13 mm
For door width
≤600 mm

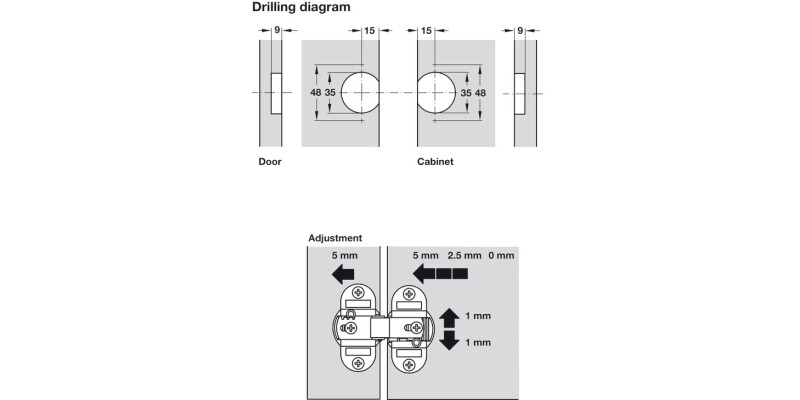

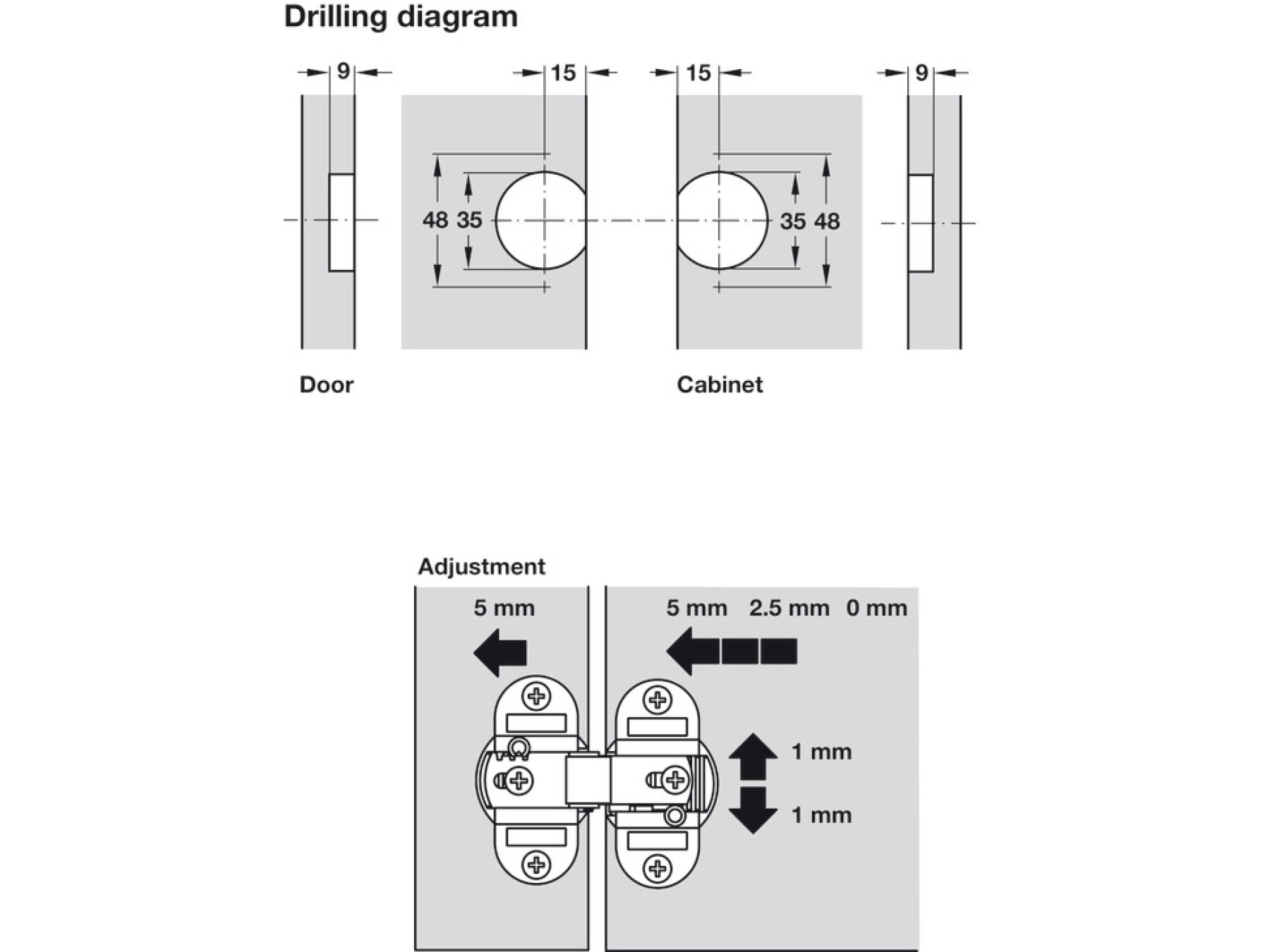

Cup drilling depth
9.00 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing
Installation
For screw fixing
Order reference
Order Hospa Ø 4.0 mm countersunk screws separately
