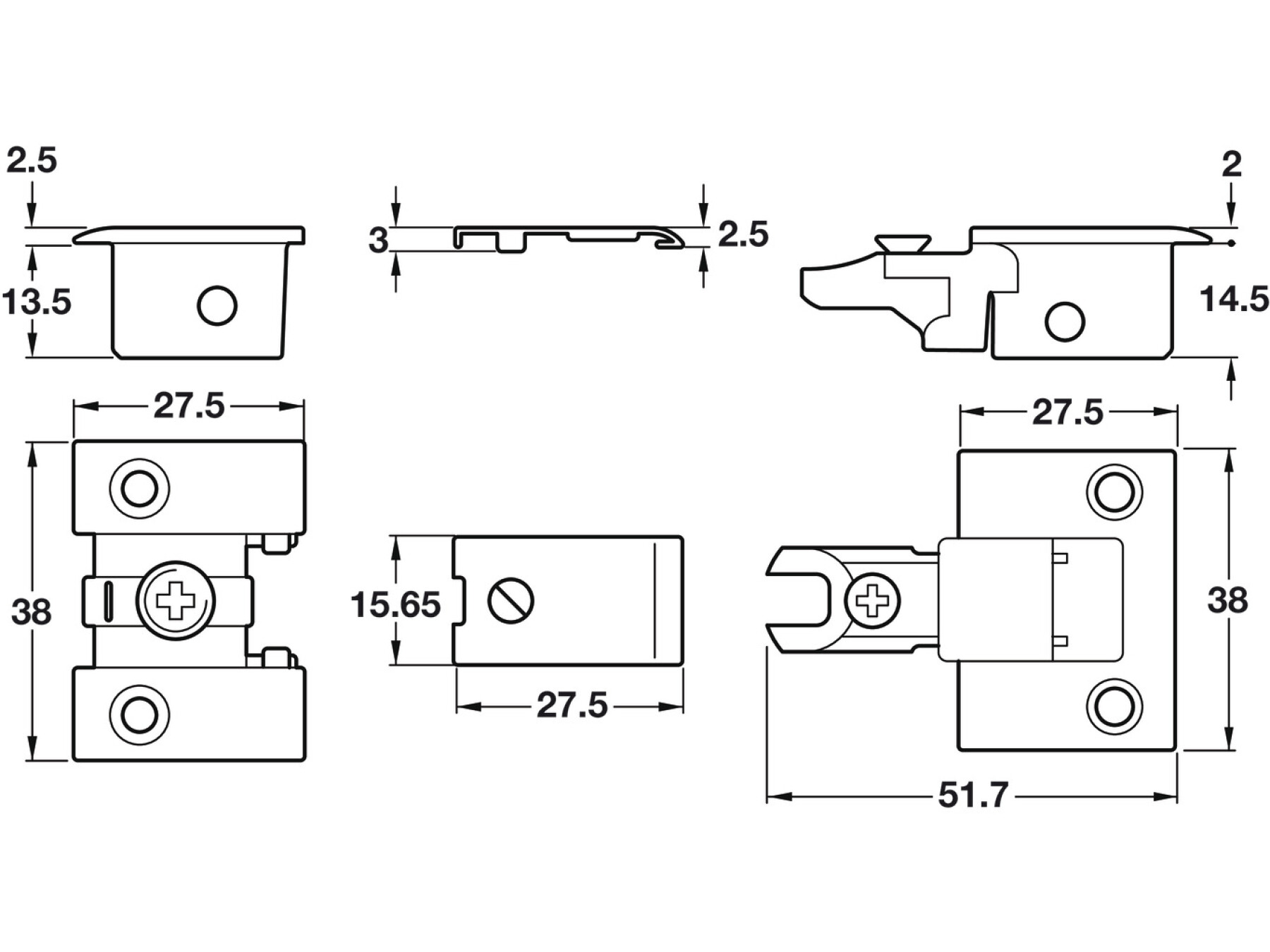

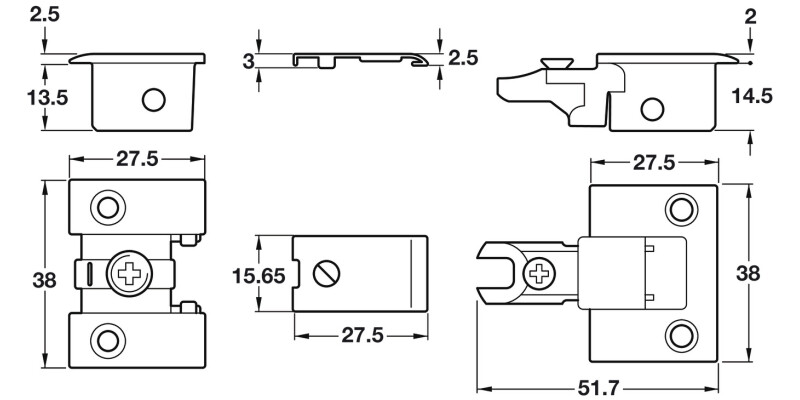

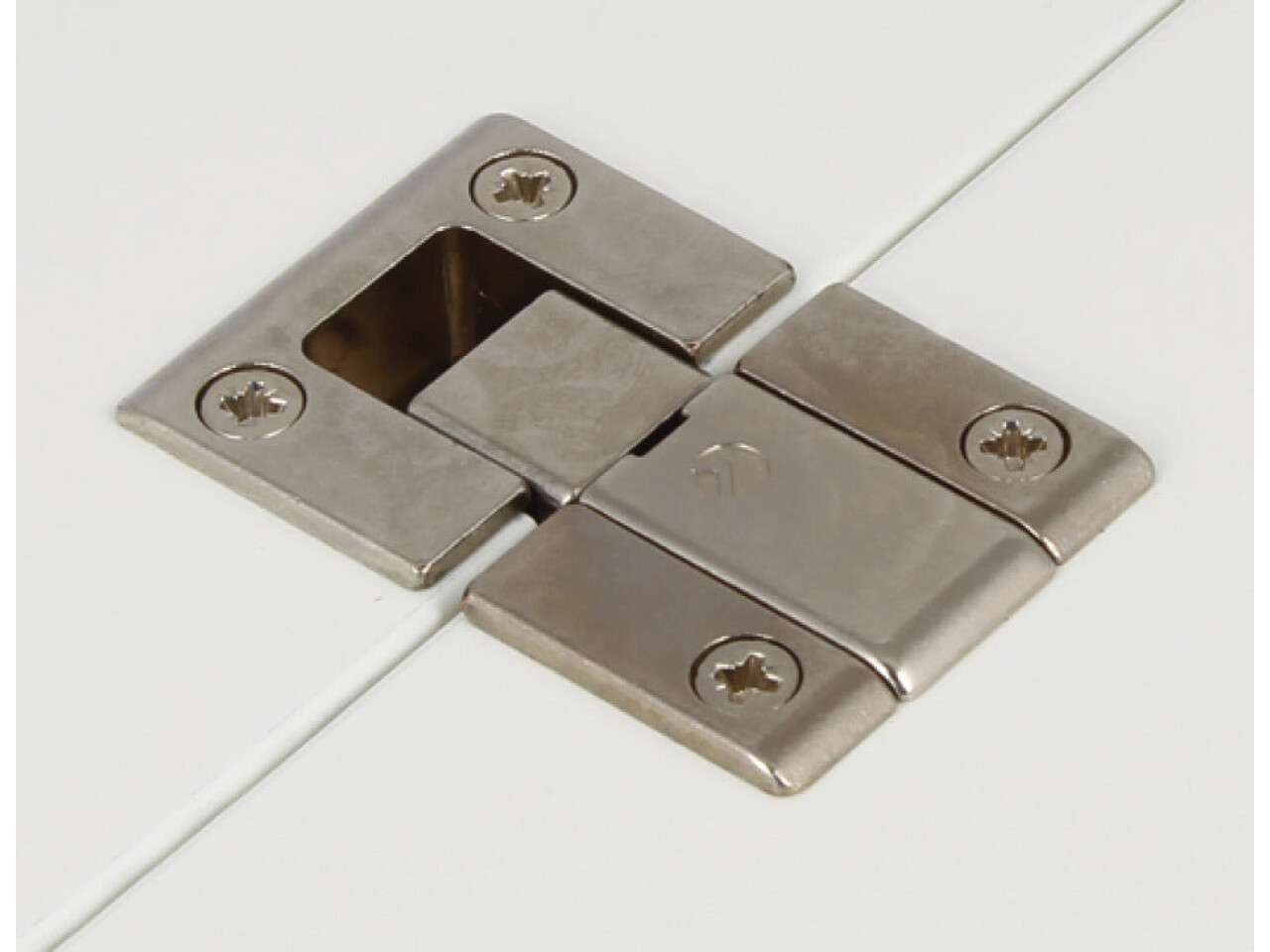

90D Kimana Flap Hinge Set SNP
Part Number: 342.73.610
Nickel plated steel
Price:
£11.41
Per Item
For flap or lid stay applicationsAdjustable fitting ± 1 mmØ 26 mm cupVariable cabinet and door thickness... Read More
Product Information
Product Details

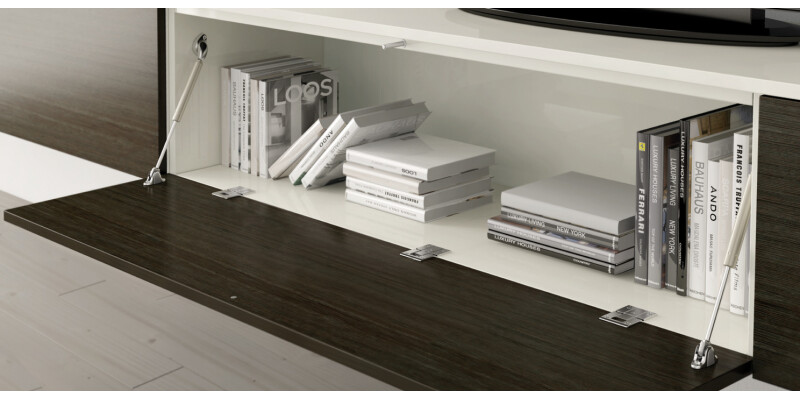

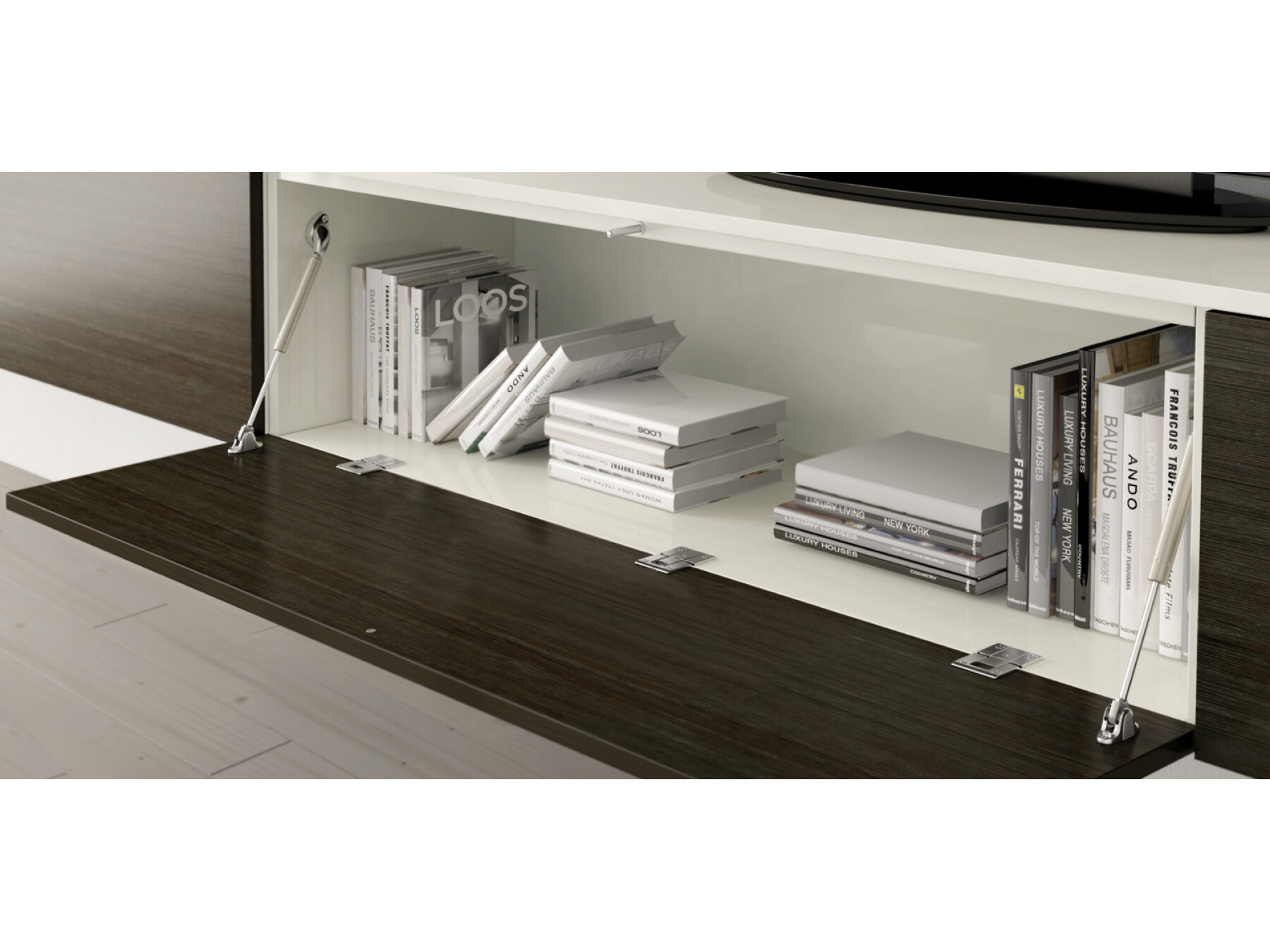

For flap or lid stay applications
Adjustable fitting ± 1 mm

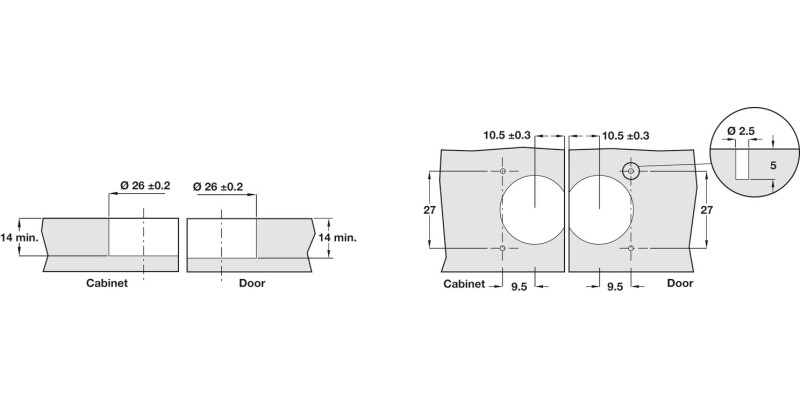

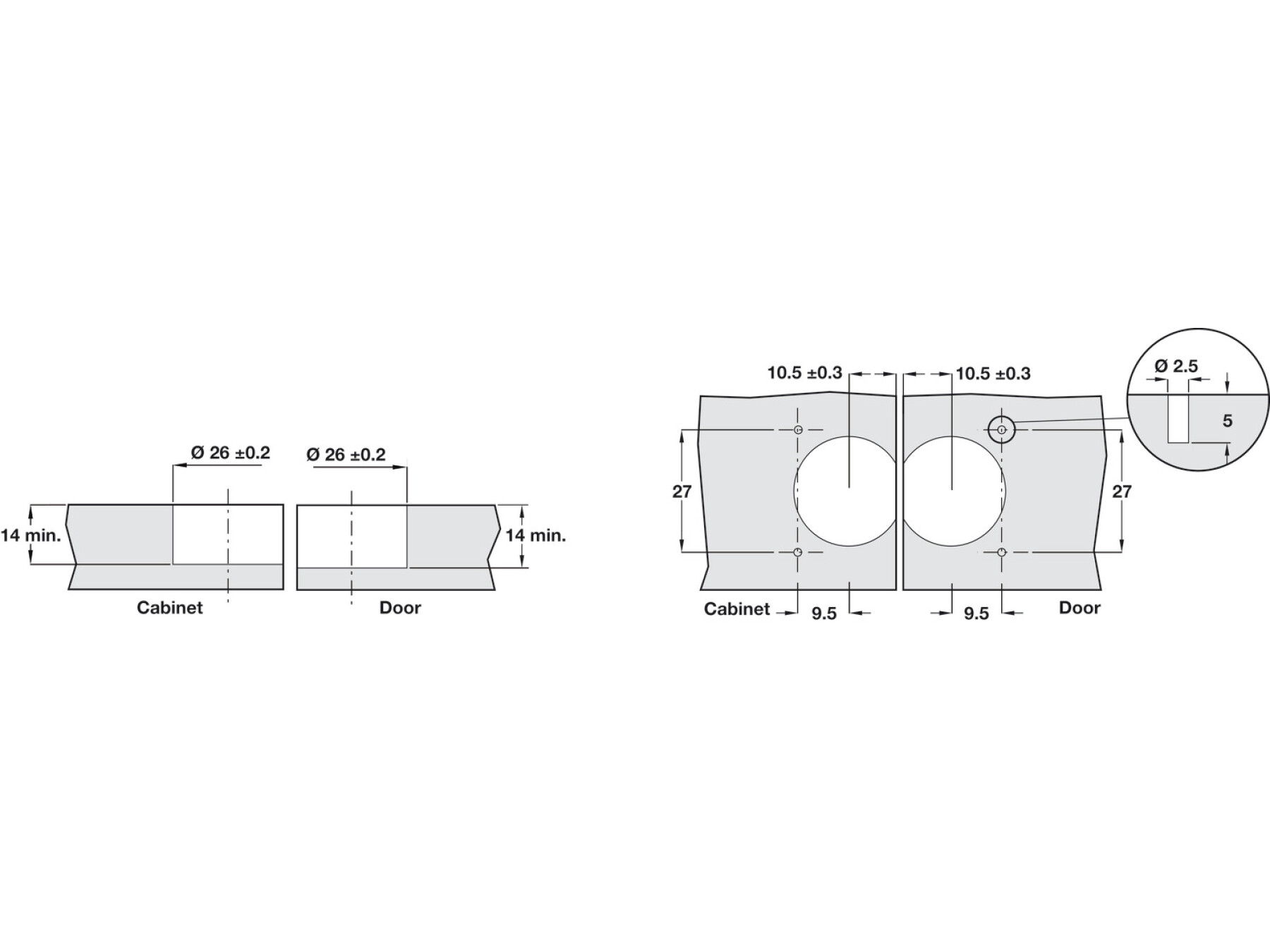

Ø 26 mm cup
Variable cabinet and door thickness possible (minimum cabinet and door thickness 18 mm)
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application
For aluminium and wooden doors
For door material
Wood, Aluminium
Material
Steel
Colour/finish
Opening angle
90°
Installation
Screw fixing
Order reference
Drop down lid stay required, please order separately
Supplied with
Set includes:
1x Flap hinge
1x Plate
1x Cover cap
Fixings
