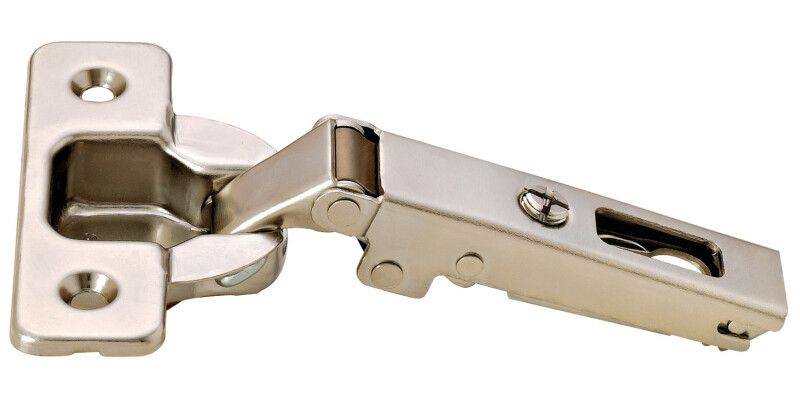

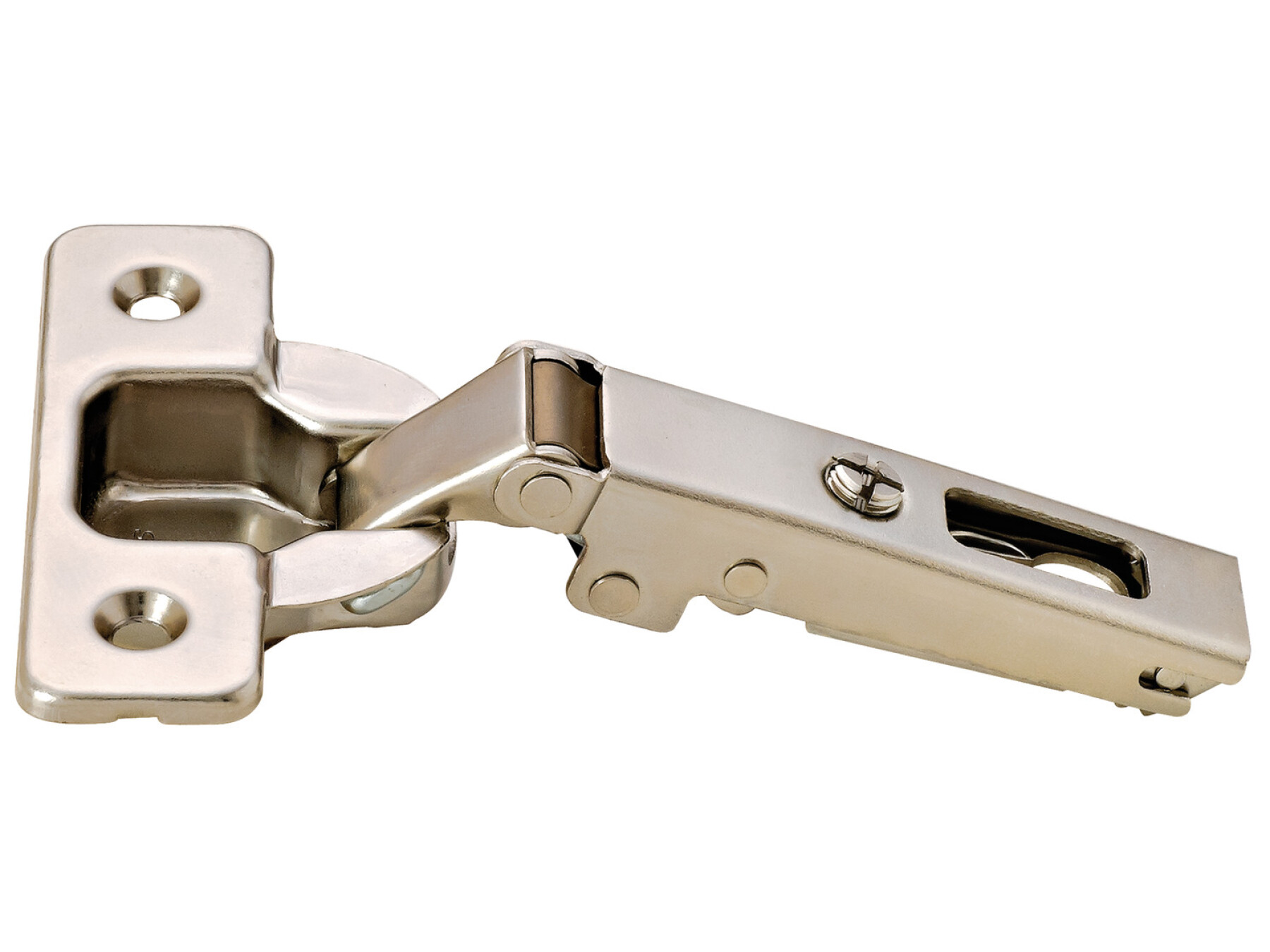

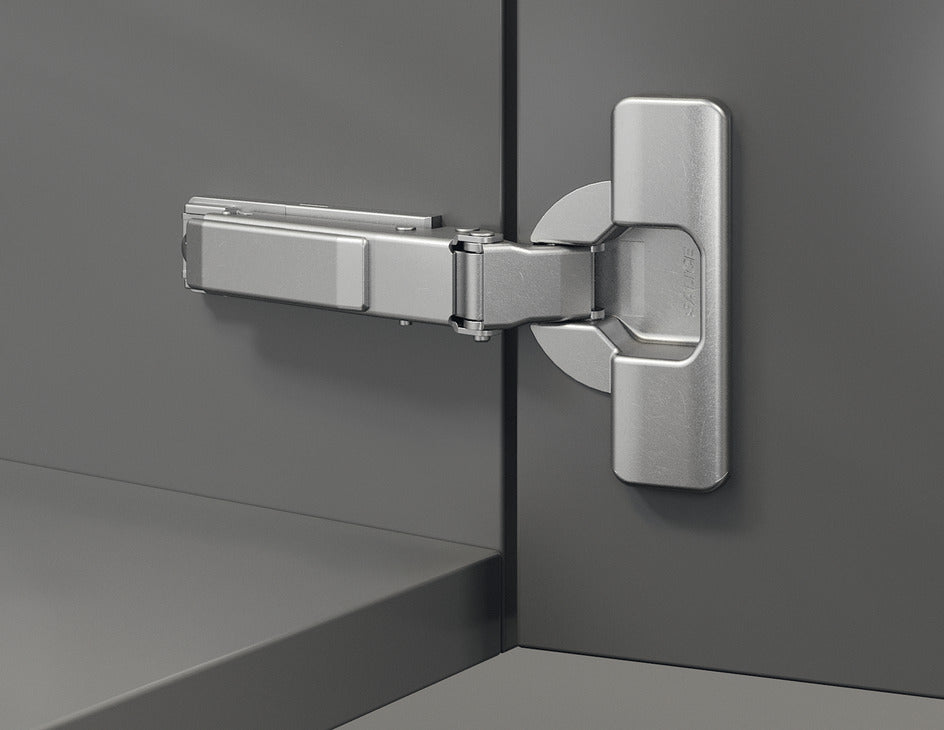

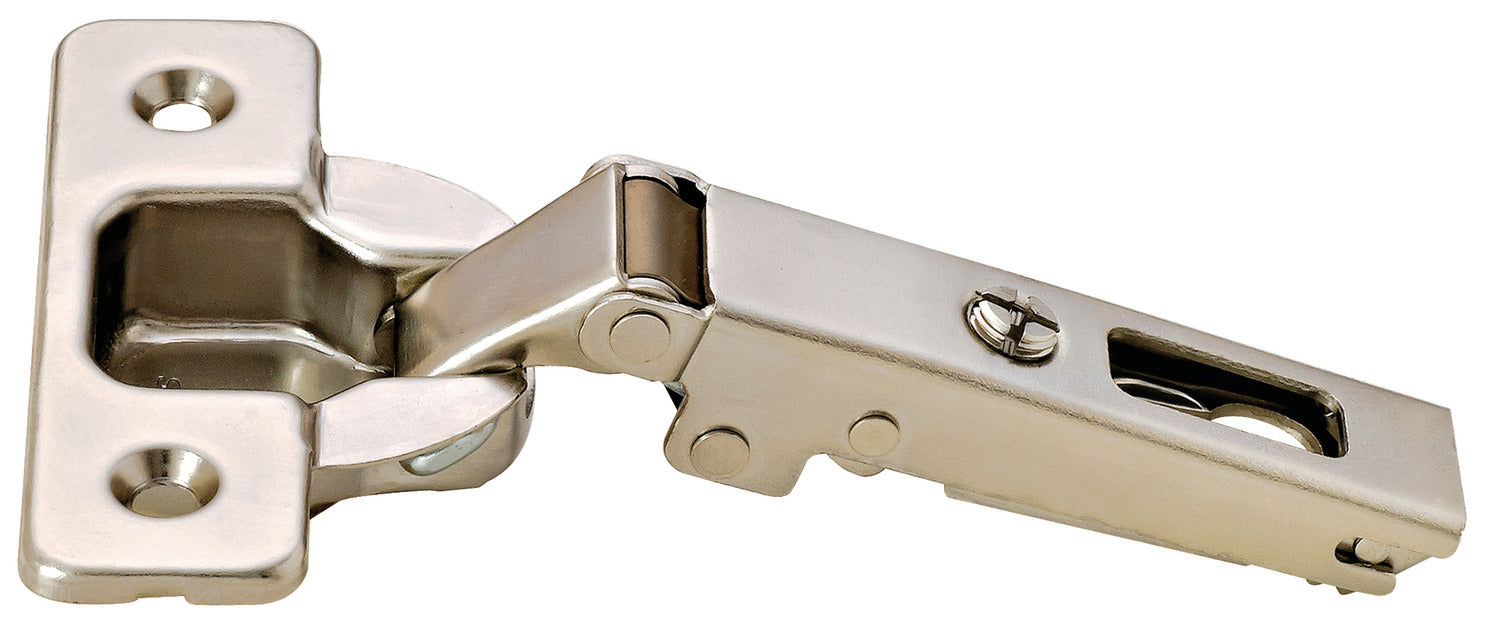

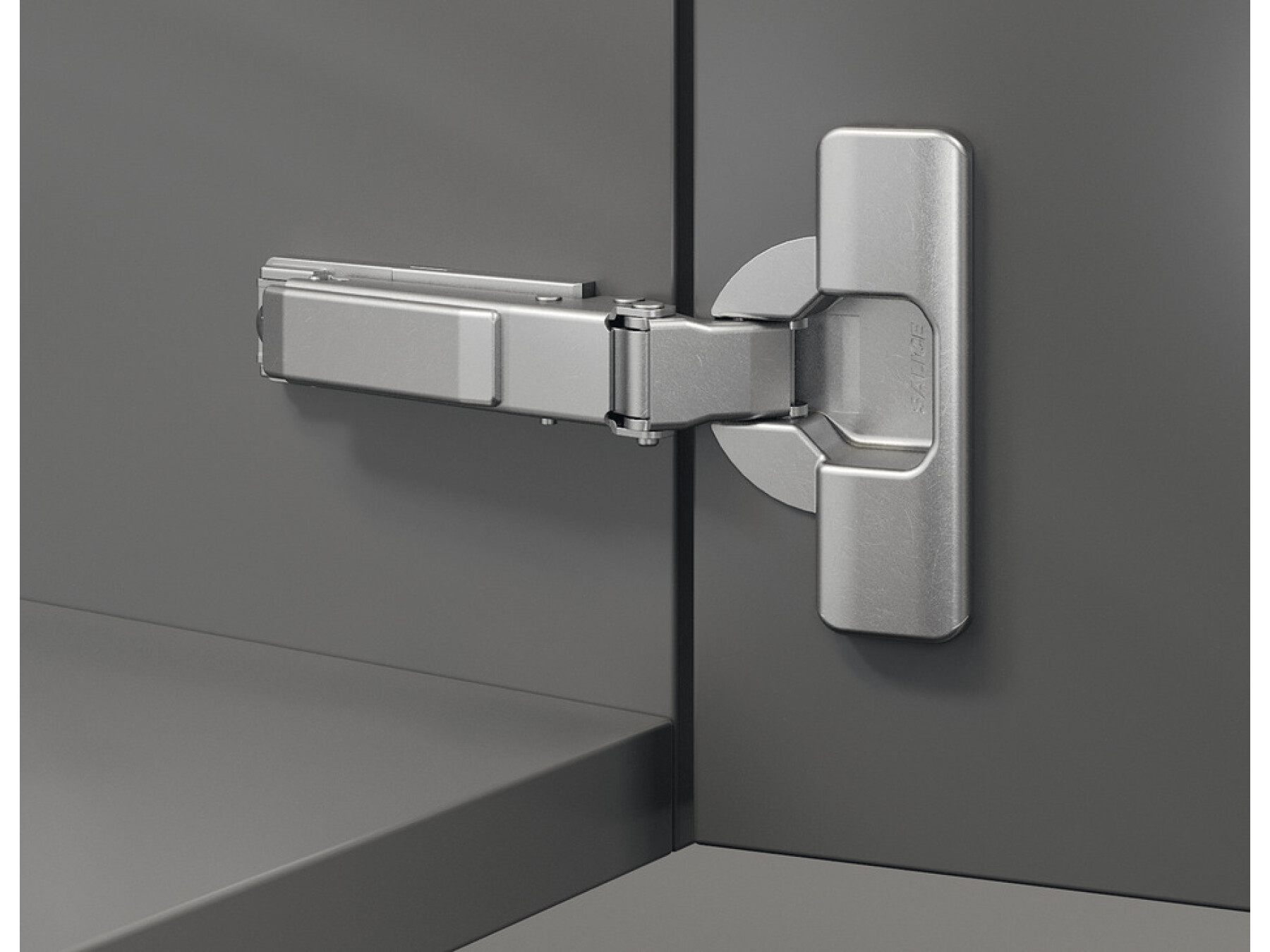

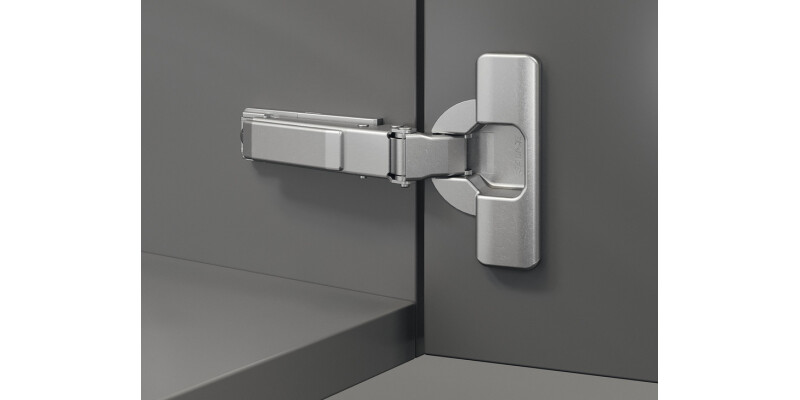

Duomatic 110D Hinge Quick SF Hospa Full
Part Number: 329.17.900
For use with PUSH door catch, for opening doors without handles, Screw fixing, 48/6
Price:
£7.00
Per Item
For opening doors without handlesØ 35 mm cupAdjustment facility Side adjustment 4.5 mm, Height adjustment... Read More
Product Information
Product Details
For opening doors without handles
Ø 35 mm cup
Adjustment facility
Side adjustment 4.5 mm, Height adjustment -2 – 2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5–2.8 mm
Order reference

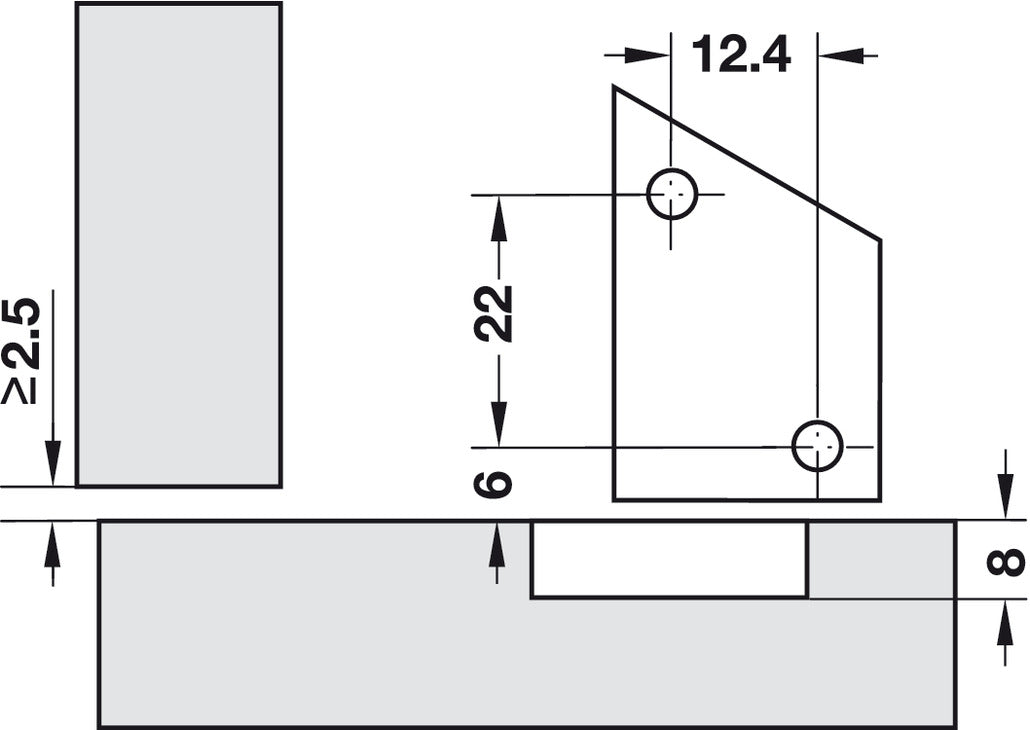

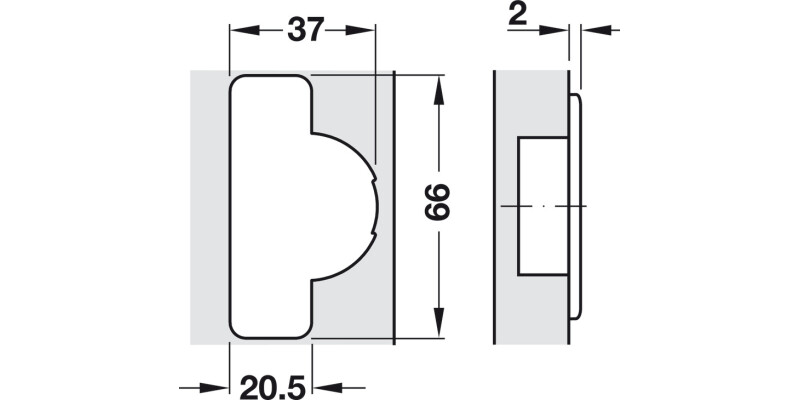

Please order mounting plate 329.71.513, door catch and accessories seperately
Order Hospa Ø 3.5 mm flat head screws separately

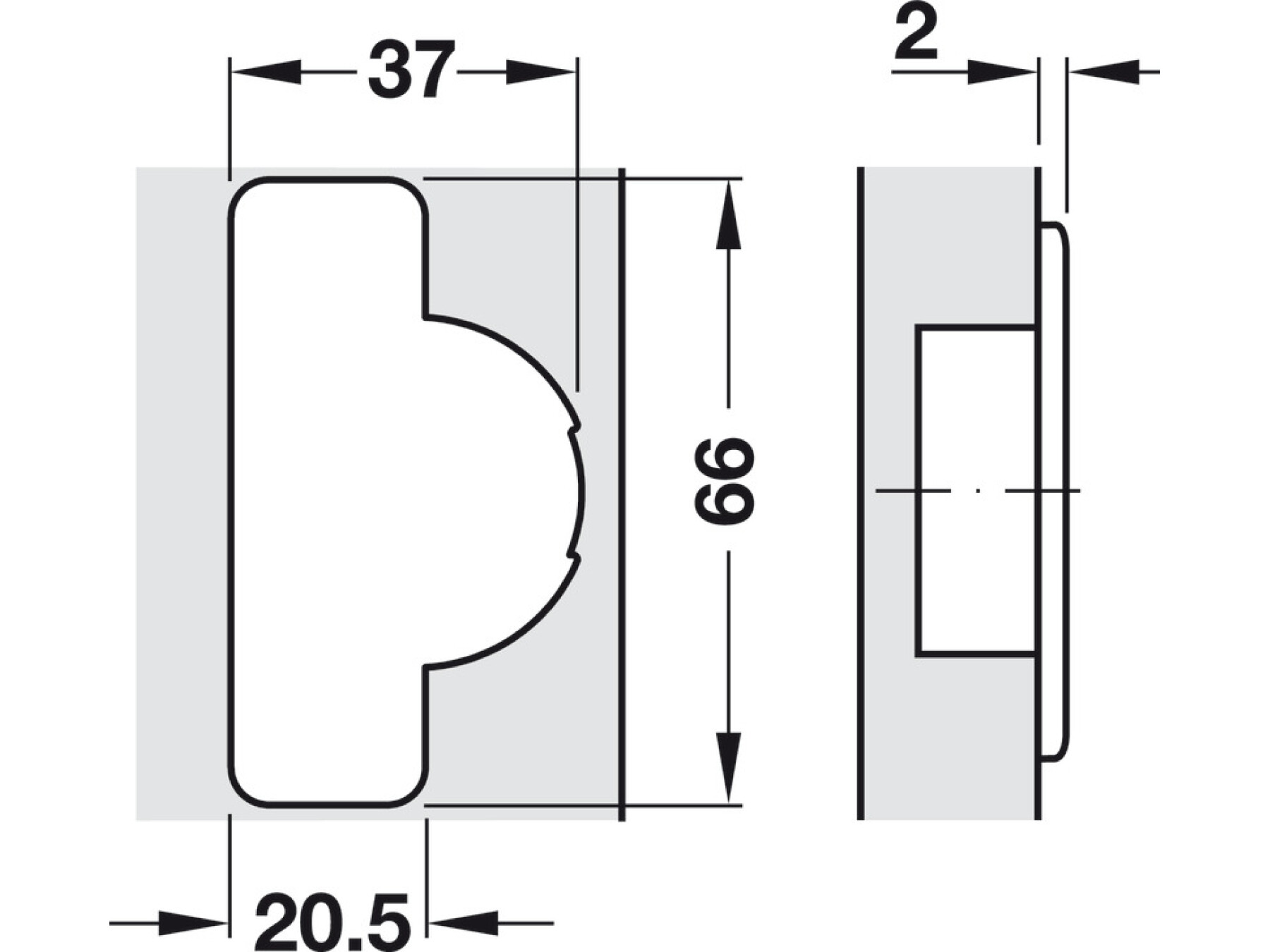

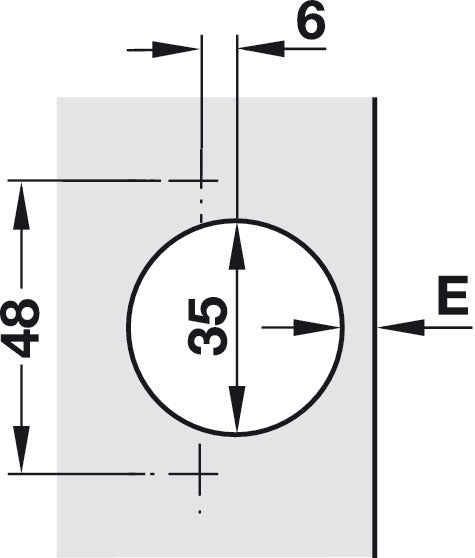

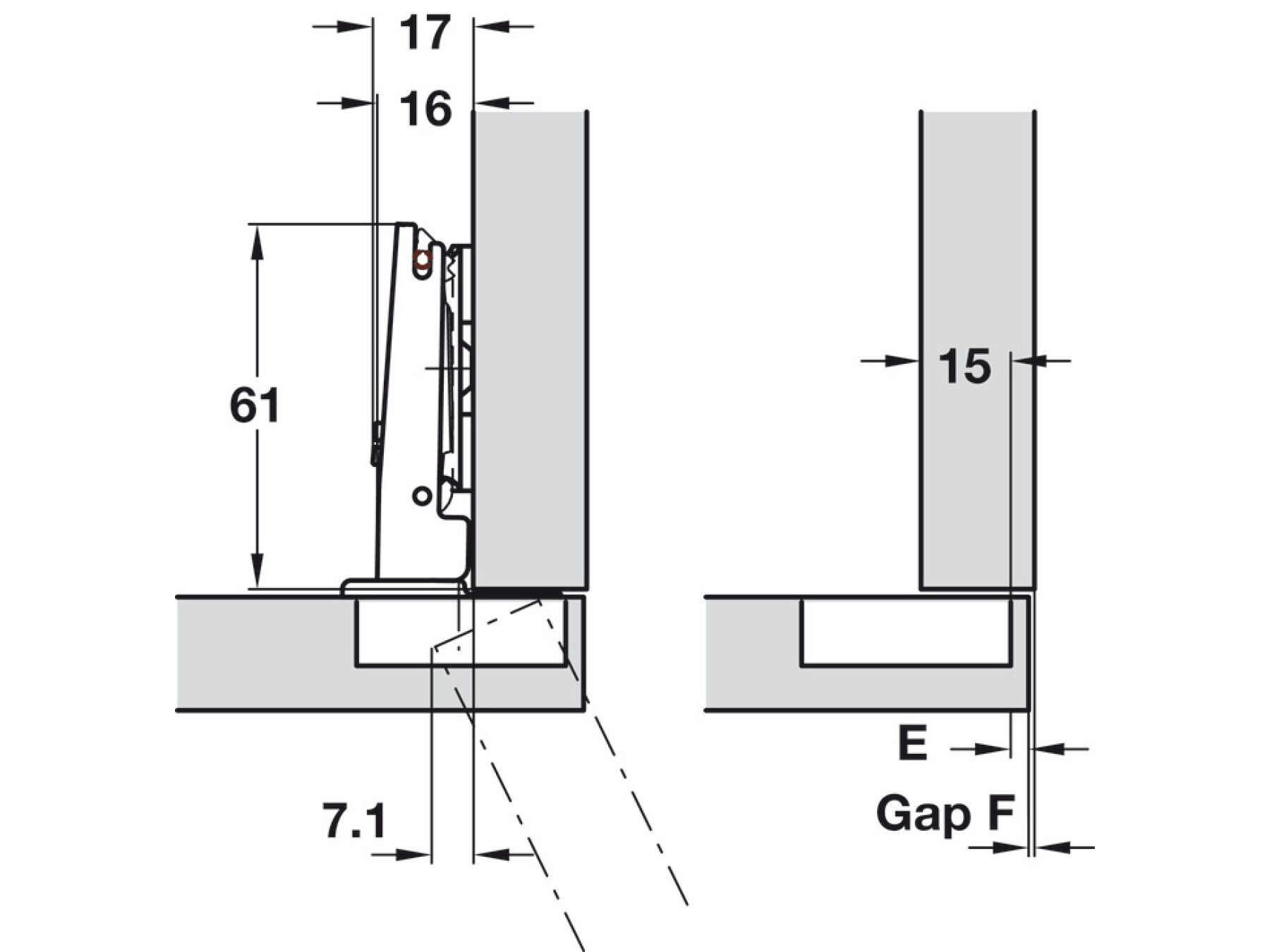

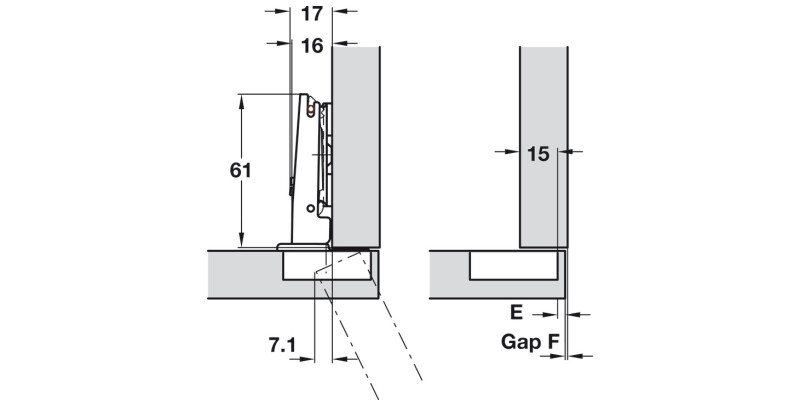

| Minimum gap | ||||
|---|---|---|---|---|
| Door thickness mm | Distance to cup E mm | |||
| 3,0 | 4,0 | 5,0 | 6,0 | |
| 16 | 0,5 | 0,5 | 0,5 | 0,5 |
| 17 | 0,7 | 0,7 | 0,7 | 0,7 |
| 18 | 0,9 | 0,9 | 0,9 | 0,9 |
| 19 | 1,2 | 1,2 | 1,2 | 1,2 |
| 20 | 1,5 | 1,5 | 1,5 | 1,5 |
| 21 | 1,8 | 1,8 | 1,8 | 1,8 |
| 22 | 2,4 | 2,1 | 2,1 | 2,1 |
| 23 | 3,7 | 2,7 | 2,6 | 2,5 |
| 24 | 5,1 | 4,1 | 3,1 | 3,0 |
| 25 | 6,5 | 5,5 | 4,1 | 3,5 |
| 26 | 7,8 | 6,8 | 5,4 | 4,4 |

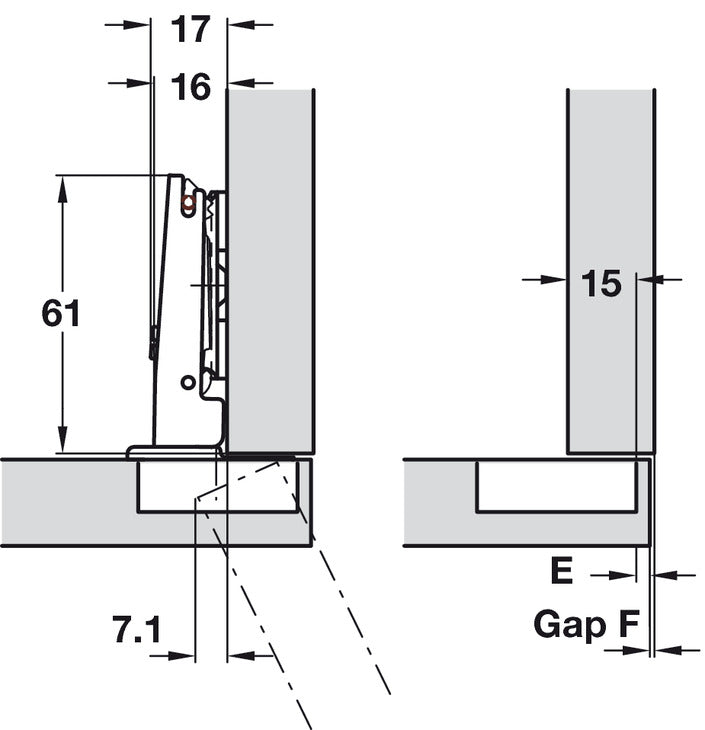

| Minimum gap F | ||||
| Door overlay mm | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | |
| 3 | 4 | 5 | 6 | 0 | |||||||||
| 3 | 4 | 5 | 6 | 3 | |||||||||
| 3 | 4 | 5 | 6 | 6 | |||||||||
| 3 | 4 | 5 | 6 | 9 | |||||||||
| Distance to cup E mm | Mounting plate distance mm | ||||||||||||
Specifications
Area of application
For handle-free opening
Functionality
With automatic opening mechanism (Push)
Concealed hinge version
Full overlay
Crank type
Straight
For door material
Wood
Door processing for assembly
with cup drilling
Material
Steel
Colour/finish
nickel plated
Opening angle
110°

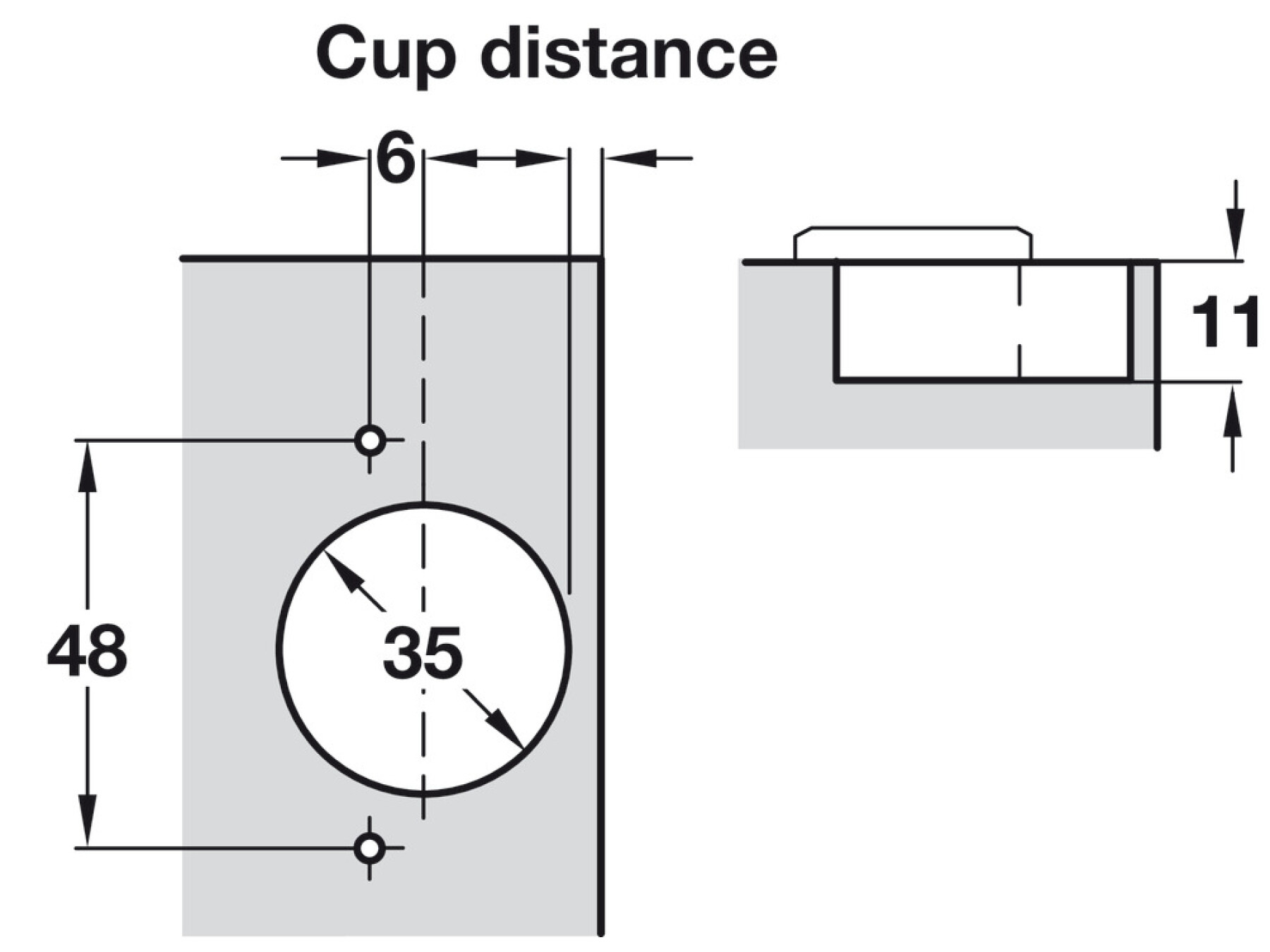

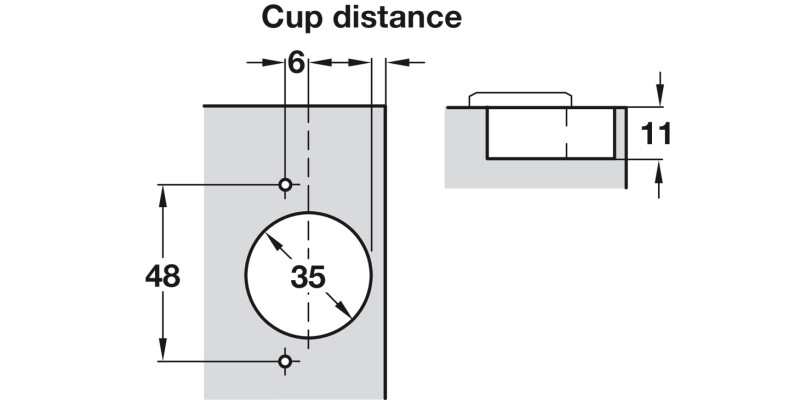

Cup drilling depth
11.00 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

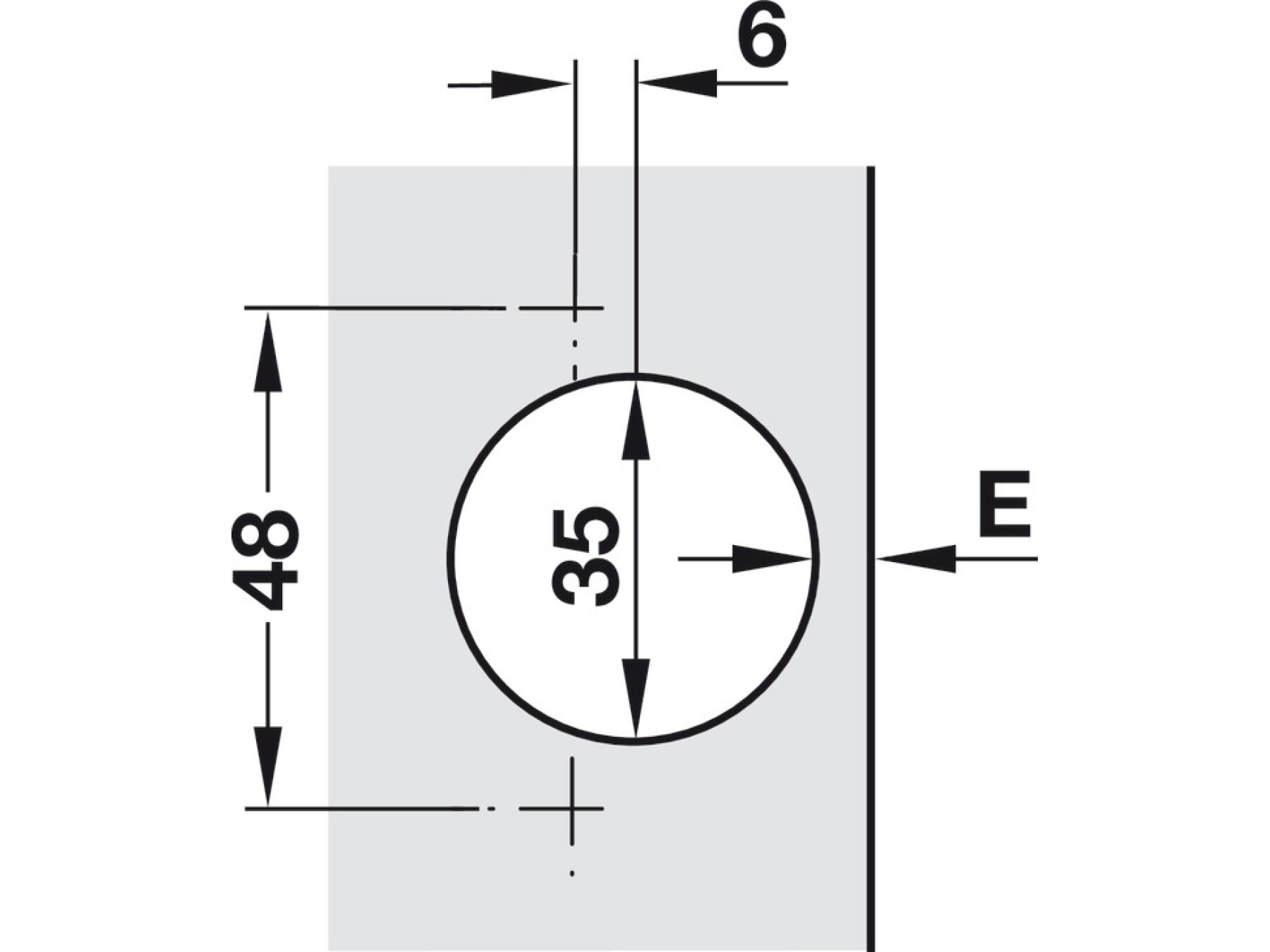

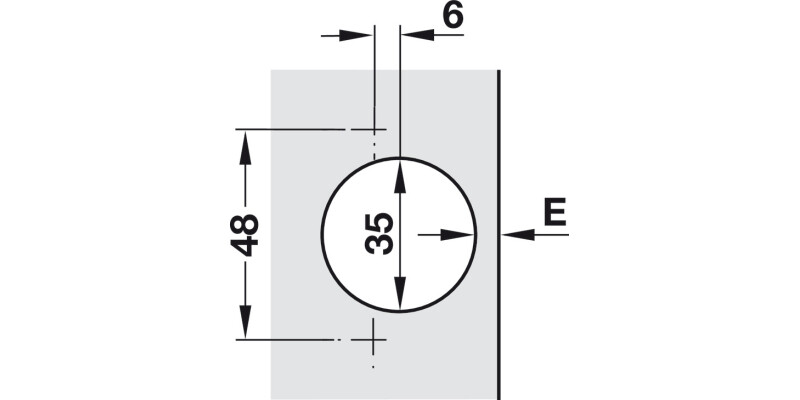

Drilling pattern
48/6
Installation
Quick fitting hinge arm
