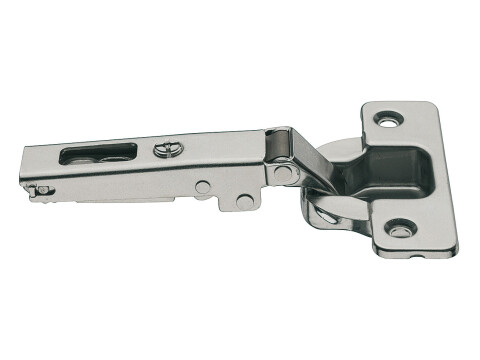

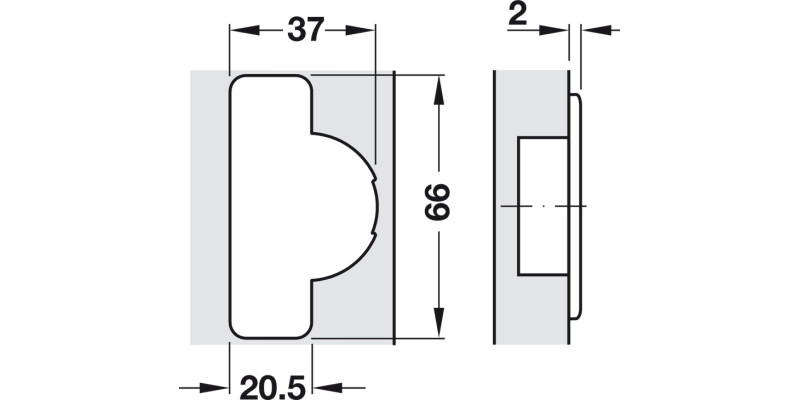

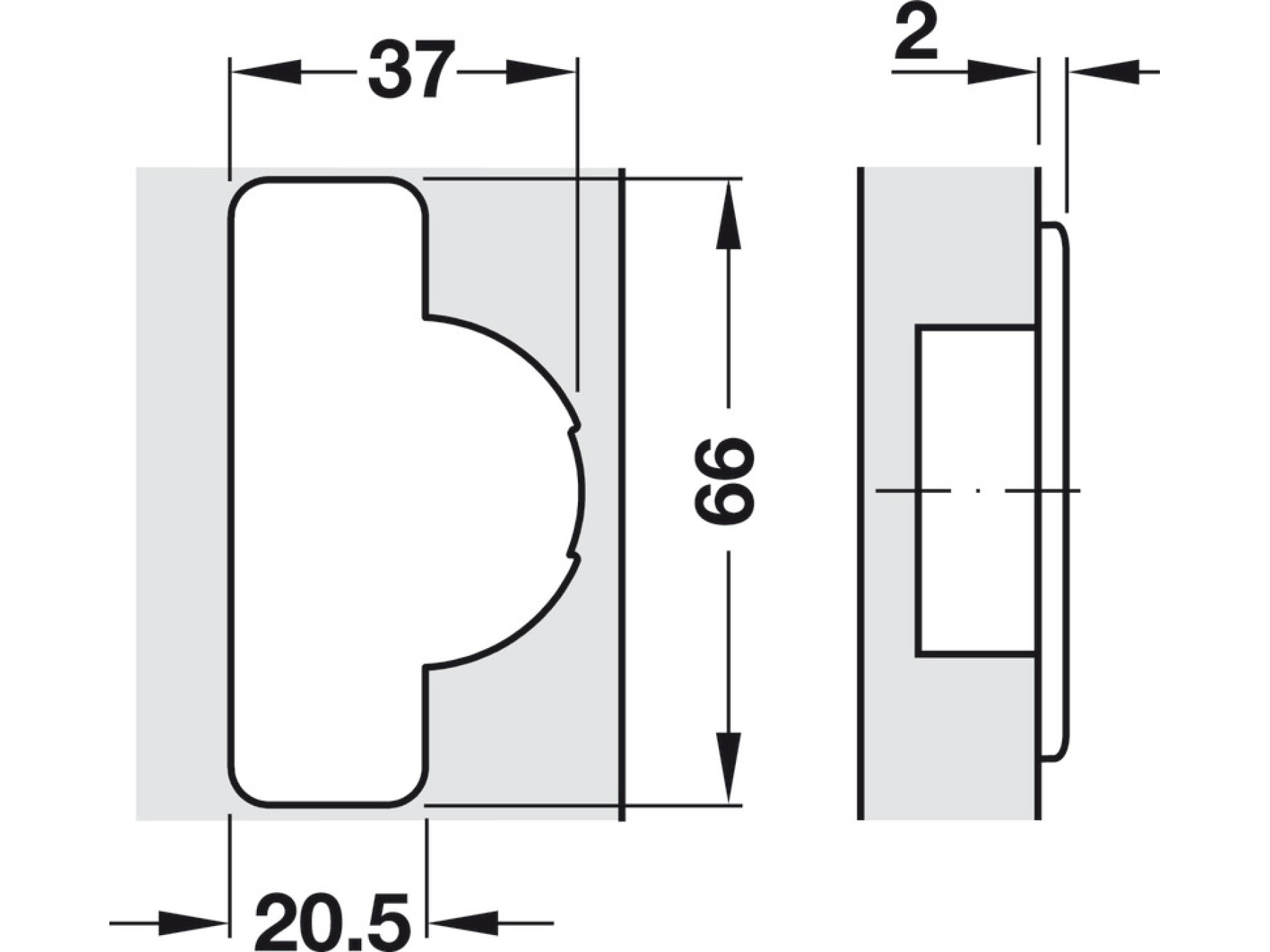

110D Concealed Hinge NP SF
Part Number: 329.17.600

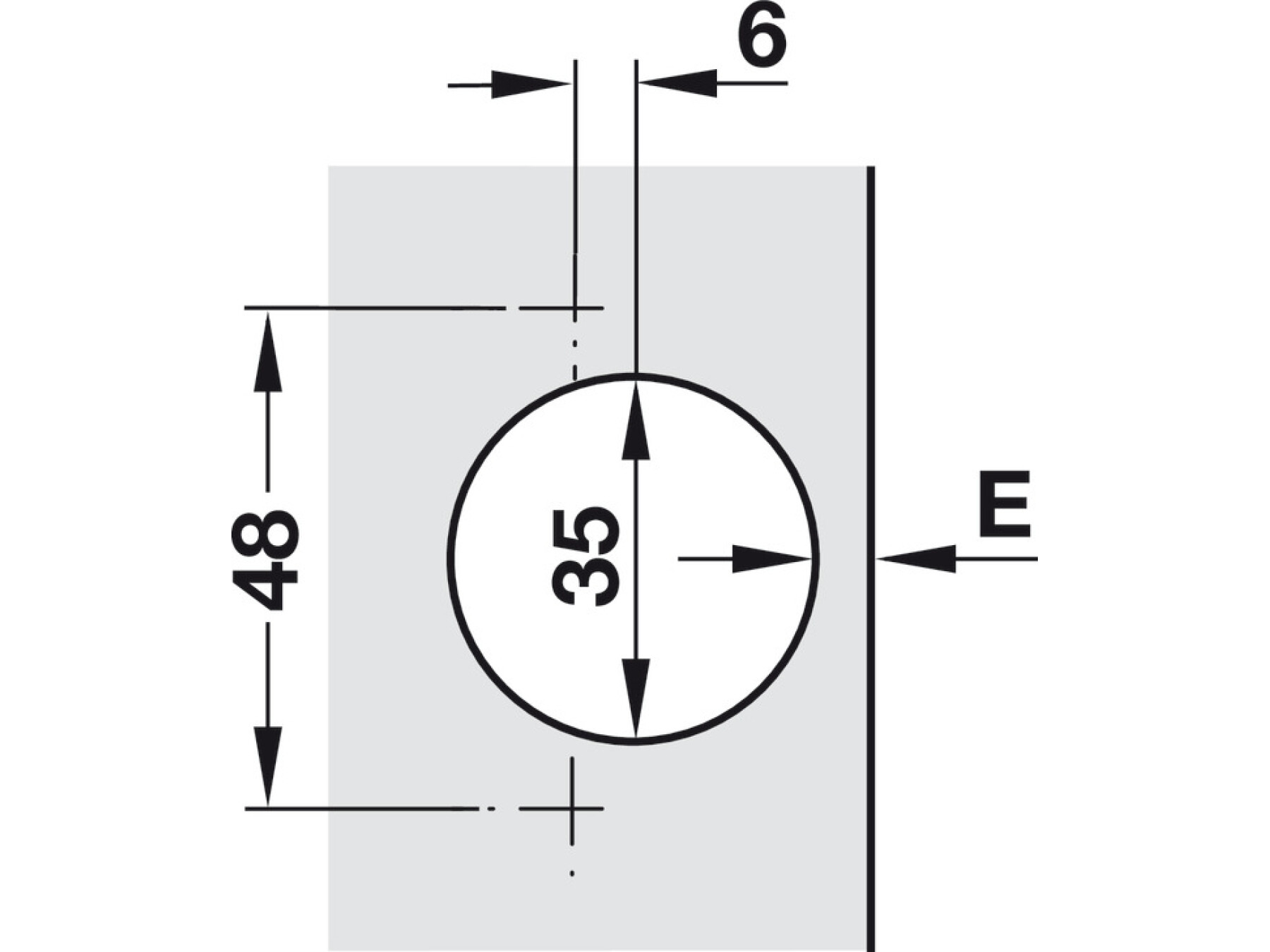

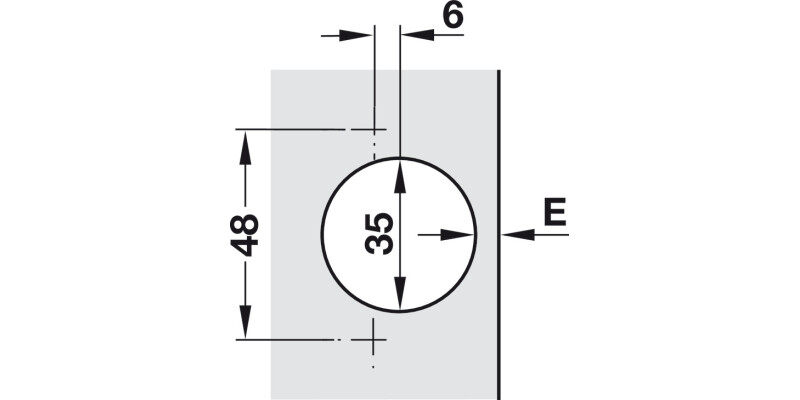

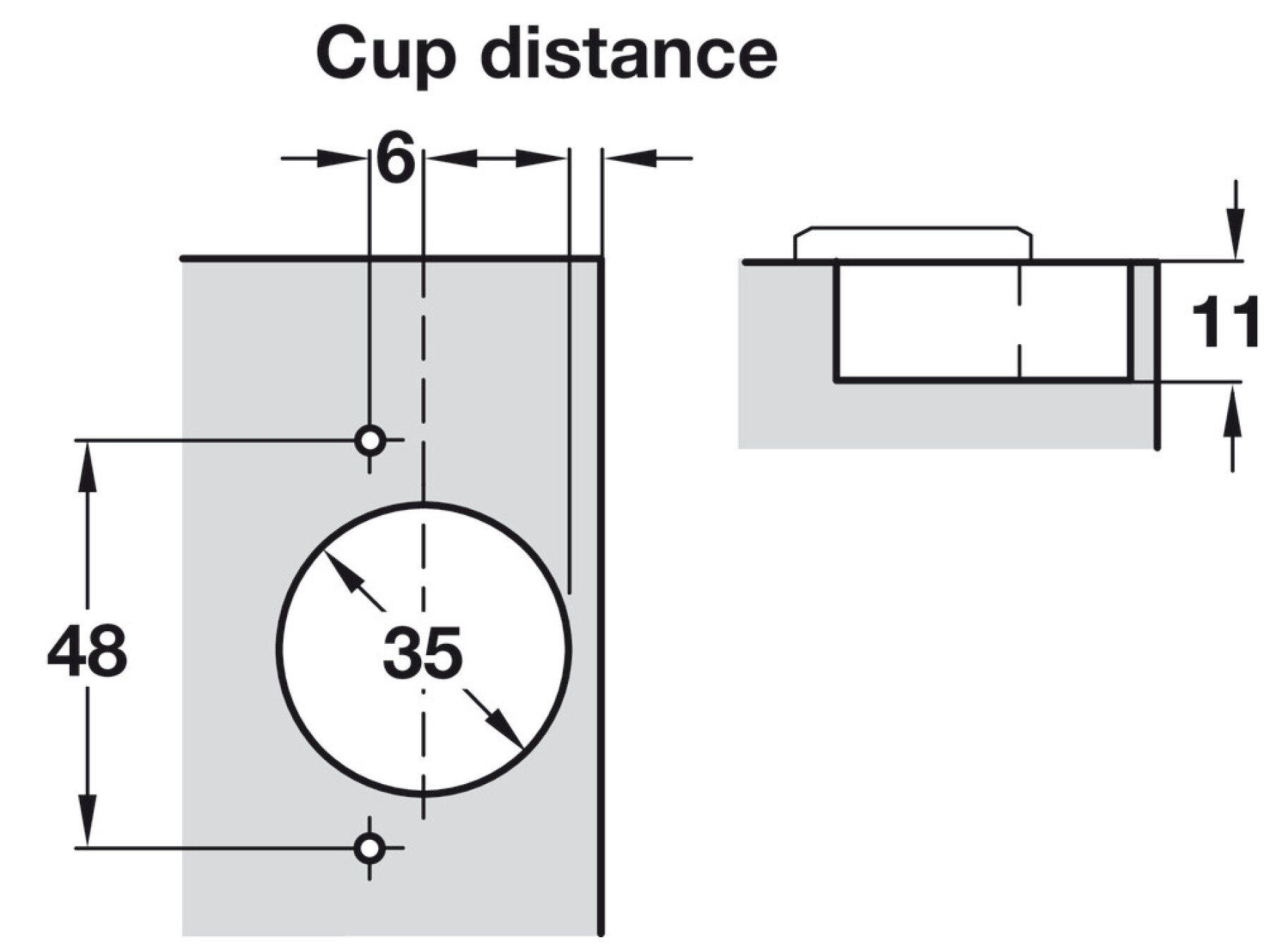

With automatic closing spring, Drilling pattern 48/6 mm, screw fixing
Price:
£1.82
Per Item
Ø 35 mm cup fixingAutomatic closing springAdjustment facility Side adjustment 4.5 mm, Height adjustment... Read More
Product Information
Product Details
Ø 35 mm cup fixing
Automatic closing spring
Adjustment facility
Side adjustment 4.5 mm, Height adjustment -2 – 2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5–2.8 mm

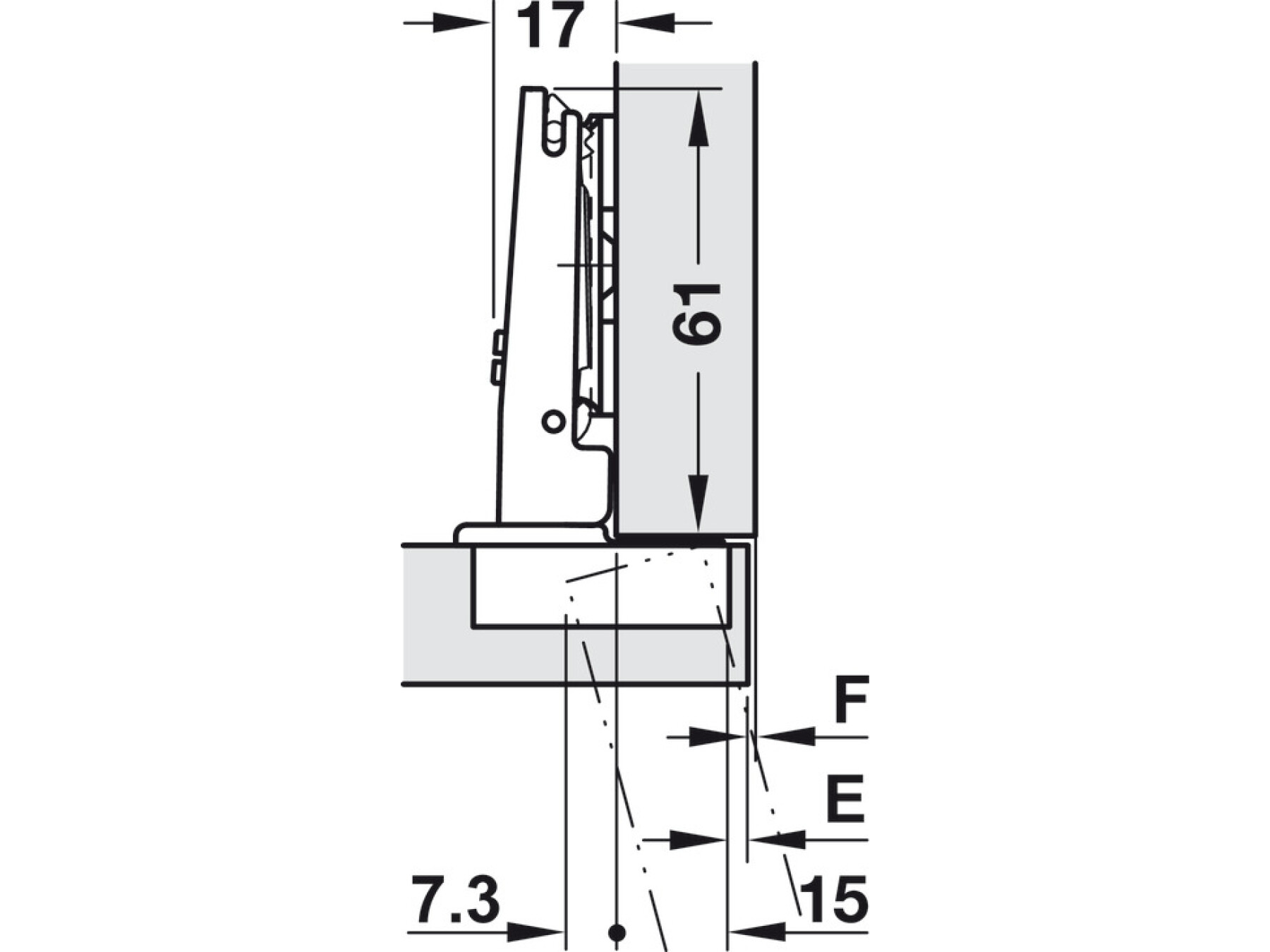

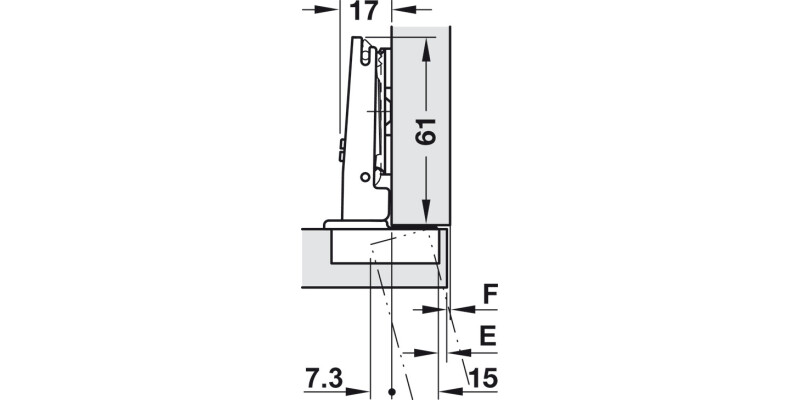

| Minimum gap | ||||
|---|---|---|---|---|
| Door thickness mm | Distance to cup E mm | |||
| 3,0 | 4,0 | 5,0 | 6,0 | |
| 16 | 0,5 | 0,5 | 0,5 | 0,5 |
| 17 | 0,7 | 0,7 | 0,7 | 0,7 |
| 18 | 0,9 | 0,9 | 0,9 | 0,9 |
| 19 | 1,2 | 1,2 | 1,2 | 1,2 |
| 20 | 1,5 | 1,5 | 1,5 | 1,5 |
| 21 | 1,8 | 1,8 | 1,8 | 1,8 |
| 22 | 2,4 | 2,1 | 2,1 | 2,1 |
| 23 | 3,7 | 2,7 | 2,6 | 2,5 |
| 24 | 5,1 | 4,1 | 3,1 | 3,0 |
| 25 | 6,5 | 5,5 | 4,1 | 3,5 |
| 26 | 7,8 | 6,8 | 5,4 | 4,4 |
| Minimum gap F | ||||
| Door overlay mm | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | |
| 3 | 4 | 5 | 6 | 0 | |||||||||
| 3 | 4 | 5 | 6 | 3 | |||||||||
| 3 | 4 | 5 | 6 | 6 | |||||||||
| 3 | 4 | 5 | 6 | 9 | |||||||||
| Distance to cup E mm | Mounting plate distance mm | ||||||||||||
Specifications
Area of application
for standard applications
Functionality
With automatic closing spring, Without soft closing mechanism
Concealed hinge version
Full overlay
Crank type
Straight
For door material
Wood
Door processing for assembly
with cup drilling
Material
Steel
Colour/finish
nickel plated
Opening angle
110°

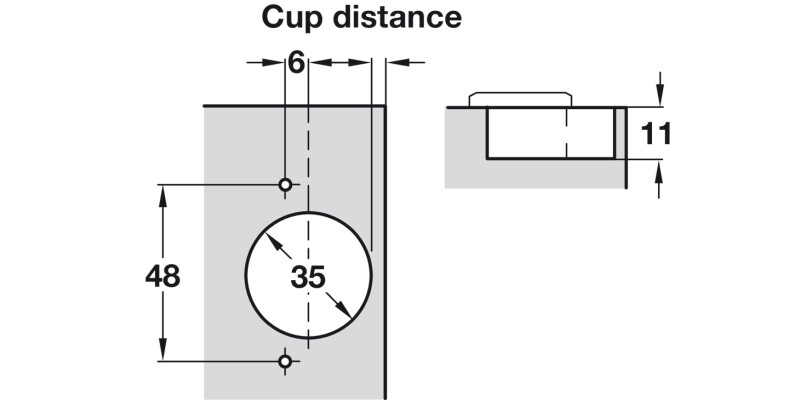

Cup drilling depth
11.00 mm
Cup fixing
for screw fixing
Drilling pattern
48/6
Installation
Door on cabinet with slide-on system A or quick fixing system SM
Order reference
Mounting plate to be ordered separately
