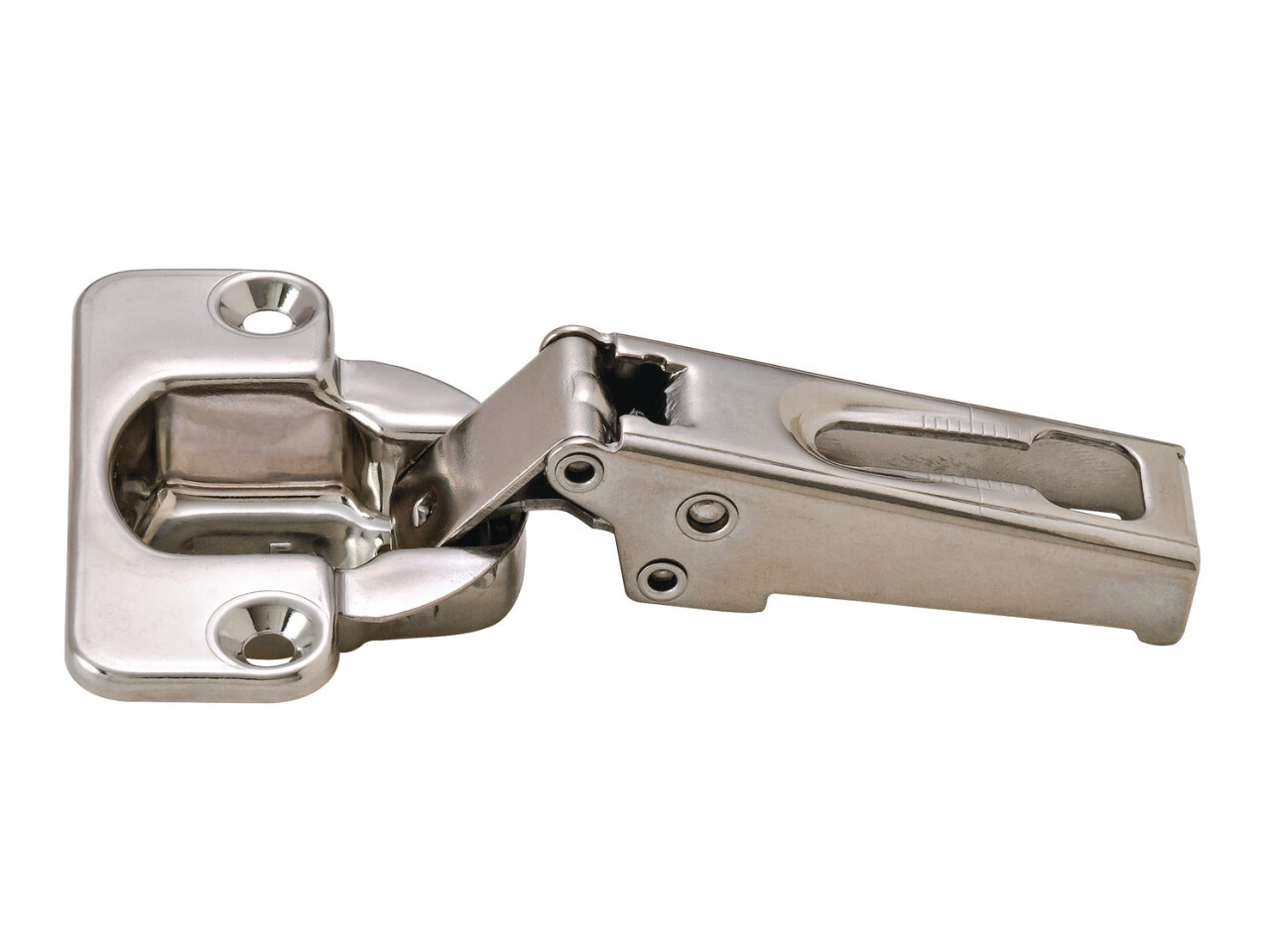

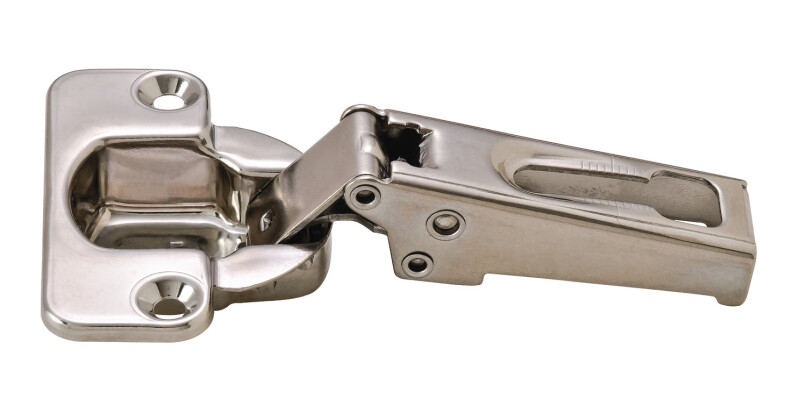

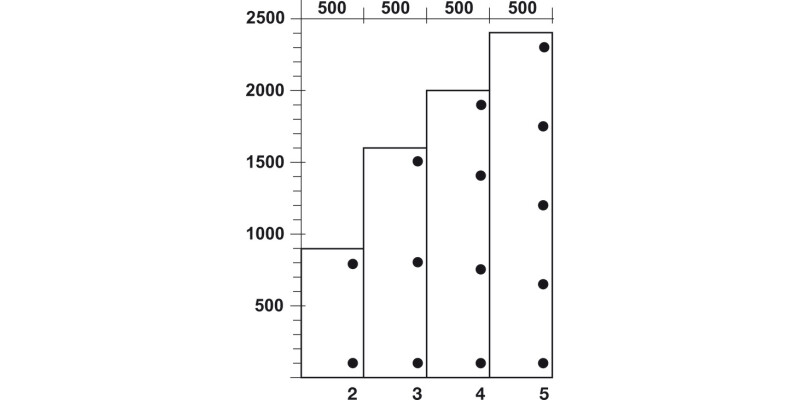

100D Hinge Slide Full SF Hospa 304 PSS
Part Number: 327.20.000
With automatic closing spring, Screw fixing
Price:
£14.99
Per Item

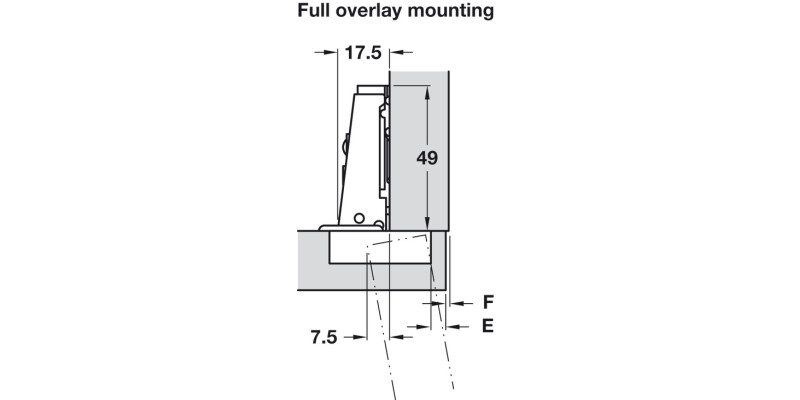

Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 15 0,5 0,5 0,4 16 0,6 0,6... Read More

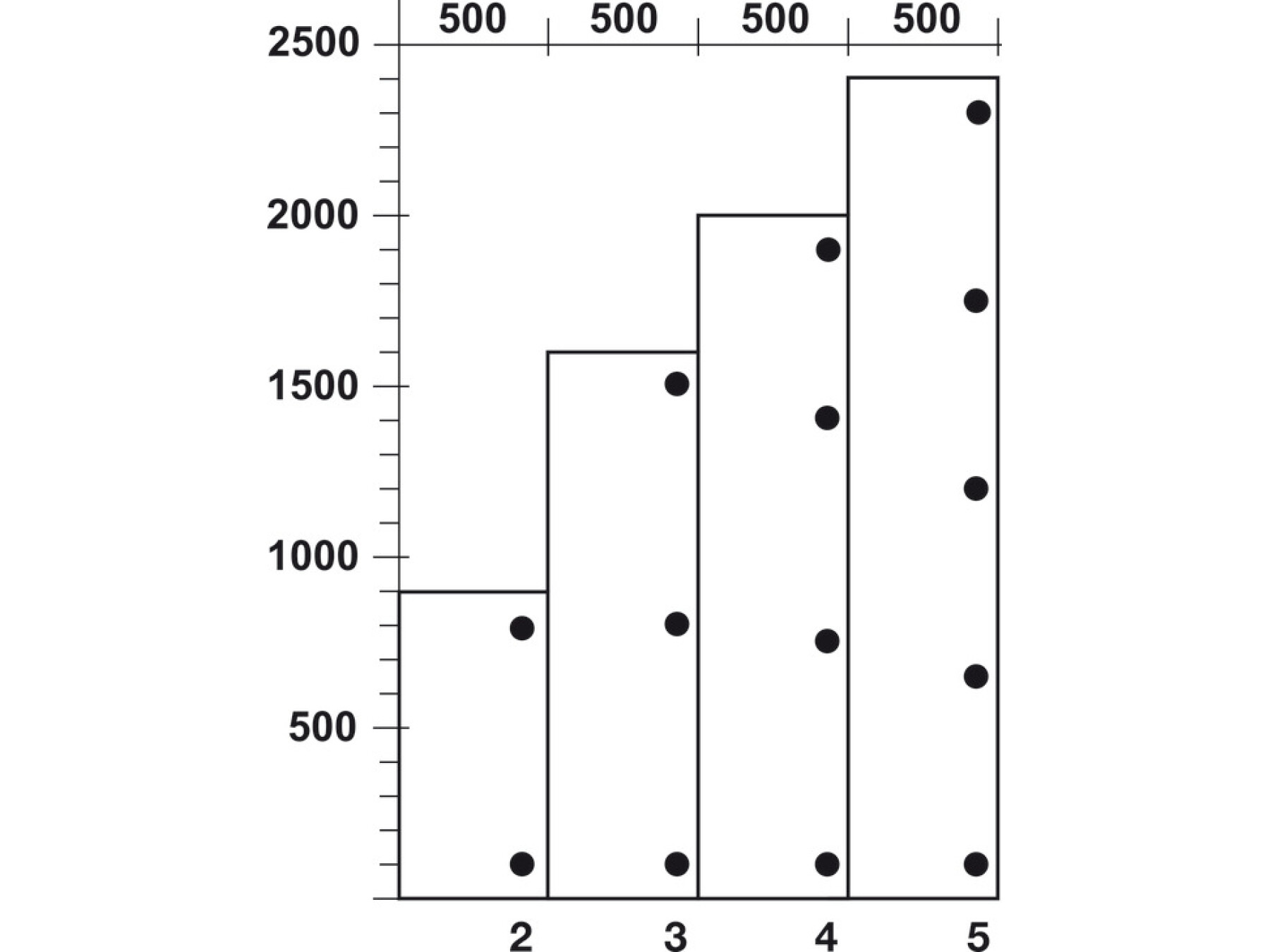

Product Information
Product Details

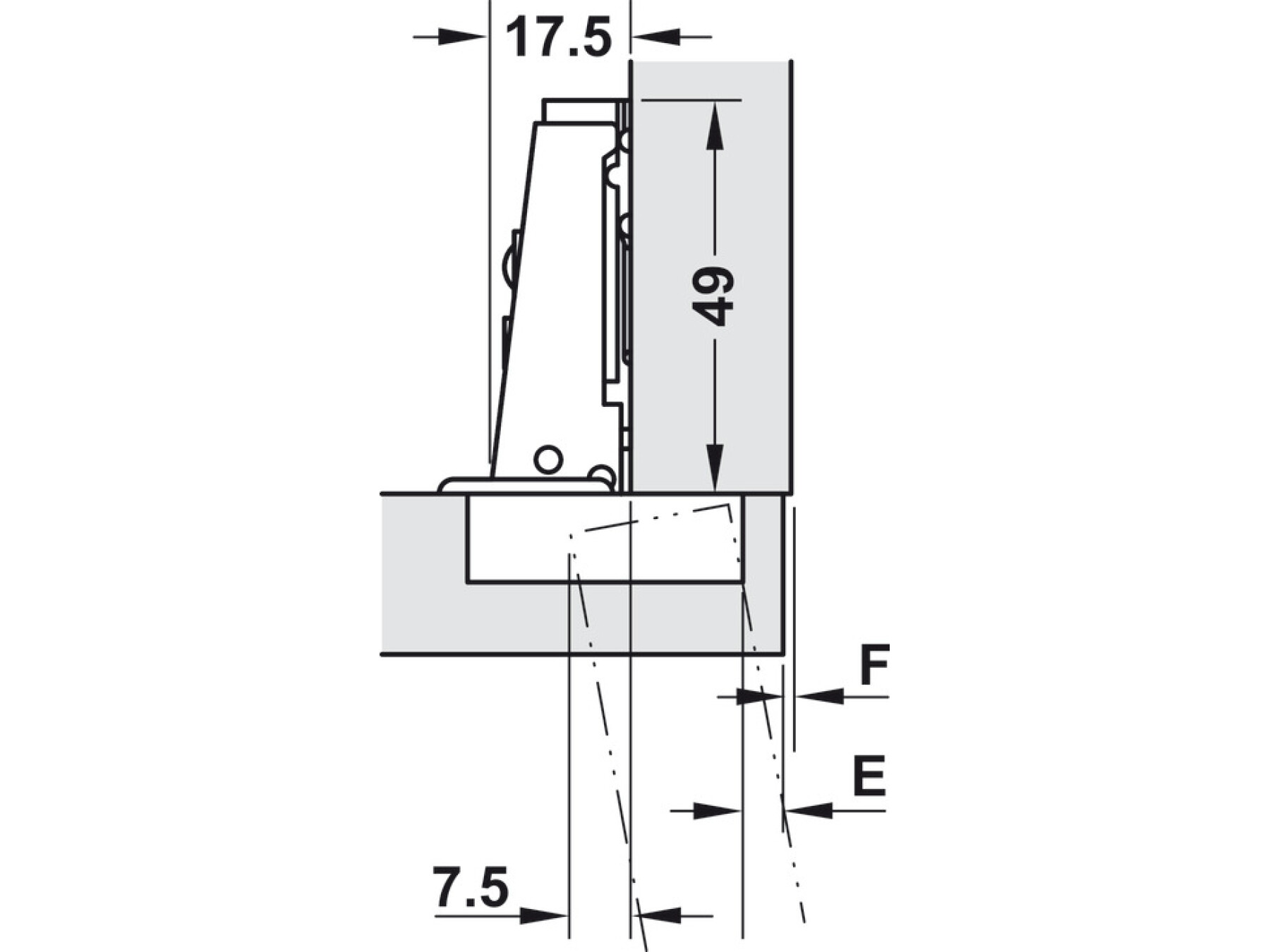

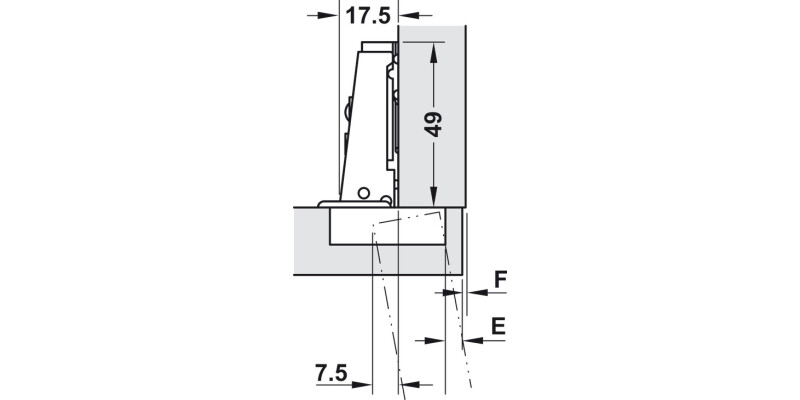

| Minimum gap | |||
|---|---|---|---|
| Door thickness mm | Distance to cup E mm | ||
| 3,0 | 4,0 | 5,0 | |
| 15 | 0,5 | 0,5 | 0,4 |
| 16 | 0,6 | 0,6 | 0,6 |
| 17 | 0,9 | 0,8 | 0,8 |
| 18 | 1,1 | 1,1 | 1,0 |
| 19 | 1,4 | 1,3 | 1,3 |
| 20 | 1,7 | 1,6 | 1,6 |
| Minimum gap F | |||
| Door overlay mm | |||
|---|---|---|---|
| 17 | 18 | 19 | |
| 3 | 4 | 5 | 0 |
| Distance to cup E mm | Mounting plate distance mm | ||
Use stainless steel screws to avoid contact corrosion. The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case.
Specifications
Area of application
for increased corrosion requirements
Version
Increased corrosion requirements
Functionality
With automatic closing spring
Concealed hinge version

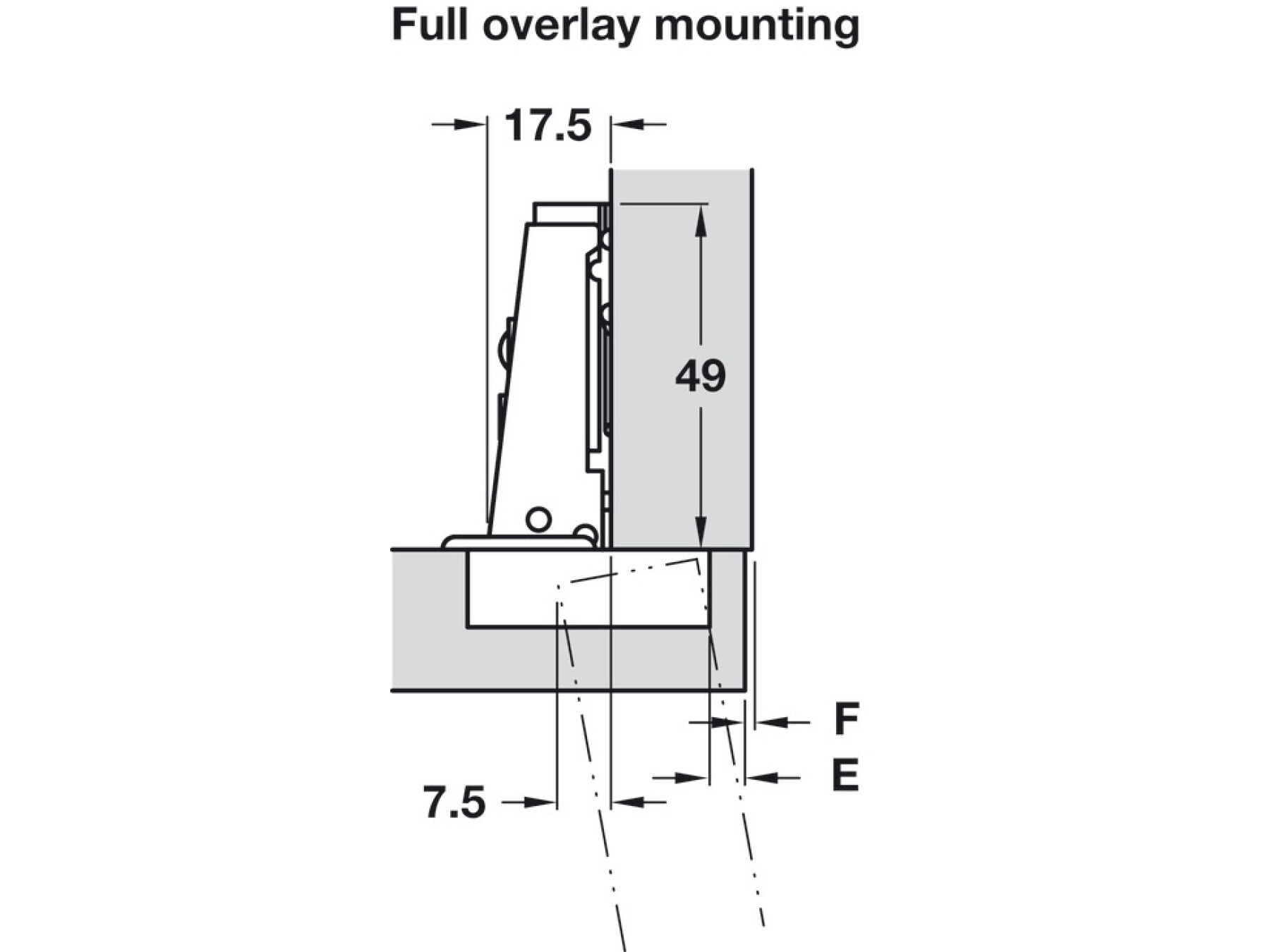

Full overlay
Crank type
Straight
For door material
Wood
Door processing for assembly
with cup drilling
Material
Stainless steel, quality 1.4301 (V2A)
Colour/finish
polished
Opening angle
100°
Cup drilling depth
11.00 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

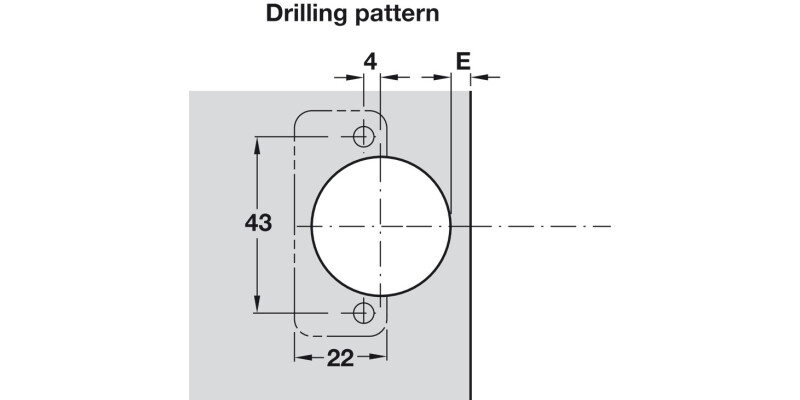

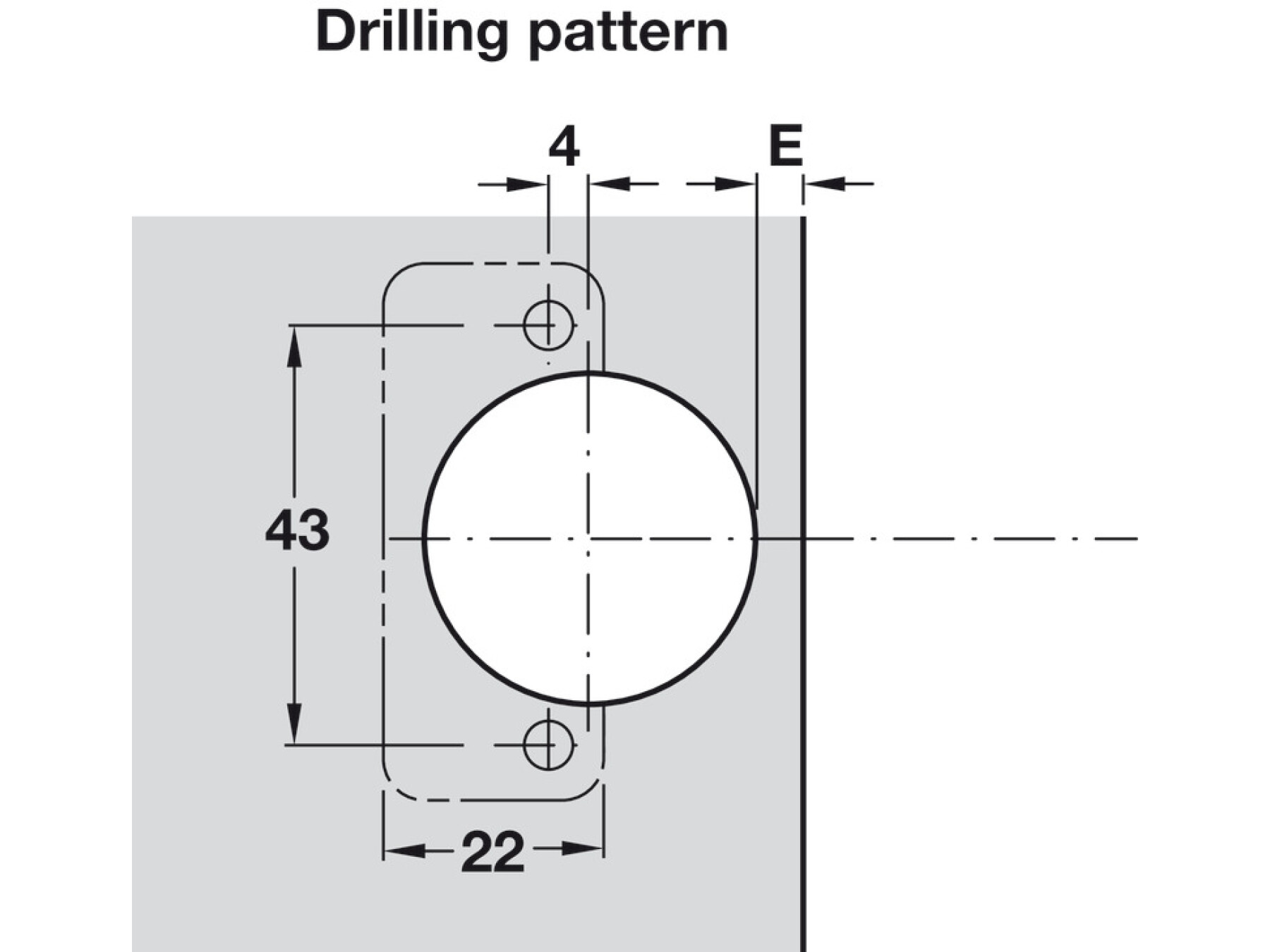

Drilling pattern
43/4
Adjustment facility
3-dimensional (with appropriate mounting plate)
Installation
Door on cabinet with slide-on system
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
