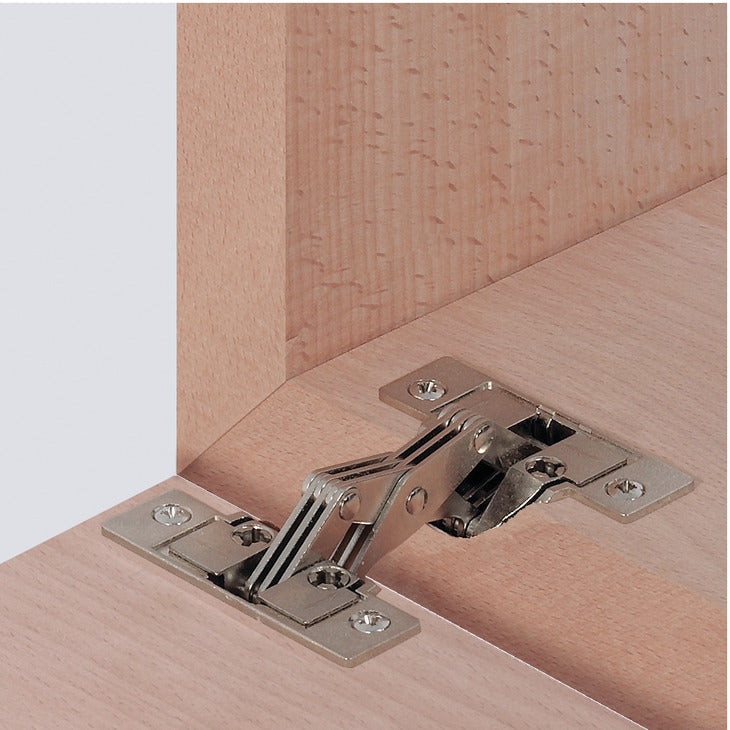

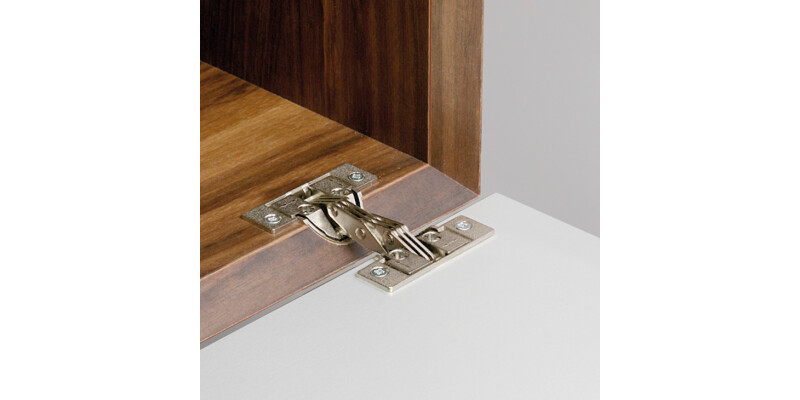

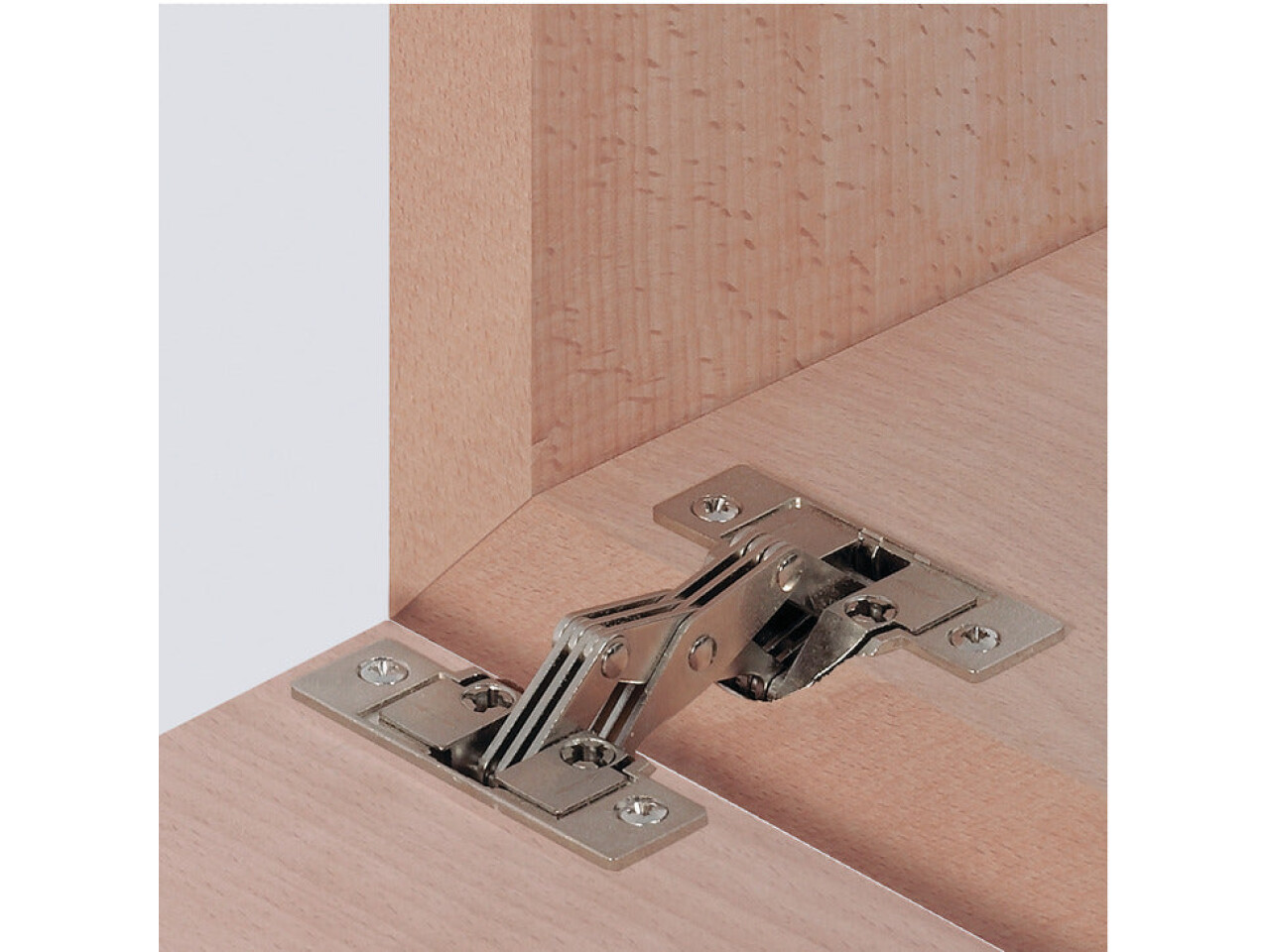

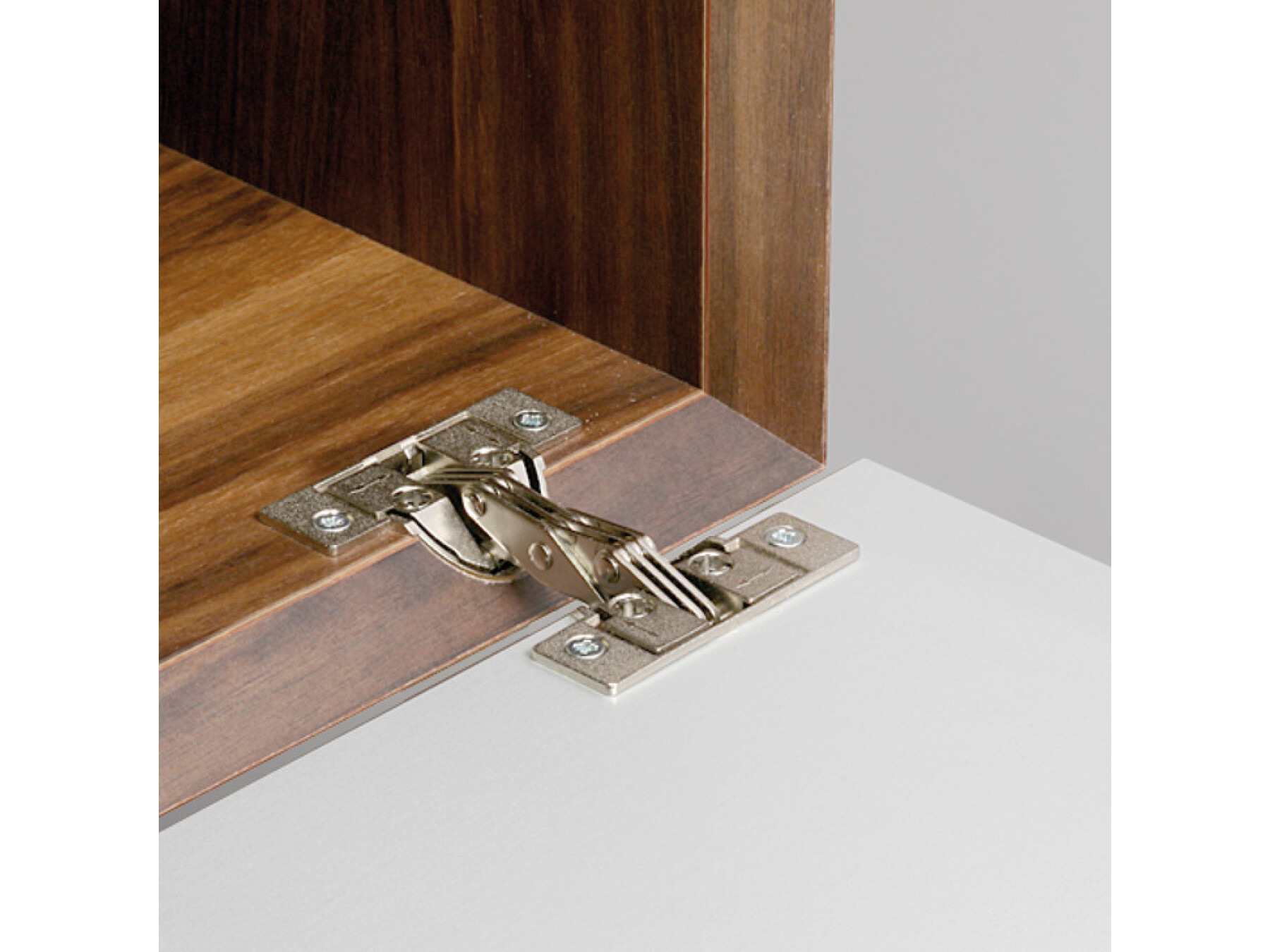

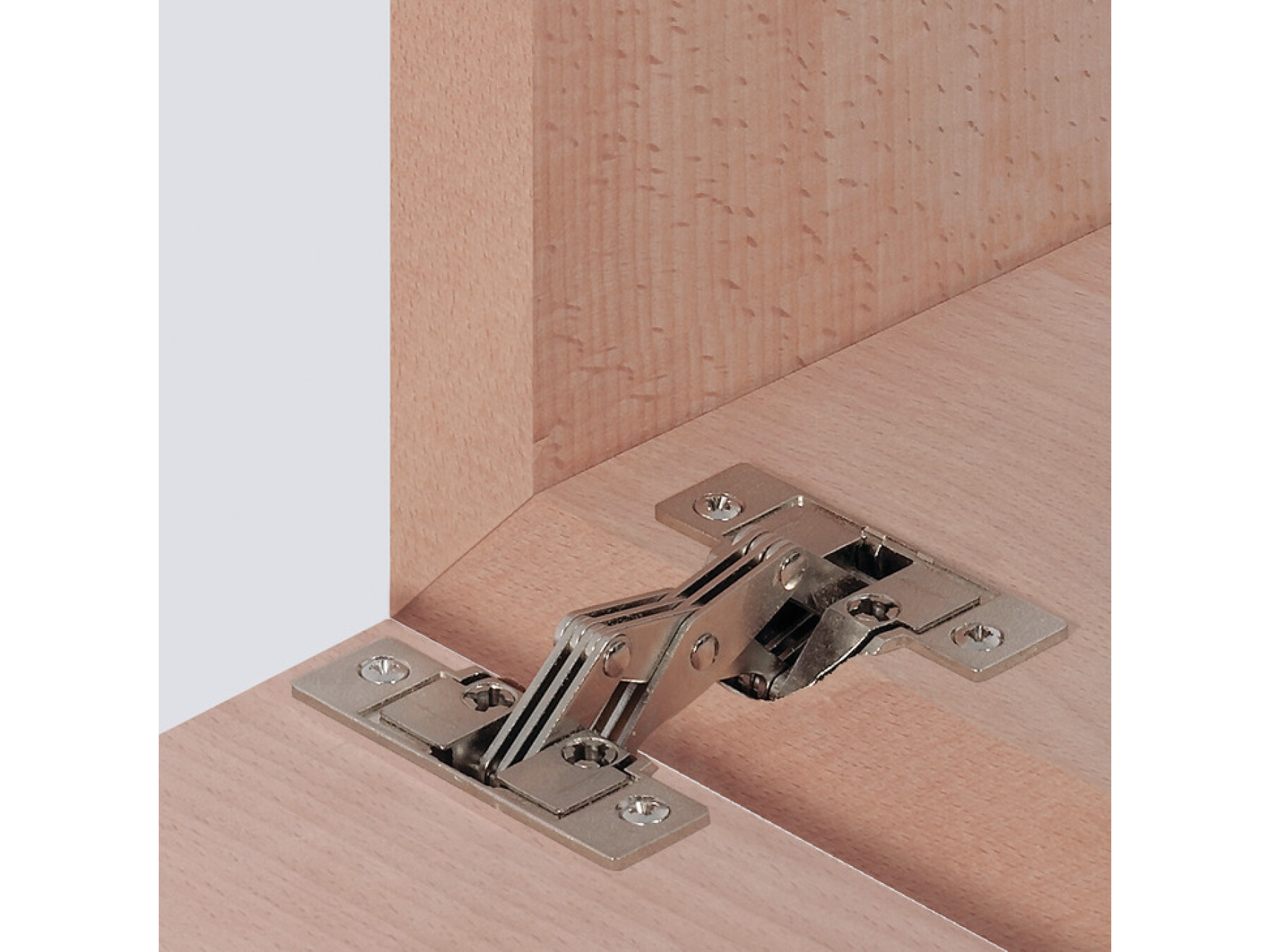

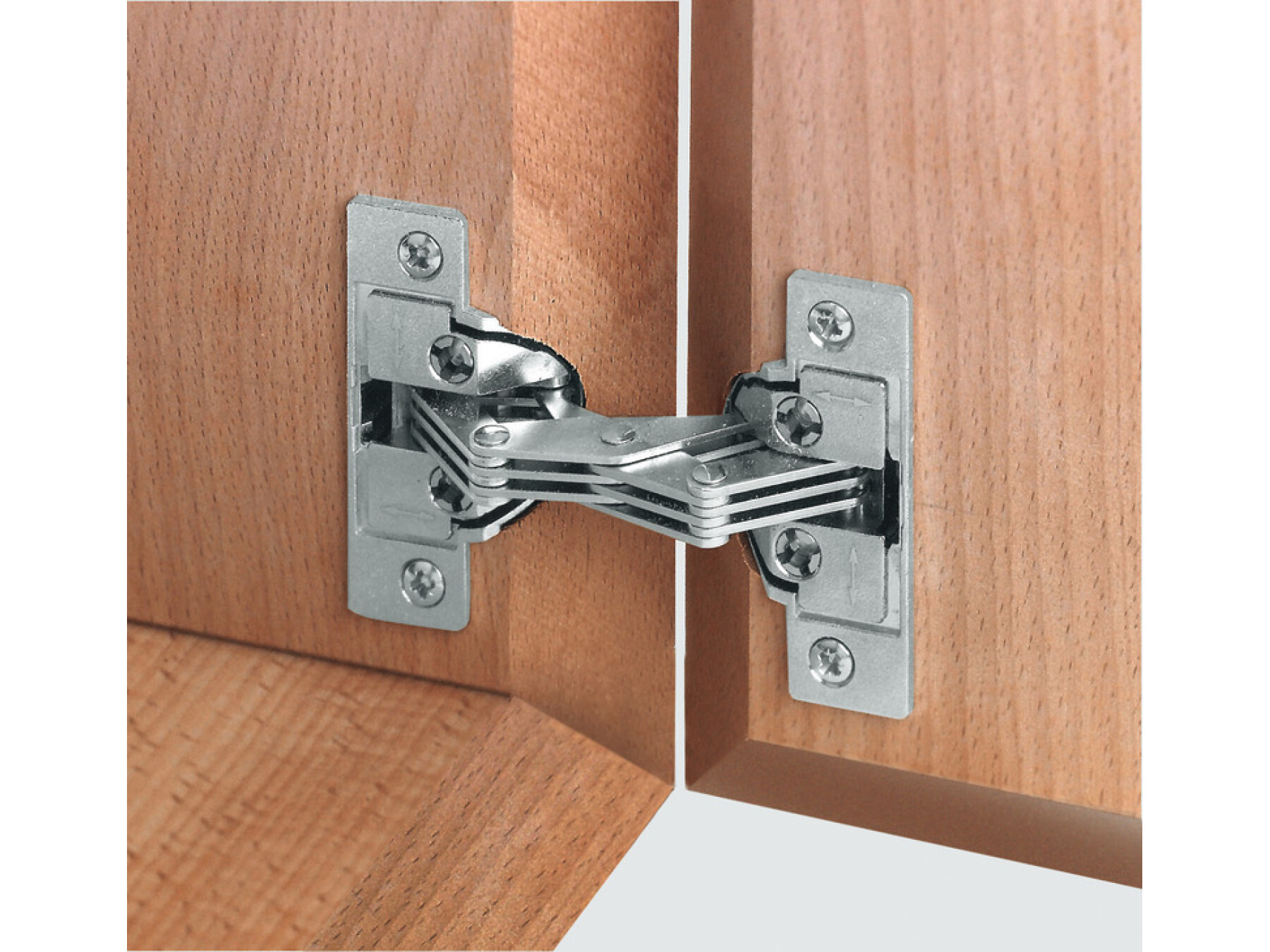

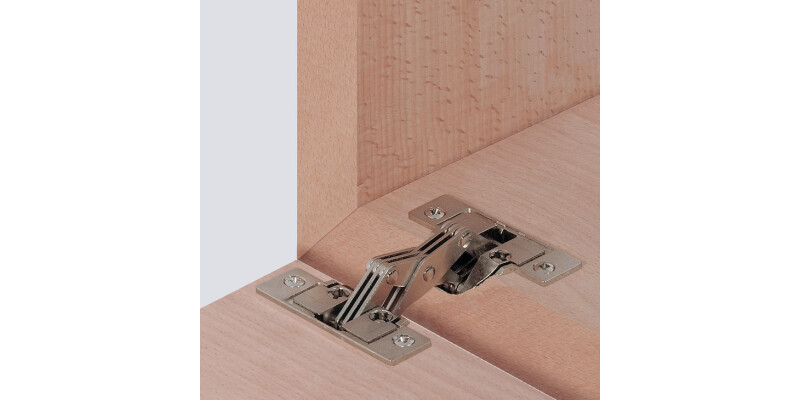

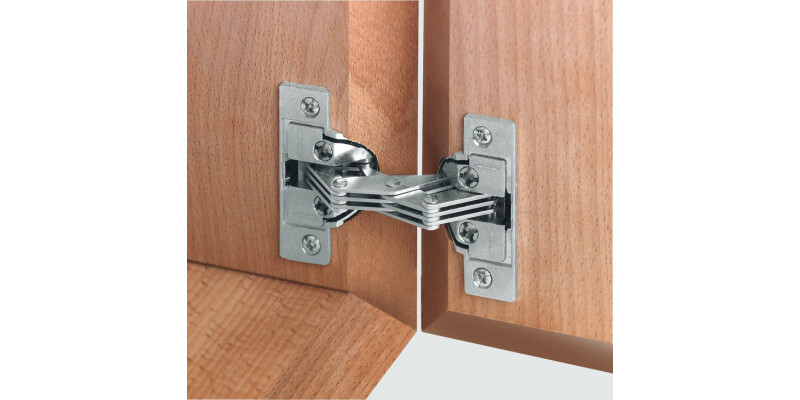

Mitred Flap Hinge 90D for 45D App
Part Number: 325.02.702
For screw fixing, Nickel plated
Price:
£20.06
Per Item
Only for use in combination with flap or lid stay The edge must be chamfered by 3 mm from a side panel... Read More
Product Information
Product Details

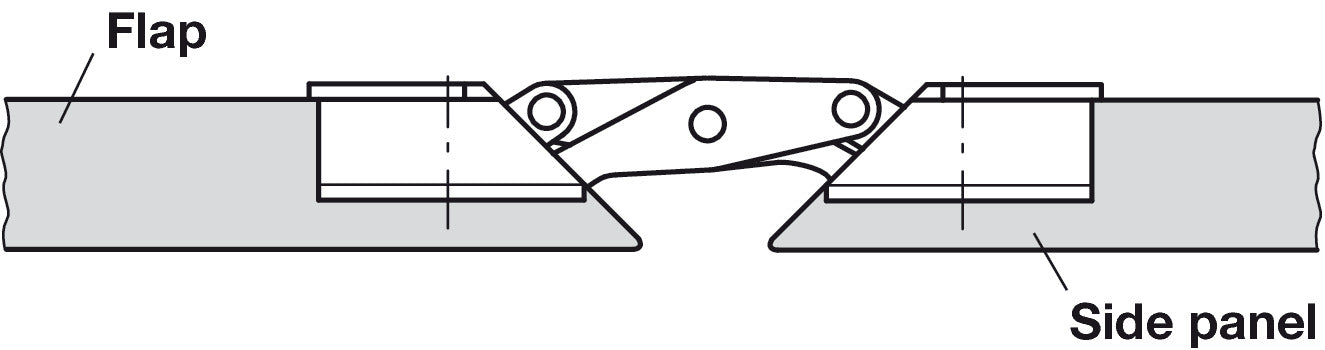

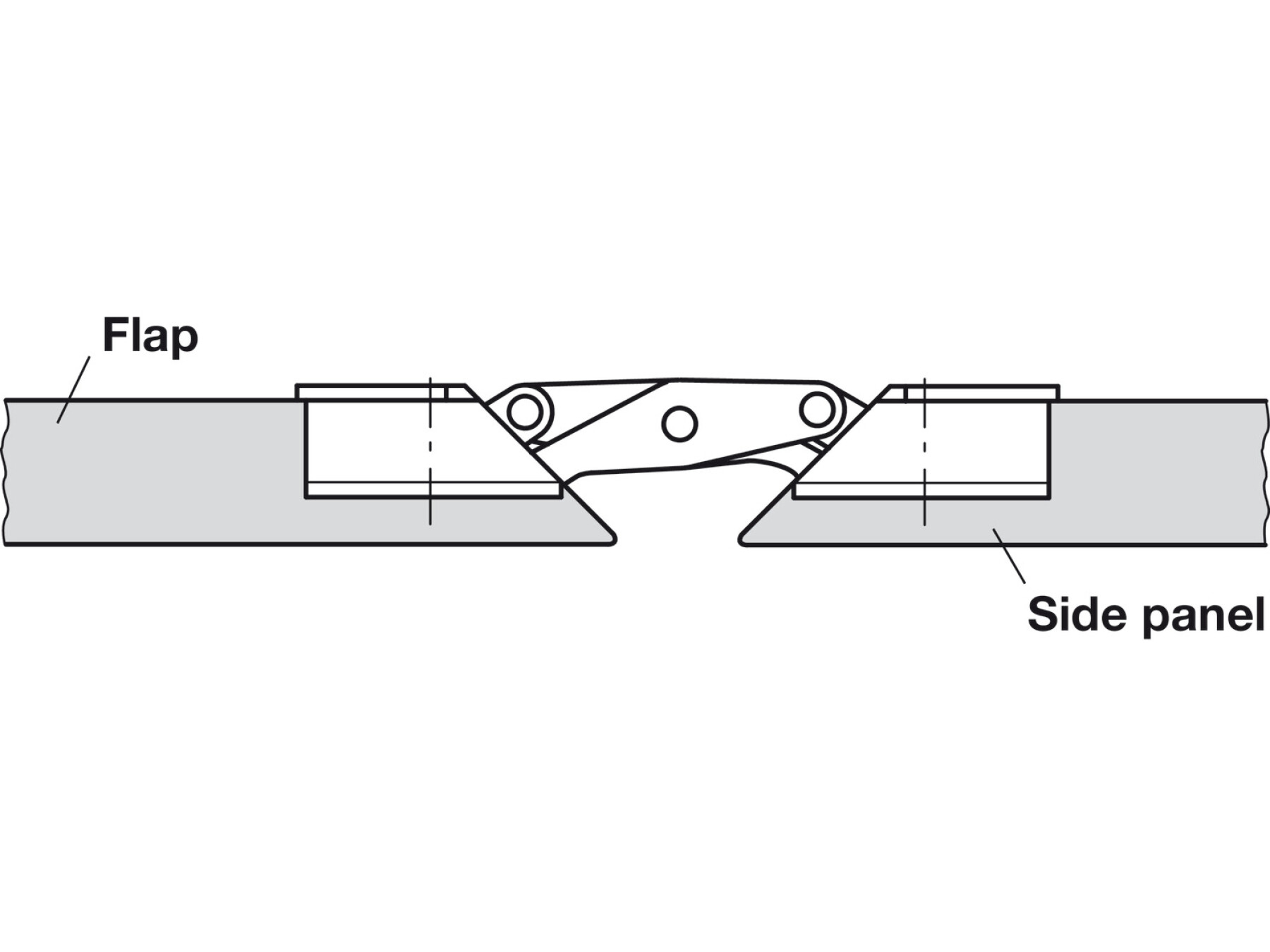

Only for use in combination with flap or lid stay

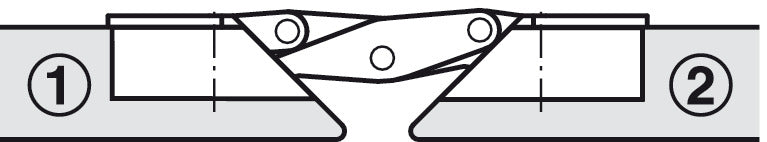

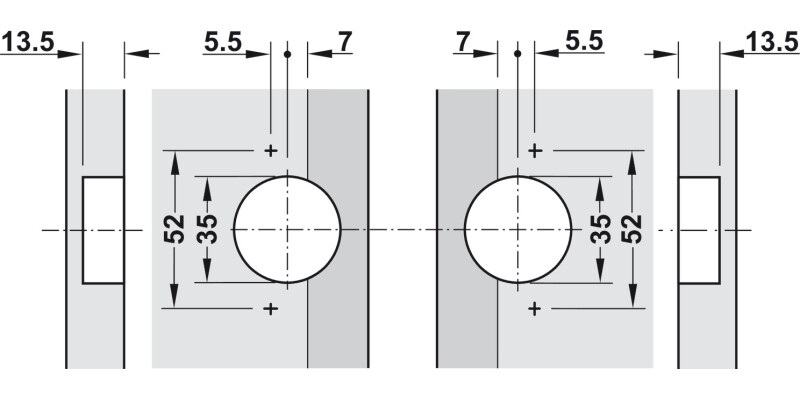

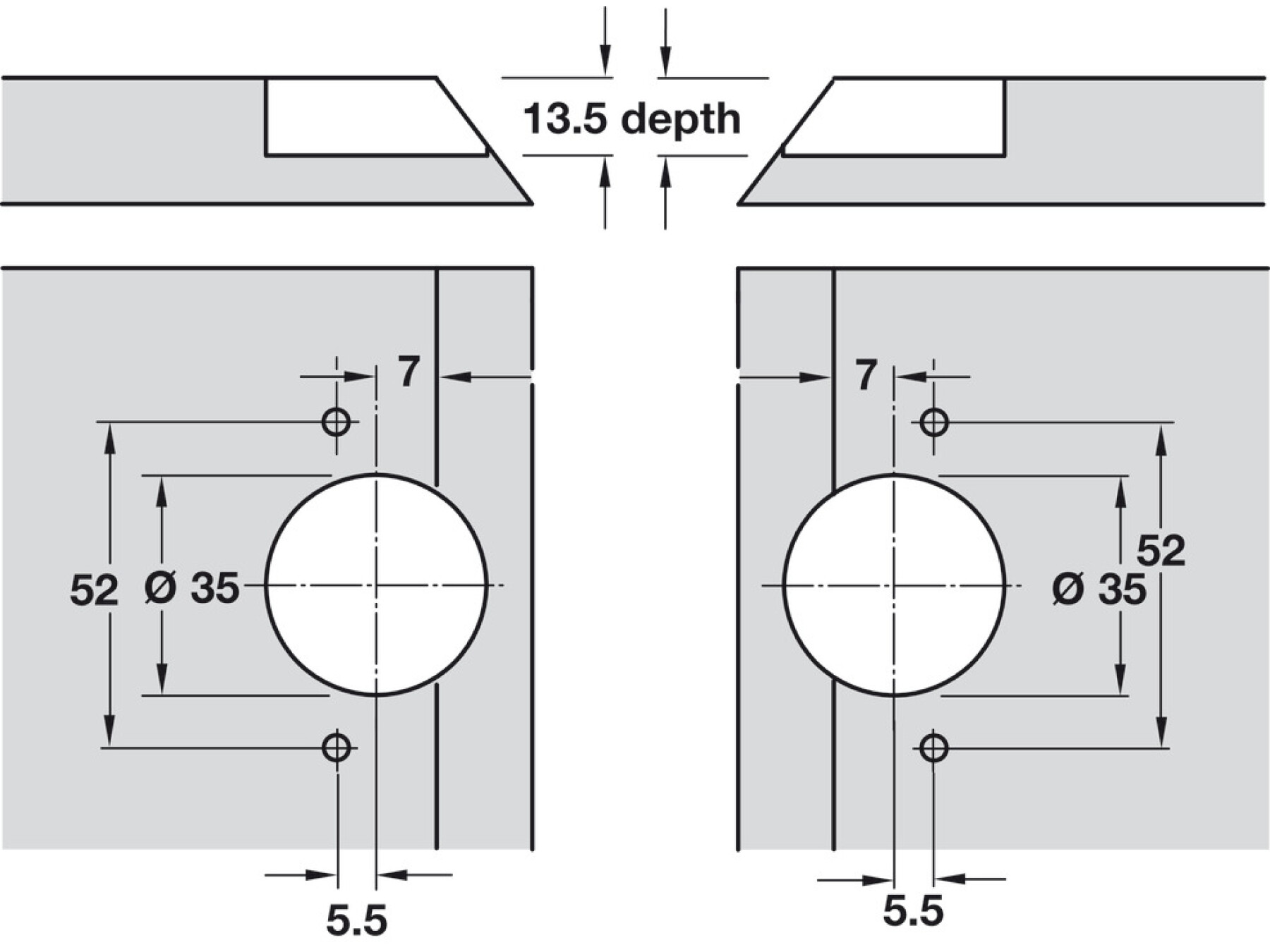

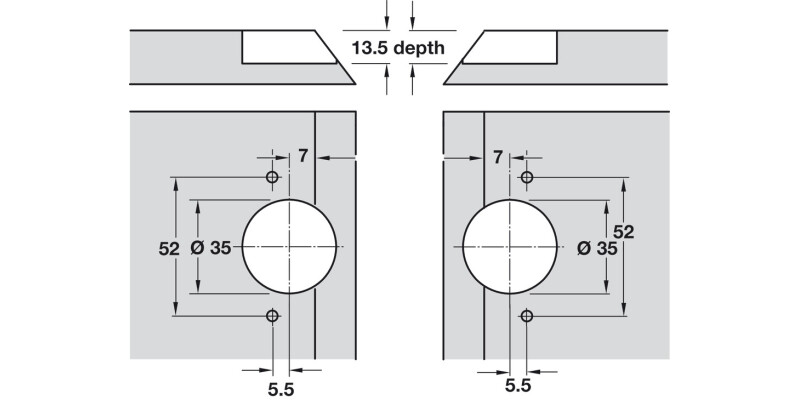

The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications

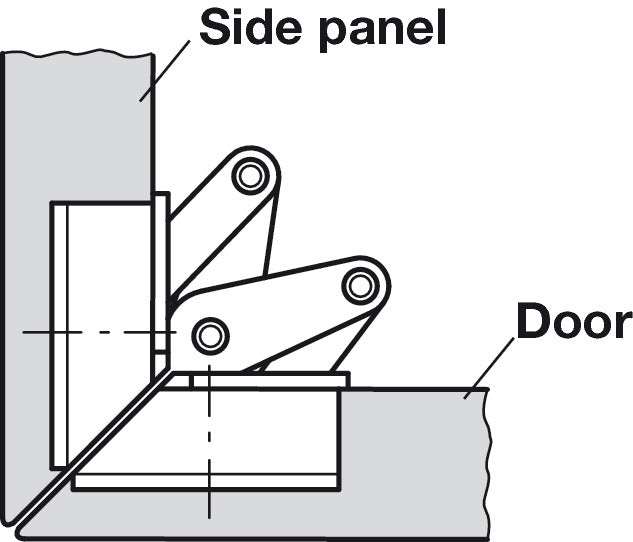

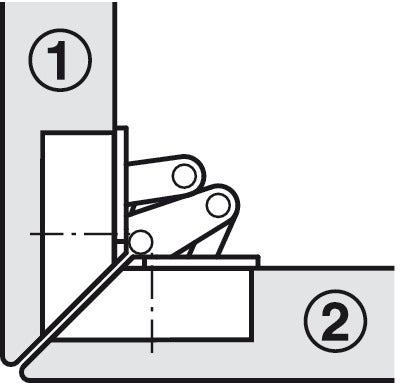

Area of application

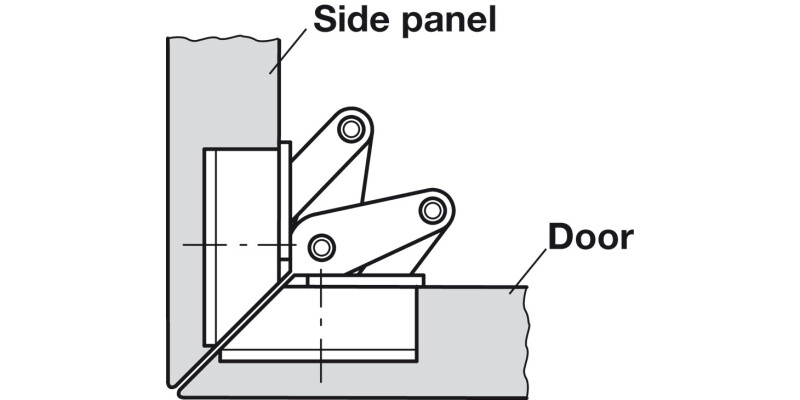

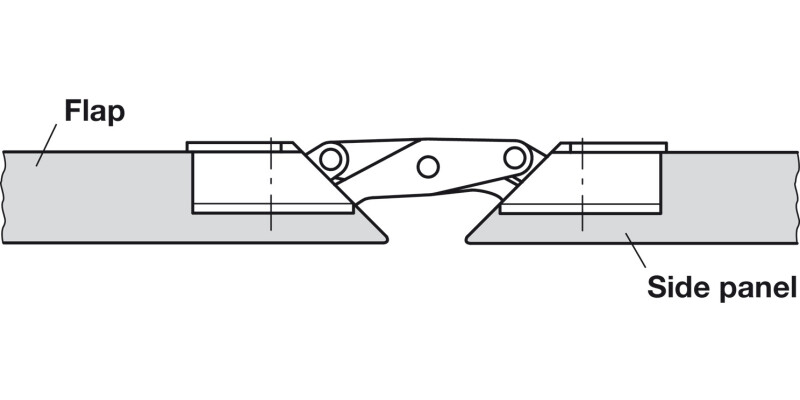

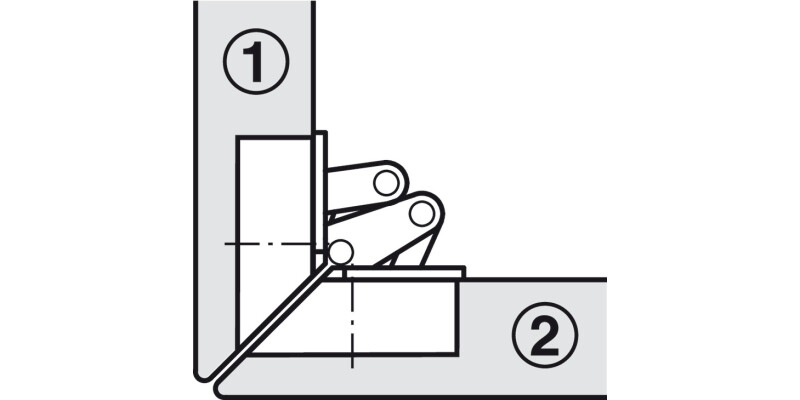

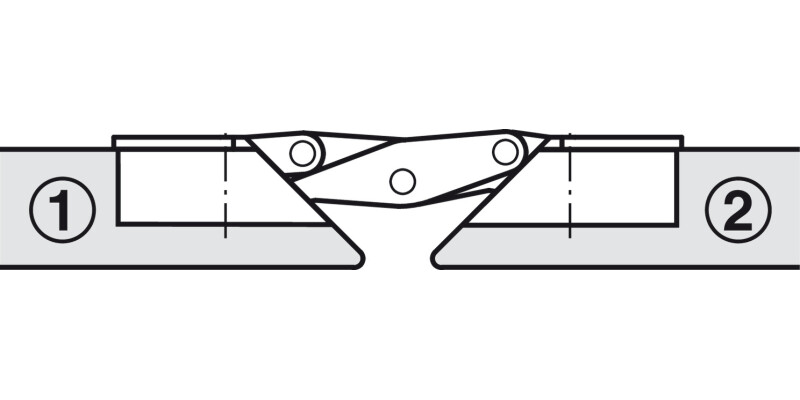

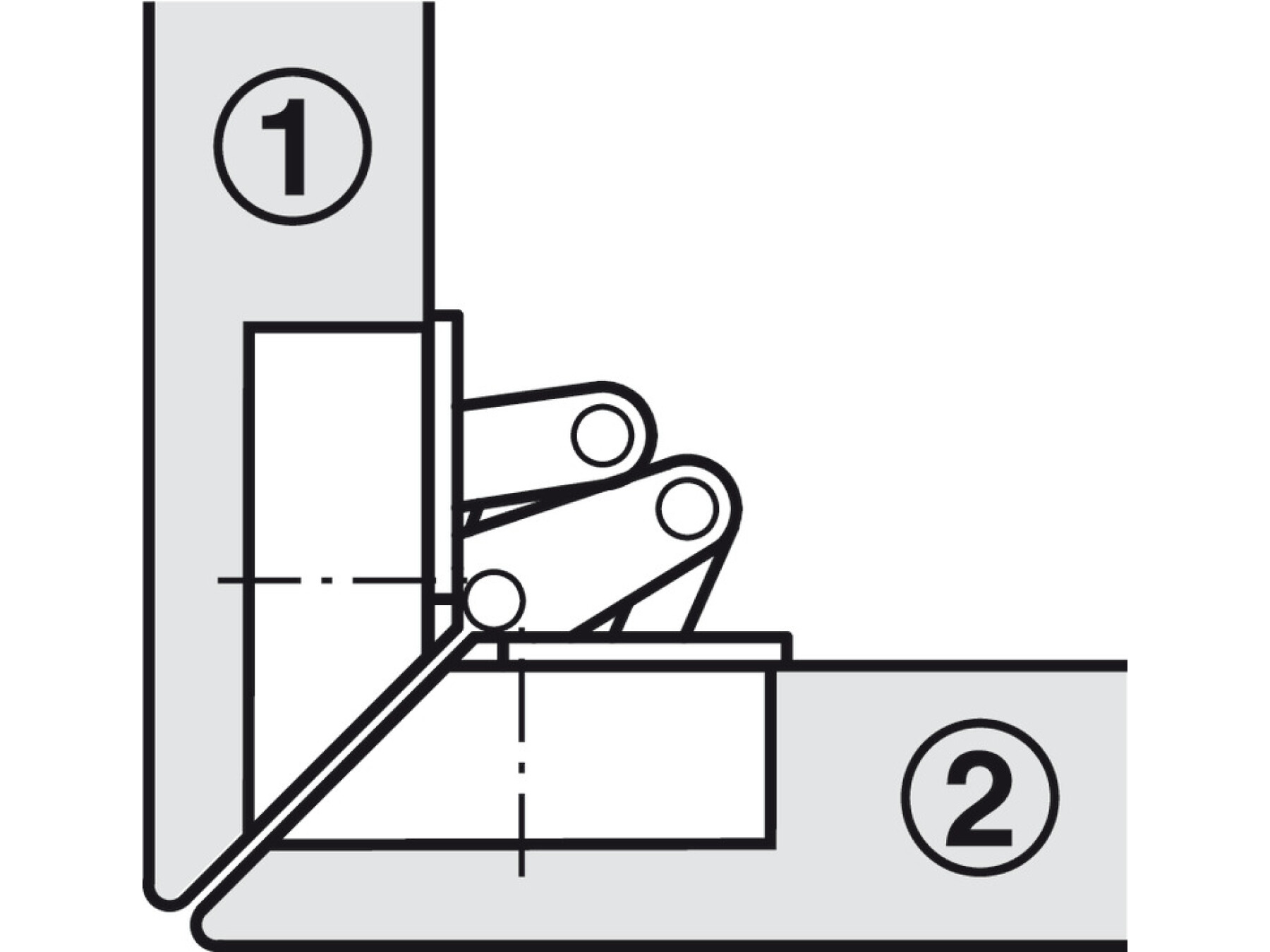

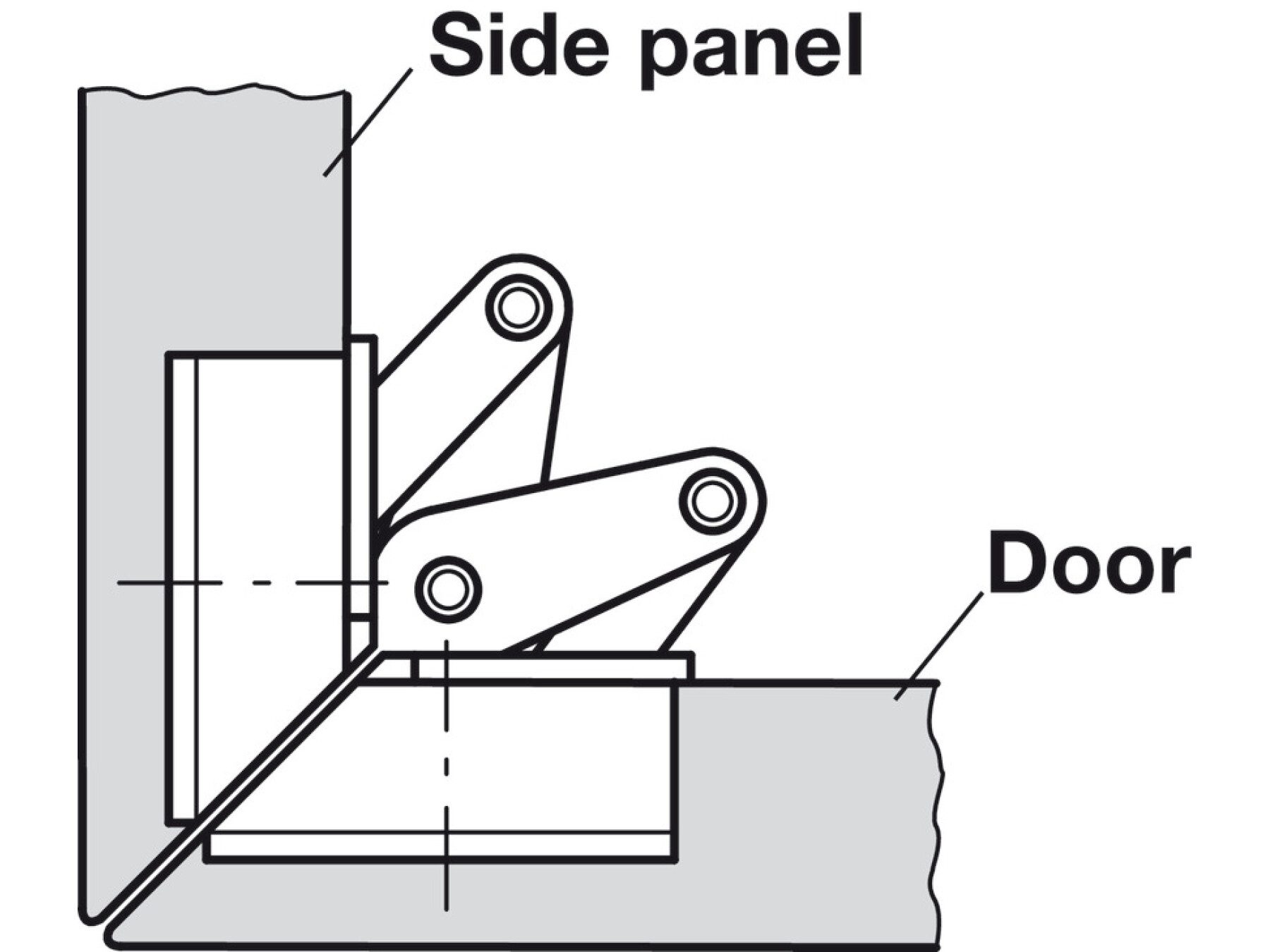

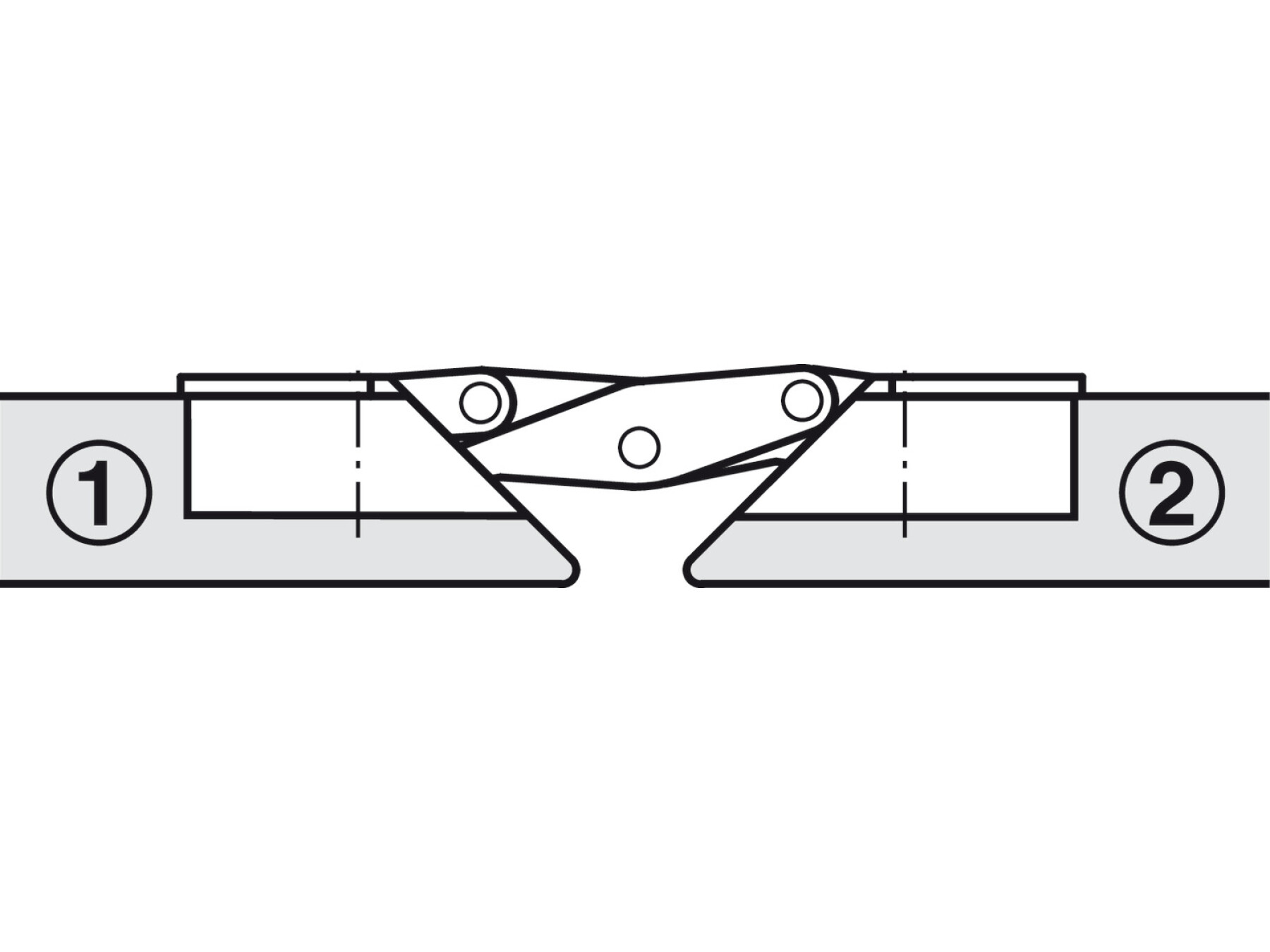

for 45° mitre applications
For door material
Wood
Material
Cup: Zinc alloy, Hinge arm: Steel
Colour/finish
nickel plated
Opening angle
95°
For lid thickness
16 – 22 mm

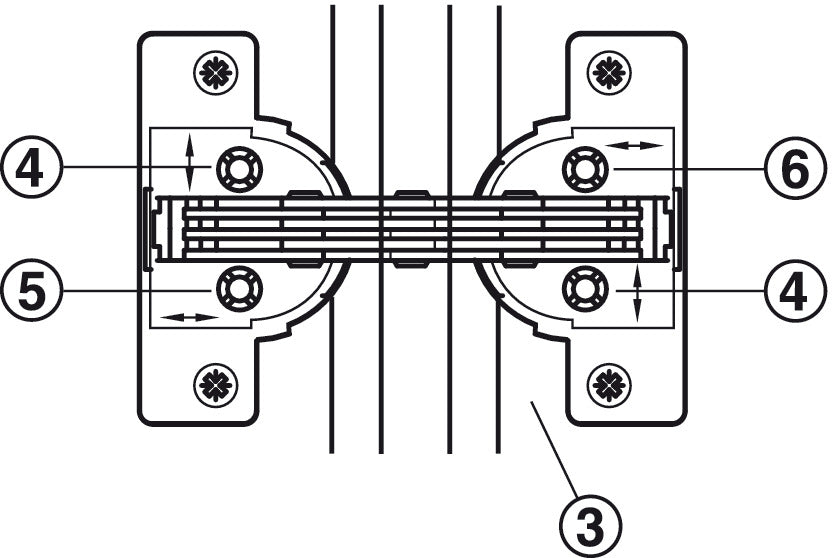

Adjustment facility
Side adjustment 1.5 mm
Installation
Screw fixing
Order reference
Order Hospa Ø 3.5 raised head screws separately
