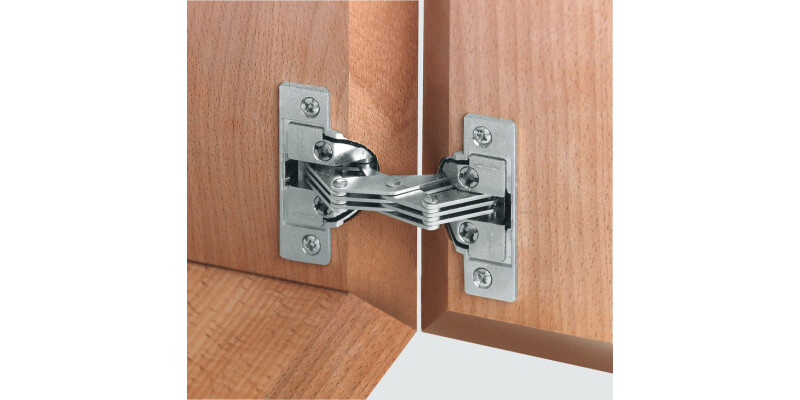

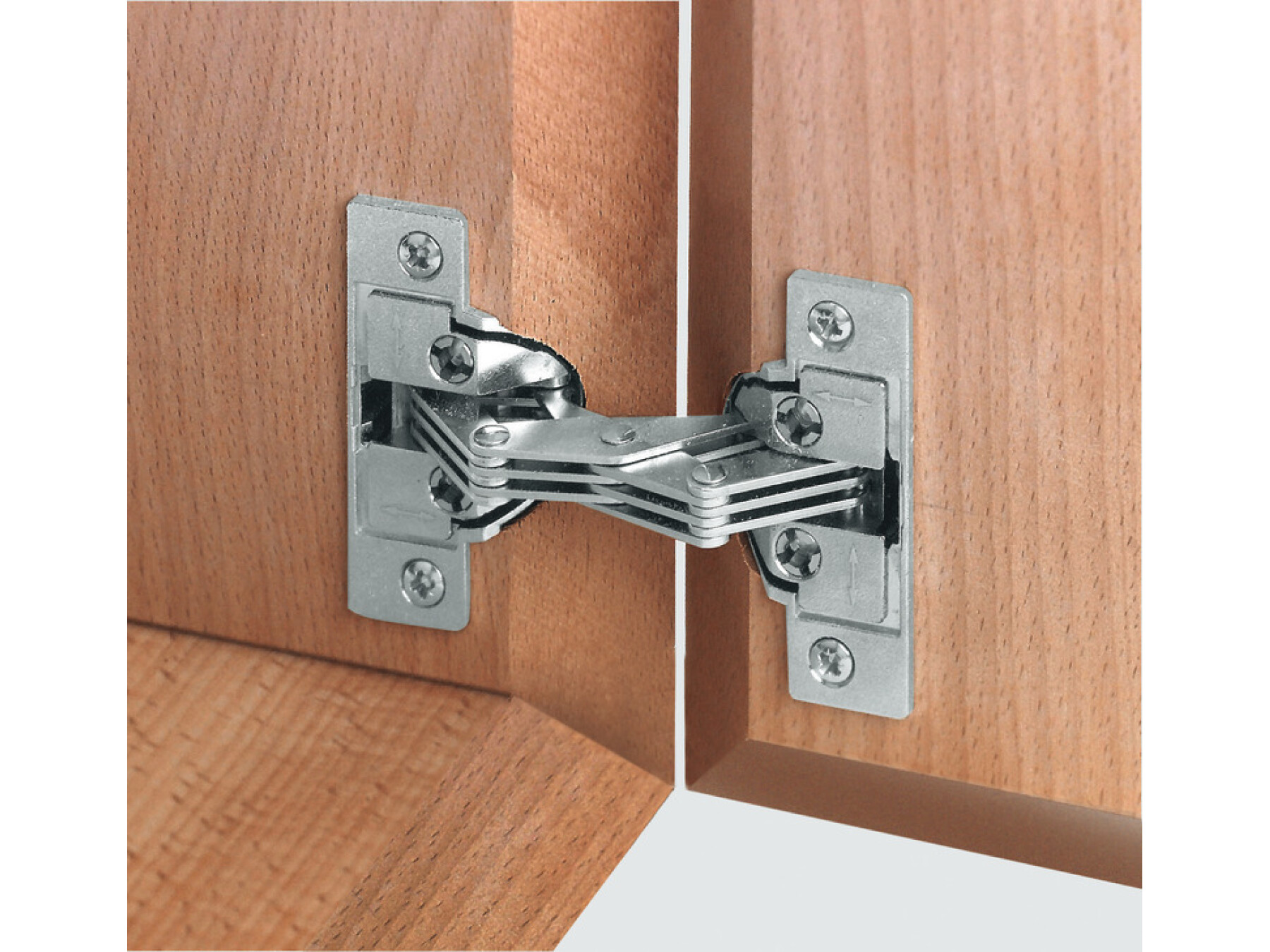

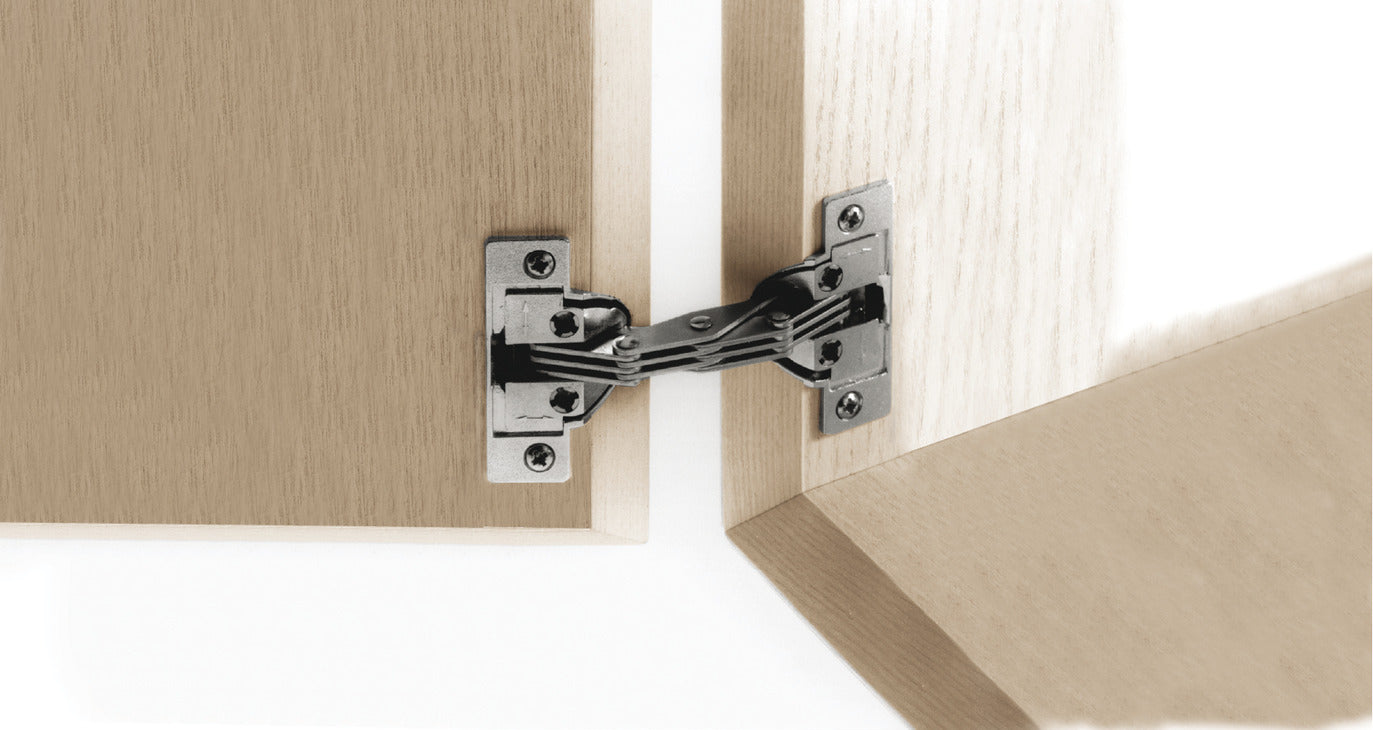

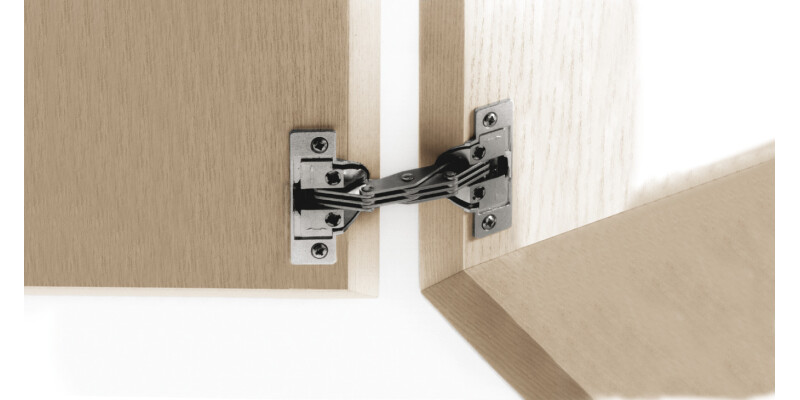

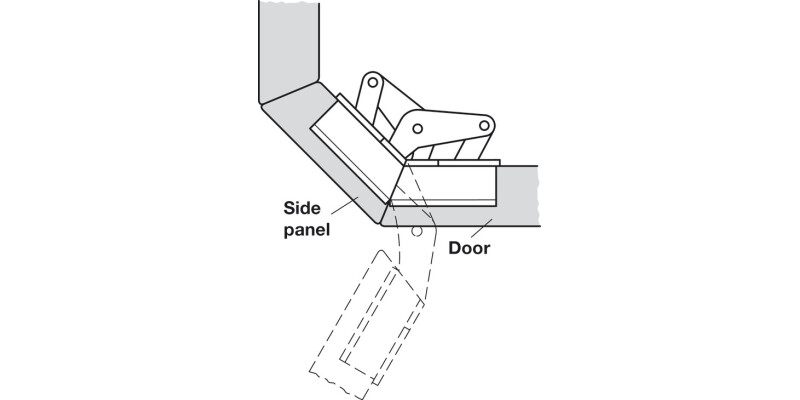

Mitred Flap Hinge 135D for 45D App
Part Number: 325.00.708
Steel and zinc alloy, Screw fixing
Price:
£22.67
Per Item
Specially designed to enable door and carcase edges to meet at mitred anglesØ 35 mm cup The only hinge... Read More
Product Information
Product Details

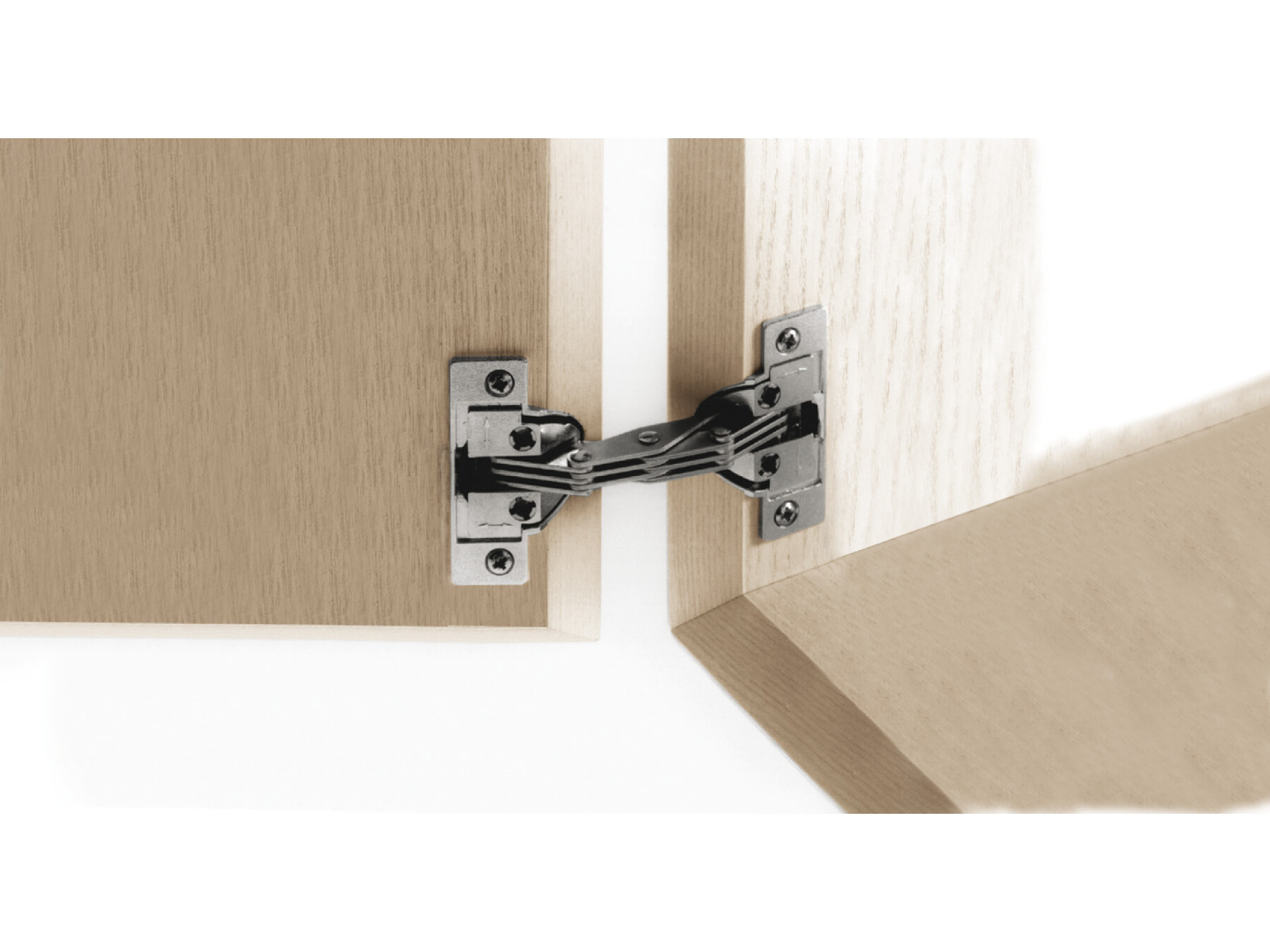

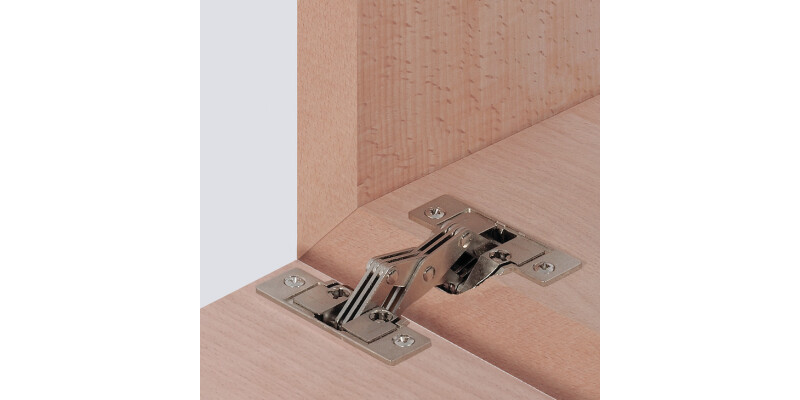

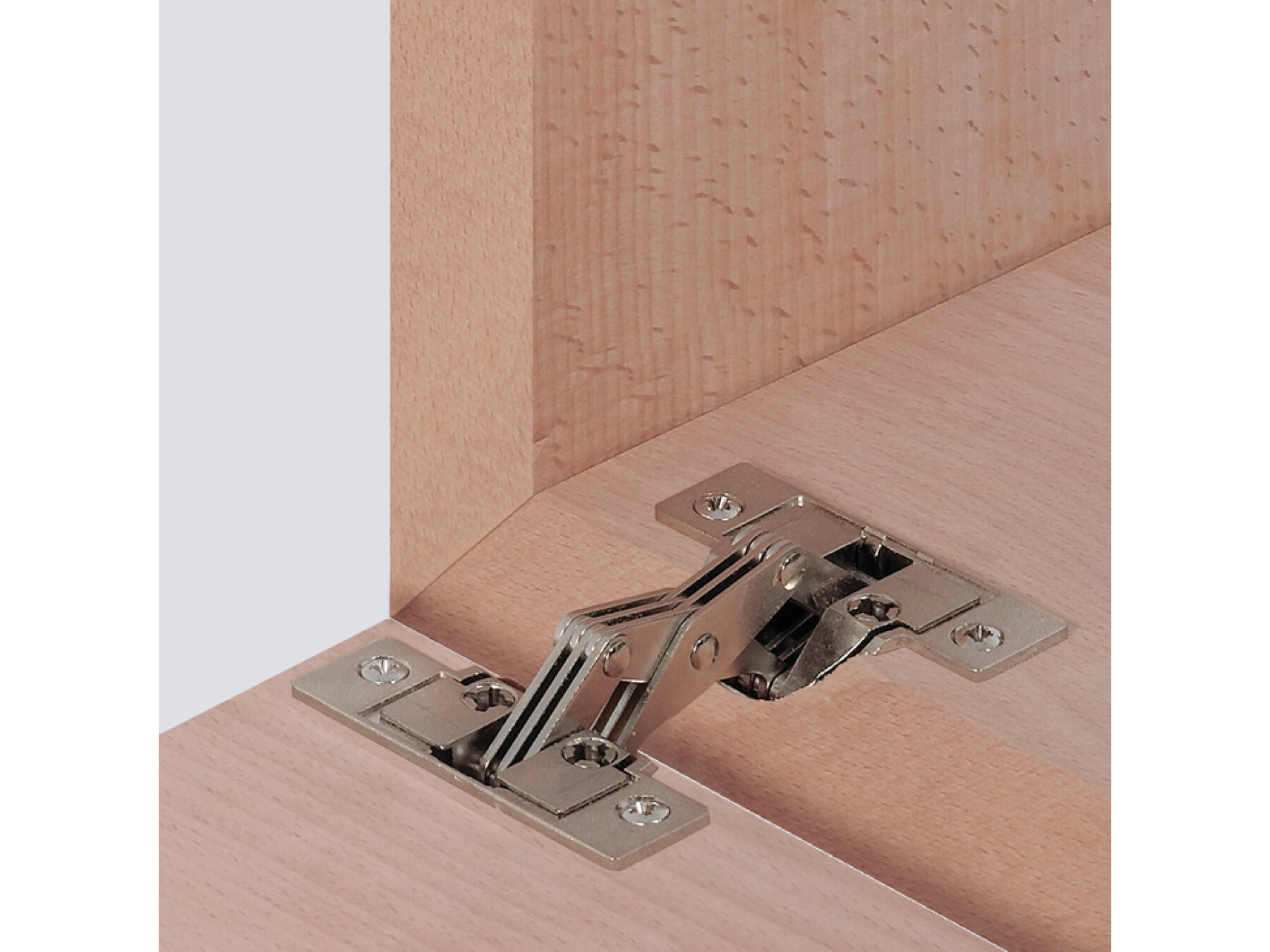

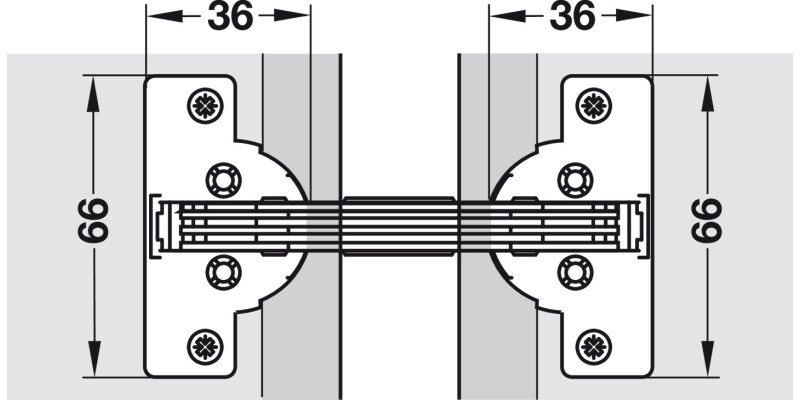

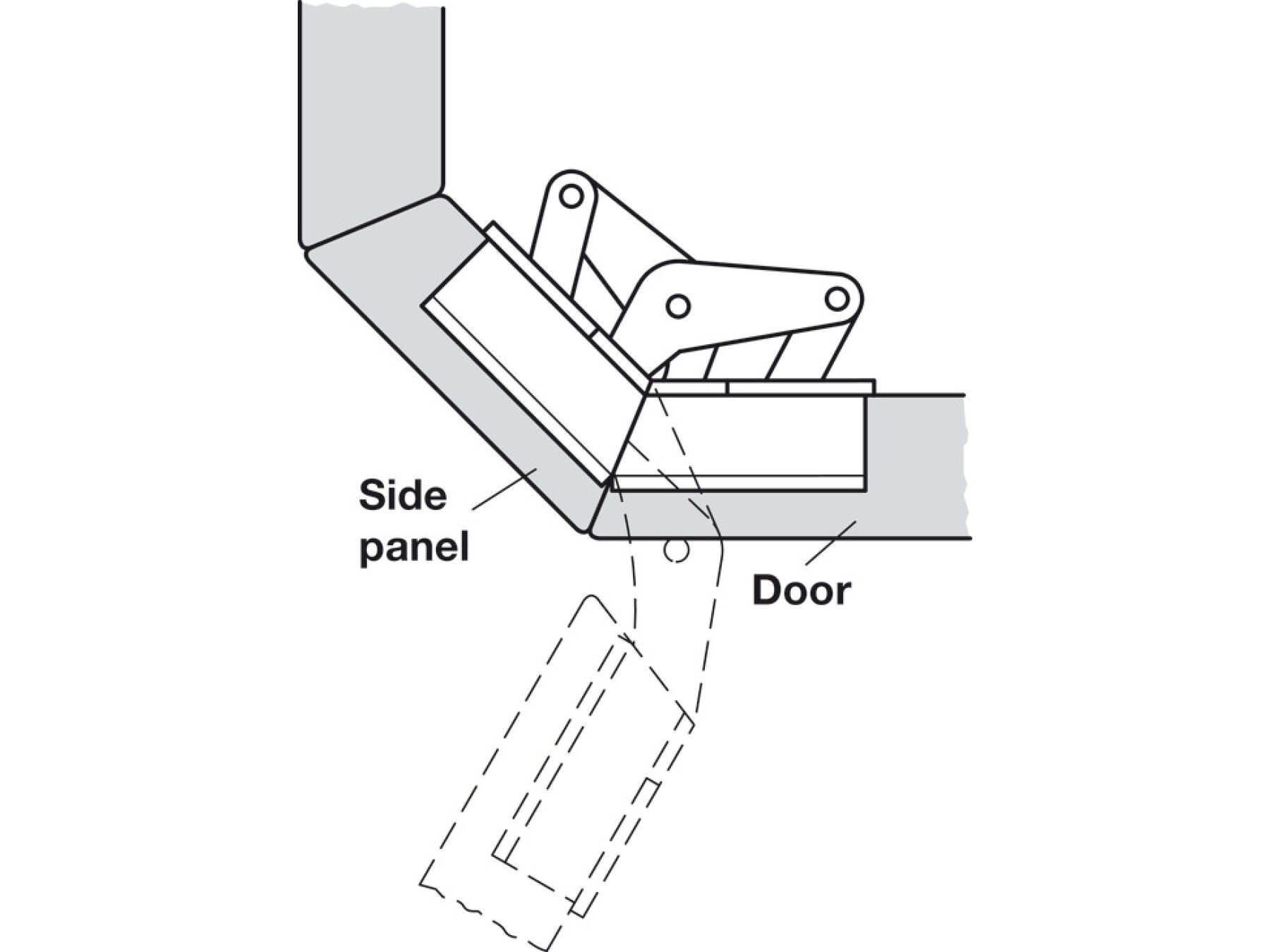

Specially designed to enable door and carcase edges to meet at mitred angles
Ø 35 mm cup
The only hinge that can be used for furniture structures with mitred cabinet corners and door.
The mitred hinge is not visible from outside when the door is closed.

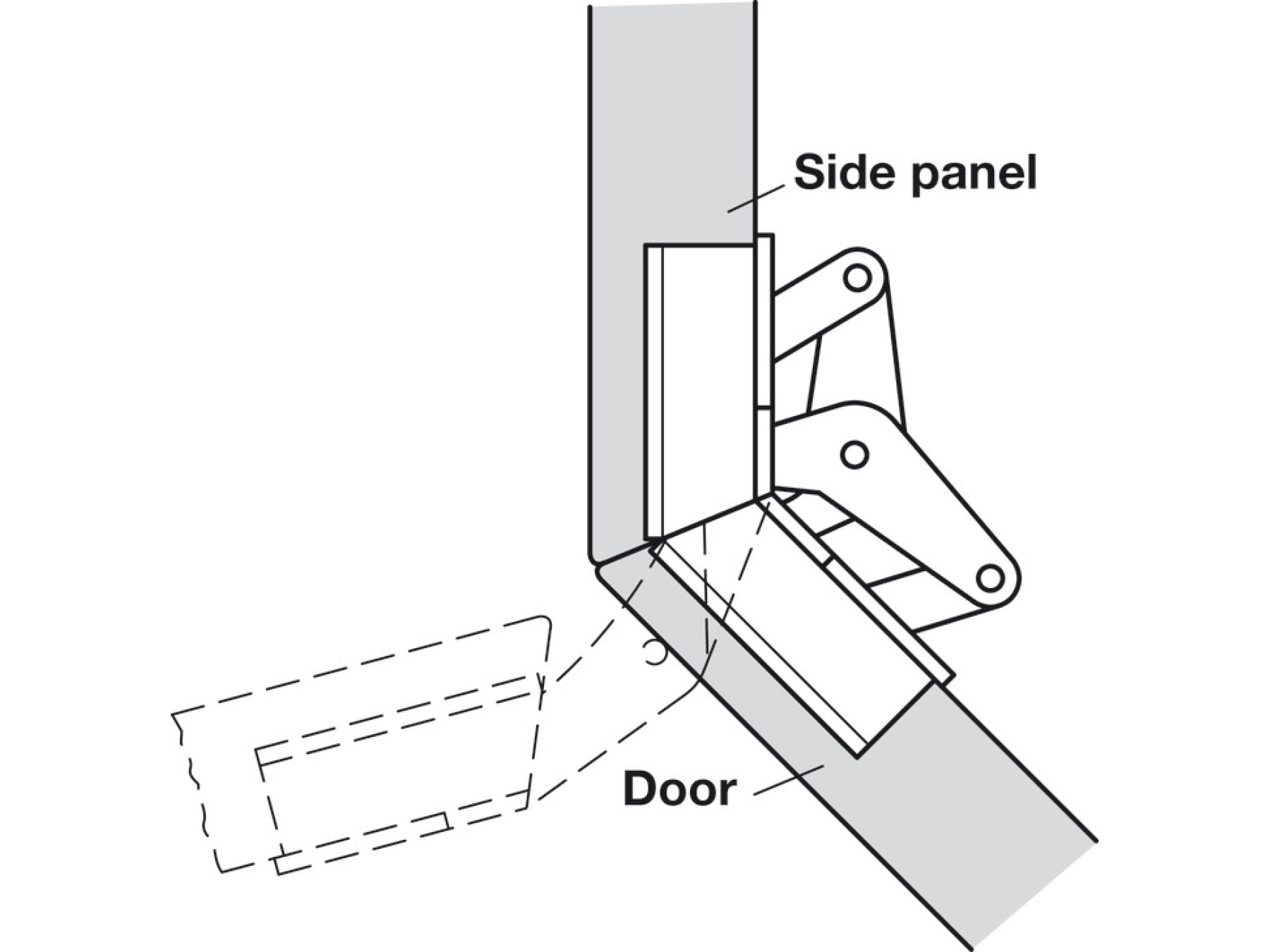

Installation note
Provide 2 mm door gap all round.
The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.
Provide 2 mm surrounding door gap.
Provide 2 mm door gap all round.
The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.

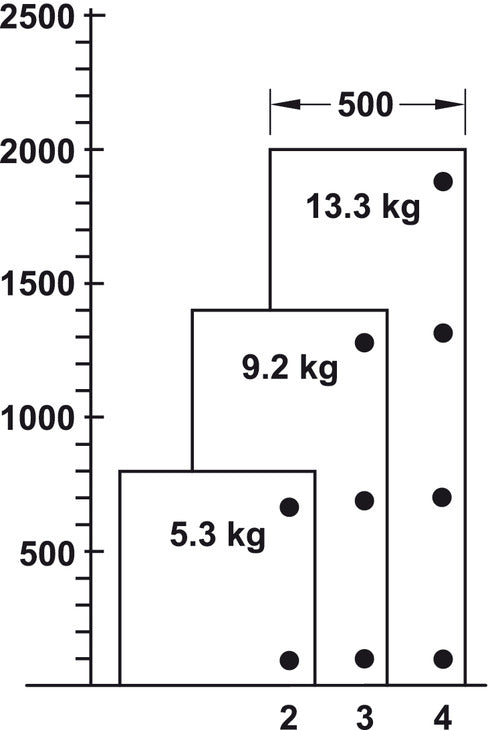

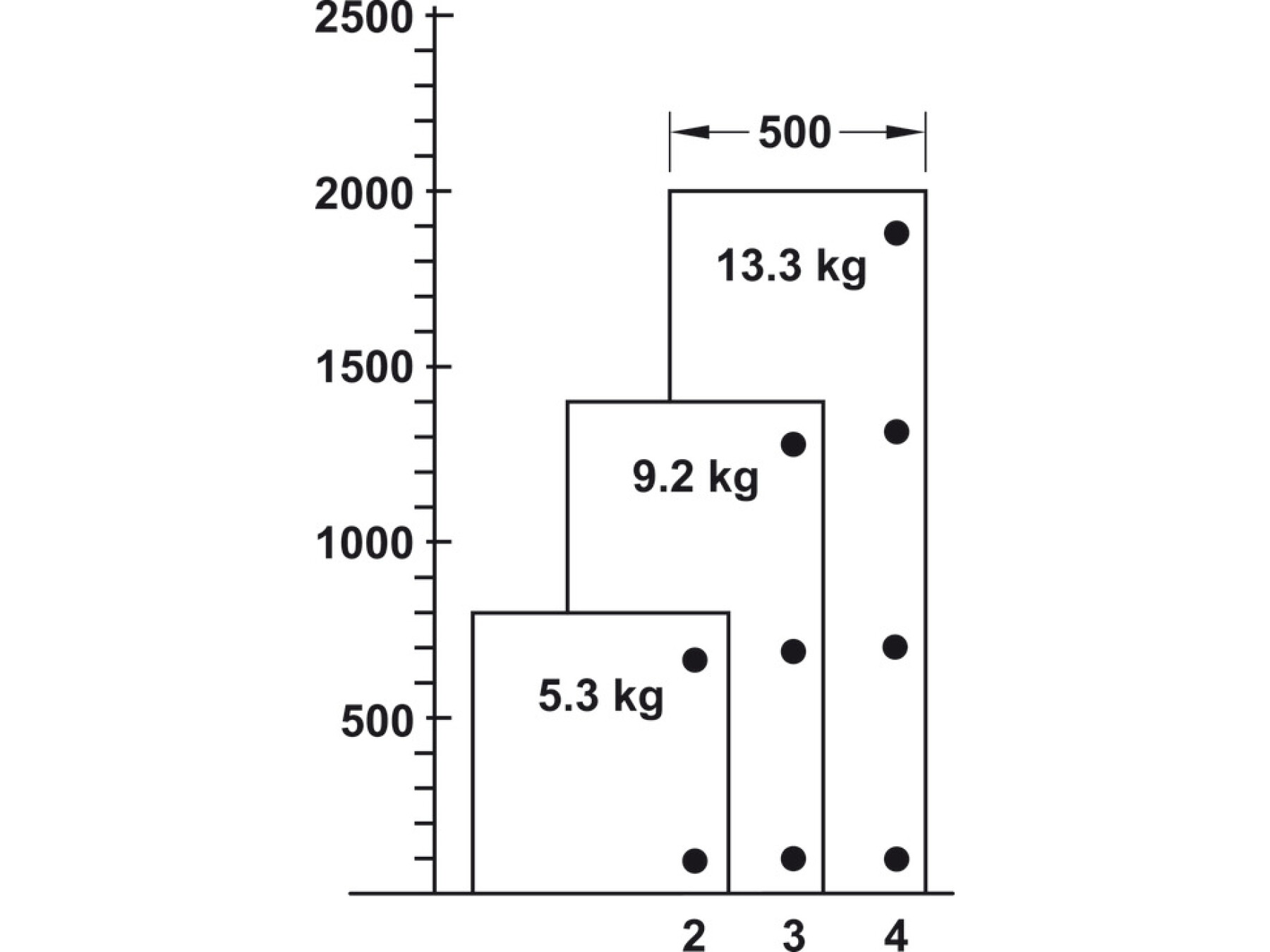

Specifications
Area of application
for 45° mitre applications
Concealed hinge version
Mitre
For door material
Wood
Door processing for assembly
with cup drilling
Material
Cup: Zinc alloy, Hinge arm: Steel
Colour/finish
nickel plated

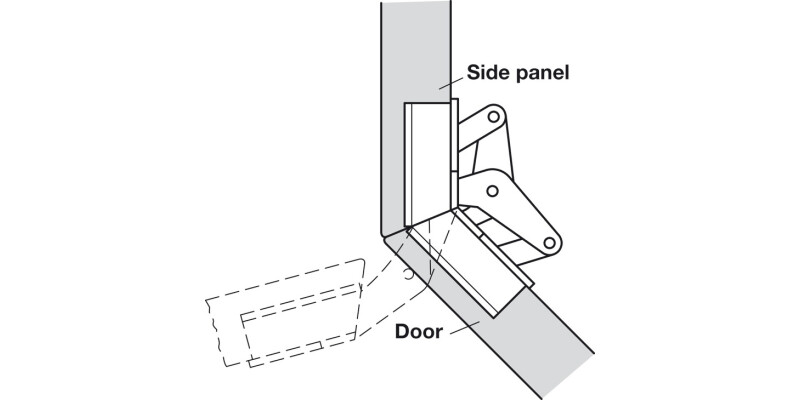

Opening angle
135°
For door thickness
16 – 22 mm
Side panel thickness
16 – 20 mm
Cup drilling depth
13.50 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

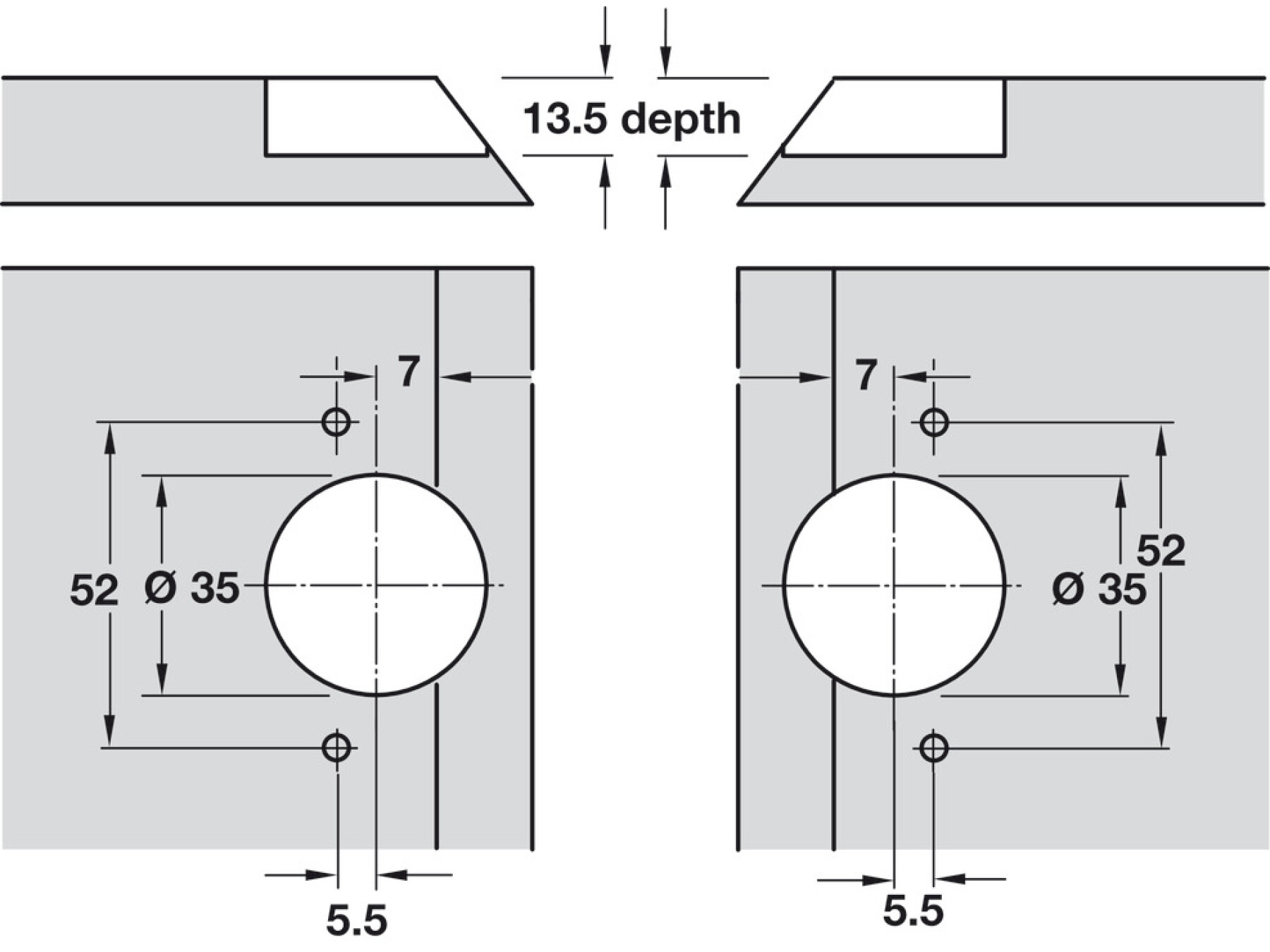

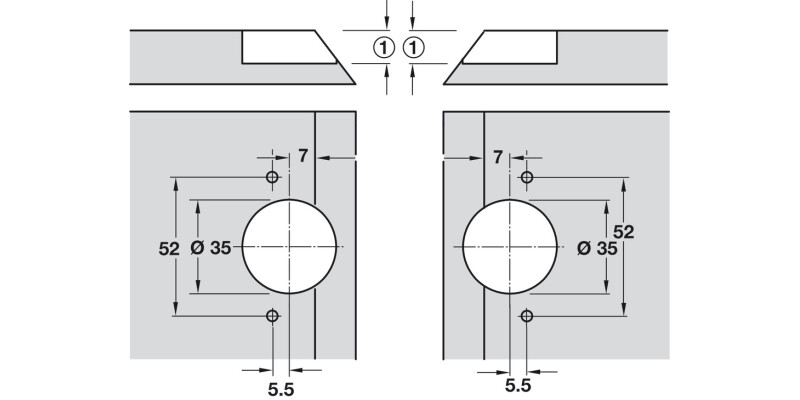

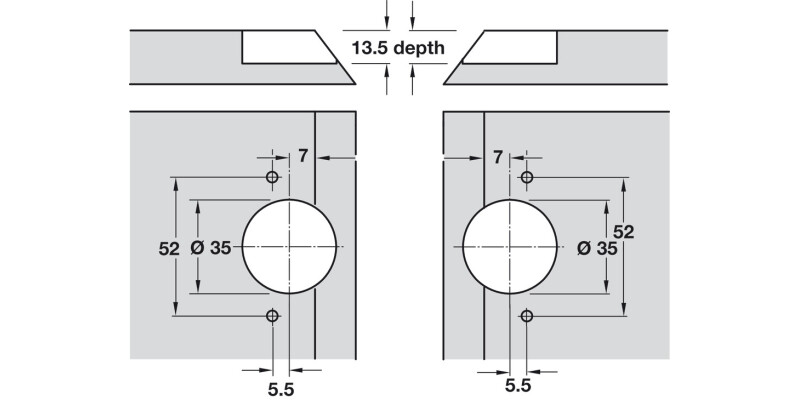

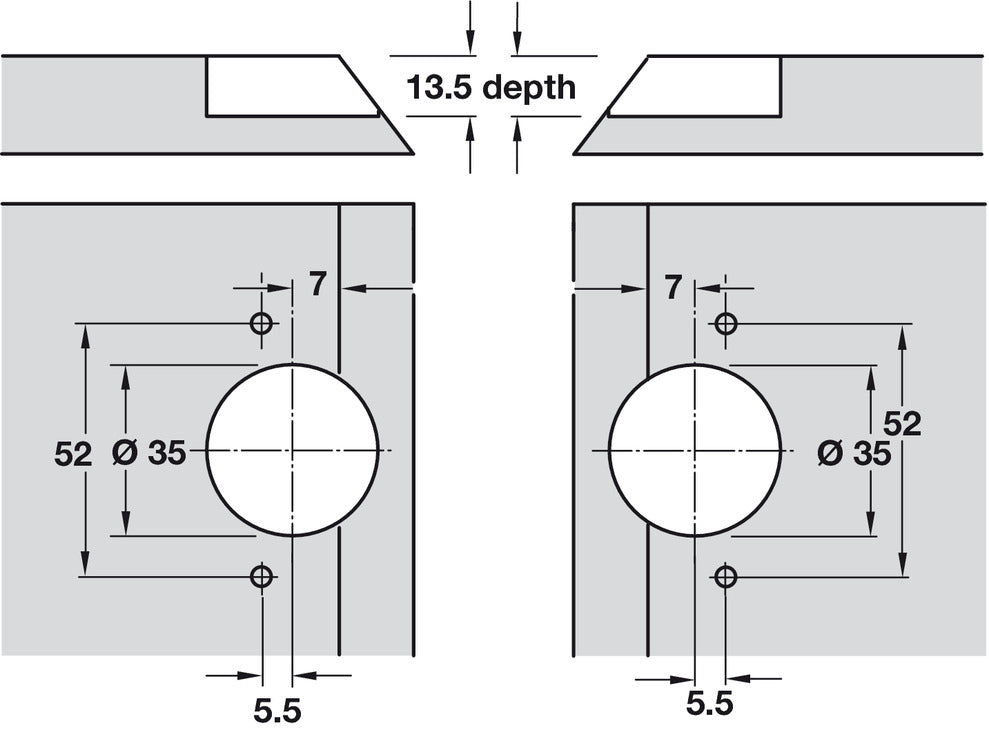

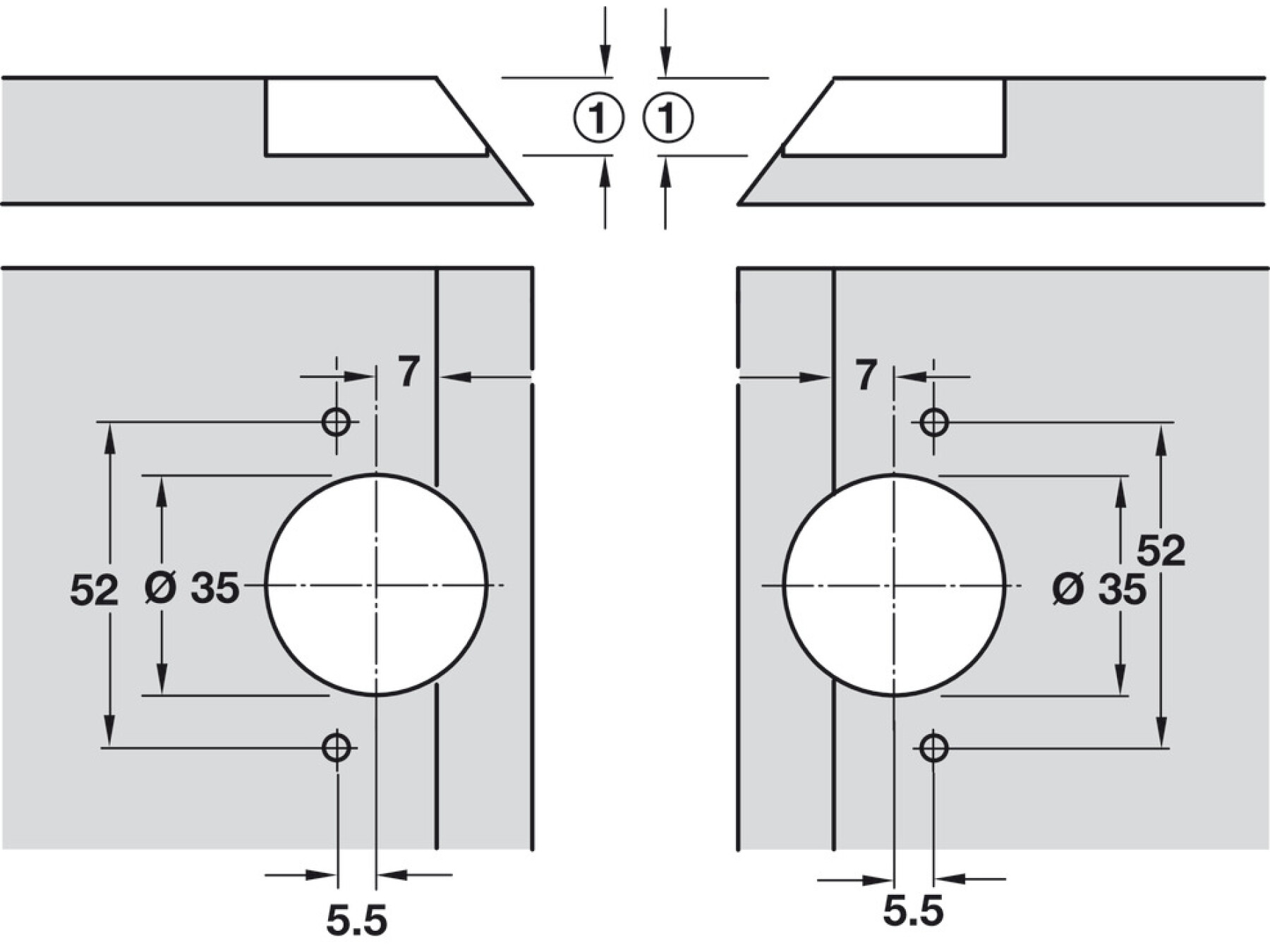

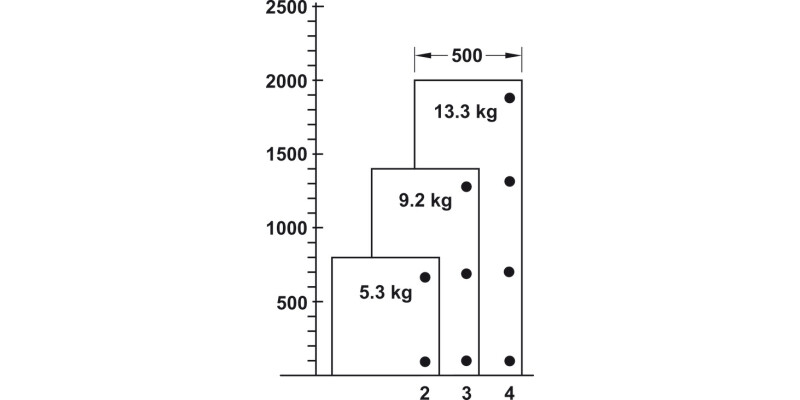

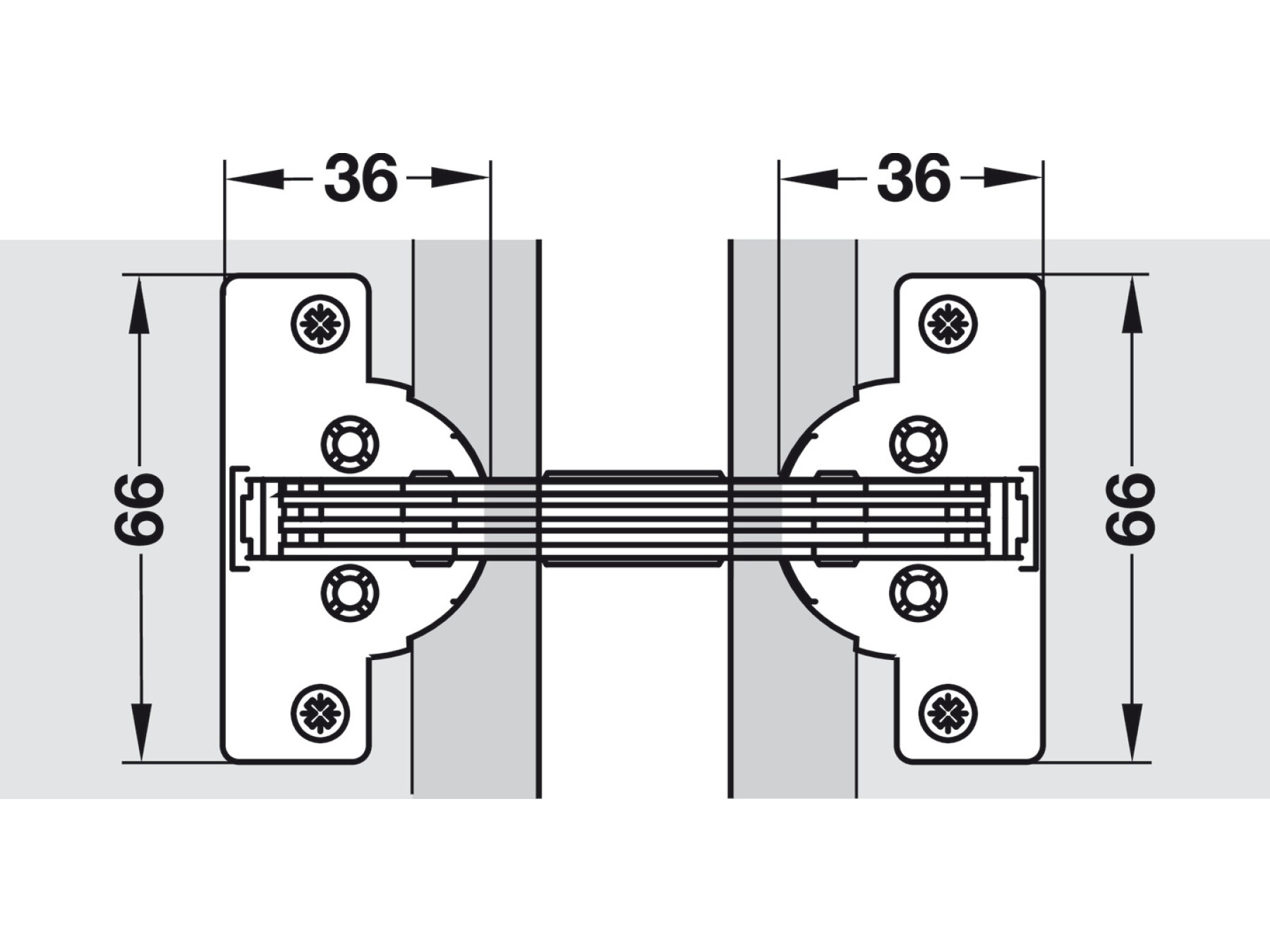

Drilling pattern
52/5.5
Adjustment facility
Side adjustment: 1.5 mm, Depth adjustment: 1.5 mm, Adjustable up to 3 mm in 3 directions
Installation
For screw fixing
Order reference
Order Hospa Ø 3.5 mm raised head screws separately
