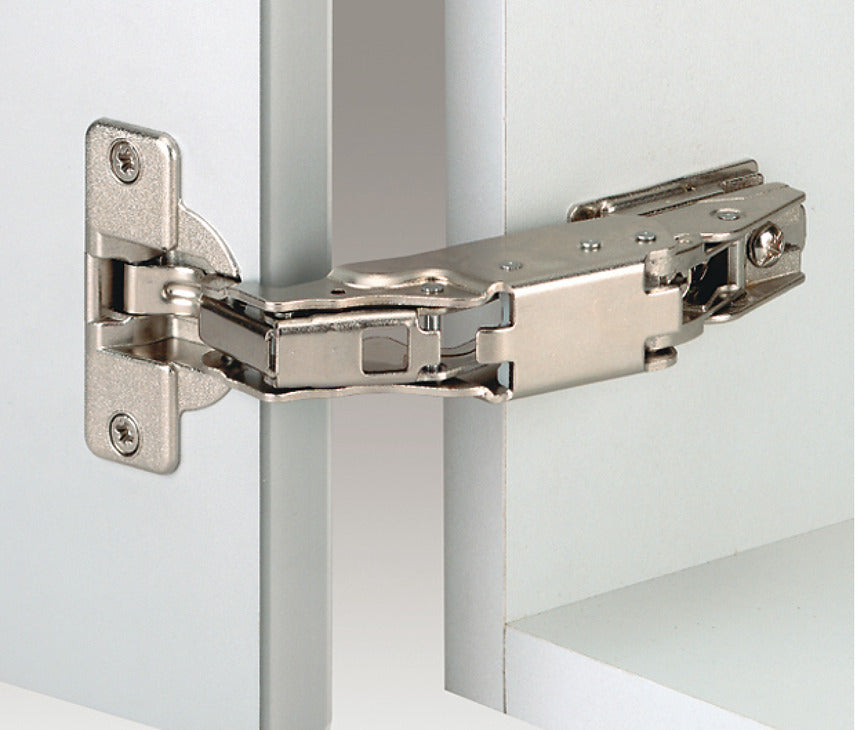

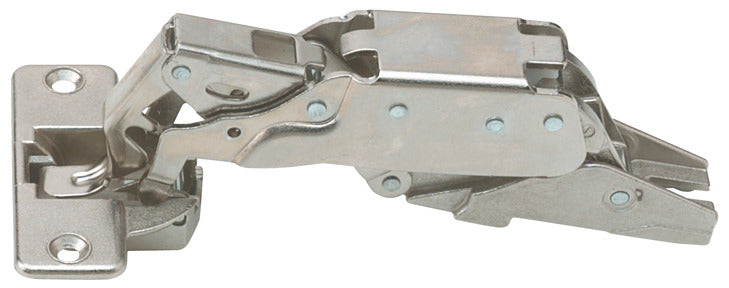

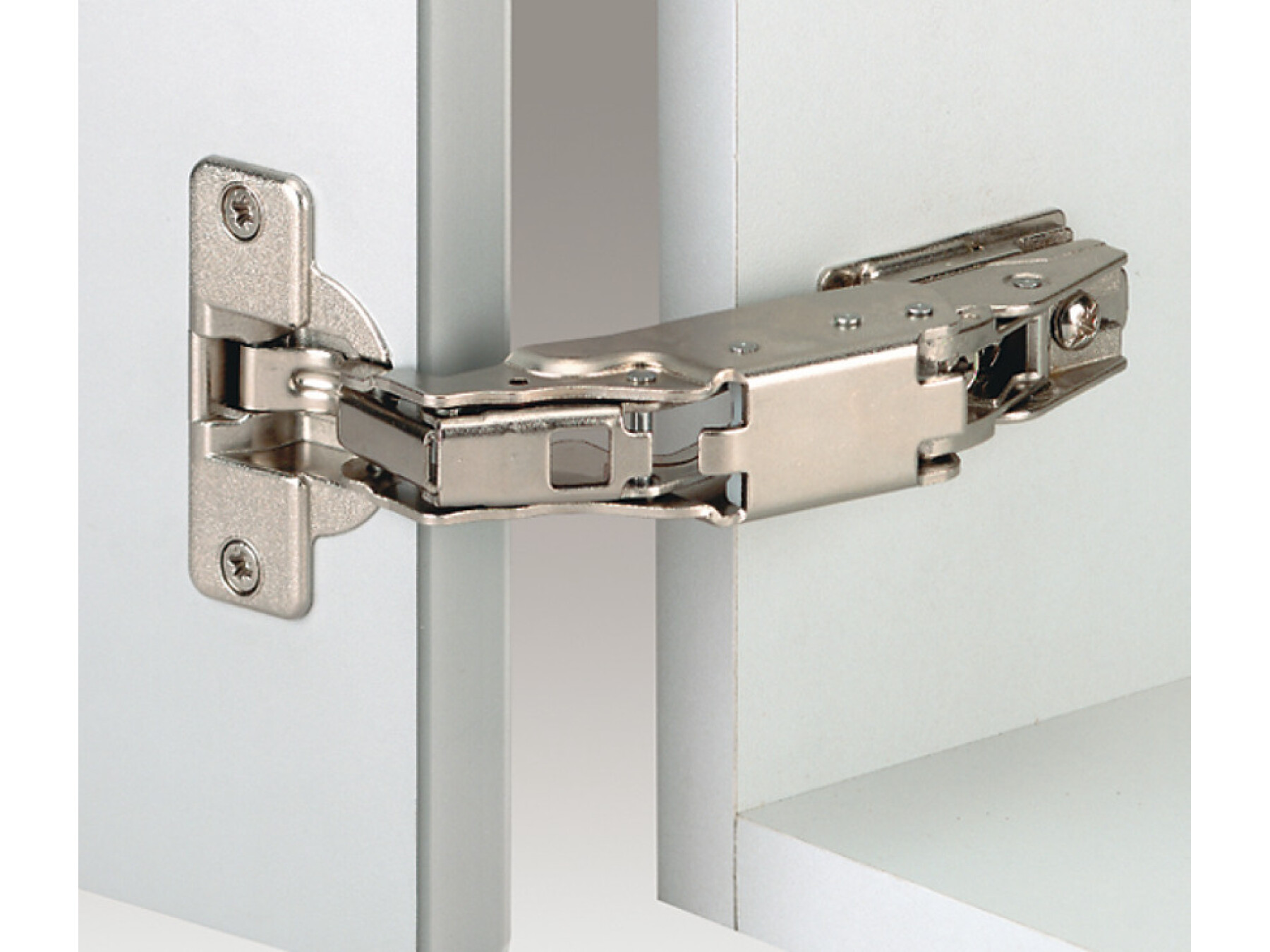

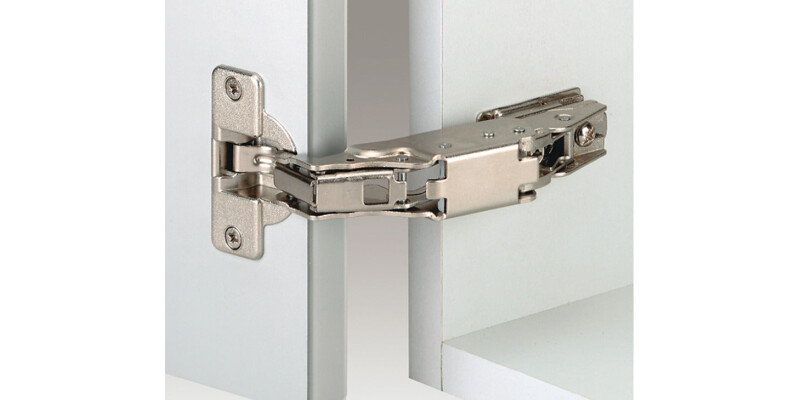

Nexis 170D Hinge Click Sprung Full/Inset
Part Number: 322.21.630
Soft close compatible, Screw fixing cup, click on arm, 48/9
Price:
£5.19
Per Item
⌀ 35 mm cupZero protrusion makes this hinge ideal for cabinets with internal drawer boxes or pull out shelves... Read More
Product Information
Product Details
⌀ 35 mm cup

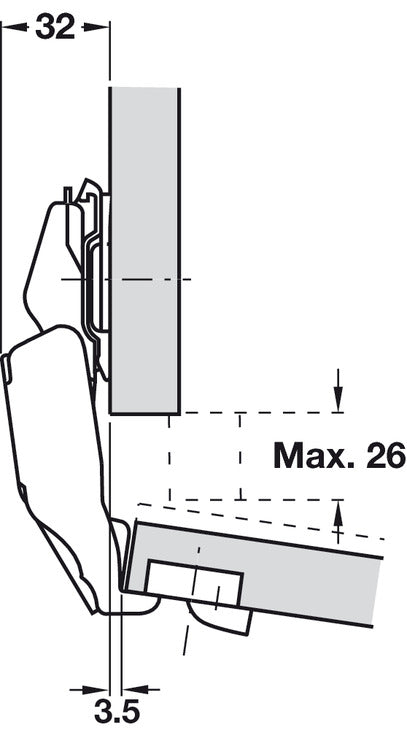

Zero protrusion makes this hinge ideal for cabinets with internal drawer boxes or pull out shelves
With finger protection
For standard applications
Heavy duty
Order reference
Soft close fitting 322.67.170 to be ordered separately (if required)
Wider range of mounting plates available, please order separately
Order Hospa ⌀ 3.5 mm raised head countersunk screws separately
Specifications
Area of application
For standard applications
Version
Click on
Concealed hinge version

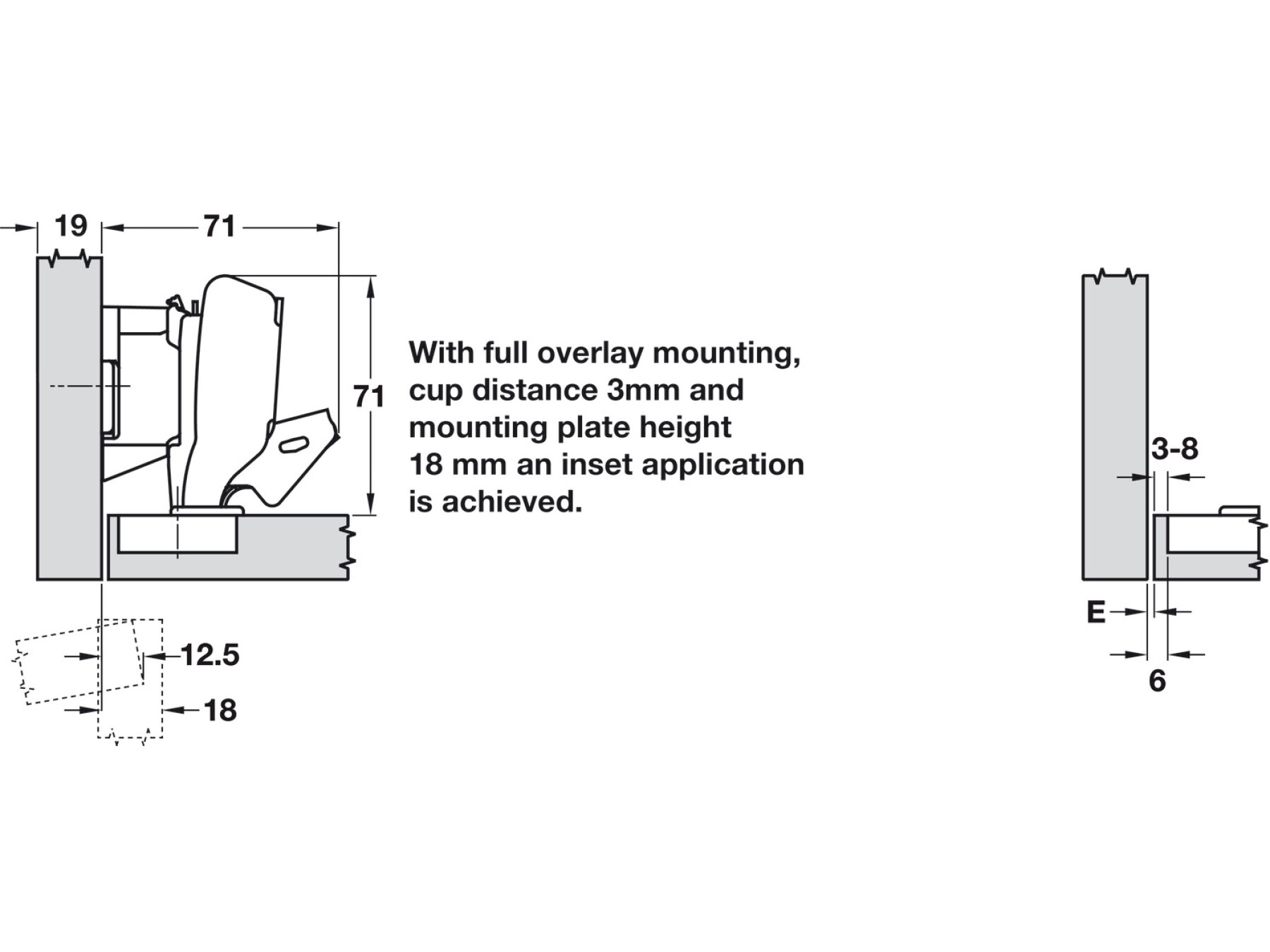

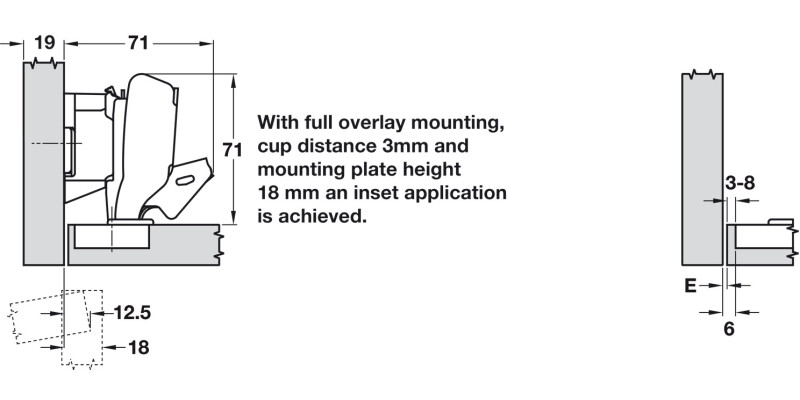

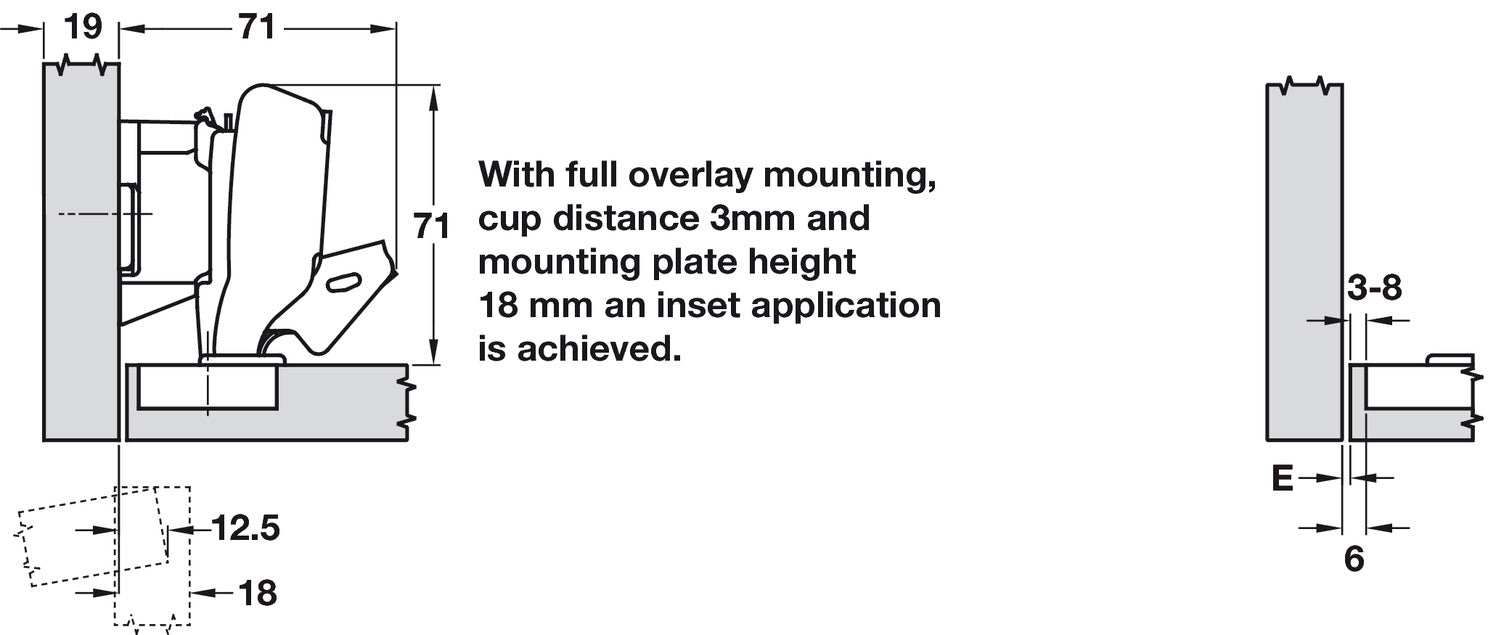

Full overlay
Crank type
High Cranked
Door processing for assembly
with cup drilling
Material
Zinc alloy
Colour/finish
nickel plated

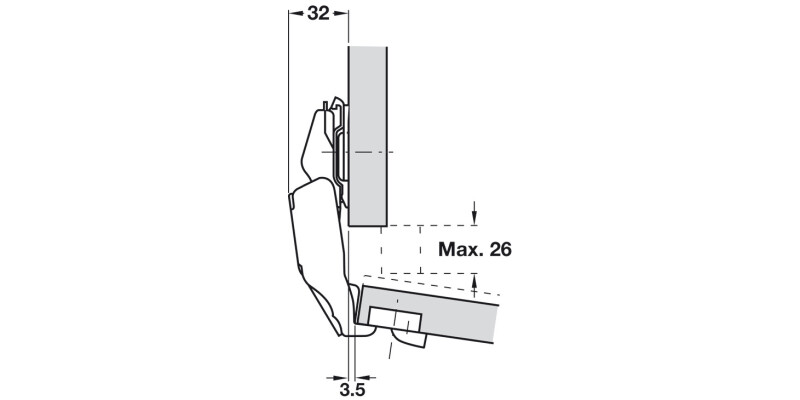

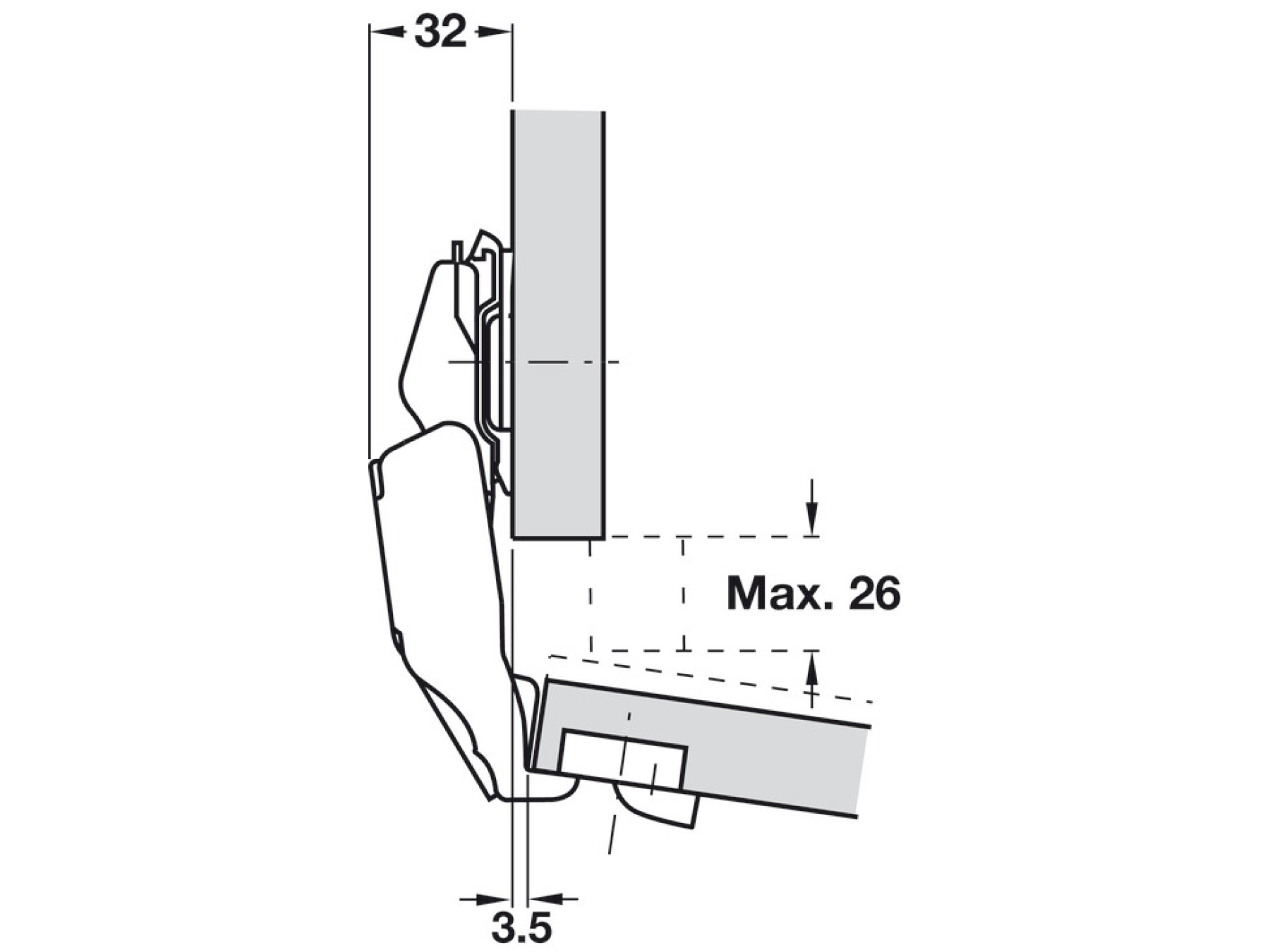

Opening angle
170°
Cup drilling depth
11.00 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

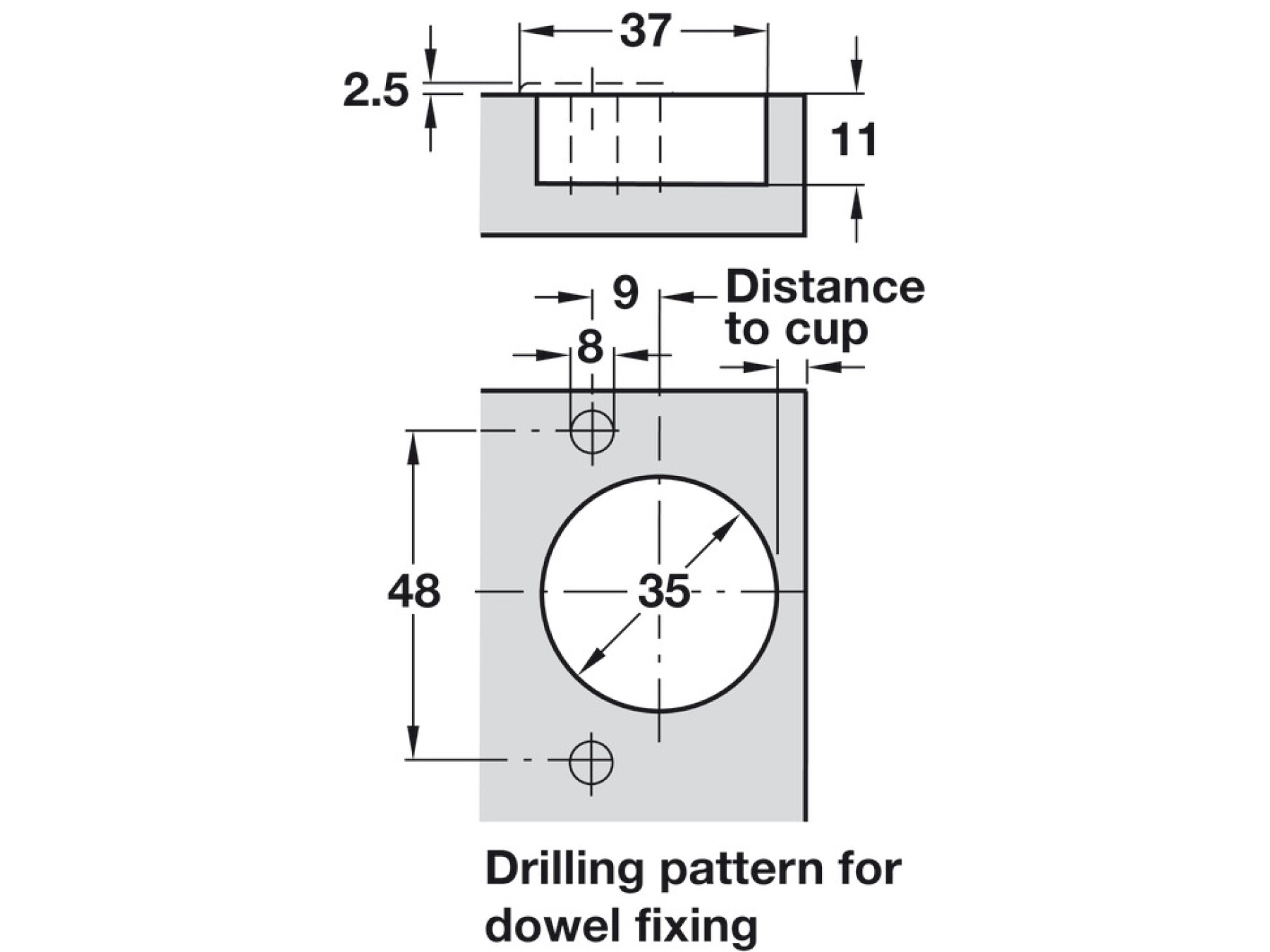

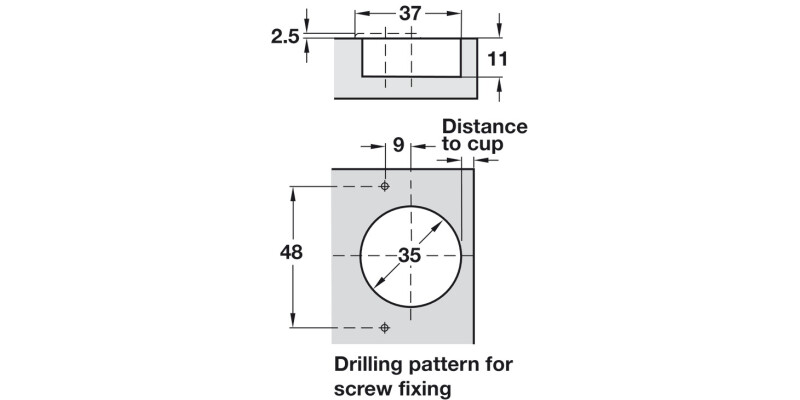

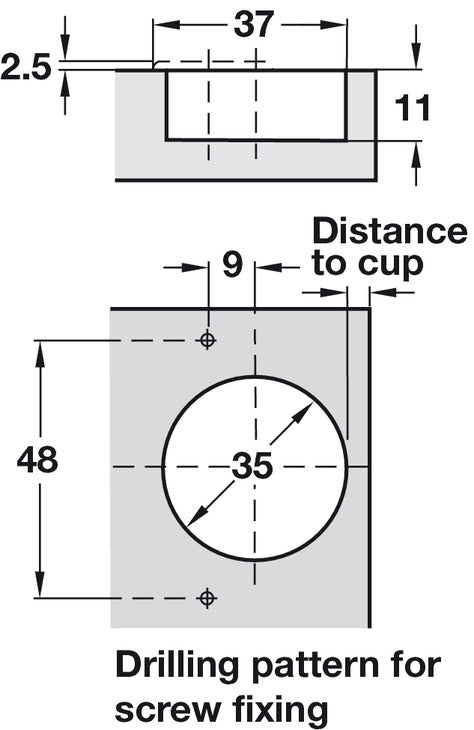

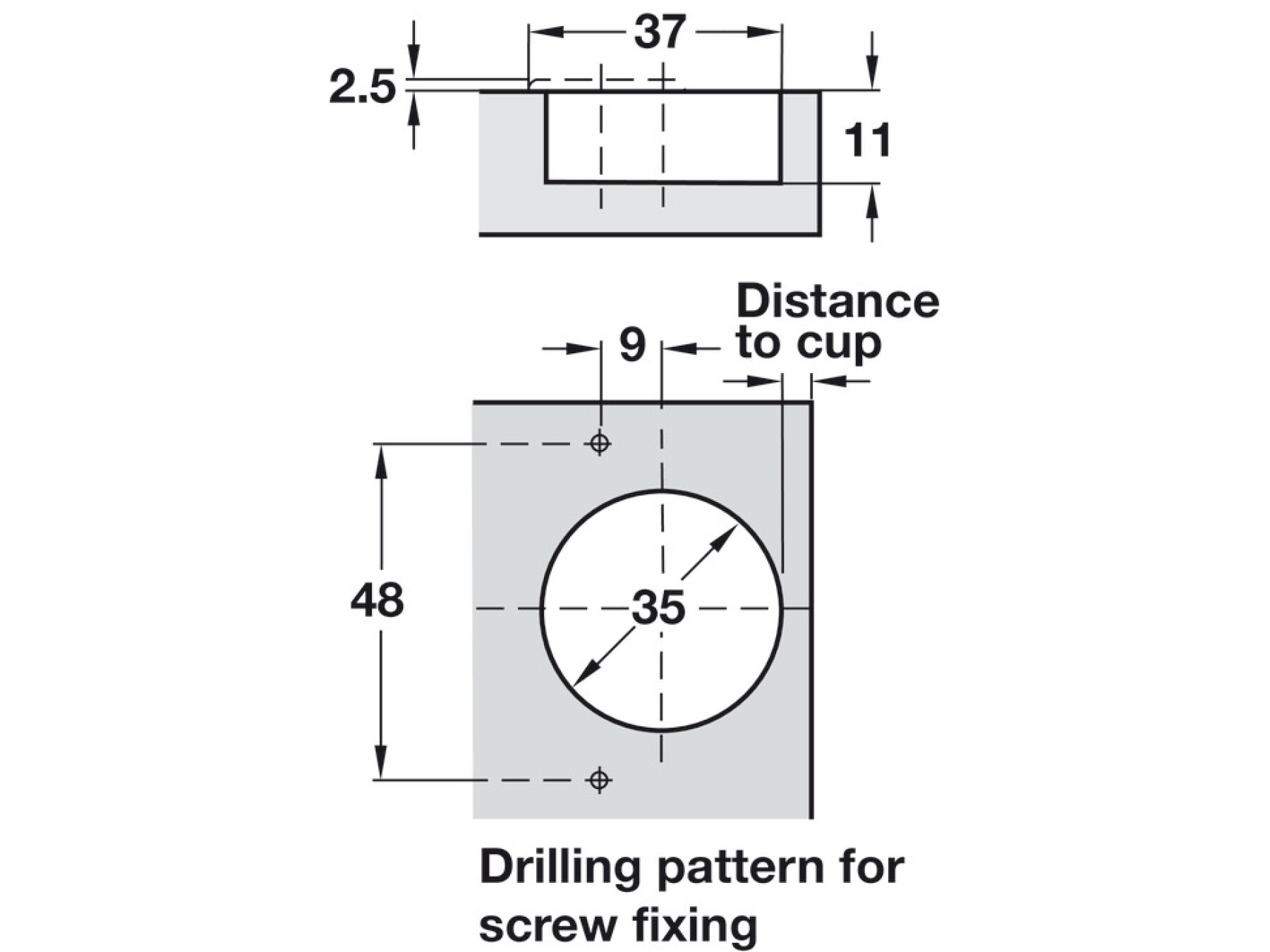

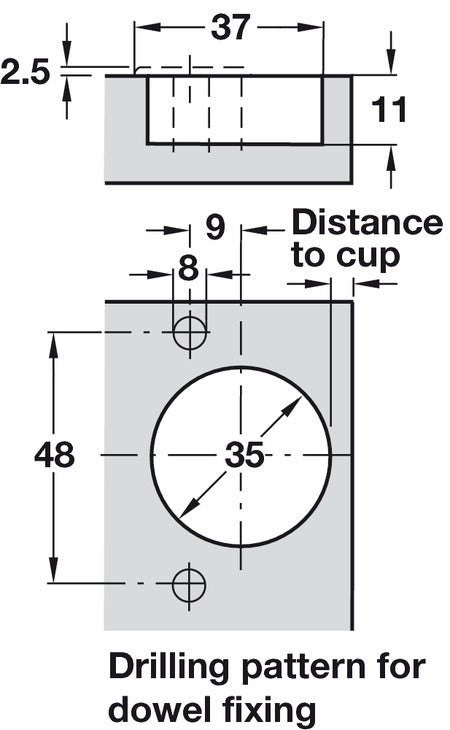

Drilling pattern
48/9
