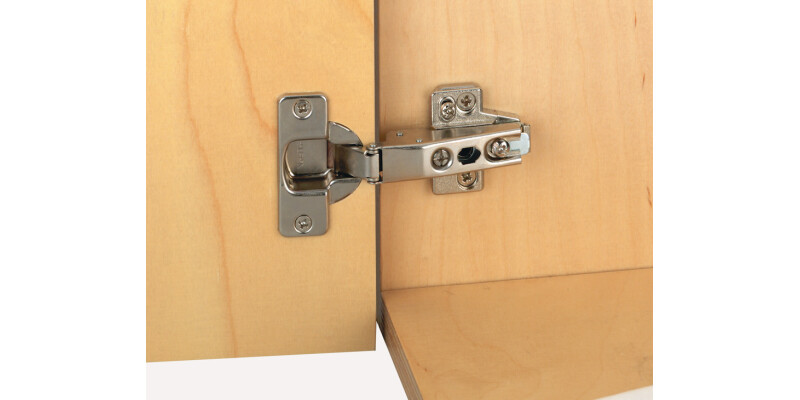

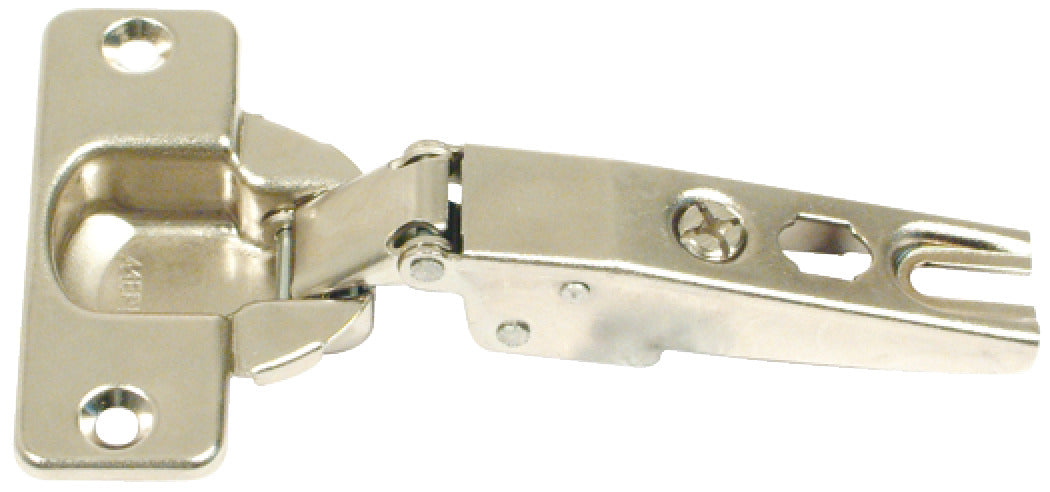

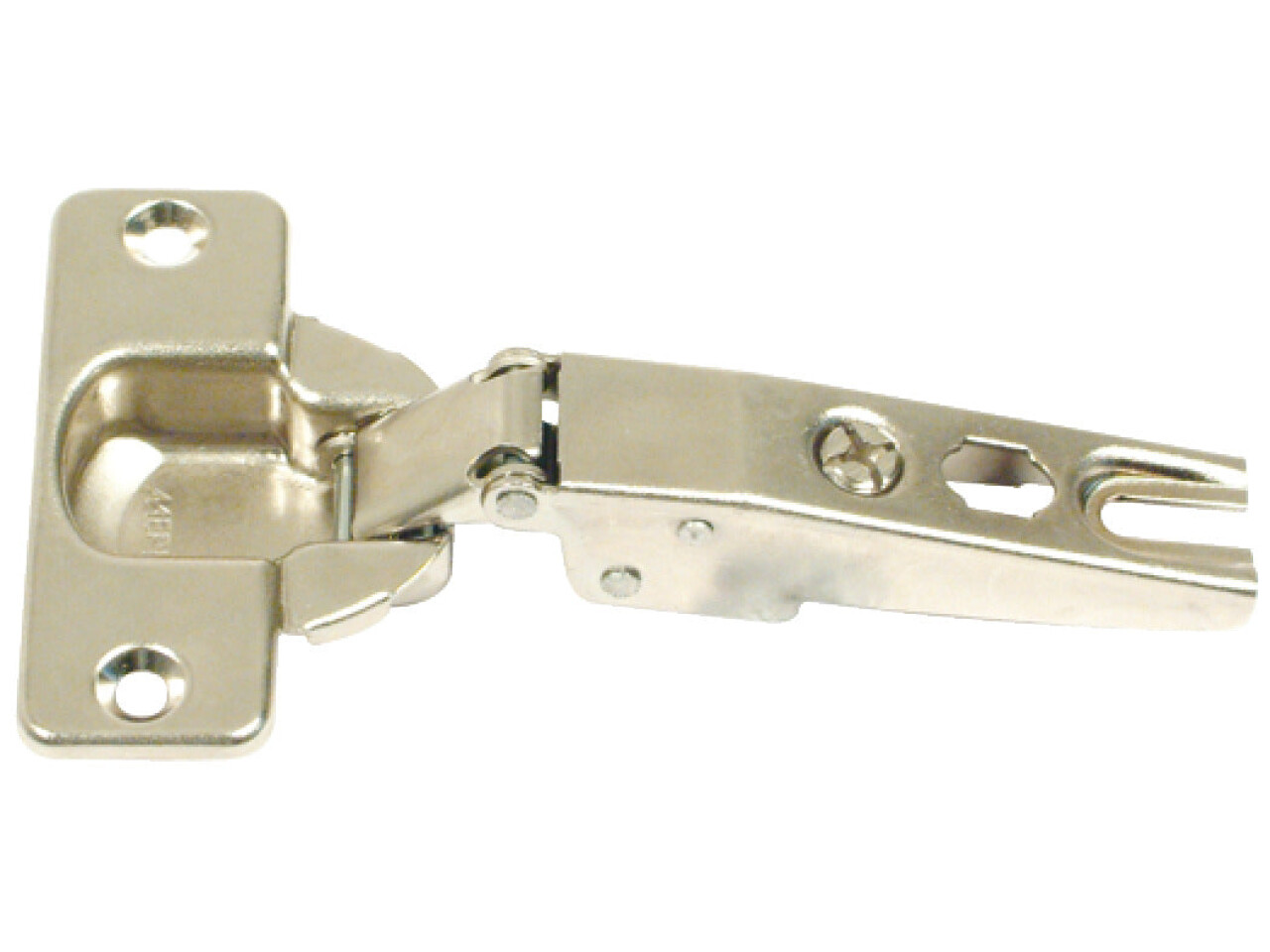

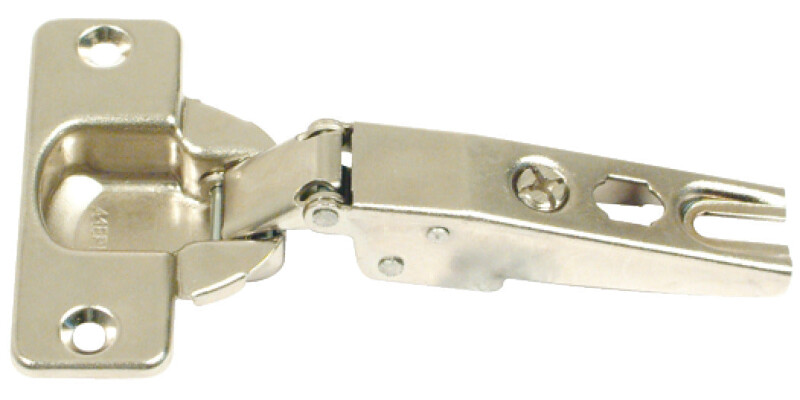

Nexis Tipmatic 100D Hinge Click SF Full
Part Number: 322.15.240
For handle-less applications, Screw fixing cup, 48/9
Price:
£2.58
Per Item
Tipmatic Plus compatible : The mechanical opening system for furniture without handles. A light touch is enough... Read More
Product Information
Product Details
Tipmatic Plus compatible : The mechanical opening system for furniture without handles. A light touch is enough for doors to open as if by magic (please order separately)
For standard applications
⌀ 35 mm cup
Order reference

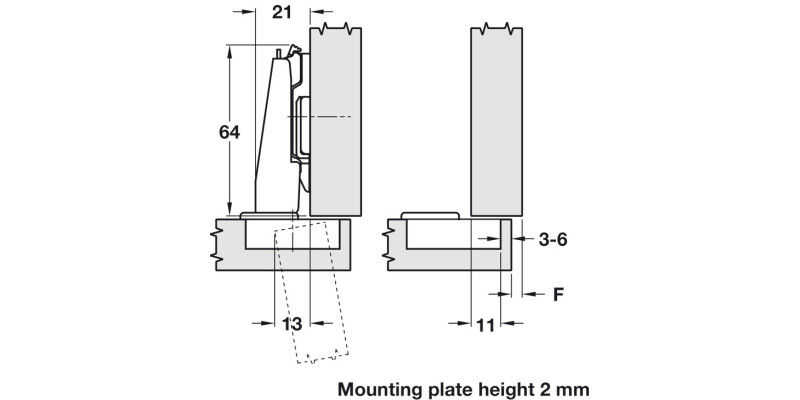

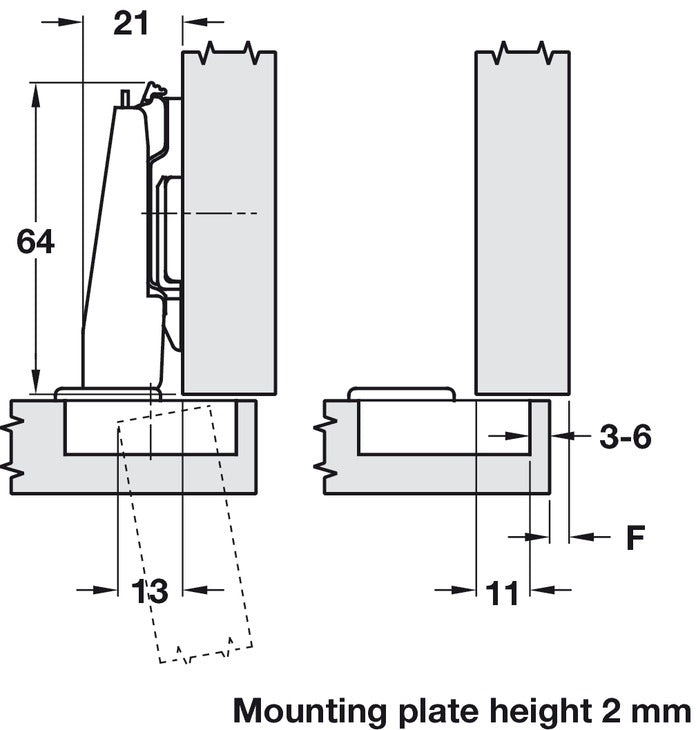

Order mounting plates and Hospa ⌀ 3.5 mm raised head countersunk screws separately
Order Tipmatic Plus set for click on hinges separately for touch to open system
Specifications
Area of application
For standard applications
Version
Click on
Functionality
Without spring
Concealed hinge version
Full overlay
Crank type
Straight
Door processing for assembly
with cup drilling
Material
Steel
Colour/finish
nickel plated
Opening angle
100°
Cup drilling depth
11.80 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

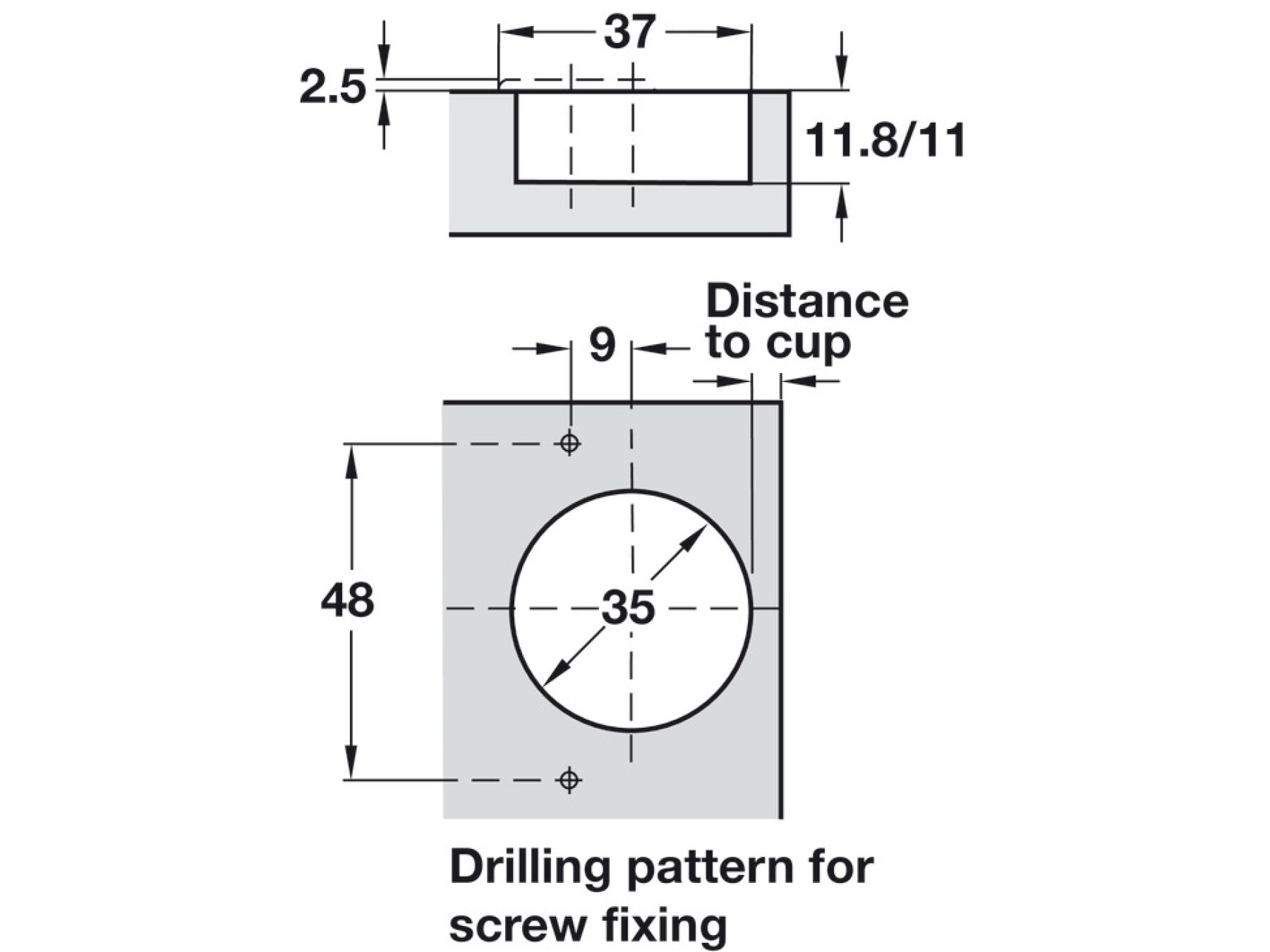

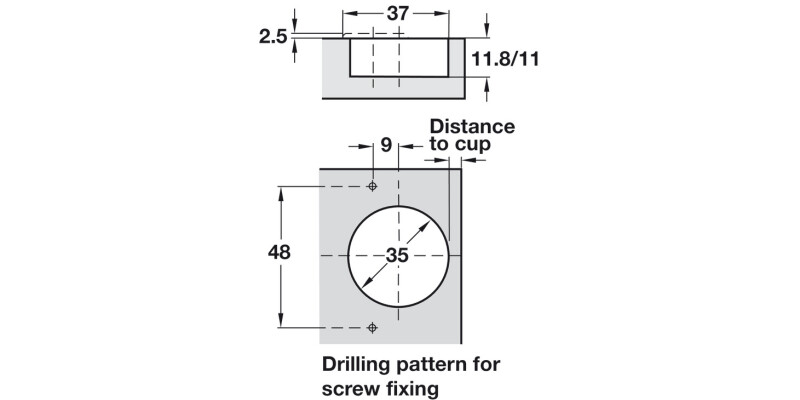

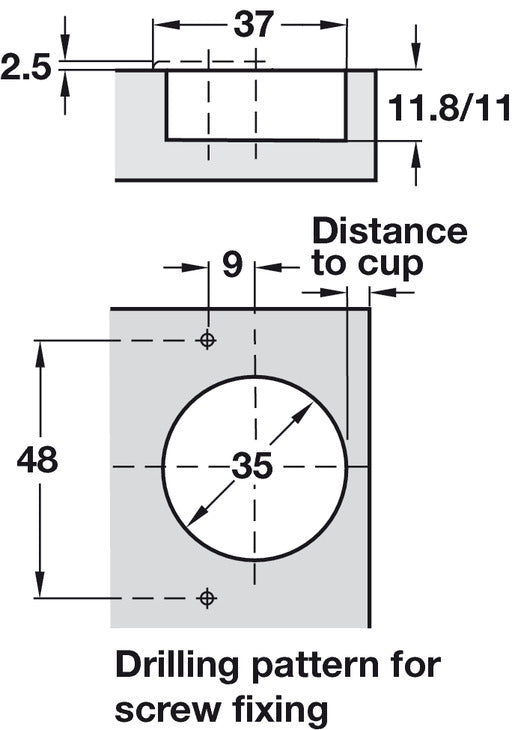

Drilling pattern
48/9
