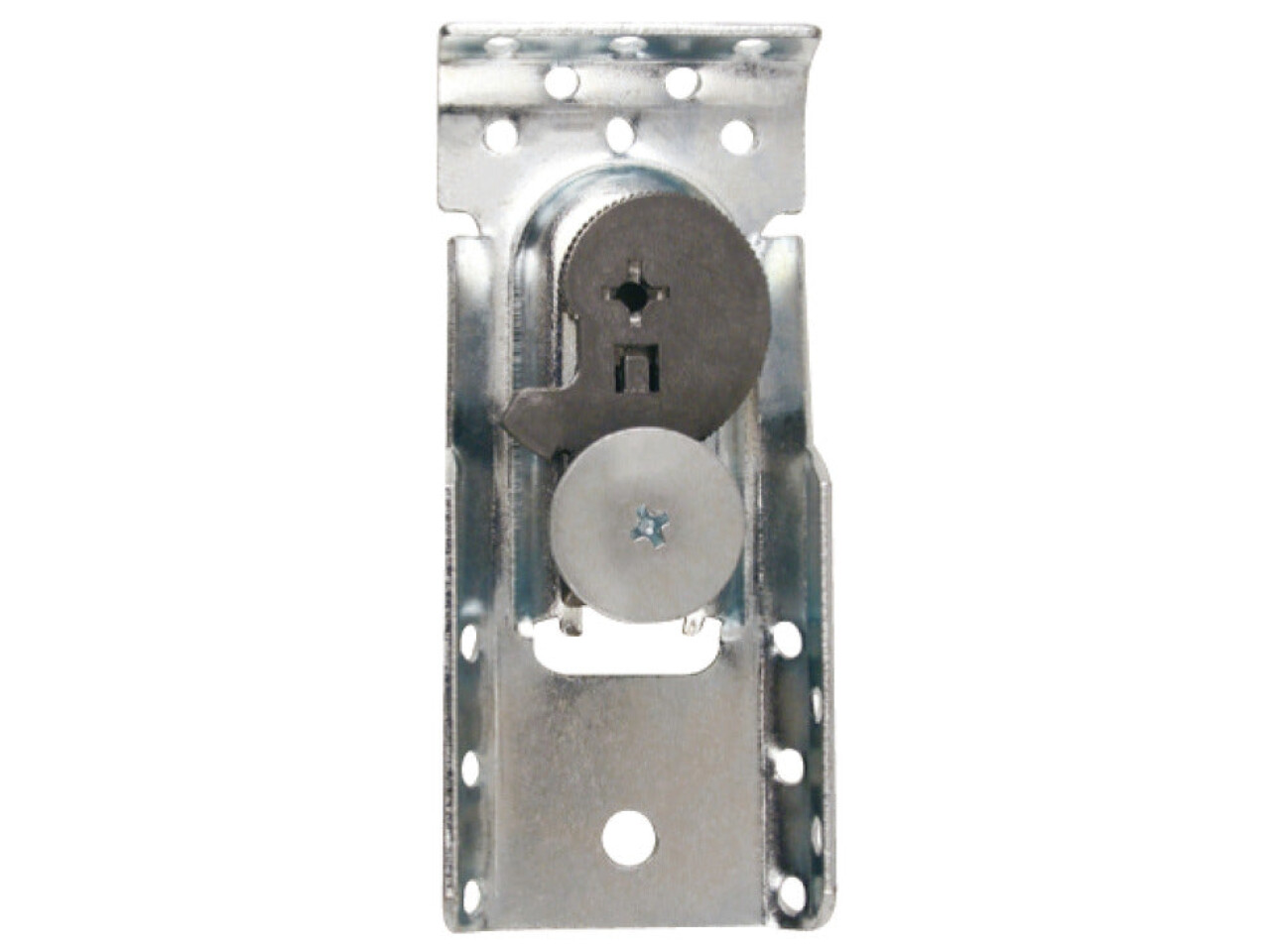

Koala Cabinet Hanger Concealed SF UH SZP
Part Number: 290.36.920
Unhanded
Price:
£1.99
Per Item
Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinetInstallation Screw fixing:... Read More
Product Information
Product Details
Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet

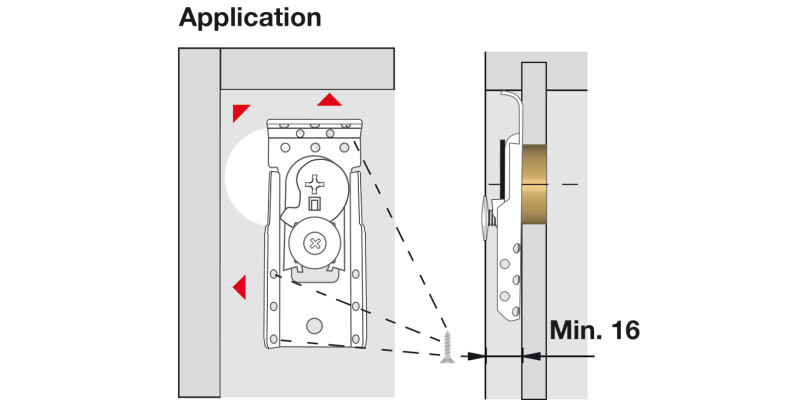

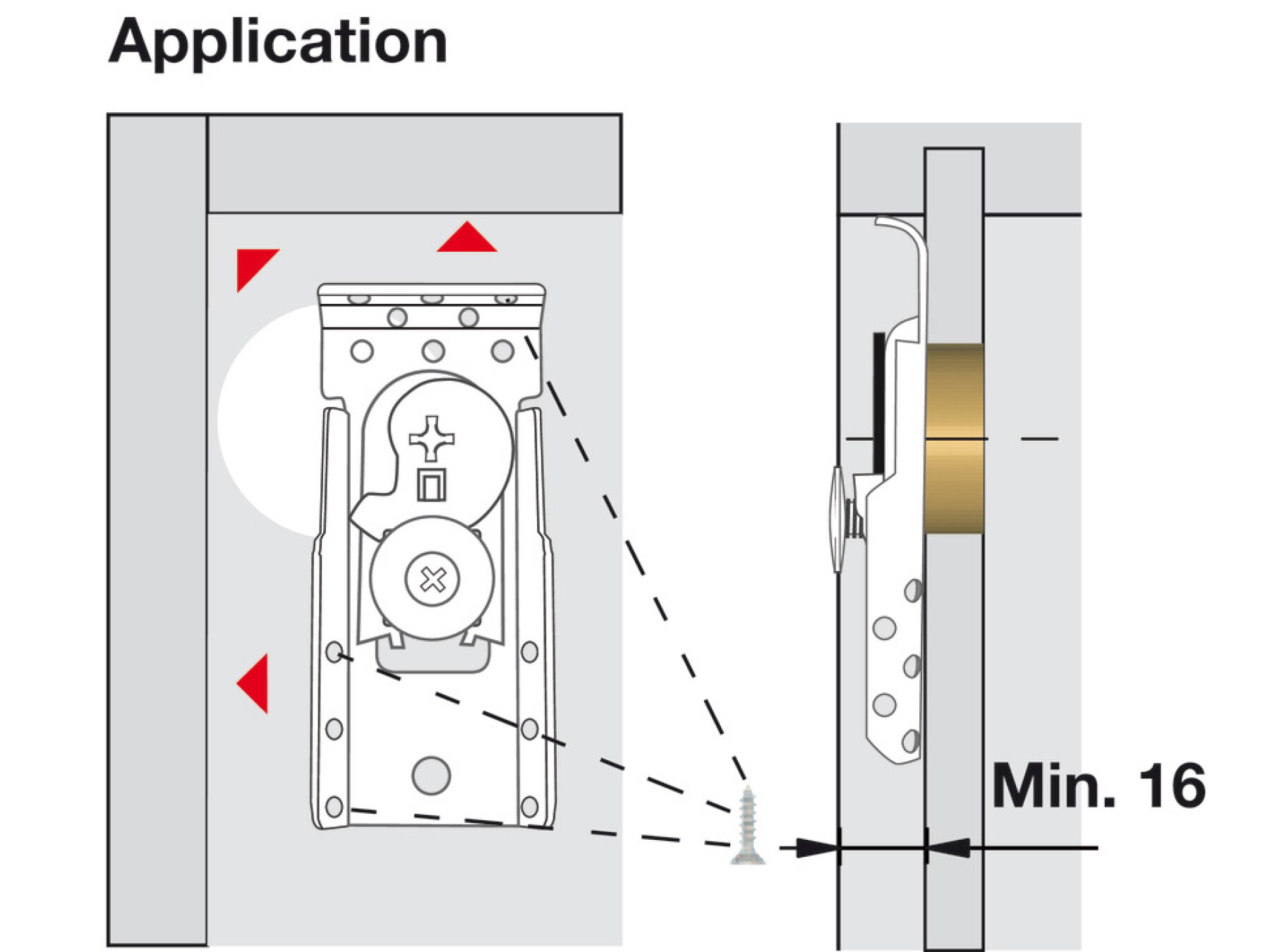

Installation
Screw fixing: A 3.5 x 20 mm lateral wood screw permanently secures the cabinet hanger in place (not provided)
Installation note
Three-way adjustment:
Vertical adjustment: 11 mm
Horizontal adjustment: 10 mm
Lateral adjustment: 12mm
Cabinet hangers should only be adjusted with a hand tool and not a power tool
Specifications
Area of application
For hanging wall units
Load bearing capacity
65.00 kg
Load bearing capacity per pair
130.00 kg
Material
Steel
Order reference
Wall plates and cover caps must be ordered separately
