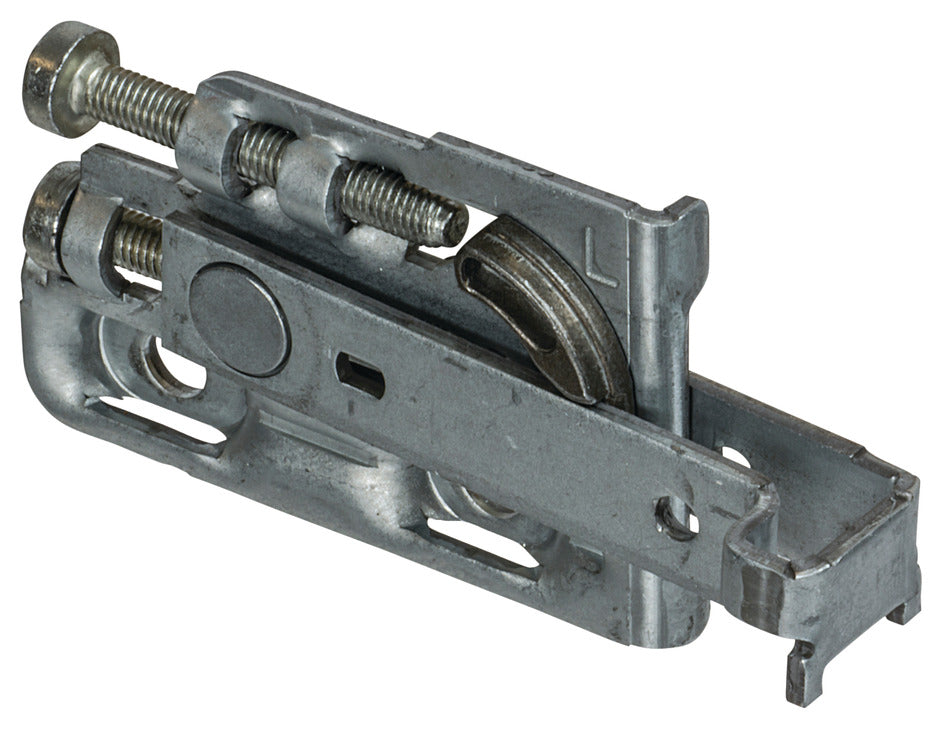

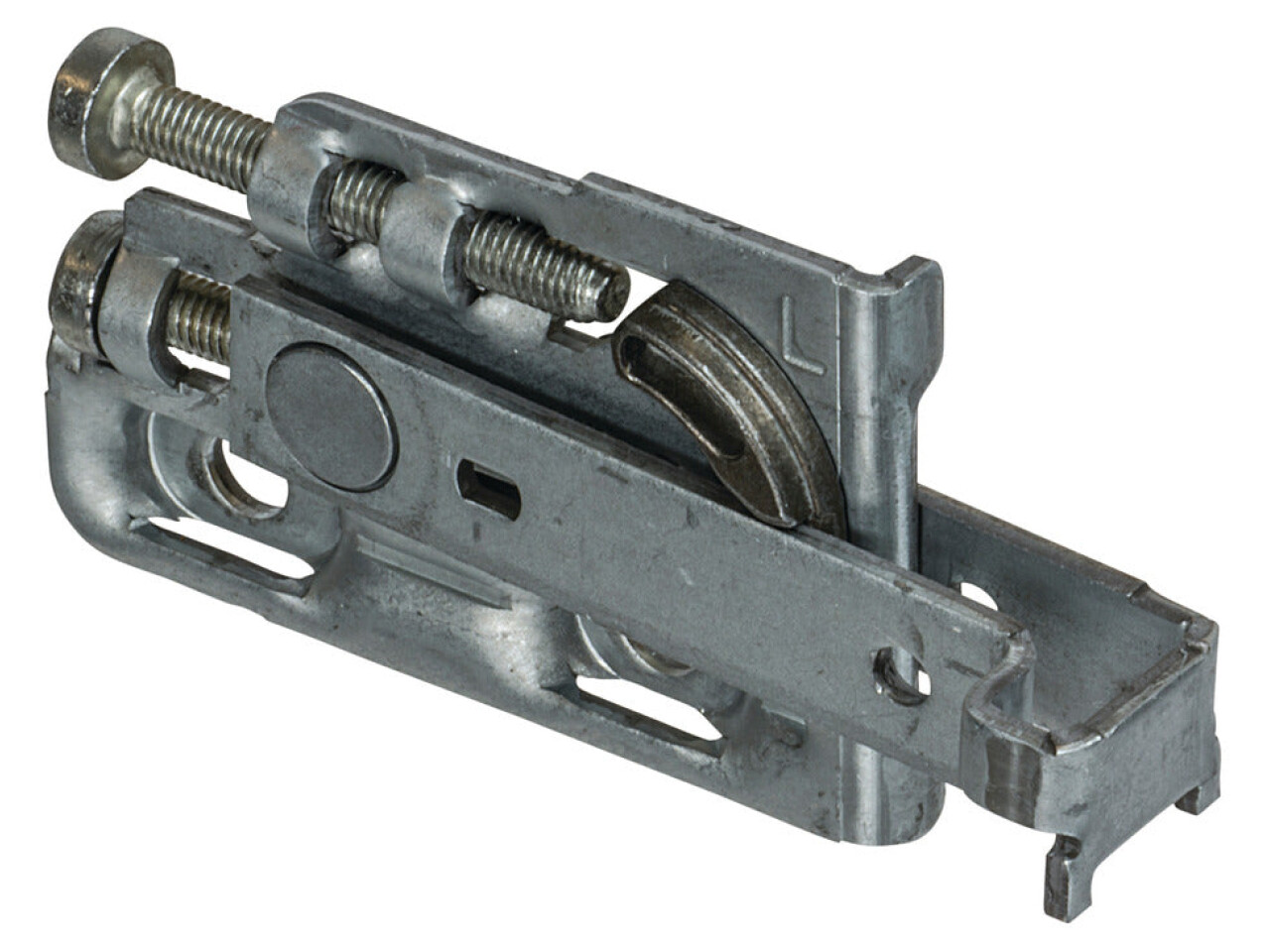

Scarpi-4 Cabinet Hanger LH Screw Fix SZP
Part Number: 290.21.921
Left
Price:
£1.24
Per Item
Installation note Three-way adjustment, easily accessible from the front:Vertical adjustment: 13 mmHorizontal... Read More
Product Information
Product Details

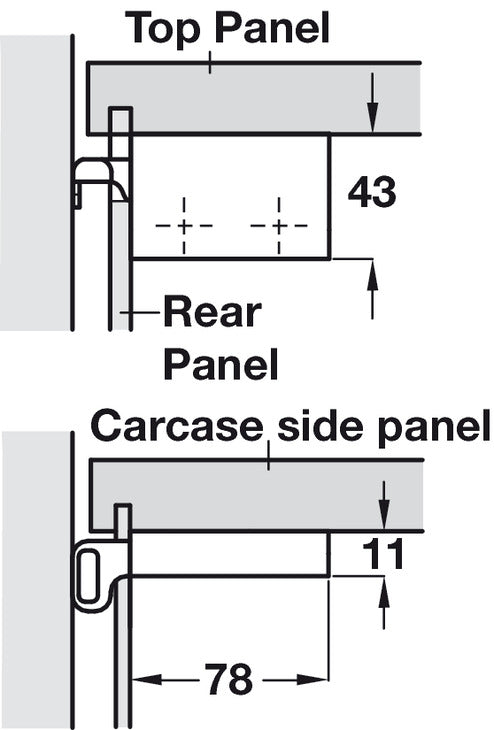

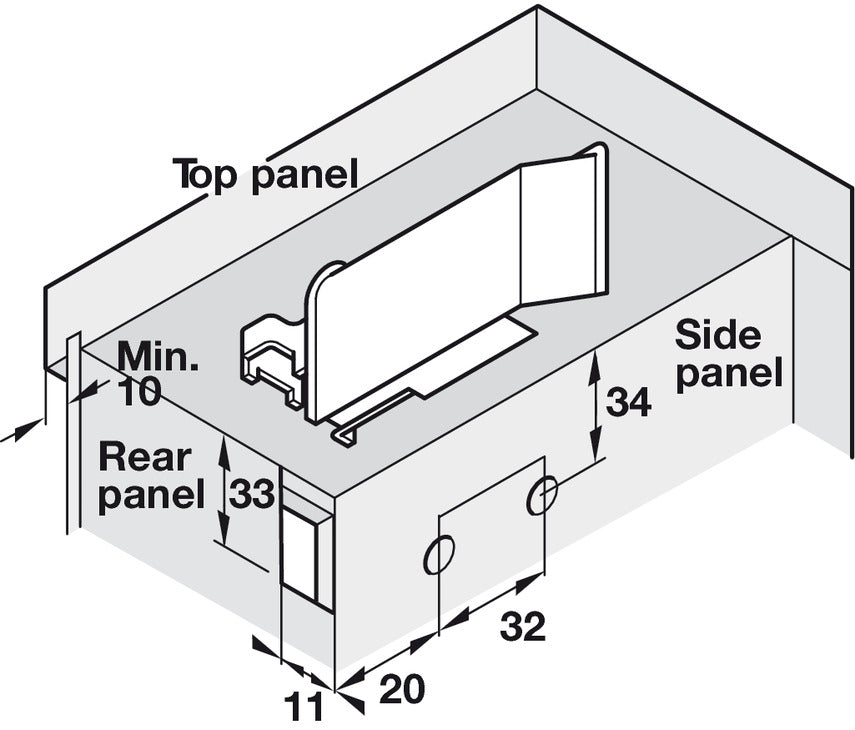

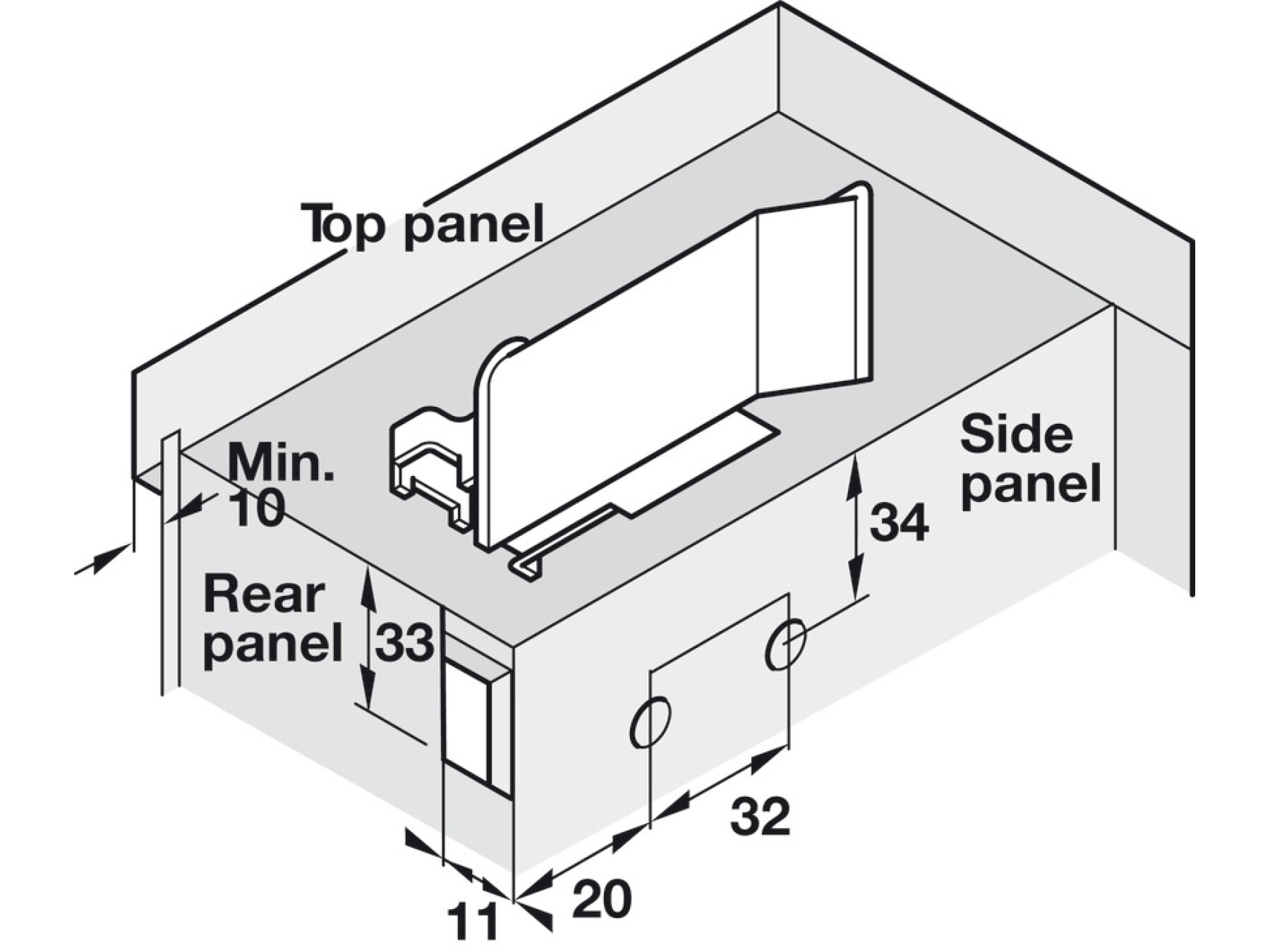

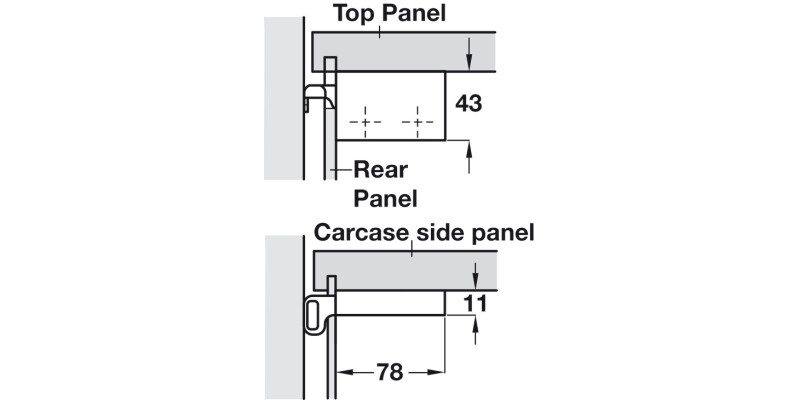

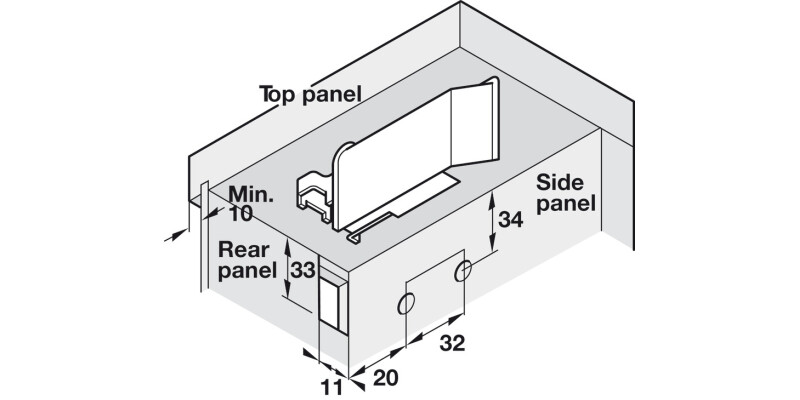

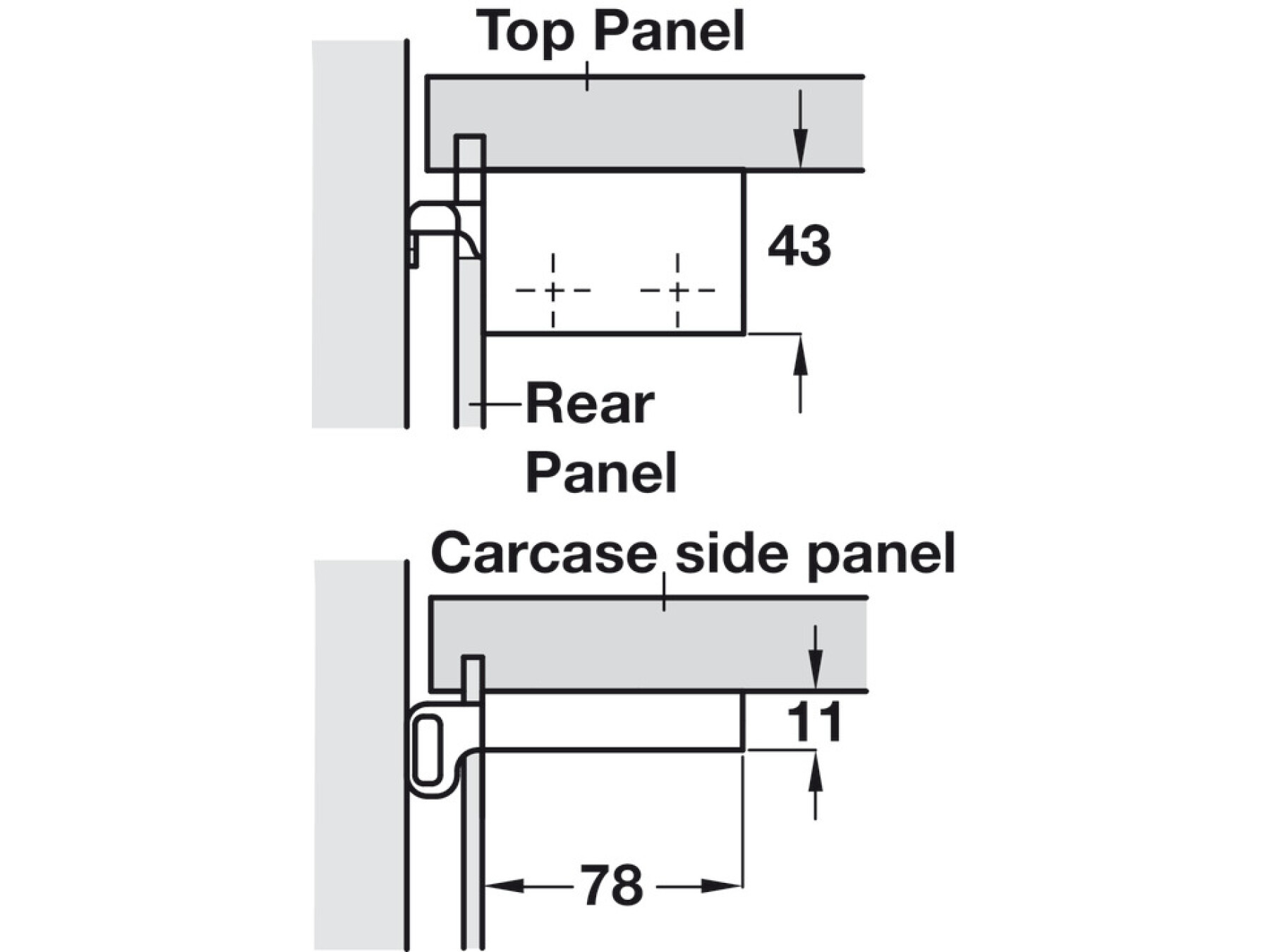

Installation note
Three-way adjustment, easily accessible from the front:
Vertical adjustment: 13 mm
Horizontal adjustment: 8 mm
Depth adjustment: 17 mm
Order reference
Wall plates and cover caps must be ordered separately
*Load capacity shown is per hanger under Type A application according to EN 15939 standard
Specifications
Installation
Screw fixing
Area of application
For hanging wall units
Load bearing capacity per pair
130.00 kg
Material
Steel
Adjustment facility
Height adjustment: 13 mm, Depth adjustment facility: >17 mm
Supplied with
Fixings
