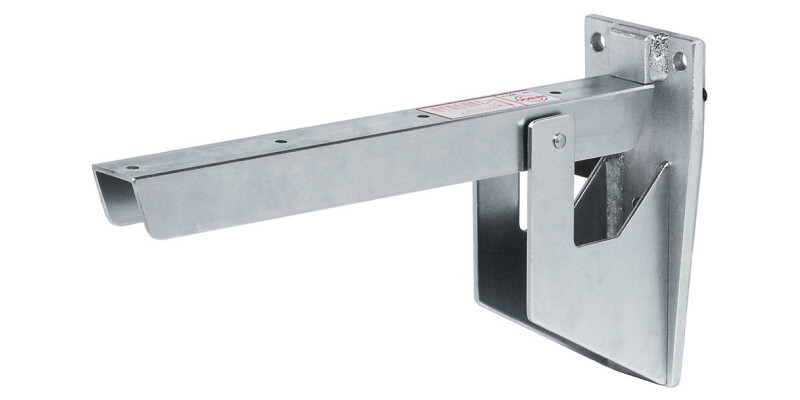

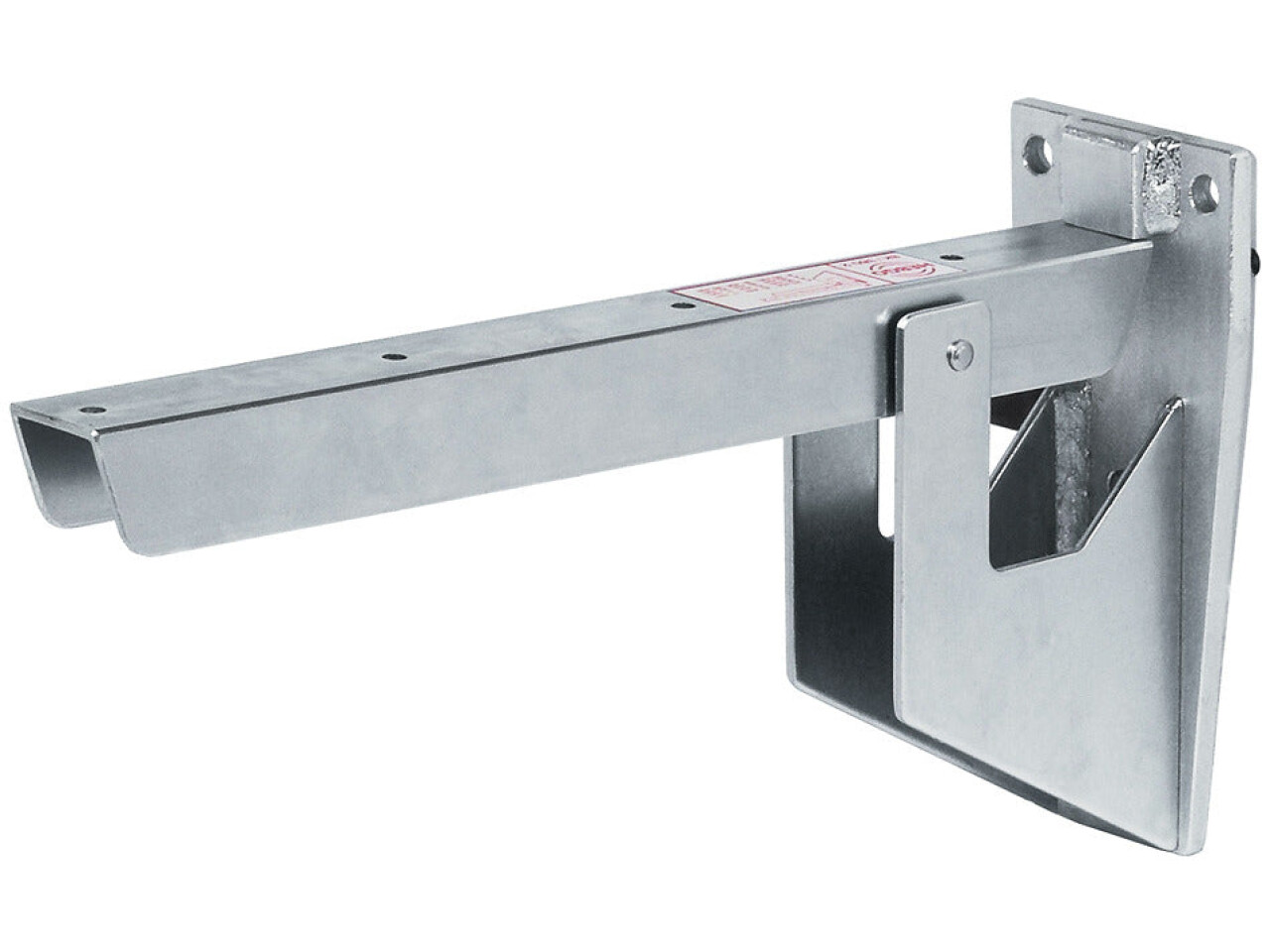

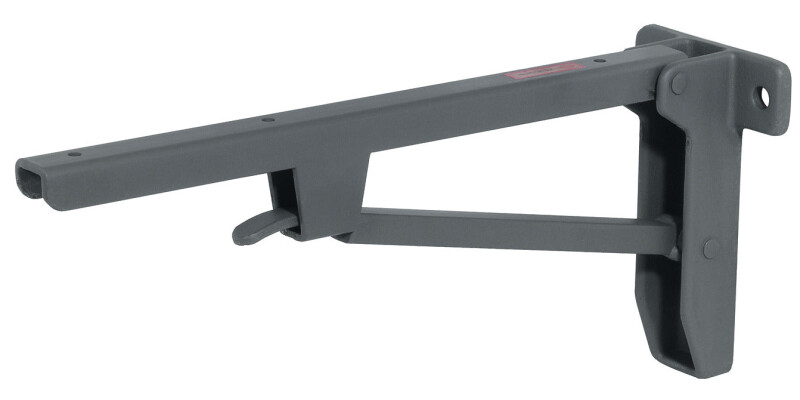

Hebgo HD Folding Bracket 380mm 500kg/Pr
Part Number: 287.47.917
Steel, Bright galvanized
Price:
£93.58
Per Item
When not in use, the bracket occupies the space specified in the table below. It is pre-drilled for the seat,... Read More
Product Information
Product Details

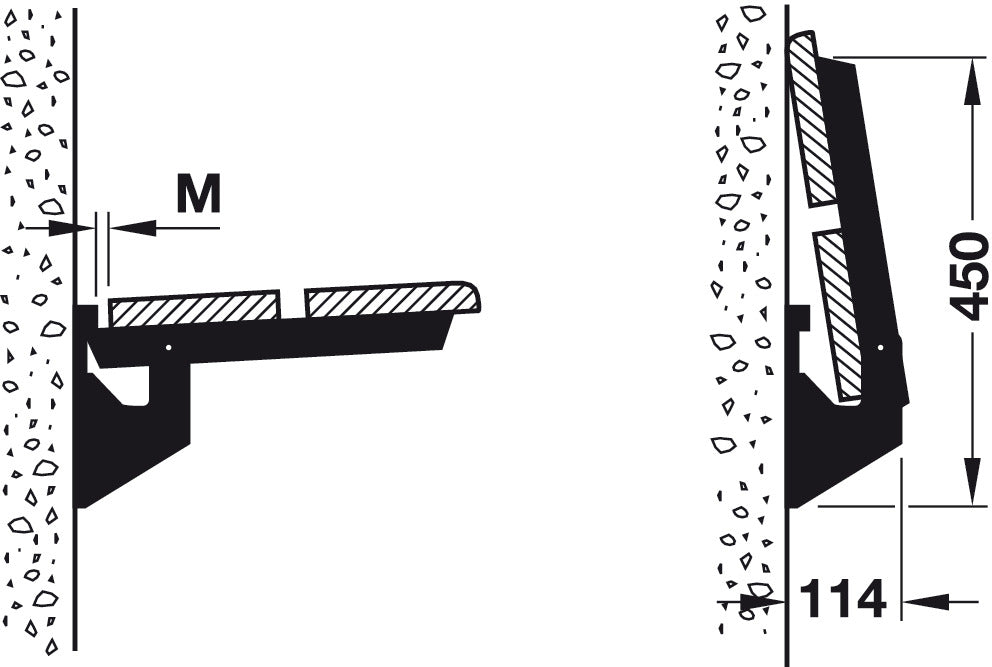

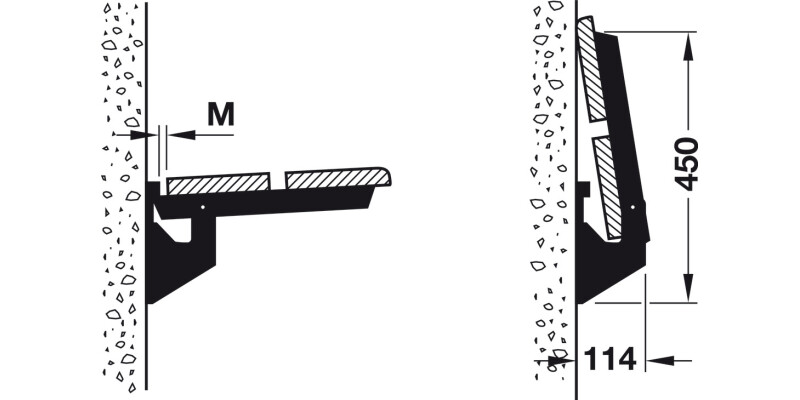

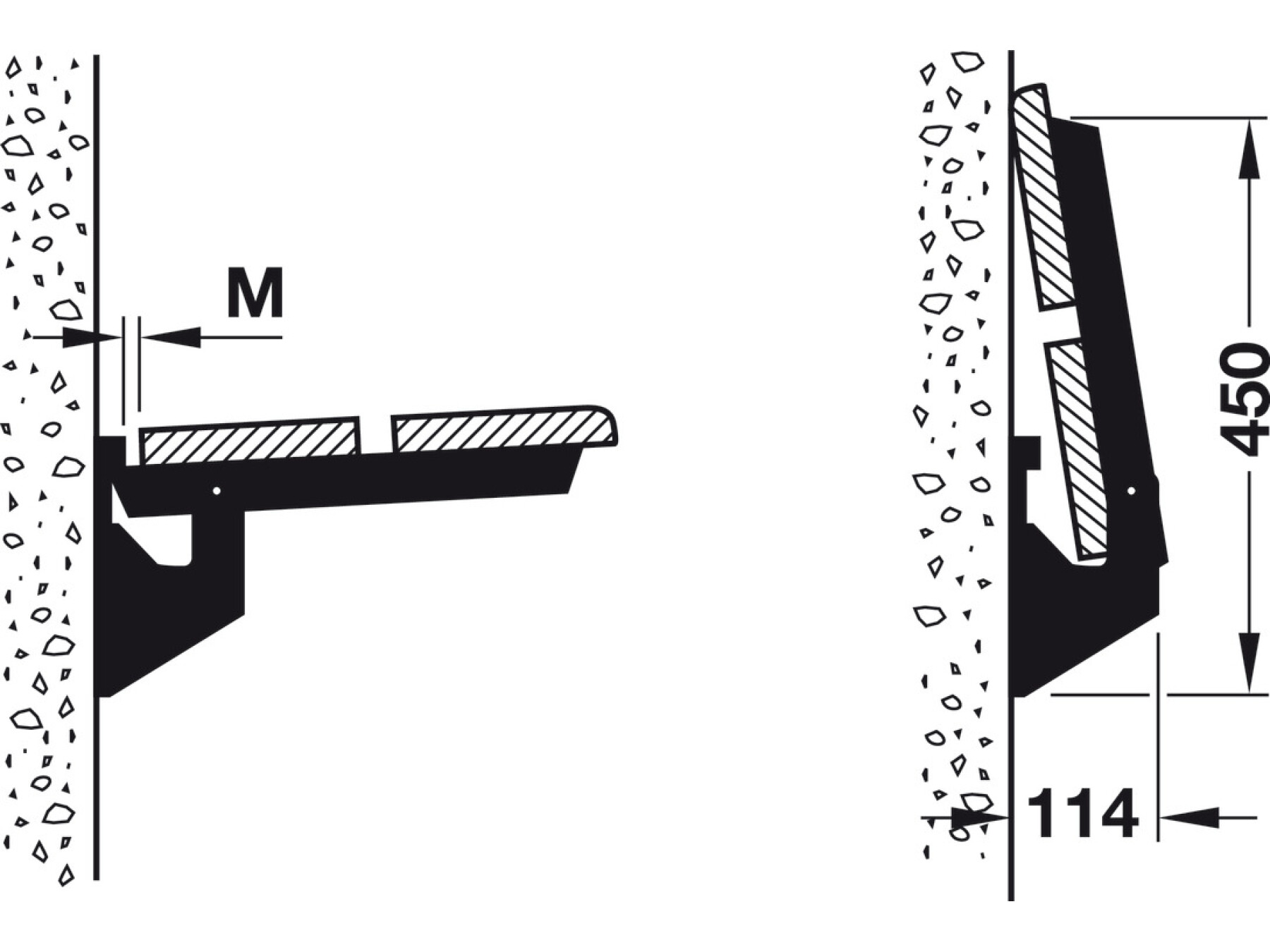

When not in use, the bracket occupies the space specified in the table below. It is pre-drilled for the seat, which may be up to 40 mm thick
Installation note
When not in use, the bracket occupies the space specified in the table below. It is pre-drilled for the seat, which may be up to 40 mm thick
Max. distance between two brackets: 700 mm.
The specified load bearing capacity applies only with even load distribution (surface load) and proper and reliable attachment to the wall.

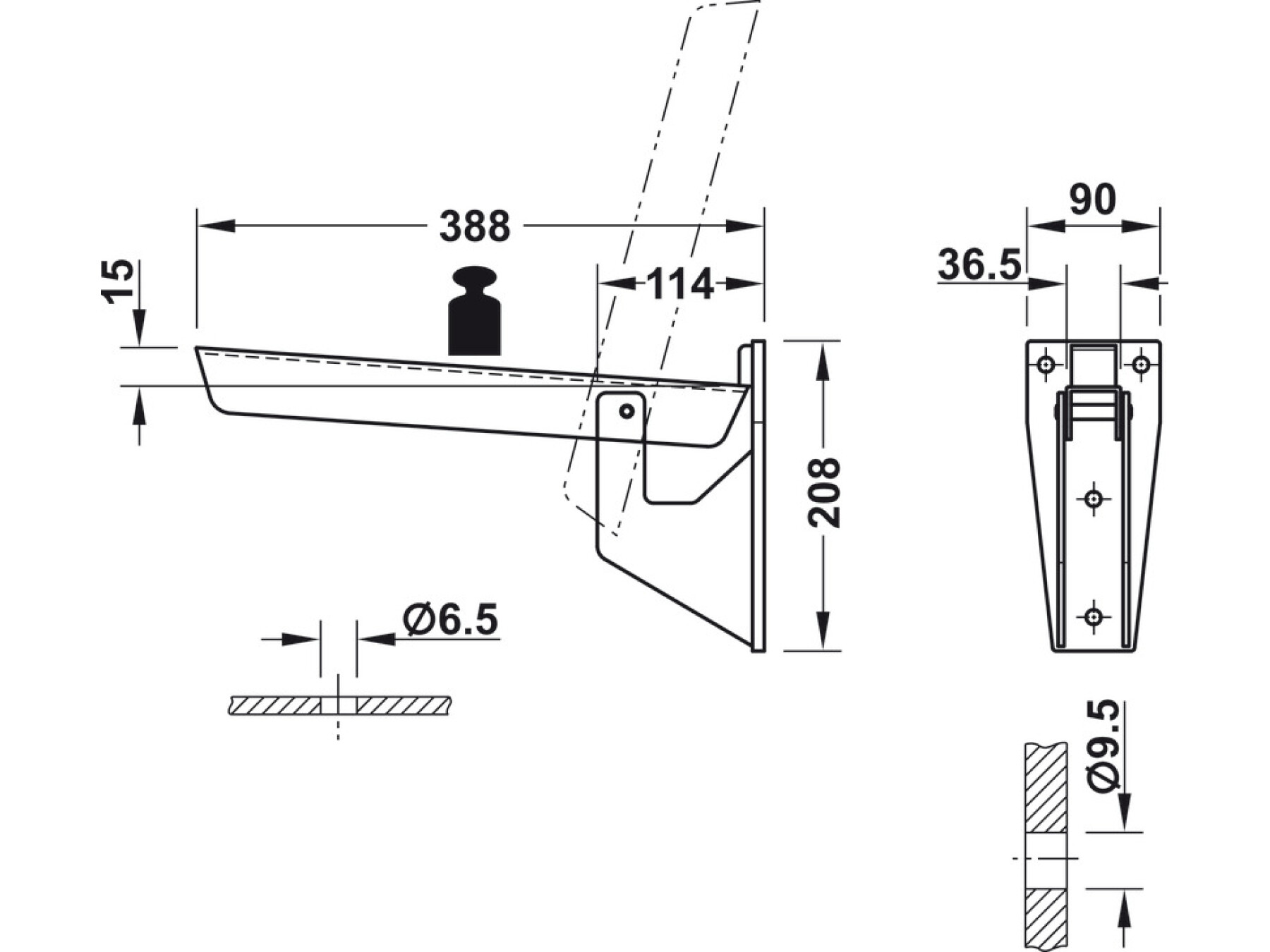

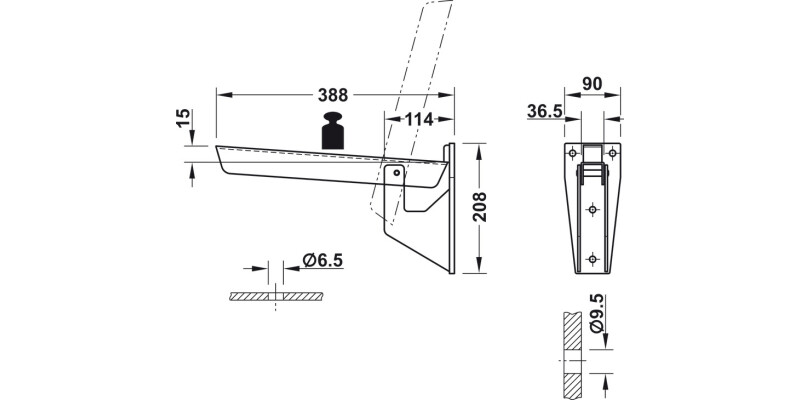

Specifications
Depth
388.00 mm
Width
90.00 mm
Height
208.00 mm
Dim. D
114.00 mm
Colour/finish
hot-zinc plated
Functionality
Without pull-in spring
Area of application
Suitable for work surfaces and benches
Version
Folding
Material
Steel
Note on load bearing capacity
500 kg
Load bearing capacity per pair
500.00 kg
