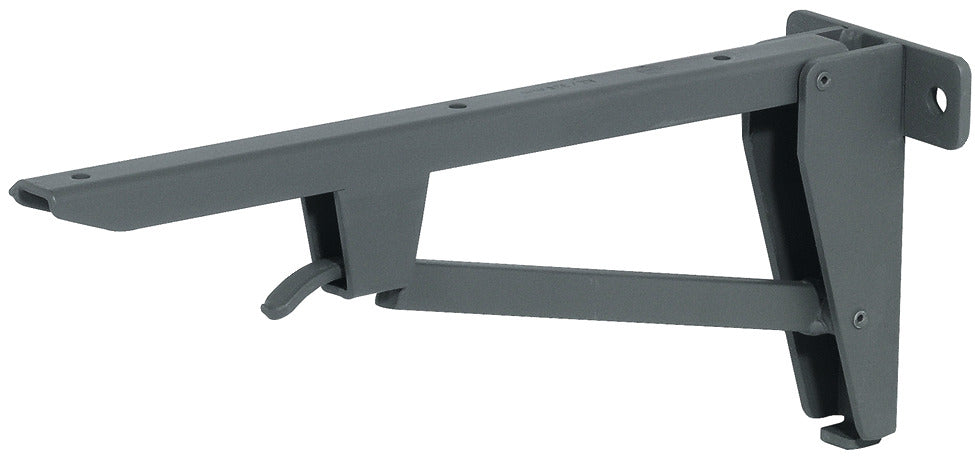

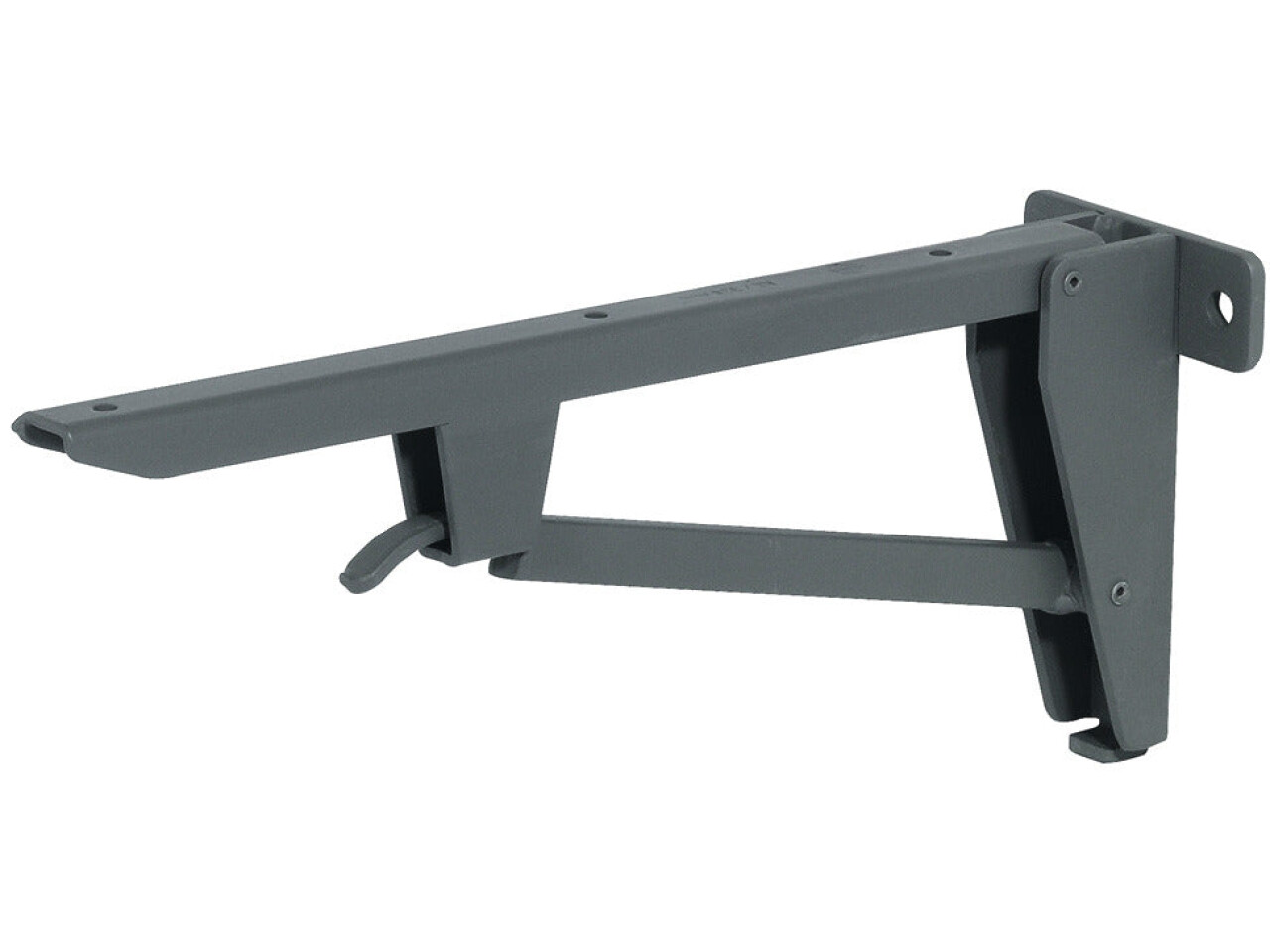

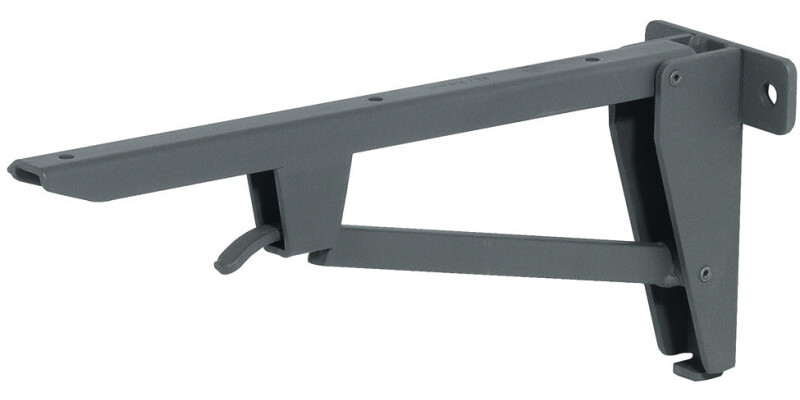

Hebgo LD Folding Bracket 330mm 150kg/Pr
Part Number: 287.42.403

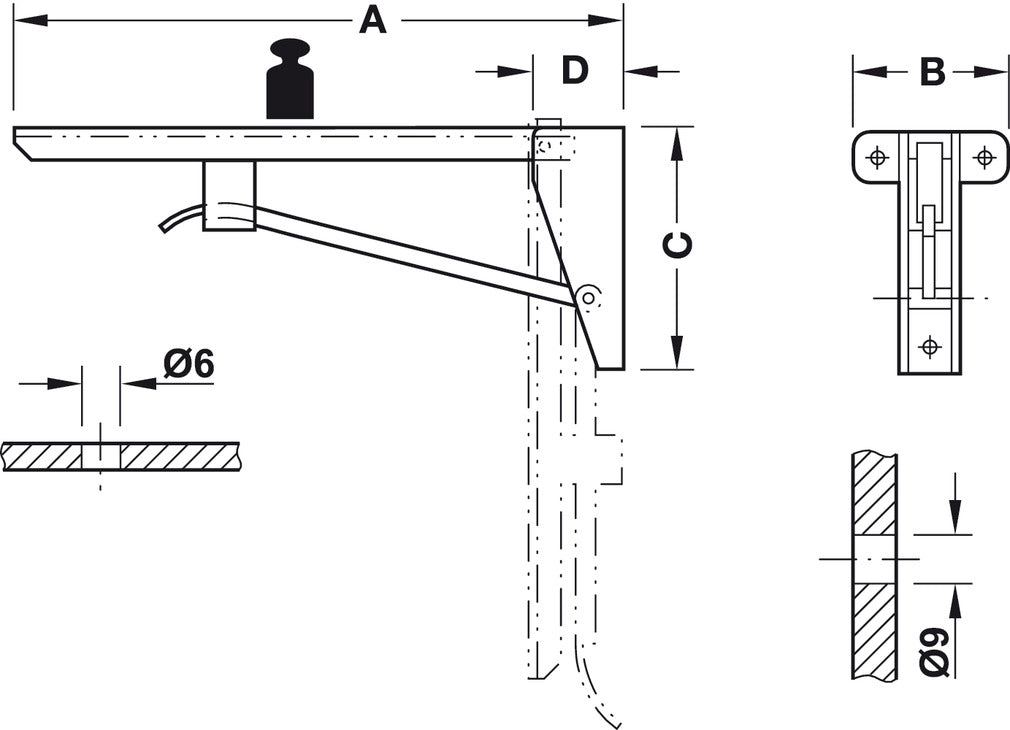

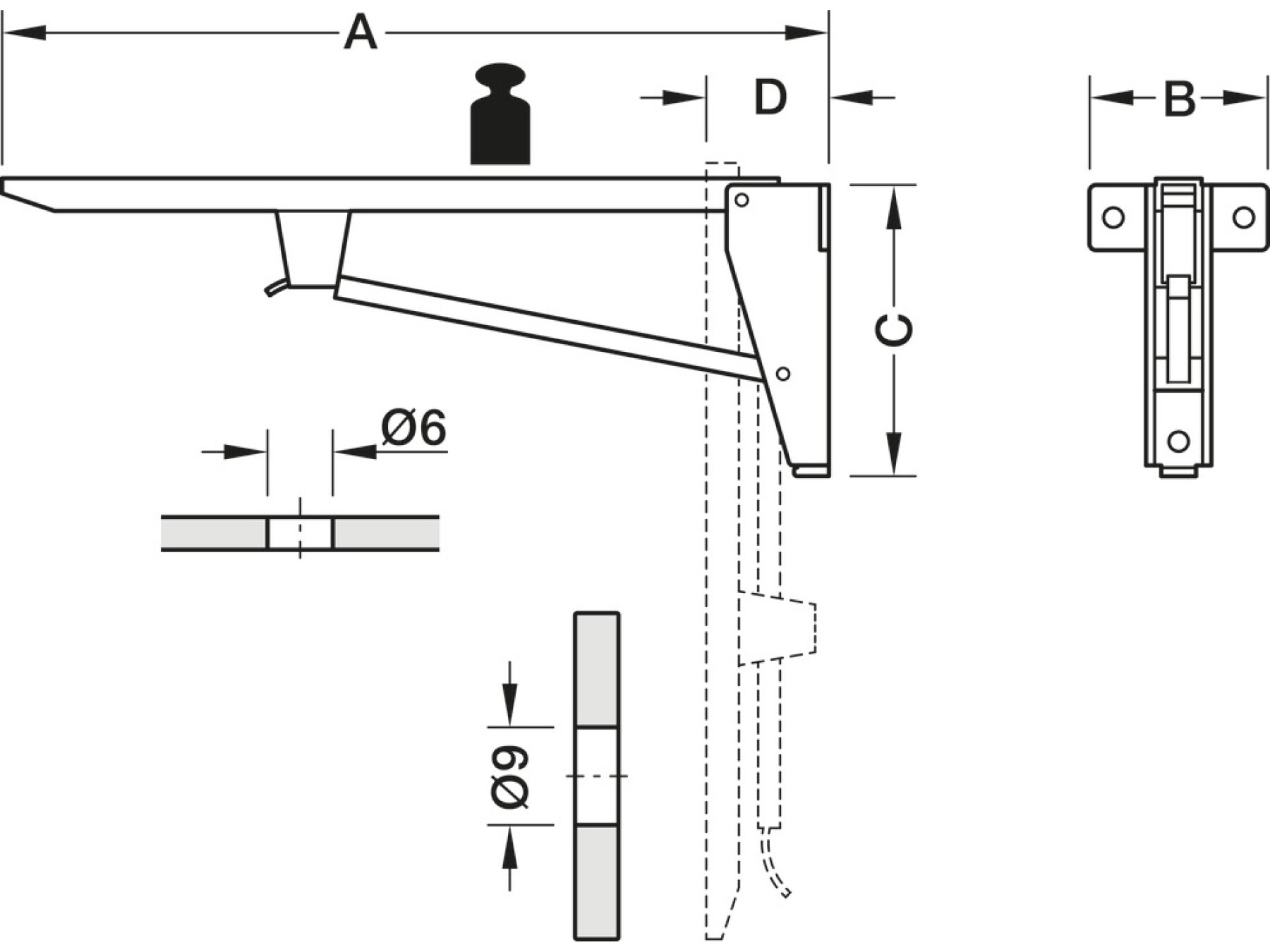

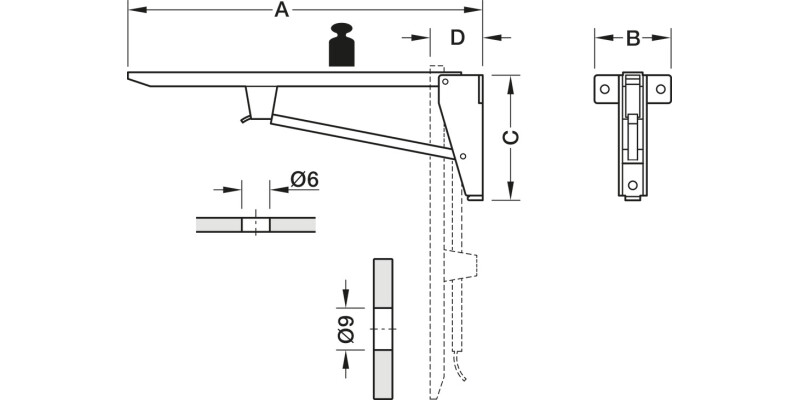

Steel, Dimensions (AxBxC): 330 x 82 x 134 mm, grey primed
Price:
£76.55
Per Item
Note on load bearing capacity 150 kgtested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 150... Read More
Product Information
Product Details
Note on load bearing capacity
150 kg
tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 150 kg load bearing capacity with surface load and 2 supports
shelf size must suit the respective bracket depth
Installation note
The specified load bearing capacity applies only with even load distribution (surface load) and proper and reliable attachment to the wall.
Load bearing capacity specification per pair with even load distribution over support arms
Specifications
Load bearing capacity per item
75.00 kg
Width
82.00 mm
Dim. D
50.00 mm
Colour/finish
Grey, primed
Version
Folding,
With locking mechanism
Material
Steel
Load bearing capacity per pair
150.00 kg
