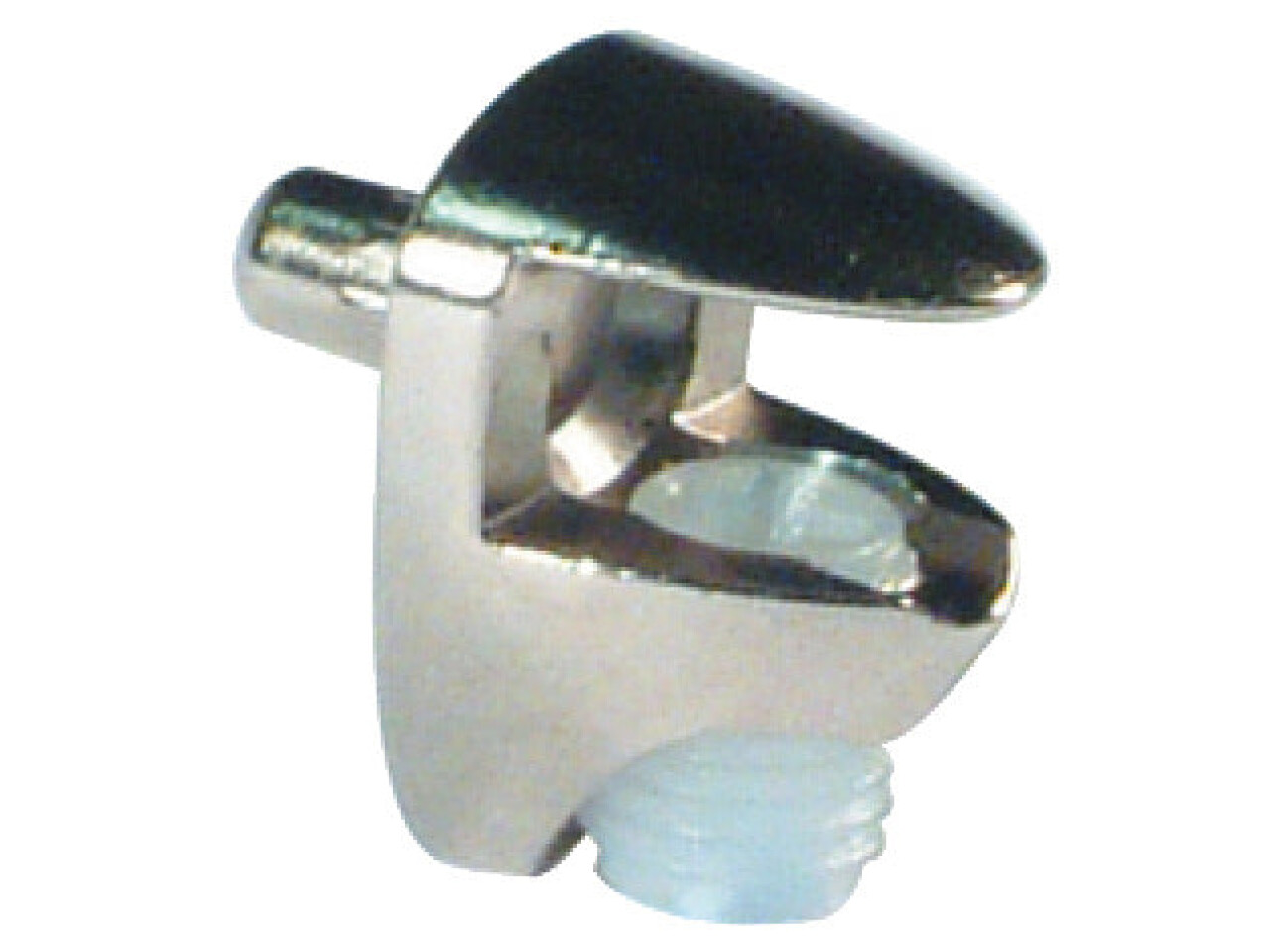

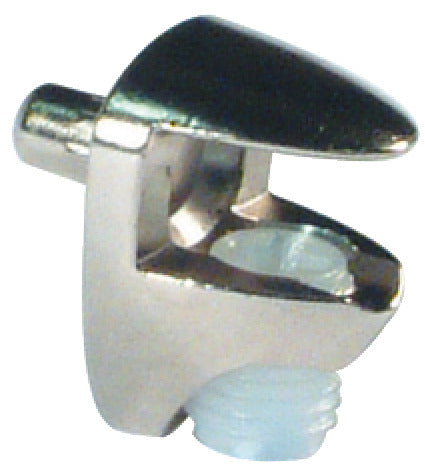

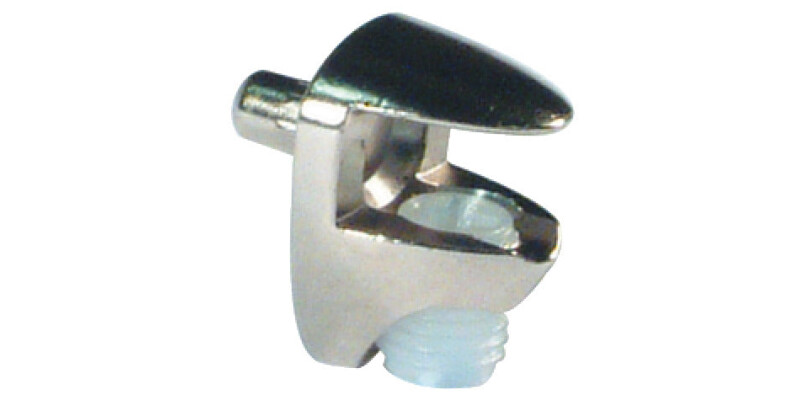

Cobra Gls Shelf Supp 4-6mm Plug NP
Part Number: 284.04.601

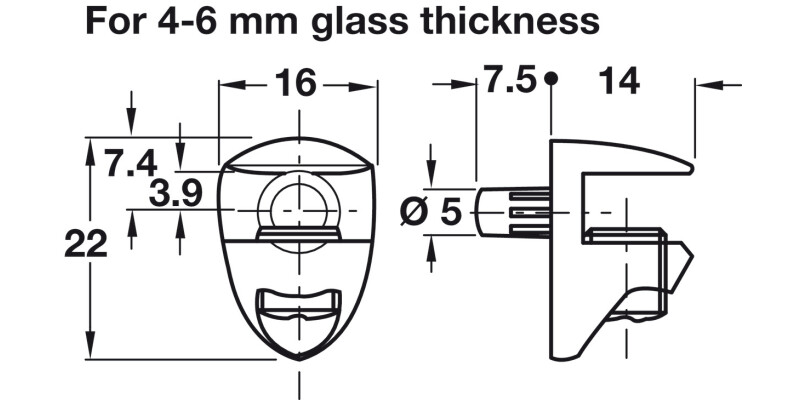

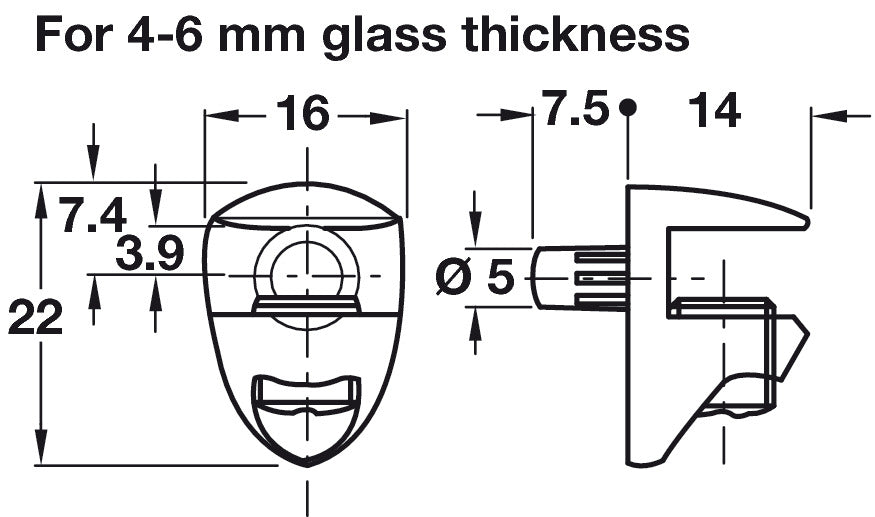

For 4-6 mm glass thickness
Price:
£0.60
Per Item
Secures glass in positionDesigned for rigid furniture, the carcase can be moved safely even when upside down with... Read More
Product Information
Product Details
Secures glass in position
Designed for rigid furniture, the carcase can be moved safely even when upside down with the glass already installed
Load carrying capacity applies to 4 shelf supports bearing an evenly distributed load
Testing was carried out according to DIN EN 14749: 2005, clause 6.3.3 “Strength of shelf supports”
Specifications
Application
For glass shelves
Colour/finish
nickel plated
Installation
Plug in
For drill hole Ø
5.00 mm
Pin length
7.50 mm
Load bearing capacity with 4 shelf supports
25.00 kg
Adherence to standards
DIN EN 14749: 2005
