Con Shelf Support 14mm Press Wall
Part Number: 283.32.060
For concealed mounting of shelves, size: 14 mm, for min. shelf thickness: 24 mm
Price:
£9.00
Per Item
To insert the shelf support, drill out the board as shown in the drawing right Level the shelf by laying on the... Read More
Product Information
Product Details

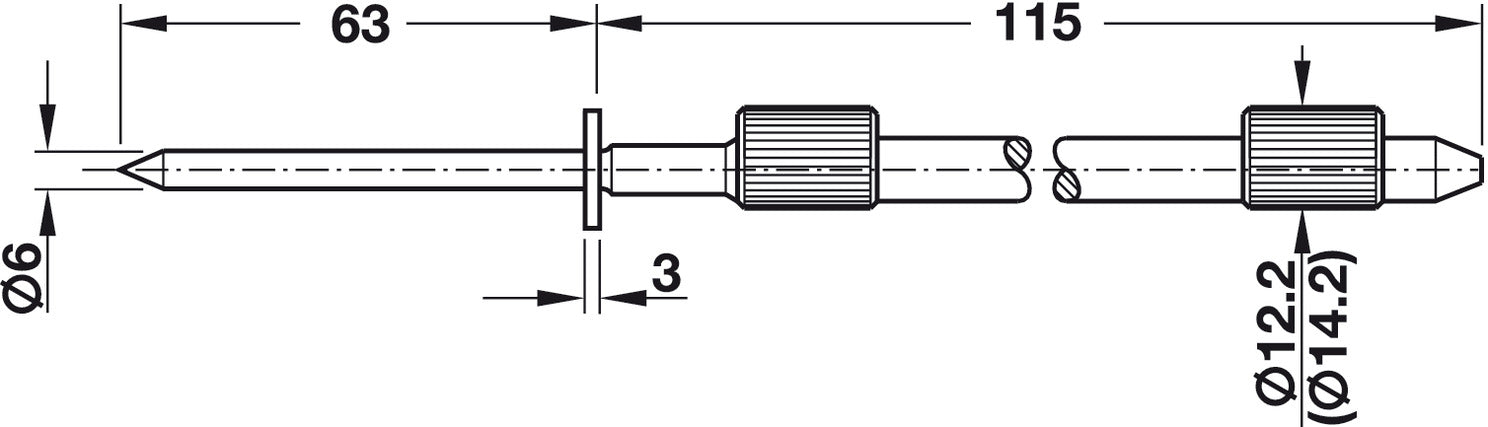

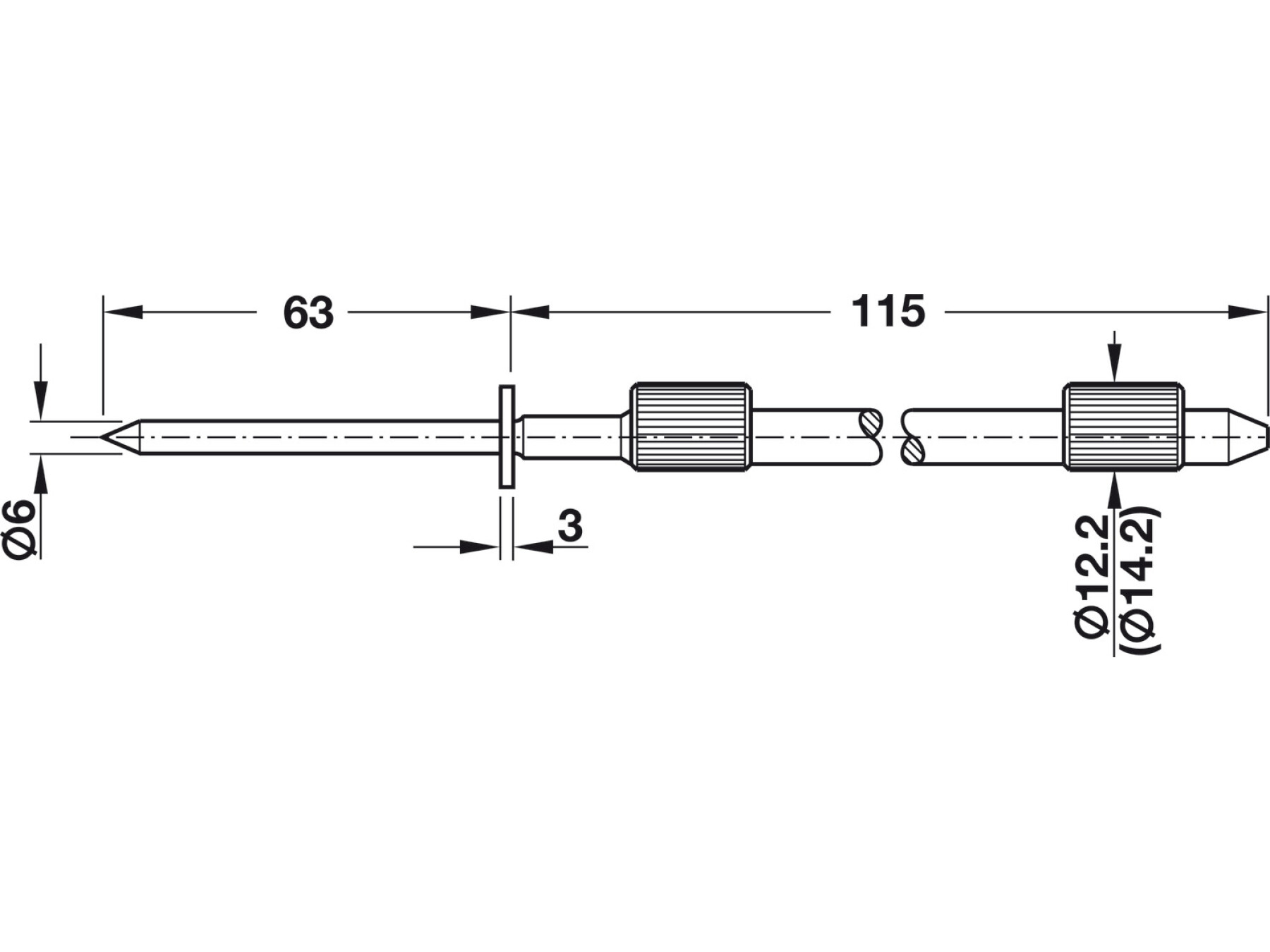

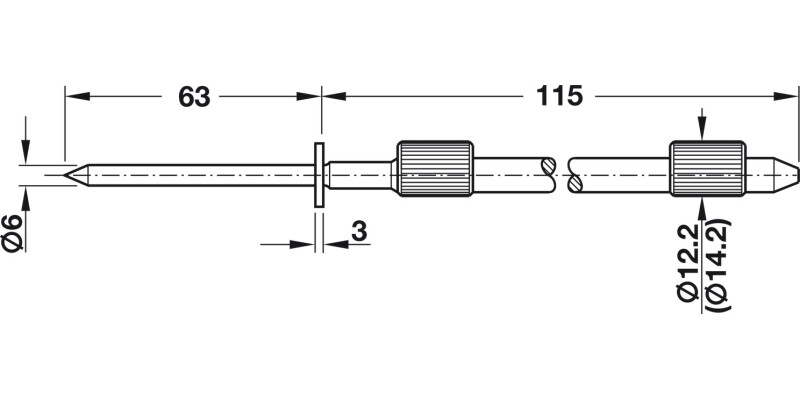

To insert the shelf support, drill out the board as shown in the drawing right
Level the shelf by laying on the shelf supports and adjusting the eccentric screw before finally fixing the shelf in position

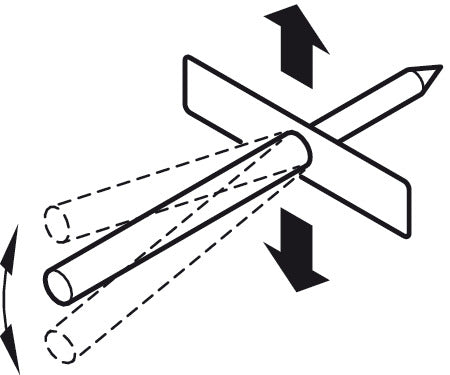

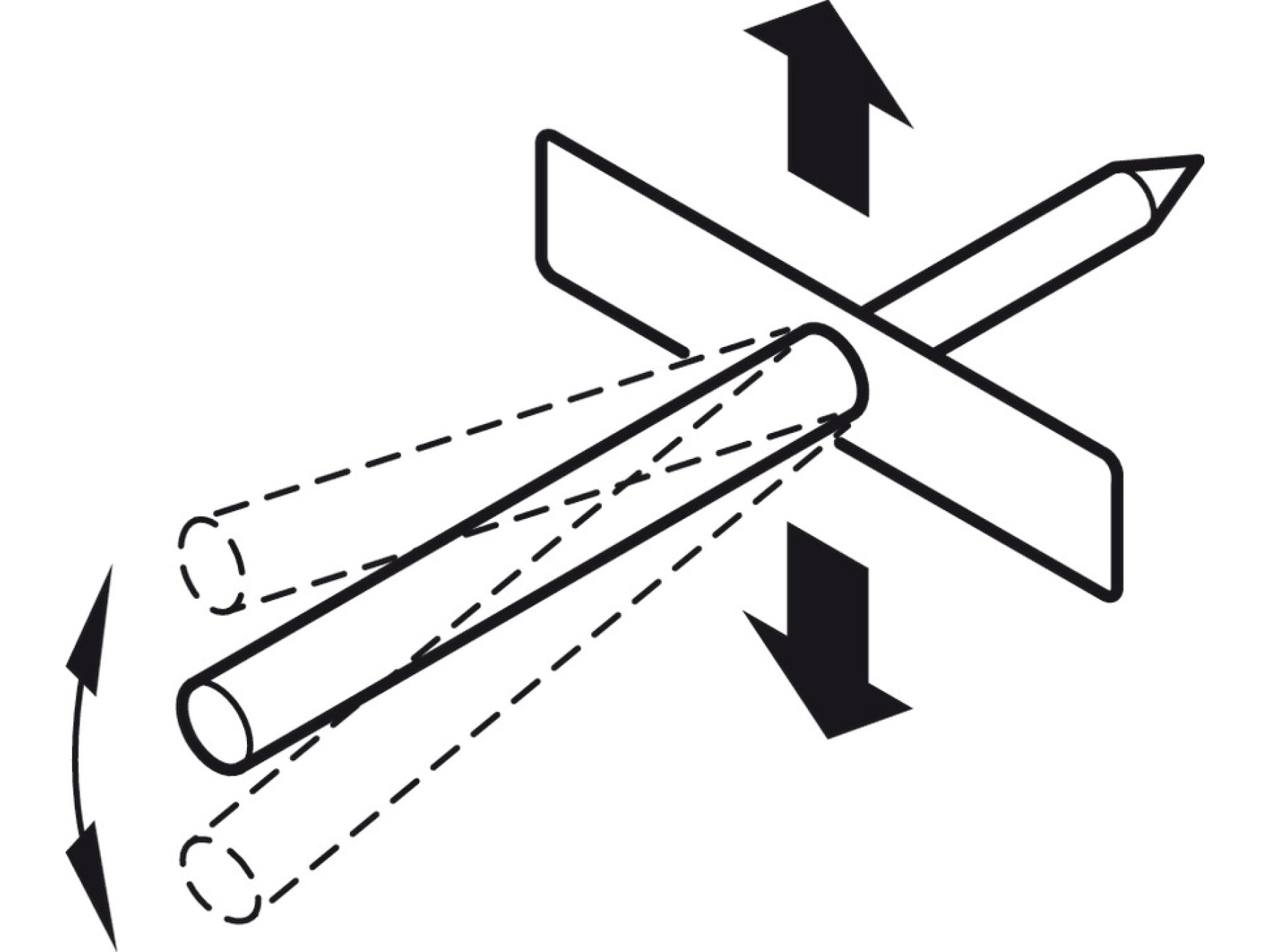

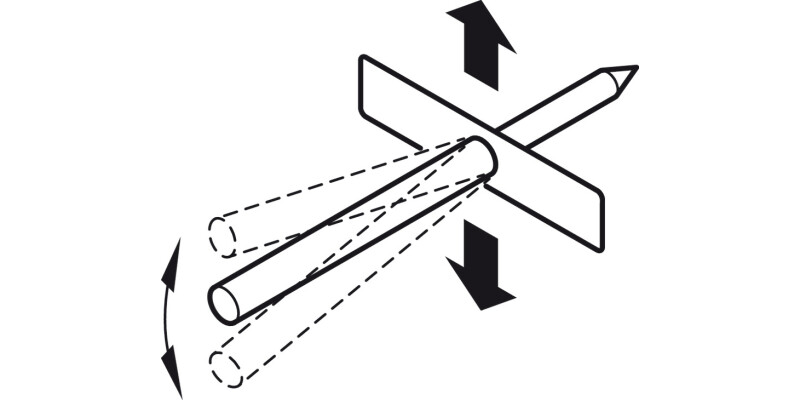

Adjustable in height and inclination:
Size 12 mm: ±1 mm
Size 14 mm: ±2 mm
Installation
For screw fixing to support element
For mounting in drilled hole in shelf
For installation into masonry walls
Installation note
Mill out the lateral hole for holding the support bolt with an elongated hole drilling machine or chain mortiser.
Take the eccentric adjusting range into consideration when milling out the holder for the screw-on plate.
max. distance between two shelf supports: 700 mm
Specifications
Adjustment facility
Height and tilt adjustment: With eccentric sleeves without tools
Colour/finish
zinc plated
Version
With screw-on plate and wall plug fixing
Area of application
For concealed installation
Material
Steel
Order reference
Ø 5.0 mm Hospa screws required, order separately

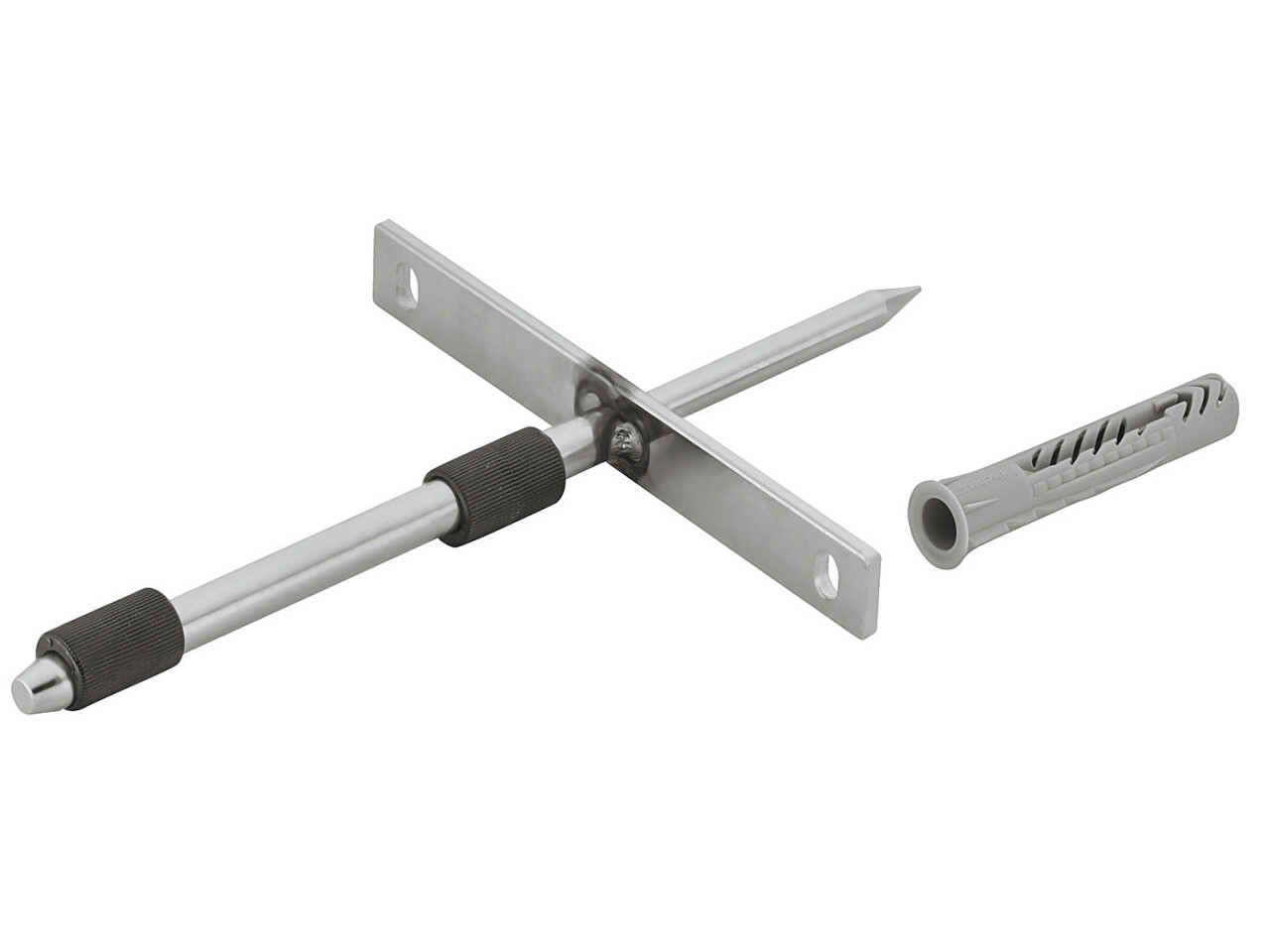

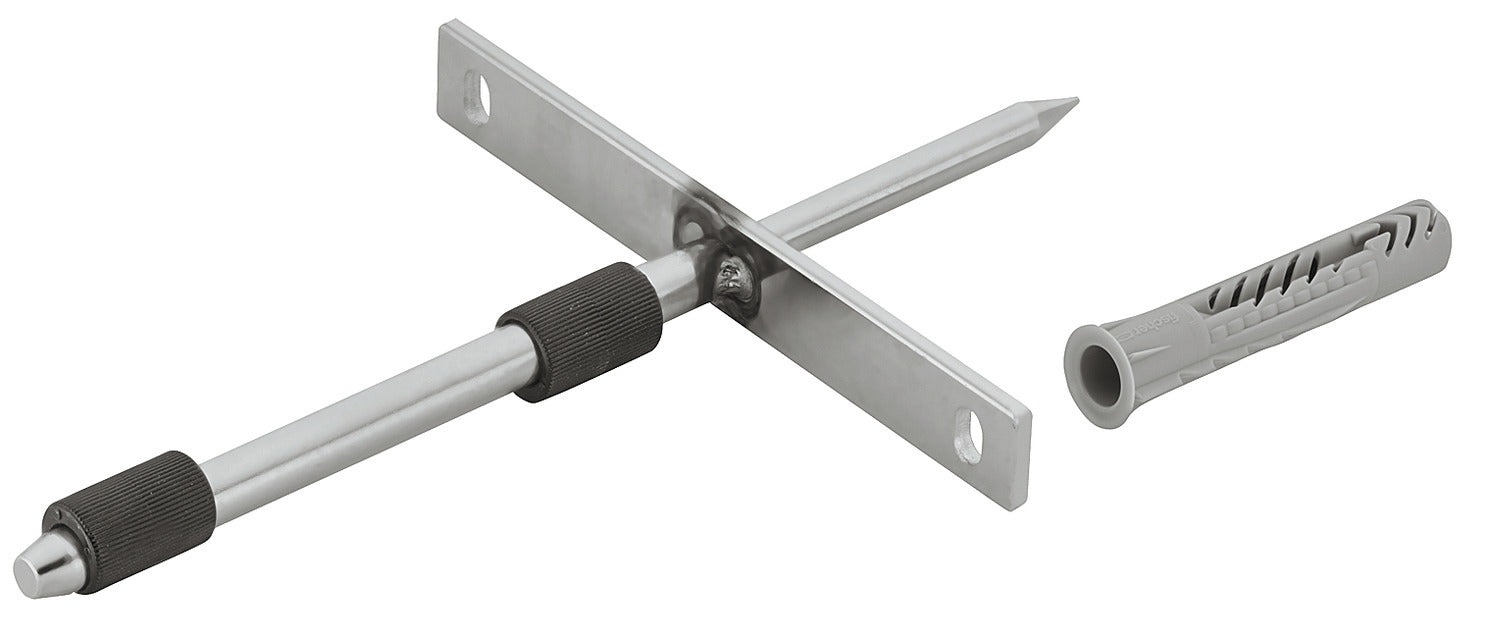

Supplied with
1 Supporting pin with mounting plate
2 Pre-mounted eccentric sleeves
1 S8 R80 Fisher wall plug
