Con Shelf Support 14mm Press Wall
Part Number: 283.32.023
For concealed mounting of shelves,, size: 14 mm, for min. shelf thickness: 22 mm
Price:
£5.33
Per Item
Diameter quoted = Eccentric diameter Installation For screw fixing to support elementFor mounting in drilled... Read More
Product Information
Product Details

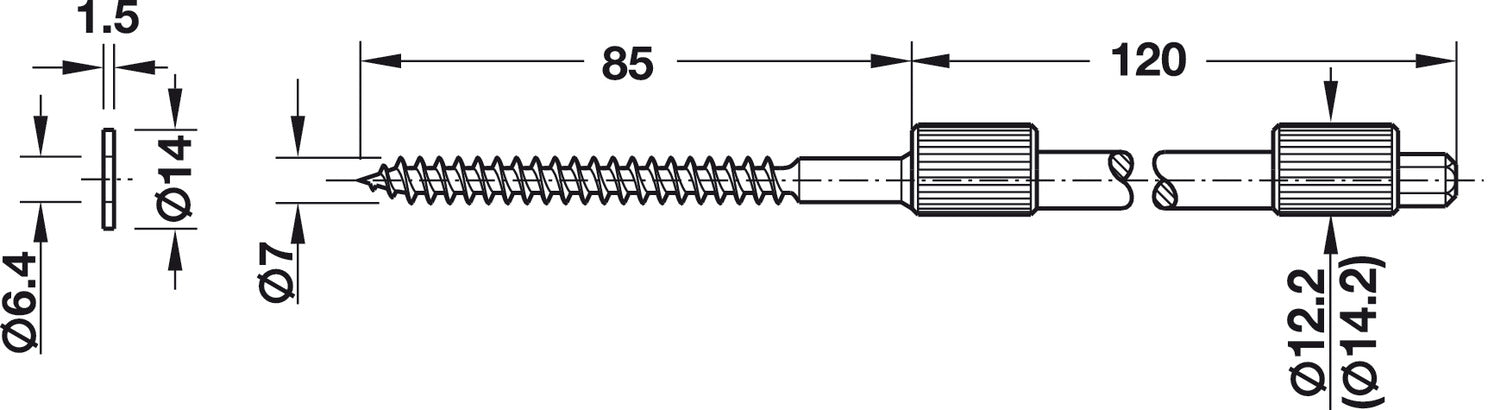

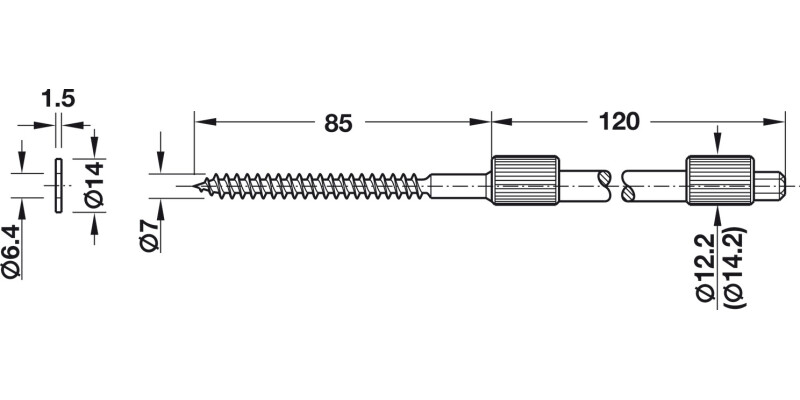

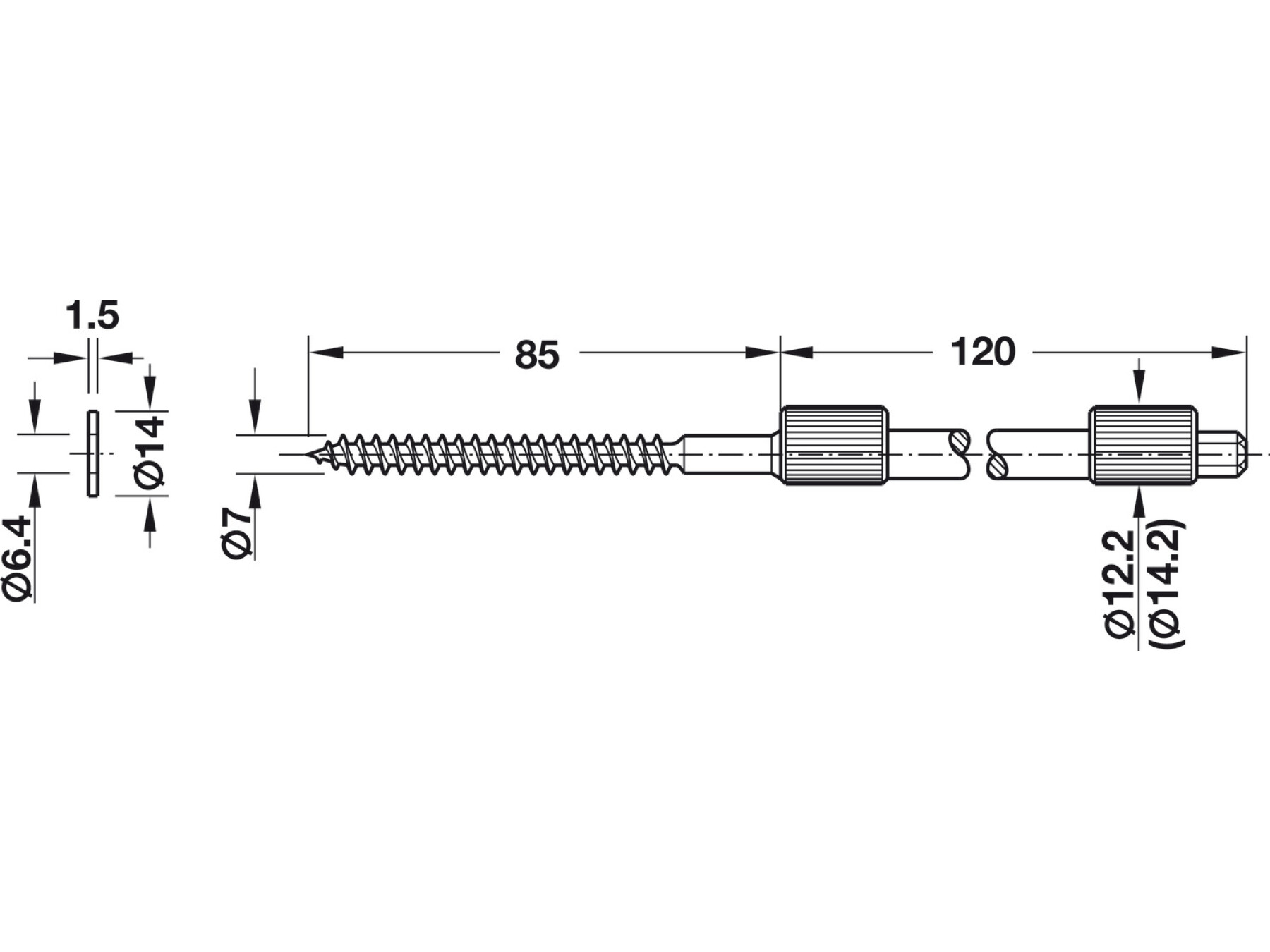

Diameter quoted = Eccentric diameter
Installation
For screw fixing to support element
For mounting in drilled hole in shelf

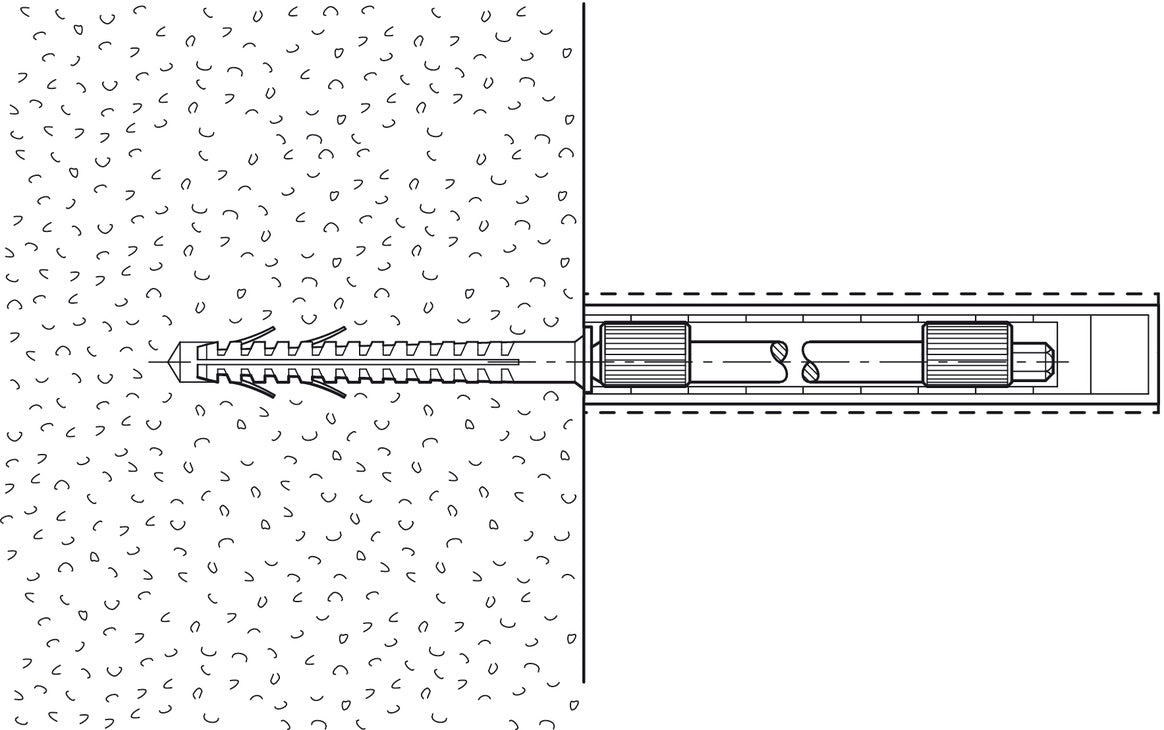

For installation into masonry walls
Installation note

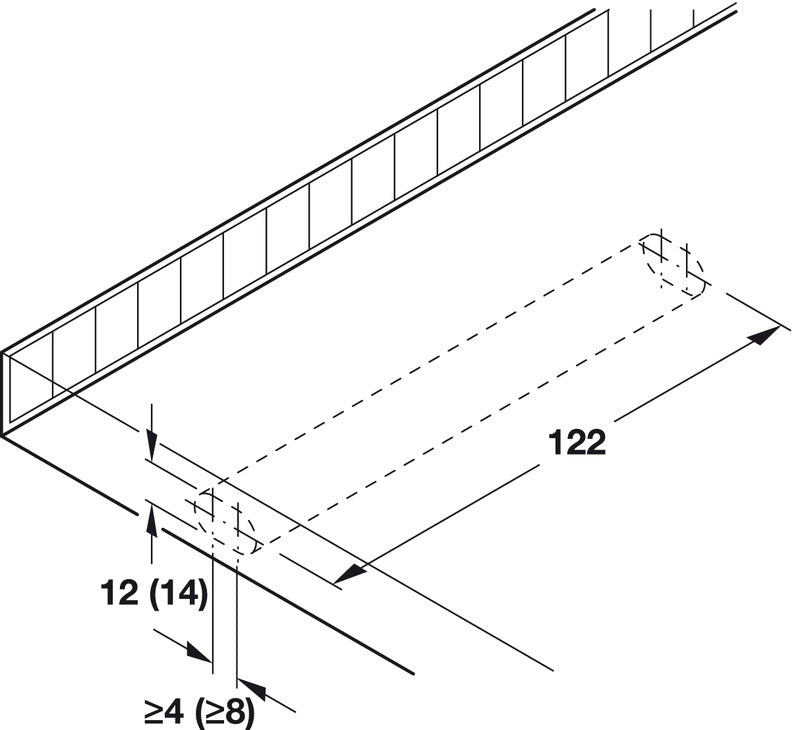

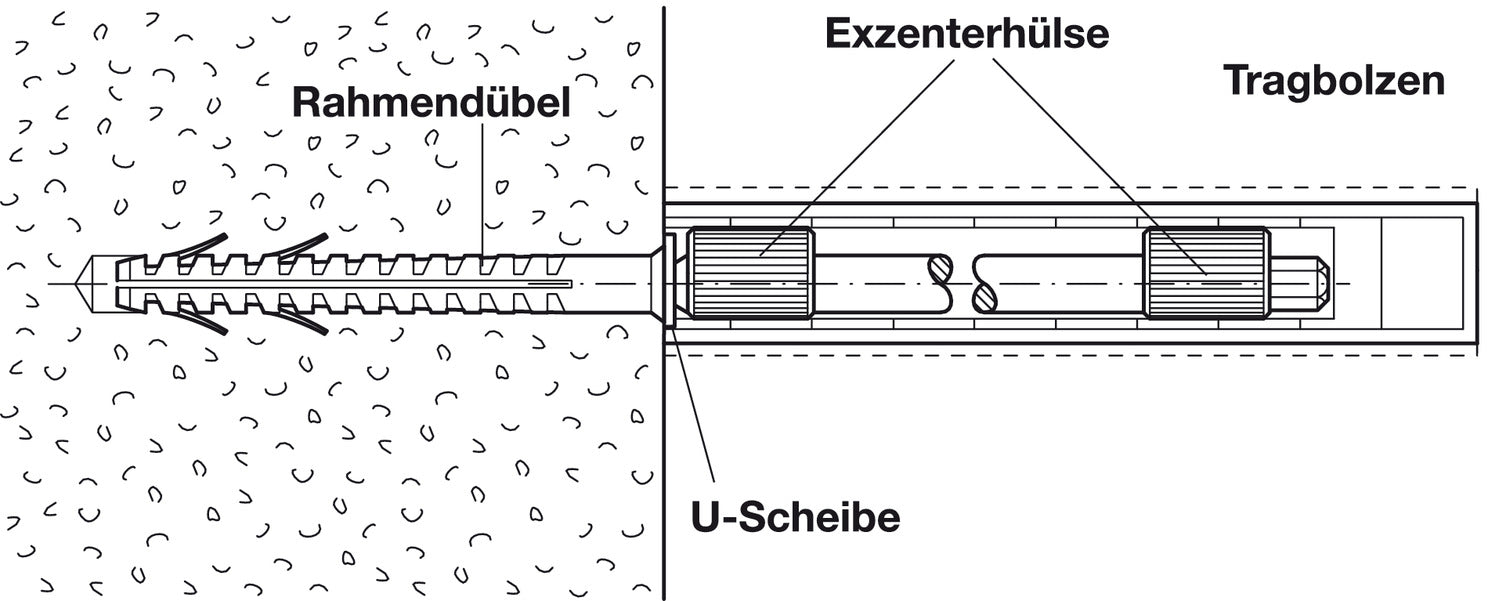

To insert the shelf support, drill out the board as shown in the drawing left
Level the shelf by laying it on the shelf supports and adjusting the eccentric screws before finally fixing the shelf in position

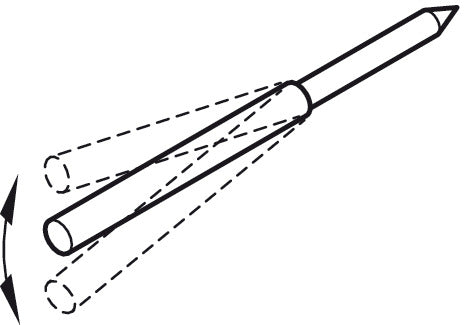

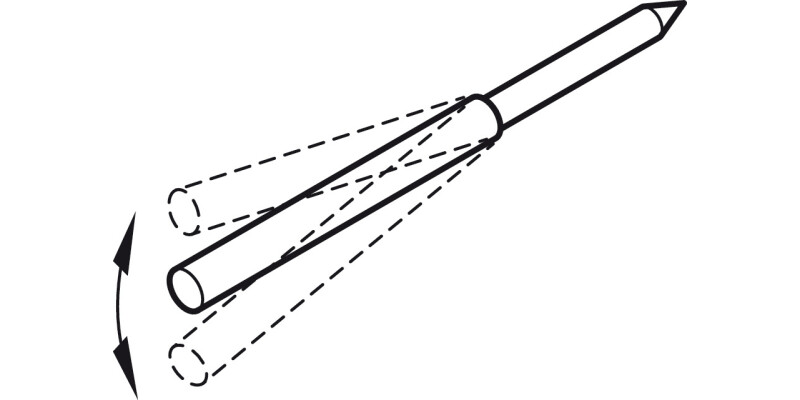

Adjustable in height and inclination:12 mm size: ±1 mm 14 mm size: ±2 mm

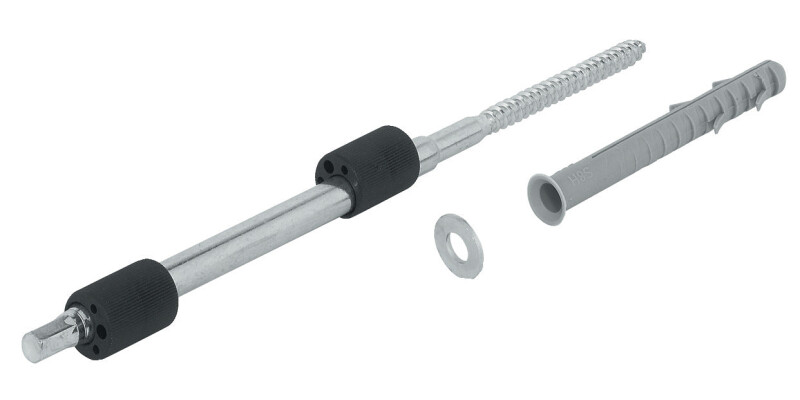

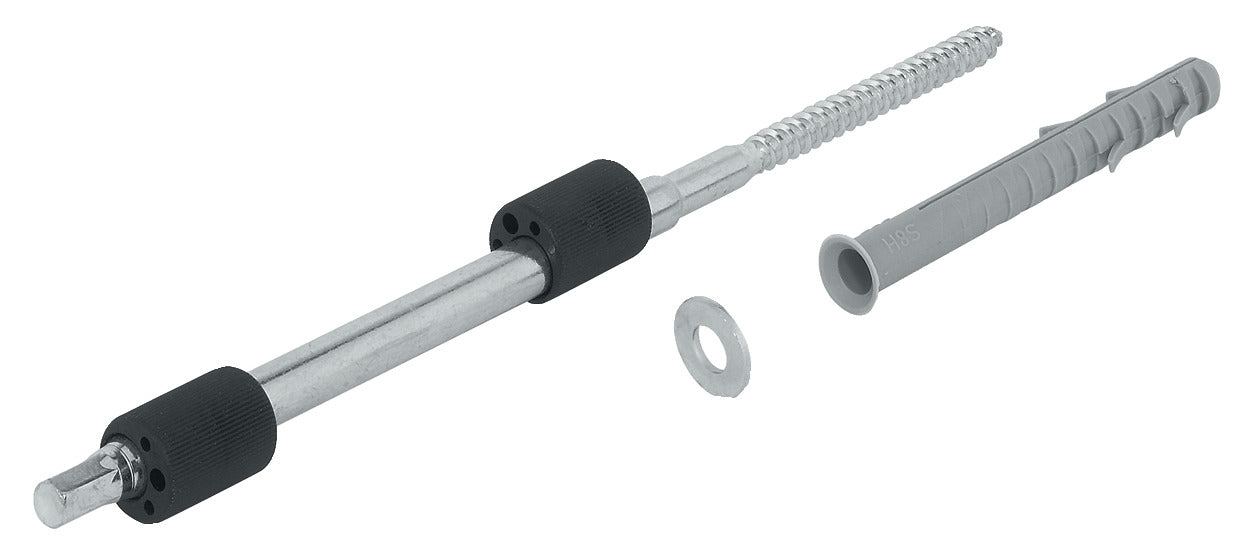

Supplied with

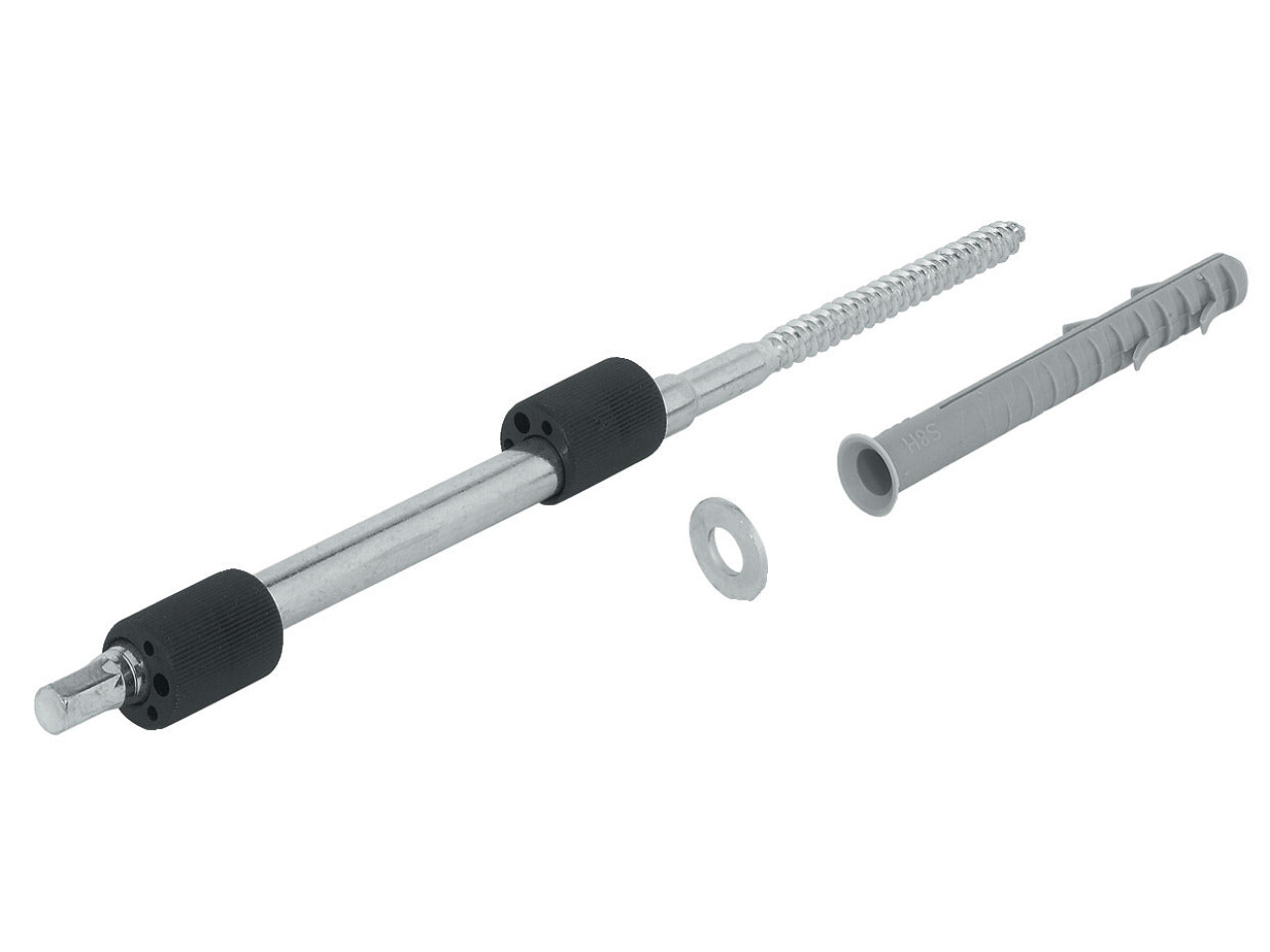

1 Supporting pin with threaded screw
2 Pre-mounted eccentric sleeves
1 Washer,
1 S8H 80R Fischer wall plug
Max. distance between two shelf supports: 700 mm
Specifications
Adjustment facility
Height and tilt adjustment: tool-free with eccentric sleeves
Colour/finish
zinc plated
Version
Support bolt with eccentric sleeve, wood-screw thread and wall plug
Area of application
For concealed installation
Material
Steel
Drive size
SW6
