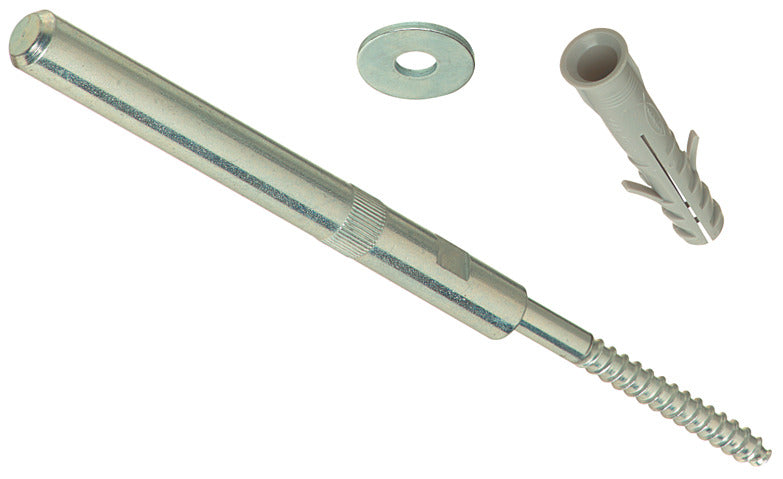

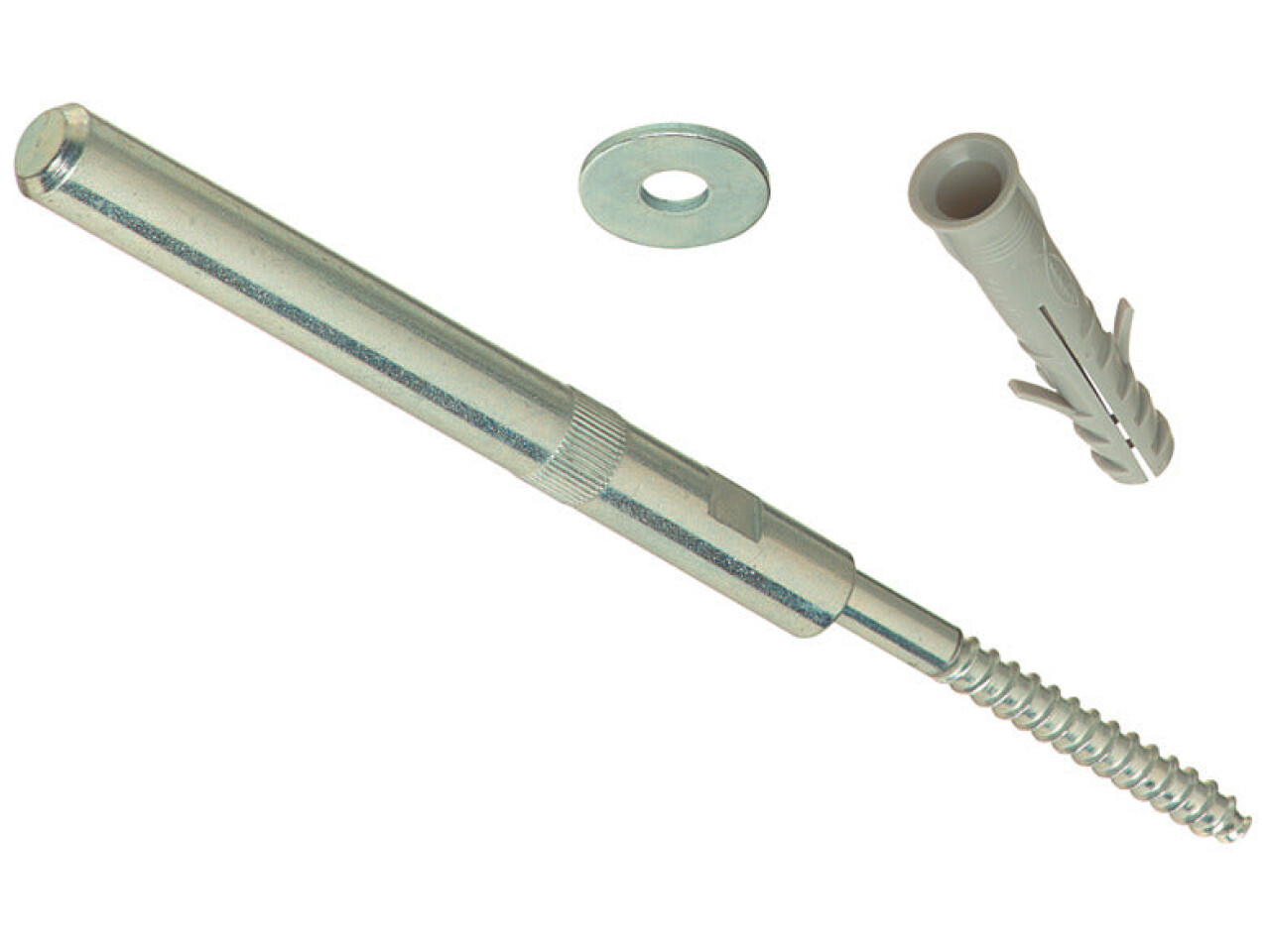

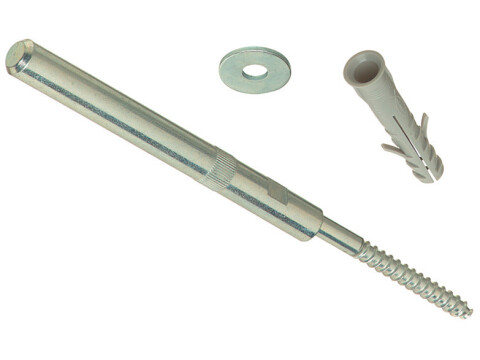

Con Shelf Support for Wall

For concealed mounting of shelves
For installation into woodwork or masonry walls
Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports

The load bearing capacity of the shelf support is dependent on:
Shelf material
Shelf depth
Properties and condition of wall

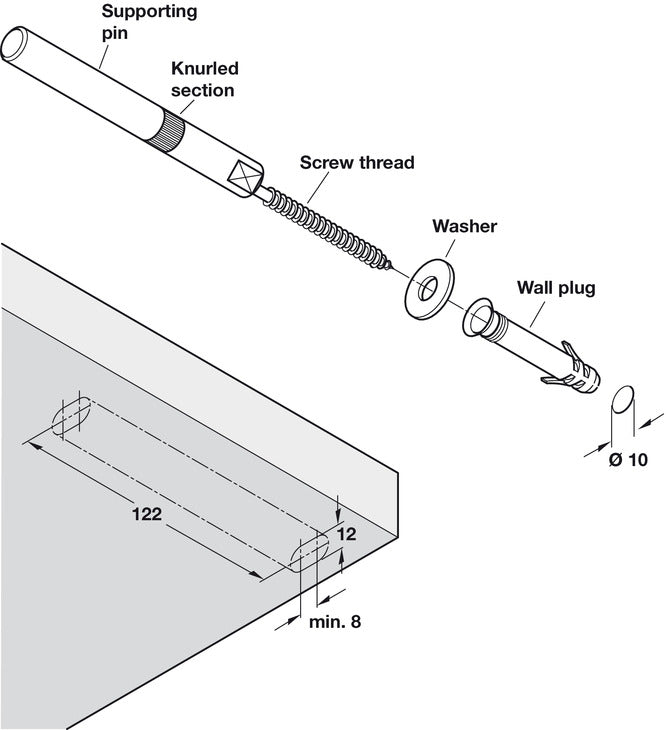

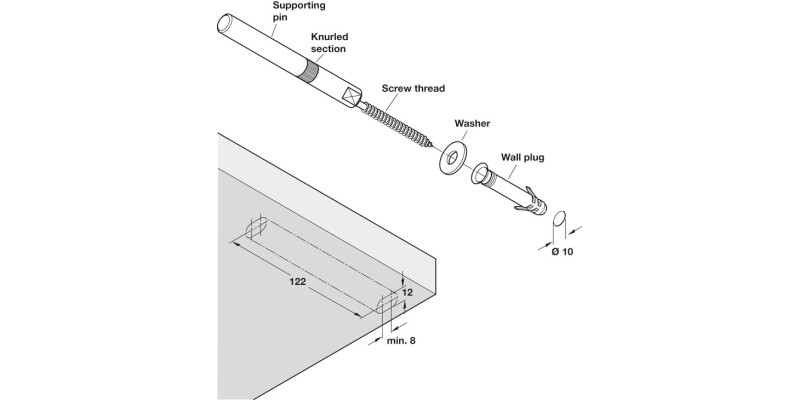

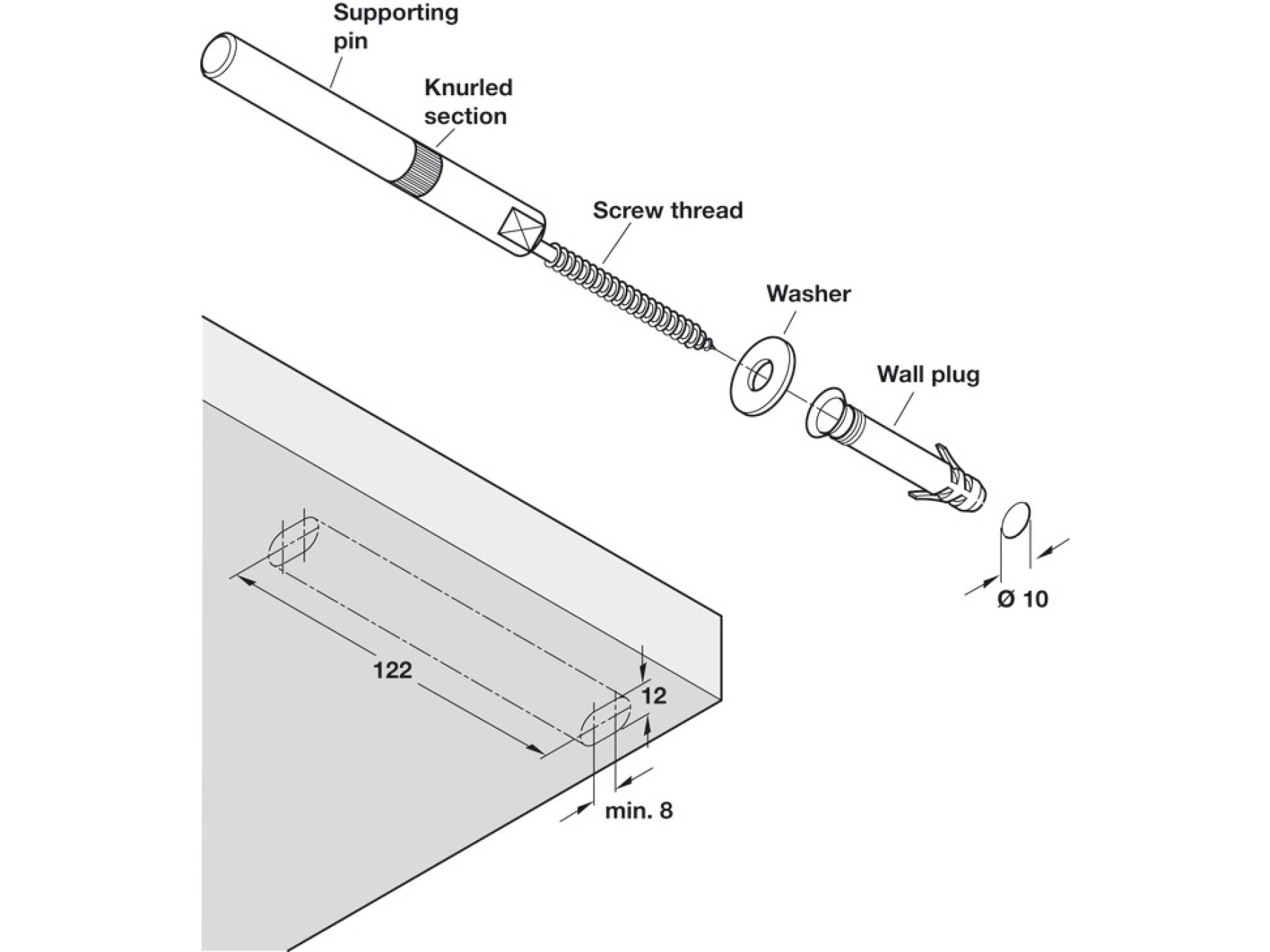

Drill Ø 10 mm hole and insert wall plug
Slip washer (supplied) onto screw thread
Screw shelf support into wall plug
For concealed mounting of shelves
For installation into woodwork or masonry walls
Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports

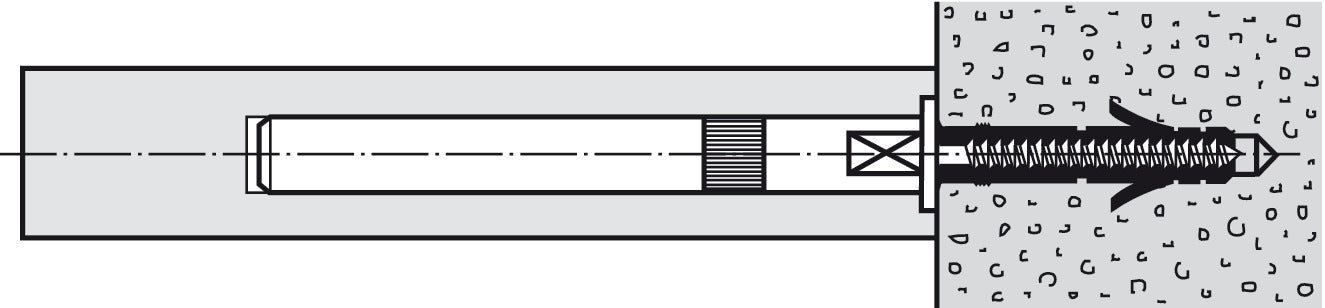

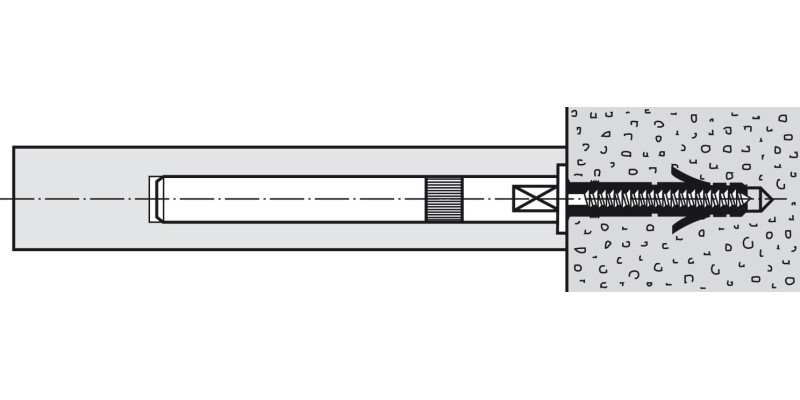

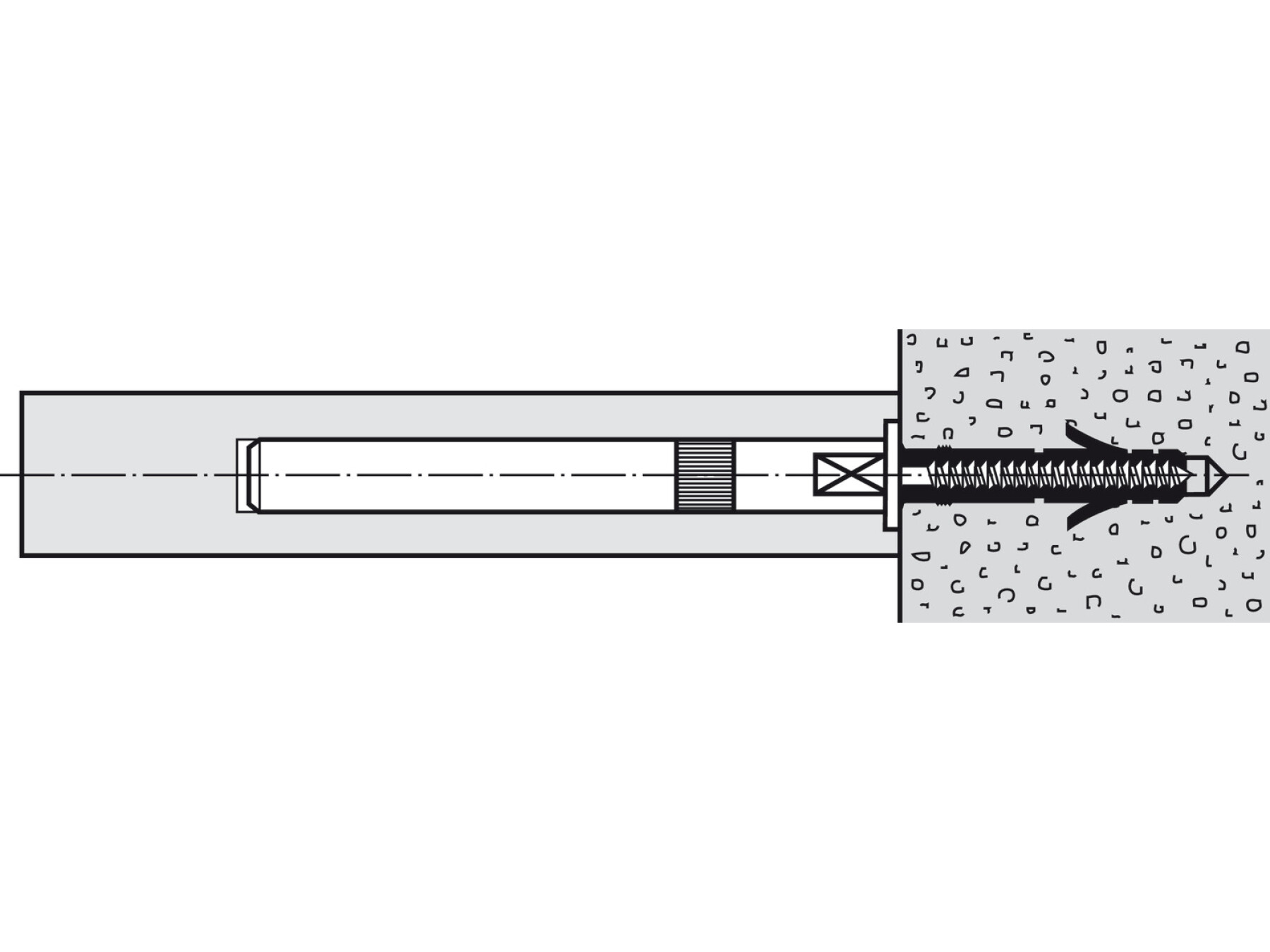

Install shelf on support as far as the knurled section
Use an SW 10 open-ended wrench for vertical adjustment
Finally push the shelf all the way to the wall

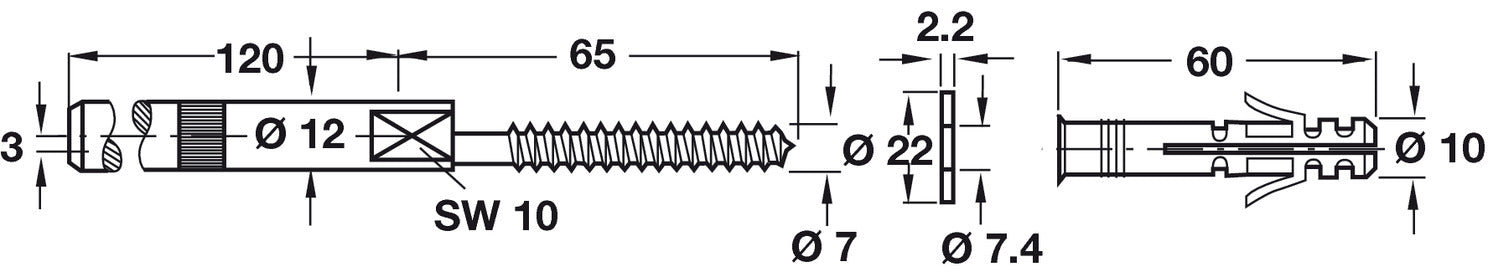

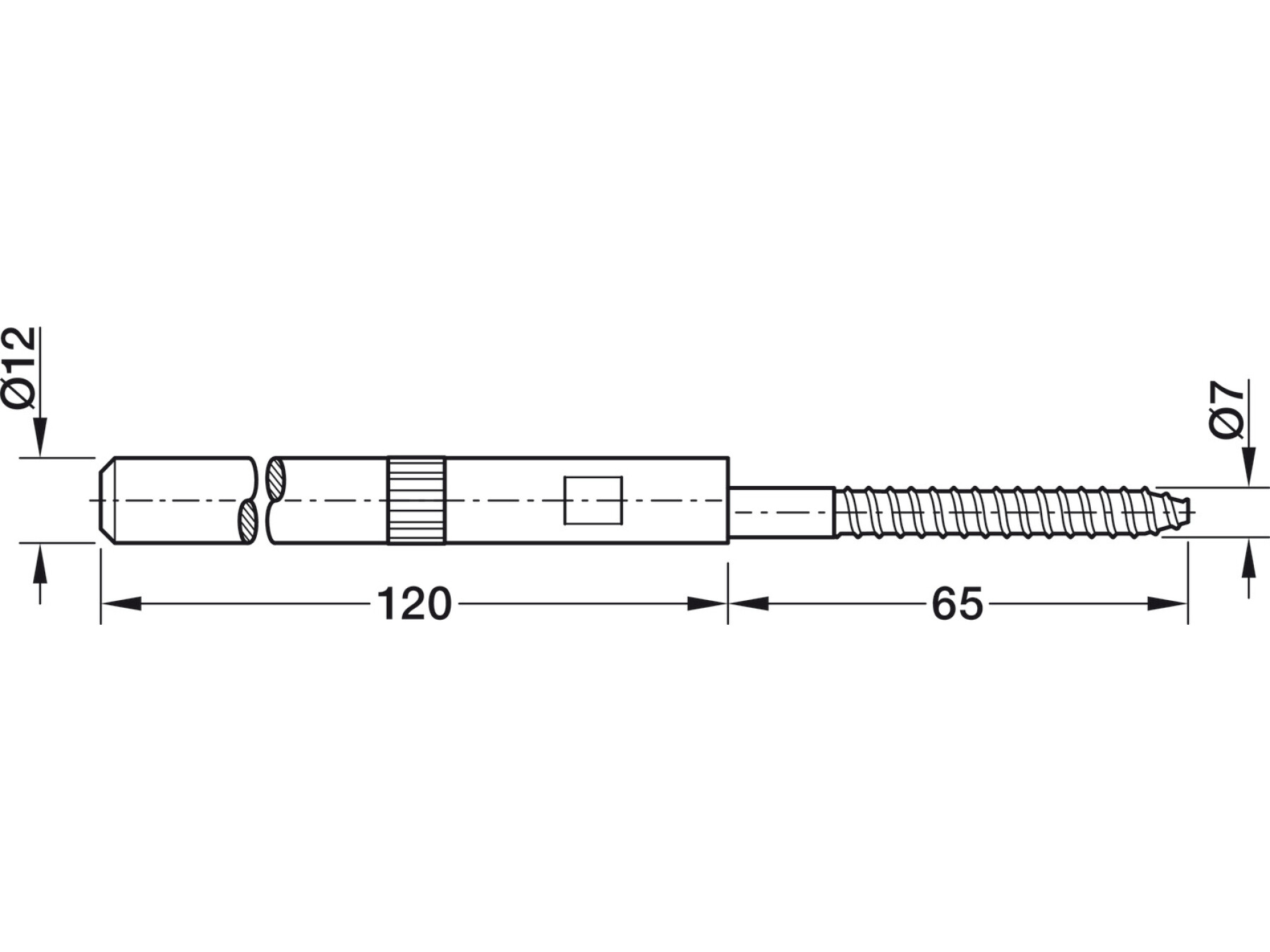

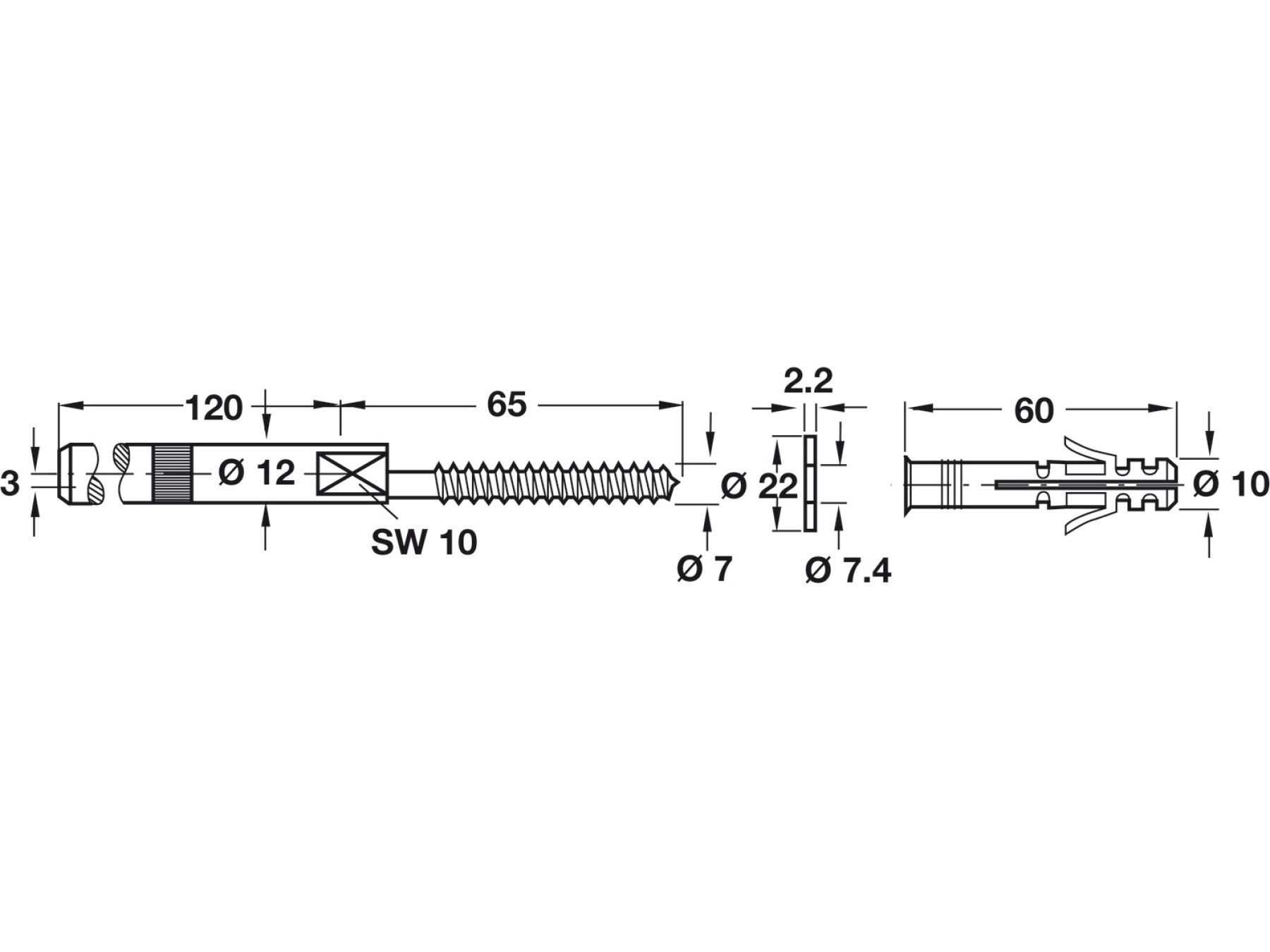

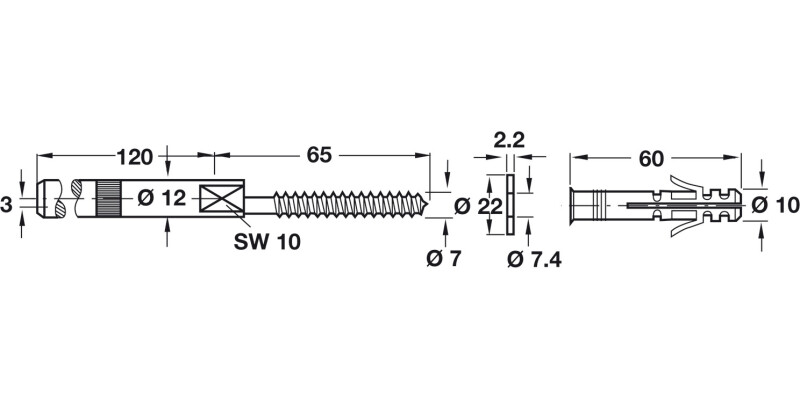

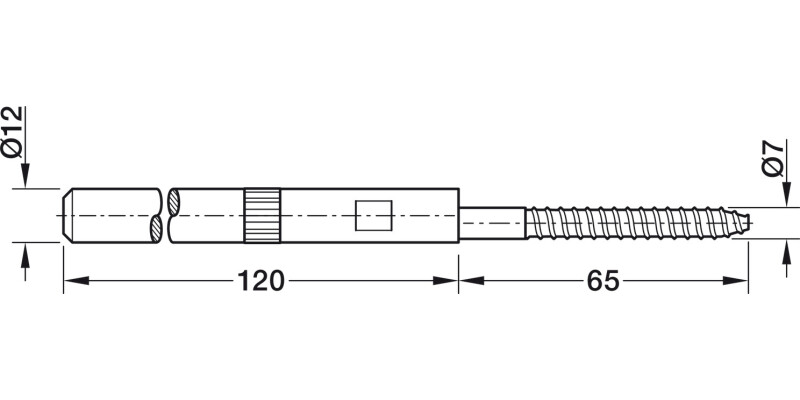

With 65 mm screw thread
