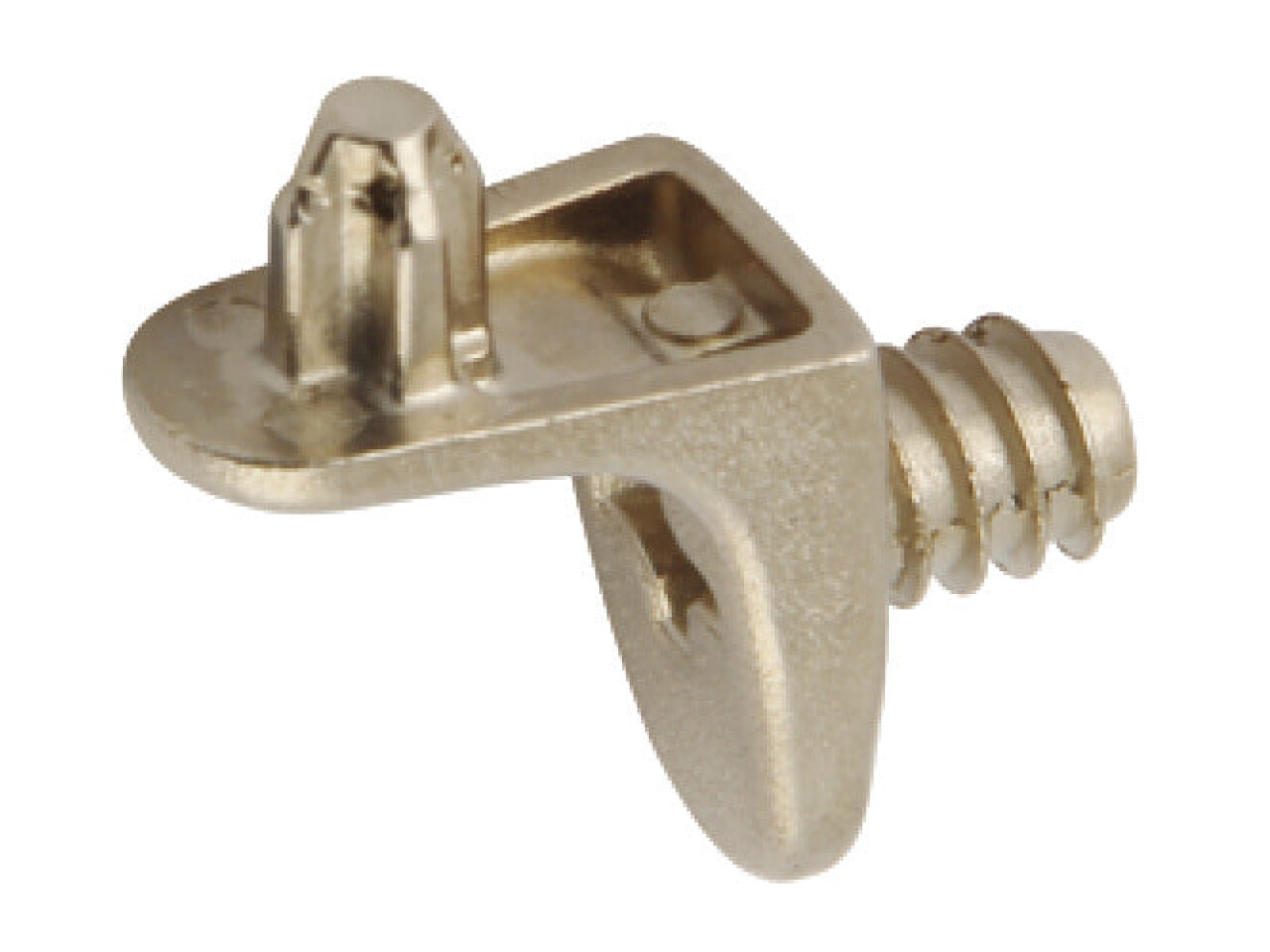

Shelf Support D5mm Plug/Thread ZA NP
Part Number: 282.26.730
Nickel plated
Price:
£7.90
Per 100 Pack
With shelf-fixing lug Note on load bearing capacity Load carrying capacity applies to 4 shelf supports bearing... Read More
Product Information
Product Details
With shelf-fixing lug
Note on load bearing capacity
Load carrying capacity applies to 4 shelf supports bearing an evenly distributed load.
Testing was carried out according to DIN EN 1727: 1998-06 “Mechanical safety requirements for shelf supports”

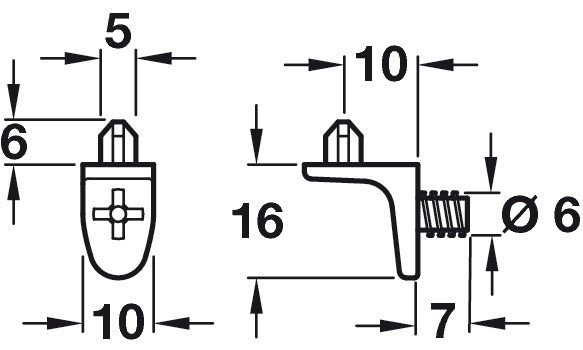

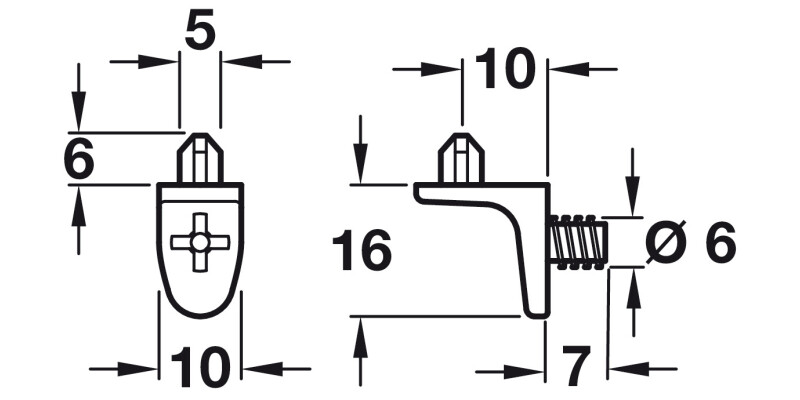

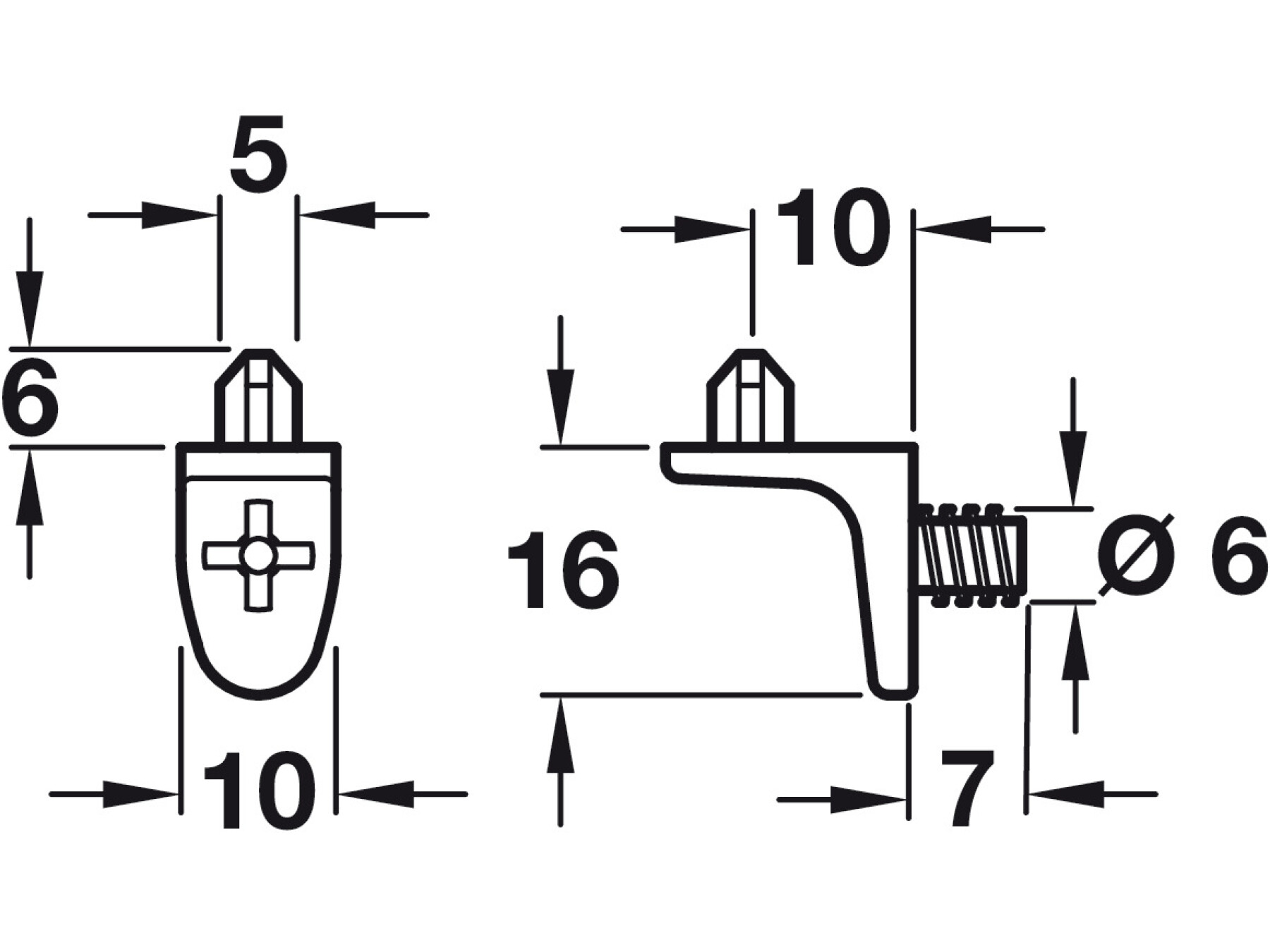

Specifications
Application
For wooden and glass shelves

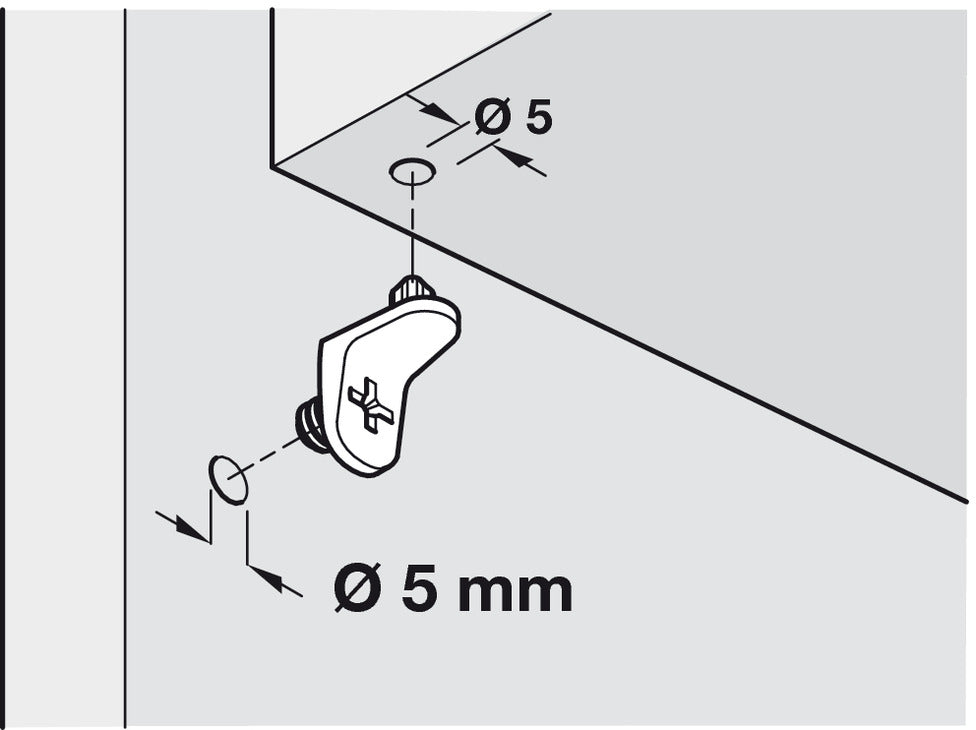

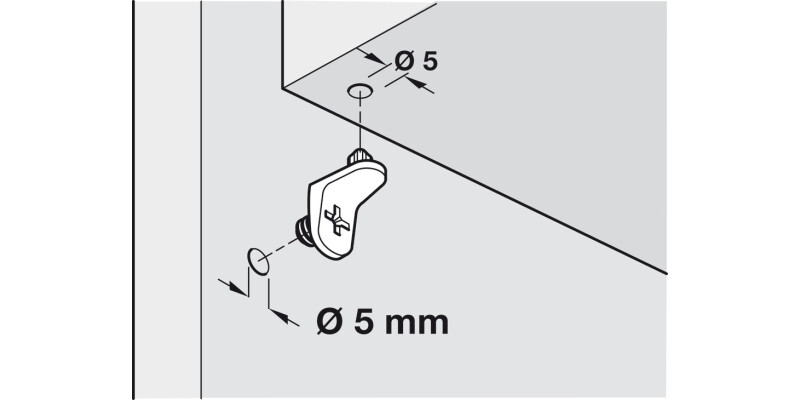

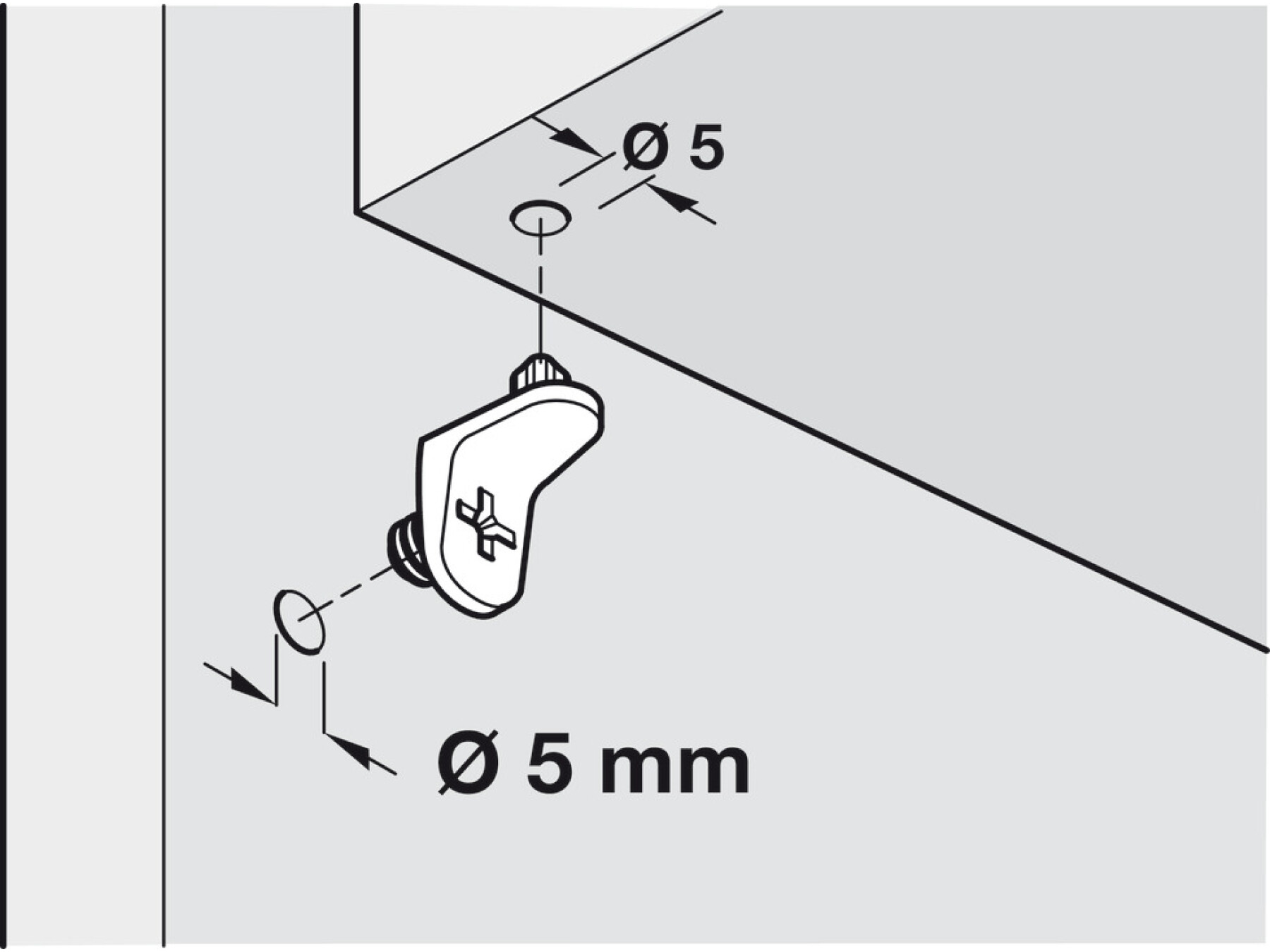

Installation
For screwing in
For drill hole Ø
5.00 mm
Distance fixing lug
10.00 mm
Pin length
7.00 mm
Shelf security
With shelf-fixing lug
Material
Zinc alloy
Load bearing capacity with 4 shelf supports
150.00 kg
